Toyota HILUX Engine Oil Cooler — Figure 1503

Toyota HILUX EPC diagram 1503, Engine Oil Cooler, with 4 images and 11 PNC and OE references.

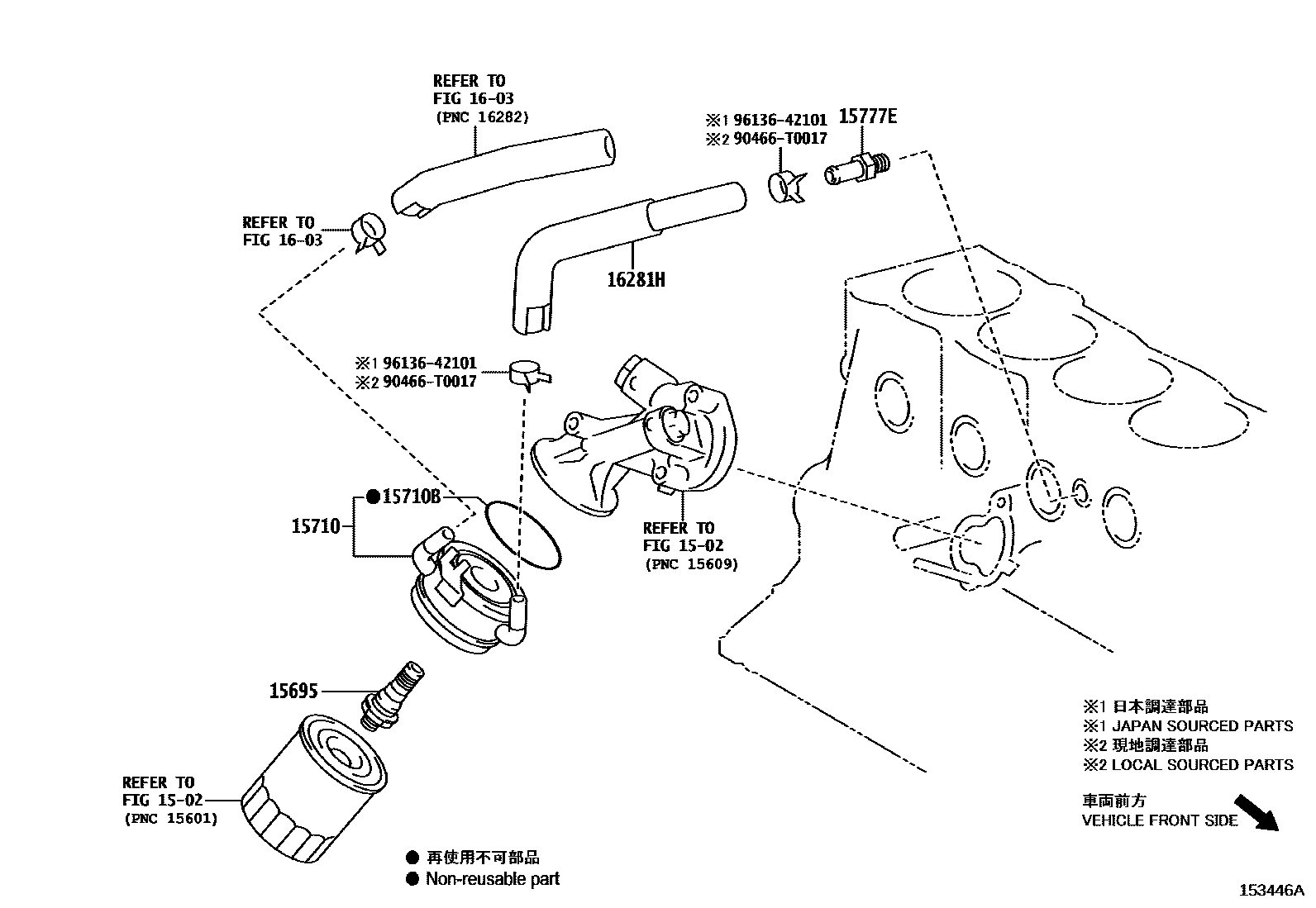

Toyota HILUX Engine Oil Cooler EPC diagram — 153446A
Engine Oil Cooler — 153446A (202108 – 999999)

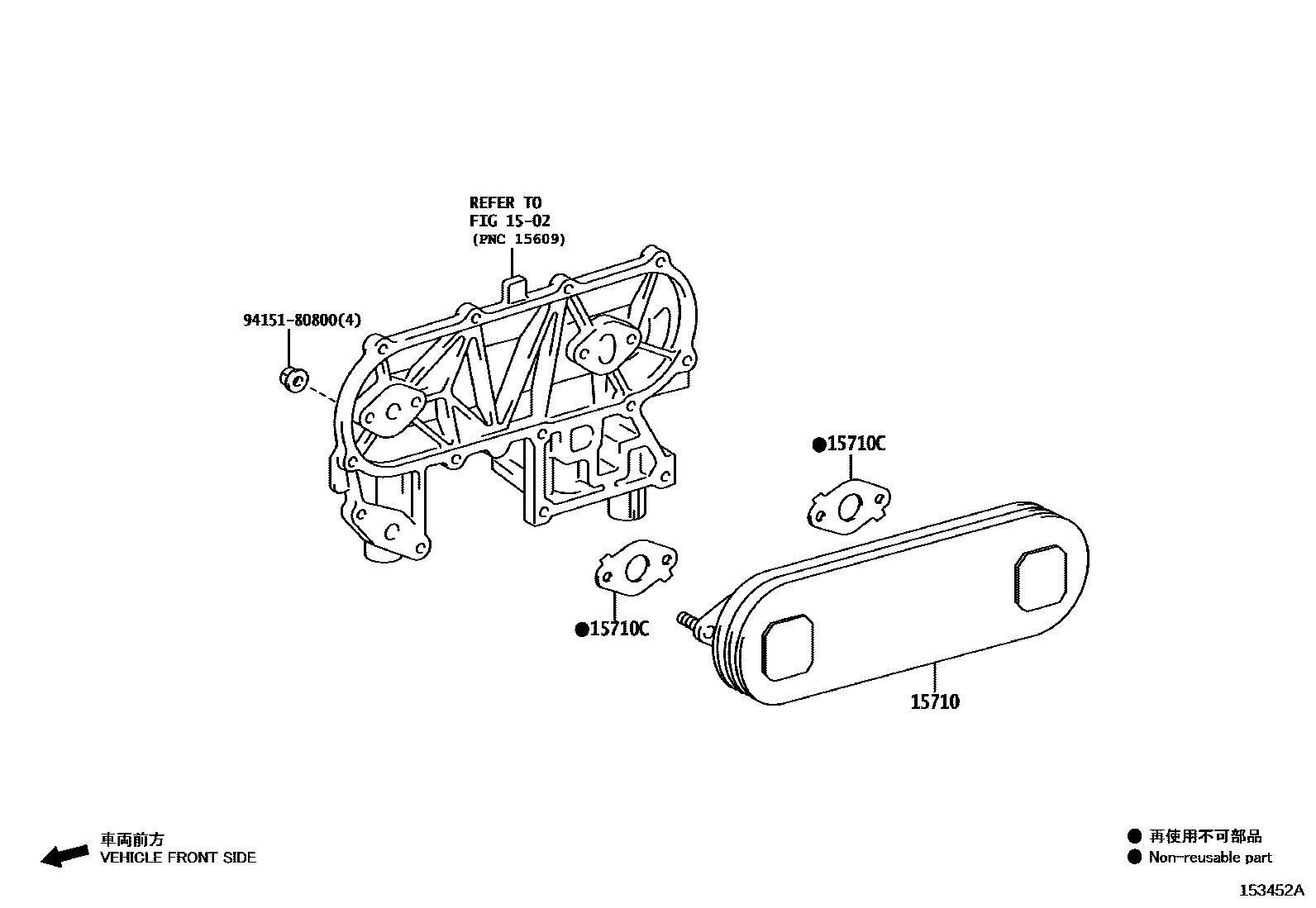

Toyota HILUX Engine Oil Cooler EPC diagram — 153452A
Engine Oil Cooler — 153452A (202109 – 999999)

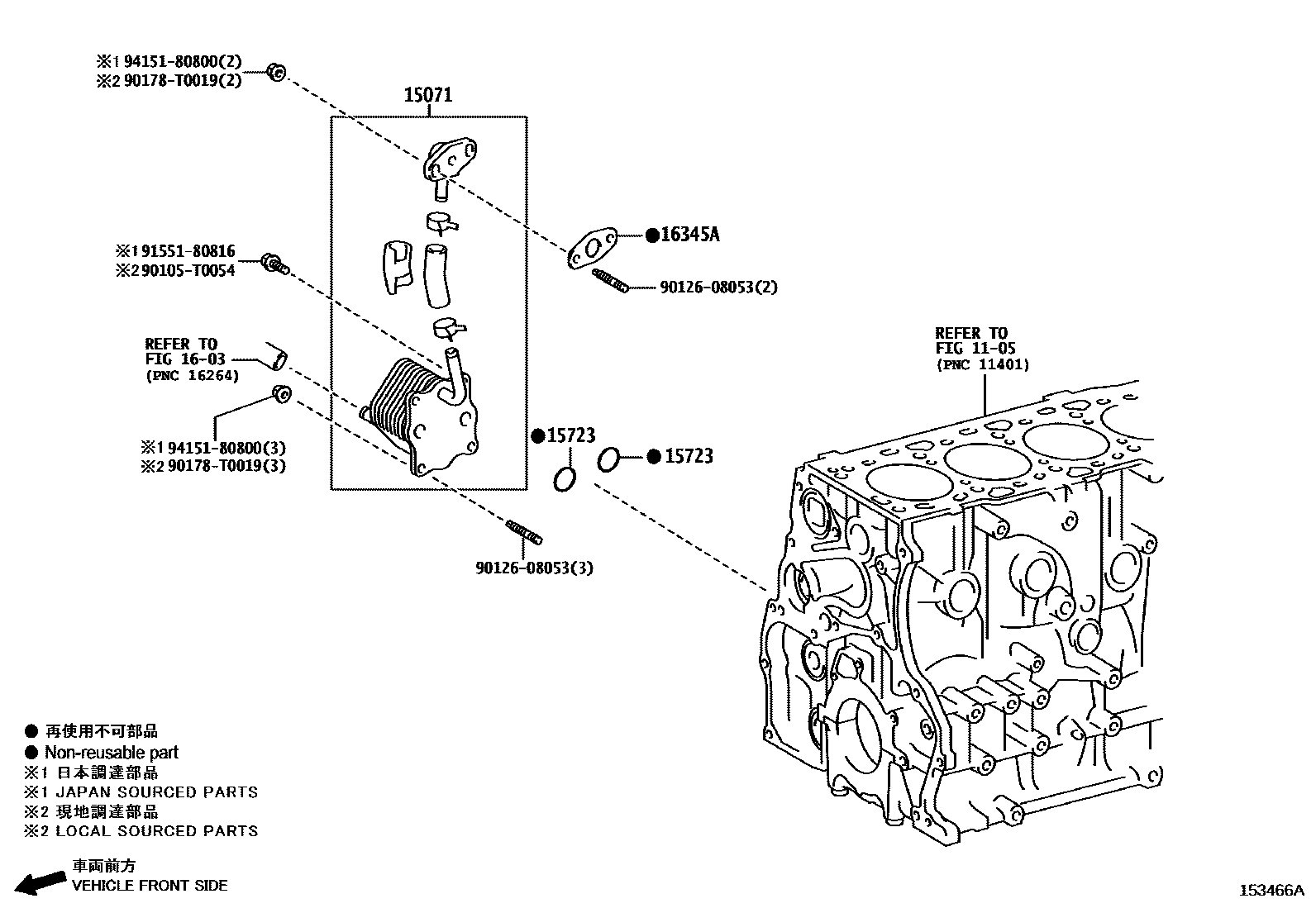

Toyota HILUX Engine Oil Cooler EPC diagram — 153466A
Engine Oil Cooler — 153466A (202108 – 999999)

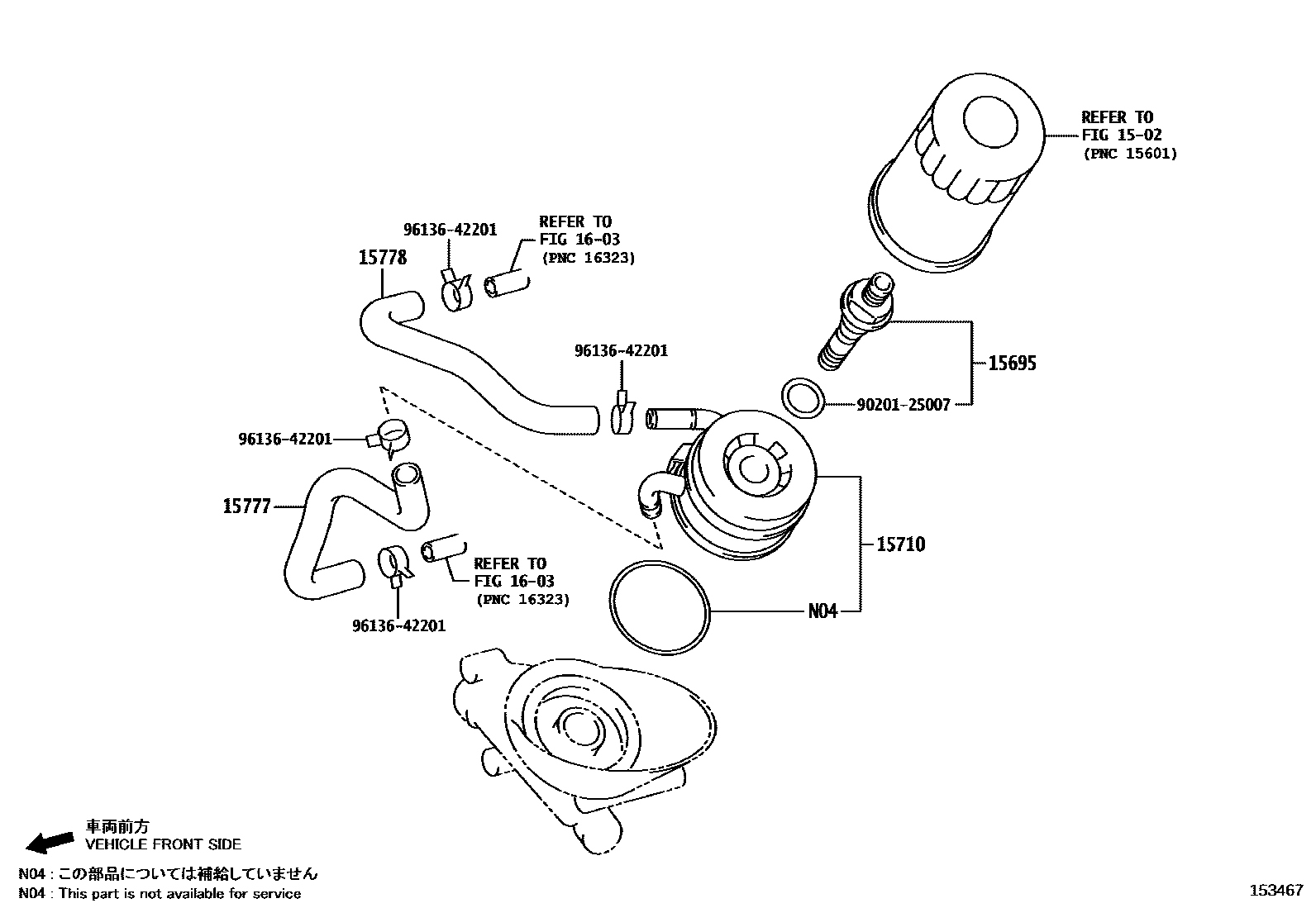

Toyota HILUX Engine Oil Cooler EPC diagram — 153467
Engine Oil Cooler — 153467 (202108 – 999999)

PNC and OE references

PNCPart nameOE numbers
15071JEU REFROIDISSEUR, HUILE MOTEUR15071-08010 · 15071-0E010 · 15071-11010
15695Oil cooler joint bolts15695-22010 · 15726-75010
15710Oil cooler assembly15710-31010 · 15710-54050 · 15710-75050
15710BO-ring (for oil cooler)15785-75010
15710CGasket (for oil cooler)15785-54010
15723O-ring90301-22007 · 90301-T0010
15777oil cooler hose15777-0P020 · 15777-31010
15777EConnector90404-53001
15778No. 2 oil cooler hose15778-0P020 · 15778-31010
16281HHOSE, WATER BY-PASS, NO.416281-0C011
16345AJOINT DE TUYAU DE SORTIE D'EAU16345-0E010 · 16345-0E020 · 16345-11010
