Toyota HILUX battery holder — Figure 7454

Toyota HILUX EPC diagram 7454, battery holder, with 1 images and 5 PNC and OE references.

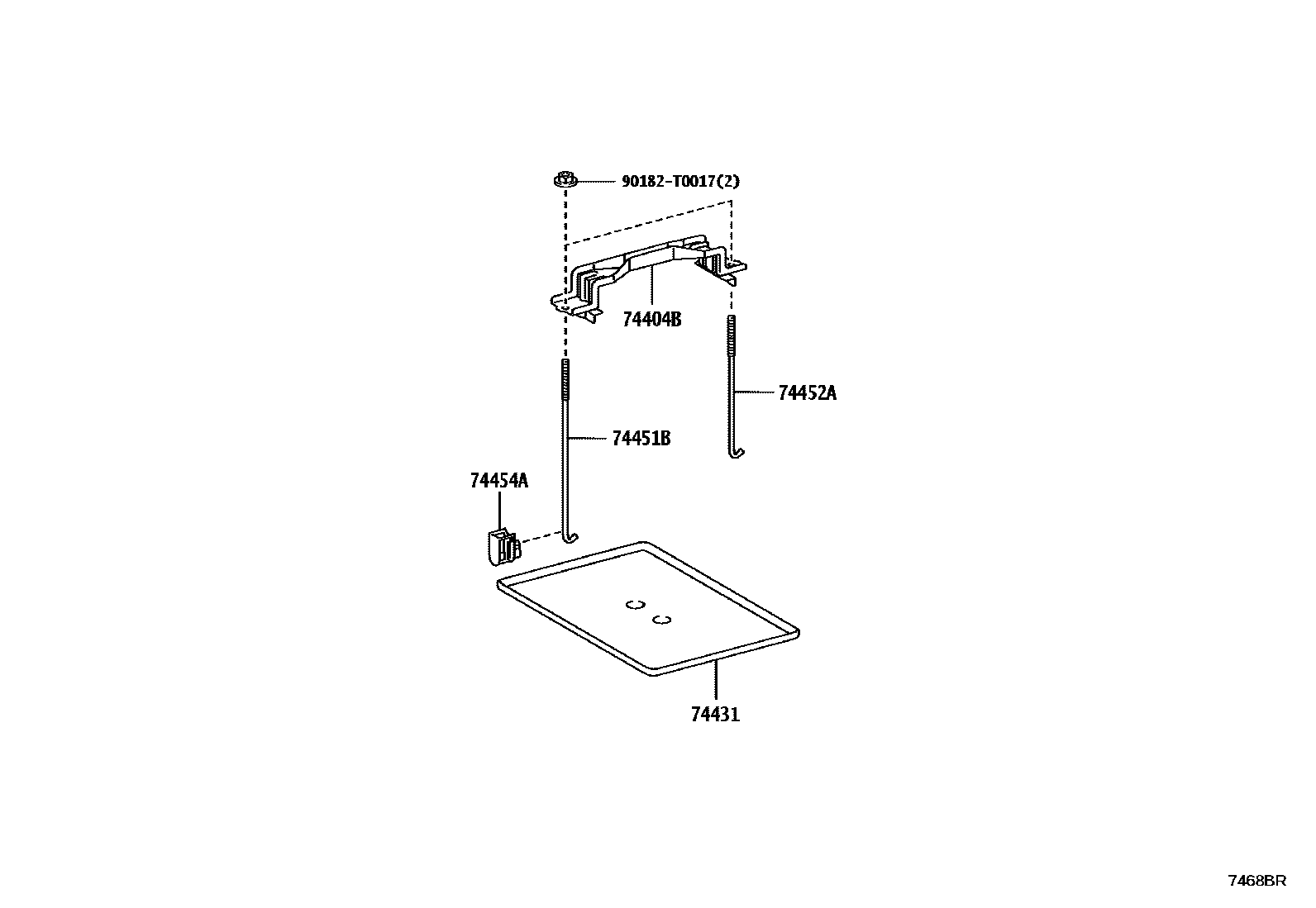

Toyota HILUX battery holder EPC diagram — 7468BR
battery holder — 7468BR (202408 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404BBattery clip sub-assembly74404-KK010 · 74404-KK080
74431battery tray74431-KK010 · 74431-KK020 · 74431-KK030
74451BBattery clamp bolt74451-KK010
74452ANo. 2 battery clamp bolt74451-KK020
74454ASUPPORT, GOUJON BATTERIE74454-0K010
