Toyota HILUX seat belt — Figure 7152

Toyota HILUX EPC diagram 7152, seat belt, with 5 images and 2 PNC and OE references.

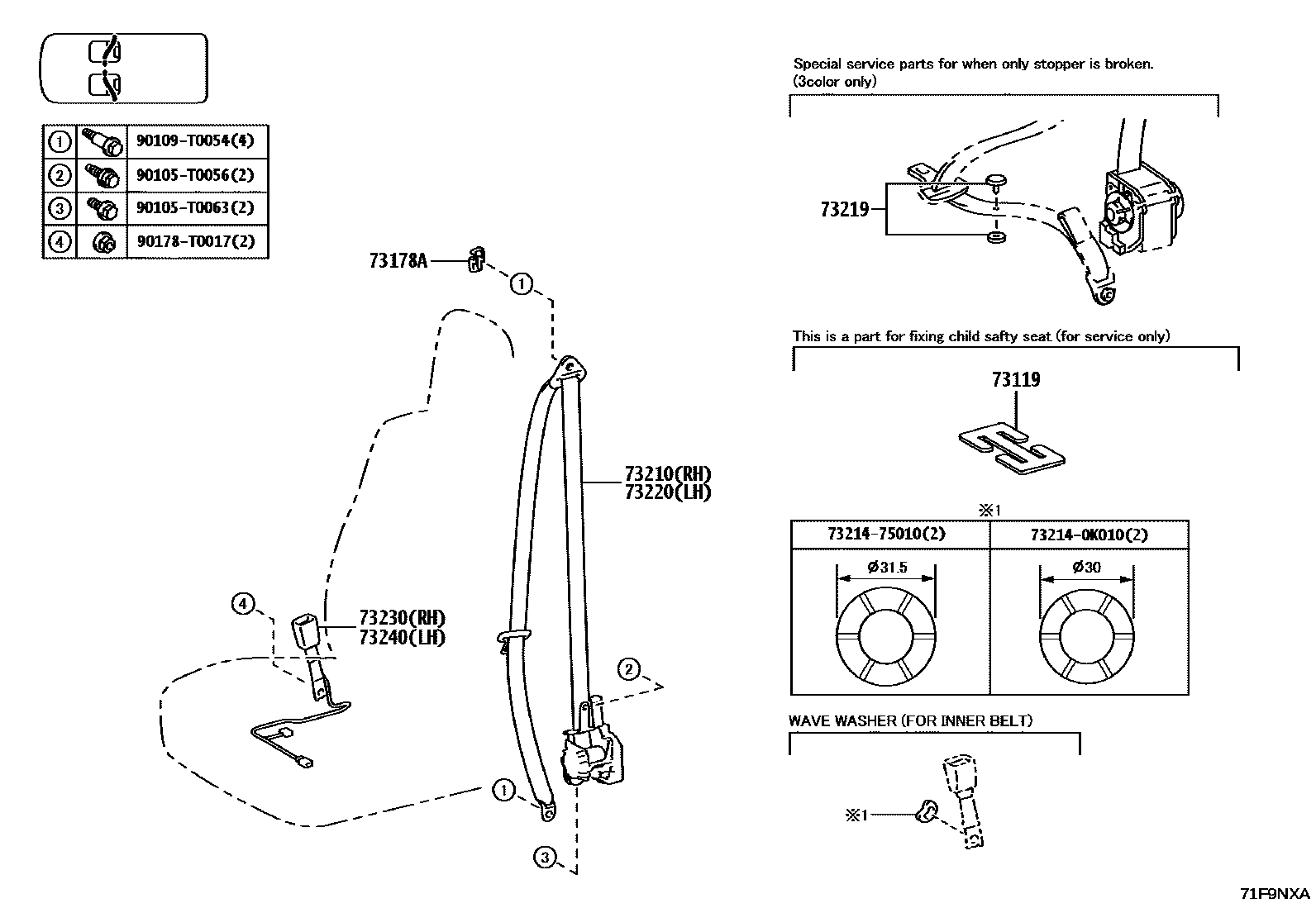

Toyota HILUX seat belt EPC diagram — 71F9NXA — seat belt — 71F9NXA (202408 – 999999)

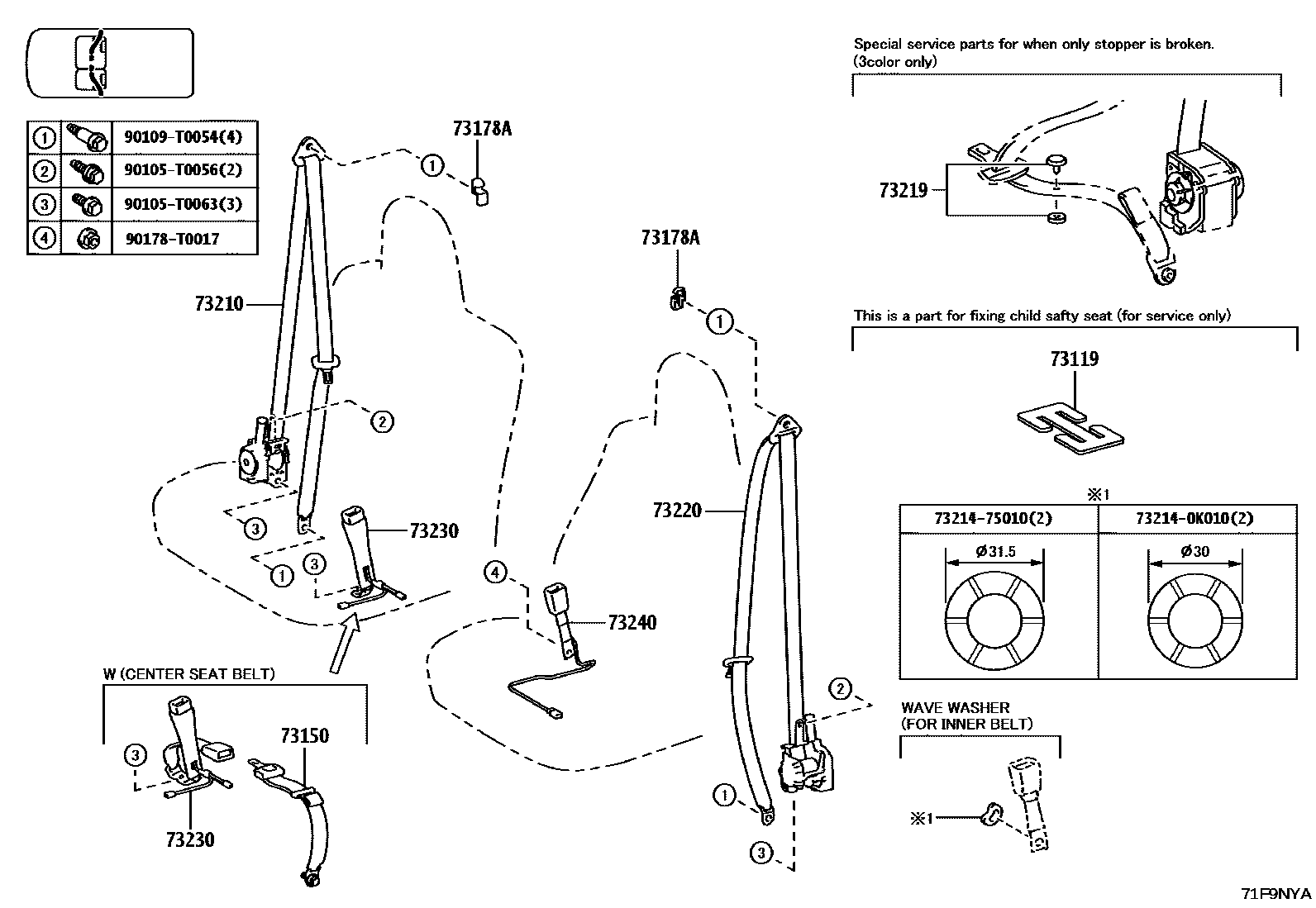

Toyota HILUX seat belt EPC diagram — 71F9NYA — seat belt — 71F9NYA (202408 – 999999)

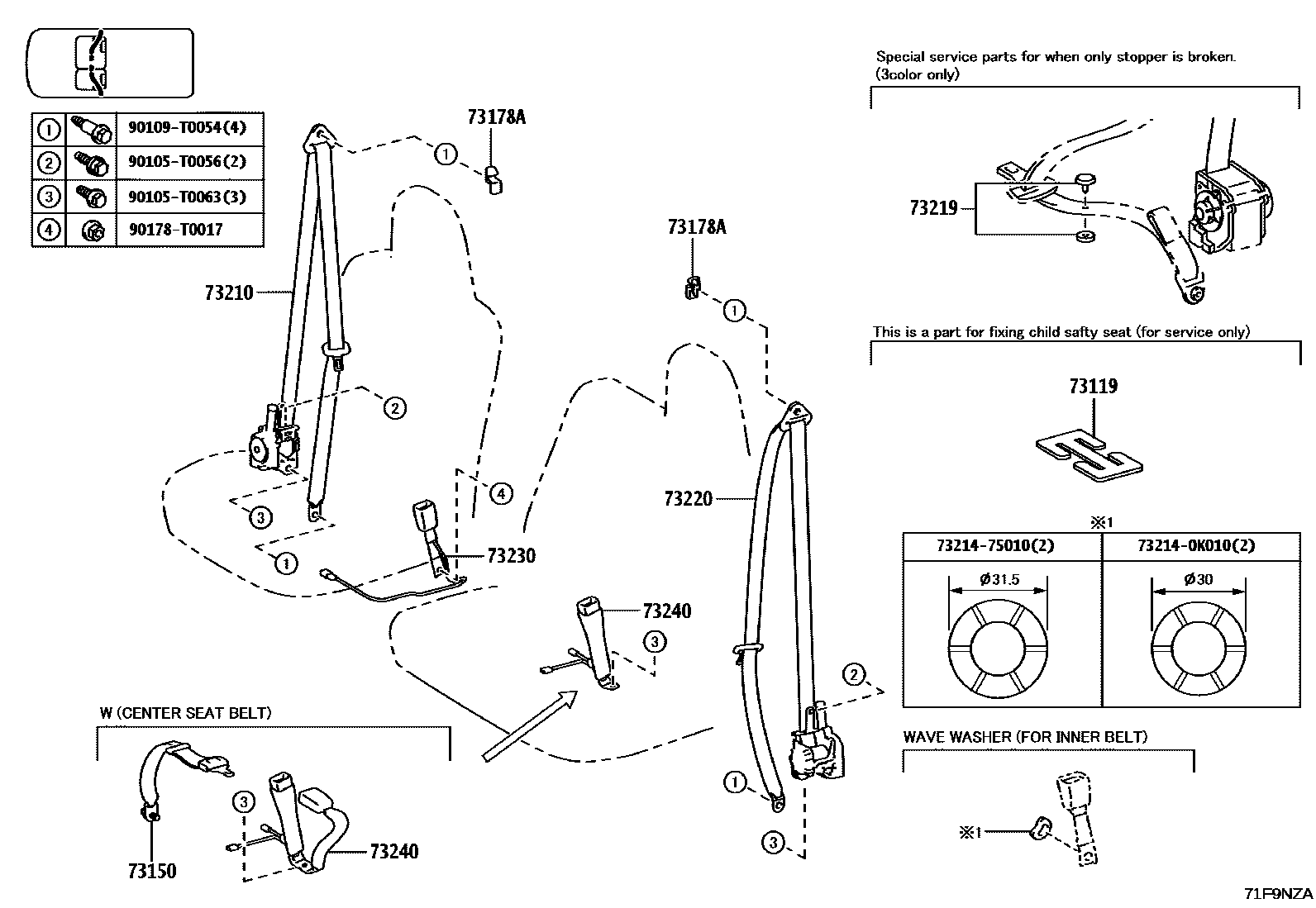

Toyota HILUX seat belt EPC diagram — 71F9NZA — seat belt — 71F9NZA (202408 – 999999)

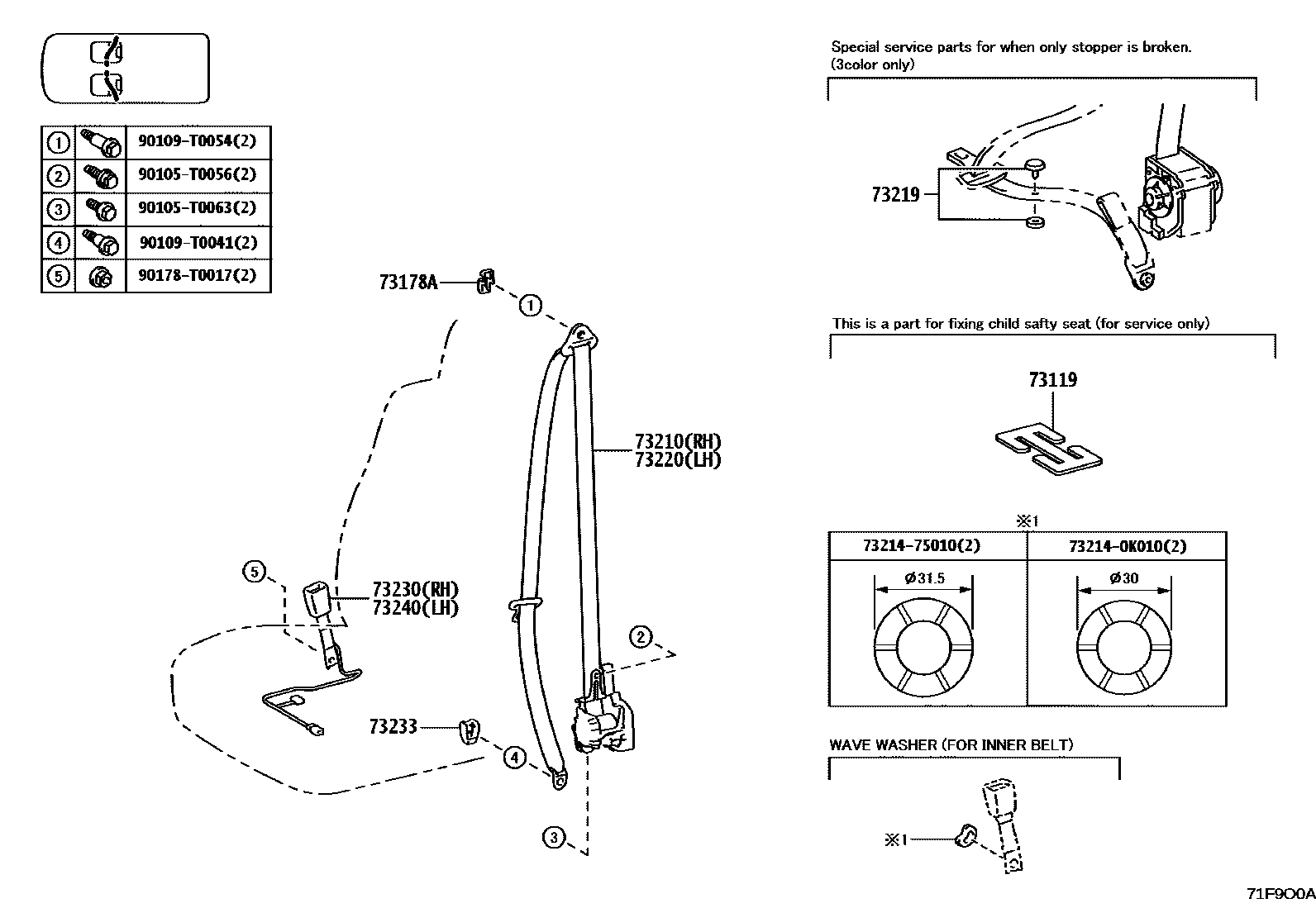

Toyota HILUX seat belt EPC diagram — 71F9O0A — seat belt — 71F9O0A (202408 – 999999)

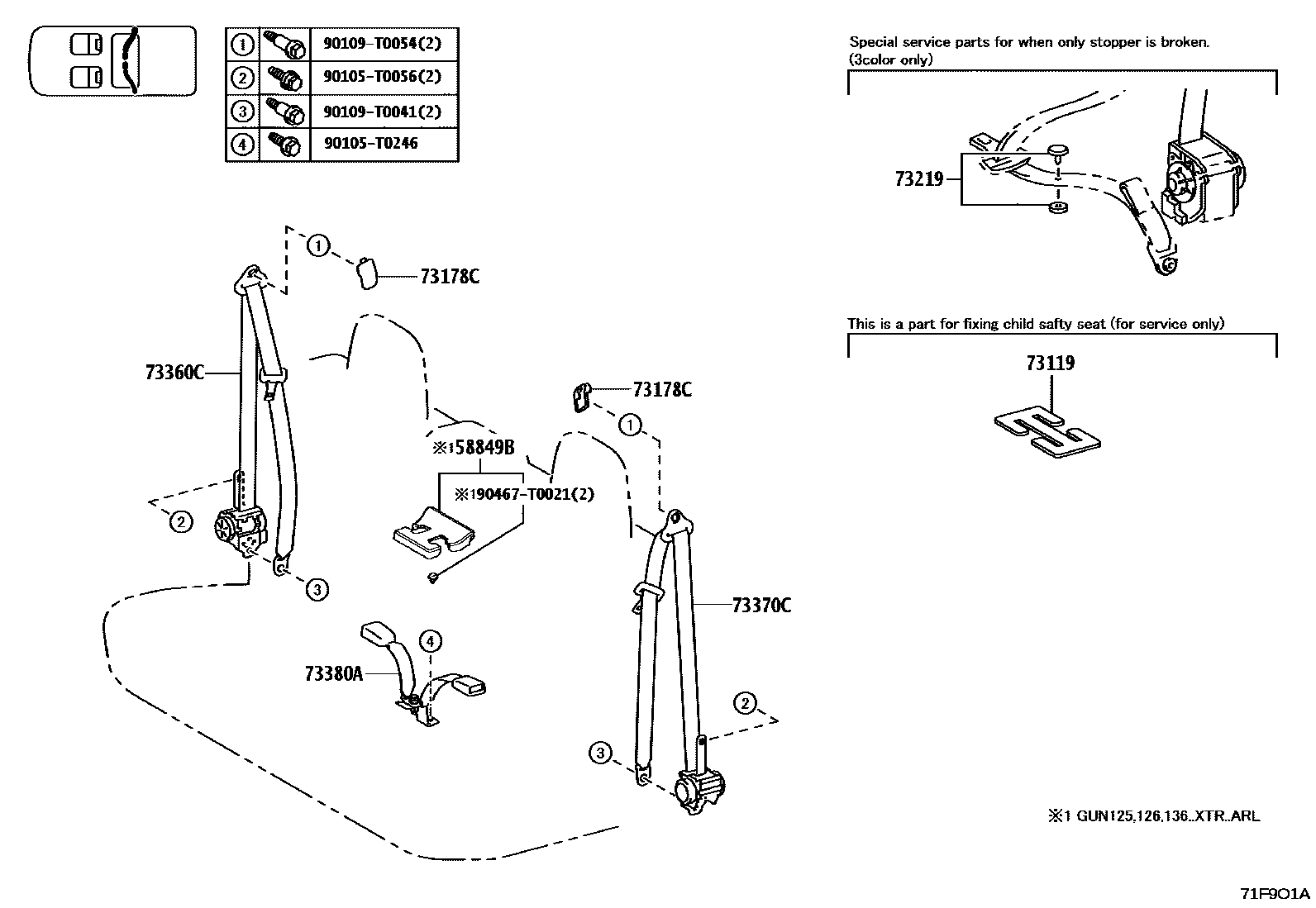

Toyota HILUX seat belt EPC diagram — 71F9O1A — seat belt — 71F9O1A (202408 – 999999)

PNC and OE references

PNC	Part name	OE numbers
73119	seat belt clip	73119-22010
73219	Tongue plate stop	73219-33010 · 73219-33020 · 73219-33030
