Toyota HILUX 座椅和座椅滑轨 — Figure 7151

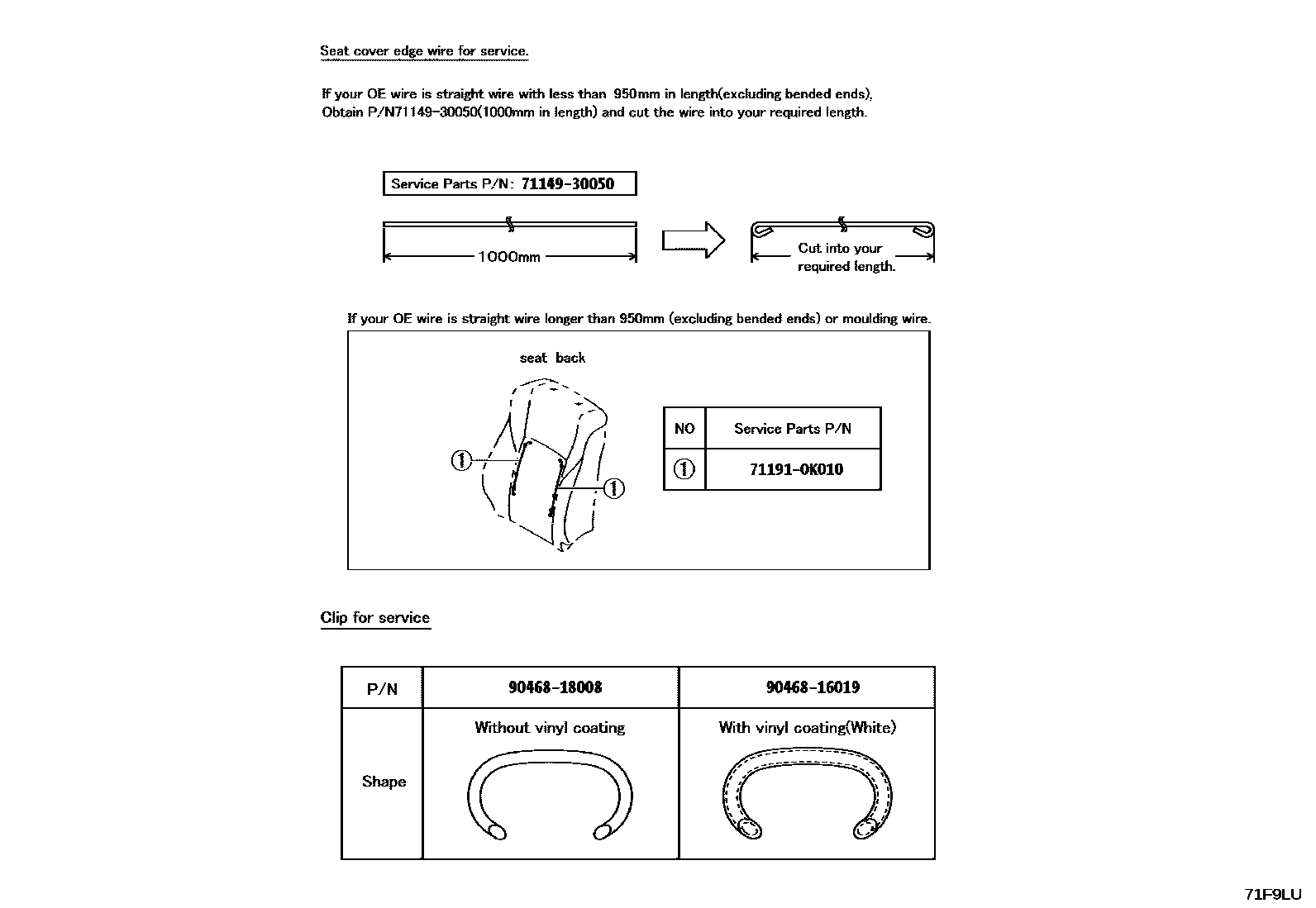

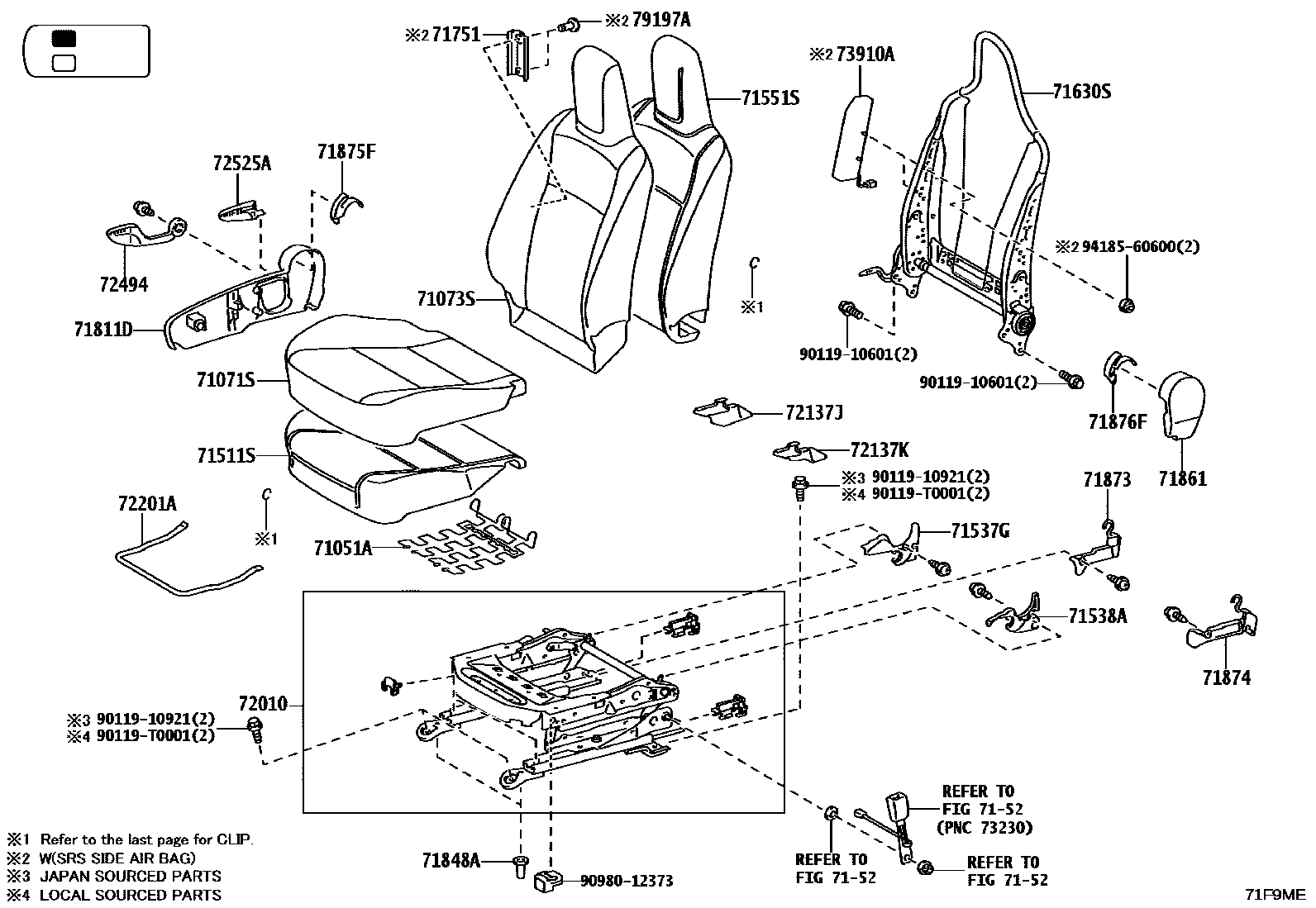

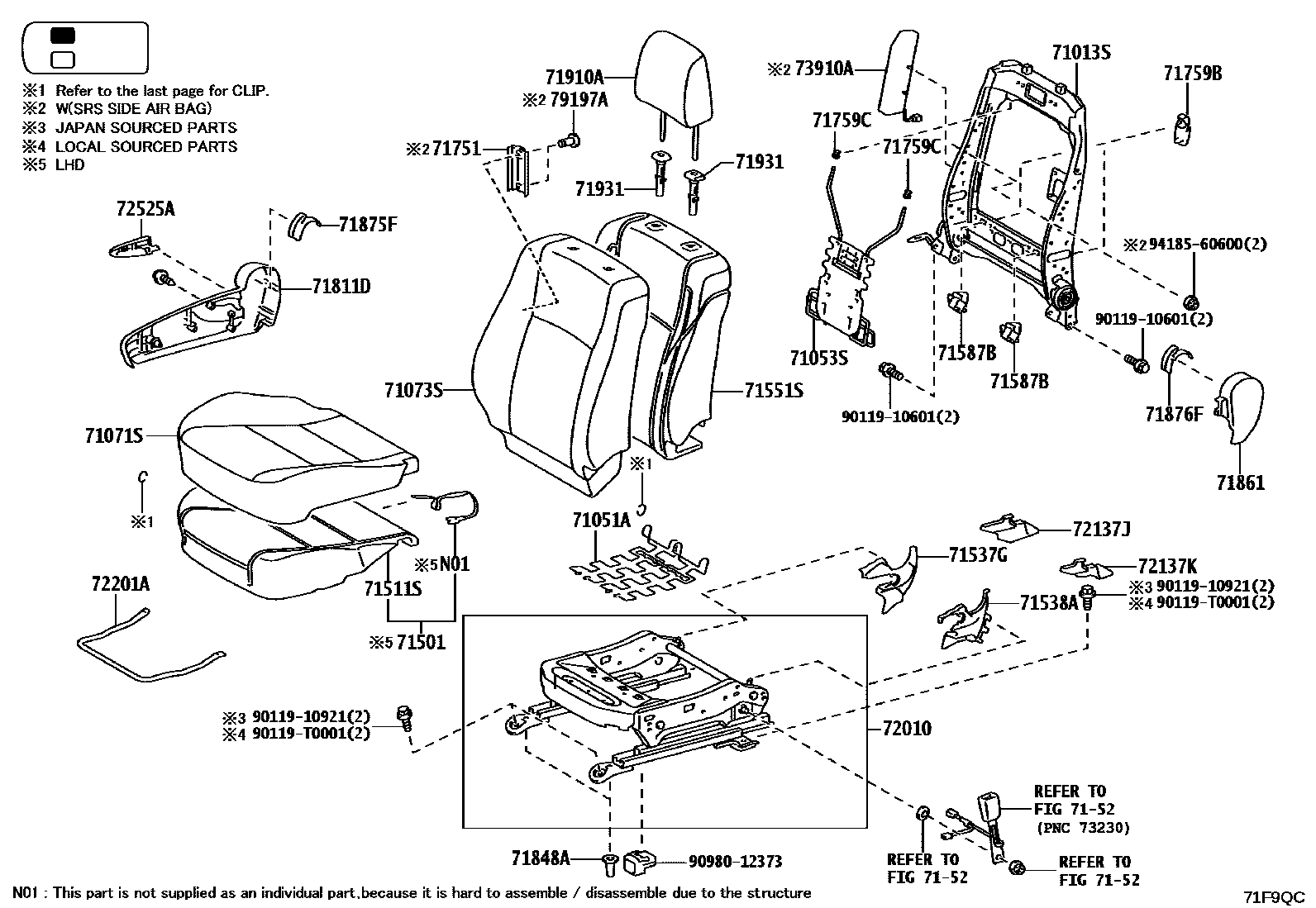

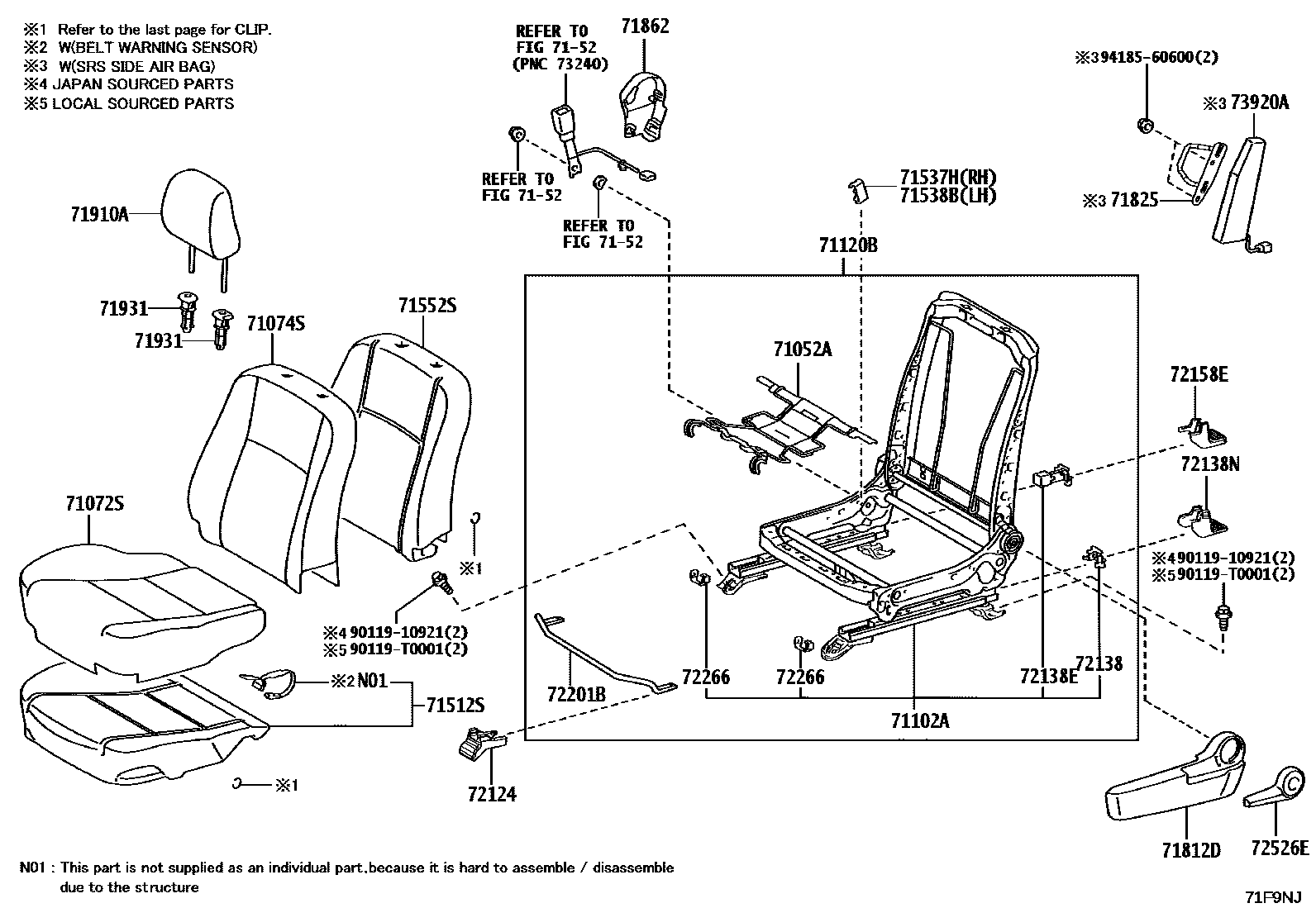

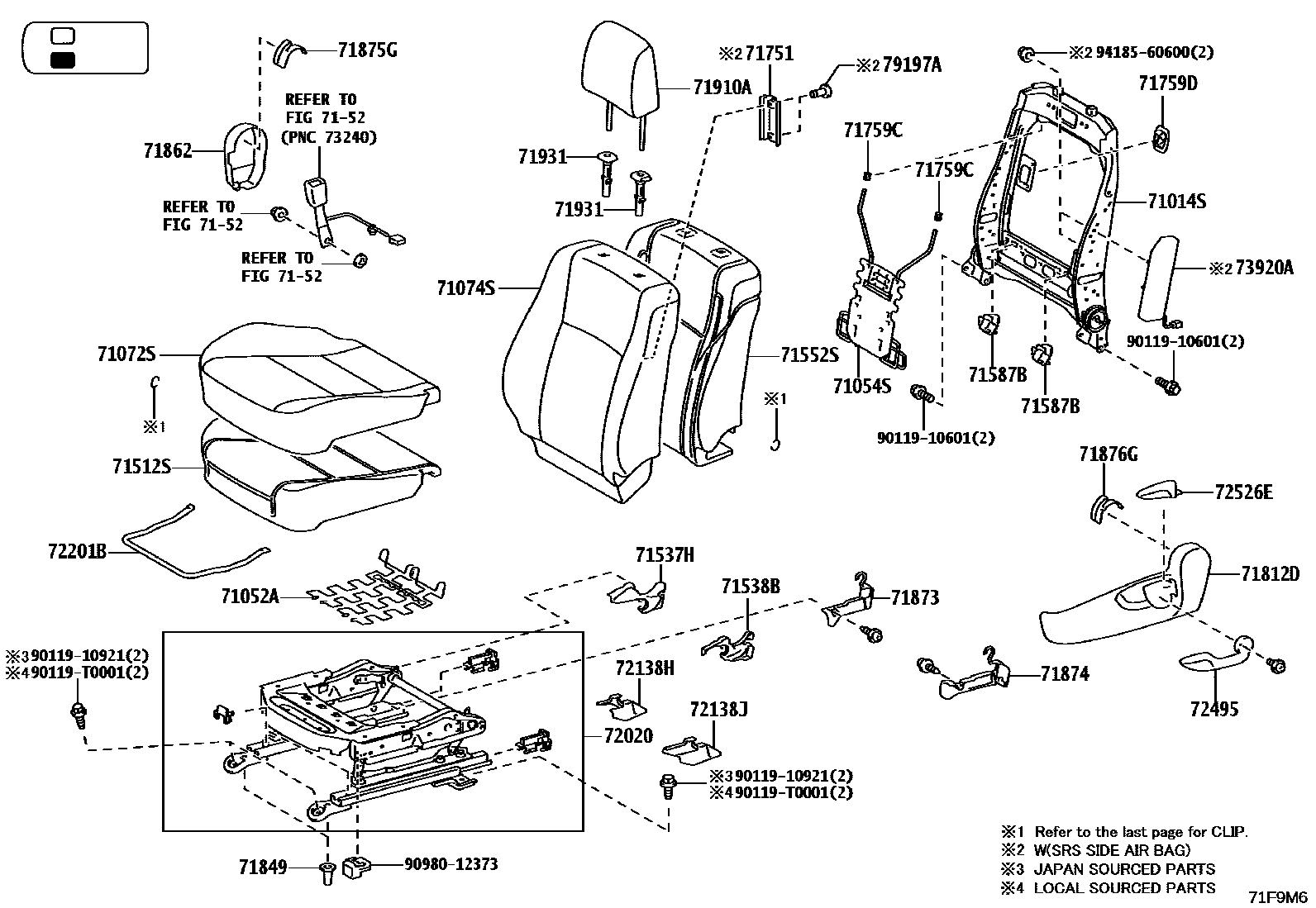

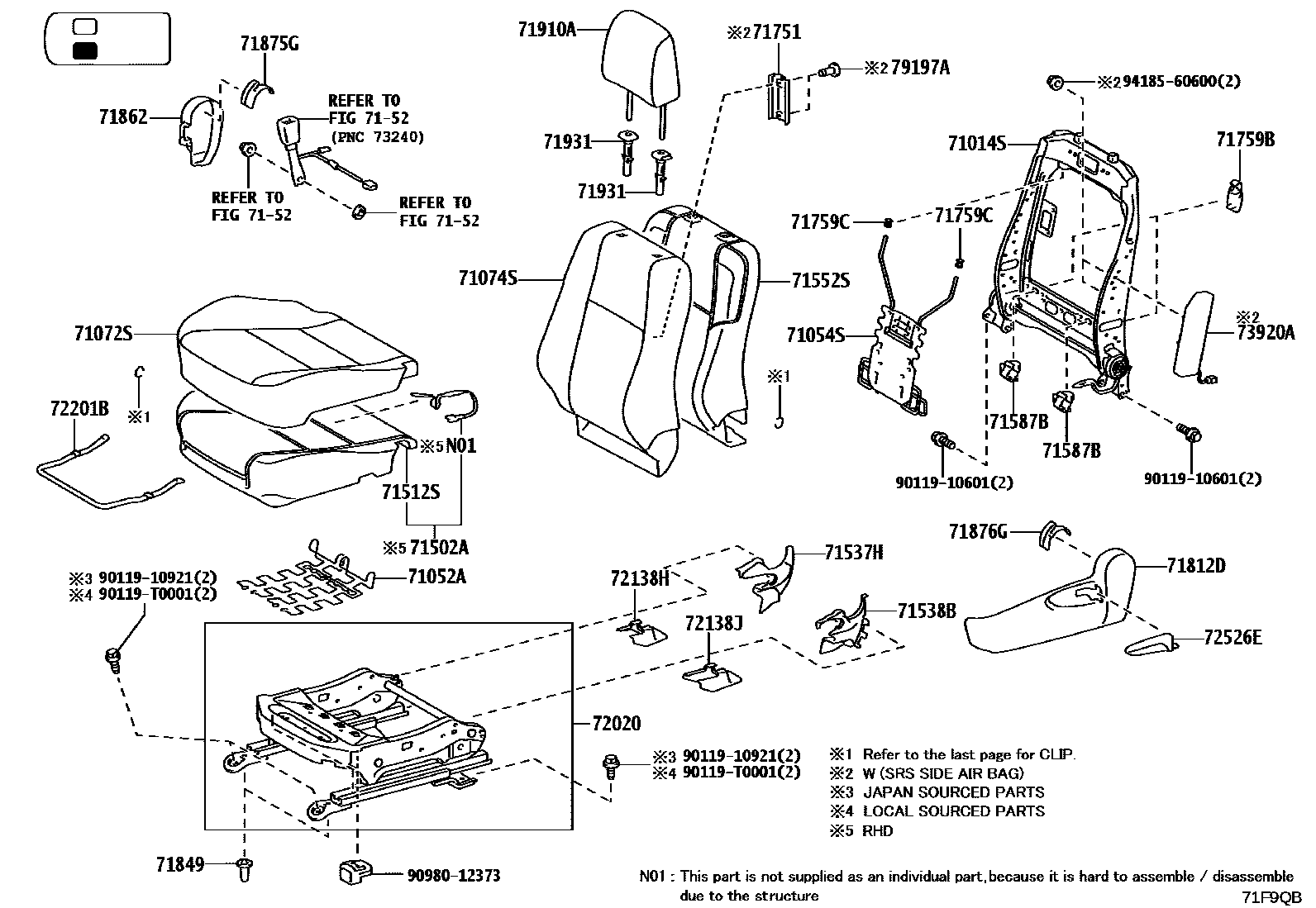

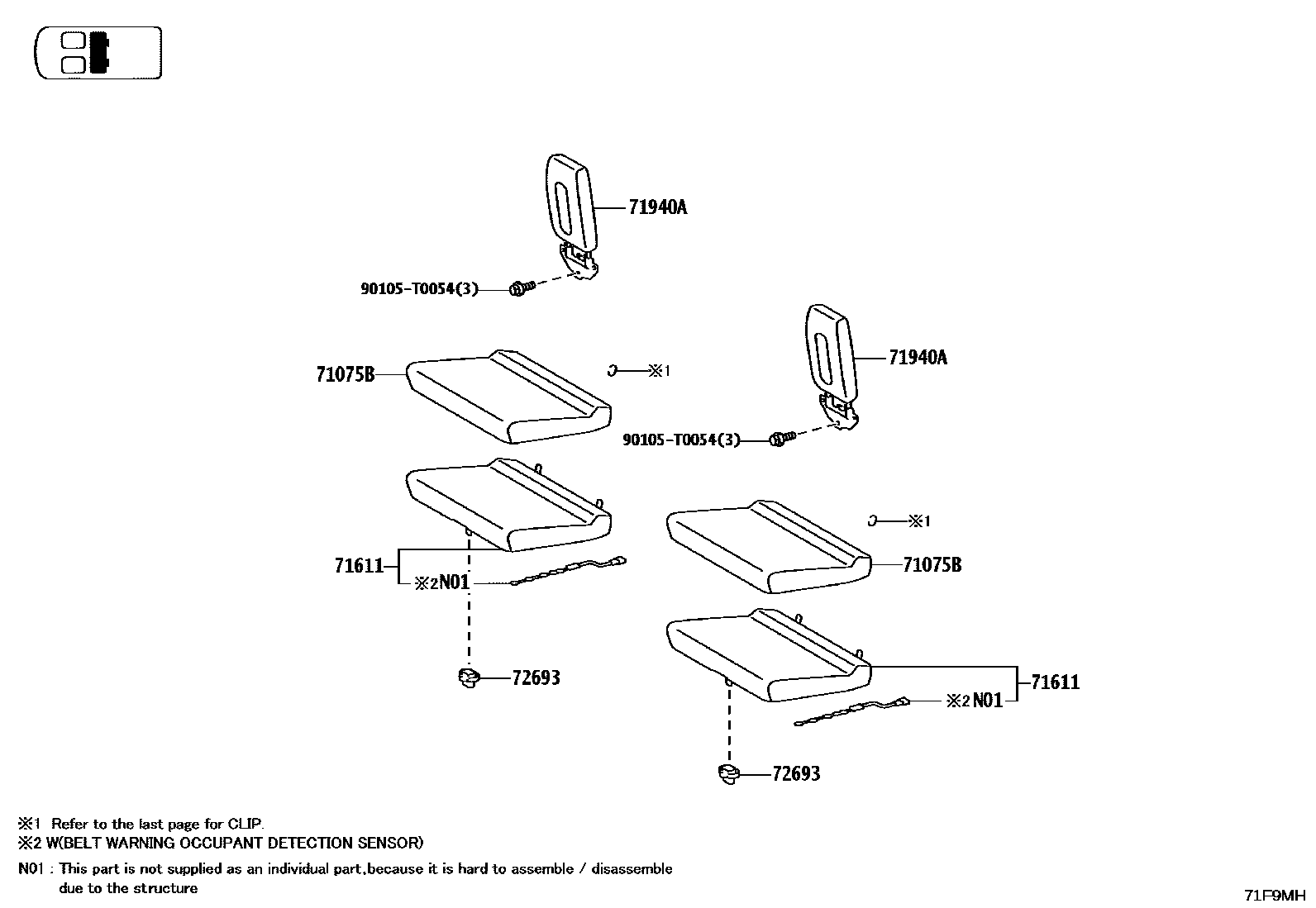

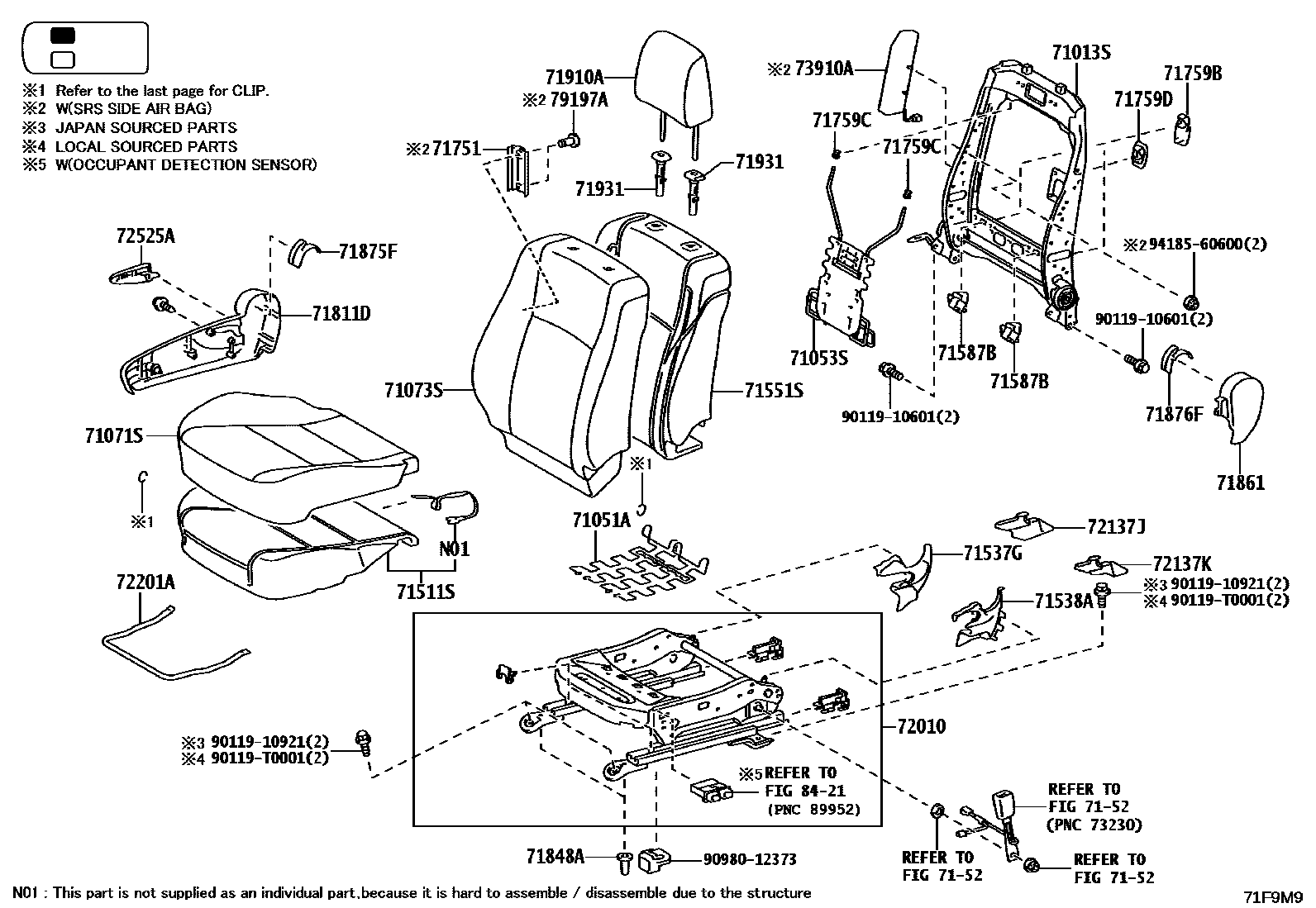

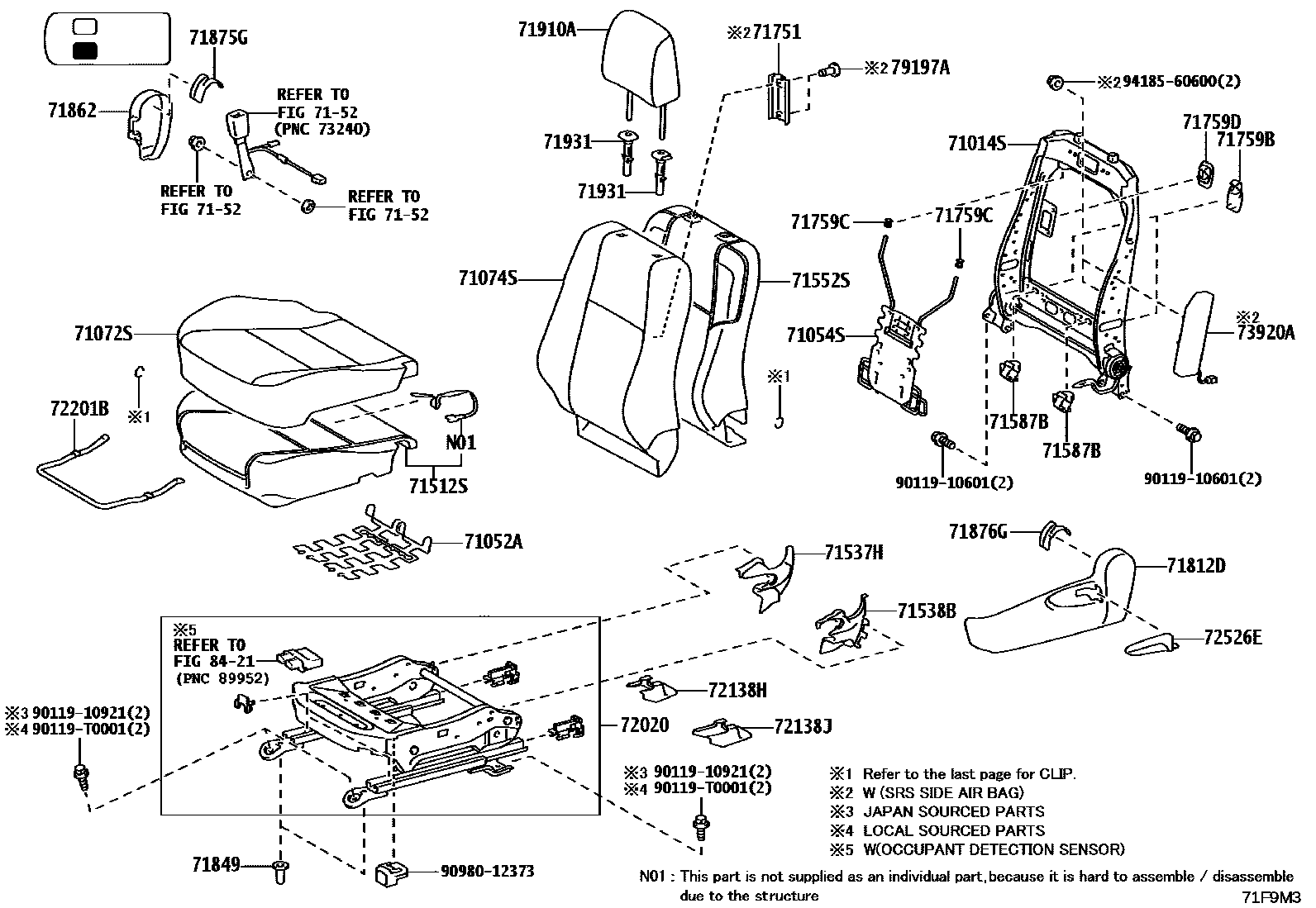

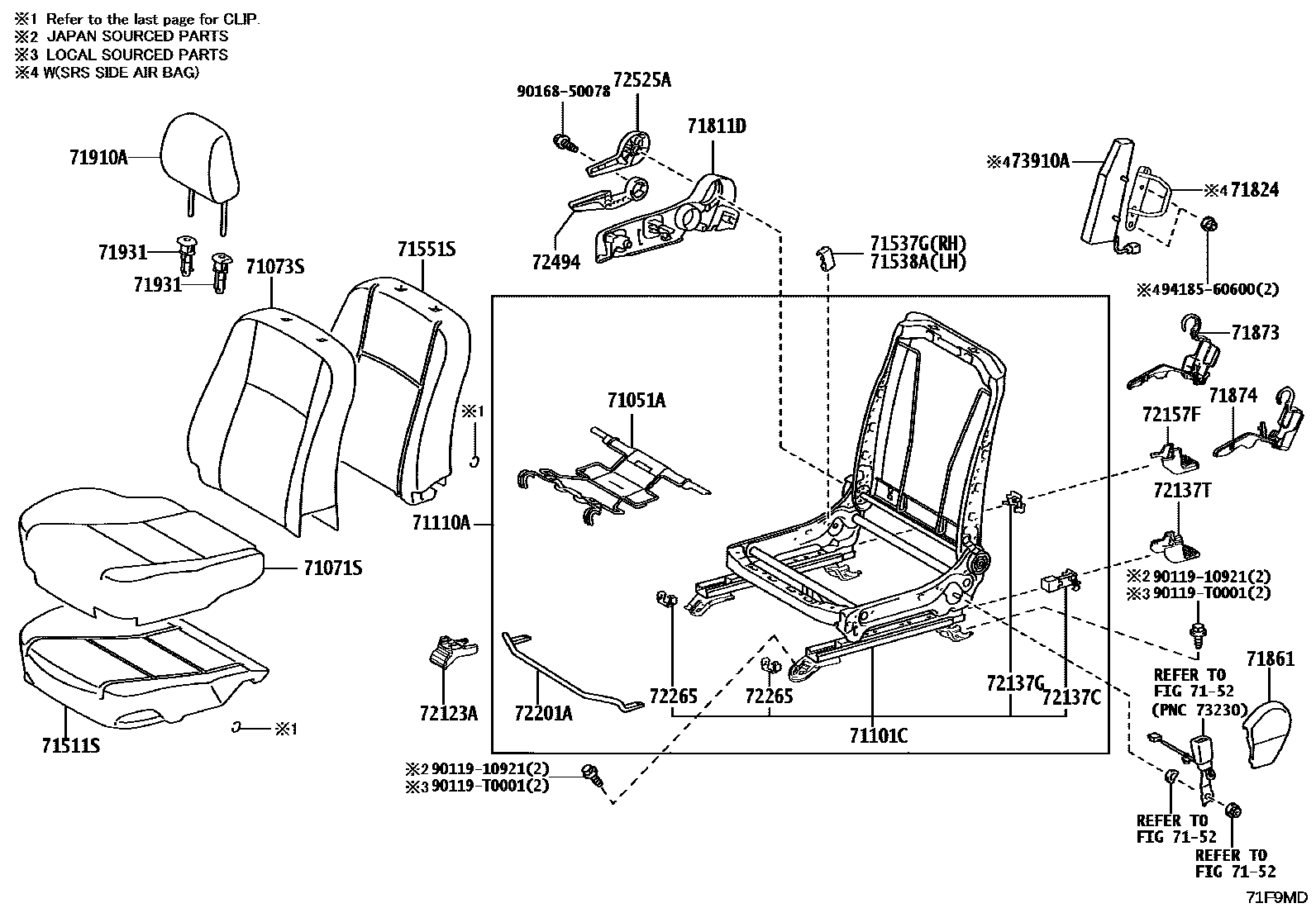

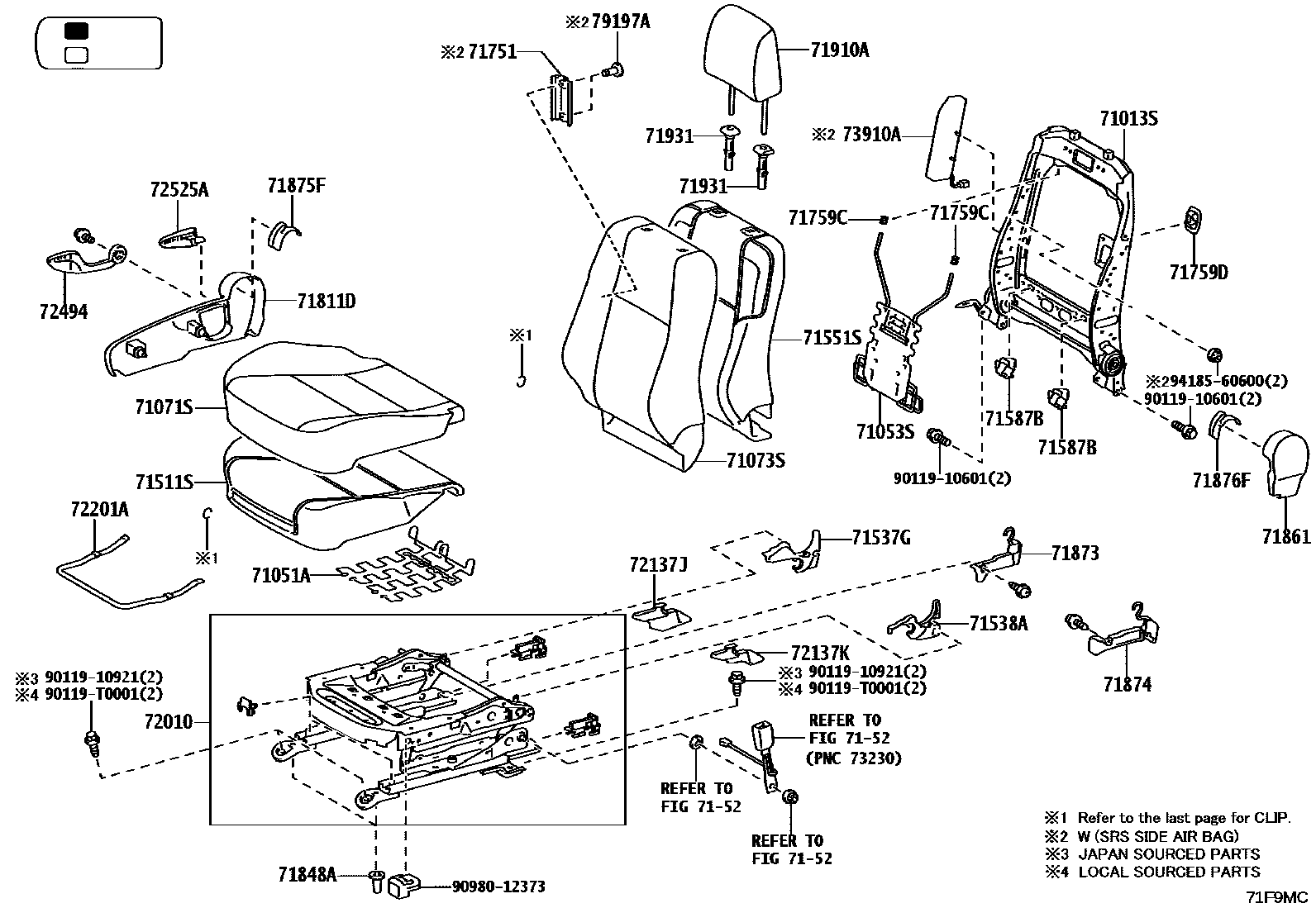

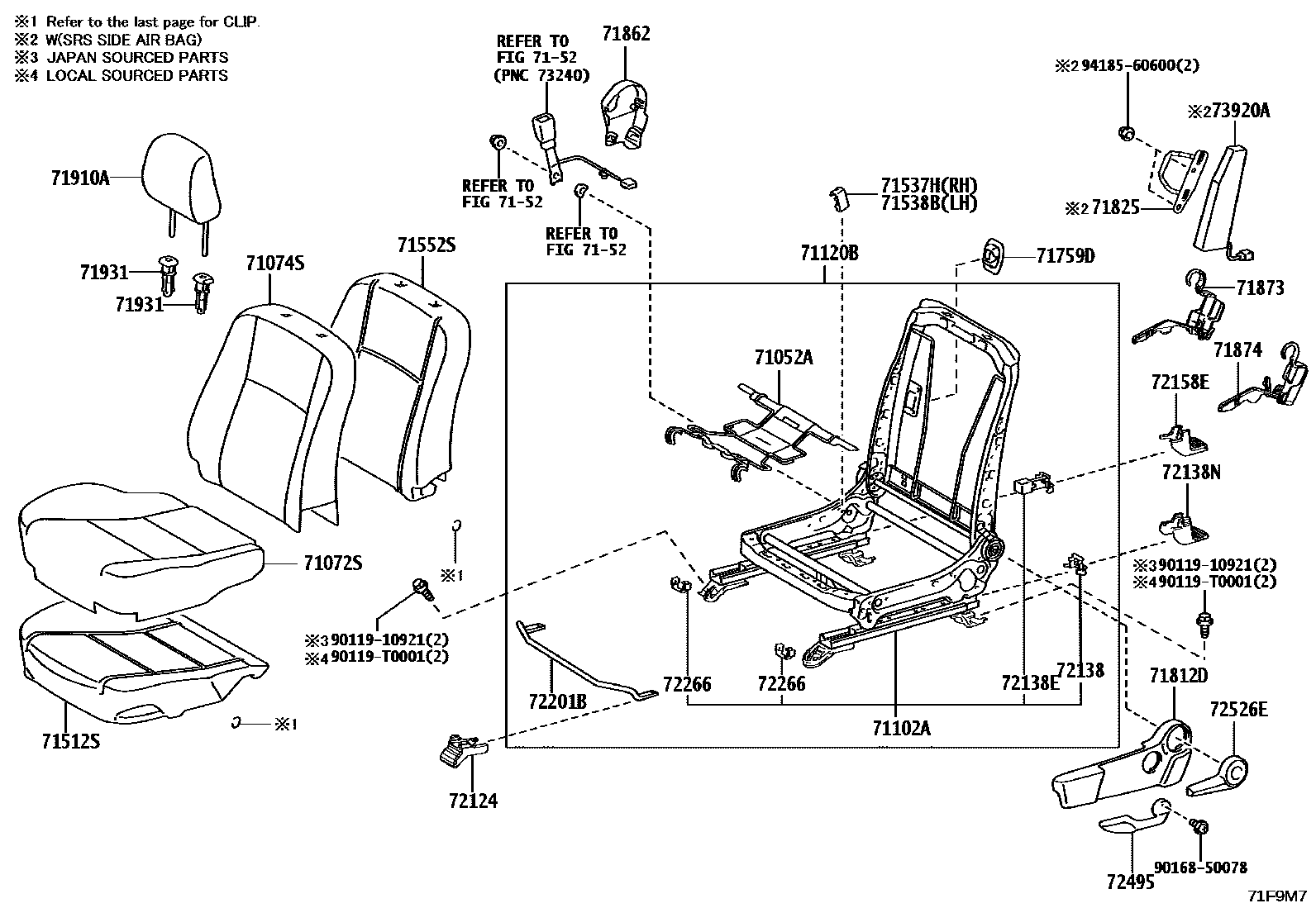

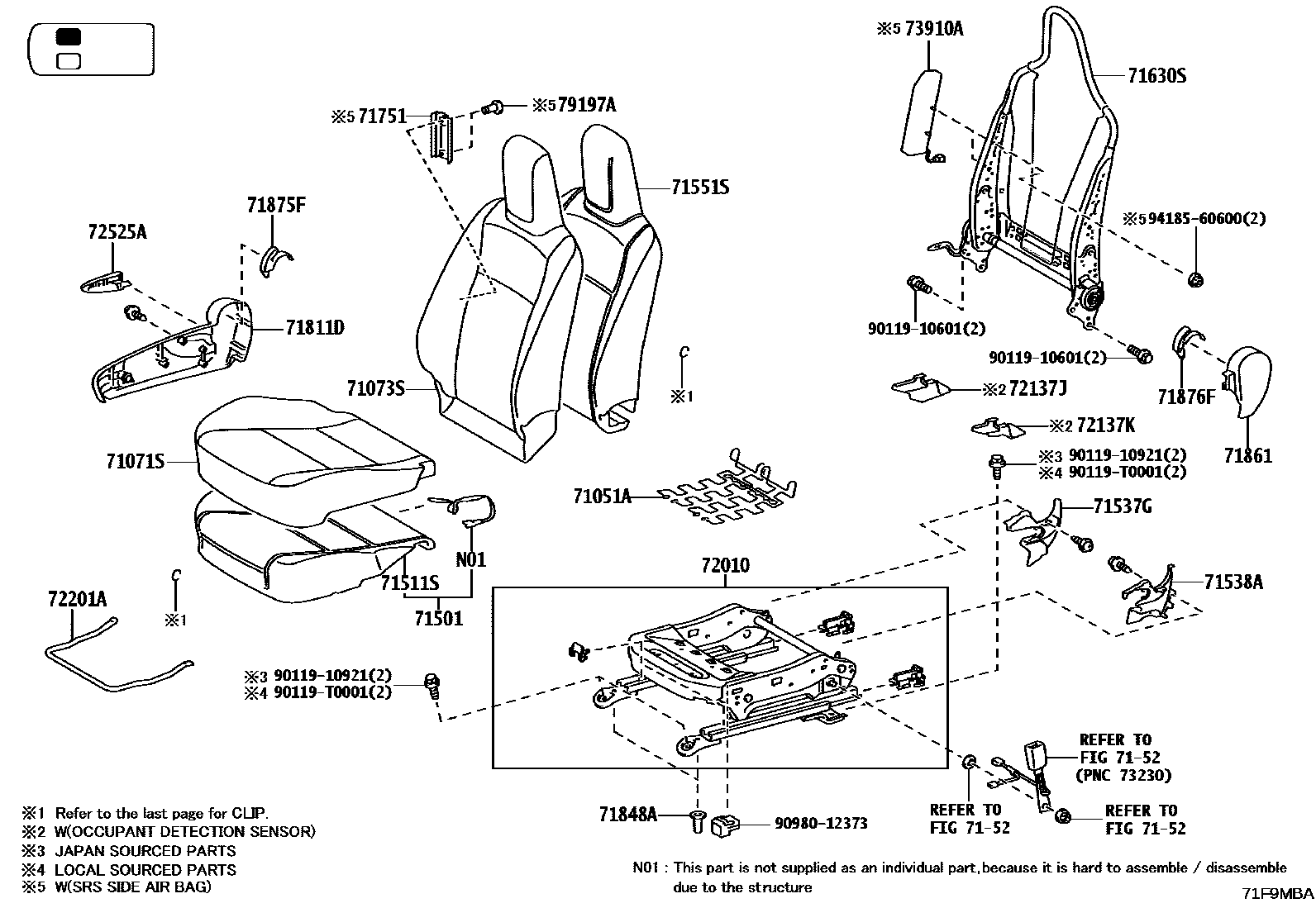

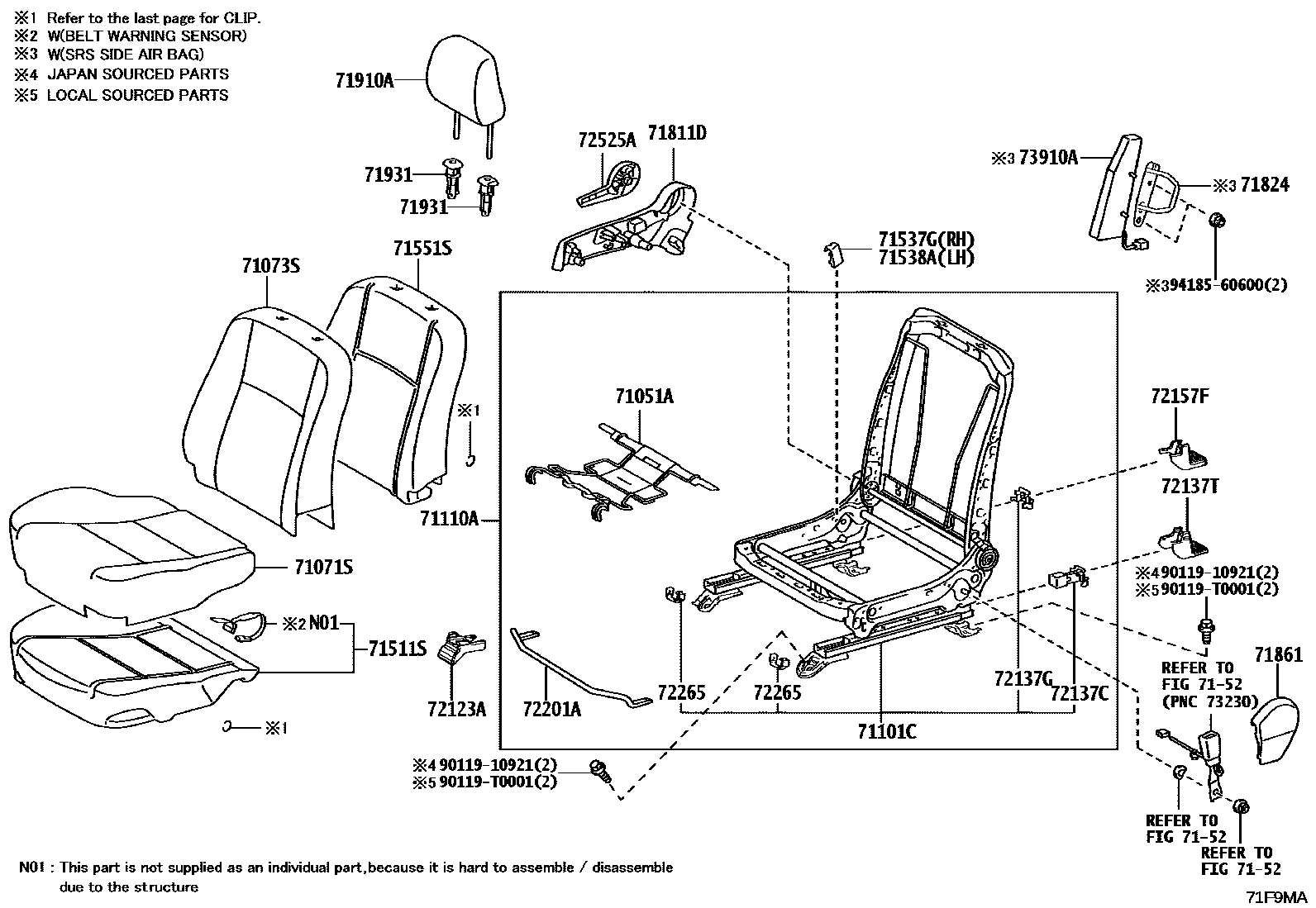

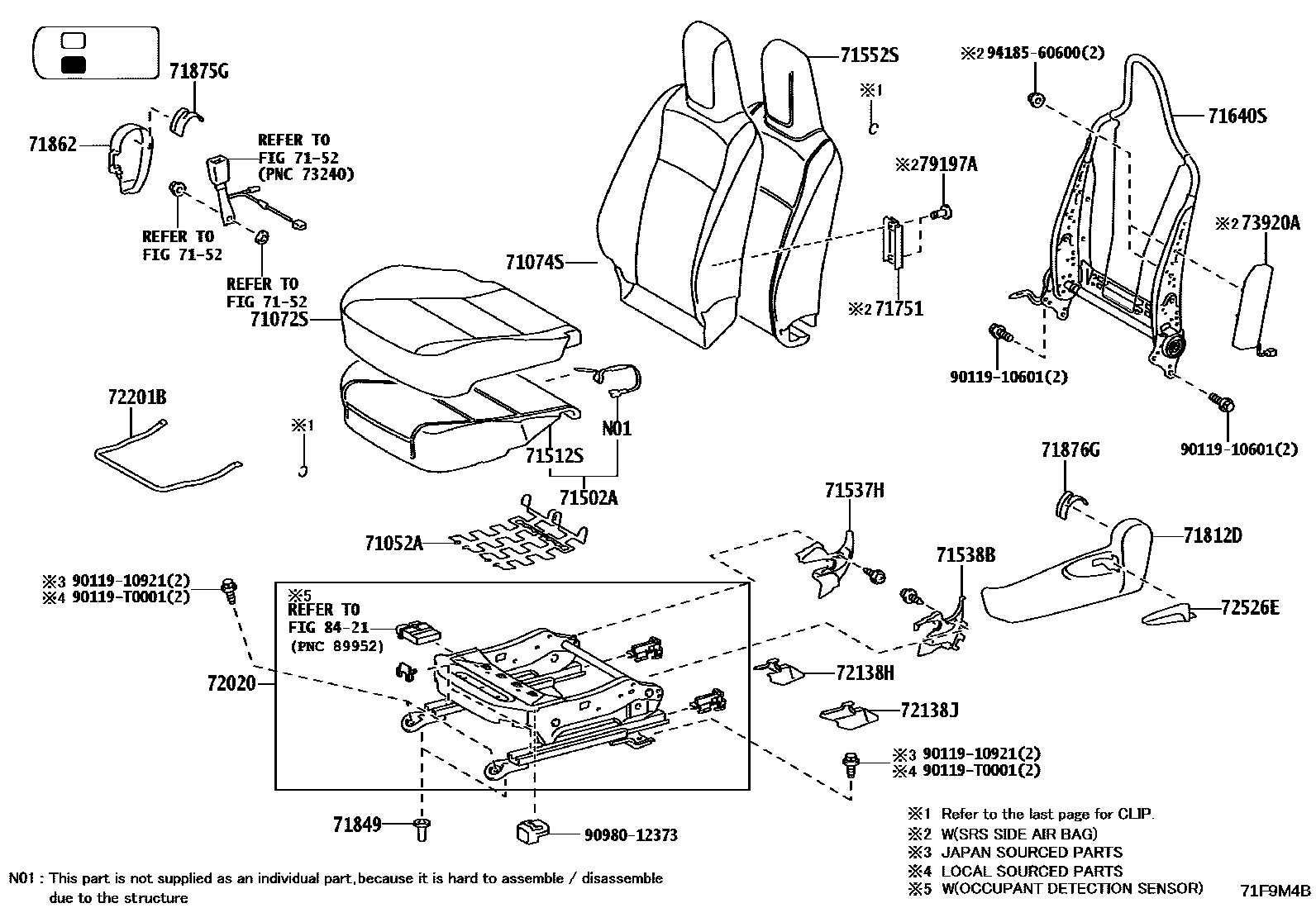

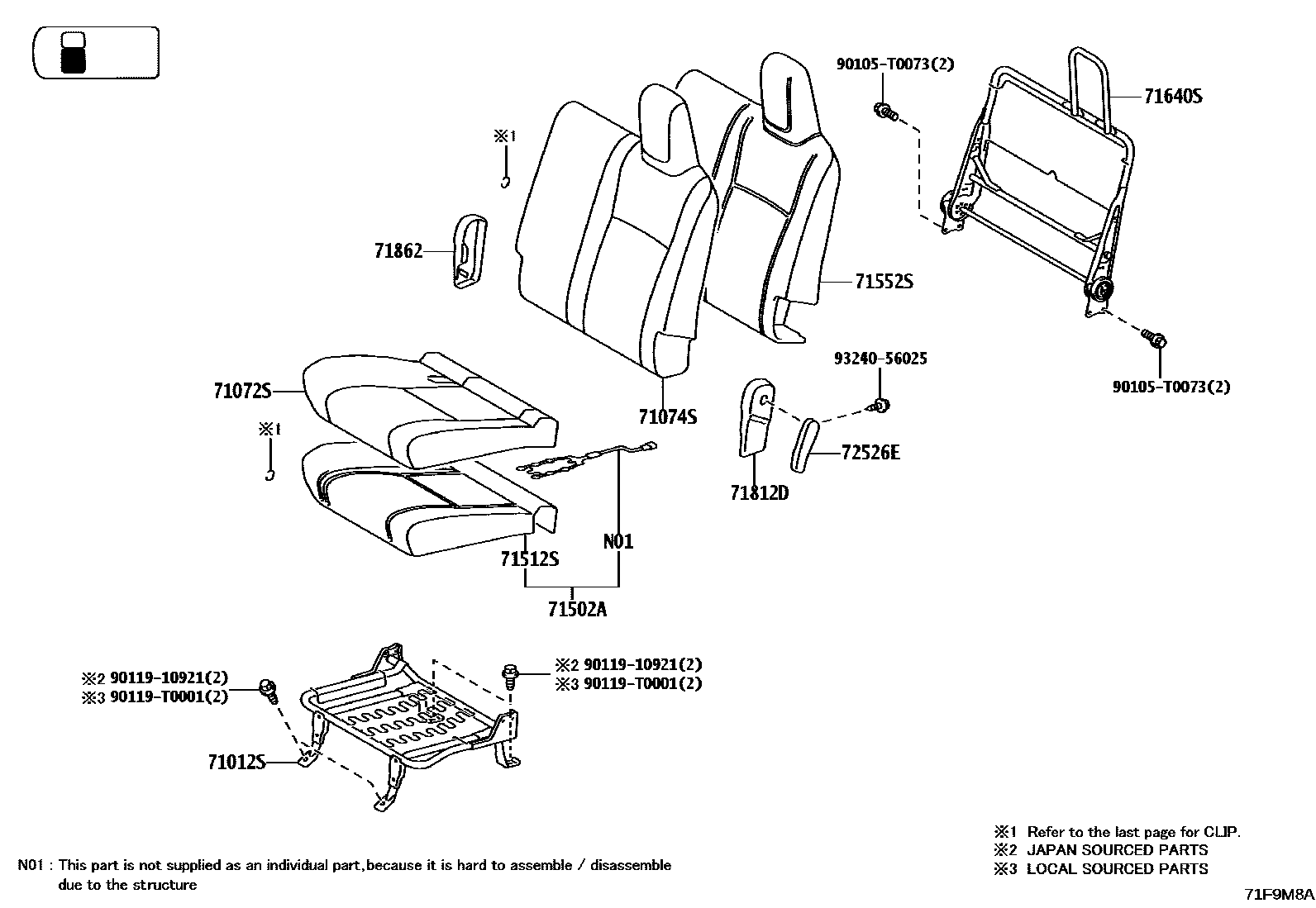

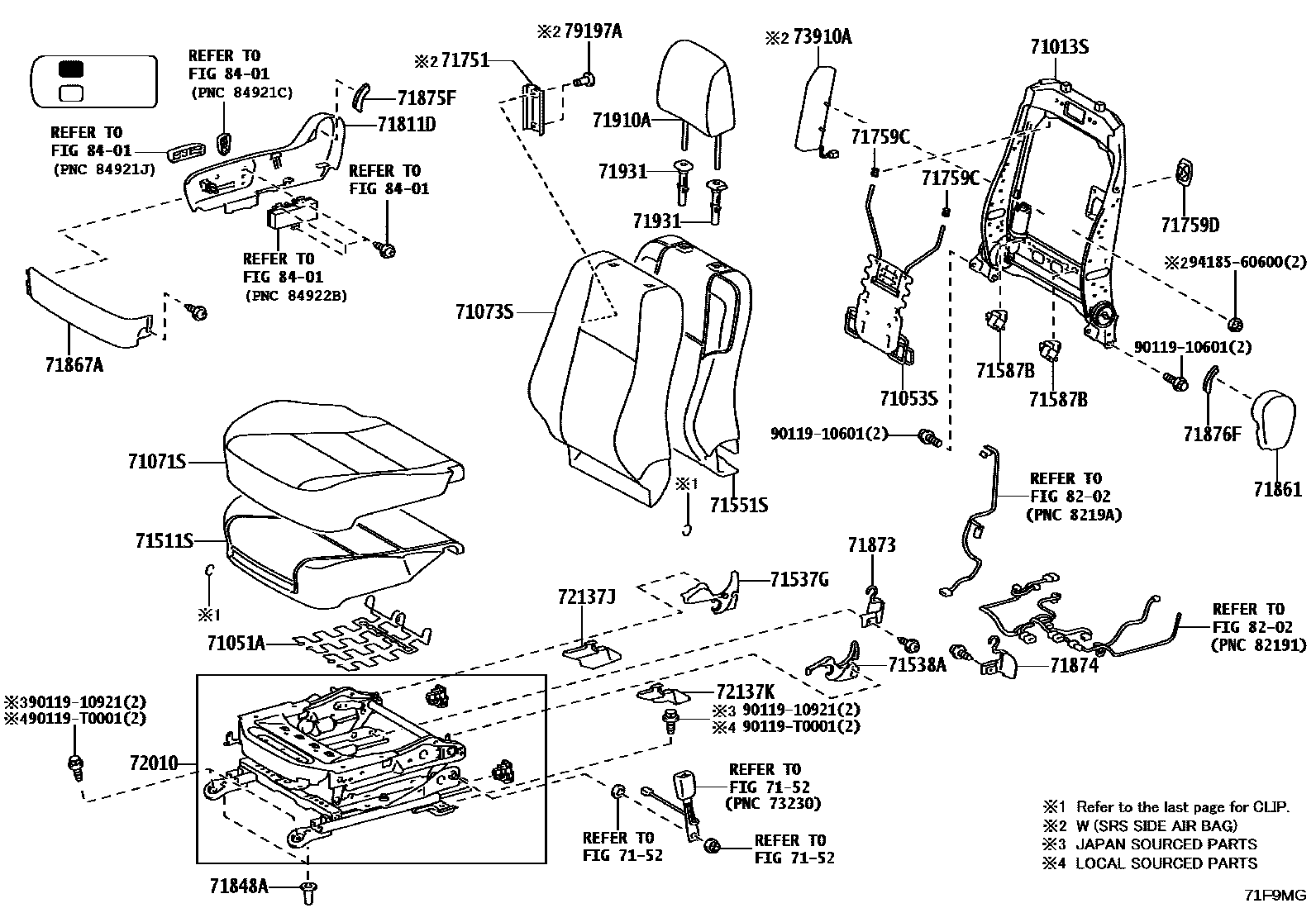

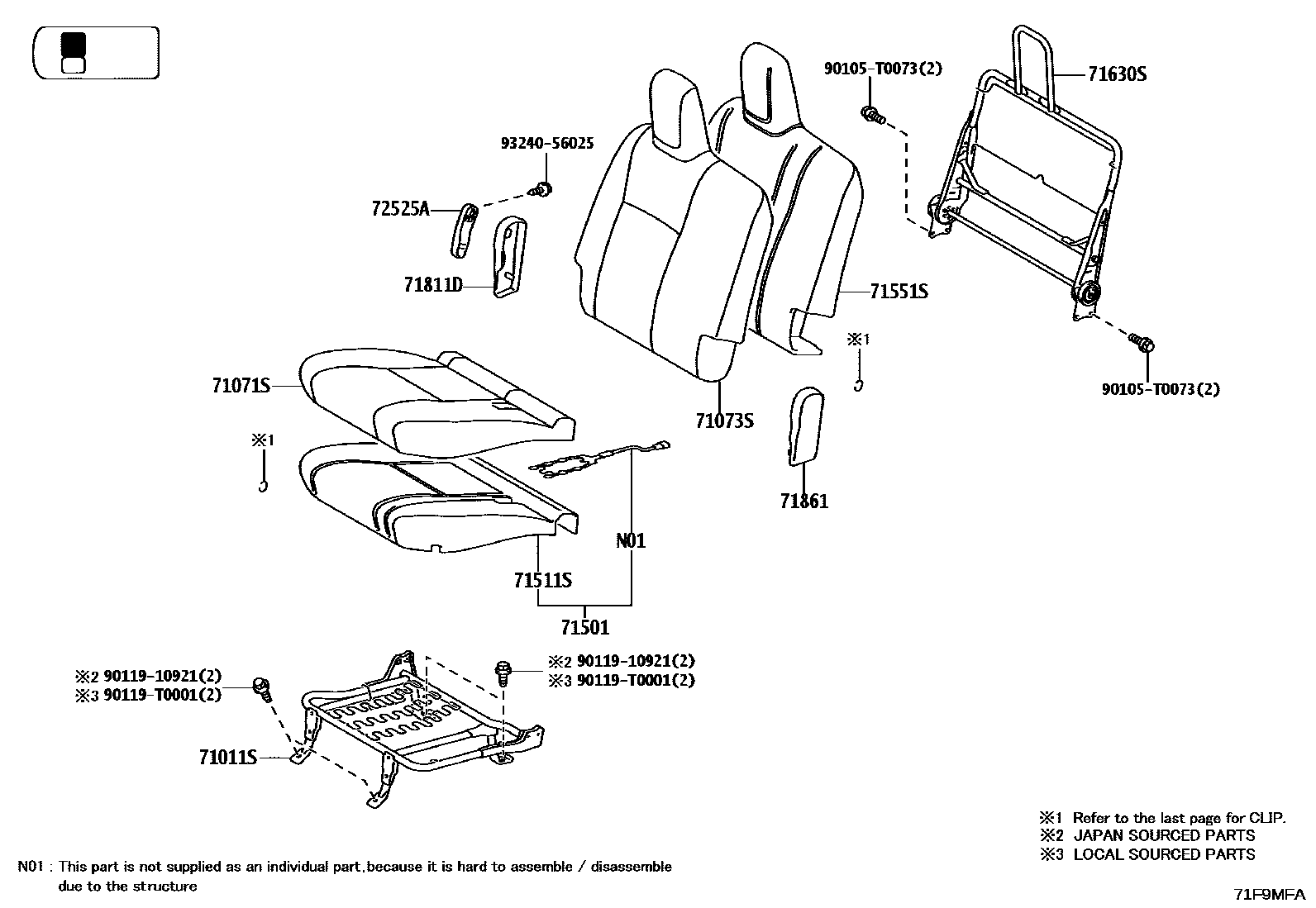

Toyota HILUX EPC diagram 7151, 座椅和座椅滑轨, with 18 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-0K090 · 71011-0K100 · 71011-0K120 |
| 71012S | Front left seat cushion frame sub-assembly | 71012-0K110 · 71012-0K120 · 71012-0K130 |
| 71013S | Front right seat back frame sub-assembly | 71013-0K400 · 71013-0K420 · 71013-0K540 · 71013-0KA10 |
| 71014S | Front left seat back frame sub-assembly | 71014-0K340 · 71014-0K360 · 71014-0K460 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-02310 · 71051-06070 · 71051-0K090 · 71051-0K230 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-02310 · 71051-06070 · 71051-0K090 · 71051-0K230 |
| 71053S | Front right seat back spring sub-assembly | 71053-0K030 · 71053-0K040 |
| 71054S | Front left seat back spring sub-assembly | 71053-0K030 · 71053-0K040 |
| 71101C | ENSEMBLE SOUS LE SIEGE, AVANT MD | 71101-0K010 · 71101-0K020 · 71101-0K030 · 71101-0K040 |
| 71102A | ENSEMBLE SOUS LE SIEGE, AVANT MG | 71102-0K010 · 71102-0K020 · 71102-0K030 |
| 71110A | Front right seat (with adjuster) frame assembly | 71110-0K010 · 71110-0K020 · 71110-0K040 · 71110-0K050 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-0K010 · 71120-0K020 · 71120-0K030 |
| 71501 | SOUS-ENS. REMB, COUSSIN SIEGE AV, MD | 71501-0K060 · 71501-0K080 |
| 71502A | SOUS-ENS. REMB, COUSSIN SIEGE AV, MG | 71502-0K080 · 71502-0K100 · 71502-0K251 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-0K031 · 71501-0K040 · 71501-0K090 · 71501-0K100 · 71501-0K231 · 71501-0K270 · 71501-0K440 · 71511-0K141 · 71511-0K230 · 71511-0K510 · 71511-0K591 · 71511-0K611 · 71511-0K680 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-0K050 · 71502-0K231 · 71502-0K270 · 71502-0K460 · 71512-0K081 · 71512-0K170 · 71512-0K240 · 71512-0K571 · 71512-0K580 · 71512-0KA90 |
| 71537G | Front right seat cushion edge protective cover (for right seat) | 71537-0D400 |
| 71537H | Front right-hand seat cushion edge guard (for left-hand seat) | 71537-0D400 |
| 71538A | Front seat cushion left edge guard (for right seat) | 71537-0D400 |
| 71538B | Front seat cushion left edge guard (for left seat) | 71537-0D400 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0K190 · 71551-0K200 · 71551-0K210 · 71551-0K230 · 71551-0K270 · 71551-0K400 · 71551-0K410 · 71551-0K420 · 71551-0K430 · 71551-0K440 · 71551-0K580 · 71551-0K590 · 71551-0KA90 · 71551-0KC10 · 71551-0KC90 · 71551-0KD60 · 71551-0KD70 · 71551-0KD80 · 71551-0KF60 · 71551-0KF70 · 71551-0KF80 · 71551-0KF90 · 71551-0KG00 · 71551-0KG10 |
| 71552S | Front left seat back cushion (for split seats) | 71552-0K120 · 71552-0K130 · 71552-0K140 · 71552-0K160 · 71552-0K200 · 71552-0K320 · 71552-0K330 · 71552-0K340 · 71552-0K350 · 71552-0K360 · 71552-0K490 · 71552-0KA70 · 71552-0KC20 · 71552-0KC40 · 71552-0KD80 · 71552-0KD90 · 71552-0KE00 · 71552-0KG20 · 71552-0KG30 · 71552-0KG40 · 71552-0KG50 · 71552-0KG60 · 71552-0KG70 |
| 71587B | Front seat back edge protective cover | 71587-0K030 · 71587-0K040 |
| 71611 | Rear seat cushion cushion | 71503-0K020 · 71503-0K030 · 71503-0K140 · 71504-0K100 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-0K210 · 71630-0K230 · 71630-0K310 · 71630-0K330 · 71630-0K400 · 71630-0K410 · 71630-0K610 · 71630-0K620 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-0K200 · 71640-0K220 · 71640-0K340 · 71640-0K360 · 71640-0K430 · 71640-0K660 · 71640-0K670 |
| 71751 | CROCHET, HOUSSE DE SIEGE | 71751-0K070 |
| 71759B | Front seat back hook | 71759-0K140 |
| 71759C | Front seat back hook No. 1 | 71759-0K060 · 71759-0K080 |
| 71824 | Front seat No. 1 right side bracket | 71161-0K010 |
| 71825 | Front left seat No. 1 bracket | 71162-0K010 |
| 71848A | Right seat adjuster cover | 71848-02040 · 71848-47010 |
| 71849 | left seat adjuster cover | 71848-02040 · 71848-47010 |
| 71873 | Front right seat cushion lower guard panel | 71873-02150 · 71873-06510 · 71873-06520 · 71873-0K200 · 71874-0K210 |
| 71874 | Front left seat cushion lower guard | 71873-0K210 · 71874-02140 · 71874-06480 · 71874-06490 · 71874-0K200 |
| 71875F | Right backrest recliner inner cover (for right seat) | 71875-0K280 |
| 71876F | Left backrest recliner inner cover (for right seat) | 71876-0K280 |
| 72010 | Front right seat adjuster assembly | 72010-0K080 · 72010-0K090 · 72010-0K100 · 72010-0K160 · 72010-0K170 · 72010-0K200 · 72010-0K270 |
| 72020 | Front left seat adjuster assembly | 72020-0K060 · 72020-0K070 · 72020-0K140 · 72020-0K180 · 72020-0K400 |
| 72137C | Right seat inner slide rail cover | 72125-06090 |
| 72137G | Right seat outer slide rail cover | 72125-0D120 |
| 72138 | Left seat outer slide rail cover | 72125-0D120 |
| 72138E | Left seat inner slide rail cover | 72125-06090 |
| 72201A | Right seat slide rail handle sub-assembly | 72211-0D160 · 72211-0D170 · 72211-0K120 · 72211-0K200 |
| 72201B | Left seat slide rail handle sub-assembly | 72211-0D160 · 72211-0K120 · 72211-0K200 |
| 72265 | Right seat rail upper rail cover | 72265-06060 |
| 72266 | Left seat rail upper rail cover | 72265-06060 |
| 72693 | Rear seat cushion hook | 72693-0K120 |
| 73910A | Front right seat airbag assembly | 73910-0K050 · 73910-0K070 · 73910-0K170 · 73910-0K210 |
| 73920A | Front left seat airbag assembly | 73920-0K050 · 73920-0K070 · 73920-0K170 · 73920-0K210 |
| 79197A | RIVET | 79197-0K010 |
