Toyota HILUX 后门板和后门玻璃 — Figure 6755

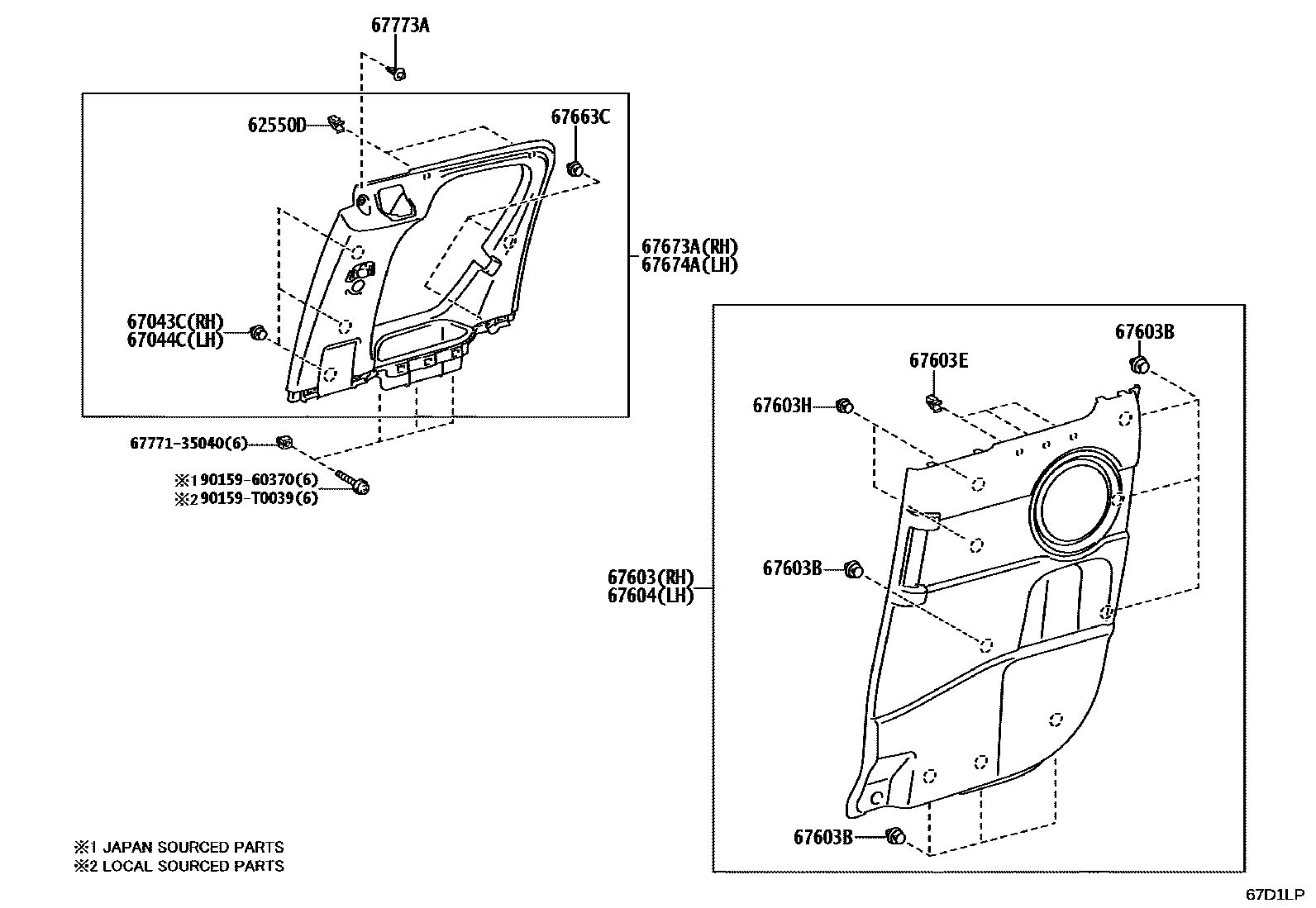

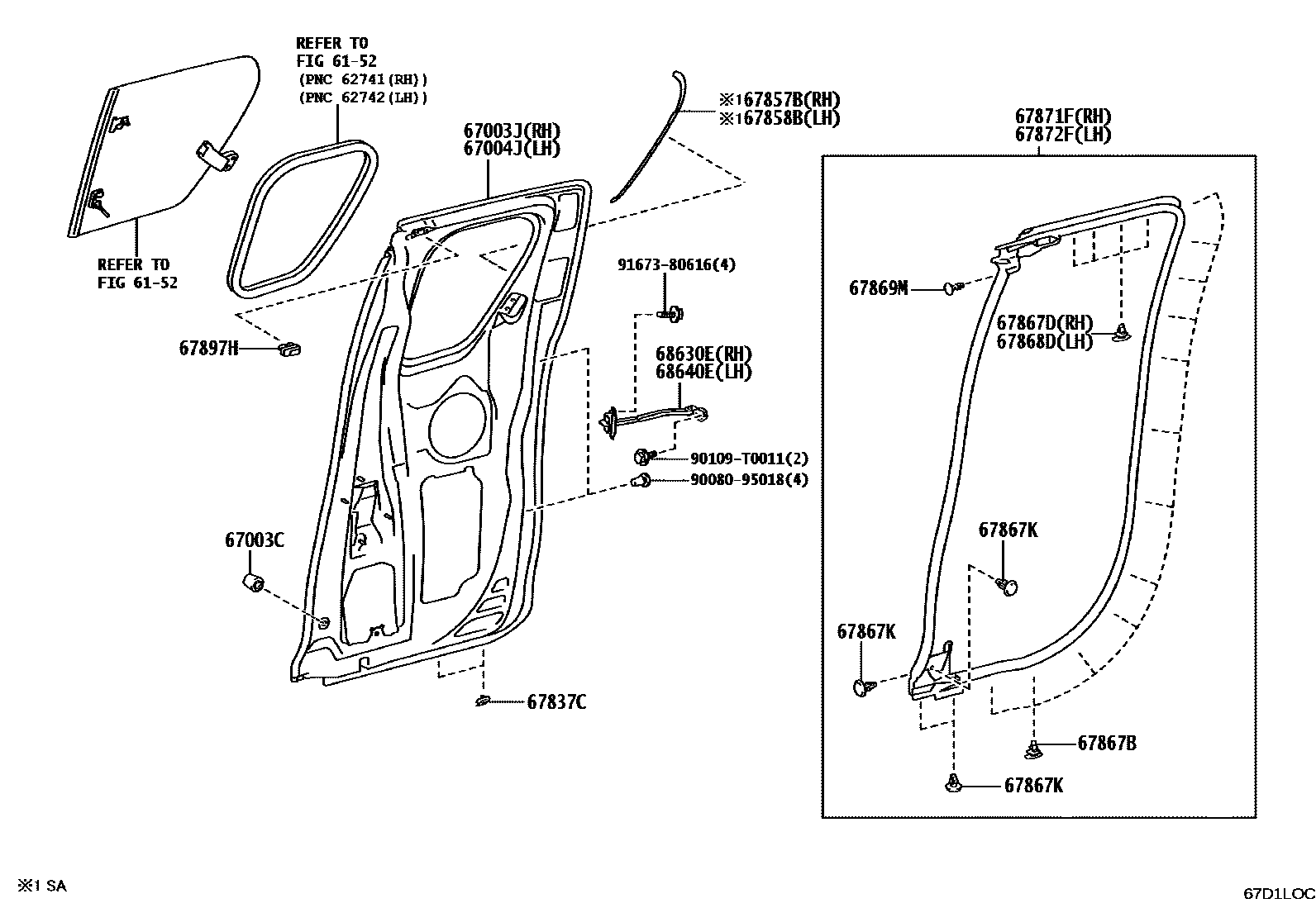

Toyota HILUX EPC diagram 6755, 后门板和后门玻璃, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62550D | Rear window side decorative panel clip | 90468-05125 |
| 67003C | Rear door panel cushion | 90541-09131 |
| 67003J | Right entry door door panel sub-assembly | 67003-KK021 |
| 67004J | Left entry door door panel sub-assembly | 67004-KK021 |
| 67043C | Right rear door window frame clip | 90467-09224 |
| 67044C | Left rear door window frame clip | 90467-09224 |
| 67603B | Catch (for rear door trim panel) | 90467-T0019 |
| 67603E | Catch (for rear door trim panel) | 90467-10201 |
| 67603H | CLIP (PLAQUETTE DE GARNITURE DE PORTIERE ARRIERE) | 90467-09224 |
| 67663C | Clips (for door frame decorative strips) | 90467-T0019 |
| 67837C | Rear door dust seal retainer | 67837-0K093 · 67837-0K103 |
| 67857B | Right rear door panel protector | 67857-0K090 |
| 67858B | Left rear door panel protector | 67858-0K090 |
| 67867B | Door seal strip clip (for rear door) | 67867-12150 |
| 67867D | Right rear door seal strip fixing | 67867-52010 |
| 67867K | Left door seal strip clip (for rear door) | 67869-26050 |
| 67868D | Left rear door seal strip fixing | 67867-52010 |
| 67869M | Car door seal strip clip | 67869-20030 |
| 67871F | Entry door door panel right seal strip | 67871-0K090 |
| 67872F | Entry door panel left seal | 67872-0K090 |
| 67897H | rear door cushion | 67897-0K020 |
| 68630E | Entry door panel right opening limiter assembly | 68640-0K101 |
| 68640E | Entry door panel left opening limiter assembly | 68640-0K101 |
