Toyota HILUX 侧梁 — Figure 6151

Toyota HILUX EPC diagram 6151, 侧梁, with 6 images and 26 PNC and OE references.

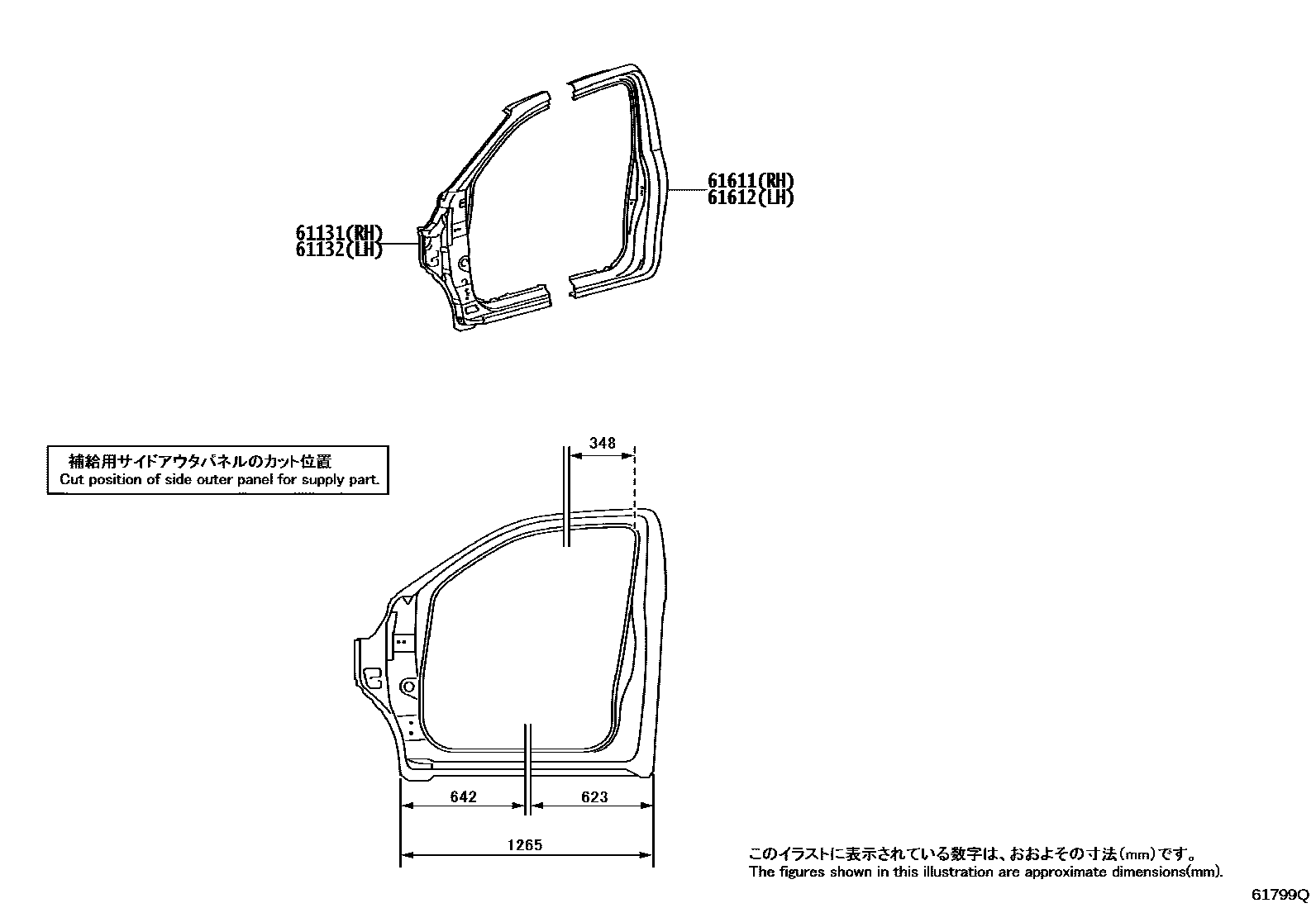

Toyota HILUX 侧梁 EPC diagram — 61799Q — 侧梁 — 61799Q (202408 – 999999)

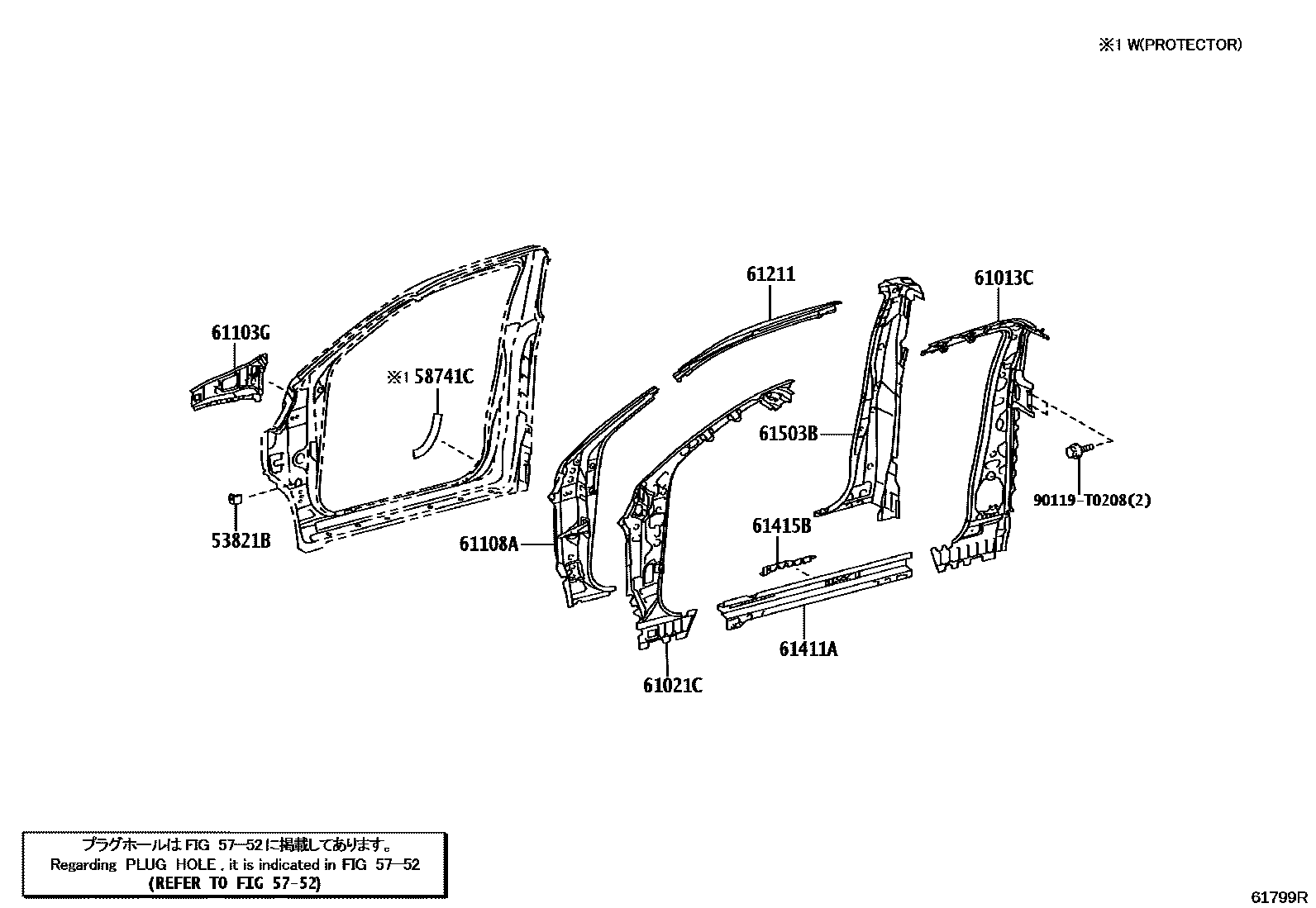

Toyota HILUX 侧梁 EPC diagram — 61799R — 侧梁 — 61799R (202408 – 999999)

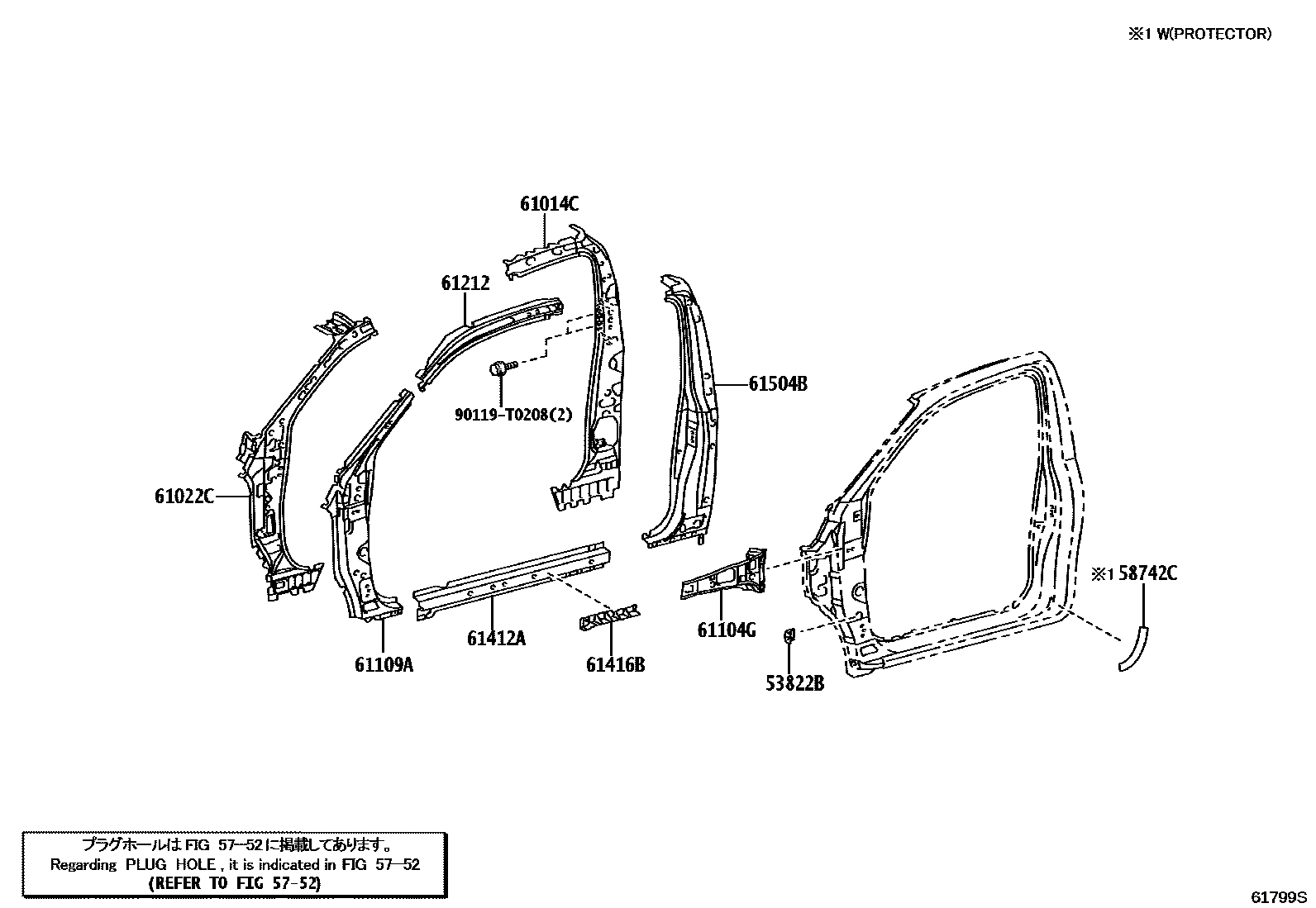

Toyota HILUX 侧梁 EPC diagram — 61799S — 侧梁 — 61799S (202408 – 999999)

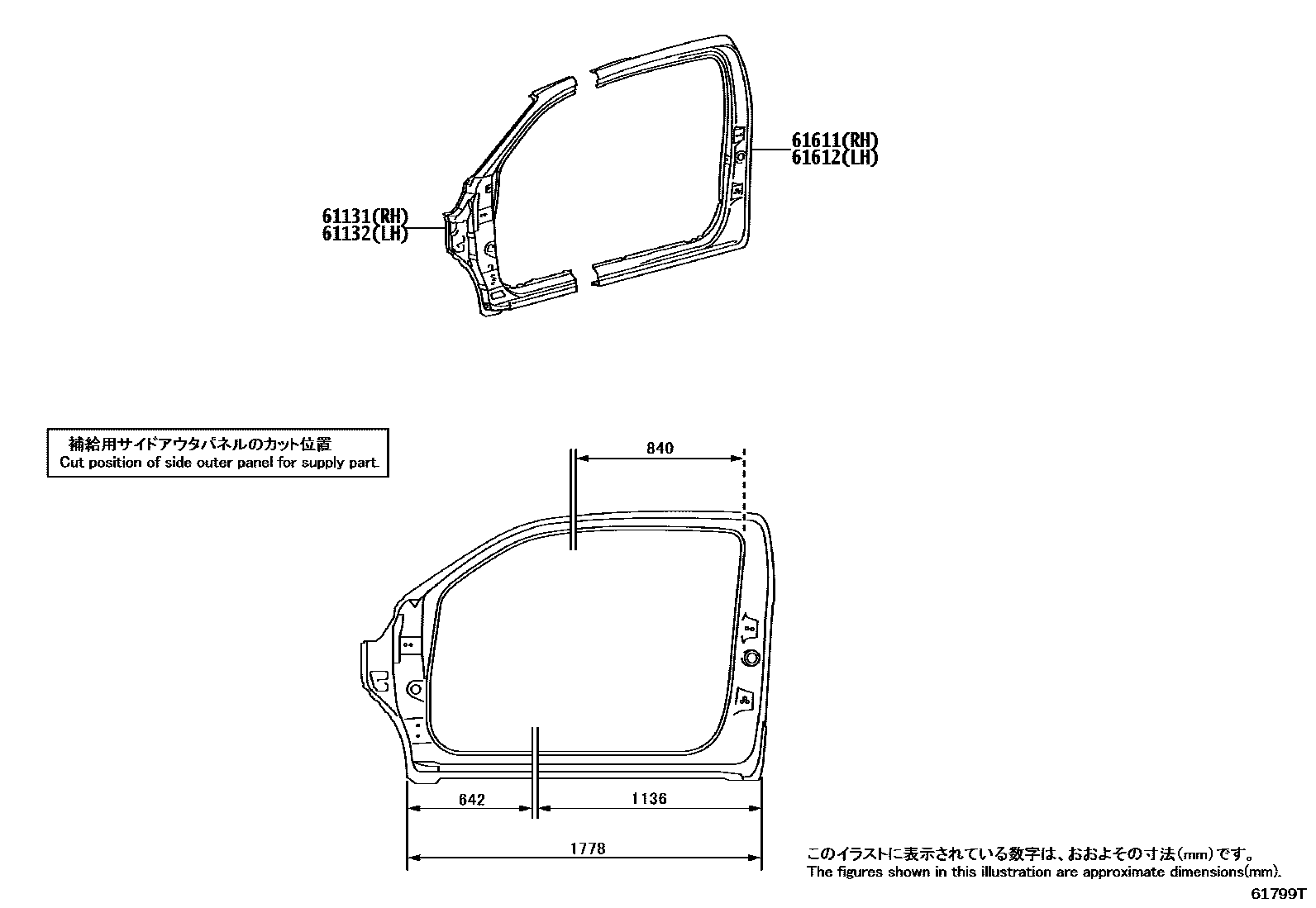

Toyota HILUX 侧梁 EPC diagram — 61799T — 侧梁 — 61799T (202408 – 999999)

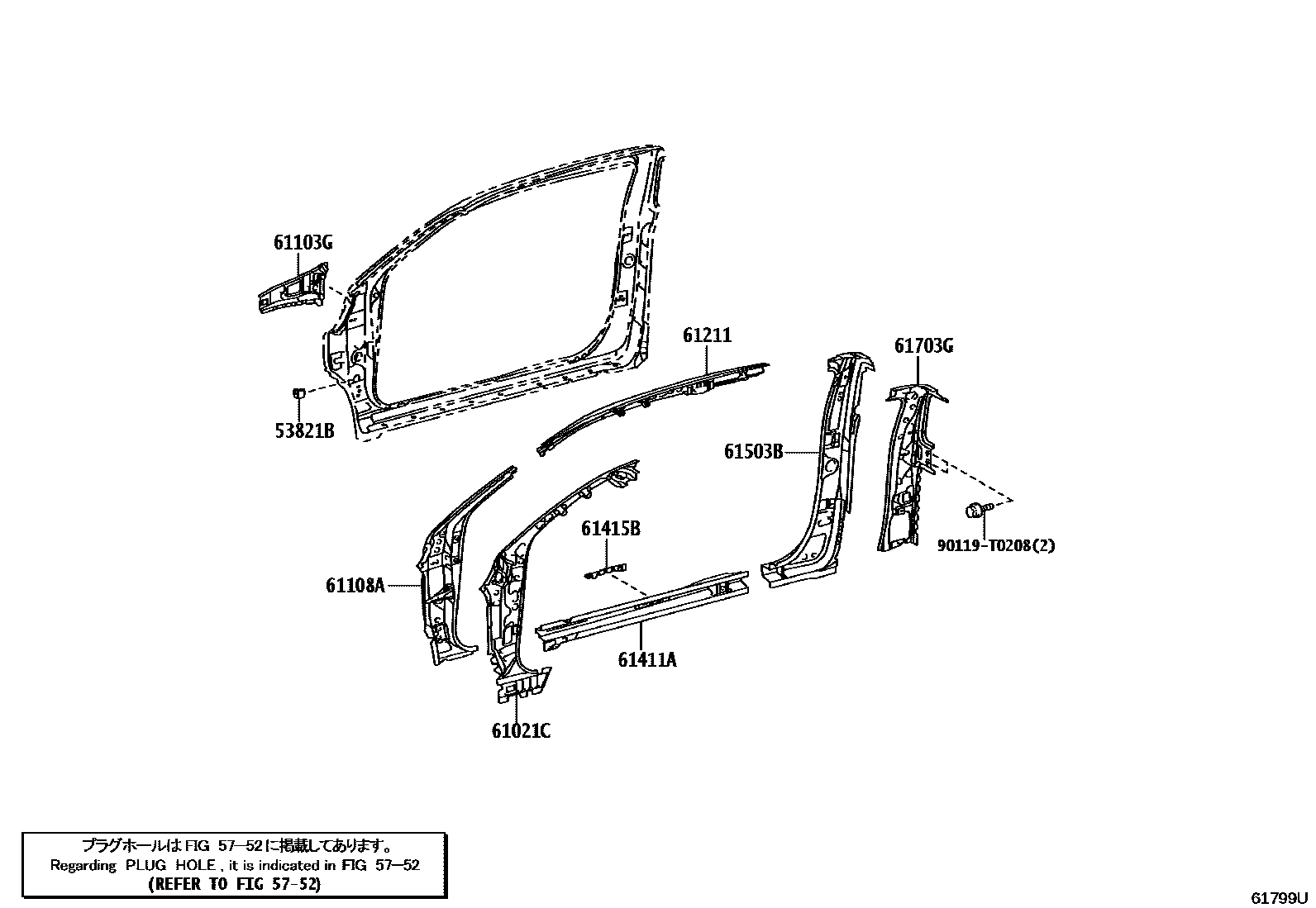

Toyota HILUX 侧梁 EPC diagram — 61799U — 侧梁 — 61799U (202408 – 999999)

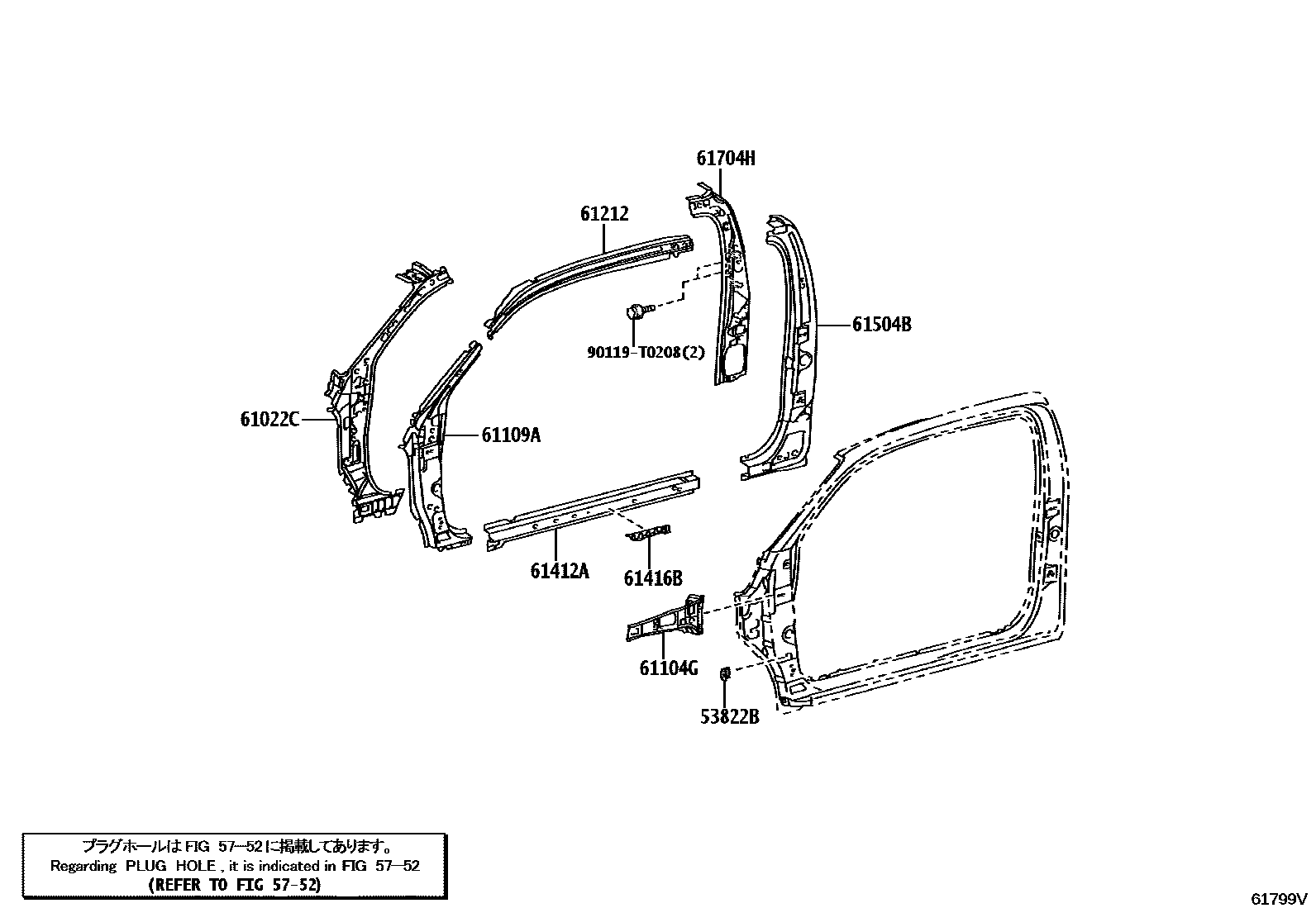

Toyota HILUX 侧梁 EPC diagram — 61799V — 侧梁 — 61799V (202408 – 999999)

PNC and OE references

PNC	Part name	OE numbers
53821B	Right front fender rear support	53257-35030
53822B	Left front fender rear support	53257-35030
58741C	Right side enclosure protection panel	58741-0K070 · 58741-0K130
58742C	Left side enclosure protection panel	58742-0K070 · 58742-0K130
61013C	Right inner panel sub-assembly	61013-KK040 · 61013-KK090
61014C	Left inner panel sub-assembly	61014-KK040
61021C	Right body front pillar sub-assembly	61021-KK020 · 61021-KK030 · 61021-KK040
61022C	Left body front pillar sub-assembly	61022-KK020 · 61022-KK030 · 61022-KK040
61103G	Right body front pillar lower corner panel sub-assembly	61103-KK010
61104G	Left side body front pillar lower corner panel sub-assembly	61104-KK010
61108A	Right body front pillar lower reinforcement sub-assembly	61108-KK900 · 61108-KK901
61109A	Left side body front pillar lower reinforcement sub-assembly	61109-KK900
61131	Right body outer front upper pillar	61131-KK020 · 61131-KK030
61132	Left body outer front upper pillar	61132-KK020 · 61132-KK030
61211	Roof right outer longitudinal beam	61210-KK040 · 61211-KK020
61212	Roof left outer longitudinal beam	61212-KK020 · 61220-KK020
61411A	Right side door sill panel No. 1 reinforcement	61401-KK901 · 61401-KK902
61412A	Left side door sill panel reinforcement No. 1	61402-KK901 · 61402-KK902
61415B	Right door outer sill extension	61415-KK010 · 61415-KK020
61416B	Left door outer sill extension	61416-KK010 · 61416-KK020
61503B	Right side locking column reinforcement sub-assembly	61503-KK900 · 61503-KK901
61504B	Left side locking column reinforcement sub-assembly	61504-KK900 · 61504-KK901
61611	Right side hoarding	61611-KK020 · 61611-KK030
61612	left side panel	61612-KK020 · 61612-KK030
61703G	Right side enclosure inner panel sub-assembly	61703-KK040
61704H	Left side enclosure inner panel sub-assembly	61704-KK040
