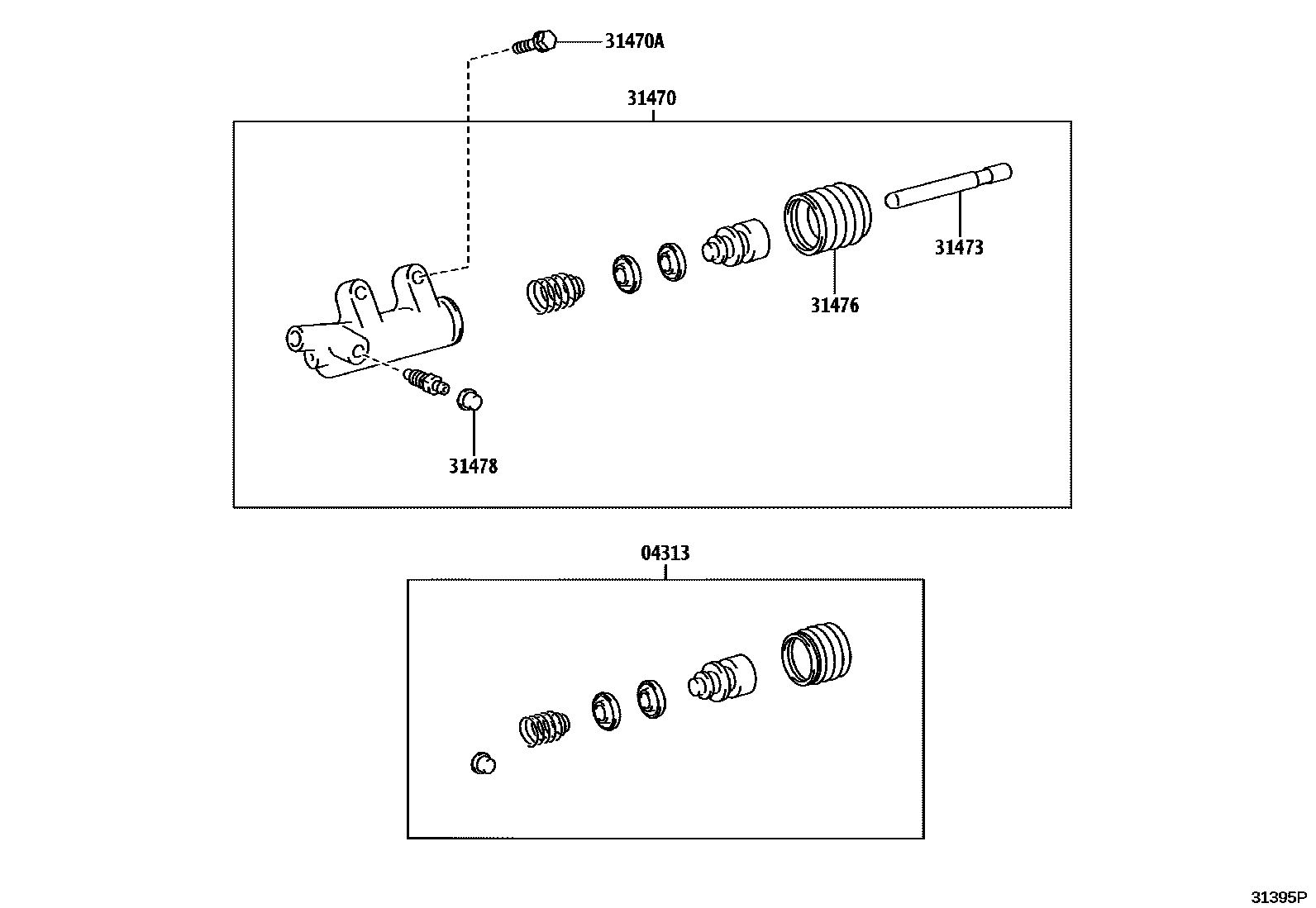

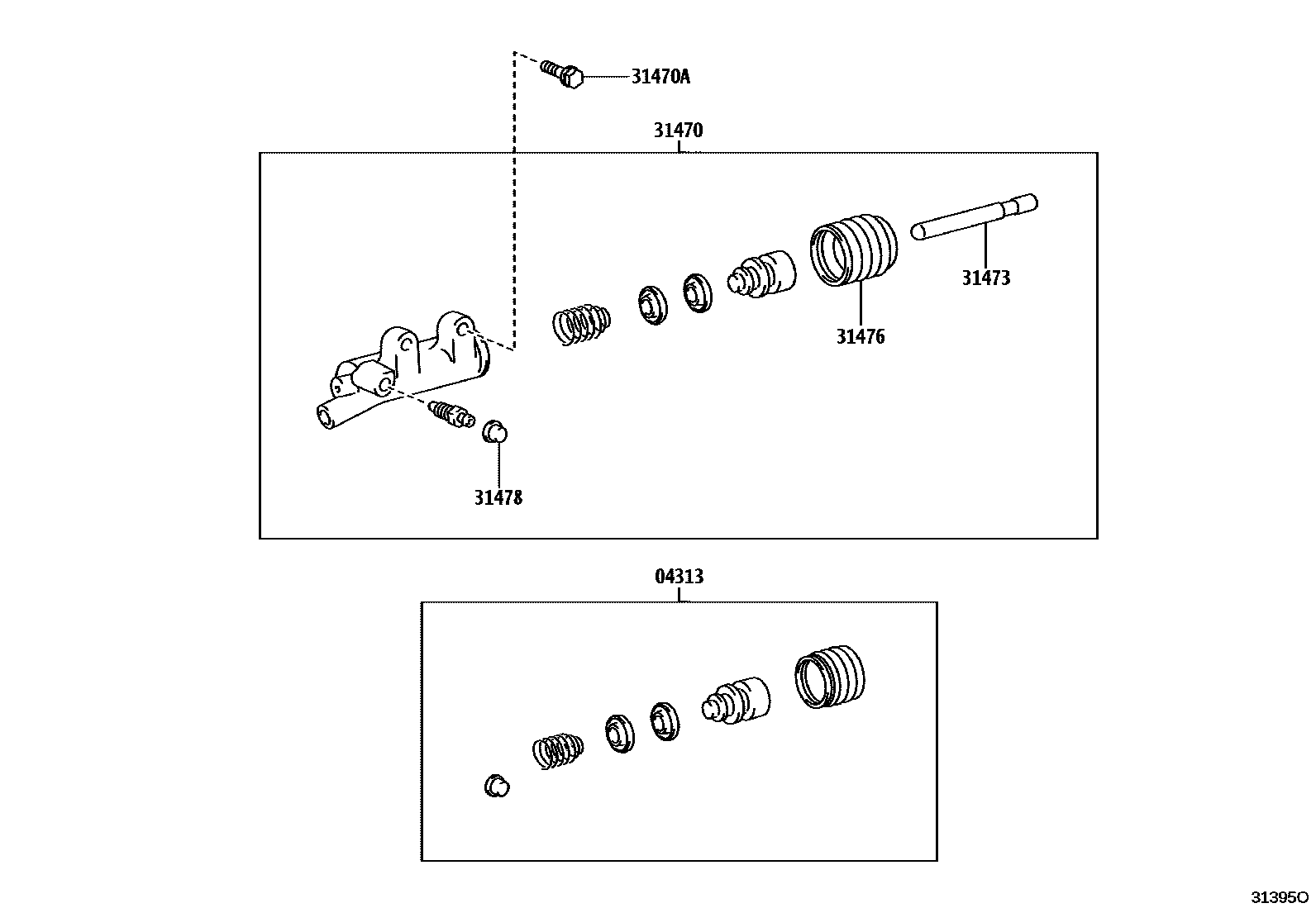

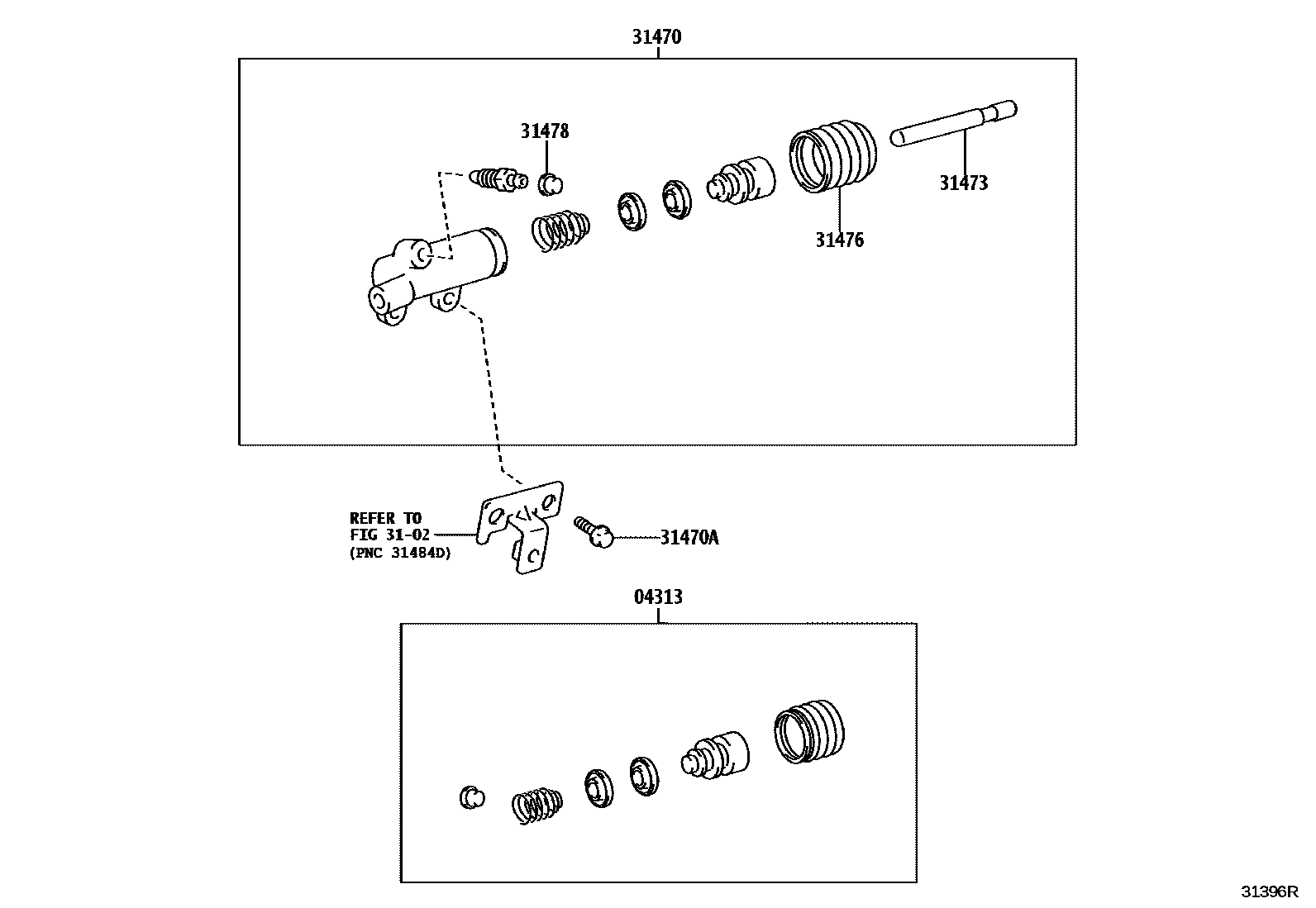

Toyota HILUX 离合器分离缸 — Figure 3105
Toyota HILUX EPC diagram 3105, 离合器分离缸, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04313 | Clutch release cylinder assembly | 04313-0K070 · 04313-0K080 · 04313-0K090 · 04313-0K100 |
| 31470 | Clutch release cylinder assembly | 31470-0K080 · 31470-0K090 · 31470-0K100 · 31470-0K170 |
| 31470A | Bolt (for securing clutch release cylinder) | 90119-T0221 |
| 31473 | No. 1 clutch release cylinder push rod | 31473-04010 · 31473-0K010 · 31473-0K030 · 31473-0K040 |
| 31476 | Clutch release cylinder dust boot | 31476-04010 |
| 31478 | Bleed plug cap (for separator cylinder) | 31478-30010 |
