Toyota HILUX 燃油喷射系统 — Figure 2211

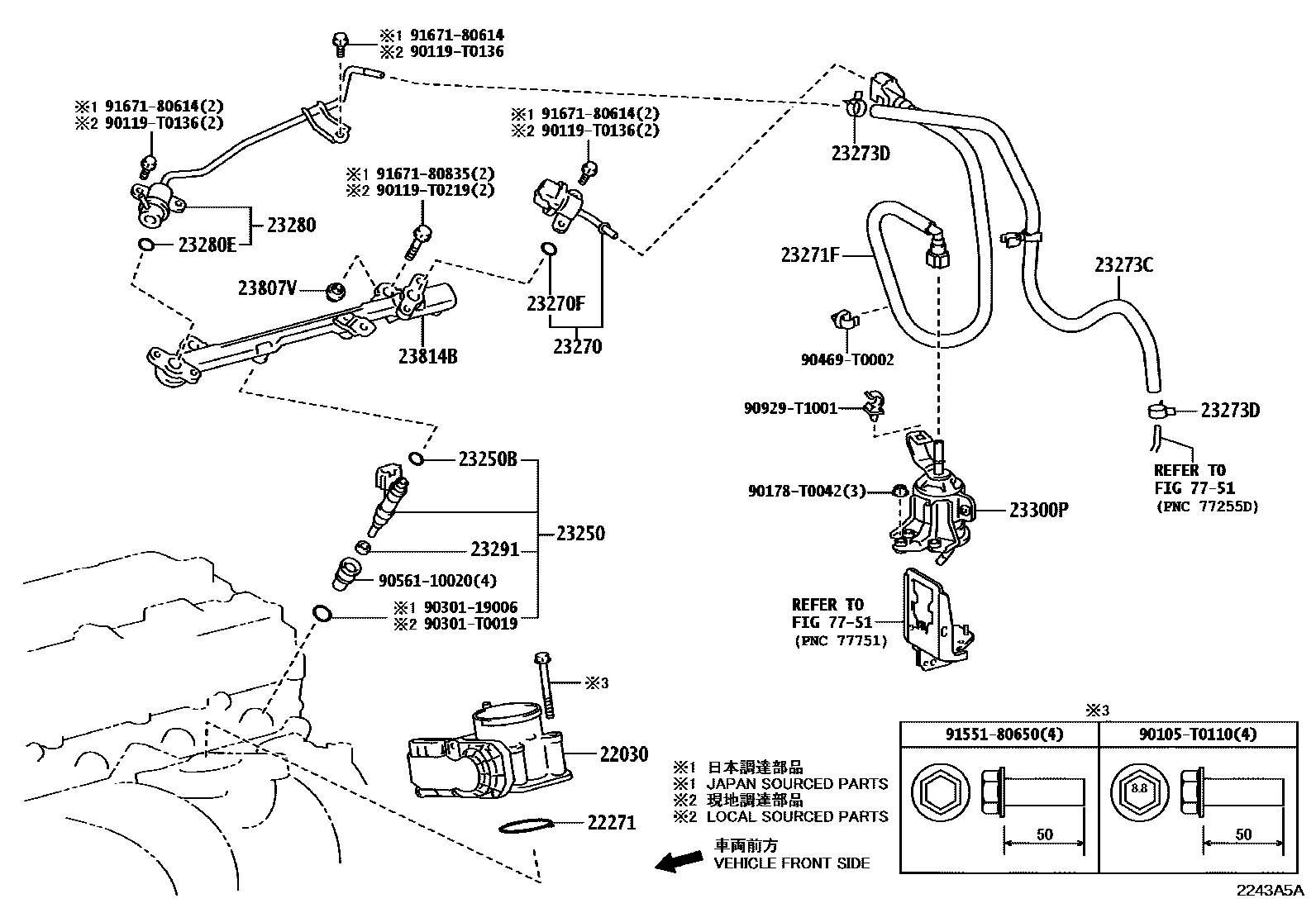

Toyota HILUX EPC diagram 2211, 燃油喷射系统, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Electronic throttle body assembly | 22030-0C030 · 22030-0T120 · 22030-37050 · 22030-75040 |
| 22271 | Throttle body gasket | 22271-0C021 · 22271-37010 |
| 23250 | Fuel injector assembly | 23209-09300 · 23209-09310 · 23209-09320 · 23209-79215 · 23209-79225 |
| 23250B | O-ring (for fuel injector) | 90301-07037 · 90301-07042 · 90301-T0051 |
| 23270 | Fuel pressure pulsation damper assembly | 23270-75050 |
| 23270F | O-ring (for pulsation damper) | 90301-07037 |
| 23271F | fuel hose | 23271-0C071 |
| 23273C | No. 2 fuel hose | 23273-0C171 |
| 23273D | Clamp (for No. 2 fuel hose) | 90466-T0040 |
| 23280 | Fuel pressure regulator assembly | 23280-75100 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07037 |
| 23291 | Injector vibration isolation pad | 23291-0C010 · 23291-0C020 · 23291-73010 |
| 23300P | Fuel filter (for EFI) | 23300-75140 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-0C010 · 23891-75020 |
| 23814B | oil pipeline | 23814-0C030 · 23814-75110 |
