Toyota HILUX vacuum tube — Figure 1708

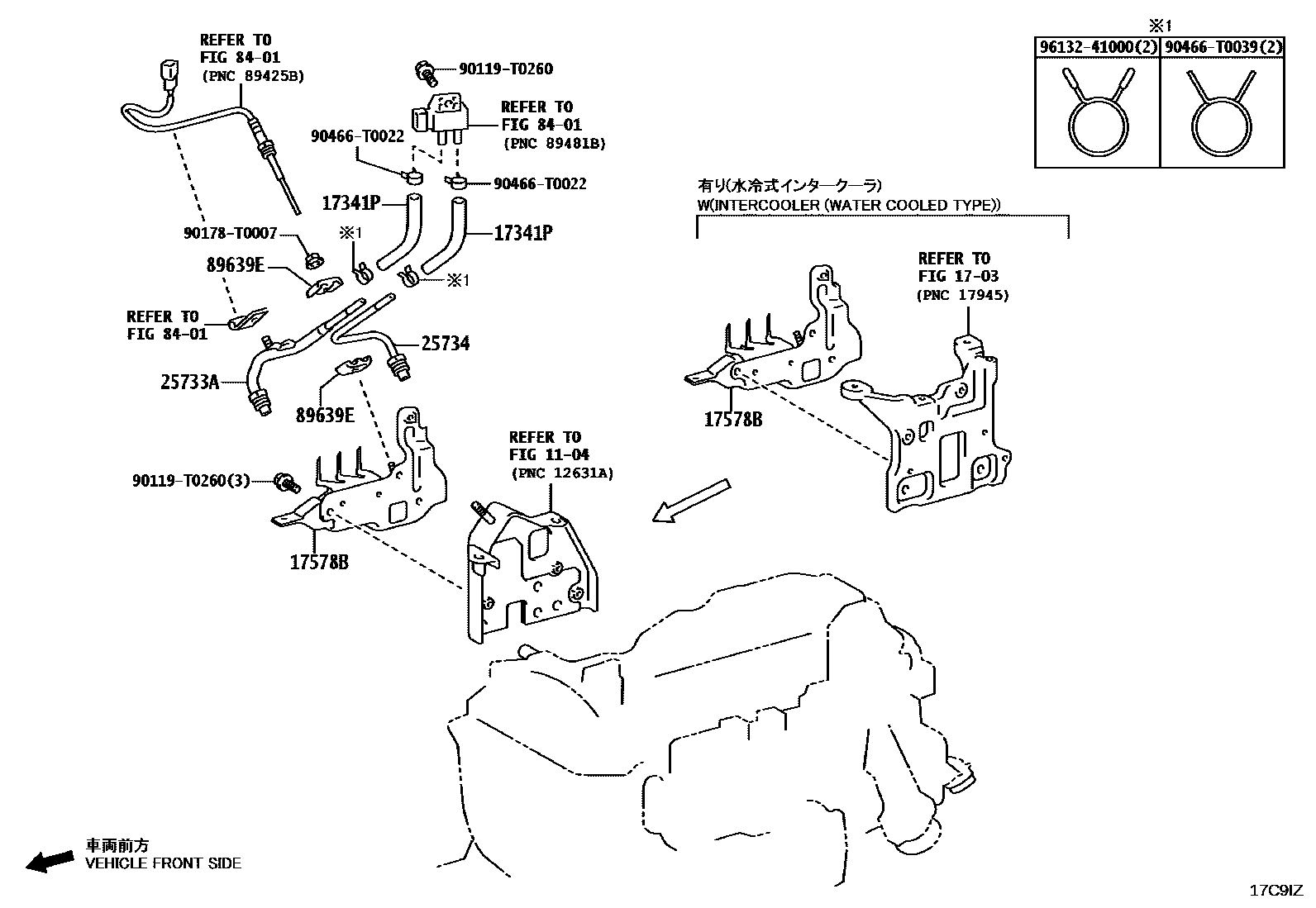

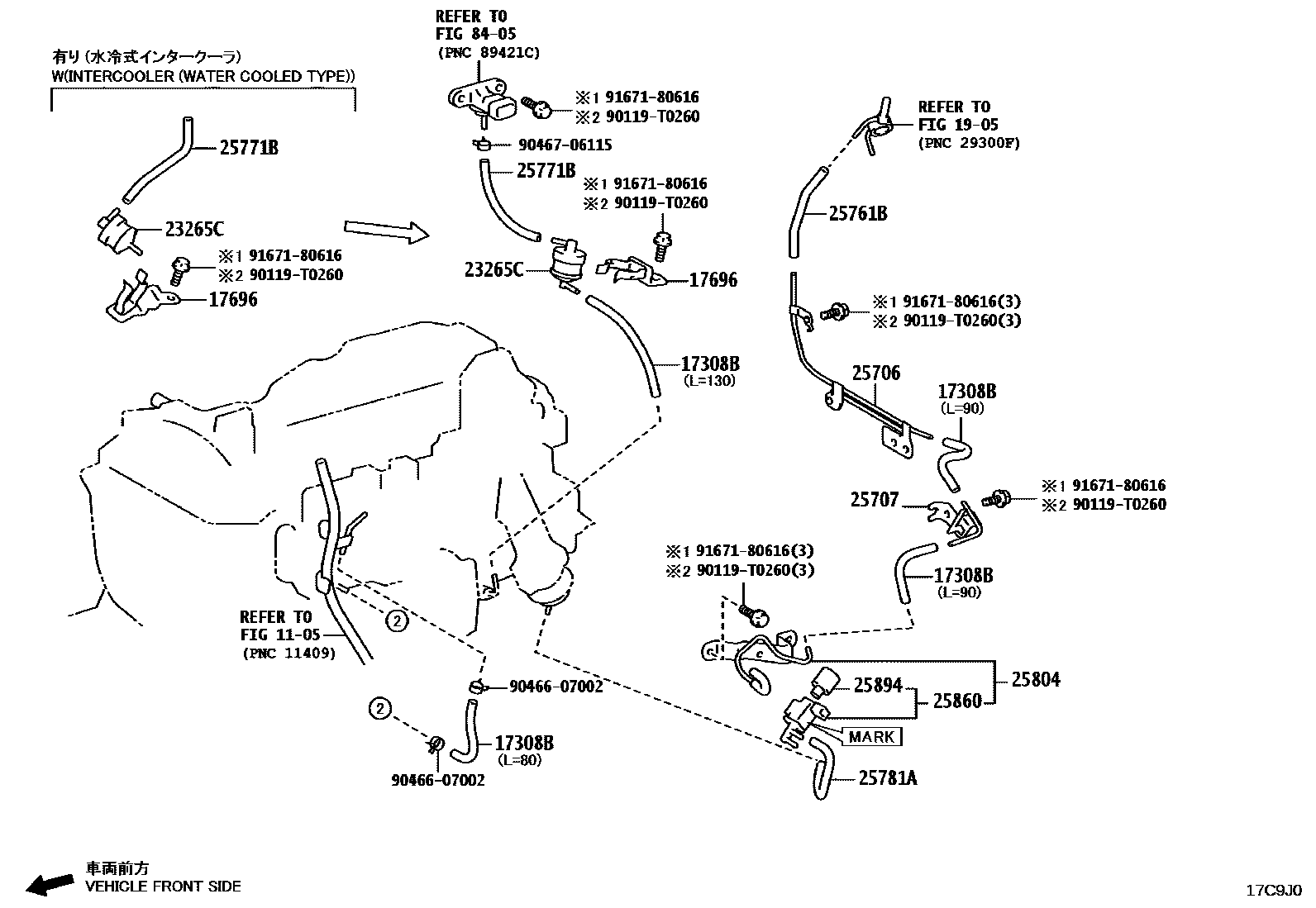

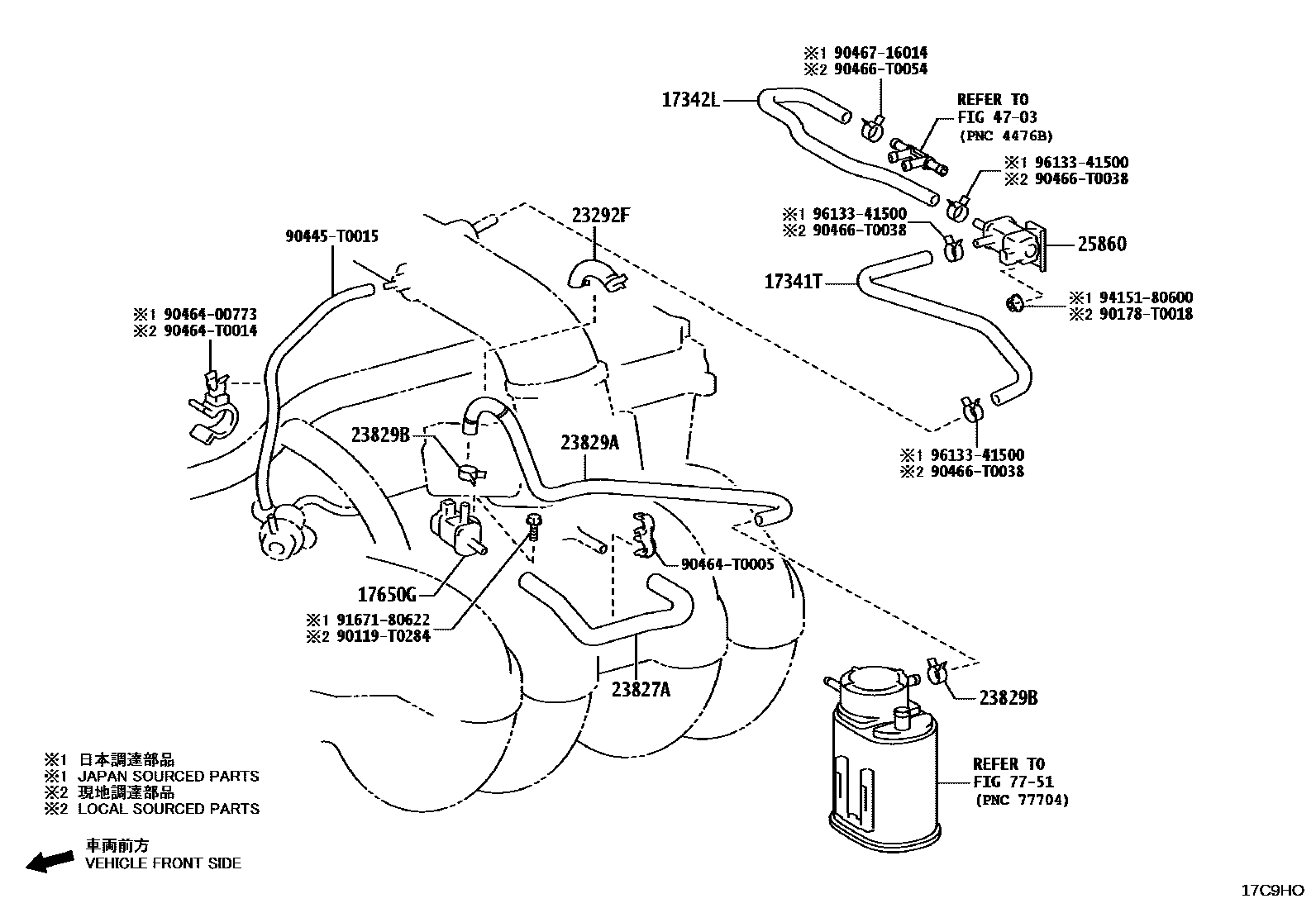

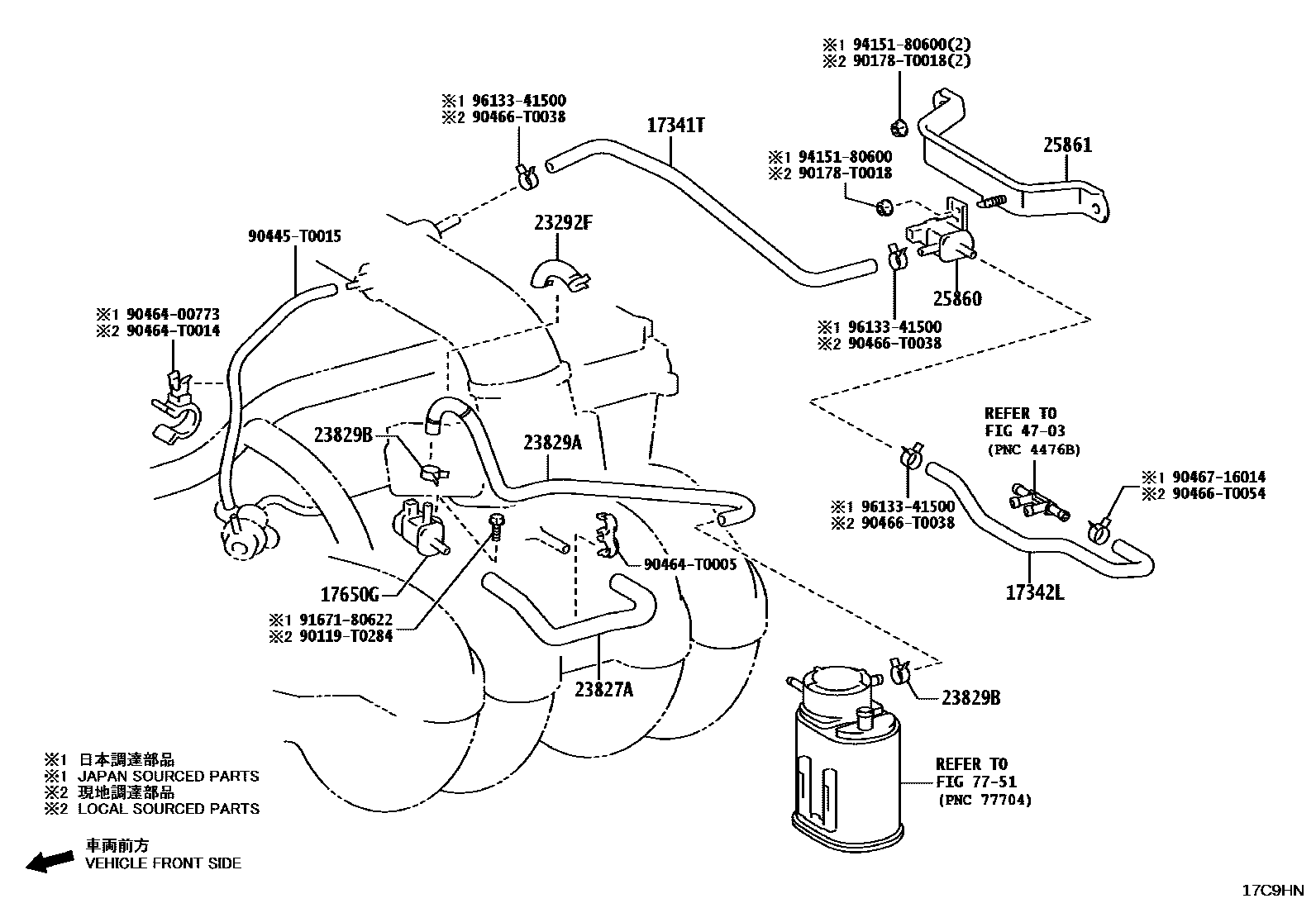

Toyota HILUX EPC diagram 1708, vacuum tube, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12227 | SUPPORT, CAPTEUR PRESSION VENTILATION | 12227-08010 |
| 12266C | FLEXIBLE, CAPTEUR PRESSION VENTILATION, NO.1 | 12266-08010 |
| 12267A | FLEXIBLE, CAPTEUR PRESSION VENTILATION, NO.2 | 12267-08010 |
| 17308B | Vacuum hose sub-assembly | 90999-92002 |
| 17341P | air hose | 17341-0E010 · 17341-0E030 |
| 17341T | Air hose No. 1 | 17341-0C090 · 17341-0C100 · 17341-0C160 · 17341-0C170 |
| 17342L | Air hose No. 2 | 17342-0C090 · 17342-0C100 · 17342-0C150 · 17342-0C160 |
| 17578B | Pipe clamp | 17578-0E020 · 17578-0E030 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-TC004 |
| 17696 | Gas filter bracket | 17696-0E010 · 17696-0E020 · 17696-0E030 · 17696-11010 |
| 17810A | air filter assembly | 17810-35010 |
| 23265C | gas filter | 90917-11038 · 90917-11044 |
| 23292F | PROTECT, POMP ESS | 23292-0C010 |
| 23827A | No. 2 fuel vapor supply hose | 23827-0C040 · 23827-0C050 |
| 23829A | Fuel vapor supply hose | 23829-0L011 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-T0040 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-0E010 · 25706-0E040 · 25706-0E060 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-0E010 · 25707-0E020 · 25707-11020 · 25707-11030 |
| 25733A | No. 1 vacuum tube | 25733-0E010 |
| 25734 | No. 2 vacuum tube | 25734-0E010 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-0E010 · 25761-0E020 · 25761-11010 |
| 25771B | No. 2 vacuum transfer hose | 25771-0E020 · 25771-0E030 · 25771-0E040 · 25771-11020 |
| 25781A | No. 3 vacuum transfer hose | 25781-0E010 · 25781-0E020 · 25781-11010 |
| 25804 | Vacuum control valve assembly | 25804-0E010 · 25804-11010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0C010 · 25860-0E010 · 25860-30070 |
| 25861 | Vacuum switch valve bracket | 25861-0C030 · 25861-0C060 · 25861-0C070 |
| 25894 | FILTRE, NO.1 | 25894-0E010 · 25894-11010 |
| 89639E | COLLIER | 89639-0K010 |
