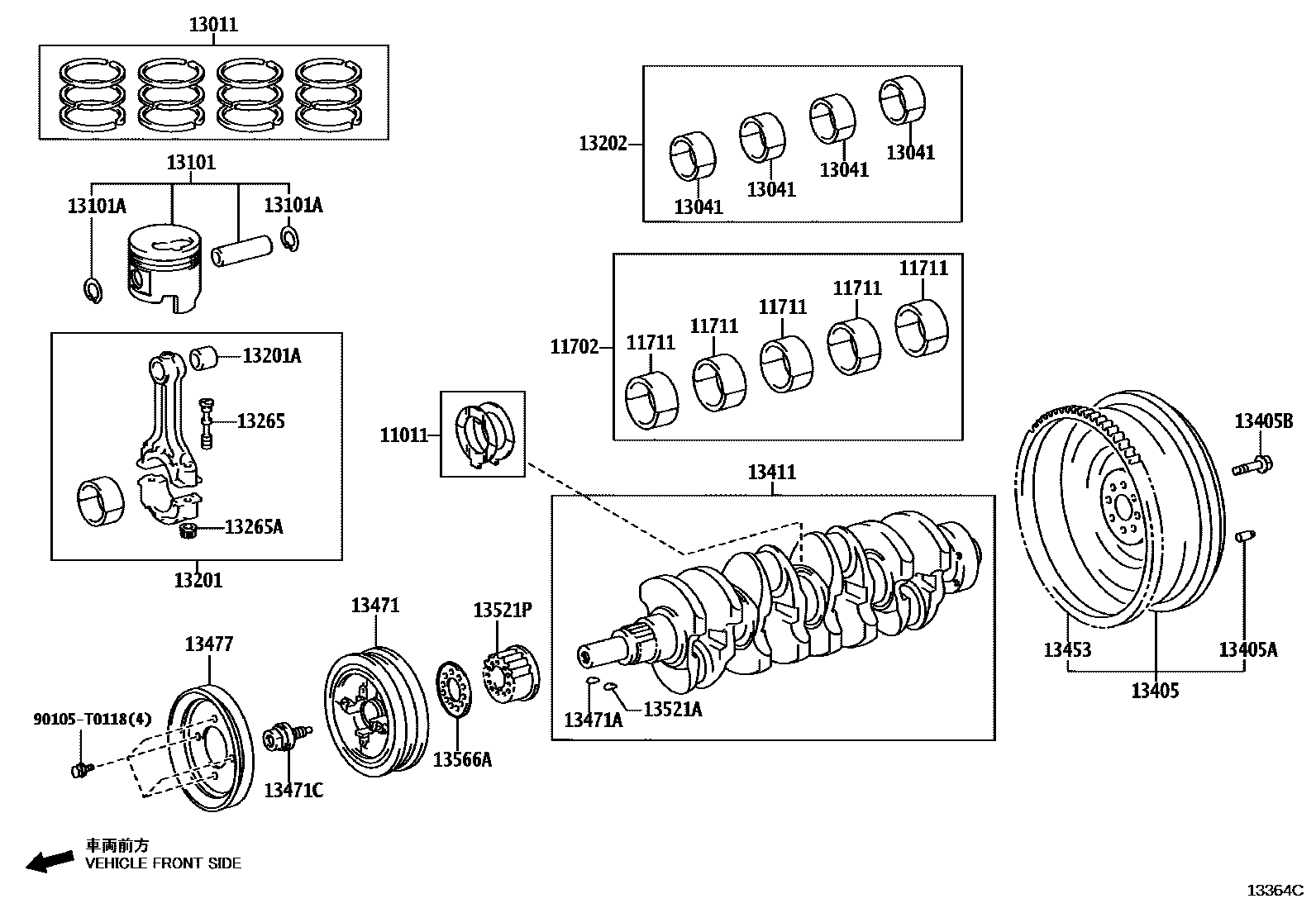

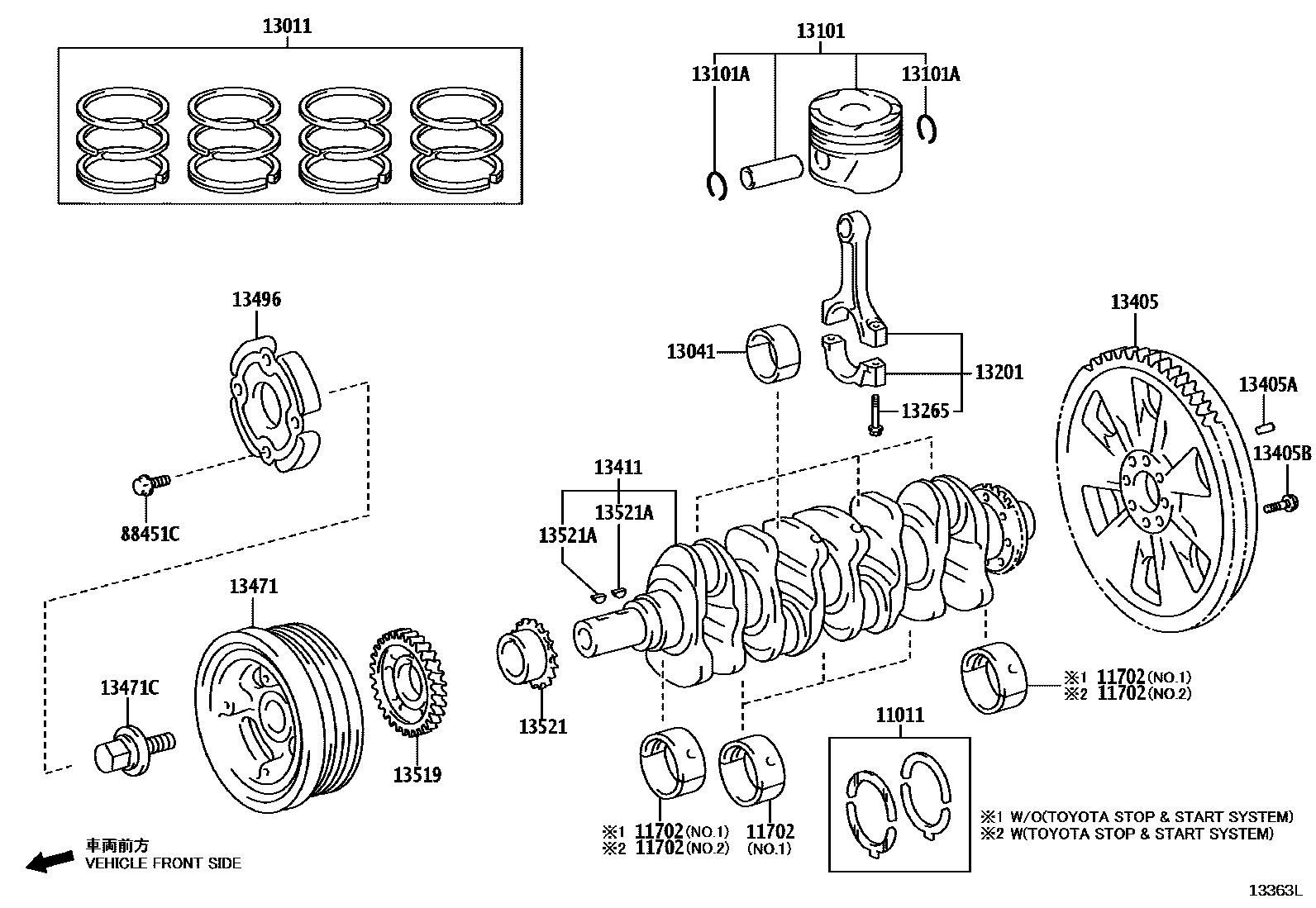

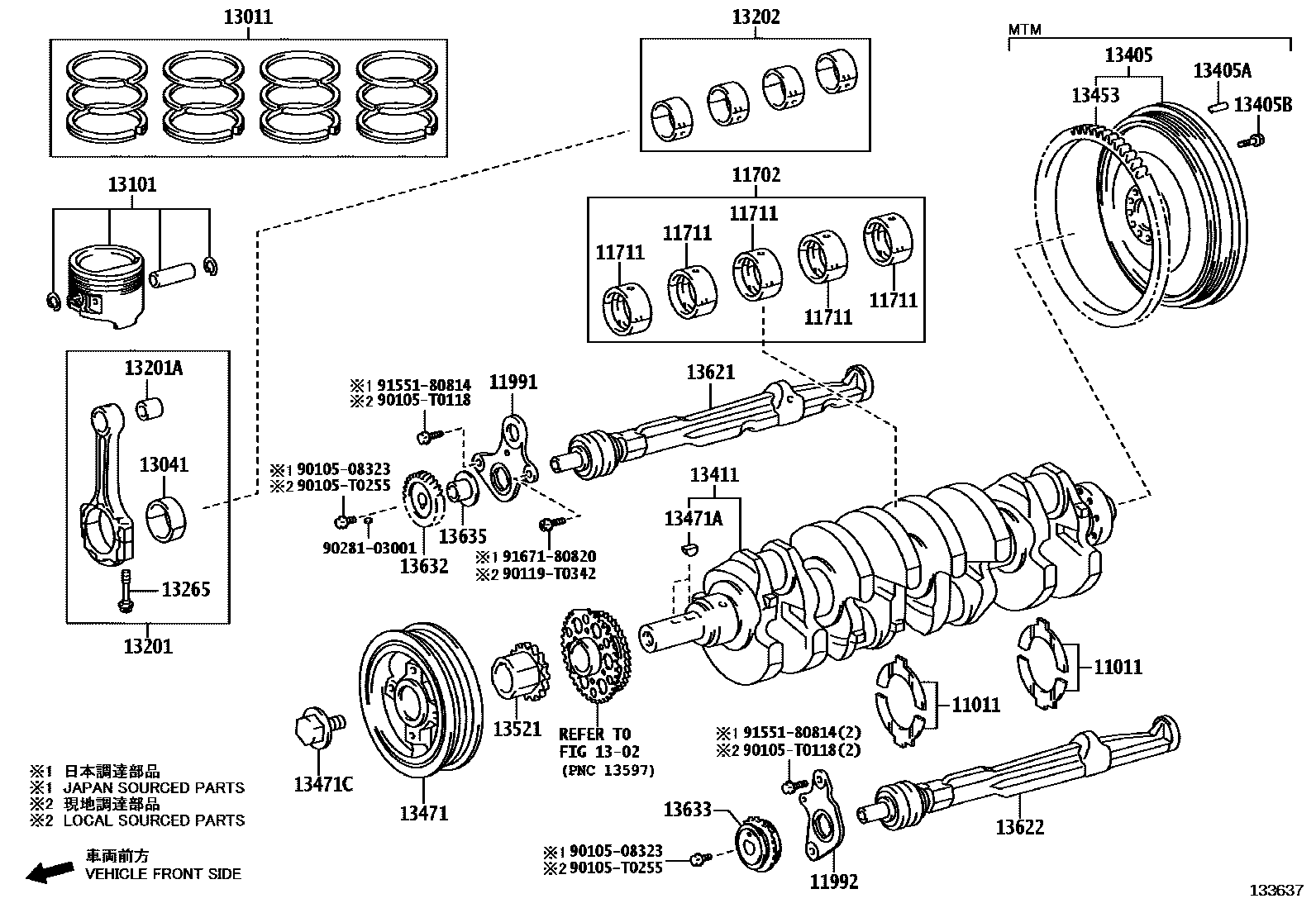

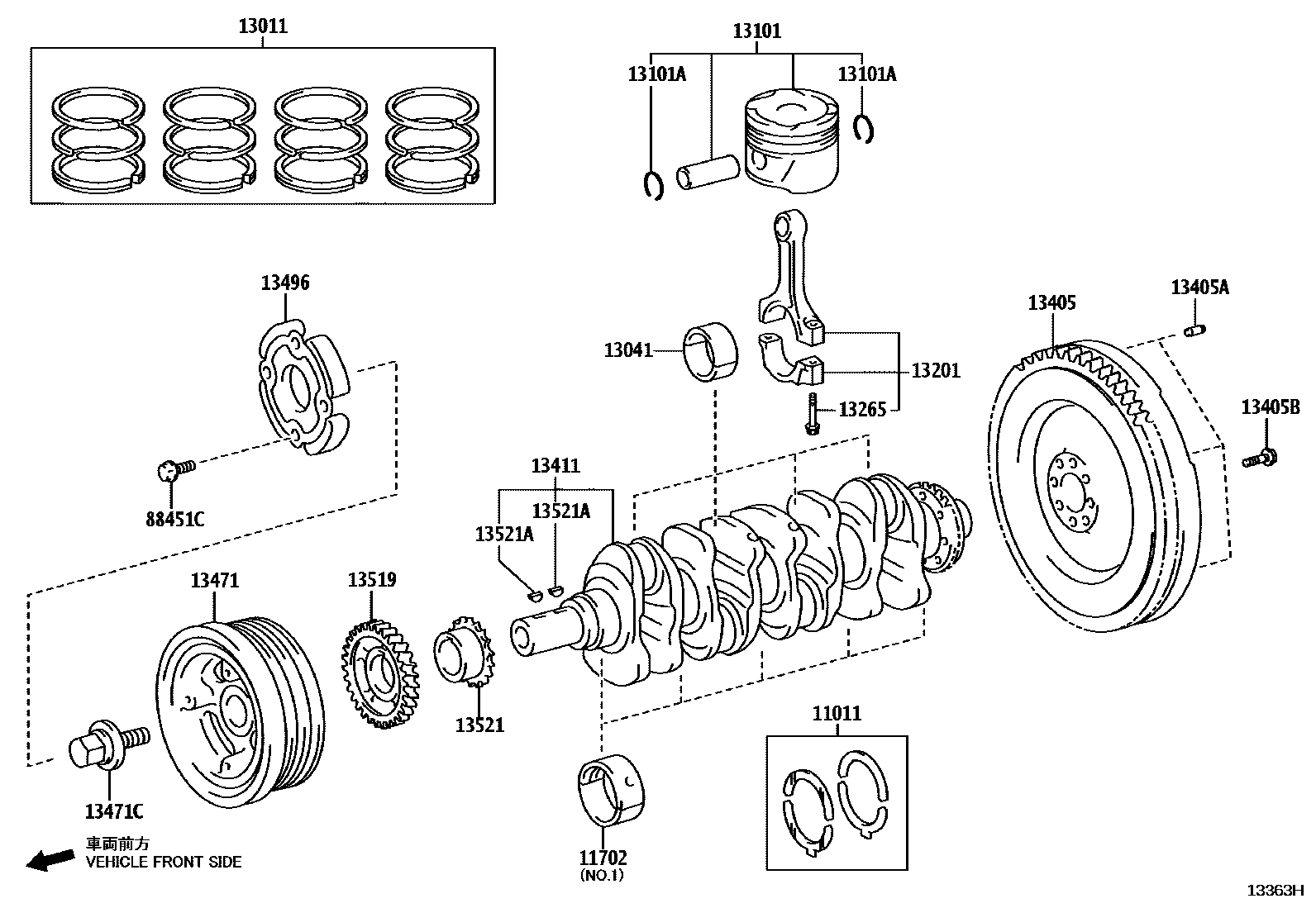

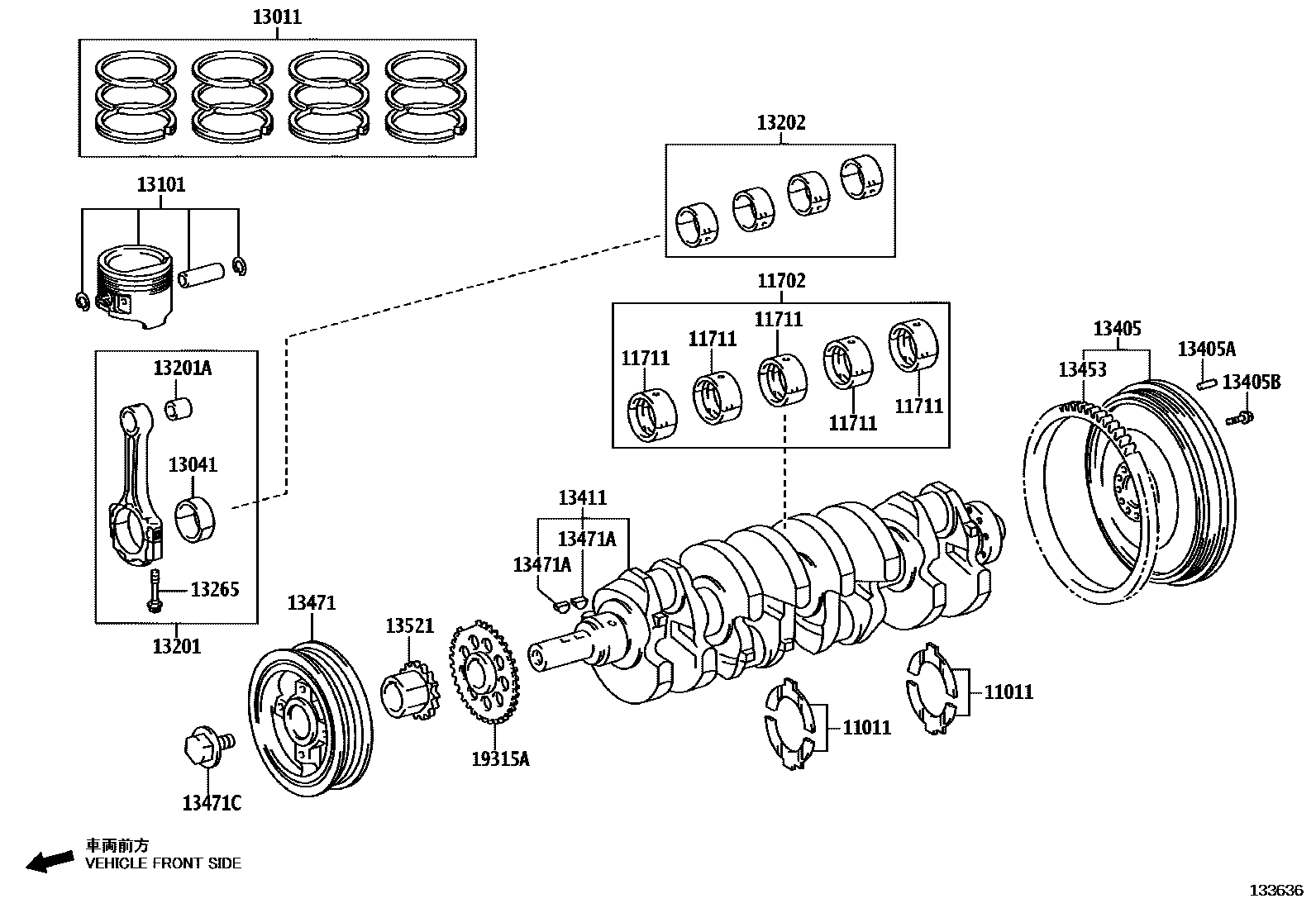

Toyota HILUX Crankshaft & Piston — Figure 1301
Toyota HILUX EPC diagram 1301, Crankshaft & Piston, with 5 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-0C010 · 11011-0L020 · 11011-30010 · 11011-54020 · 11012-54020 · 11013-54020 |
| 11702 | crankshaft bearing assembly | 11704-54081 · 11704-75032 · 11705-54081 |
| 11991 | Balance shaft thrust washer | 11991-0C010 · 11991-0C020 · 11991-75010 |
| 11992 | No. 2 balance shaft thrust washer | 11992-0C010 · 11992-0C020 · 11992-75010 |
| 13011 | Piston ring assembly | 13011-0C080 · 13011-0C090 · 13011-0E022 · 13011-0E042 · 13011-0E052 · 13011-11221 · 13011-54130 · 13011-75200 · 13011-75210 · 13013-54130 · 13013-75200 · 13013-75210 |
| 13101 | Piston sub-assembly with pin | 13101-0C060 · 13101-0C070 · 13101-0C080 · 13101-0C090 · 13103-54120 · 13103-75200 · 13103-75210 |
| 13101A | Bore snap ring (for piston pin) | 90520-32013 · 90521-31001 |
| 13201 | Connecting rod sub-assembly | 13201-09303 · 13201-09673 · 13201-09B71 · 13201-09B81 · 13201-59216 |
| 13201A | Bushing (for connecting rod small end) | 90999-73115 · 90999-73144 |
| 13202 | Connecting rod bearing assembly | 13204-54042 · 13204-75070 · 13205-54042 |
| 13265 | Connecting rod bolts | 13265-0C010 · 13265-0C020 · 13265-22031 · 13265-54021 |
| 13265A | Hexagonal nut (for connecting rod bolts) | 90179-10123 |
| 13405 | Flywheel sub-assembly | 13405-0C010 · 13405-0C020 · 13405-0C030 · 13405-0C040 · 13405-0E010 · 13405-0E020 · 13405-0E030 · 13405-0E070 · 13405-0E080 · 13405-0E101 · 13405-0E111 · 13405-11100 · 13405-54080 |
| 13405A | Direct sales (for flywheel) | 90250-08054 · 90250-10192 · 90250-T0008 · 90250-T0010 · 90250-T0013 |
| 13405B | Flywheel fixing bolt | 90105-12109 · 90105-13015 · 90105-T0203 · 90910-02116 · 90910-T2004 |
| 13411 | crankshaft | 13401-0C022 · 13401-0C030 · 13401-0E010 · 13401-0E020 · 13401-0E030 · 13401-0E040 · 13401-11090 · 13401-54100 |
| 13453 | flywheel ring gear | 13453-05010 · 13453-0C020 · 13453-0C030 · 13453-54010 |
| 13471 | crankshaft pulley | 13408-0C030 · 13408-0E011 · 13408-0E020 · 13408-11061 · 13408-54090 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-T0003 · 95161-30622 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-16041 · 90109-T0038 · 90119-18003 · 90119-T0218 · 90901-19028 |
| 13477 | No. 2 crankshaft pulley | 88451-95J03 |
| 13496 | crankshaft pulley cover | 13496-0E010 |
| 13519 | Oil pump driving gear | 13519-0E010 · 13519-0E030 · 13519-11010 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0C011 · 13521-0C030 · 13521-0E010 · 13521-0E020 · 13521-11040 · 13521-75021 |
| 13521A | Key (for crankshaft timing gear) | 90280-T0002 · 95161-30516 · 95161-30622 |
| 13521P | crankshaft timing pulley | 13521-54030 |
| 13566A | timing belt guide | 13566-54040 |
| 13621 | No. 1 balance shaft | 13621-0C010 · 13621-75020 |
| 13622 | No. 2 balance shaft | 13622-0C010 · 13622-75020 |
| 13632 | No. 1 balance shaft driven gear | 13632-0C010 |
| 13633 | No. 2 balance shaft driven gear | 13633-75010 |
| 13635 | balance shaft thrust spacer | 13635-0C010 · 13635-75010 |
| 19315A | crankshaft position sensor rotor | 19315-0C010 · 19315-75020 |
| 88451C | BOULON, BRIDE AV RONDELLE | 90119-T0236 |
