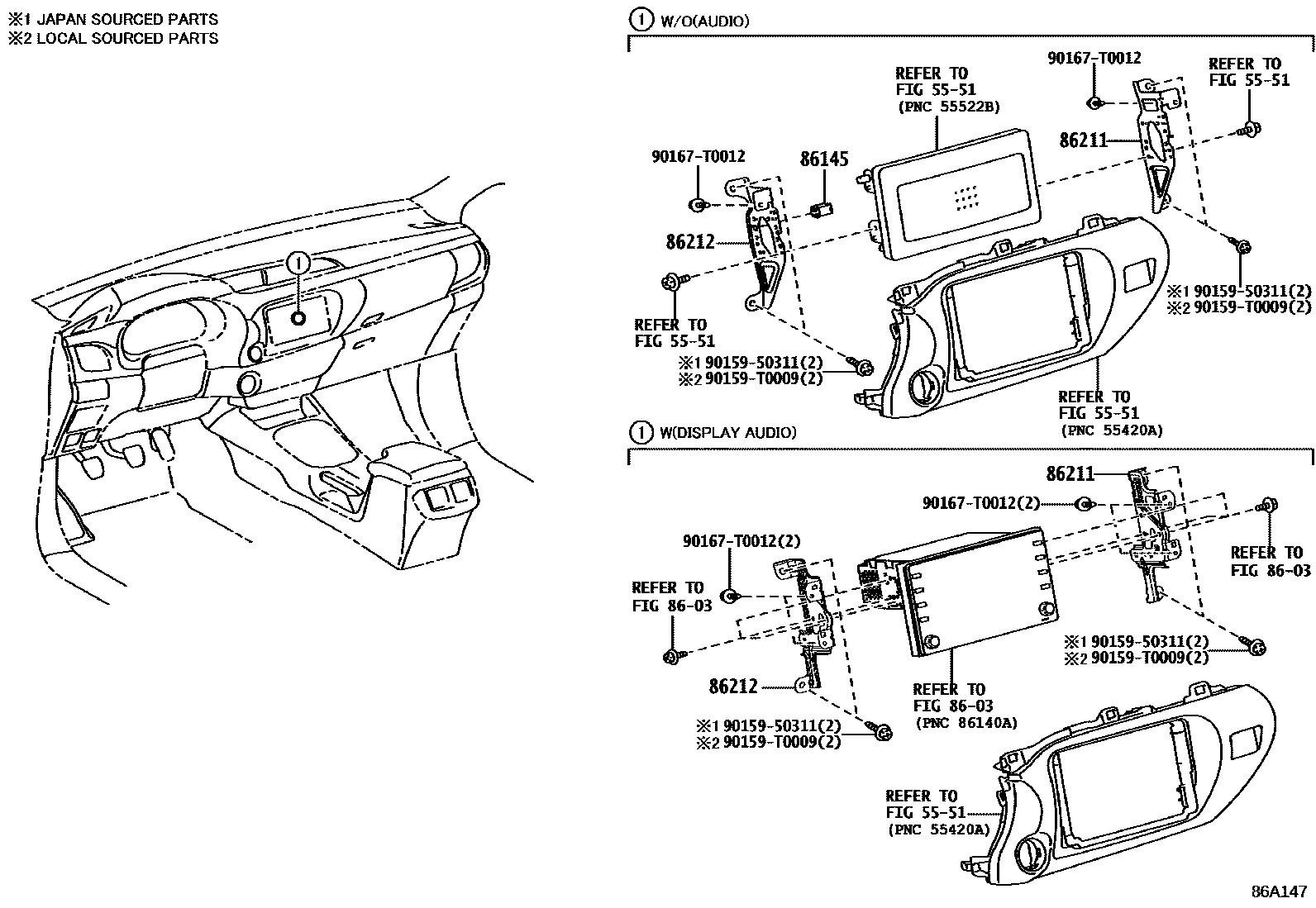

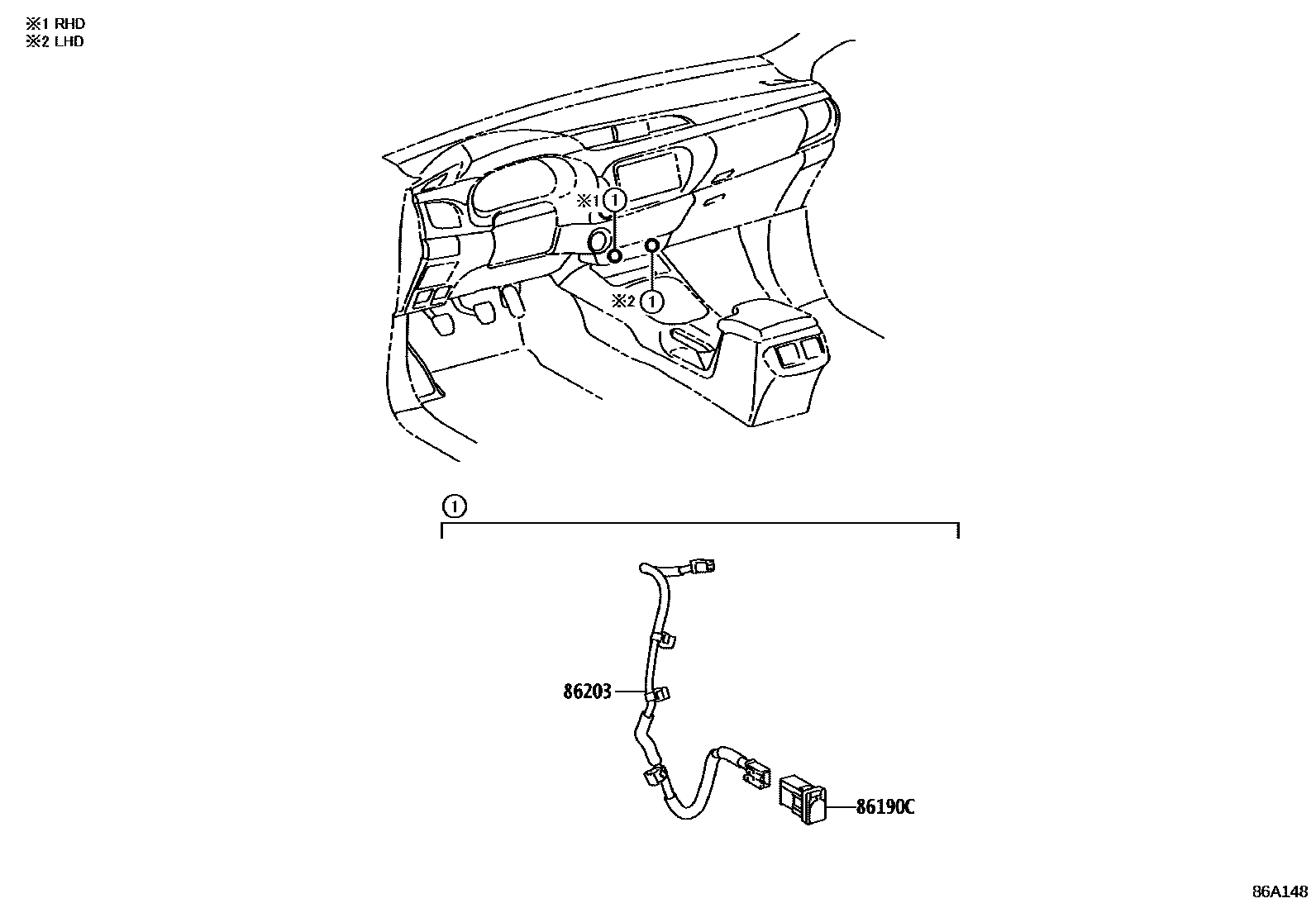

Toyota HILUX 收音机、放大器和冷凝器 — Figure 8601
Toyota HILUX EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86145 | Antenna connector | 86145-52010 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-35020 · 86190-71020 |
| 86203 | radio wiring harness | 86203-0K100 · 86203-0K110 · 86203-0K120 · 86203-0K130 · 86203-71220 · 86203-71260 · 86203-71270 · 86203-71280 |
| 86211 | No. 1 radio bracket | 86211-KK050 · 86211-KK100 · 86211-KK120 · 86211-KK130 |
| 86212 | No. 2 radio bracket | 86212-KK050 · 86212-KK100 · 86212-KK120 · 86212-KK130 |
