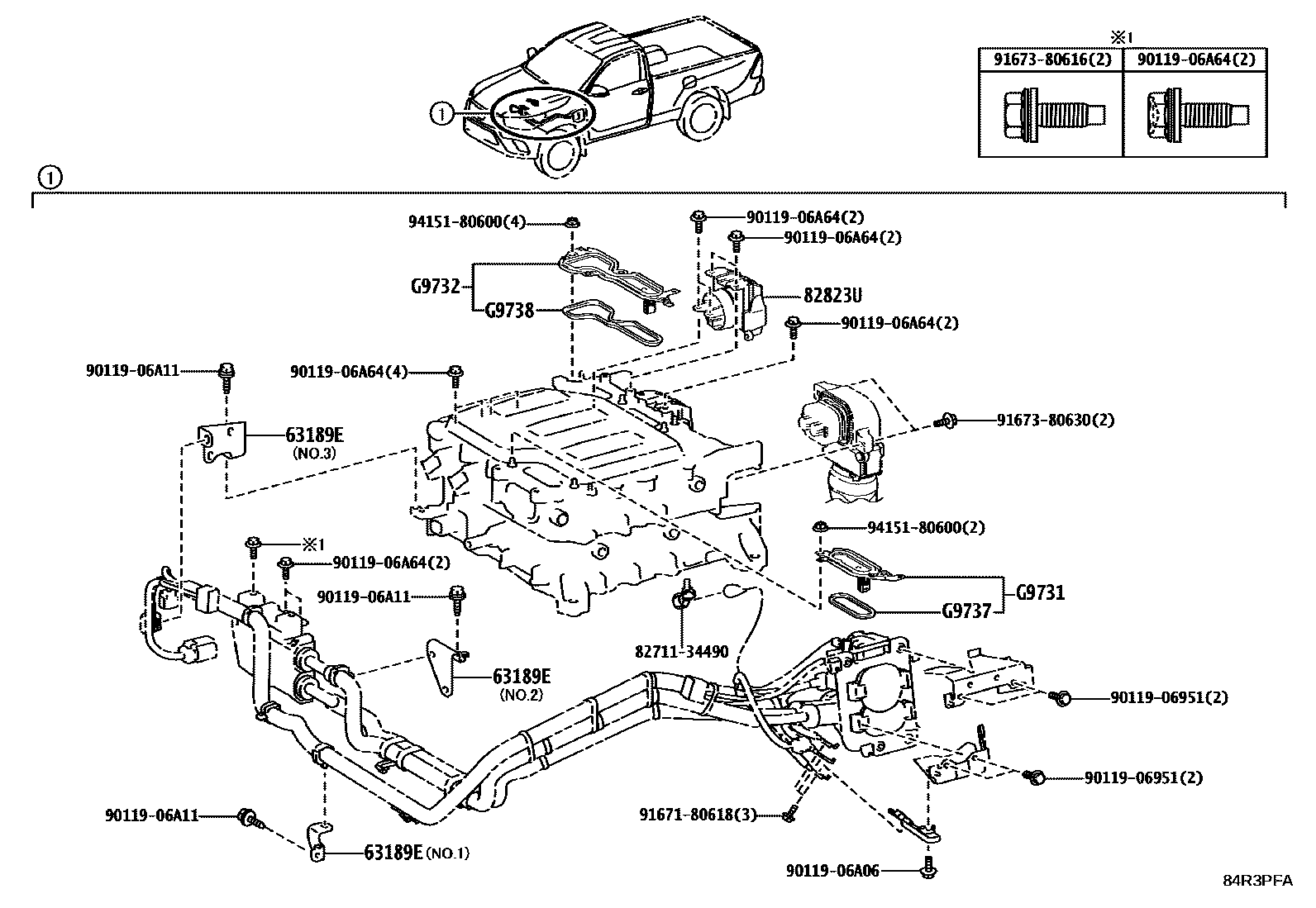

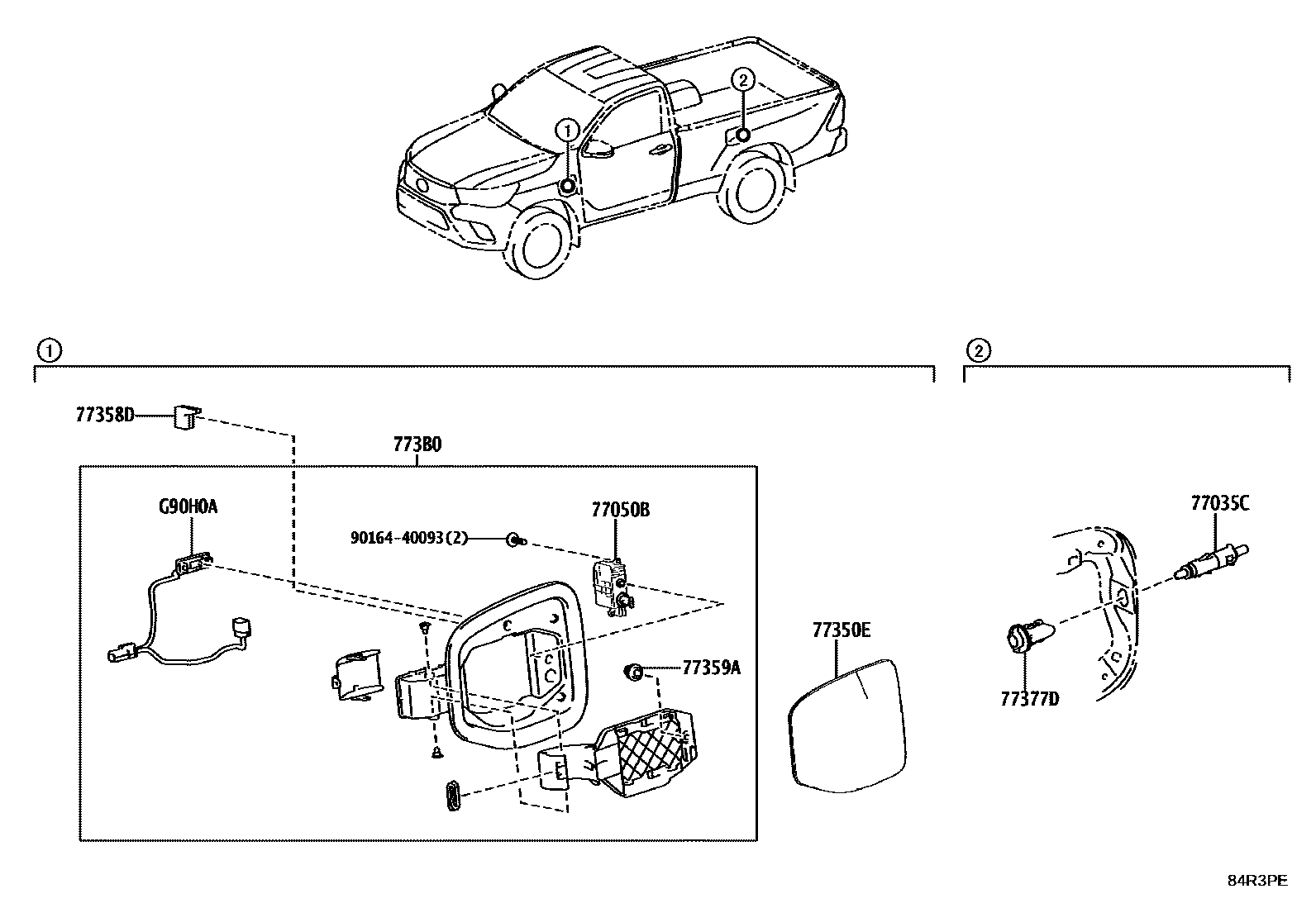

Toyota HILUX EV充电器&DC/DC转换器 — Figure 8442
Toyota HILUX EPC diagram 8442, EV充电器&DC/DC转换器, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63189E | PLAT. FIX. BLOC RAC. CABLAGE FAISC. FILS ELEC. | 63189-71010 · 63189-71020 · 63189-71030 |
| 77035C | SS-ENS. CABLE, CONTROLE DU VERROUILLAGE DU CAPOT DE CHARGE | 77035-0K620 |
| 77050B | ENS. VERROUILLAGE, TRAPPE A CARBURANT SANS MOTEUR | 77050-42020 |
| 77350E | ENSEMBLE CAPOT, OUVERTURE DE LA PRISE DE CHARGE | 77350-0K090 |
| 77358D | BUTEE, COUVERCLE OUVERTURE PORT CHARGE CC, NO.1 | 77358-0K070 |
| 77359A | JOINT ETANCHE A L'HUILE, VERROUILLAGE TRAPPE A CARBURANT | 77359-42010 |
| 77377D | ARRETOIR, SERRURE DU CAPOT D'OUVERTURE DE PRISE DE CHARGE | 77377-0D080 |
| 773B0 | ENS. BOITIER, ENTREE DE CHARGE, MG | 773B0-0K010 |
| 82823U | CAPUCHON, BORNE | 82823-42080 |
| G90H0A | ENS. TEMOIN, COUVERCLE CHARGEUR VE | G90H0-71010 |
| G9731 | CACHE, BORNE, NO.1 | G9731-42010 |
| G9732 | CACHE, BORNE, NO.2 | G9732-42011 |
| G9737 | JOINT D'ETANCHEITE, CACHE BORNE, NO.1 | G9737-42010 |
| G9738 | JOINT D'ETANCHEITE, CACHE BORNE, NO.2 | G9738-42010 |
