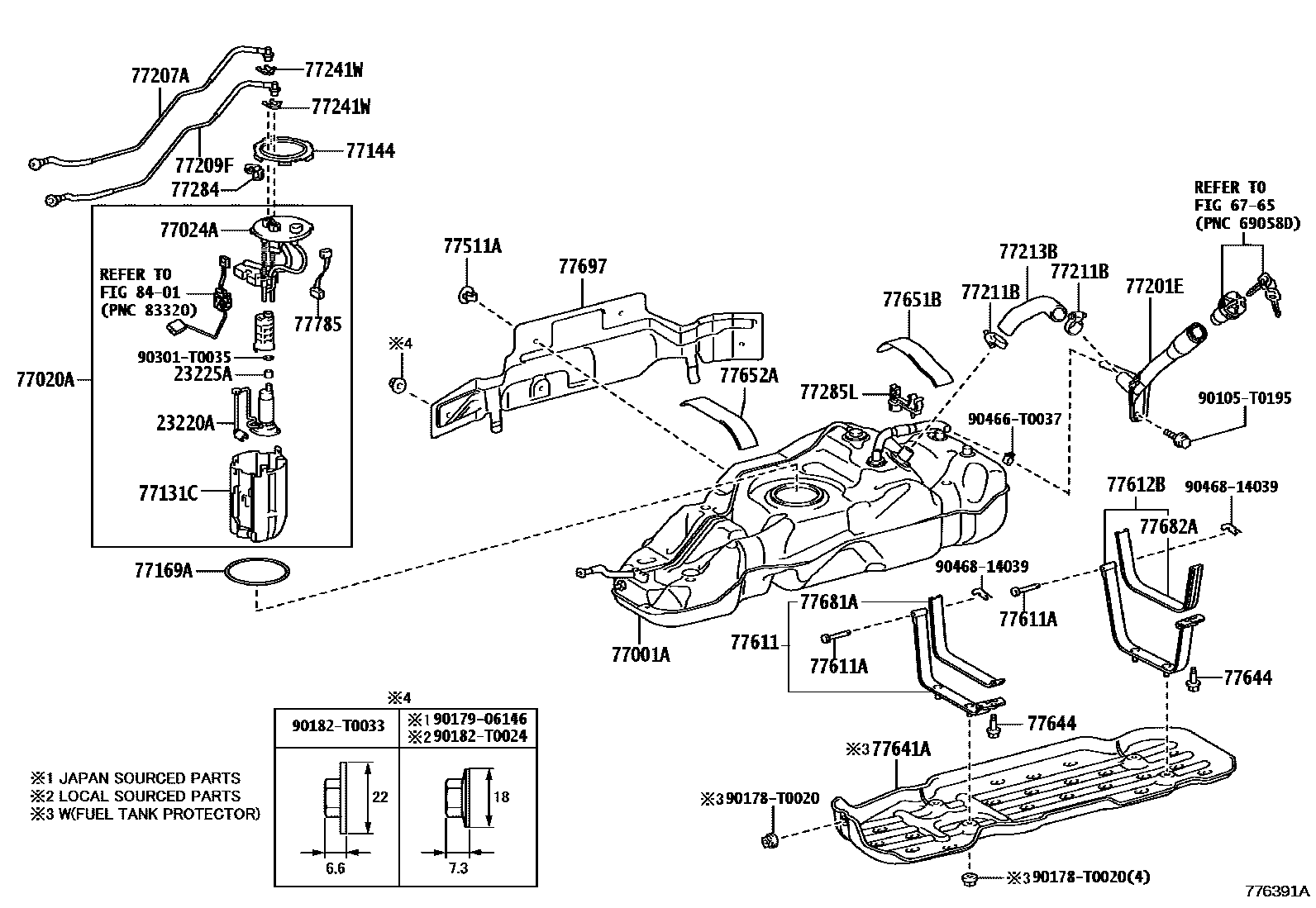

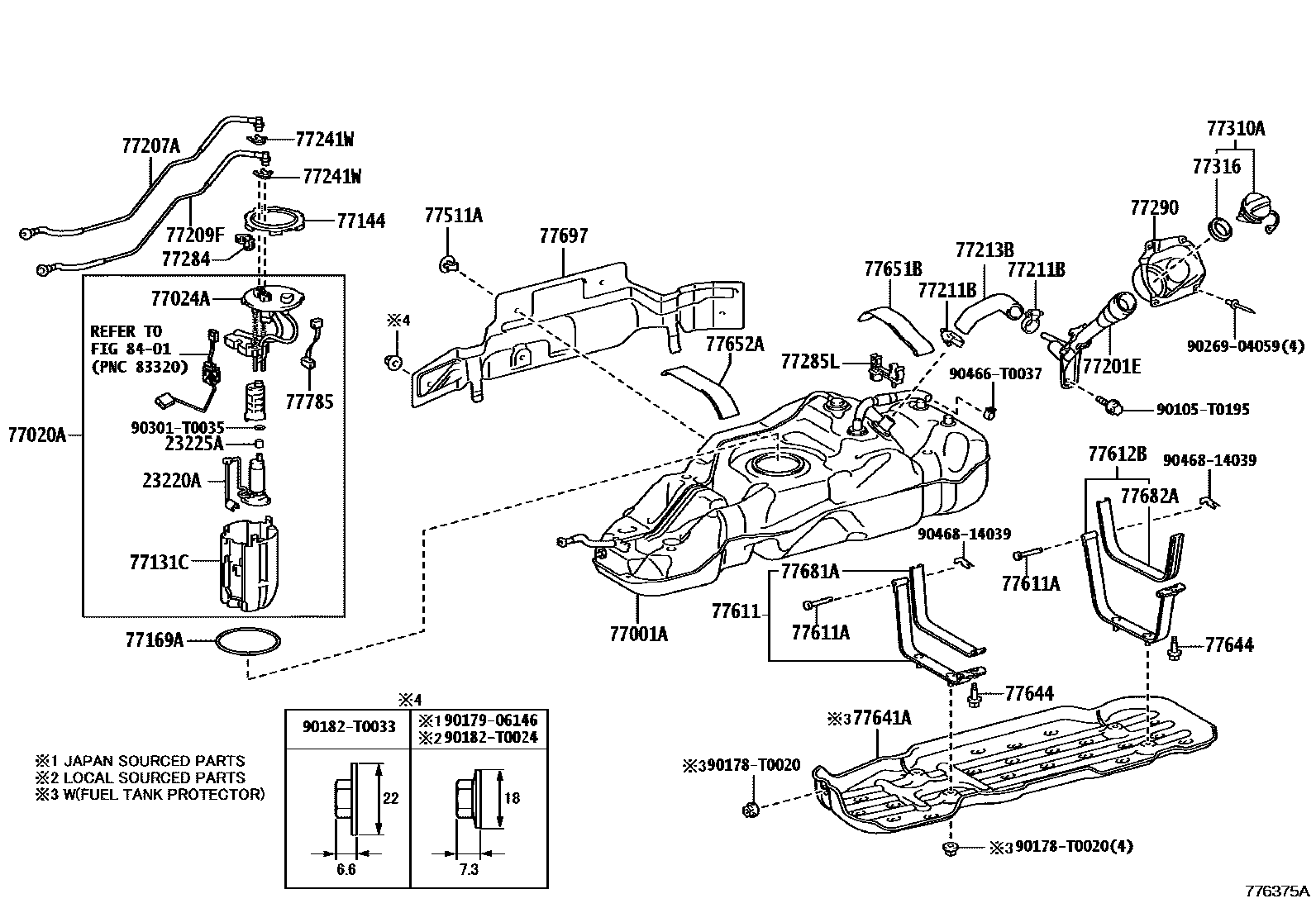

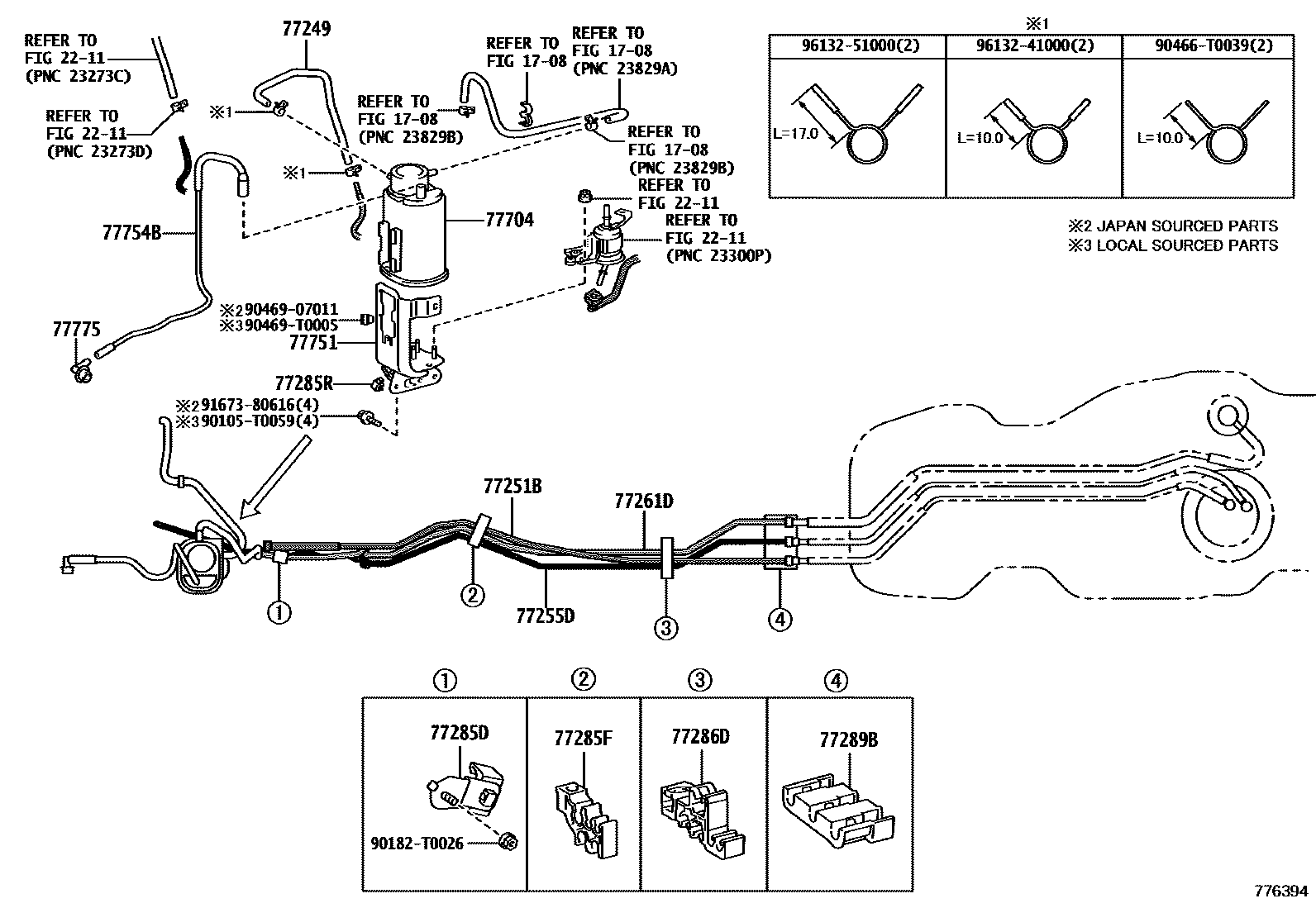

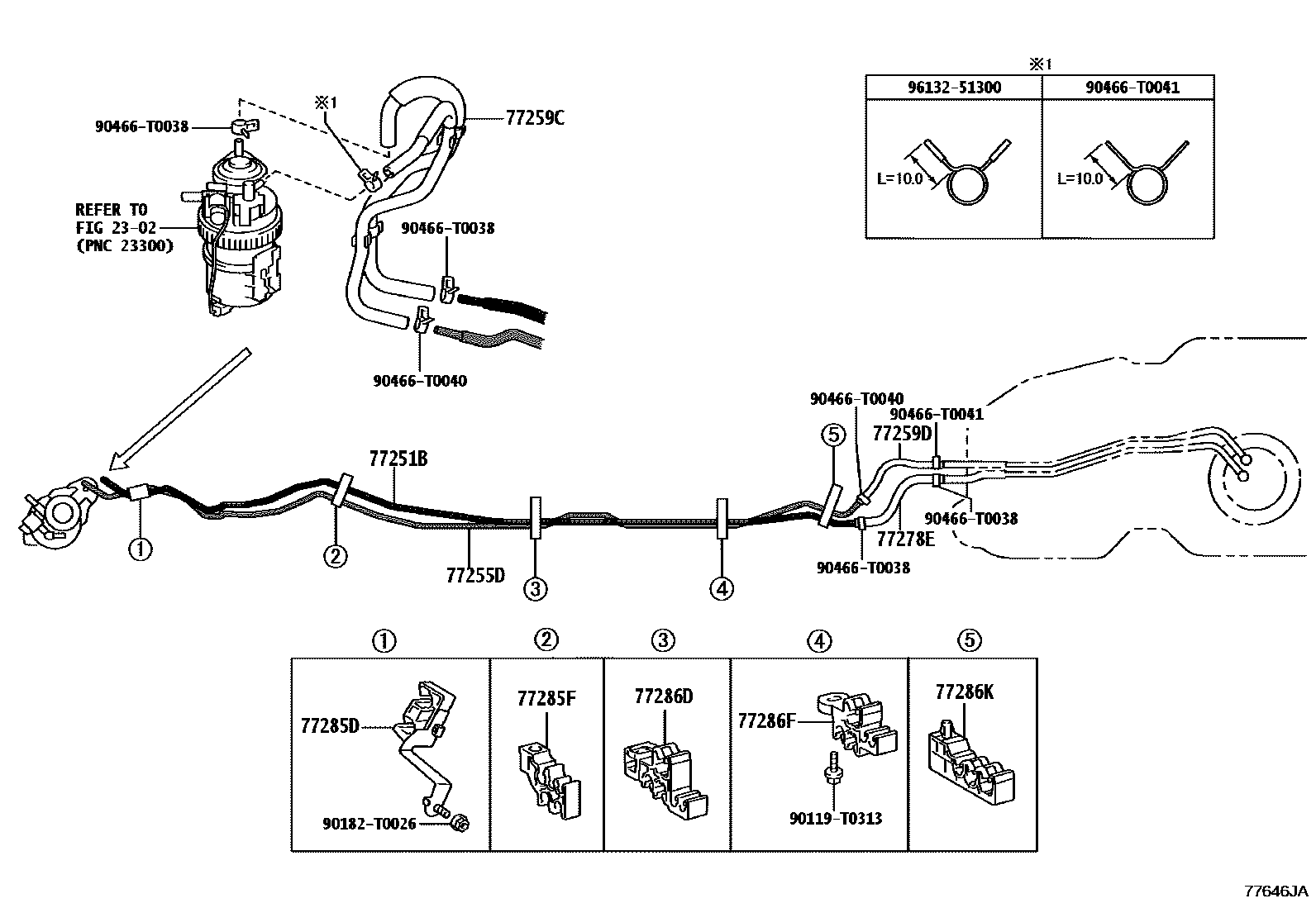

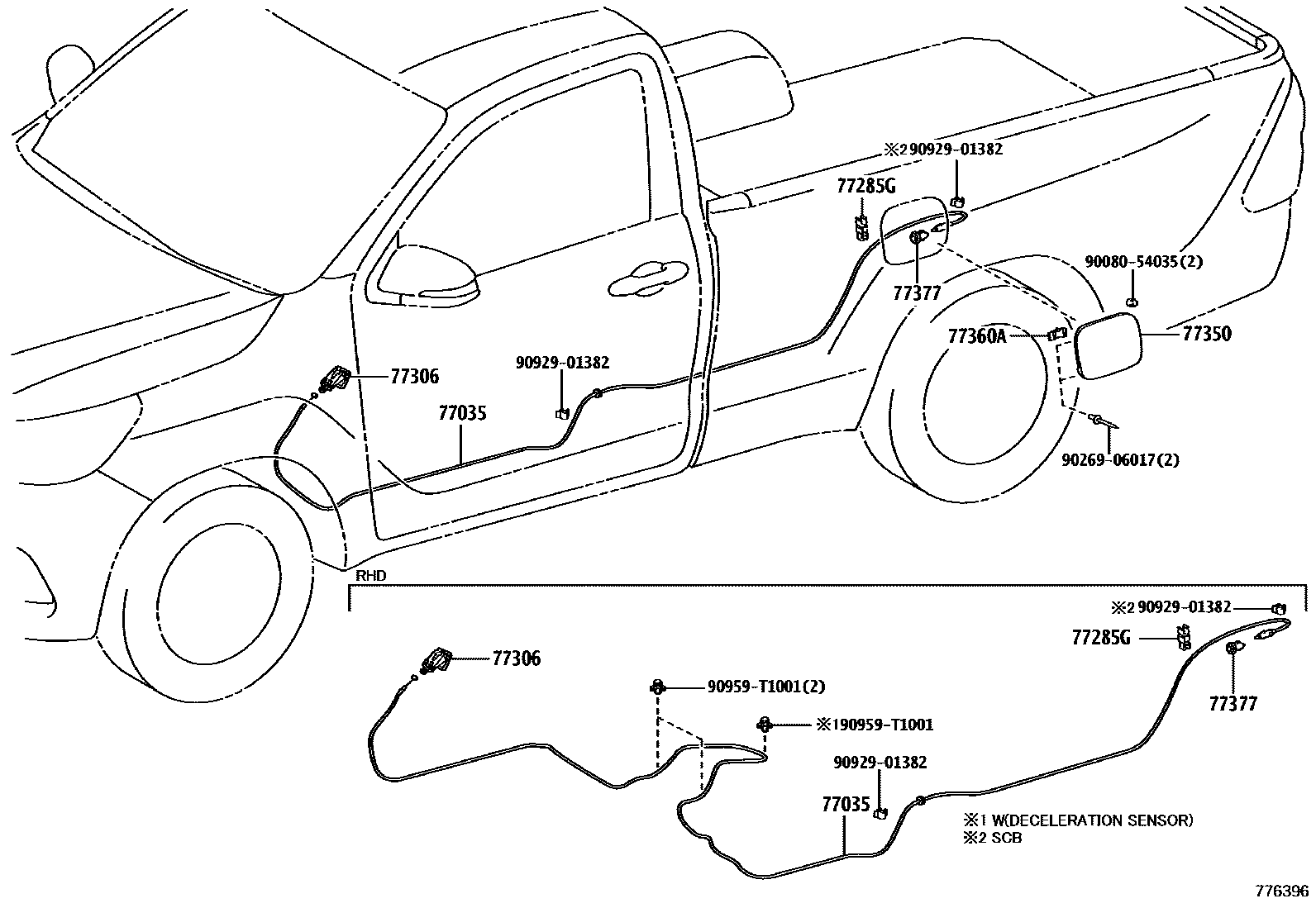

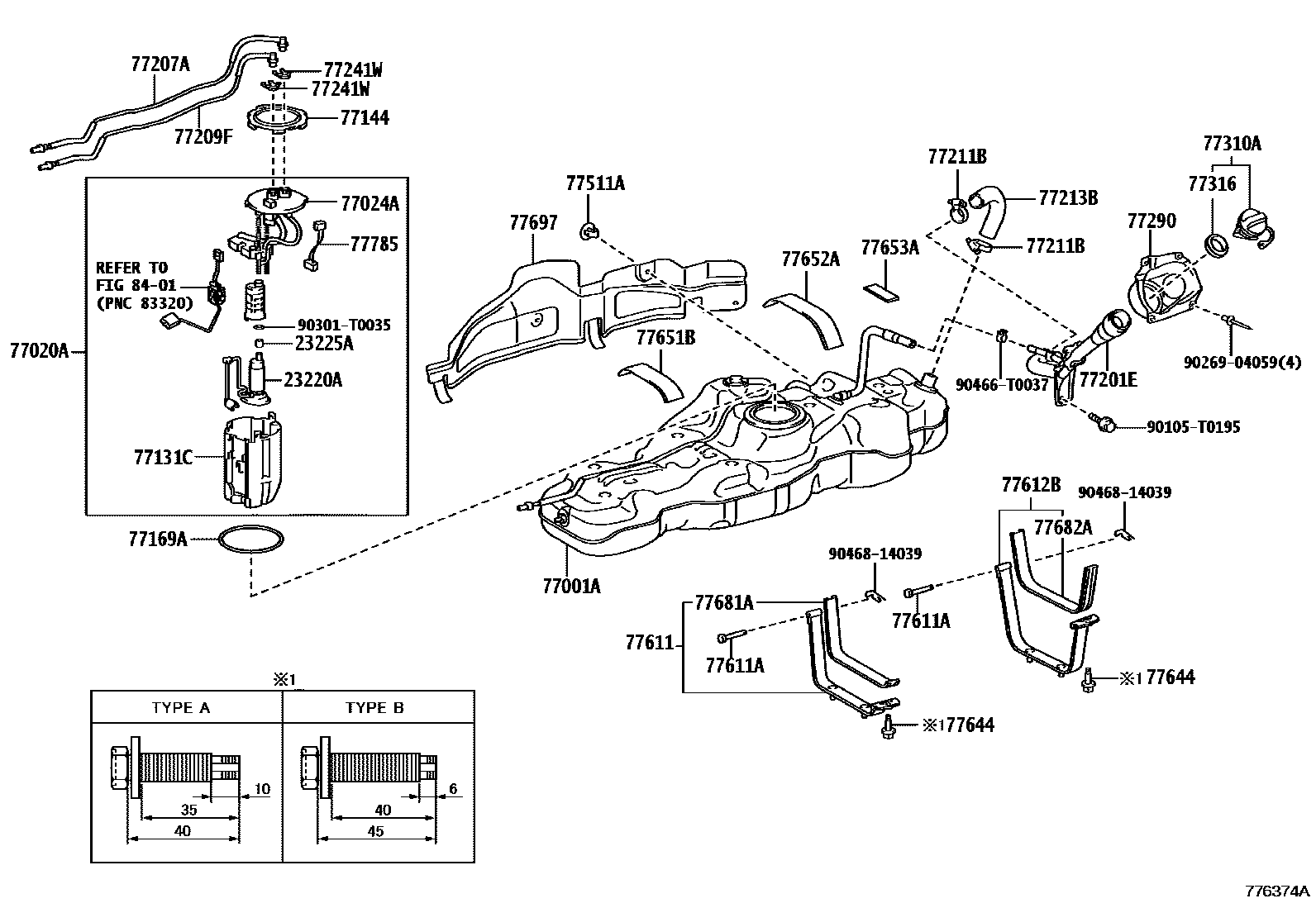

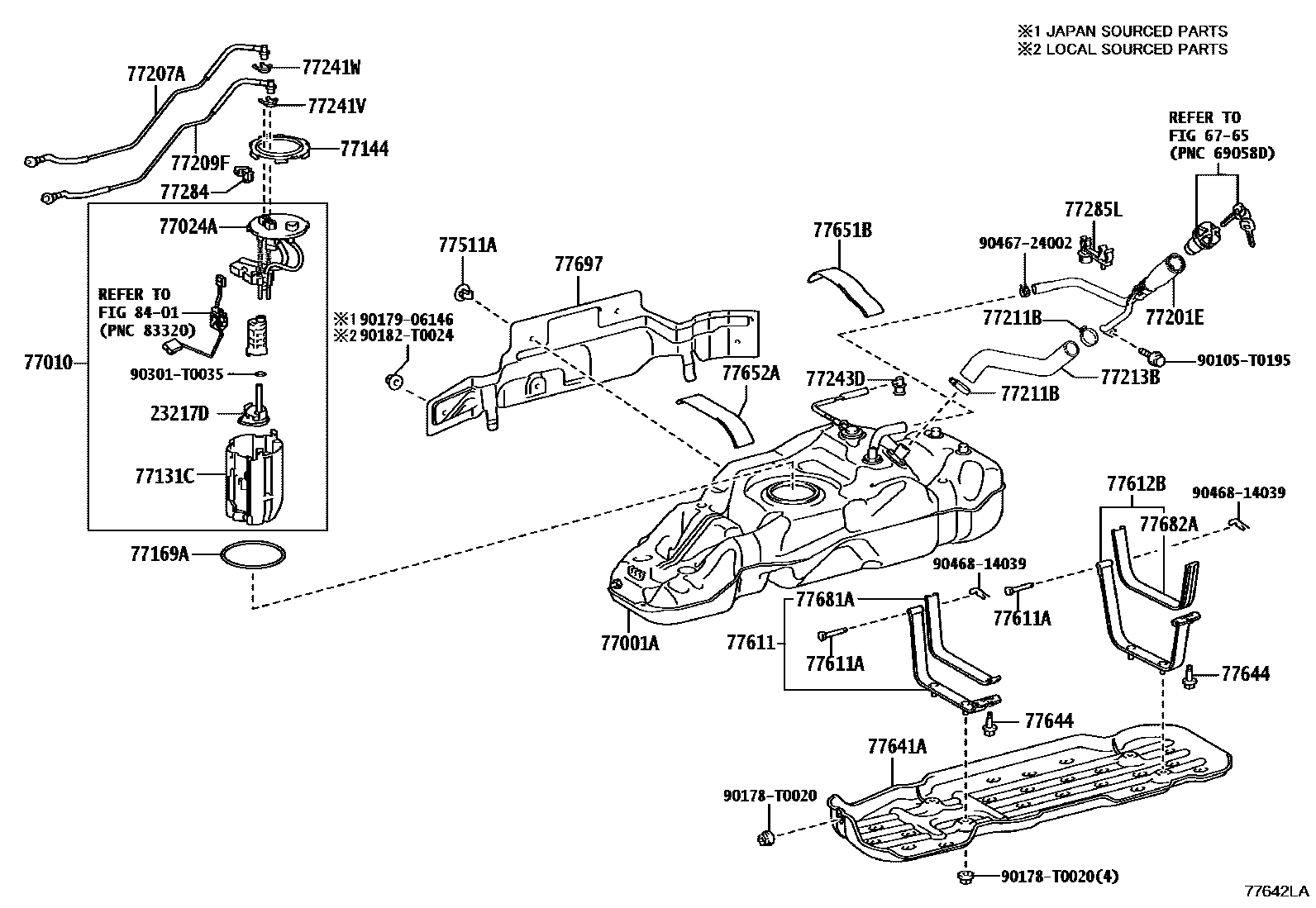

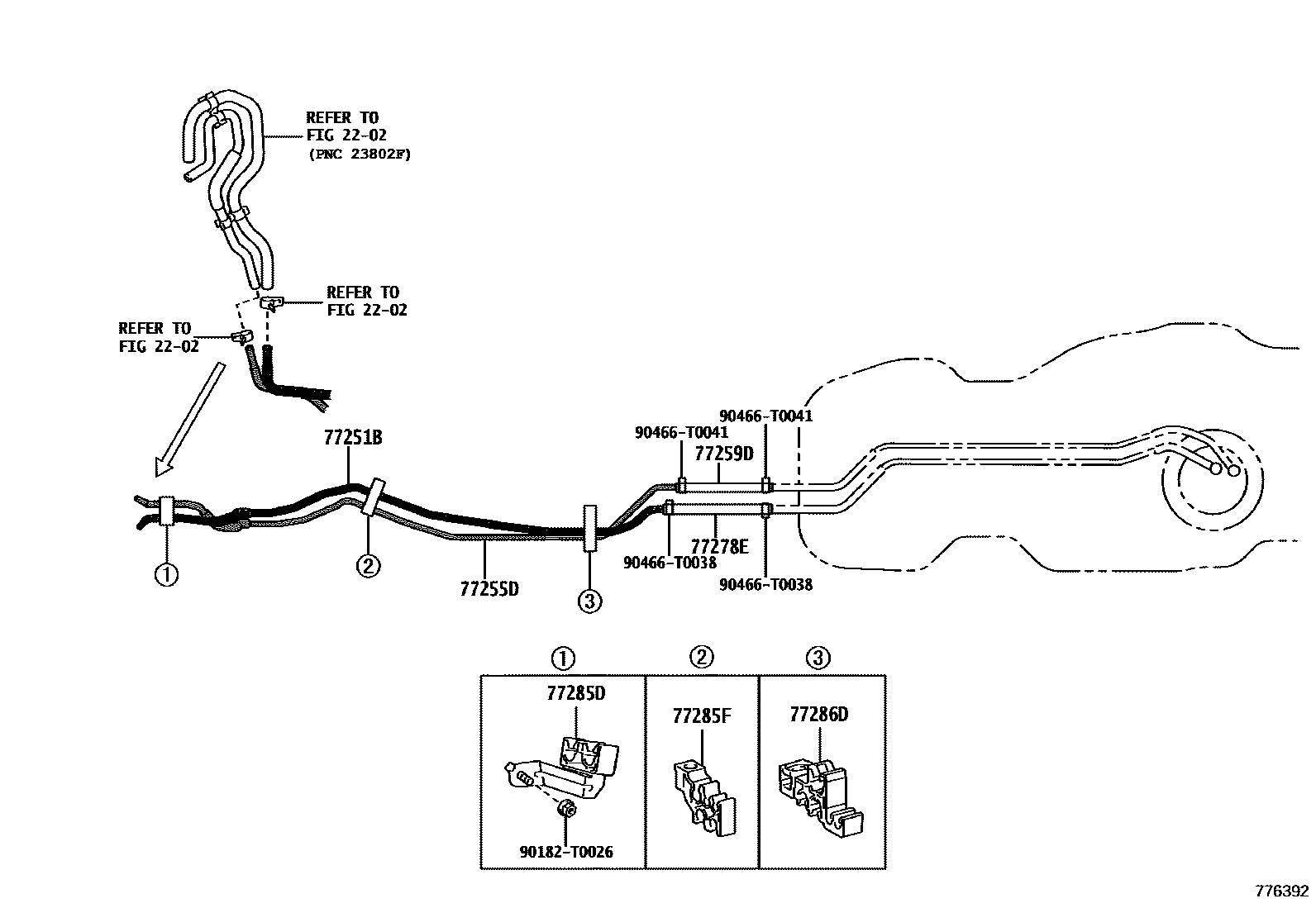

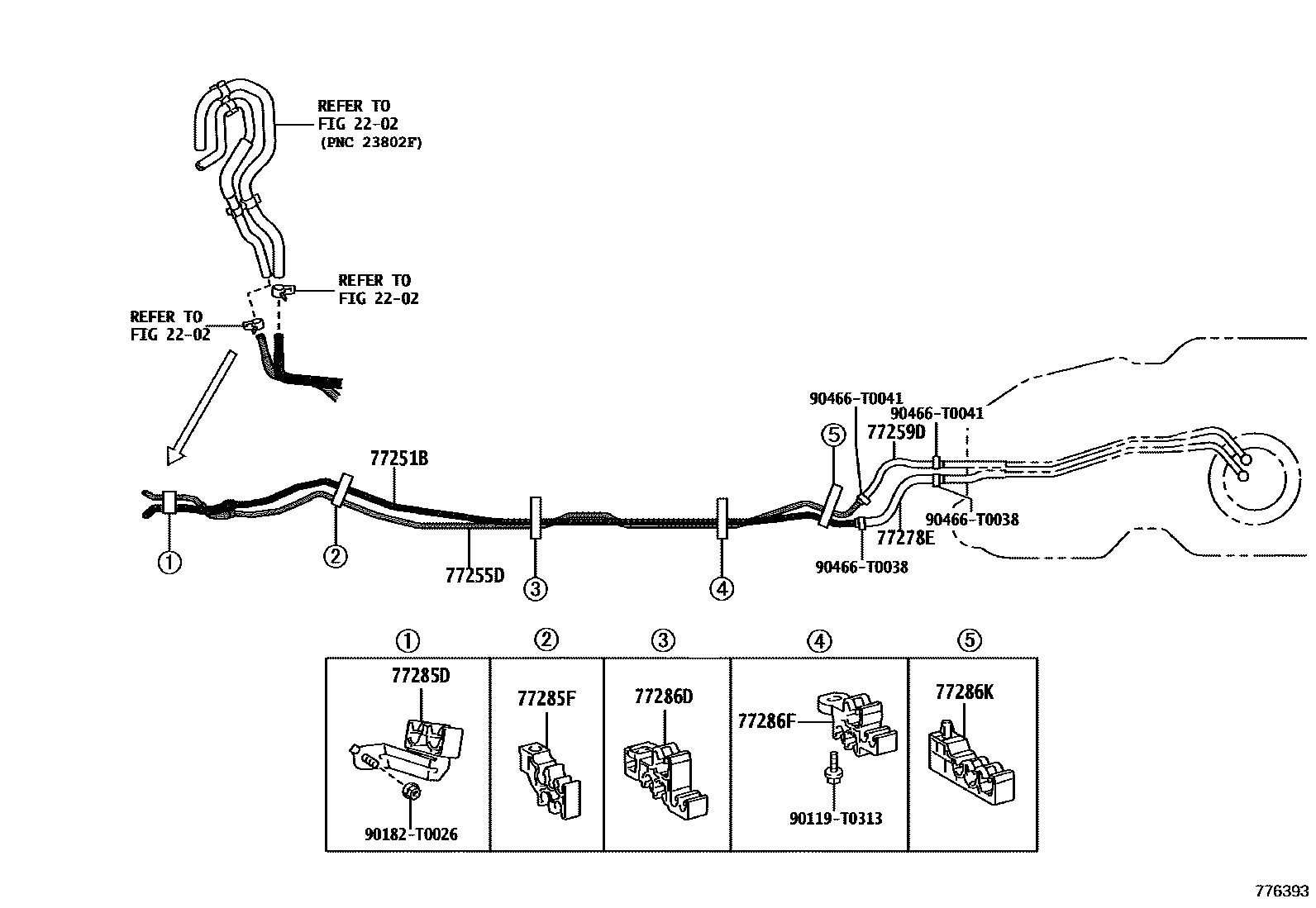

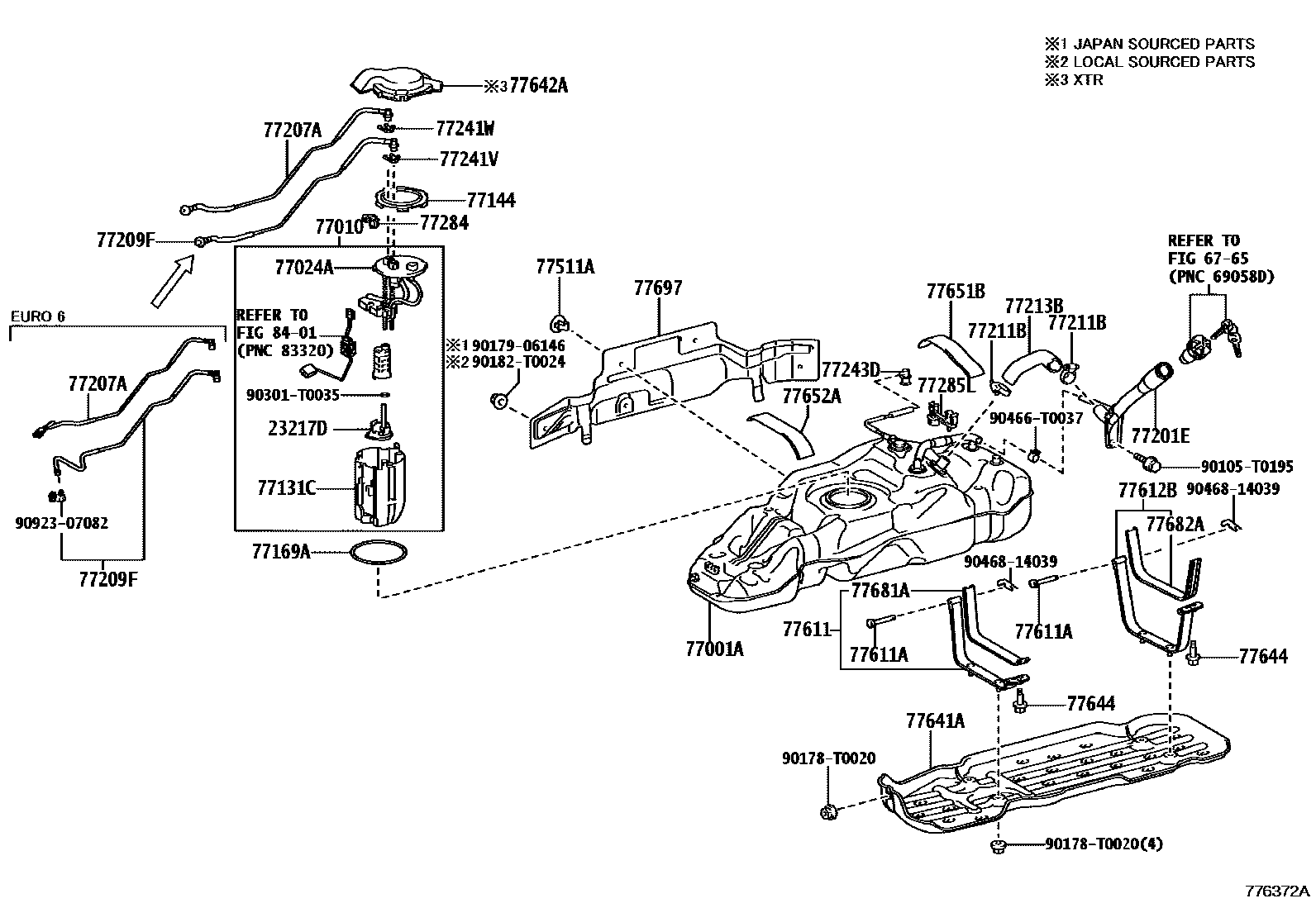

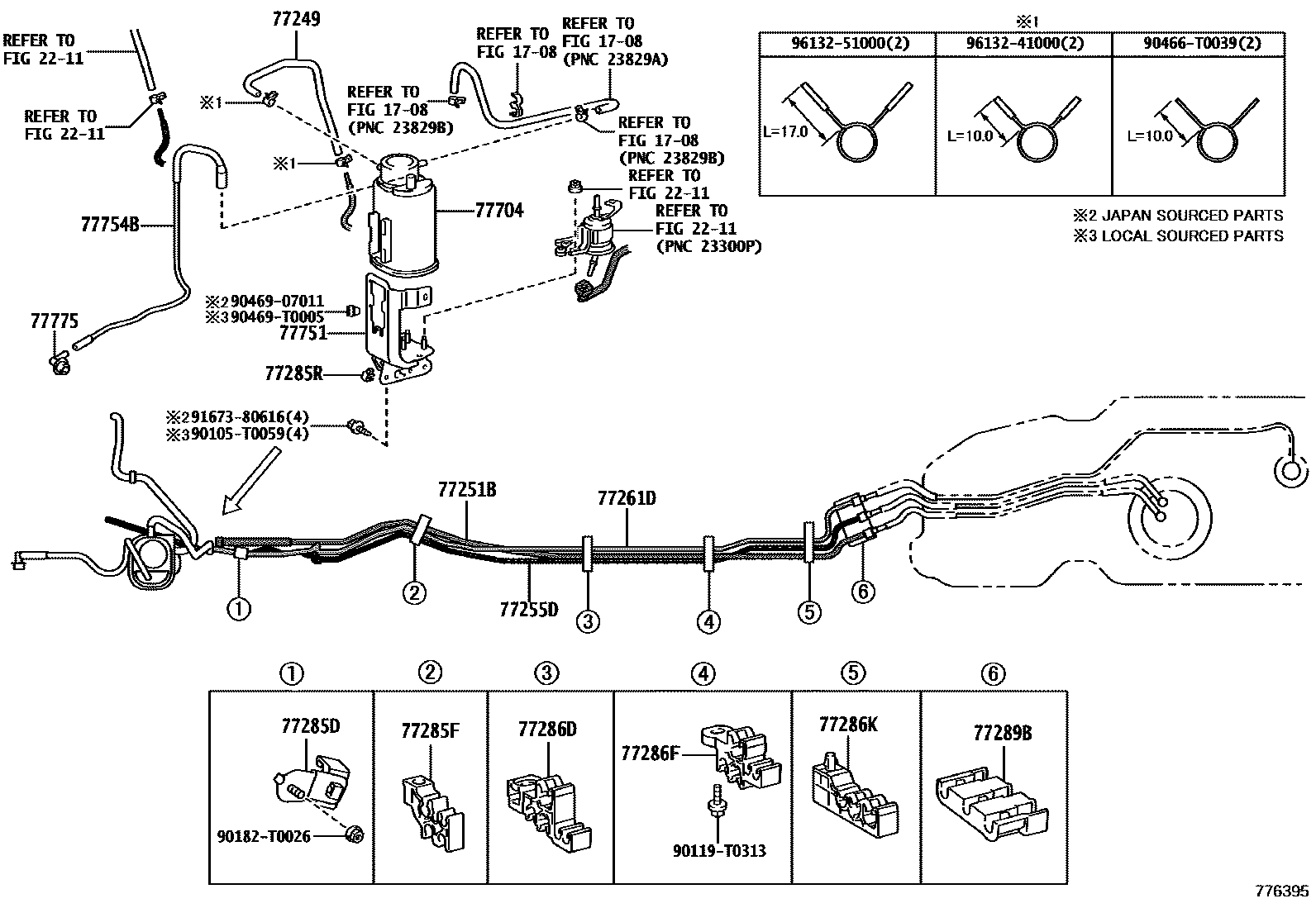

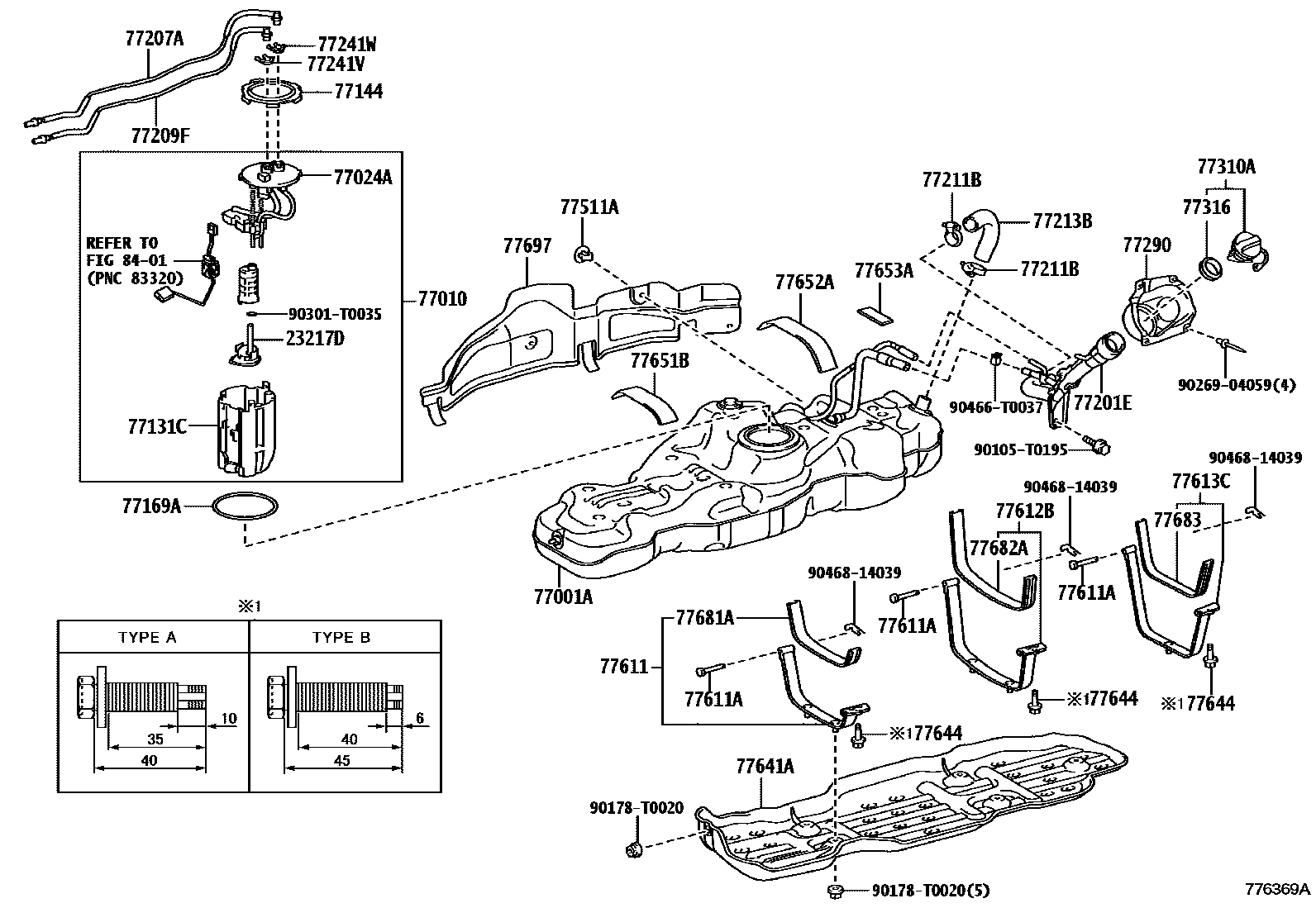

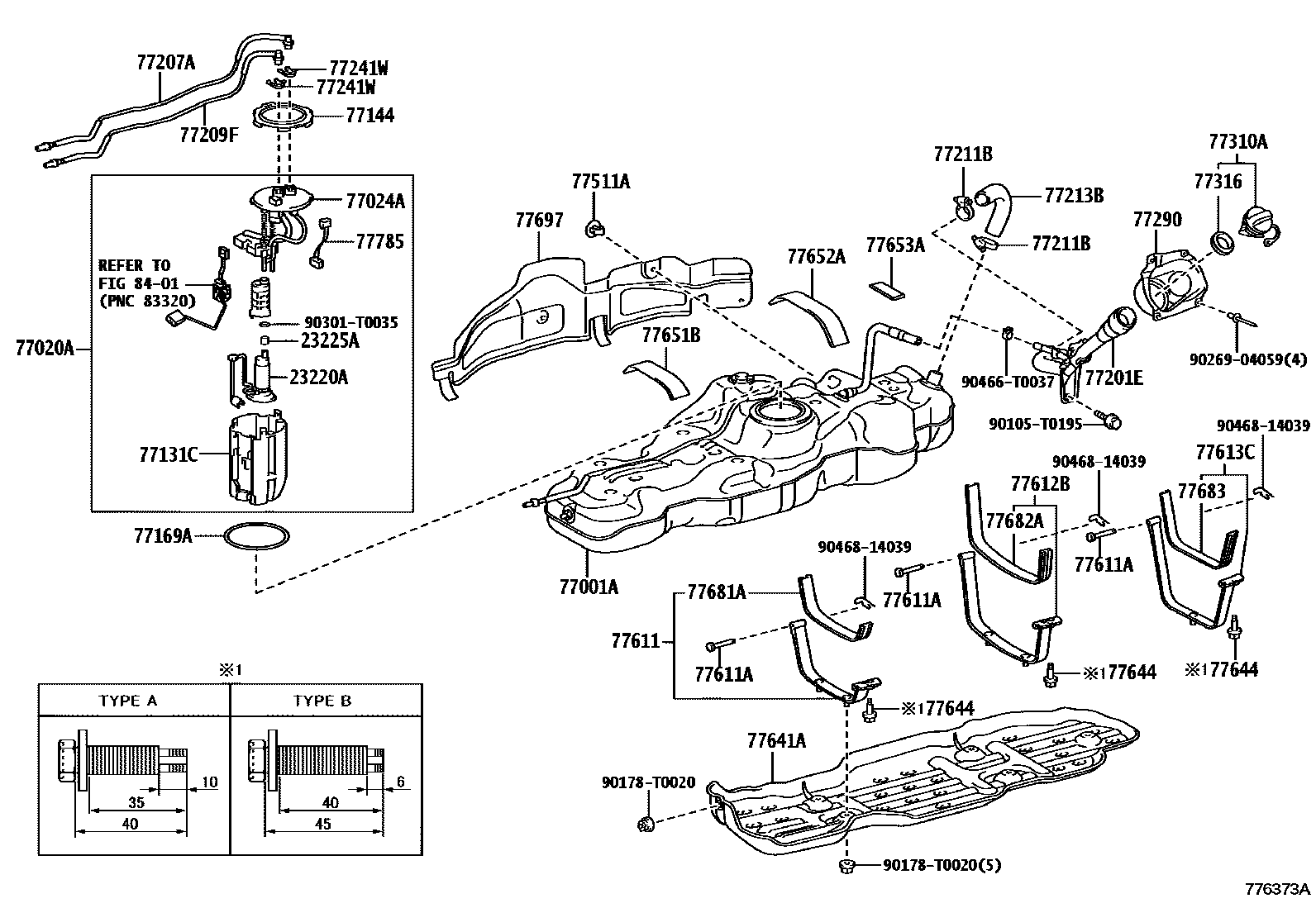

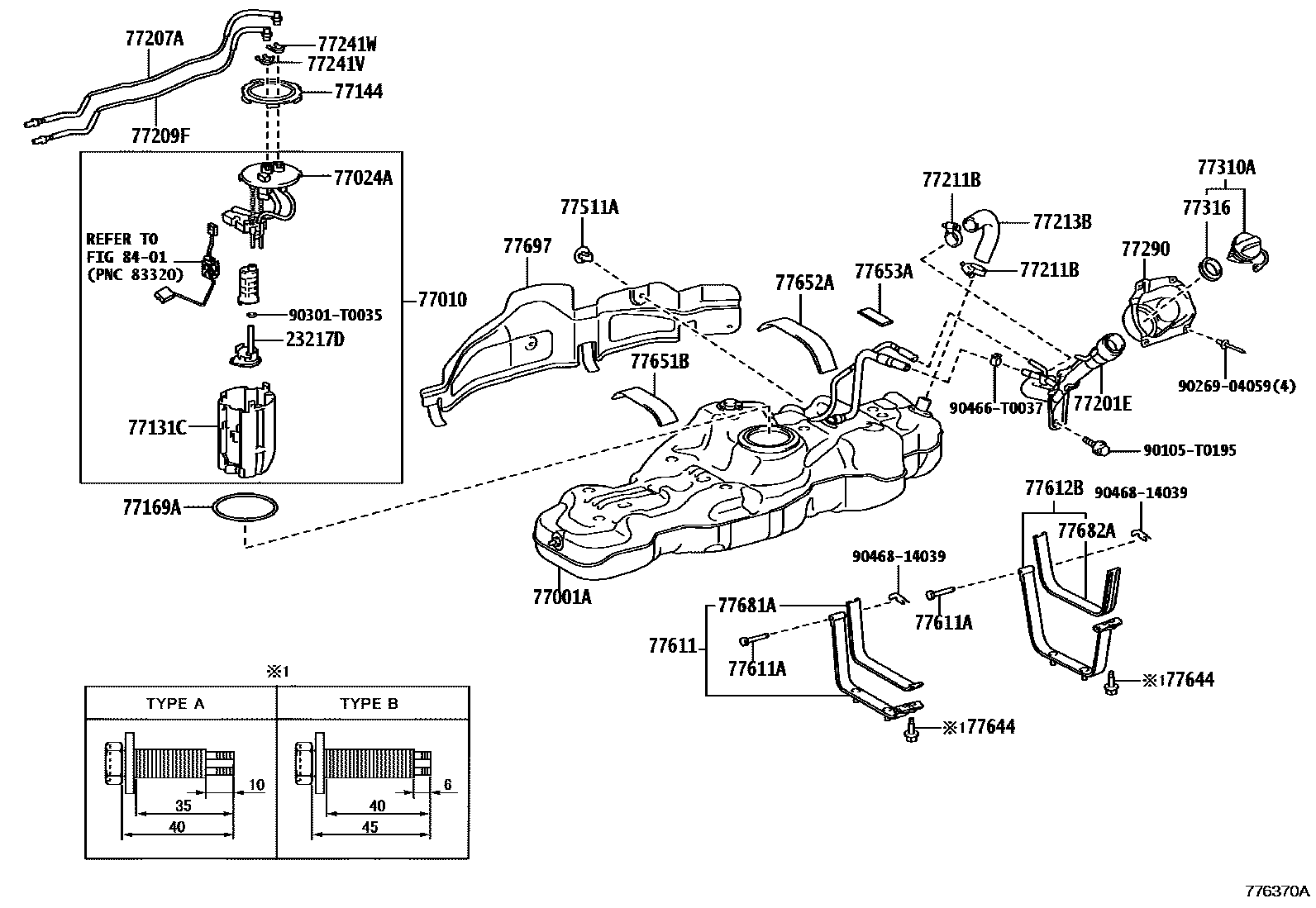

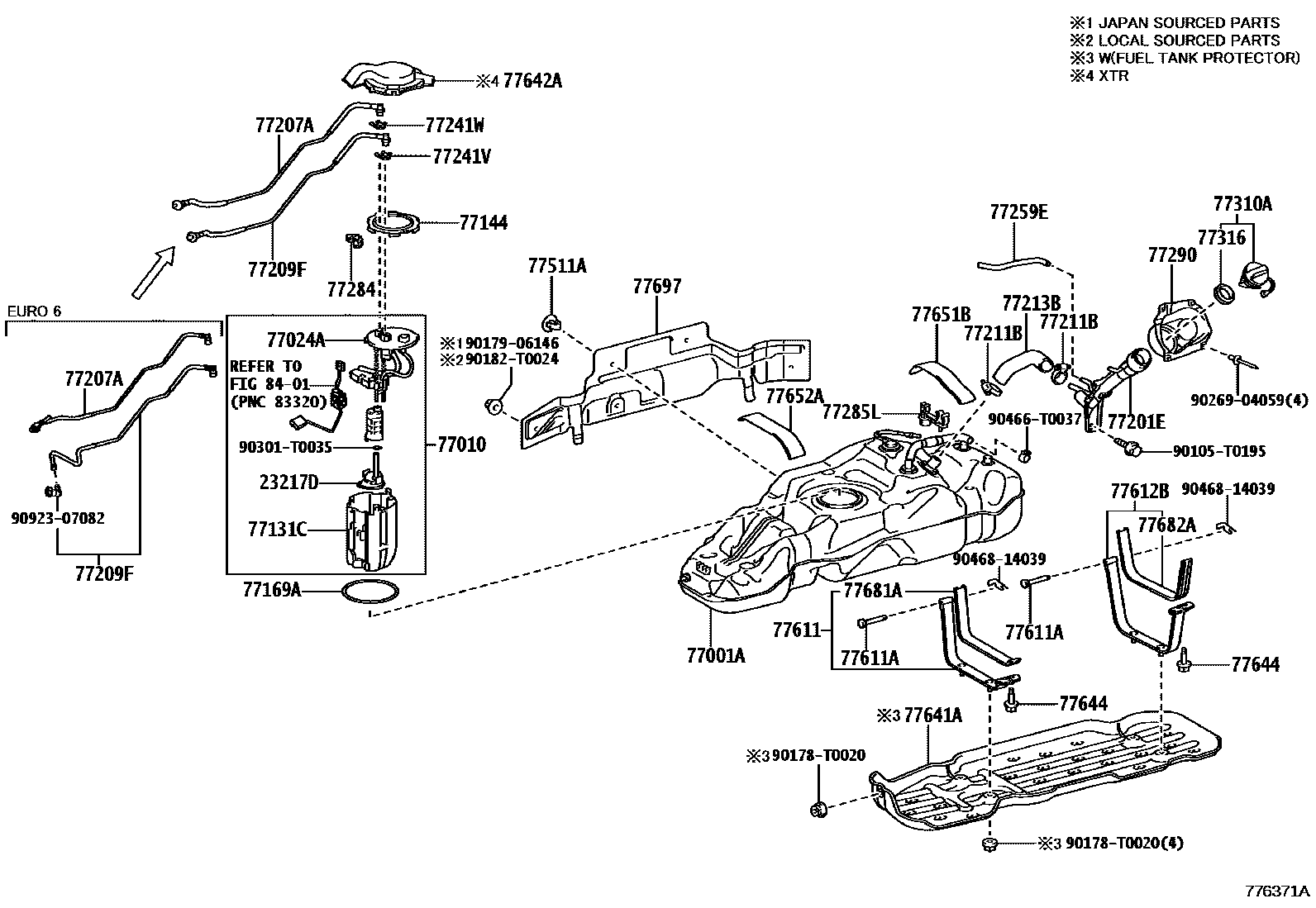

Toyota HILUX 燃油箱和燃油管 — Figure 7751
Toyota HILUX EPC diagram 7751, 燃油箱和燃油管, with 16 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-0L020 |
| 23220A | Fuel pump assembly with filter | 23220-0C171 · 23220-0C201 |
| 23225A | fuel pump septum | 23225-0V030 |
| 77001A | Fuel tank sub-assembly | 77001-0K400 · 77001-0K420 · 77001-0K440 · 77001-0K470 · 77001-0K490 · 77001-0K610 · 77001-0K630 · 77001-0K660 · 77001-0K670 · 77001-0K680 · 77001-0K690 · 77001-0K800 |
| 77010 | Fuel tank vent pipe assembly | 77010-0K201 · 77010-0K230 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-0K391 · 77020-0K460 |
| 77024A | Fuel absorber sub-assembly | 77024-0K150 · 77024-0K170 · 77024-0K190 · 77024-0K300 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0K430 · 77035-0K440 · 77035-0K450 · 77035-0K470 · 77035-0K480 · 77035-0K490 · 77035-0K540 · 77035-0K560 |
| 77131C | No. 1 auxiliary fuel tank | 77131-0K070 · 77131-0K080 · 77131-0K190 · 77131-0K200 |
| 77144 | Fuel pump instrument fixture | 77144-0K040 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0K030 · 77169-0K040 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-KK060 · 77201-KK070 · 77201-KK080 · 77201-KK090 · 77201-KK110 · 77201-KK120 · 77201-KK140 · 77201-KK200 · 77201-KK210 · 77201-KK220 · 77201-KK230 · 77201-KK240 · 77201-KK270 · 77201-KK370 · 77201-KK380 |
| 77207A | Fuel return pipe sub-assembly | 77204-0K090 · 77204-0K110 · 77204-0K130 · 77204-0K140 · 77204-0K240 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-0K150 · 77209-0K170 · 77209-0K190 · 77209-0K200 · 77209-0K300 |
| 77211B | Clamp (for fuel filler tube) | 90460-46005 |
| 77213B | Fuel tank to filler pipe hose | 77213-KK010 · 77213-KK030 · 77213-KK060 · 77213-KK070 |
| 77241V | Pipe joint clip | 77241-0K020 |
| 77241W | Pipe joint clip | 77241-0K010 |
| 77243D | No. 1 fuel pipe joint | 77245-71010 |
| 77249 | fuel drain hose | 77249-KK010 |
| 77251B | main fuel pipe | 77205-KK010 · 77205-KK020 · 77205-KK060 · 77251-KK030 · 77251-KK060 · 77251-KK090 · 77251-KK110 · 77251-KK150 |
| 77255D | fuel return pipe | 77255-KK010 · 77255-KK030 · 77255-KK040 · 77255-KK080 · 77255-KK090 · 77255-KK110 · 77255-KK150 · 77255-KK200 |
| 77259C | fuel hose | 23801-0L040 |
| 77259D | No. 1 fuel hose | 77259-71060 · 77259-KK110 · 95338-08018 |
| 77259E | fuel hose | 77259-KK070 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-KK010 · 77261-KK020 |
| 77278E | fuel hose | 95338-10020 · 95338-10022 |
| 77284 | Fuel pipe clamp | 77289-0K050 |
| 77285D | No. 1 fuel pipe clamp | 77285-0K130 · 77285-0K160 · 77285-0K230 · 77285-0K240 |
| 77285F | No. 1 fuel pipe clamp | 77285-0K230 · 77285-0K430 |
| 77285G | No. 1 fuel pipe clamp | 77285-0K190 |
| 77285L | No. 1 fuel pipe clamp | 77285-0K250 |
| 77285R | No. 1 fuel pipe clamp | 77285-0K340 |
| 77286D | No. 2 fuel pipe clamp | 77286-0K170 |
| 77286F | No. 2 fuel pipe clamp | 77286-0K150 |
| 77286K | No. 2 fuel pipe clamp | 77286-0K220 |
| 77289B | No. 3 fuel pipe clamp | 77289-0K040 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-0K040 · 77290-0K050 · 77290-0K070 · 77290-0K080 · 77290-0K100 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-0K100 · 77306-0K110 |
| 77310A | Fuel tank cap assembly | 77300-0K010 · 77300-0K020 |
| 77316 | fuel tank cap gasket | 77316-0K020 |
| 77350 | Fuel filler cap assembly | 77350-KK030 · 77350-KK041 |
| 77360A | ENS. RESSORT, COUVERCLE OUVERTURE DU REMPLISSAGE RESERVOIR | 77360-0K010 |
| 77377 | Fuel filler cap lock retainer | 77377-0D080 · 77377-0K050 |
| 77511A | fuel tank bracket | 77512-0K010 · 77644-0K010 |
| 77611 | fuel tank strap | 77601-KK020 · 77601-KK040 · 77601-KK050 · 77601-KK080 |
| 77611A | Pin (for fuel tank strap) | 77653-0K041 |
| 77612B | No. 2 fuel tank strap | 77602-KK010 · 77602-KK020 · 77602-KK030 · 77602-KK060 |
| 77613C | No. 3 fuel tank strap | 77603-KK030 |
| 77641A | No. 1 fuel tank protective shell | 77641-0K210 · 77641-KK010 · 77641-KK030 |
| 77642A | No. 2 fuel tank protective shell | 77641-0K170 |
| 77644 | fuel tank bolt | 77644-35030 · 90119-10983 · 90119-A0249 |
| 77651B | fuel tank liner | 77651-0K050 · 77651-0K070 · 77651-0K080 · 77651-0K110 |
| 77652A | No. 2 fuel tank liner | 77652-0K130 · 77652-0K140 · 77654-0K060 |
| 77653A | No. 3 fuel tank liner | 77653-0K060 |
| 77681A | Fuel tank strap seat | 77681-KK010 · 77681-KK020 |
| 77682A | No. 2 fuel tank strap seat | 77682-KK010 |
| 77683 | No. 3 fuel tank strap seat | 77683-KK020 |
| 77697 | No. 1 fuel tank insulation pad | 77697-0K060 · 77697-0K080 · 77697-0K130 · 77697-0K150 · 77697-0K250 |
| 77704 | Carbon canister sub-assembly | 77704-0K010 |
| 77751 | Carbon canister base bracket | 77751-KK010 |
| 77754B | Carbon canister outlet hose | 77754-0K010 |
| 77775 | Carbon canister outlet duct | 77775-0K010 |
| 77785 | fuel pump wiring harness | 77785-02110 |
