Toyota HILUX 车架 — Figure 5151

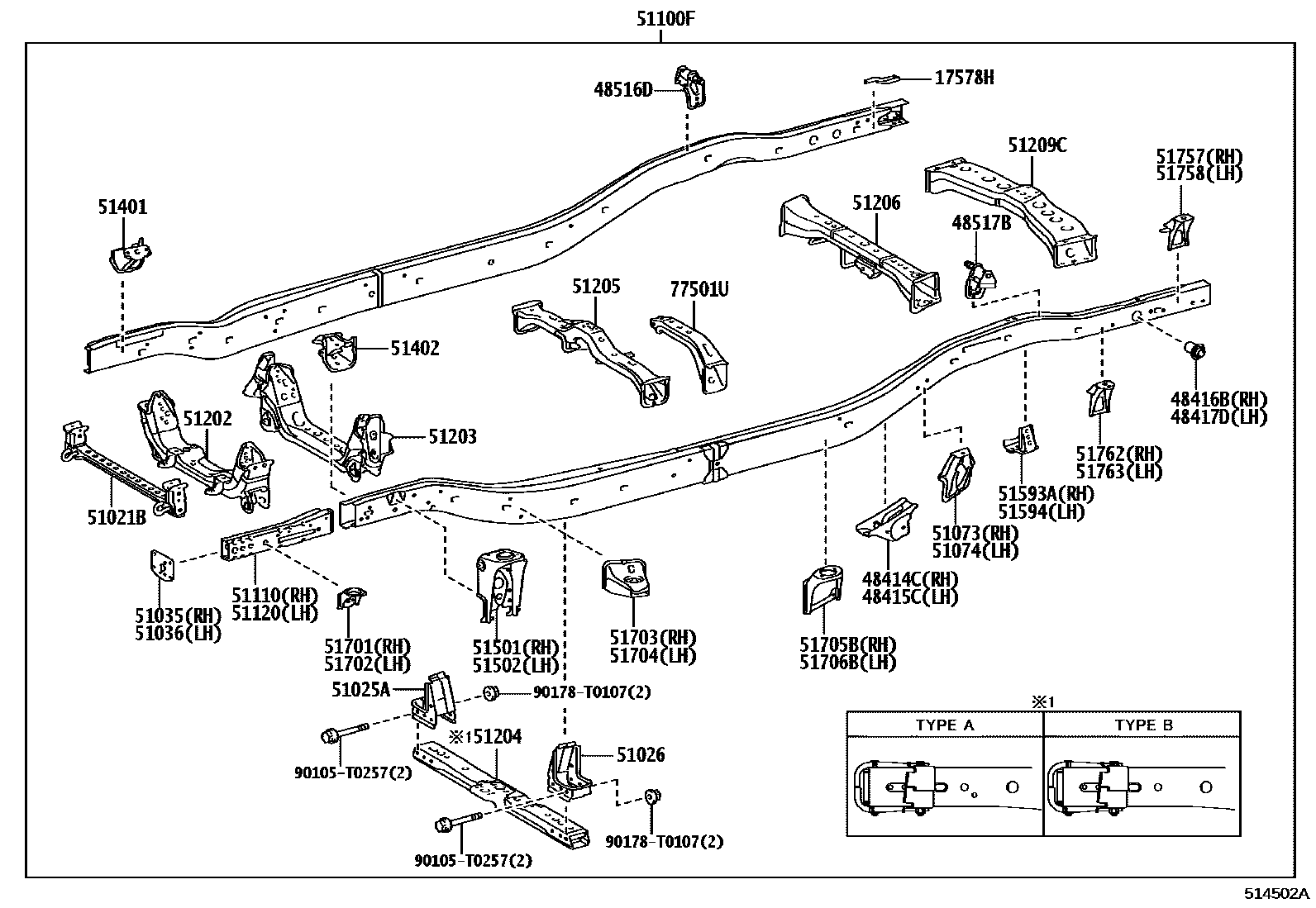

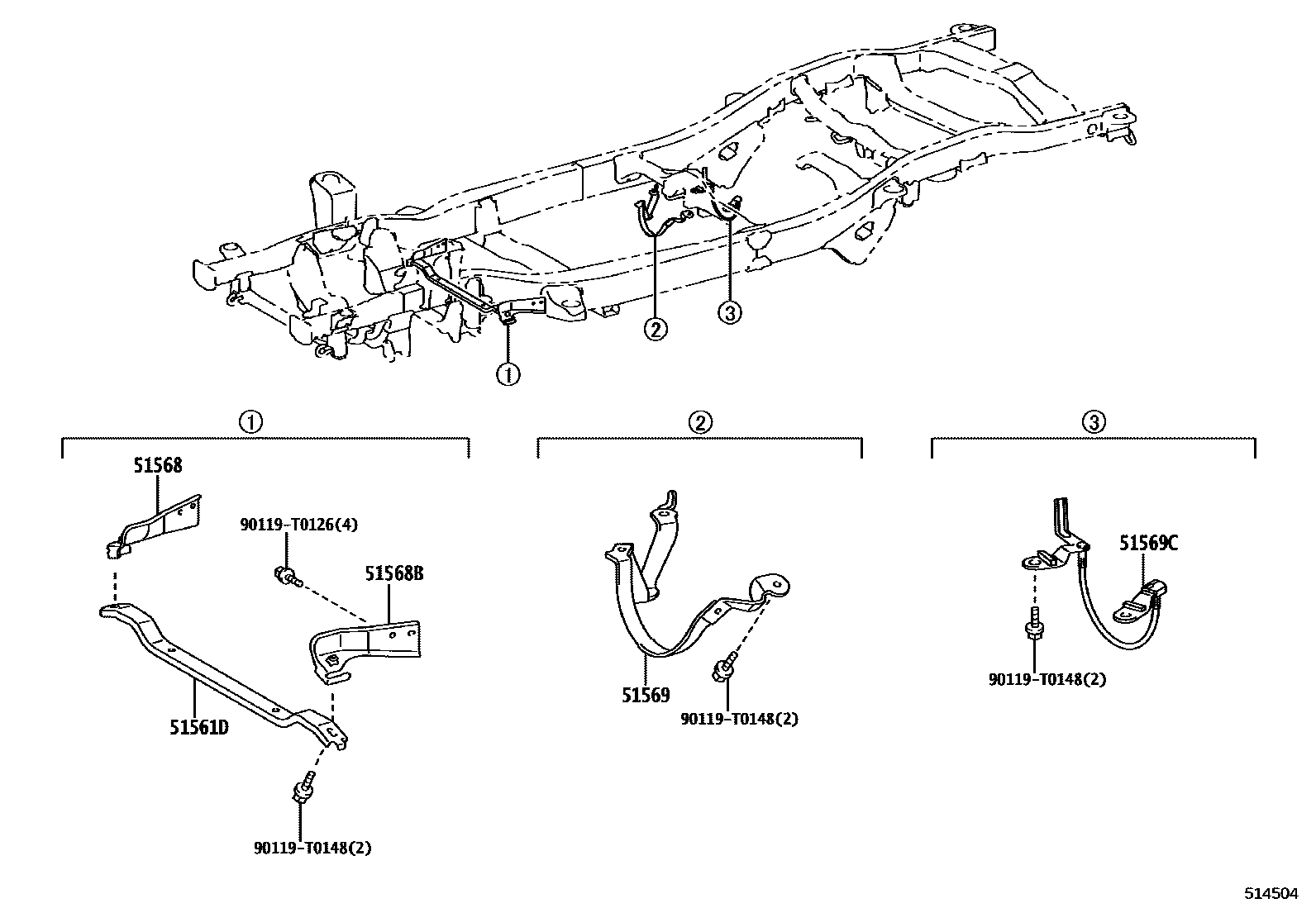

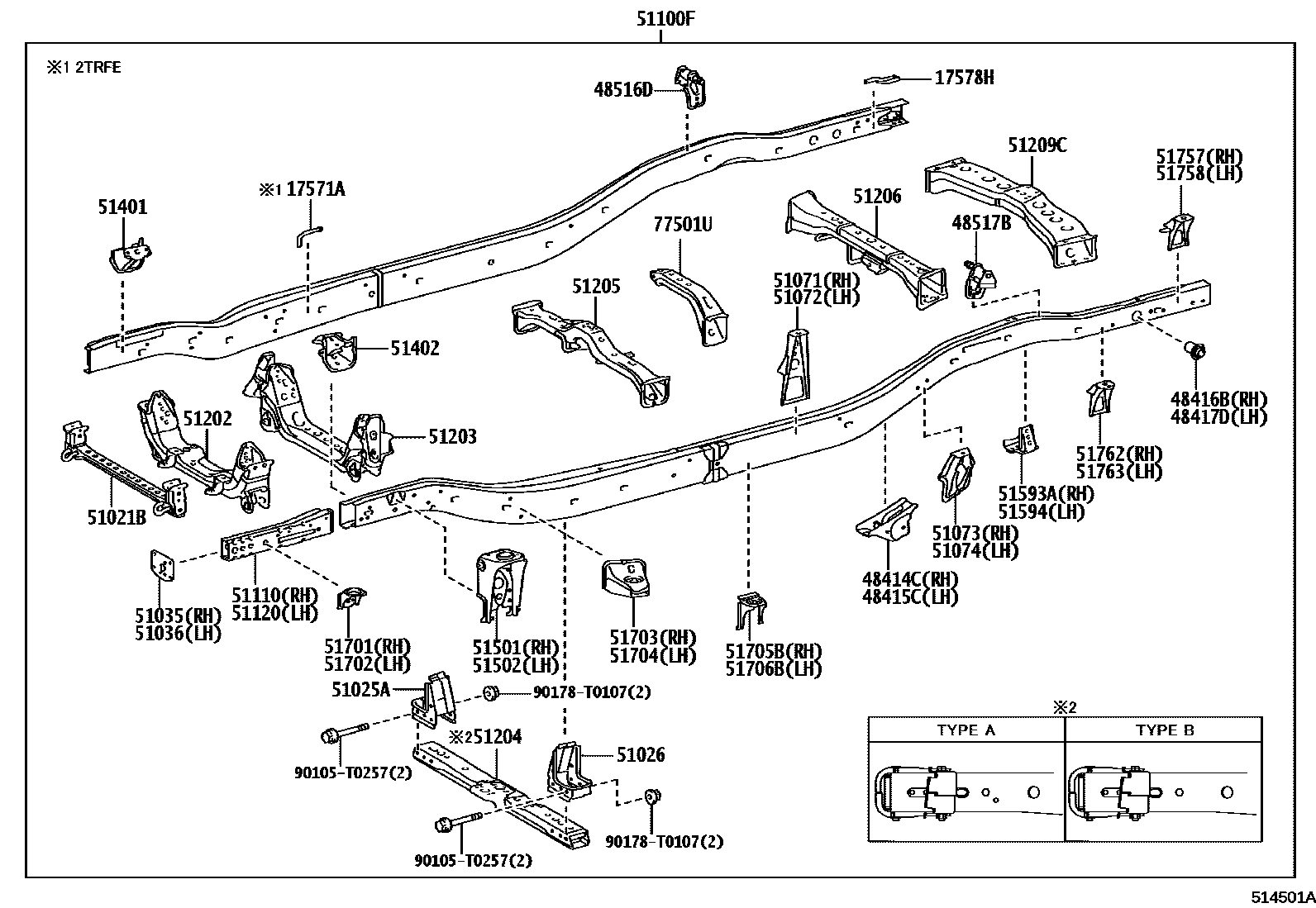

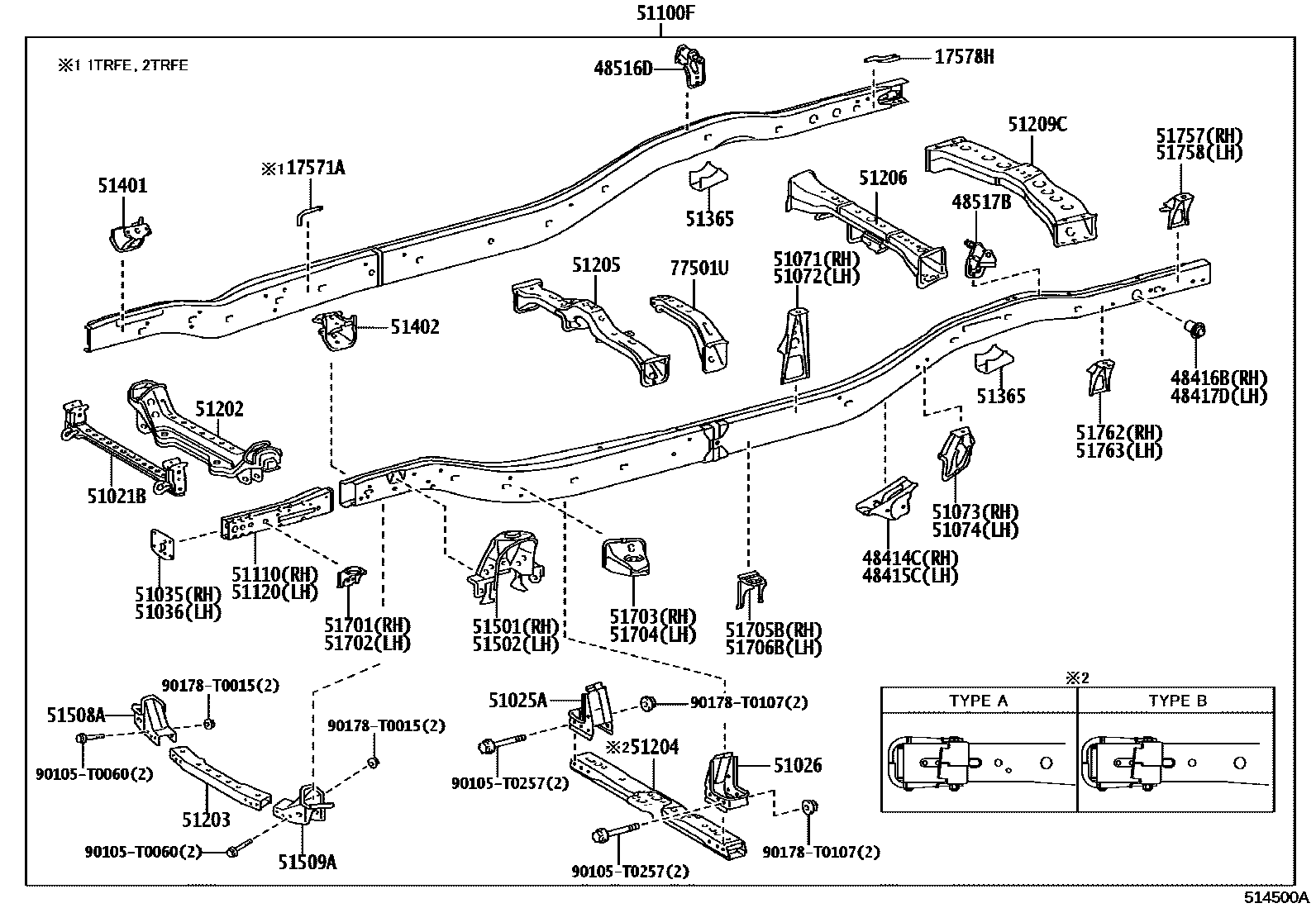

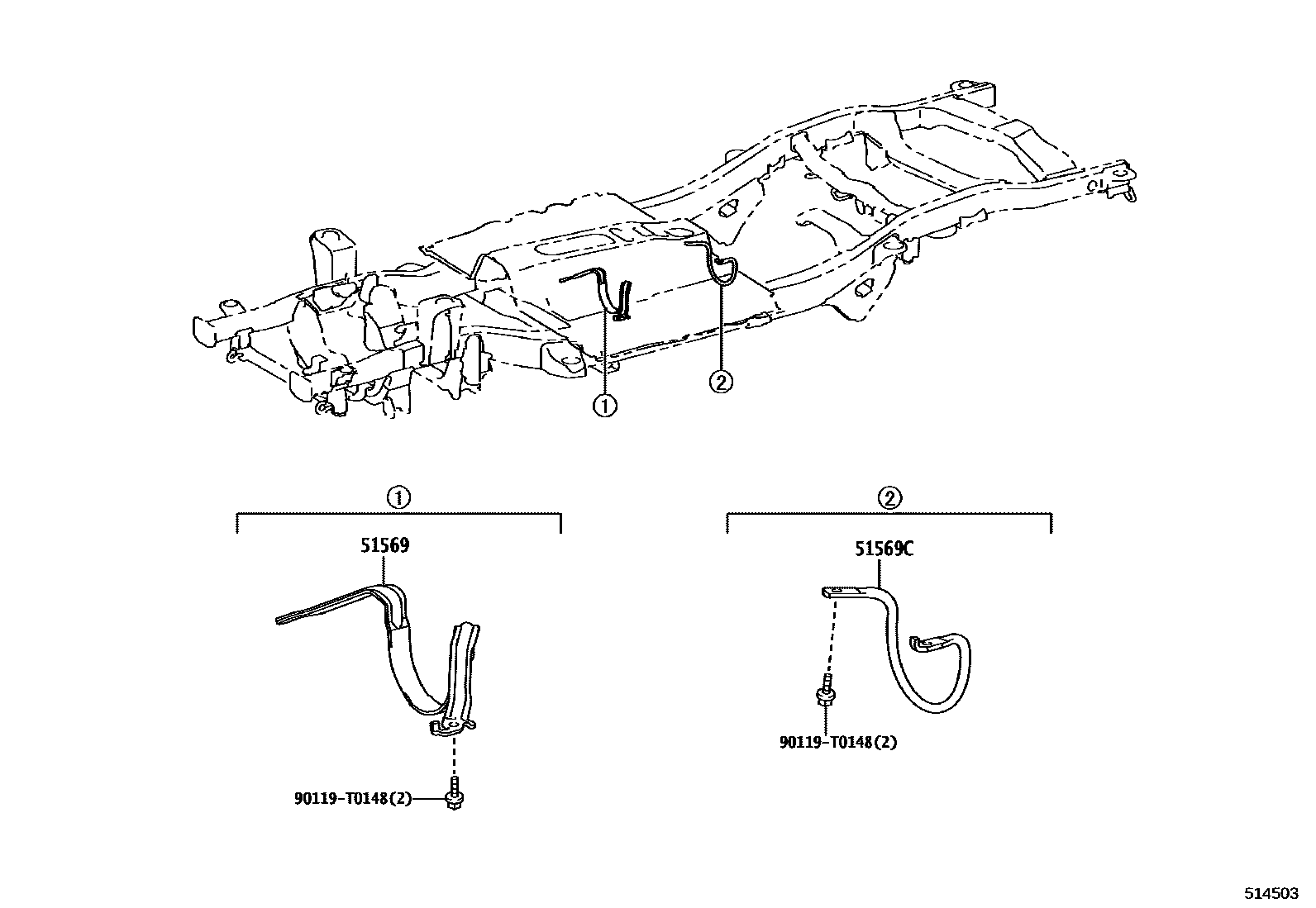

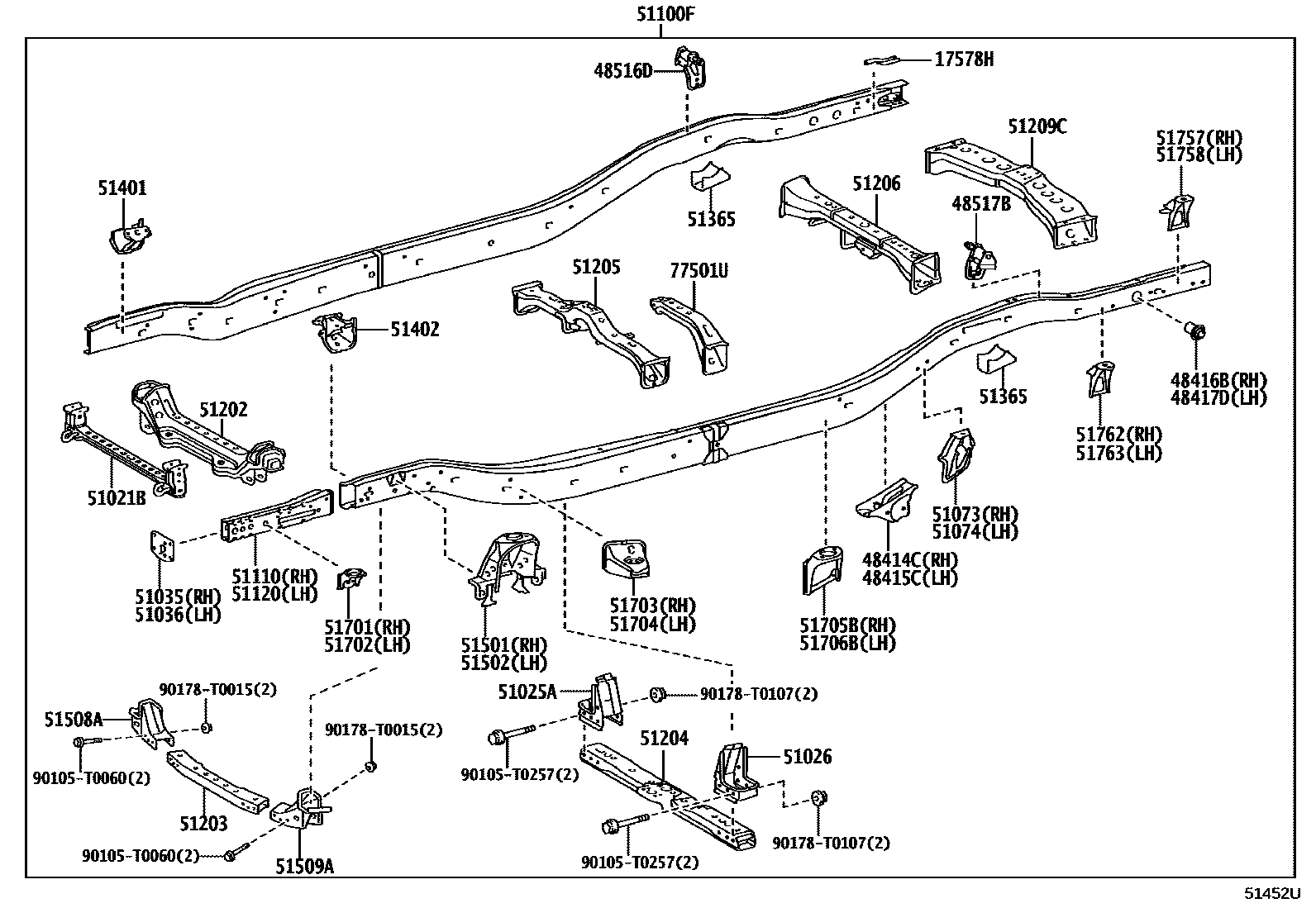

Toyota HILUX EPC diagram 5151, 车架, with 6 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17571A | No. 9 exhaust pipe bracket | 17571-0L010 |
| 17578H | No. 10 exhaust pipe bracket | 17505-0L020 |
| 48414C | Right No. 3 spring bracket | 48404-KK020 · 48404-KK030 · 48404-KK040 |
| 48415C | No. 3 spring bracket on the left | 48407-KK020 · 48407-KK030 · 48407-KK040 |
| 48416B | Right No. 4 spring bracket | 48405-KK010 |
| 48417D | No. 4 spring bracket on the left | 48405-KK010 |
| 48516D | Right rear shock absorber upper bracket sub-assembly | 48505-KK010 |
| 48517B | Left rear shock absorber upper bracket sub-assembly | 48506-KK010 |
| 51021B | Frame auxiliary cross member sub-assembly | 51021-KK010 · 51021-KK020 · 51021-KK030 |
| 51025A | Frame No. 3 beam right side bracket sub-assembly | 51025-KK010 |
| 51026 | Frame No. 3 crossbeam left side bracket sub-assembly | 51026-KK010 |
| 51035 | Frame right longitudinal beam plate sub-assembly | 51035-KK010 |
| 51036 | Frame left longitudinal beam plate sub-assembly | 51036-KK010 |
| 51071 | Right rear body No. 1 mounting bracket sub-assembly | 51071-0K010 · 51071-0K020 |
| 51072 | Left rear body No. 1 mounting bracket sub-assembly | 51071-0K020 · 51072-0K010 |
| 51073 | Right rear body No. 2 mounting bracket sub-assembly | 51073-KK010 |
| 51074 | Left rear body No. 2 mounting bracket sub-assembly | 51074-KK010 |
| 51100F | Frame sub-assembly | 51001-KK103 · 51001-KK123 · 51001-KK154 · 51001-KK164 · 51001-KK184 · 51001-KK234 · 51001-KK315 · 51001-KK322 · 51001-KK332 · 51001-KK342 · 51001-KK402 · 51001-KK425 · 51001-KK432 · 51001-KK712 · 51001-KK724 · 51001-KK761 · 51001-KK771 · 51001-KK805 · 51001-KK814 · 51001-KK822 · 51001-KK832 · 51001-KKA14 · 51001-KKA24 · 51001-KKA54 · 51001-KKA64 · 51001-KKC13 · 51001-KKC23 · 51001-KKF02 · 51001-KKJ21 · 51001-KKJ31 · 51001-KKJ41 · 51001-KKJ51 · 51001-KKK90 |
| 51110 | Right longitudinal beam extension section assembly | 5103A-KK010 · 5103A-KK020 |
| 51120 | Left longitudinal beam extension section assembly | 5103B-KK010 · 5103B-KK020 |
| 51202 | Frame No. 1 cross member sub-assembly | 51201-KK010 · 51201-KK020 · 51201-KK050 |
| 51203 | Frame No. 2 cross member sub-assembly | 51202-0K010 · 51202-KK010 |
| 51204 | Frame No. 3 beam sub-assembly | 51203-KK010 · 51203-KK020 · 51203-KK030 · 51203-KK040 · 51203-KK050 · 51203-KK130 · 51203-KK140 · 51203-KK150 · 51203-KK200 · 51203-KK210 · 51203-KK230 · 51203-KK250 · 51203-KK260 |
| 51205 | Frame No. 4 beam sub-assembly | 51204-KK030 · 51204-KK040 · 51204-KK050 · 51204-KK070 |
| 51206 | Frame No. 5 beam sub-assembly | 51205-KK030 · 51205-KK040 |
| 51209C | Frame rear cross member sub-assembly | 51209-KK010 |
| 51365 | rear bumper stop | 57081-KK010 |
| 51401 | Engine right front mounting bracket sub-assembly | 51401-KK010 · 51401-KK020 · 51401-KK040 |
| 51402 | Engine left front mounting bracket sub-assembly | 51402-KK010 · 51402-KK020 · 51402-KK040 |
| 51501 | Right suspension arm bracket sub-assembly | 51501-KK010 · 51501-KK020 |
| 51502 | Left suspension arm bracket sub-assembly | 51502-KK010 · 51502-KK020 |
| 51508A | Right lower arm bracket sub-assembly | 51508-KK020 |
| 51509A | Left lower arm bracket sub-assembly | 51509-KK020 |
| 51561D | Drive shaft anti-collision block | 51569-KK010 · 51569-KK070 · 51569-KK080 · 51569-KK090 |
| 51568 | Drive shaft anti-collision block bracket | 51568-KK020 · 51568-KK060 |
| 51568B | Drive shaft anti-collision block bracket | 51568-KK030 · 51568-KK040 · 51568-KK070 |
| 51569 | Drive shaft anti-collision block | 51569-KK020 · 51569-KK060 |
| 51569C | Drive shaft anti-collision block | 51569-0K020 · 51569-KK050 |
| 51593A | Right rear spring buffer block bracket | 57081-KK020 |
| 51594 | Left rear spring buffer block bracket | 57082-KK010 |
| 51701 | Cab suspension No. 1 right side bracket sub-assembly | 51701-KK010 |
| 51702 | Cab suspension No. 1 left side bracket sub-assembly | 51701-KK010 |
| 51703 | Cab suspension No. 2 right side bracket sub-assembly | 51703-KK010 |
| 51704 | Cab suspension No. 2 left side bracket sub-assembly | 51704-KK010 |
| 51705B | Cab suspension No. 3 right side bracket sub-assembly | 51705-KK010 · 51731-KK030 |
| 51706B | Cab suspension No. 3 left bracket sub-assembly | 51706-KK010 · 51731-KK030 |
| 51757 | Right body No. 4 bracket | 51077-KK010 |
| 51758 | Left body No. 4 bracket | 51078-KK010 |
| 51762 | Right body No. 5 bracket | 51075-KK010 |
| 51763 | Left body No. 5 bracket | 51076-KK010 |
| 77501U | Fuel tank bracket sub-assembly | 77501-0K020 · 77501-KK040 |
