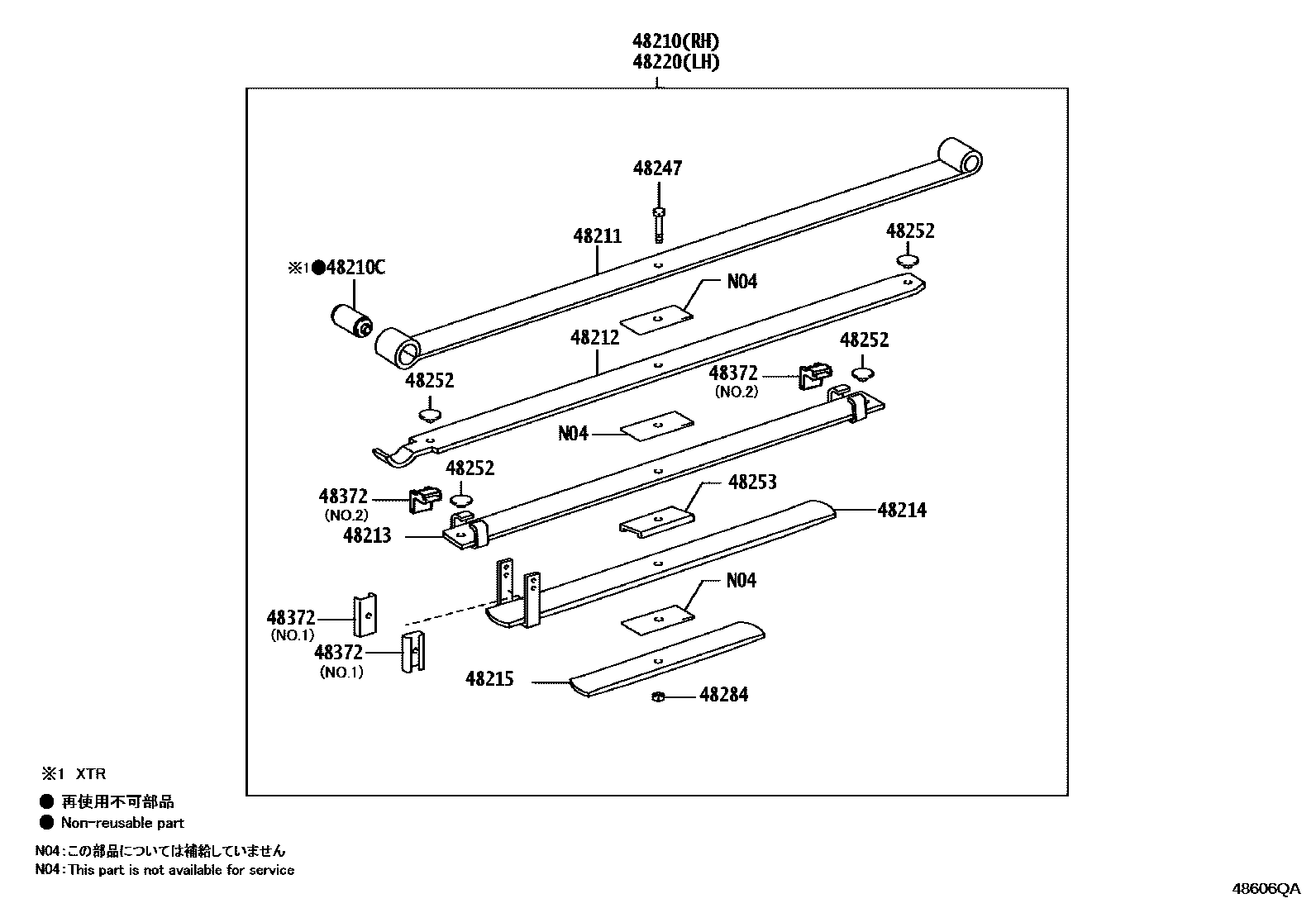

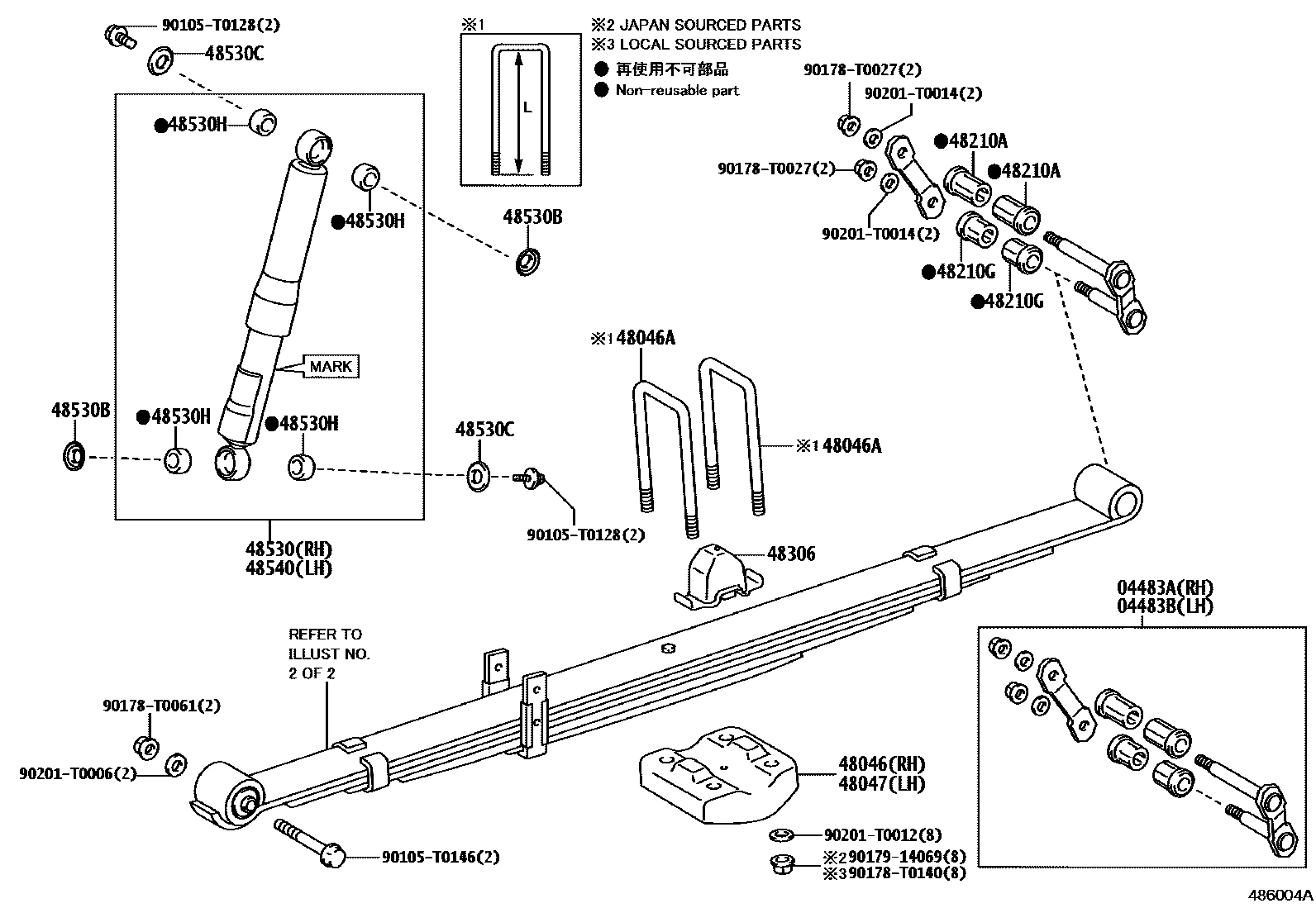

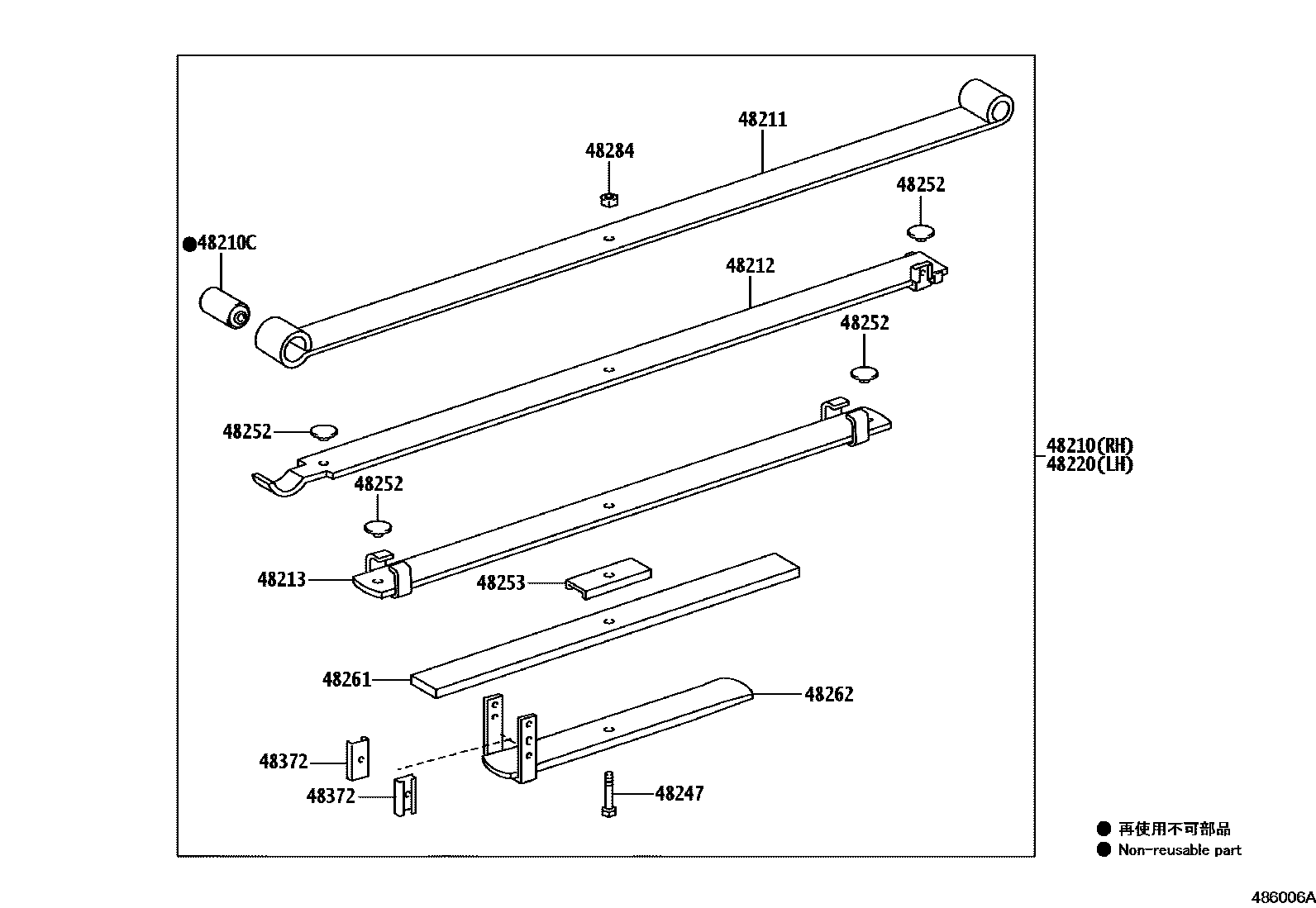

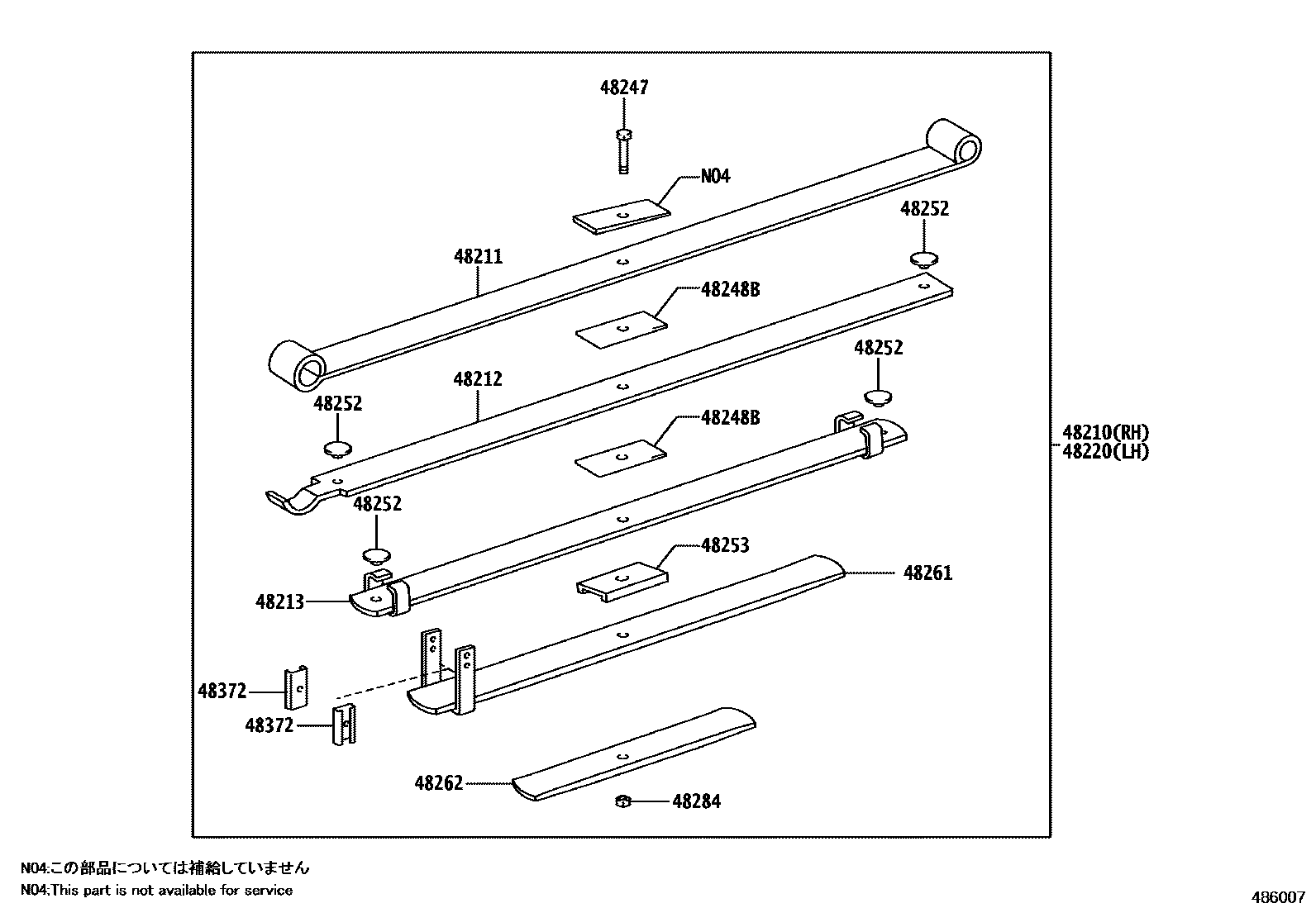

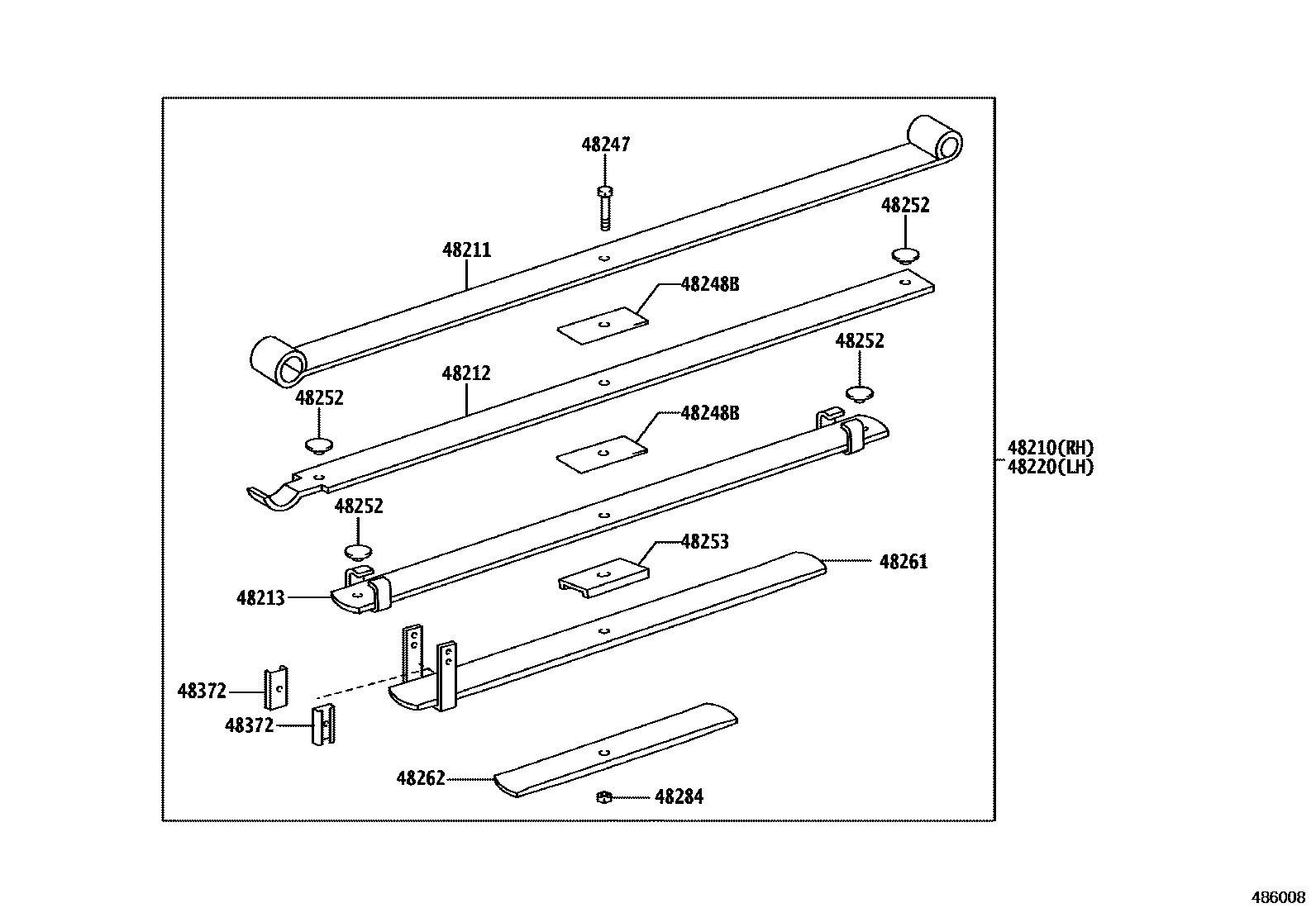

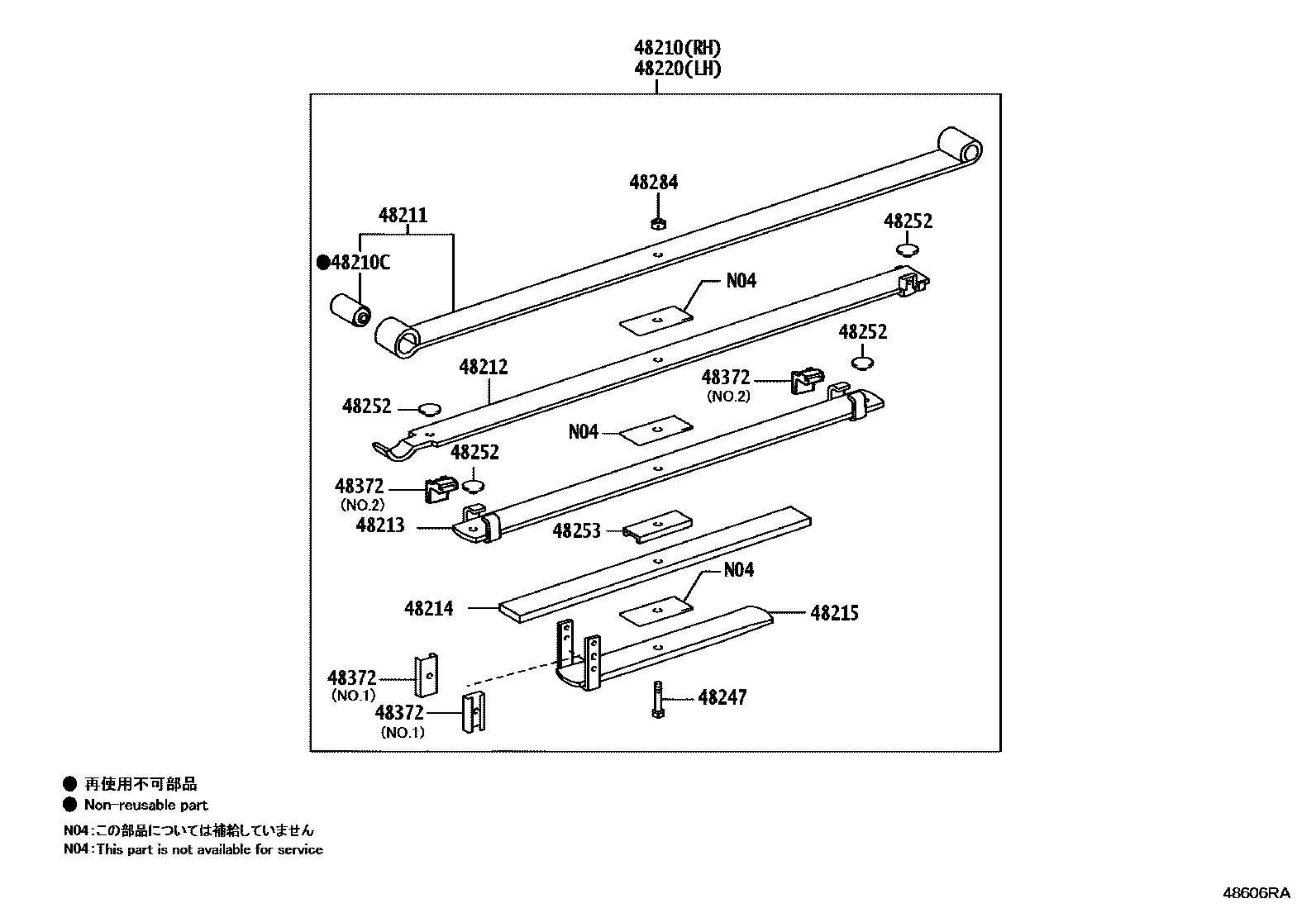

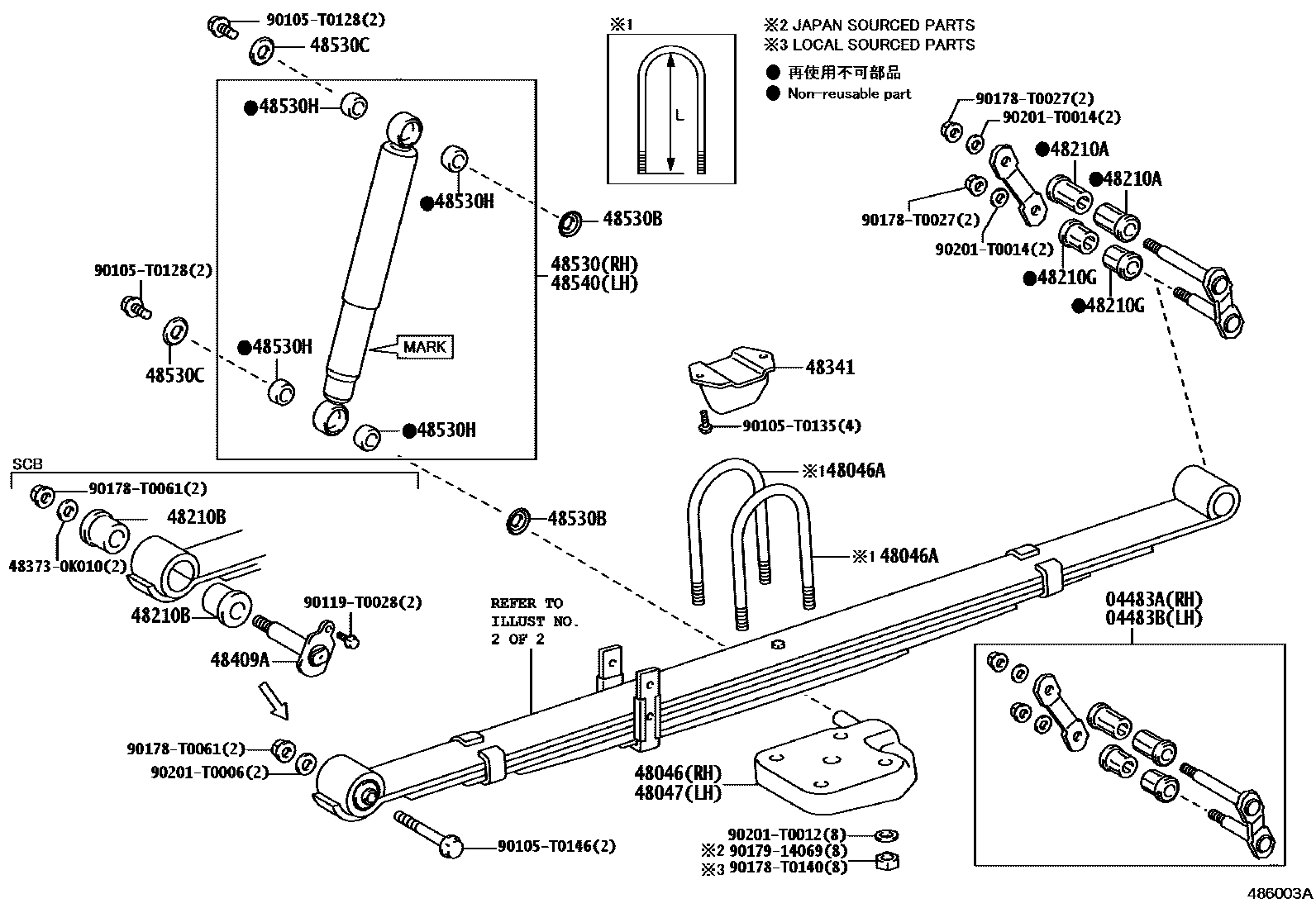

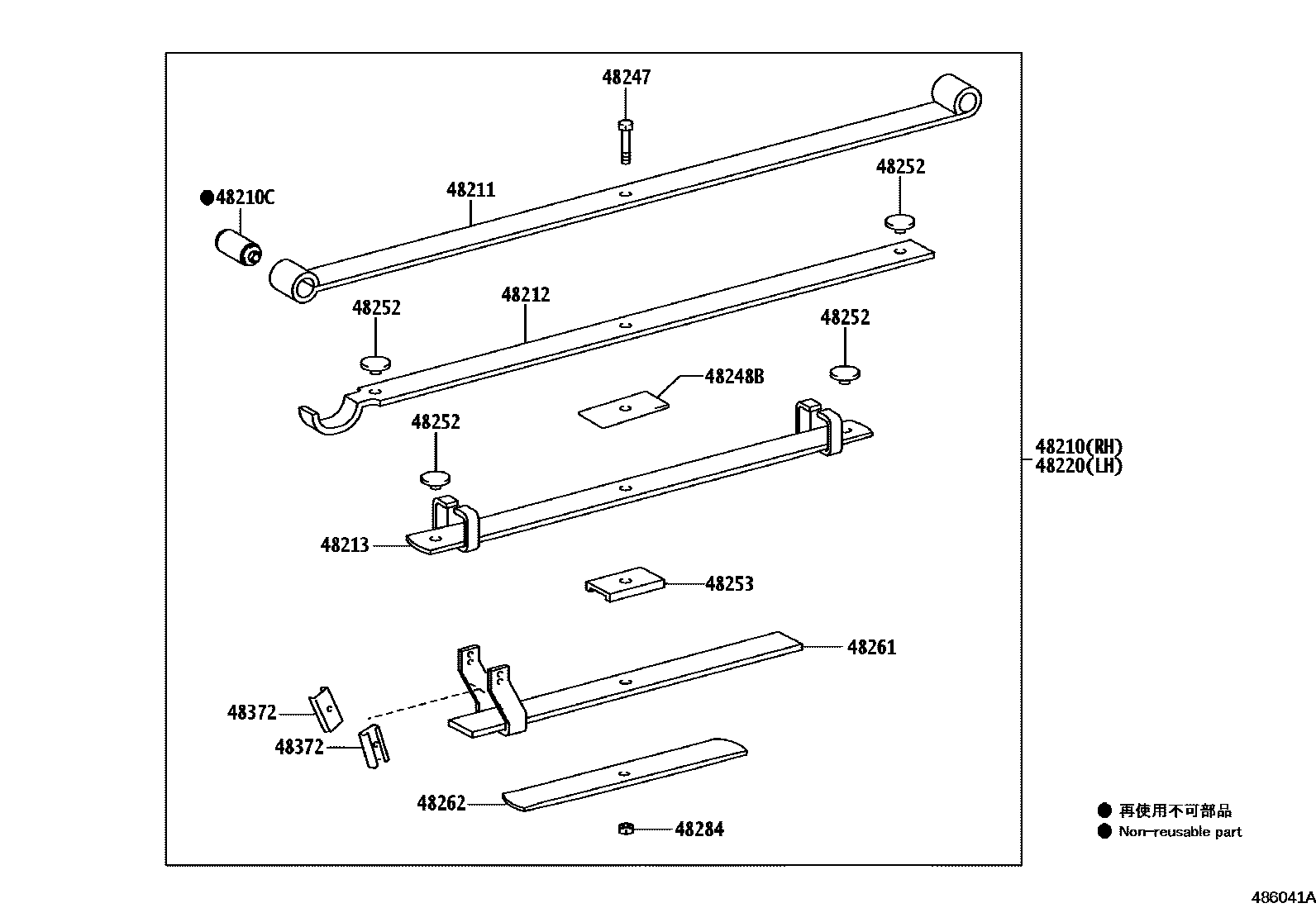

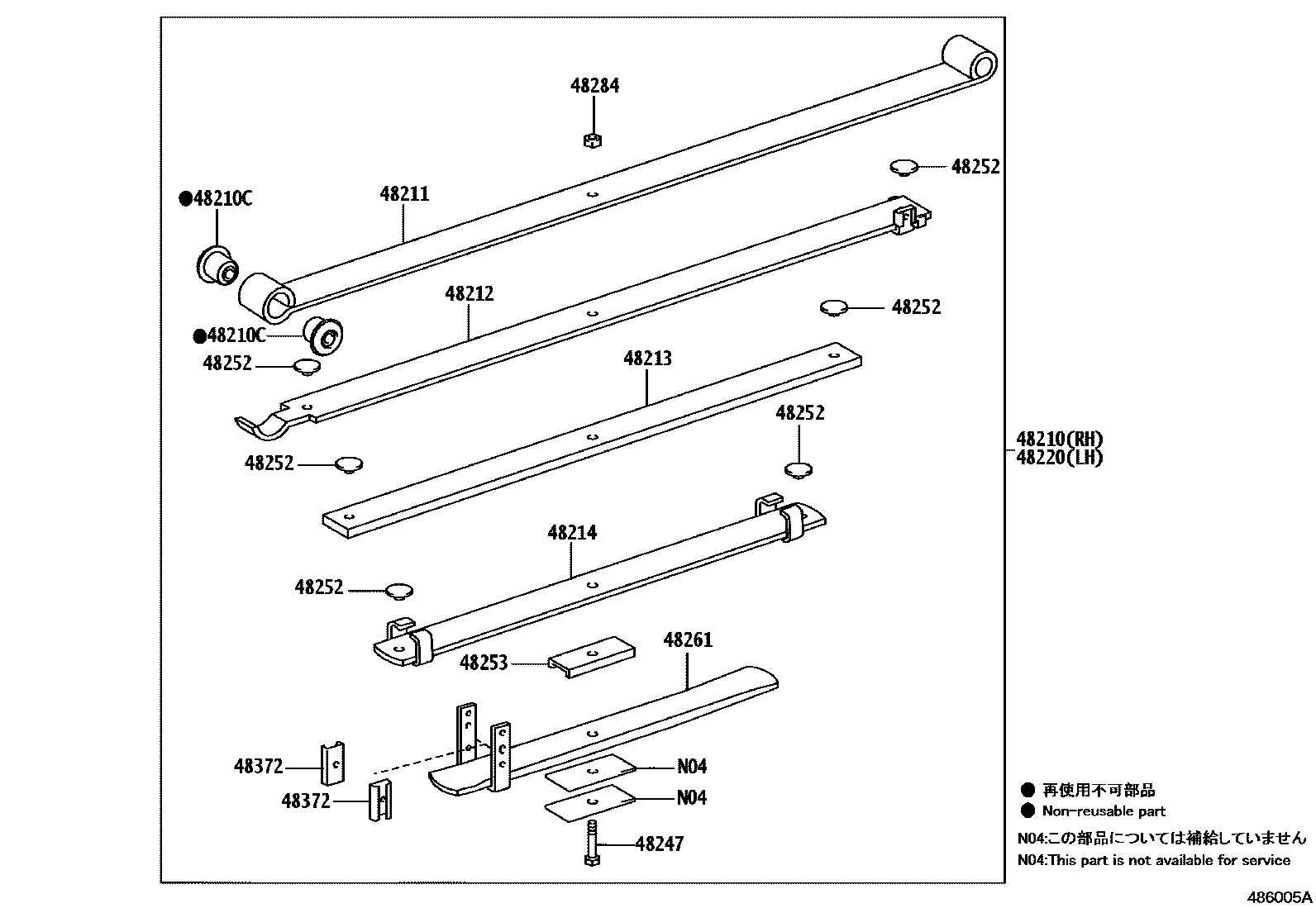

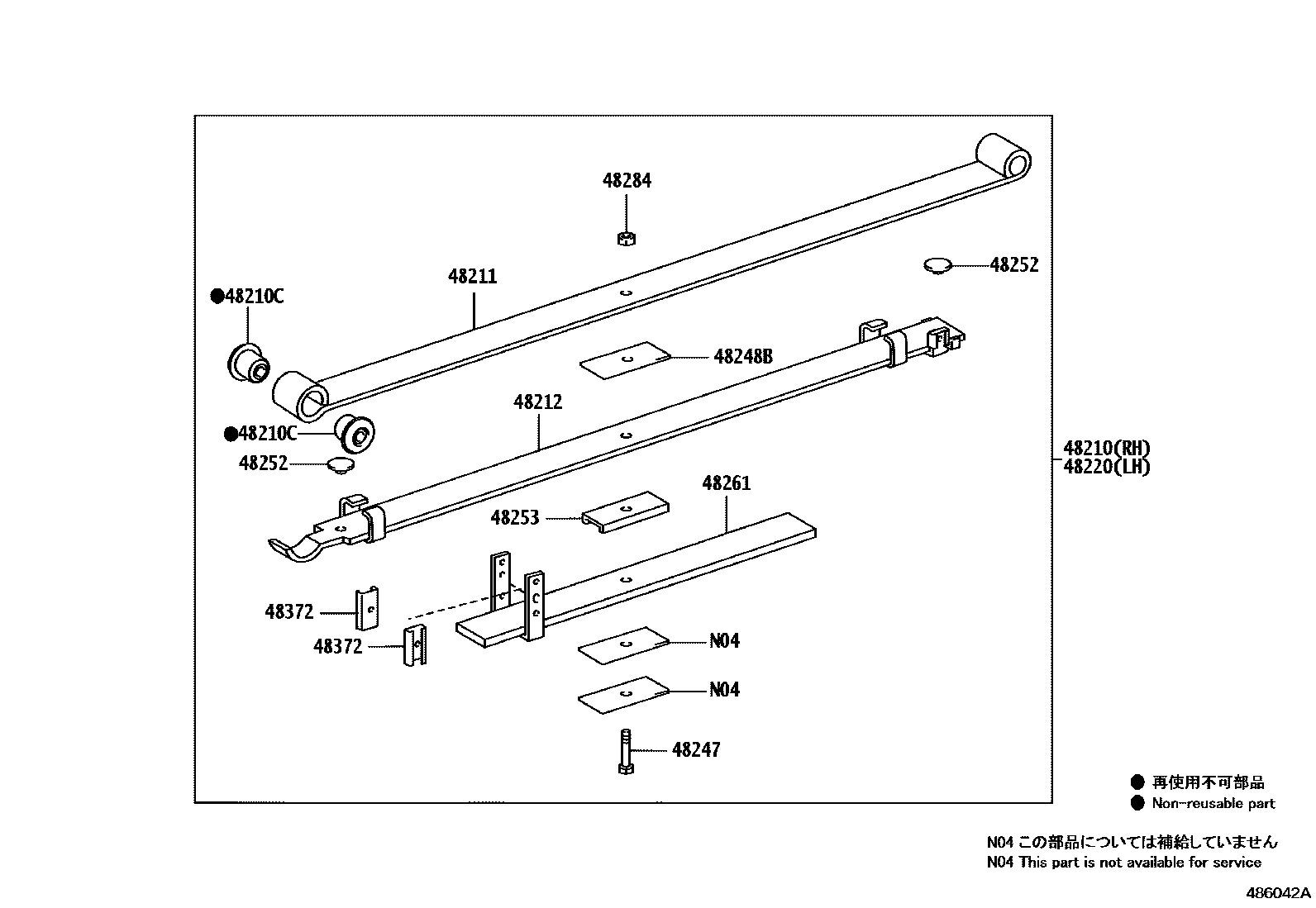

Toyota HILUX Rear Spring & Shock Absorber — Figure 4804
Toyota HILUX EPC diagram 4804, Rear Spring & Shock Absorber, with 11 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04483A | Right rear spring lifting lug assembly | 04483-KK030 · 04483-KK060 · 04483-KK080 · 04483-KK090 |
| 04483B | Left rear spring lifting lug assembly | 04483-KK030 · 04483-KK070 · 04483-KK080 · 04483-KK090 |
| 48046 | Right spring U-bolt base sub-assembly | 48046-0K011 · 48046-KK010 |
| 48046A | U-bolt (for rear spring) | 90117-F0001 · 90117-S0001 · 90117-T0003 · 90117-T0006 · 90117-T0008 |
| 48047 | Left spring U-bolt base sub-assembly | 48046-0K011 · 48046-KK010 |
| 48210 | Right rear spring assembly | 48210-0K440 · 48210-0K450 · 48210-0K460 · 48210-0K500 · 48210-0K830 · 48210-0KA80 · 48210-0KB80 · 48210-0KC00 · 48210-0KC20 · 48210-0KC30 · 48210-0KC80 · 48210-0KC90 · 48210-0KD60 · 48210-0KD70 |
| 48210A | Upper bushing (for rear spring lug) | 90385-T0014 · 90385-T0020 |
| 48210B | Bushing (for rear spring pin) | 90385-T0016 |
| 48210C | Bushing (for rear leaf spring) | 90389-T0005 · 90389-T0031 |
| 48210G | Lower bushing (for rear spring lug) | 90385-T0017 |
| 48211 | No. 1 rear leaf spring | 48201-0K420 · 48201-0K440 · 48201-0K450 · 48201-0KA80 · 48201-0KC00 · 48201-0KC20 · 48201-0KC80 · 48201-0KD60 · 48201-0KD70 · 48211-0K460 · 48211-0K710 · 48211-0K830 · 48211-0KC30 · 48211-0KC90 |
| 48212 | No. 2 rear leaf spring | 48203-0KC20 · 48203-0KD60 · 48212-0K420 · 48212-0K440 · 48212-0K450 · 48212-0K460 · 48212-0K500 · 48212-0K830 · 48212-0KA80 · 48212-0KB80 · 48212-0KC00 · 48212-0KC30 · 48212-0KC80 · 48212-0KC90 · 48212-0KD70 |
| 48213 | No. 3 rear leaf spring | 48204-0K420 · 48204-0K440 · 48204-0K450 · 48204-0KA80 · 48204-0KC00 · 48213-0K460 · 48213-0K710 · 48213-0K830 · 48213-0KC20 · 48213-0KC30 · 48213-0KC80 · 48213-0KC90 |
| 48214 | No. 4 rear leaf spring | 48205-0KC20 · 48205-0KC80 · 48214-0K460 · 48214-0K710 · 48214-0K830 · 48214-0KC30 · 48214-0KC90 |
| 48215 | No. 5 rear leaf spring | 48215-0K460 · 48215-0K710 · 48215-0K830 · 48215-0KC30 · 48215-0KC90 |
| 48220 | Left rear spring assembly | 48210-0K420 · 48210-0K440 · 48210-0K450 · 48210-0K460 · 48210-0K500 · 48210-0K830 · 48210-0KA80 · 48210-0KB80 · 48210-0KC00 · 48210-0KC20 · 48210-0KC30 · 48210-0KC80 · 48210-0KC90 · 48210-0KD60 · 48210-0KD70 |
| 48247 | rear spring center bolt | 48247-0K010 · 48247-0K040 · 48247-0K110 · 48247-0K350 · 48247-0K540 · 48247-0K610 · 48247-0K810 |
| 48248B | No. 3 rear spring spacer | 48248-0K020 |
| 48252 | rear spring muffler | 48252-0K010 · 48252-0K040 · 48252-0K120 · 48252-0K810 · 48252-0KC60 · 48252-0KD60 |
| 48253 | No. 1 rear spring spacer | 48253-0K010 · 48253-0K040 · 48253-0K120 · 48253-0K160 |
| 48261 | Rear auxiliary mechanism No. 1 leaf spring | 48207-0KC20 · 48207-0KC80 · 48207-0KD60 · 48207-0KD70 · 48261-0K420 · 48261-0K440 · 48261-0K450 · 48261-0KA80 · 48261-0KC00 |
| 48262 | Rear auxiliary mechanism No. 2 leaf spring | 48026-0K420 · 48026-0K440 · 48026-0K450 · 48026-0KA80 · 48026-0KC00 |
| 48284 | Rear spring center bolt nut | 48284-0K040 · 48284-0K120 · 48284-0K160 · 48284-0K310 |
| 48306 | Rear spring buffer block sub-assembly | 48306-0K040 · 48306-0K050 |
| 48341 | Rear spring buffer block | 48341-0K090 |
| 48372 | Rear spring pad | 48372-0K010 · 48372-0K020 · 48372-0K030 |
| 48409A | Rear spring bracket pin sub-assembly | 48409-0K010 |
| 48530 | Right rear shock absorber assembly | 48531-09B30 · 48531-09B40 · 48531-09B80 · 48531-8Z001 · 48531-8Z002 · 48531-8Z004 · 48531-8Z005 · 48531-8Z007 · 48531-8Z008 · 48531-8Z017 · 48531-8Z019 · 48531-8Z020 · 48531-8Z024 · 48531-8Z026 · 48531-8Z031 · 48531-8Z032 · 48531-8Z033 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-F3001 · 90948-T3001 |
| 48530C | Rear shock absorber No. 2 cushion washer | 90948-F3002 · 90948-T3002 |
| 48530H | Rear shock absorber bushing | 90385-T0019 |
| 48540 | Left rear shock absorber assembly | 48531-09B30 · 48531-8Z001 · 48531-8Z002 · 48531-8Z004 · 48531-8Z032 · 48541-09210 · 48541-09250 · 48541-09280 · 48541-09300 · 48541-09310 · 48541-09341 · 48541-09351 · 48541-09400 · 48541-09430 · 48541-09450 · 48541-09500 · 48541-09510 · 48541-09520 |
