Toyota HILUX Parking Brake & Cable — Figure 4601

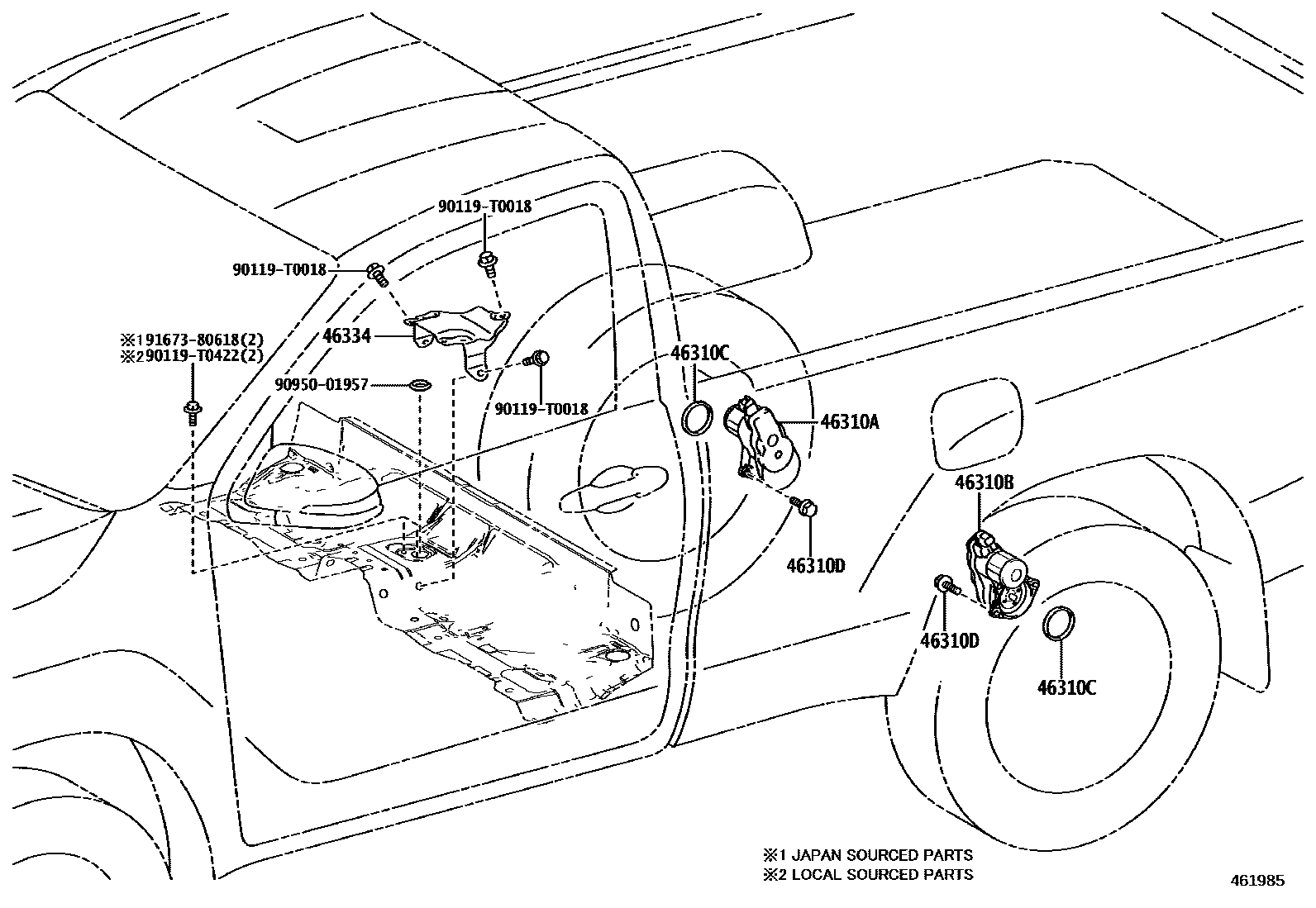

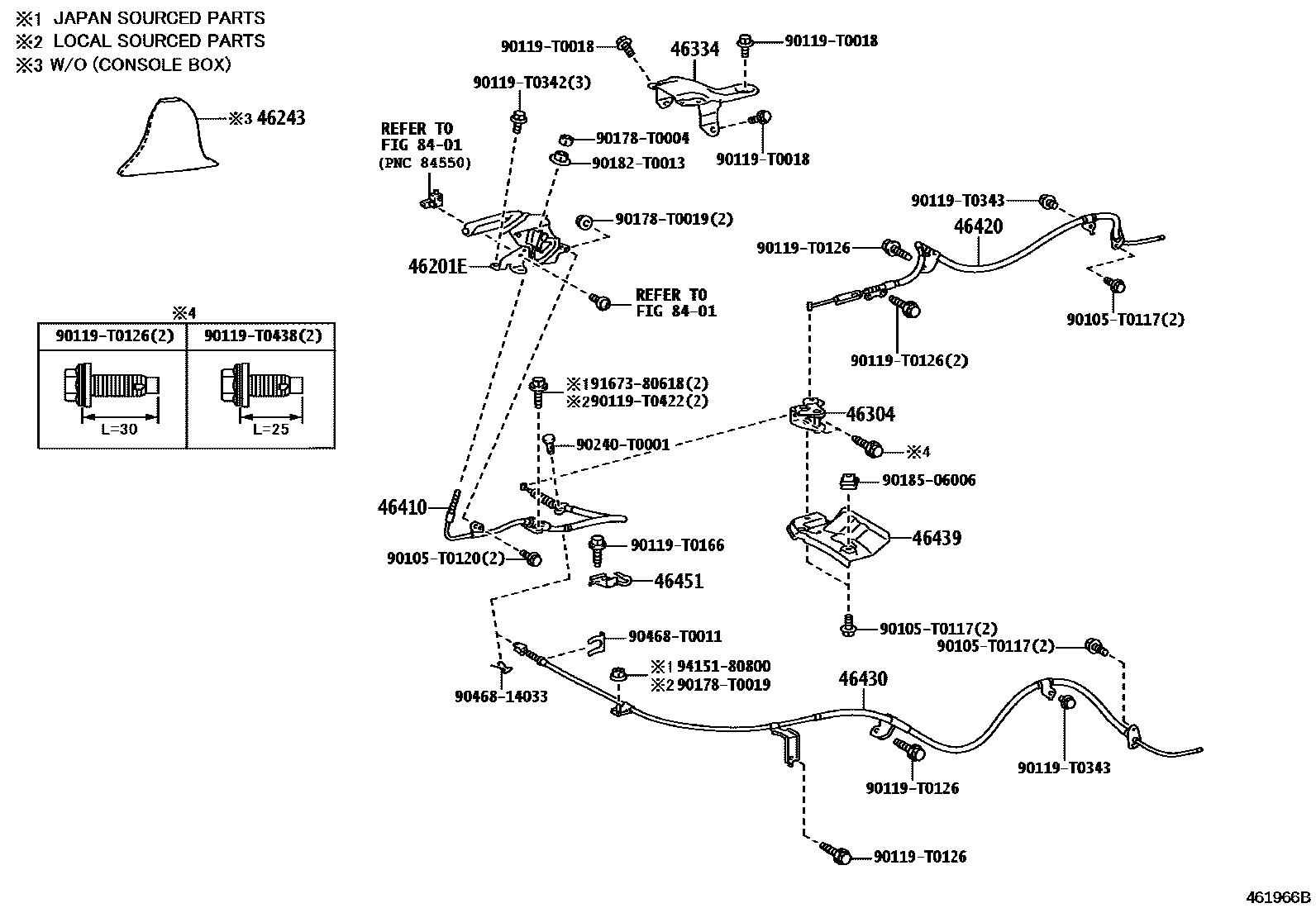

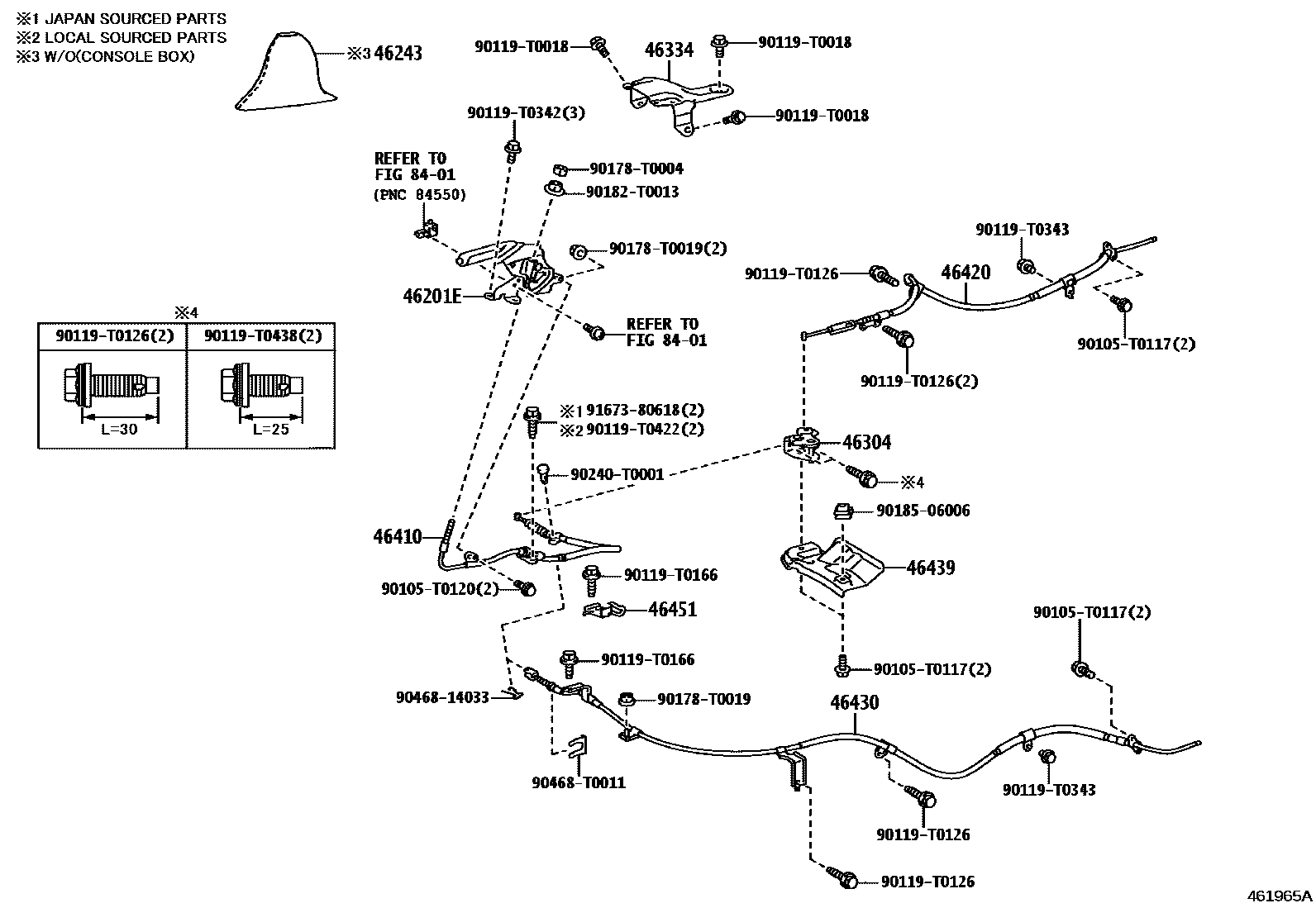

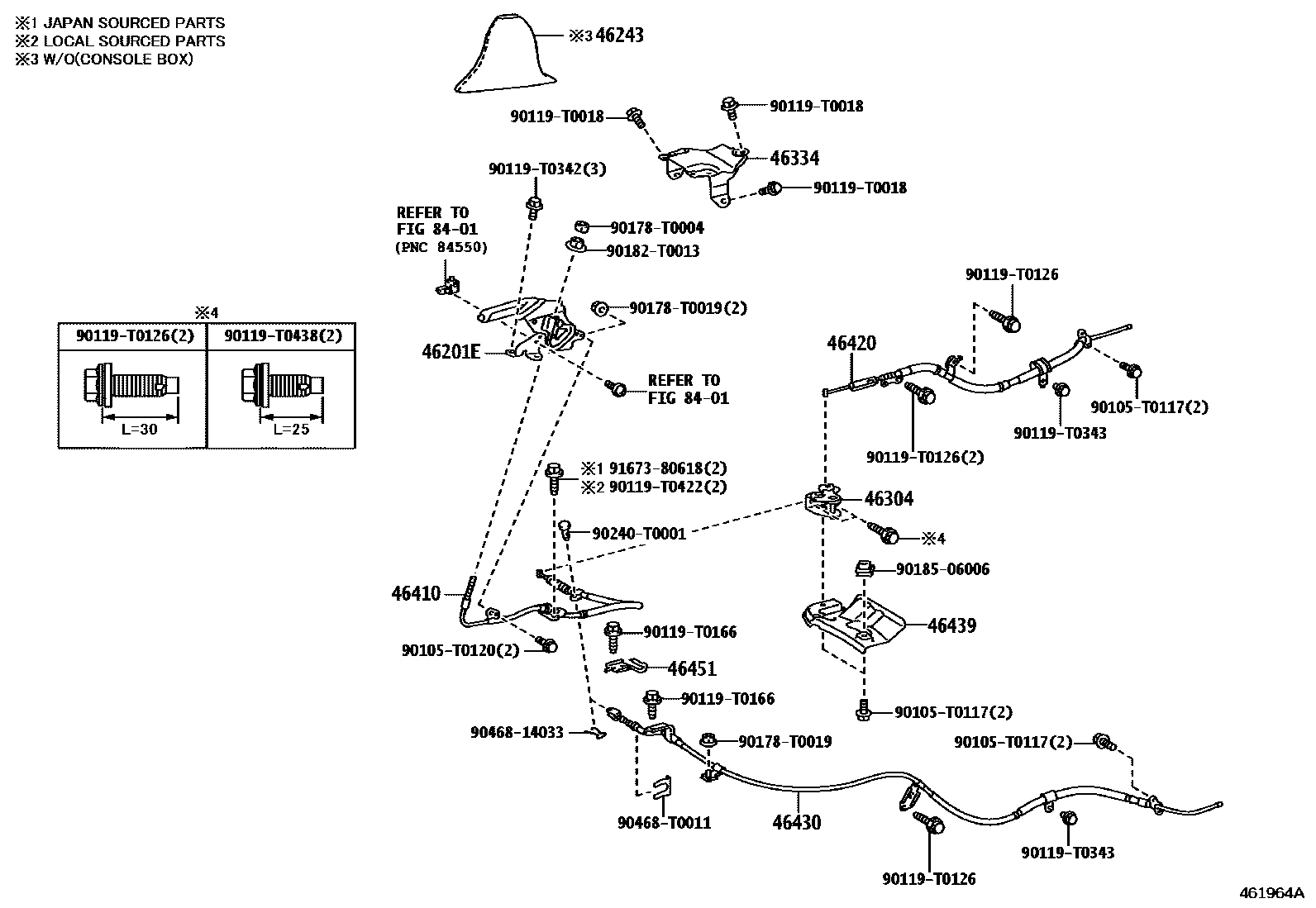

Toyota HILUX EPC diagram 4601, Parking Brake & Cable, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46304 | Parking brake balancer sub-assembly | 46304-0K050 · 46304-0K090 |
| 46310A | ENS. ACTIONNEUR, FREIN DE STATIONNEMENT, MD | 46310-04010 · 46310-60050 |
| 46310B | ENS. ACTIONNEUR, FREIN DE STATIONNEMENT, MG | 46310-04010 · 46310-60050 |
| 46310C | JOINT D'ETANCHEITE(POUR ACT FREIN STATIONNEMENT) | 90015-AH005 |
| 46310D | BOULON(POUR ACTIONNEUR FREIN STATION) | 90016-AA703 |
| 46334 | Intermediate lever protector | 46334-0K020 · 46334-KK010 |
| 46410 | Parking brake cable assembly No. 1 | 46410-0K100 · 46410-0K120 |
| 46420 | Parking brake No. 2 cable assembly | 46420-0K150 · 46420-0K160 · 46420-0K210 · 46420-0K220 |
| 46430 | Parking brake No. 3 cable assembly | 46430-0K150 · 46430-0K160 · 46430-0K210 · 46430-0K220 |
| 46439 | Parking brake cable insulation pad | 46439-0K060 |
| 46451 | cable bracket | 46451-0K040 · 46451-0K050 · 46451-0K051 |
