Toyota HILUX Steering Wheel — Figure 4504

Toyota HILUX EPC diagram 4504, Steering Wheel, with 1 images and 3 PNC and OE references.

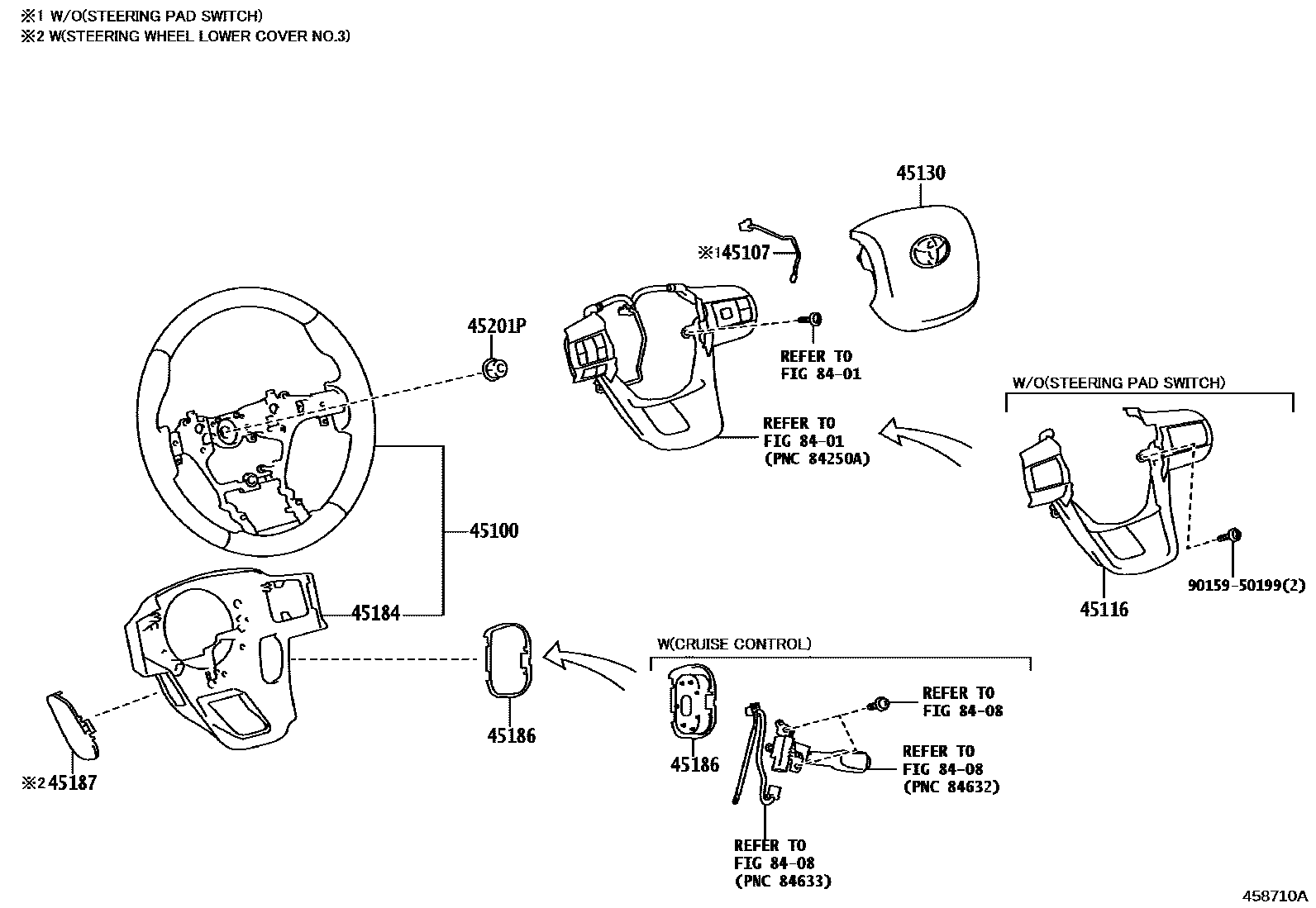

Toyota HILUX Steering Wheel EPC diagram — 458710A
Steering Wheel — 458710A (202308 – 999999)

PNC and OE references

PNCPart nameOE numbers
45107Speaker button wiring harness sub-assembly45107-0K030
45184Steering wheel boss lower cover45184-0K220
45201PSteering wheel fixing nut90179-12071
