Toyota HILUX Steering Column & Shaft — Figure 4501

Toyota HILUX EPC diagram 4501, Steering Column & Shaft, with 2 images and 8 PNC and OE references.

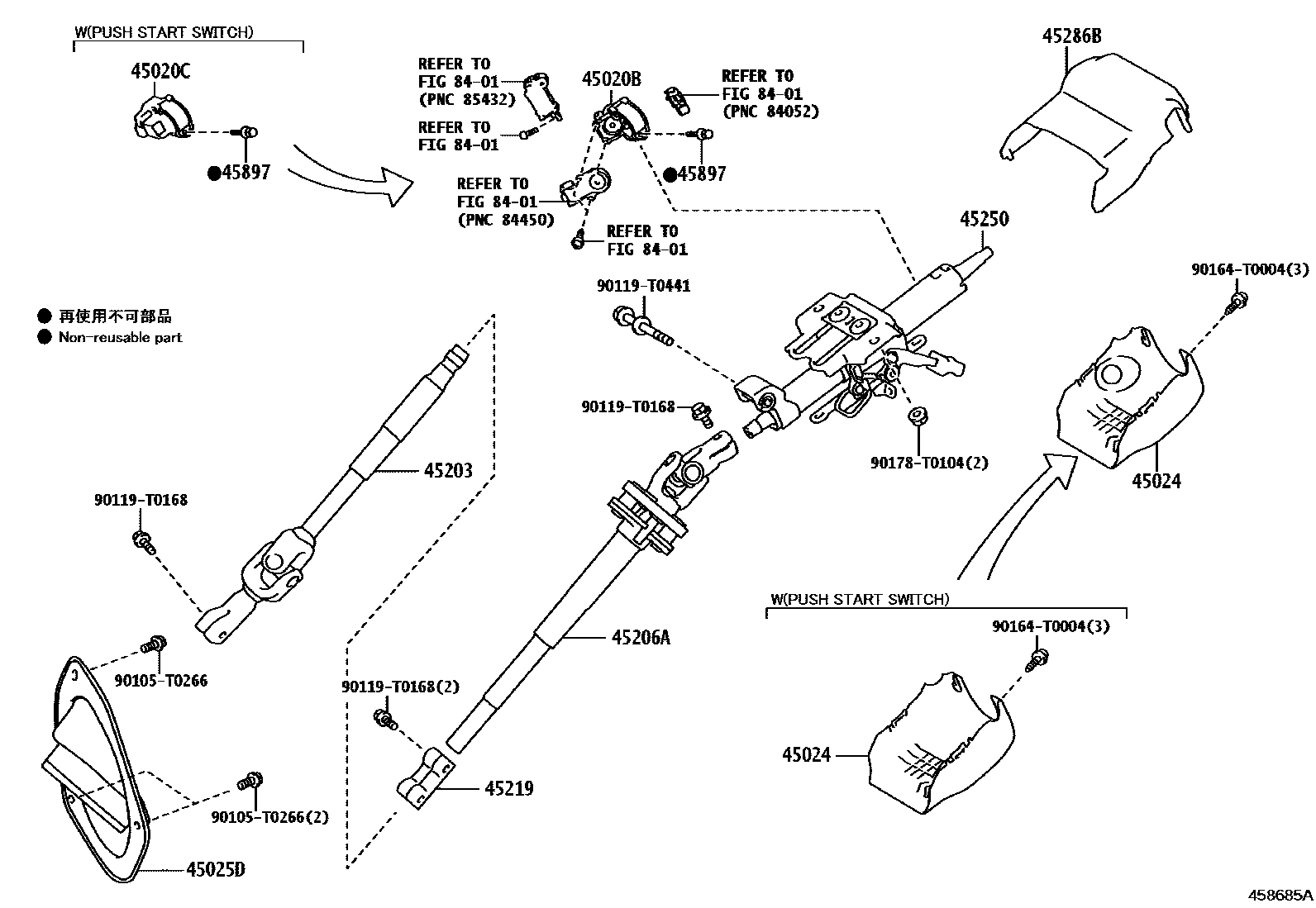

Toyota HILUX Steering Column & Shaft EPC diagram — 458685A
Steering Column & Shaft — 458685A (202308 – 999999)

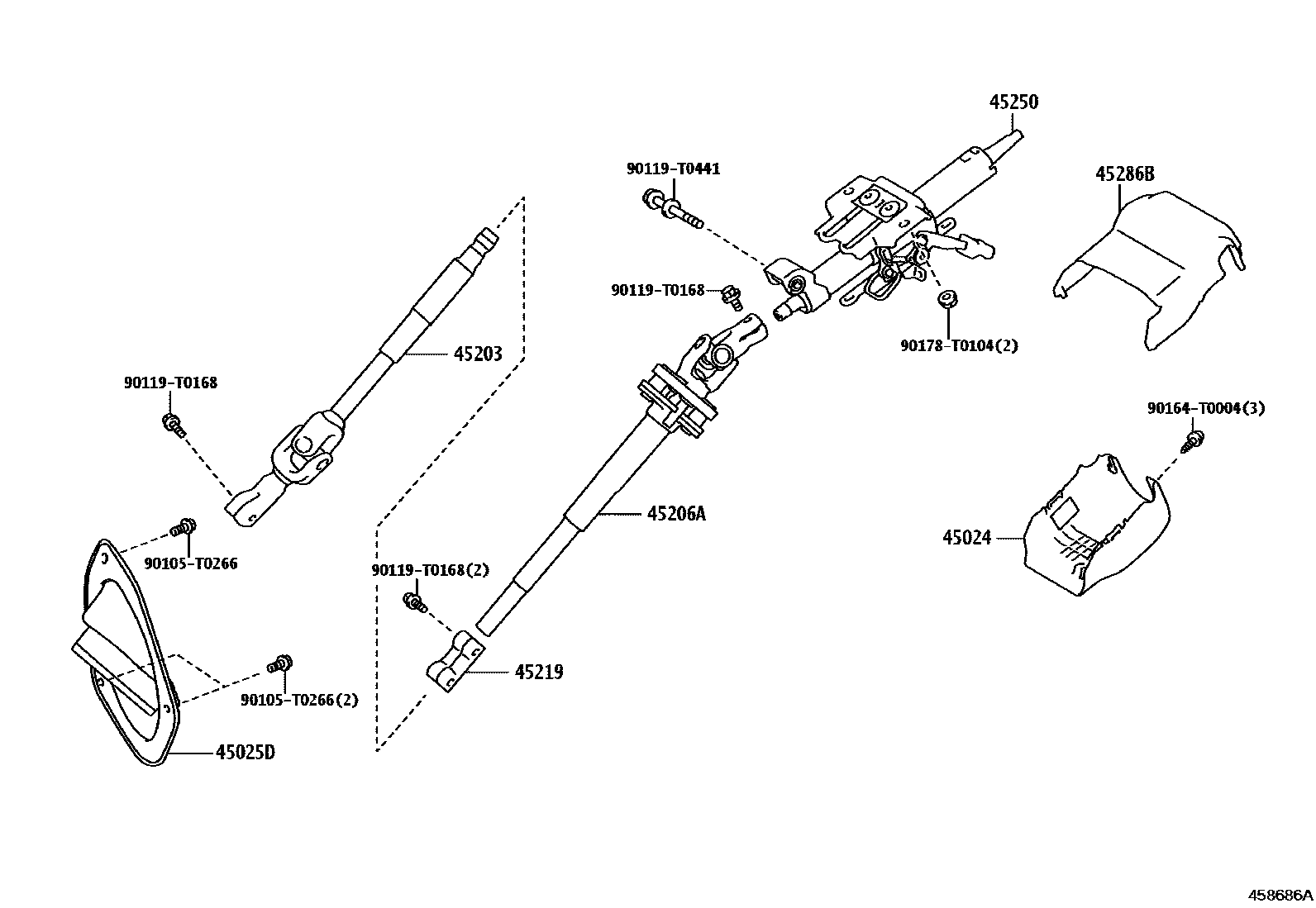

Toyota HILUX Steering Column & Shaft EPC diagram — 458686A
Steering Column & Shaft — 458686A (202311 – 999999)

PNC and OE references

PNCPart nameOE numbers
45020BACTIONNEUR OU ENSEMBLE SUPPORT SUPERIEUR, ANTIVOL DIRECTION45280-0K120 · 45280-0K180
45020CENS. ACTIONNEUR, ANTIVOL DIRECTION(AV/ECU)45020-0K240
45025DNo. 1 steering column hole cover sub-assembly45025-KK010 · 45025-KK020 · 45025-KK030
45203No. 2 steering intermediate shaft sub-assembly45203-0K150 · 45203-0K160 · 45203-0K180 · 45203-0K190
45206ASteering slip fork sub-assembly with coupling45206-0K120 · 45206-0K140
45219steering fork45219-0K090
45250Steering column assembly45250-0K060 · 45250-0K070 · 45250-0K080 · 45250-0K110 · 45250-0K150
45897Steering lock fixing bolt45897-12020
