Toyota HILUX HV或FCV传动桥总成 — Figure 3901

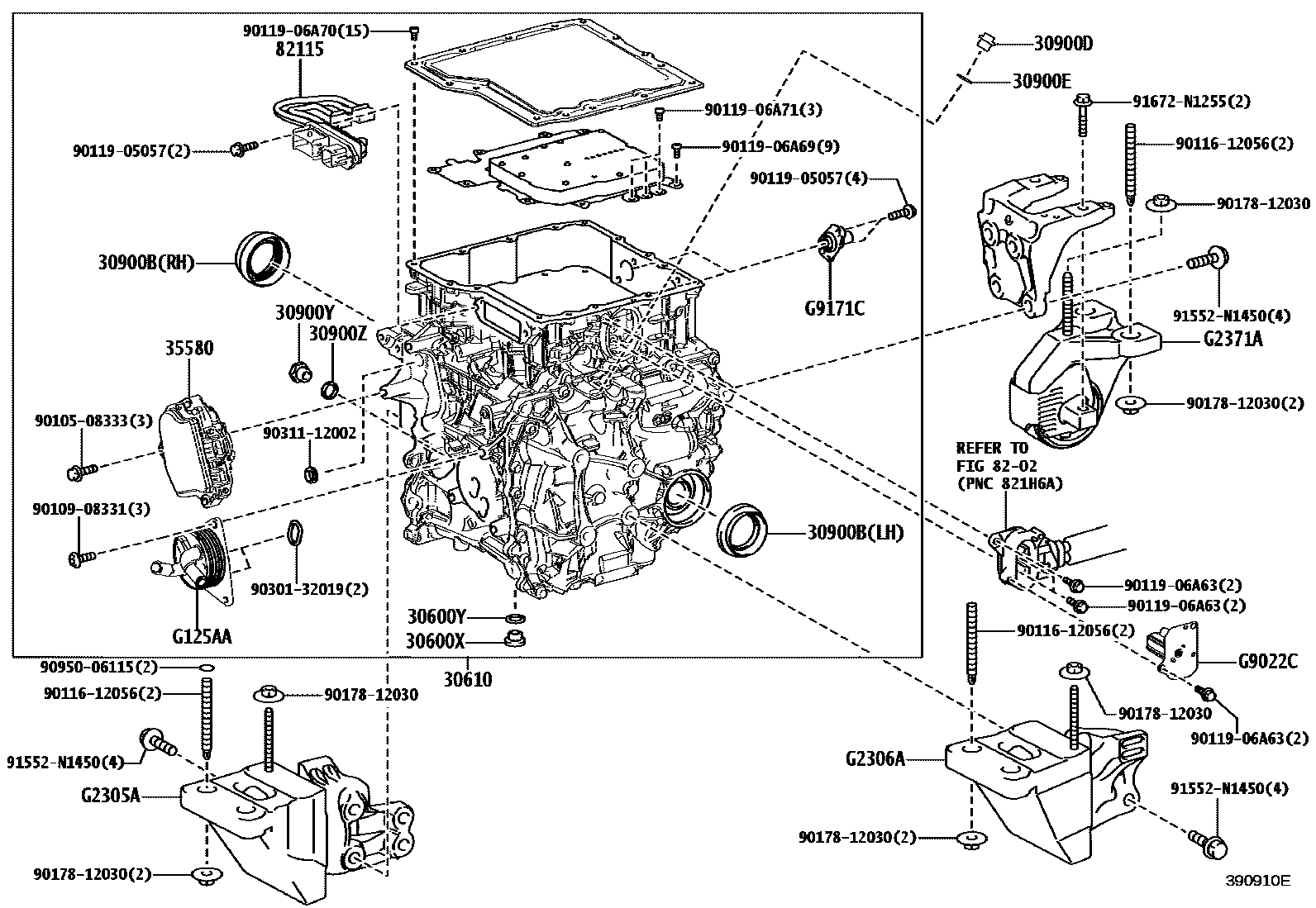

Toyota HILUX EPC diagram 3901, HV或FCV传动桥总成, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30600X | BOUCHON, VIDANGE(BEV) | 90341-18016 |
| 30600Y | JOINT D'ETANCHEITE, BOUCHON DE VIDANGE(BEV) | 90430-18008 |
| 30610 | ENS. BOITE-PONT, AVEC MOTEUR ET ONDULEUR | 30610-42011 |
| 30900B | T-type oil seal (for transmission axle assembly of hybrid vehicles) | 90311-50067 · 90311-50068 |
| 30900D | Headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18060 |
| 30900E | Gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900Y | BOUCHON, REMPLISSAGE(BEV) | 90341-18090 |
| 30900Z | JOINT ETANCHEITE, BOUCHON REMPLISSAGE(BEV) | 90430-18008 |
| 35580 | Shift control actuator assembly | 35580-42021 |
| 82115 | FIL, COMPARTIMENT MOTEUR, PRINCIPAL | 82115-42Q00 |
| G125AA | RADIATEUR, REFROIDISSEMENT MOTEUR | G125A-42020 |
| G2305A | SS-ENSEMBLE ISOLANT, SUPPORT DU MOTEUR, MD | G2305-71010 |
| G2306A | SS-ENSEMBLE ISOLANT, SUPPORT DU MOTEUR, MG | G2306-71010 |
| G2371A | ISOLANT, MONTAGE DU MOTEUR, ARRIERE | G2371-71010 |
| G9022C | SOUS-ENS. CACHE, ONDULEUR, SUP, NO.2 | G9022-42020 |
| G9171C | CONDUIT, REFROID. VARIATEUR, NO.1 | G9171-42010 |
