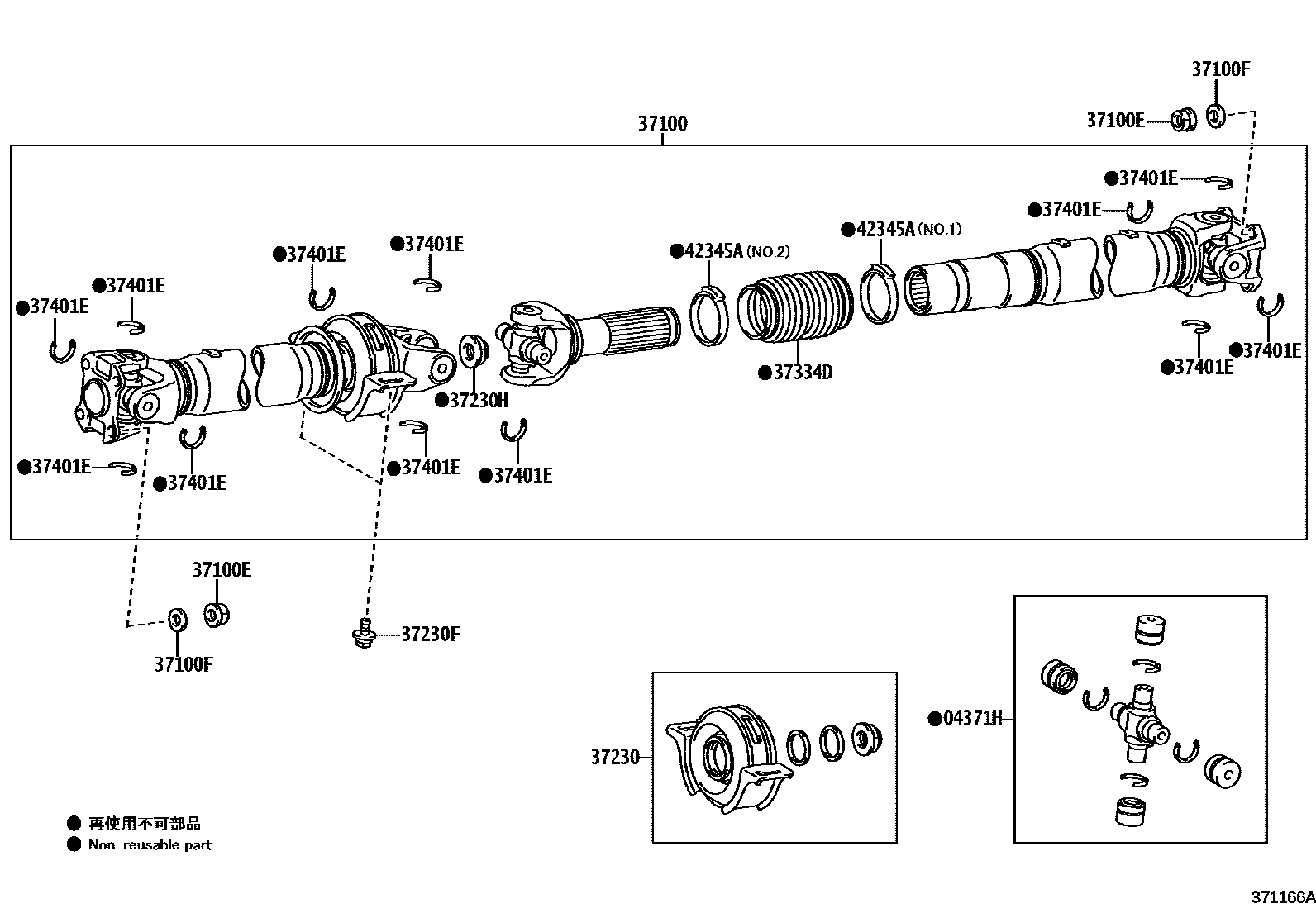

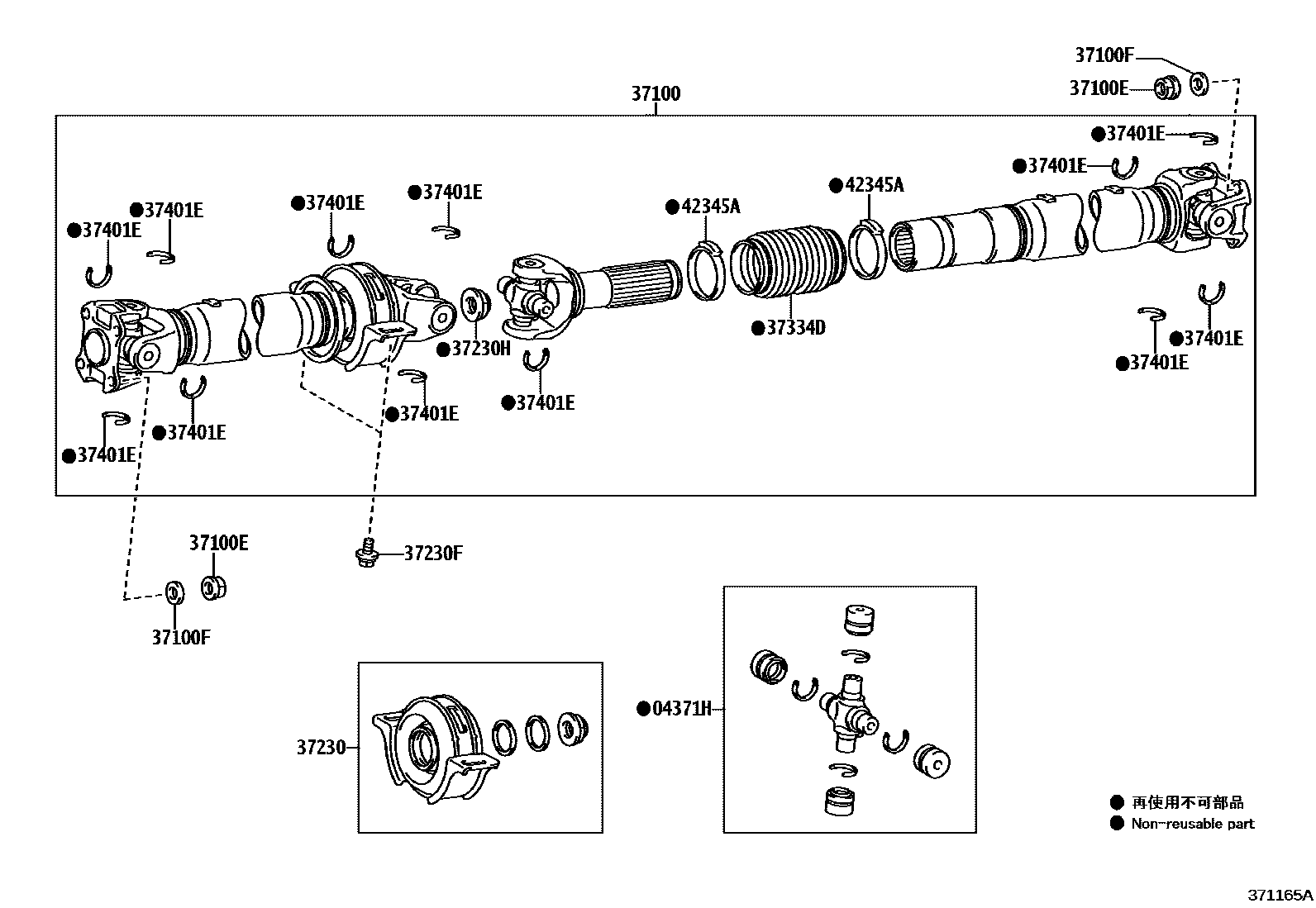

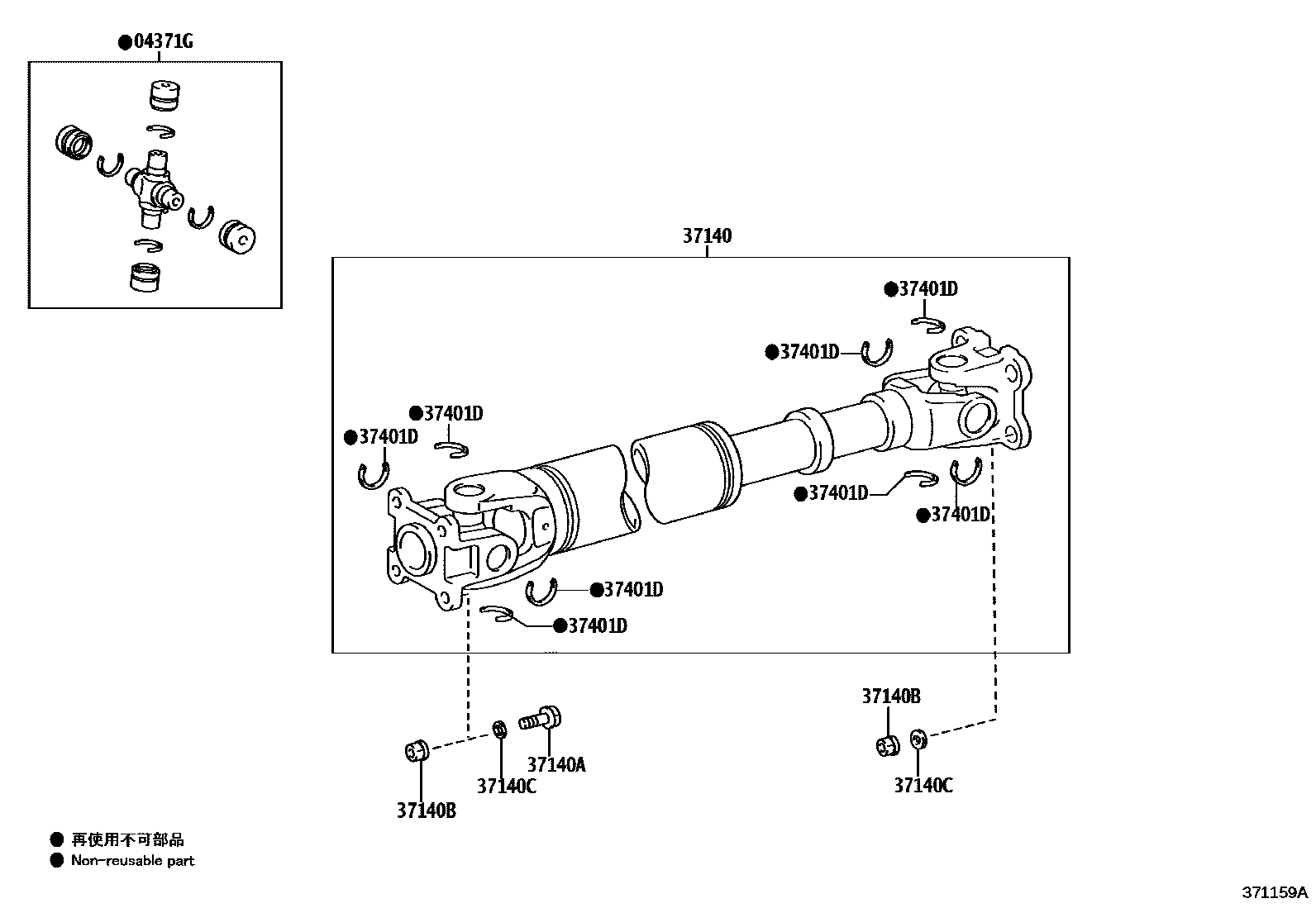

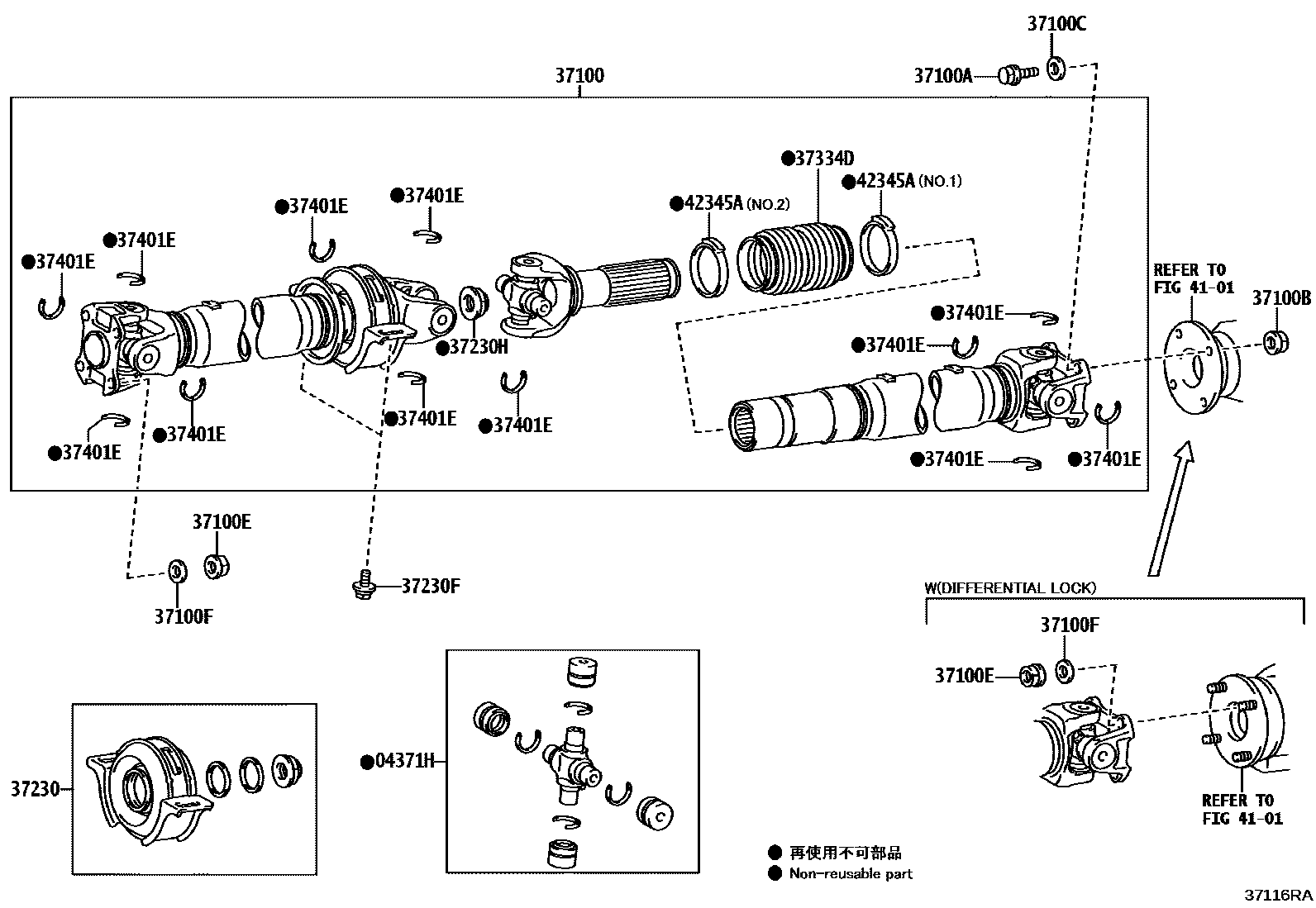

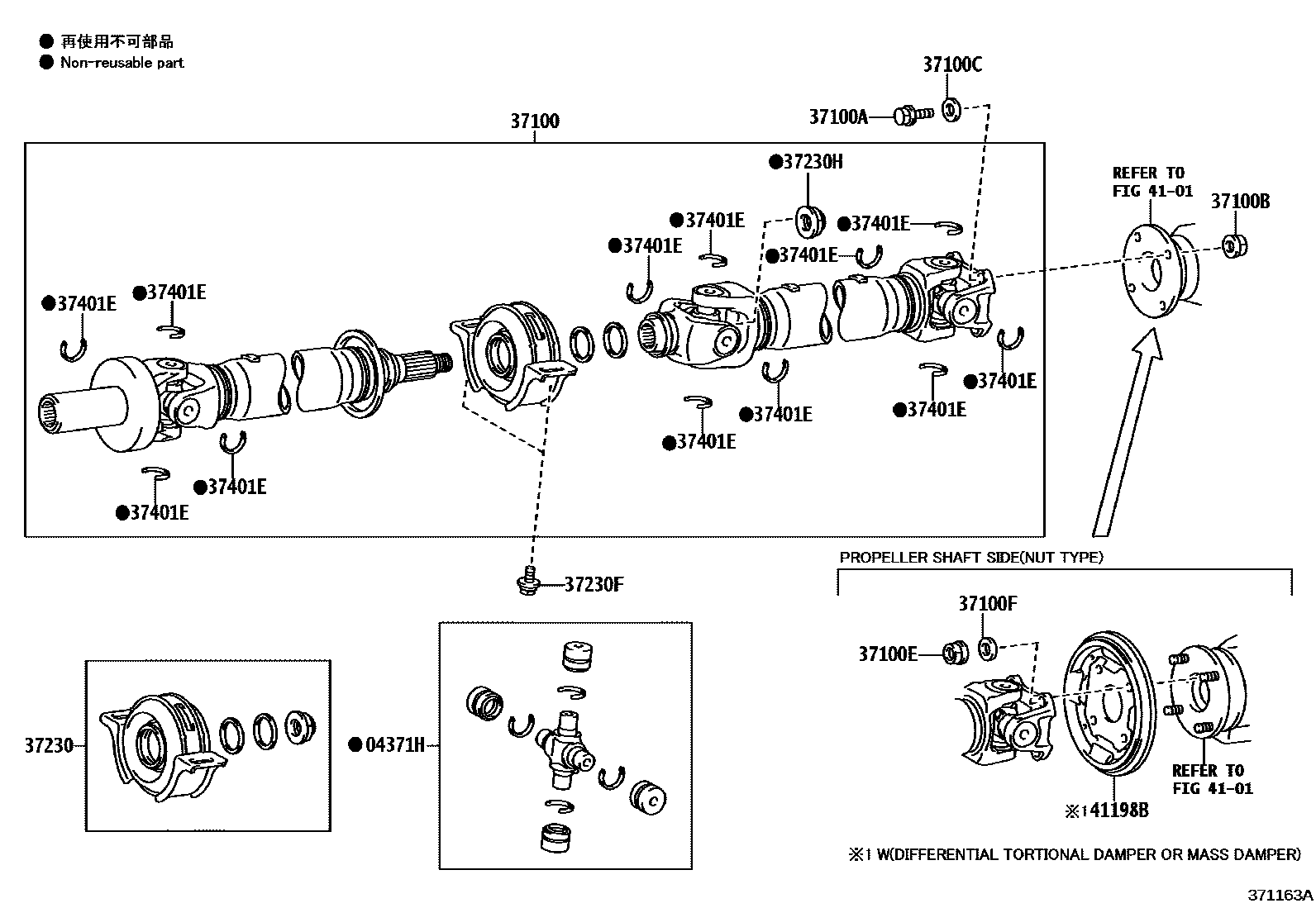

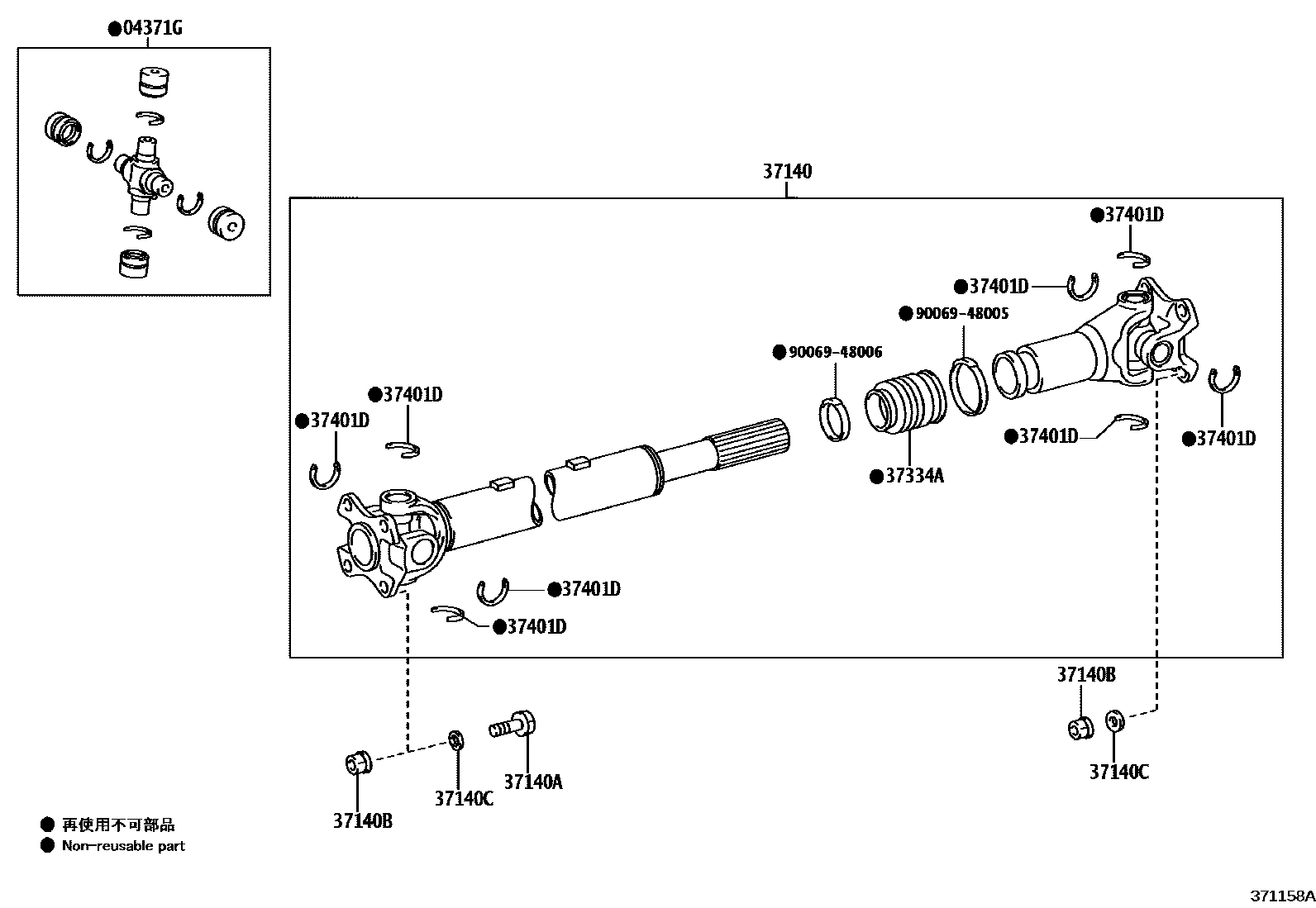

Toyota HILUX Propeller Shaft & Universal Joint — Figure 3701
Toyota HILUX EPC diagram 3701, Propeller Shaft & Universal Joint, with 6 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04371G | Front drive shaft universal joint cross shaft assembly | 04371-0K110 · 04375-0K012 |
| 04371H | Rear drive shaft universal joint cross shaft assembly | 04371-04080 · 04371-0K082 · 04371-0K110 · 04371-0K120 · 04371-0K140 · 04371-0K160 · 04371-0K170 · 04371-0K180 · 04371-0K190 |
| 37100 | Drive shaft assembly with central bearing | 37100-0KB00 · 37100-0KB50 · 37100-0KC10 · 37100-0KC20 · 37100-0KC70 · 37100-0KD21 · 37100-0KD31 · 37100-0KD60 · 37100-0KD80 · 37100-0KE30 · 37100-0KE80 · 37100-0KF30 · 37100-0KF61 · 37100-0KG10 · 37100-0KG71 · 37100-0KJ42 · 37100-0KJ52 · 37100-0KK01 · 37100-0KK41 · 37100-0KK61 · 37100-0KK71 · 37100-0KL91 · 37100-0KM31 · 37100-0KQ62 · 37100-0KQ90 · 37100-0KR10 · 37100-0KR30 · 37100-0KR92 · 37100-0KS01 |
| 37100A | No. 1 bolt (used to secure the drive shaft and differential) | 90105-T0084 |
| 37100B | No. 1 nut (used to secure the drive shaft and differential) | 90178-T0024 |
| 37100C | No. 1 washer (used to secure drive shaft and differential) | 90201-T0003 |
| 37100E | No. 2 nut (used to secure the drive shaft and differential) | 90178-T0024 |
| 37100F | No. 2 washer (used to secure drive shaft and differential) | 90201-T0003 |
| 37140 | Front drive shaft assembly | 37140-0K010 · 37140-0K020 · 37140-0K030 · 37140-0K072 · 37140-0K102 · 37140-0K112 · 37140-0K152 · 37140-0K202 |
| 37140A | Bolt (for front driveshaft) | 90105-T0084 |
| 37140B | Nut (for front driveshaft) | 90178-T0024 |
| 37140C | Washer (for front driveshaft) | 90201-T0003 |
| 37230 | No. 1 intermediate support bearing assembly | 37230-09010 · 37230-09020 · 37230-09090 · 37230-09100 · 37230-09110 · 37230-09120 |
| 37230F | No. 1 bolt (for intermediate support bearing) | 90119-T0148 |
| 37230H | No. 1 nut (for intermediate support bearing) | 37328-0K010 · 90177-T0020 · 90179-20018 |
| 37334A | Sliding shaft dust cover | 37334-0C010 |
| 37334D | SOUFFLET, ARBRE TRANSMISSION ARRIERE | 37334-0K020 · 37334-0K030 |
| 37401D | Snap ring (for front drive shaft universal joint cross shaft bearing) | 90080-52038 · 90080-52039 · 90080-52040 · 90080-52041 · 90080-52042 · 90080-52043 · 90080-52044 · 90080-52174 · 90080-52175 · 90080-52176 · 90080-52177 · 90080-52178 · 90080-52179 · 90080-52180 · 90520-T0007 · 90520-T0008 · 90520-T0009 · 90520-T0010 · 90520-T0011 · 90520-T0012 · 90520-T0013 · 90520-T0014 · 90520-T0015 · 90520-T0016 · 90520-T0017 · 90520-T0018 · 90520-T0019 · 90520-T0020 · 90520-T0021 · 90520-T0022 · 90520-T0023 · 90520-T0024 · 90520-T0025 · 90520-T0026 |
| 37401E | Snap ring (for rear drive shaft universal joint cross shaft bearing) | 90080-52038 · 90080-52039 · 90080-52040 · 90080-52041 · 90080-52042 · 90080-52156 · 90520-T0007 · 90520-T0008 · 90520-T0009 · 90520-T0010 · 90520-T0011 · 90520-T0012 · 90520-T0013 · 90520-T0014 · 90520-T0015 · 90520-T0016 · 90520-T0017 · 90520-T0018 · 90520-T0019 · 90520-T0020 · 90520-T0021 · 90520-T0022 · 90520-T0023 · 90520-T0024 · 90520-T0025 · 90520-T0026 · 90520-T0223 · 90520-T0224 · 90520-T0225 · 90520-T0226 · 90520-T0227 · 90520-T0228 · 90520-T0229 · 90520-T0230 · 90520-T0231 · 90520-T0232 · 90520-T0233 · 90520-T0234 · 90520-T0235 · 90520-T0236 · 90521-A0003 · 90521-A0004 · 90521-A0005 · 90521-A0006 · 90521-A0008 · 90521-A0010 · 90521-A0011 · 90521-A0013 · 90521-A0014 · 90521-A0015 · 90521-A0016 |
| 41198B | AMORTISSEUR, MASSE DE DIFFERENTIEL | 41197-71020 |
| 42345A | COLLIER, SOUFFLET ARBRE TRANSMISSION ARRIERE | 42345-0K260 · 42345-0K280 · 42345-0K290 |
