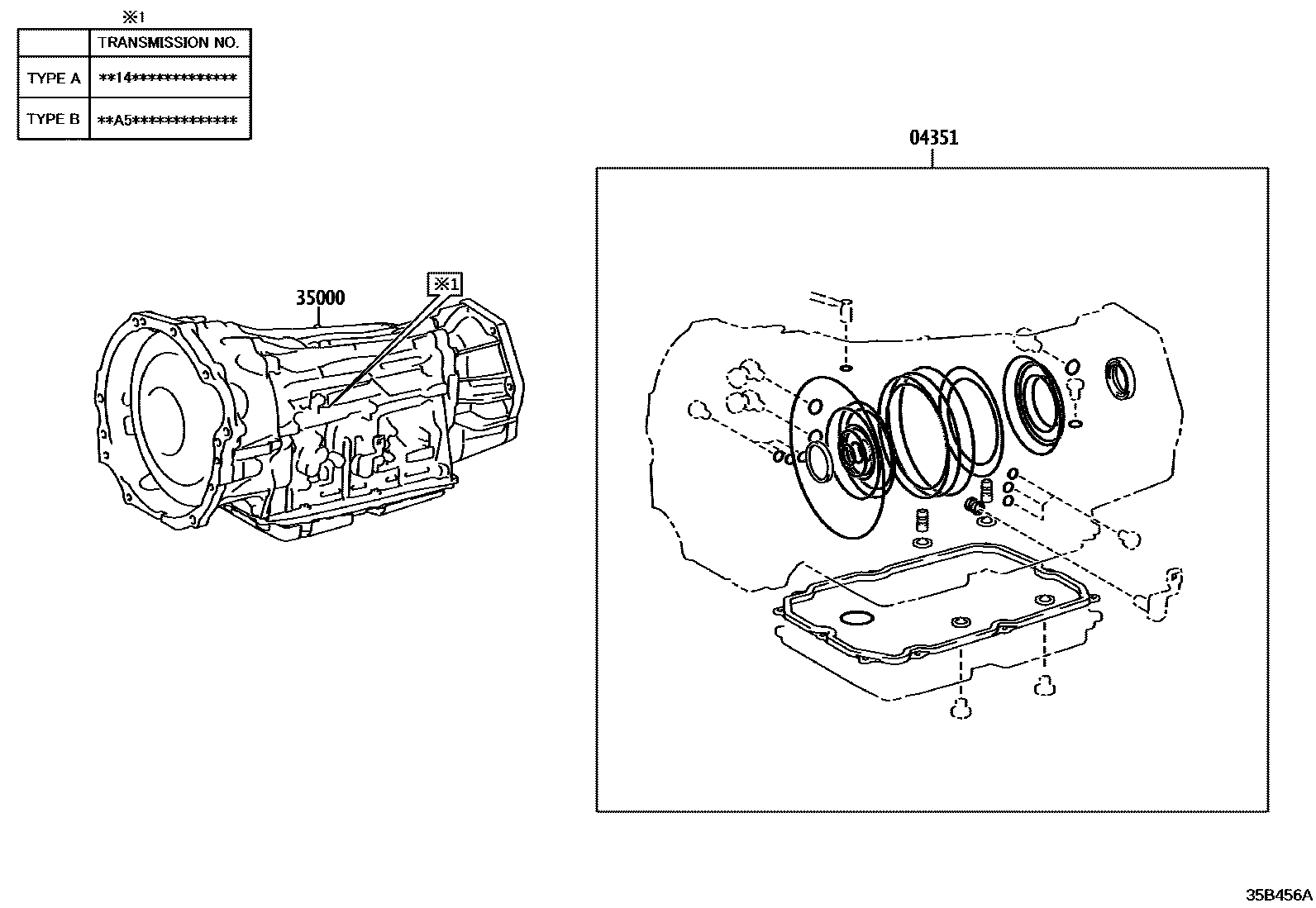

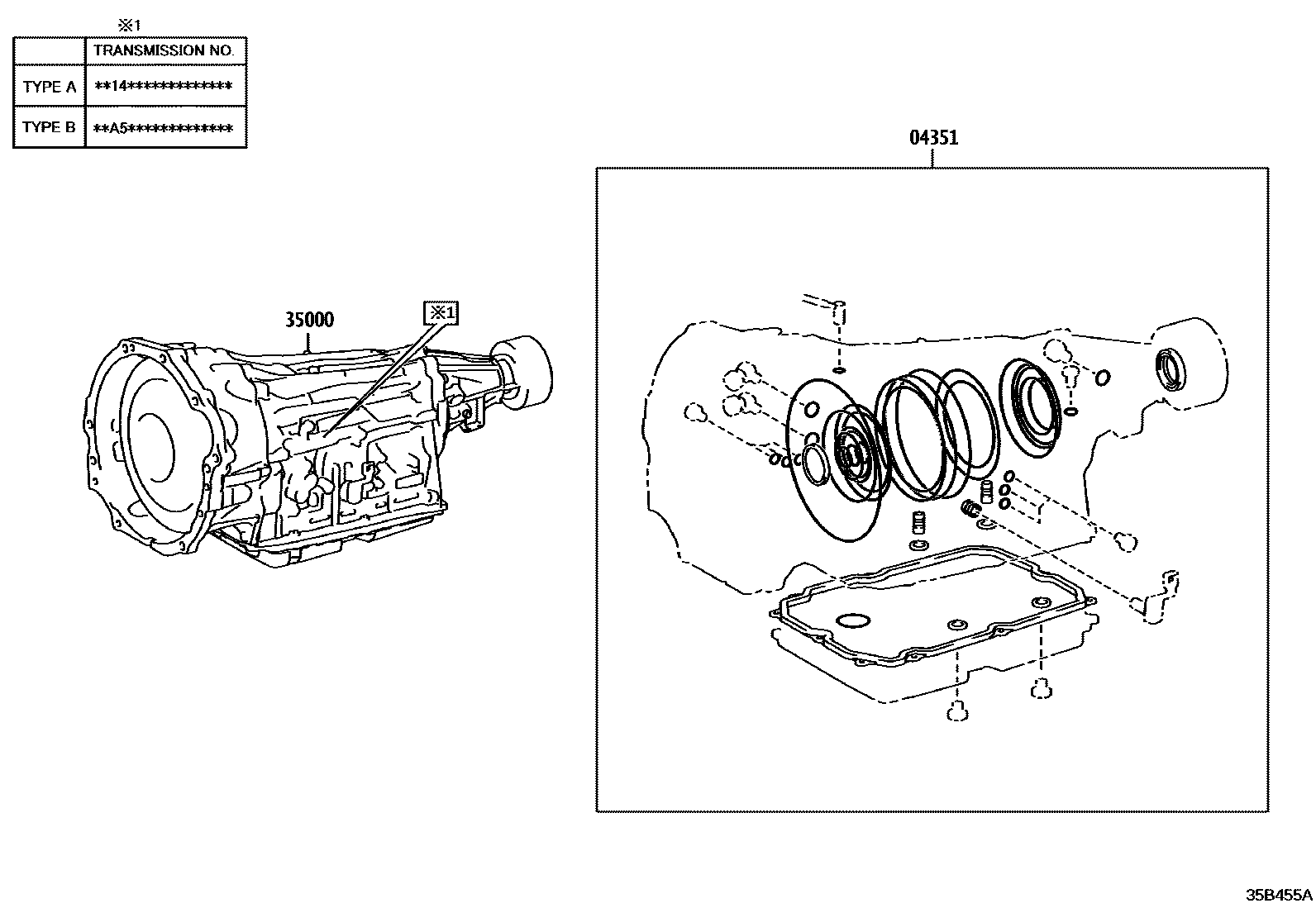

Toyota HILUX 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota HILUX EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351 | Automatic transmission overhaul gasket assembly | 04351-71220 · 04351-71230 · 04351-71241 |
| 35000 | Automatic transmission assembly | 35000-0K030 · 35000-0K050 · 35000-0K060 · 35000-0K080 · 35000-0K110 · 35000-0K130 · 35000-0K140 · 35000-71340 · 35000-71390 · 35000-71420 · 35000-71520 |
