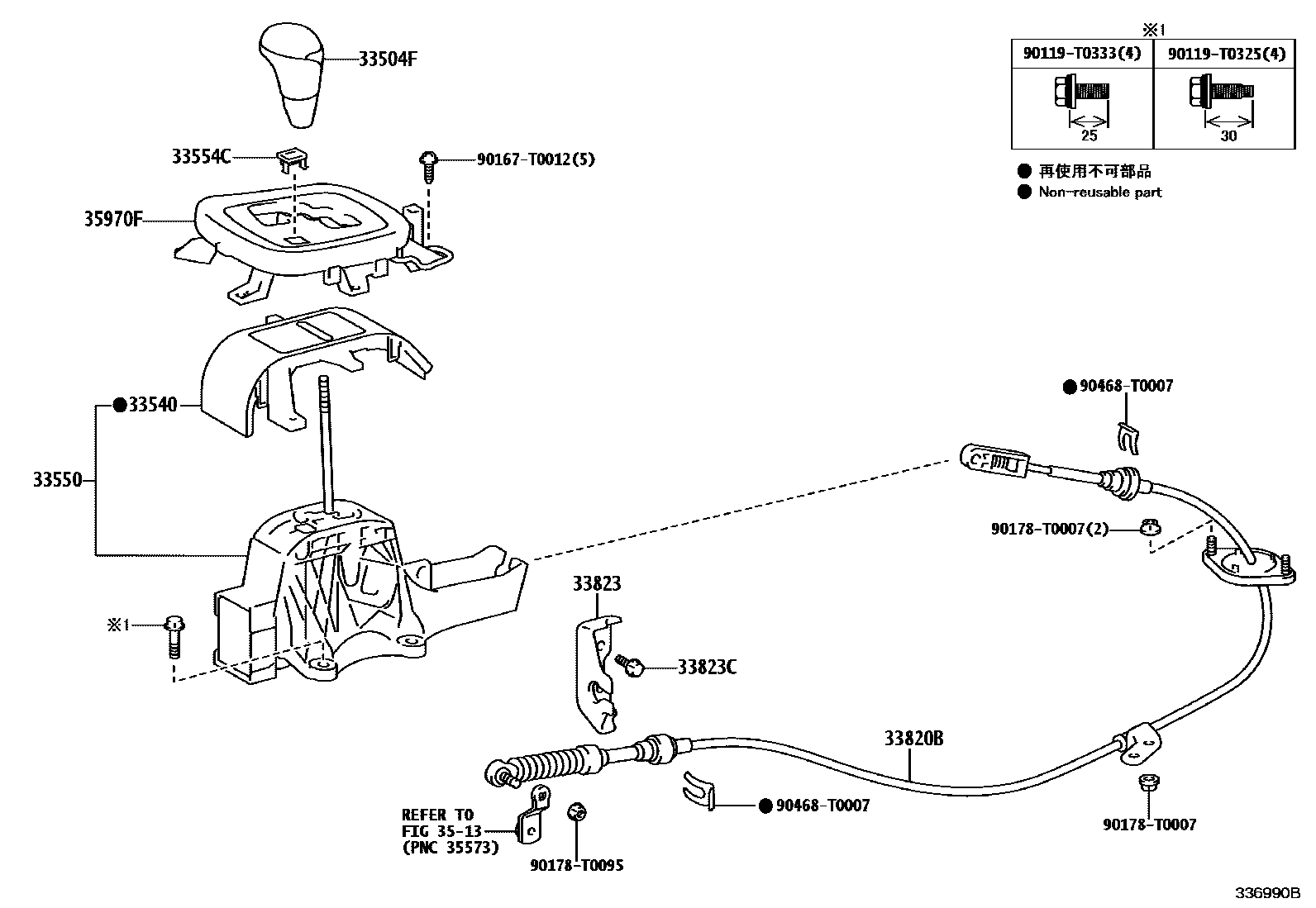

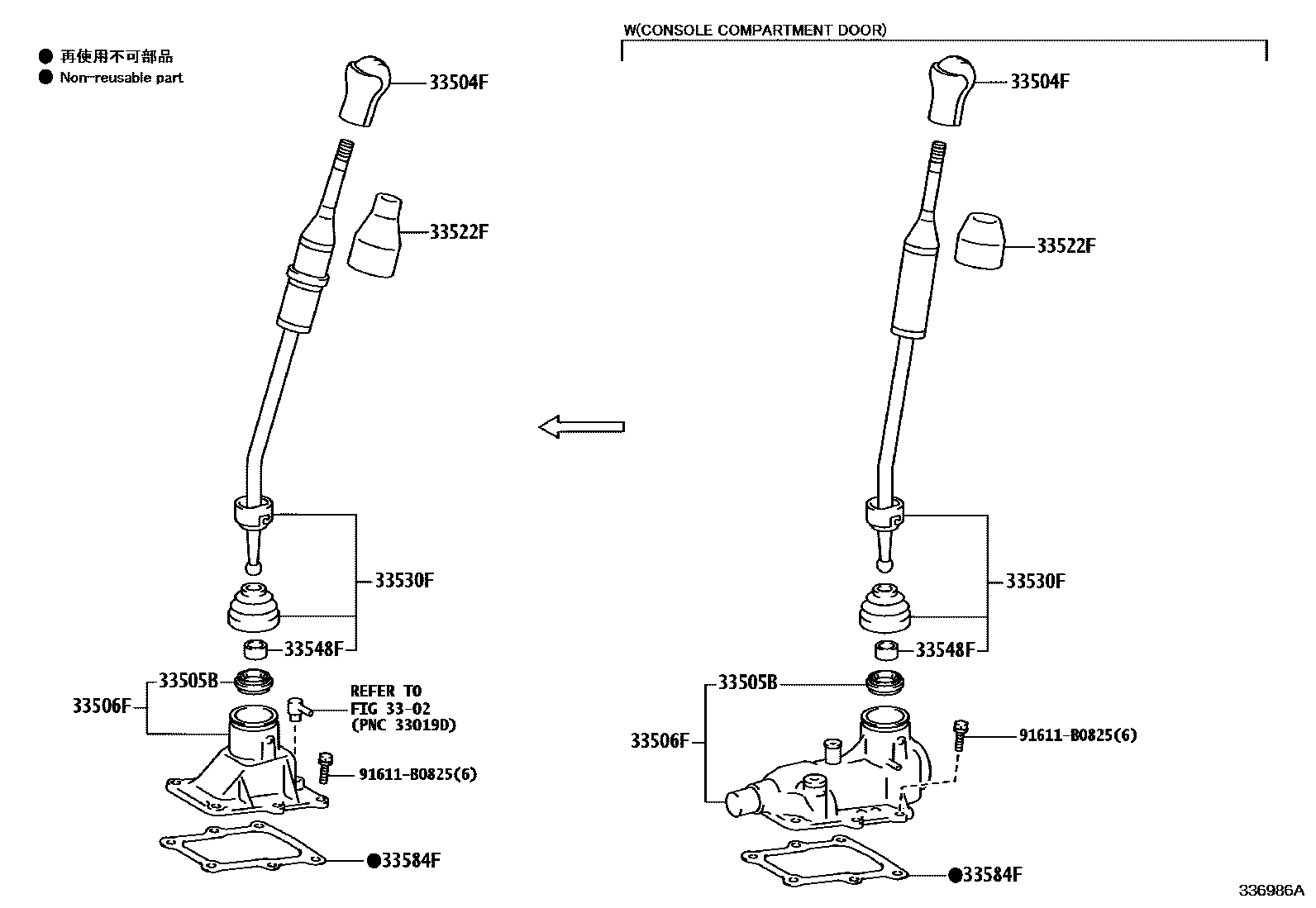

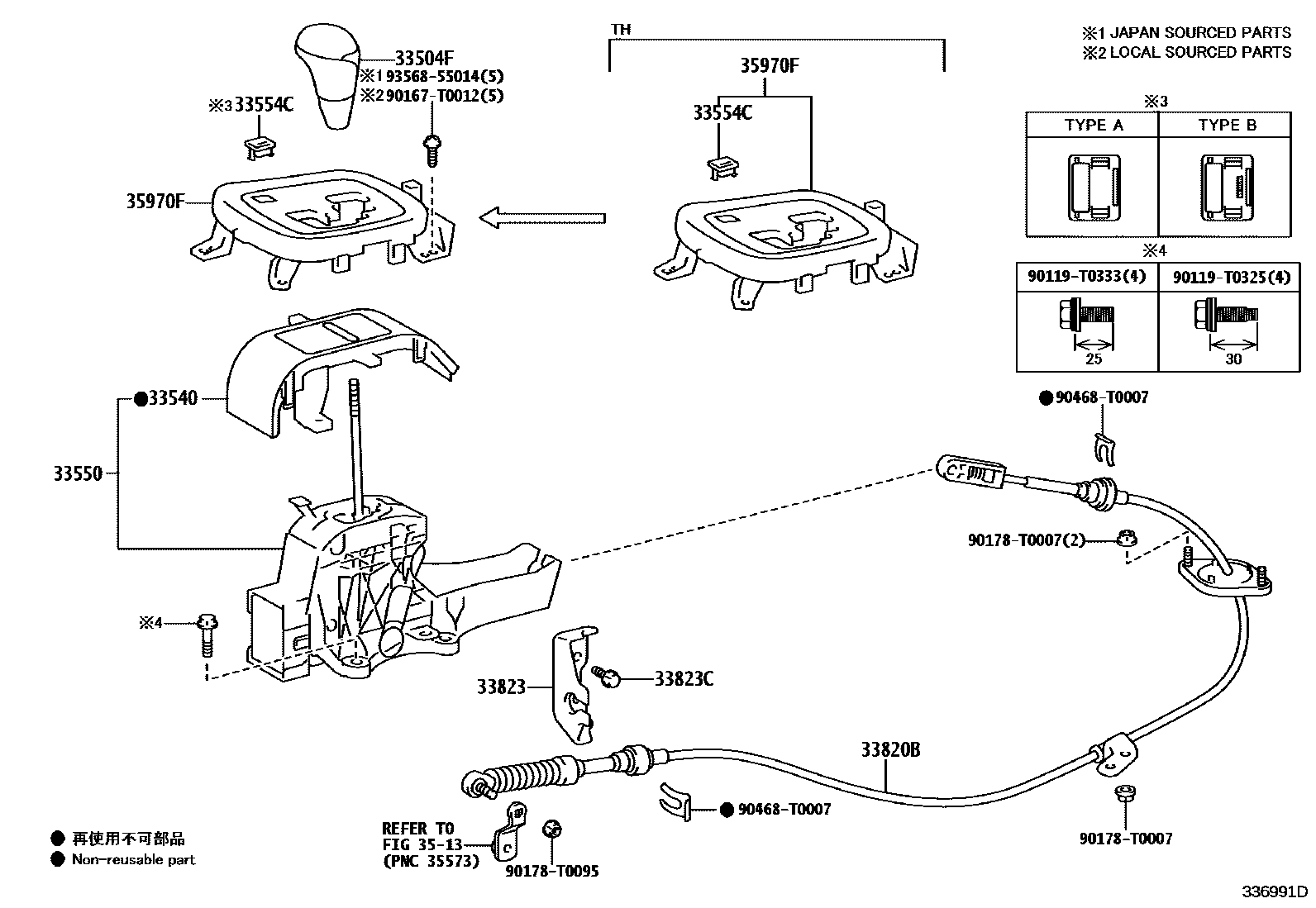

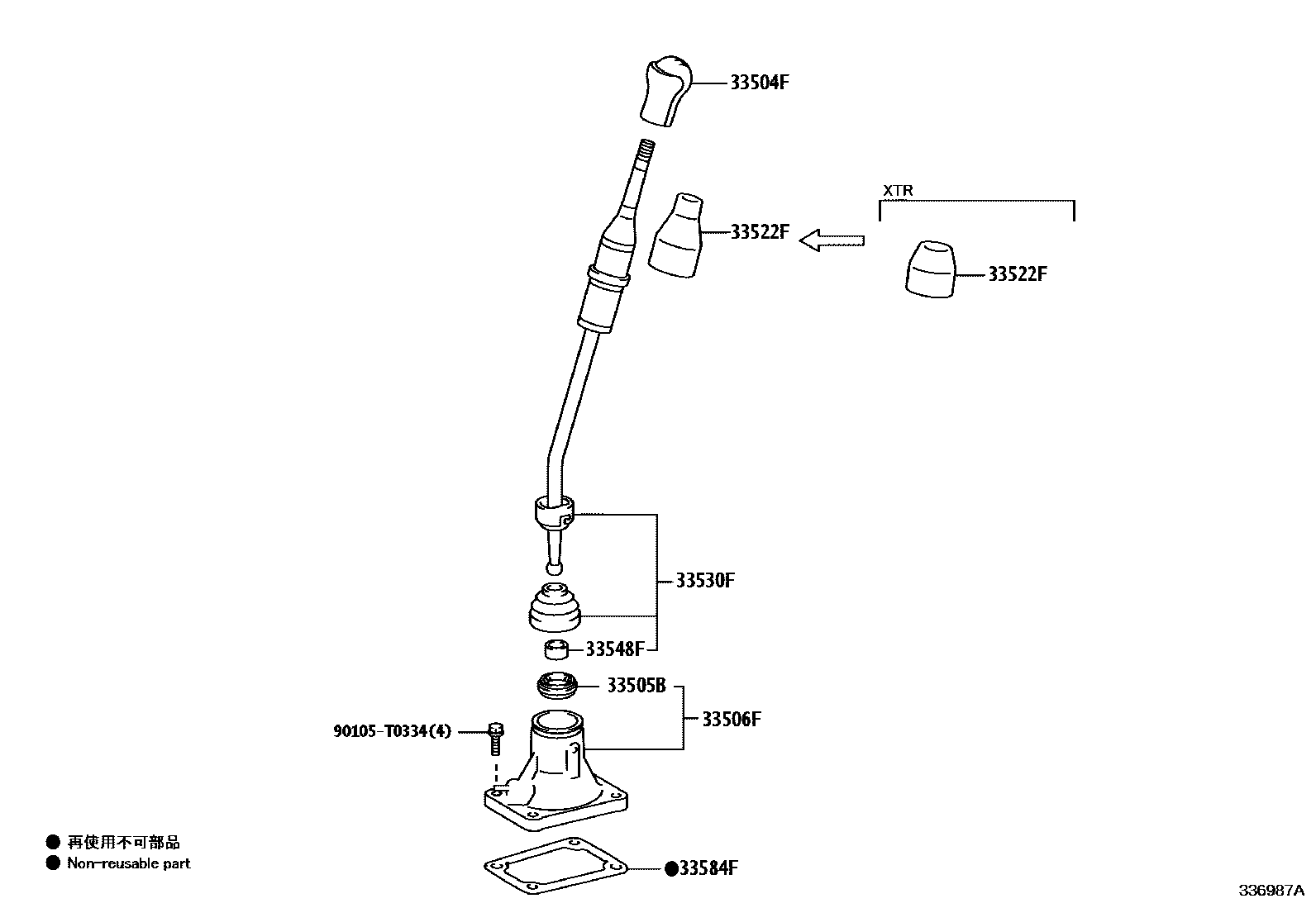

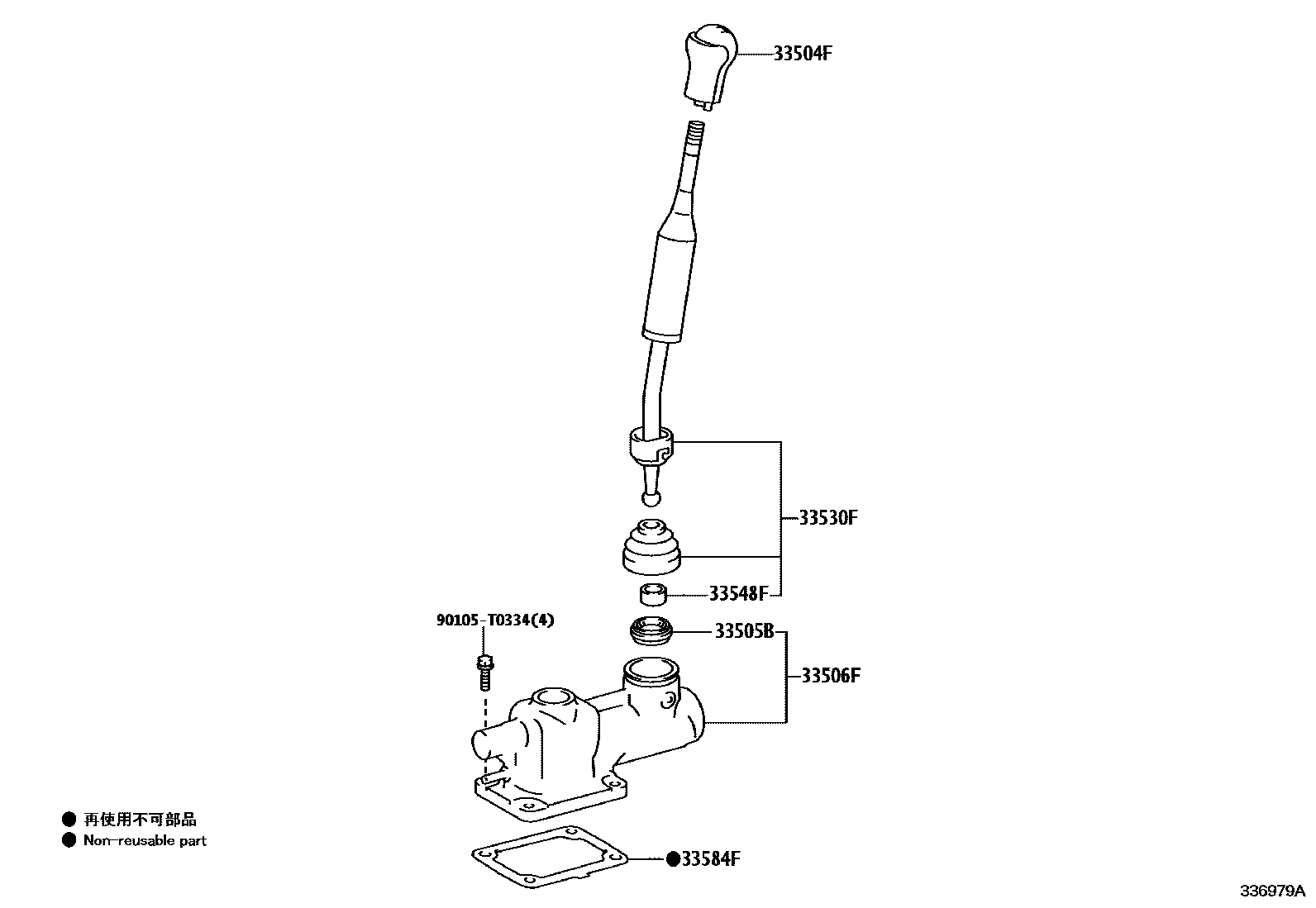

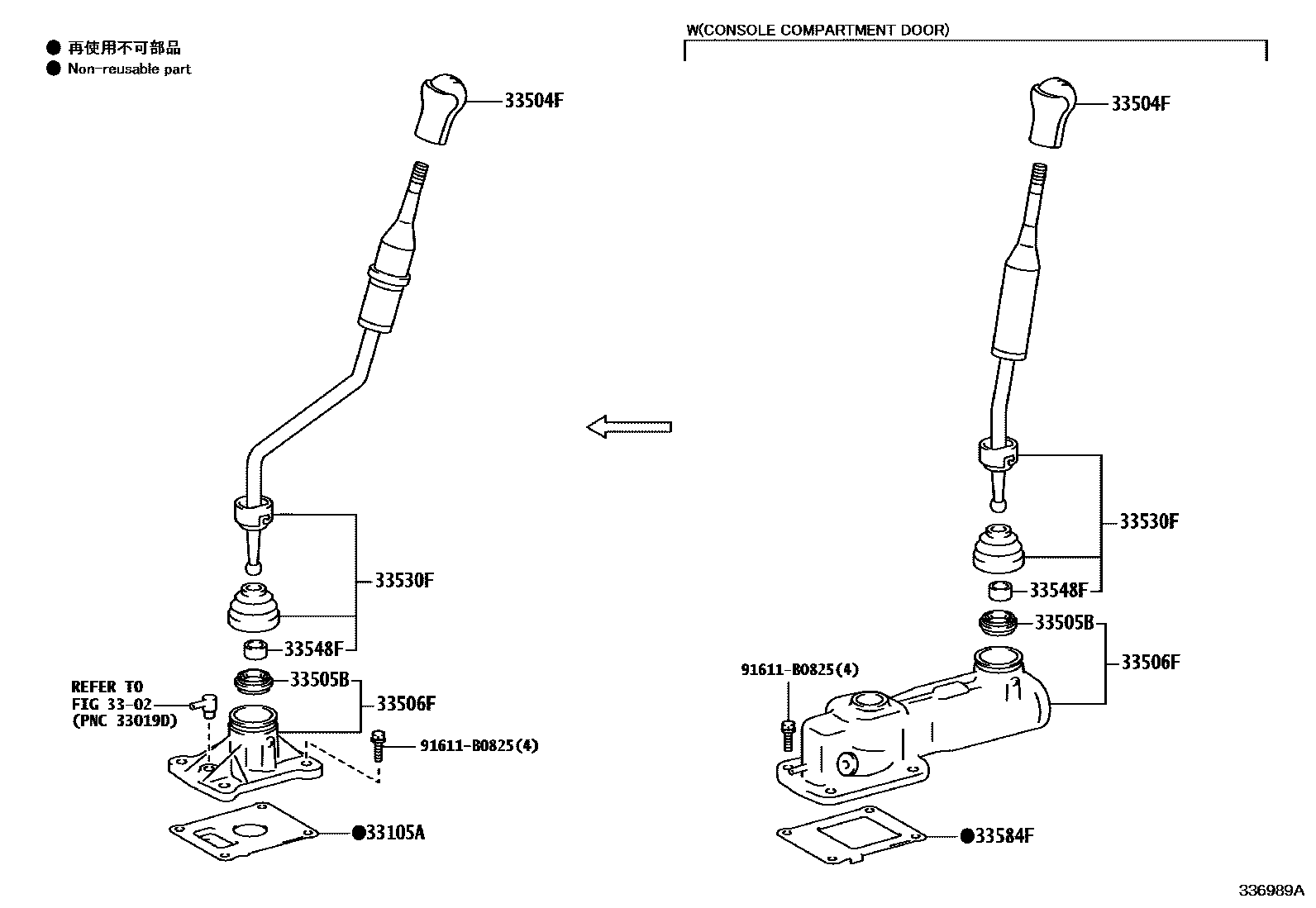

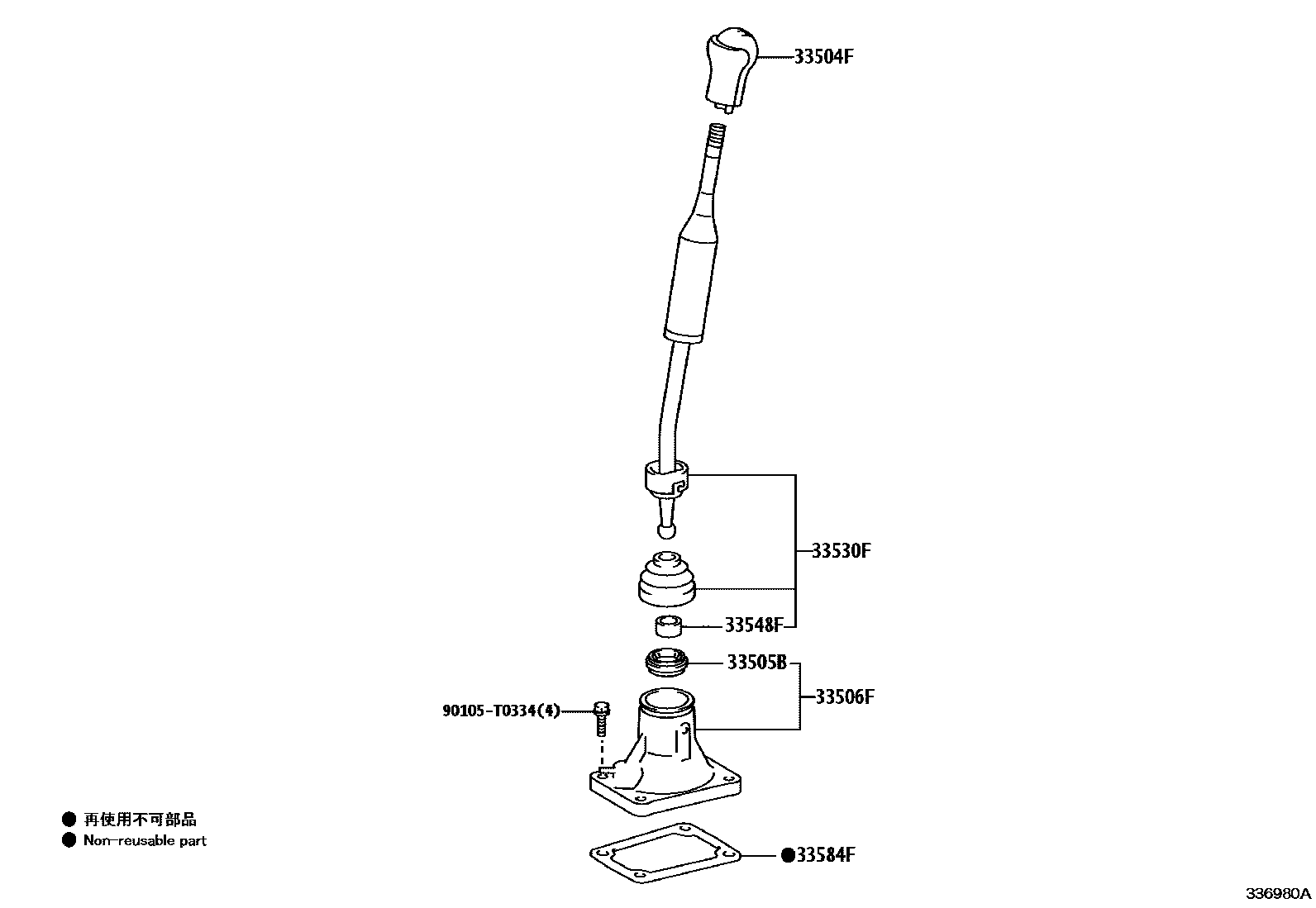

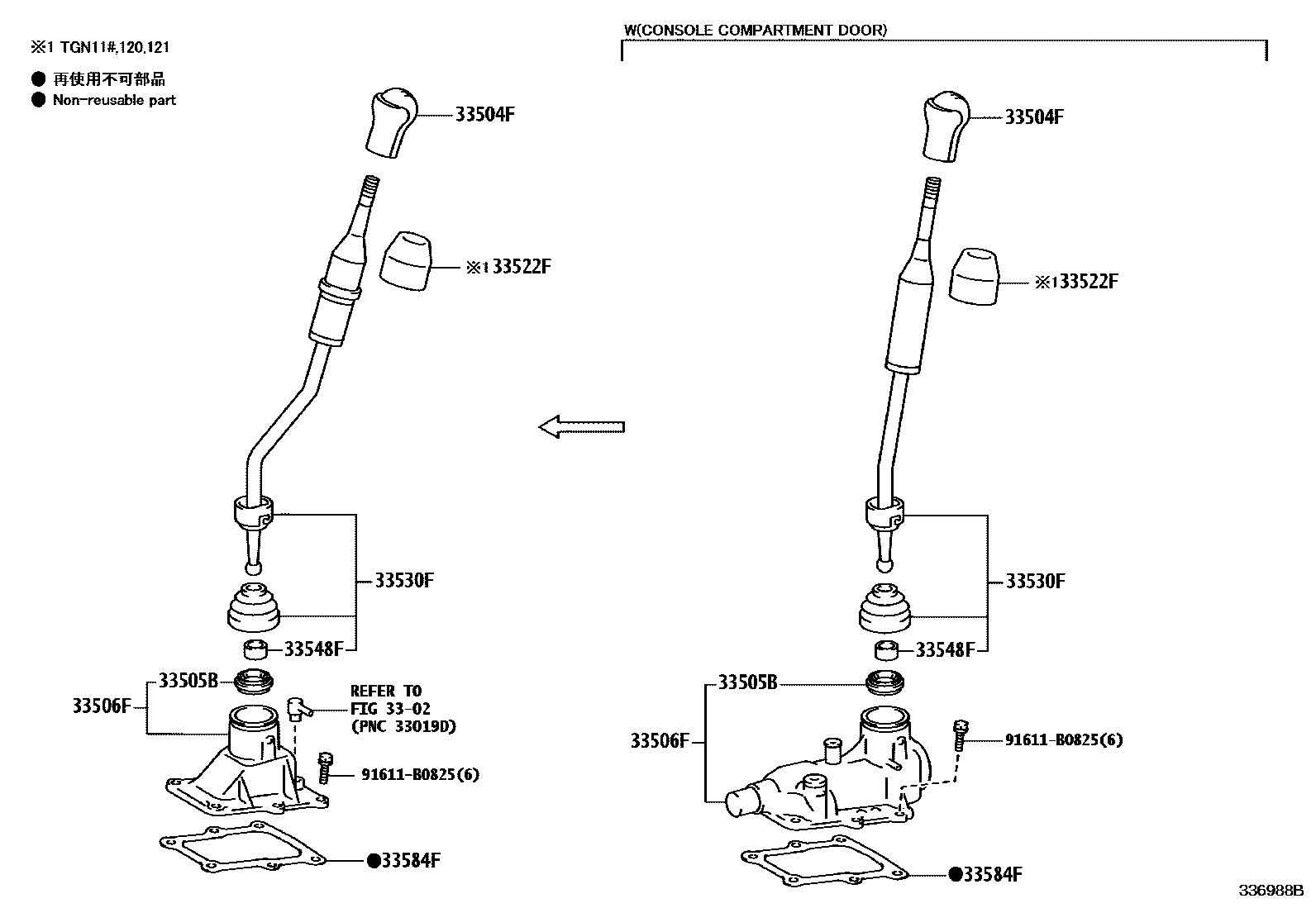

Toyota HILUX Shift Lever & Retainer — Figure 3312
Toyota HILUX EPC diagram 3312, Shift Lever & Retainer, with 8 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33105A | Extension housing oil baffle sub-assembly (MTM) | 33144-35030 |
| 33505B | Shift lever seat sub-assembly | 33505-0K010 · 33505-35030 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33506-0K011 · 33506-0K070 · 33506-0K090 · 33506-60061 · 33570-0K030 · 33570-0K040 · 33570-0K080 · 33570-0K100 · 33570-0K111 · 33570-0K121 |
| 33530F | Shift lever assembly (for floor shift) | 33530-0K621 · 33530-0K651 · 33530-0K671 · 33530-0K681 · 33530-0K691 · 33530-0K741 · 33530-0K761 · 33530-0K821 |
| 33540 | Shift lever base plate assembly | 33540-0K040 · 33540-0K050 |
| 33548F | Shift lever bushing No. 1 (for floor shift) | 33548-04010 · 33548-22020 · 33548-60040 |
| 33550 | Transmission floor shift assembly | 33550-0K160 · 33550-0K170 · 33550-0K180 |
| 33554C | Shift lock release button cover | 33554-0K010 · 33554-0K020 |
| 33584F | Shift lever stop pad (for floor shift) | 33584-0K010 · 33584-0K020 · 33584-71010 |
| 33820B | Transmission control cable assembly | 33820-0K171 · 33820-0K180 |
| 33823 | No. 1 transmission control cable bracket | 33823-KK010 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-T0102 |
| 35970F | Position indicator light housing assembly | 35970-0K010 · 35970-0K040 · 35970-0K180 · 35970-0K250 · 35970-0K310 · 35970-0K370 · 35970-0K390 |
