Toyota HILUX 离合器和分离叉 — Figure 3101

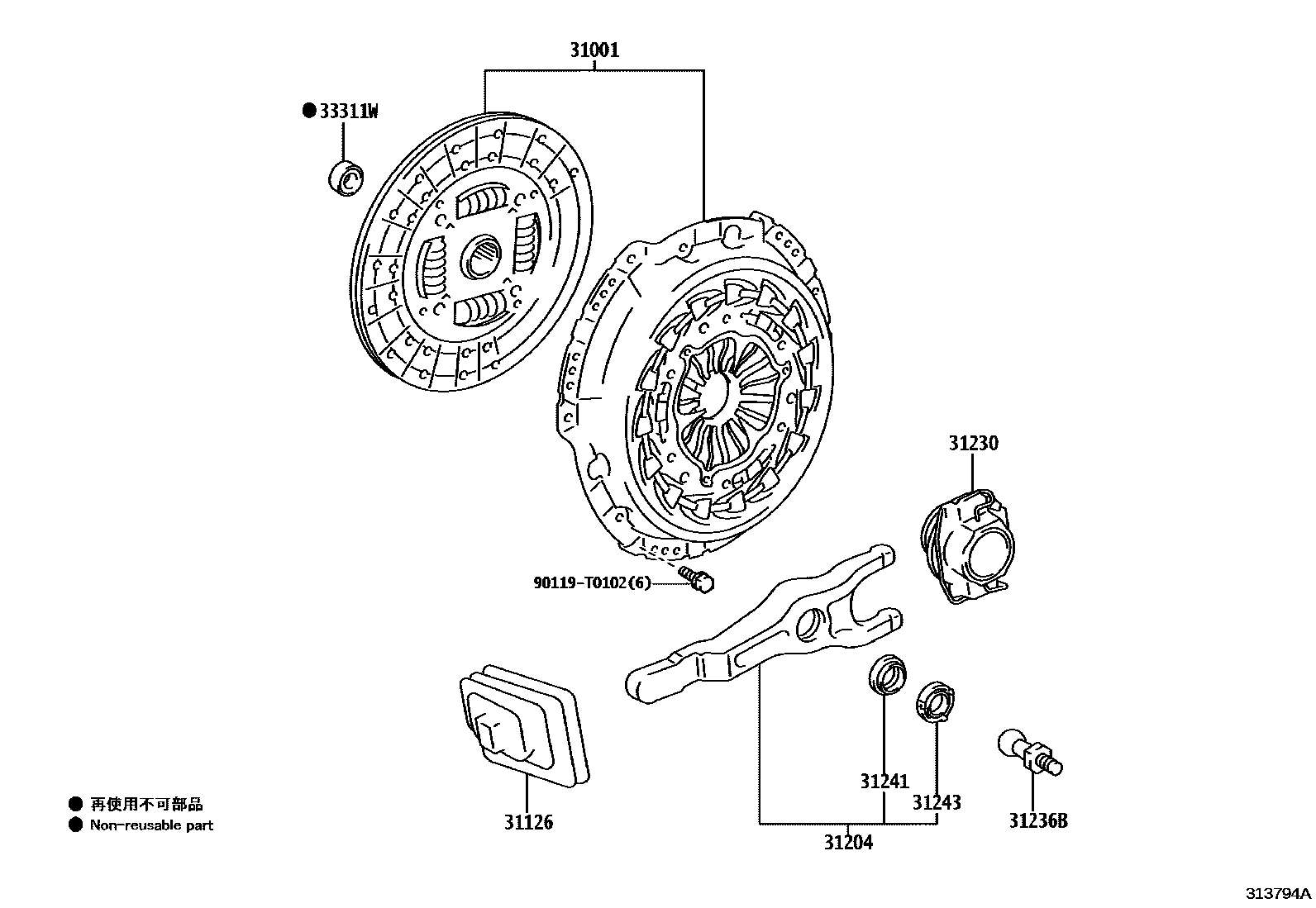

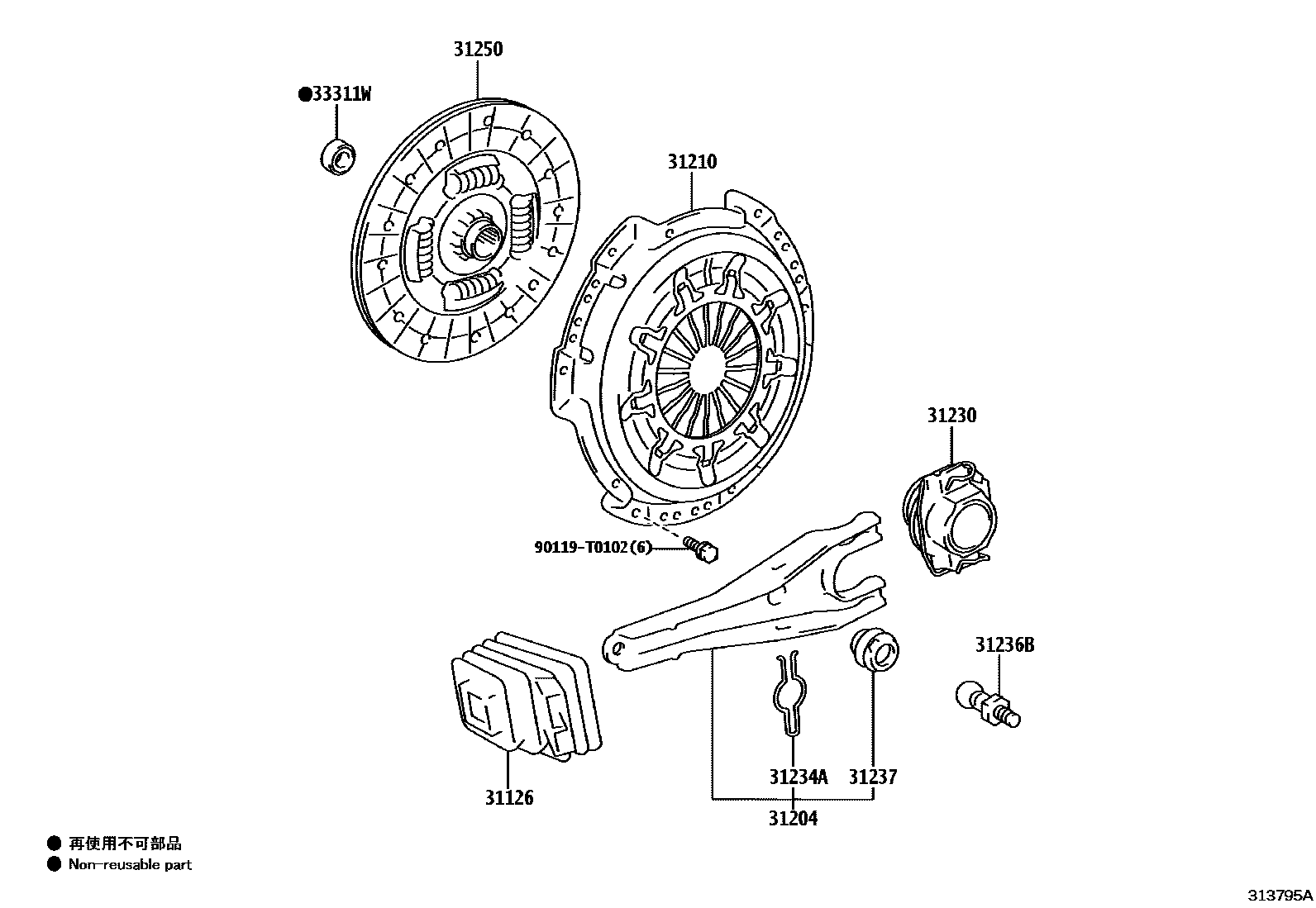

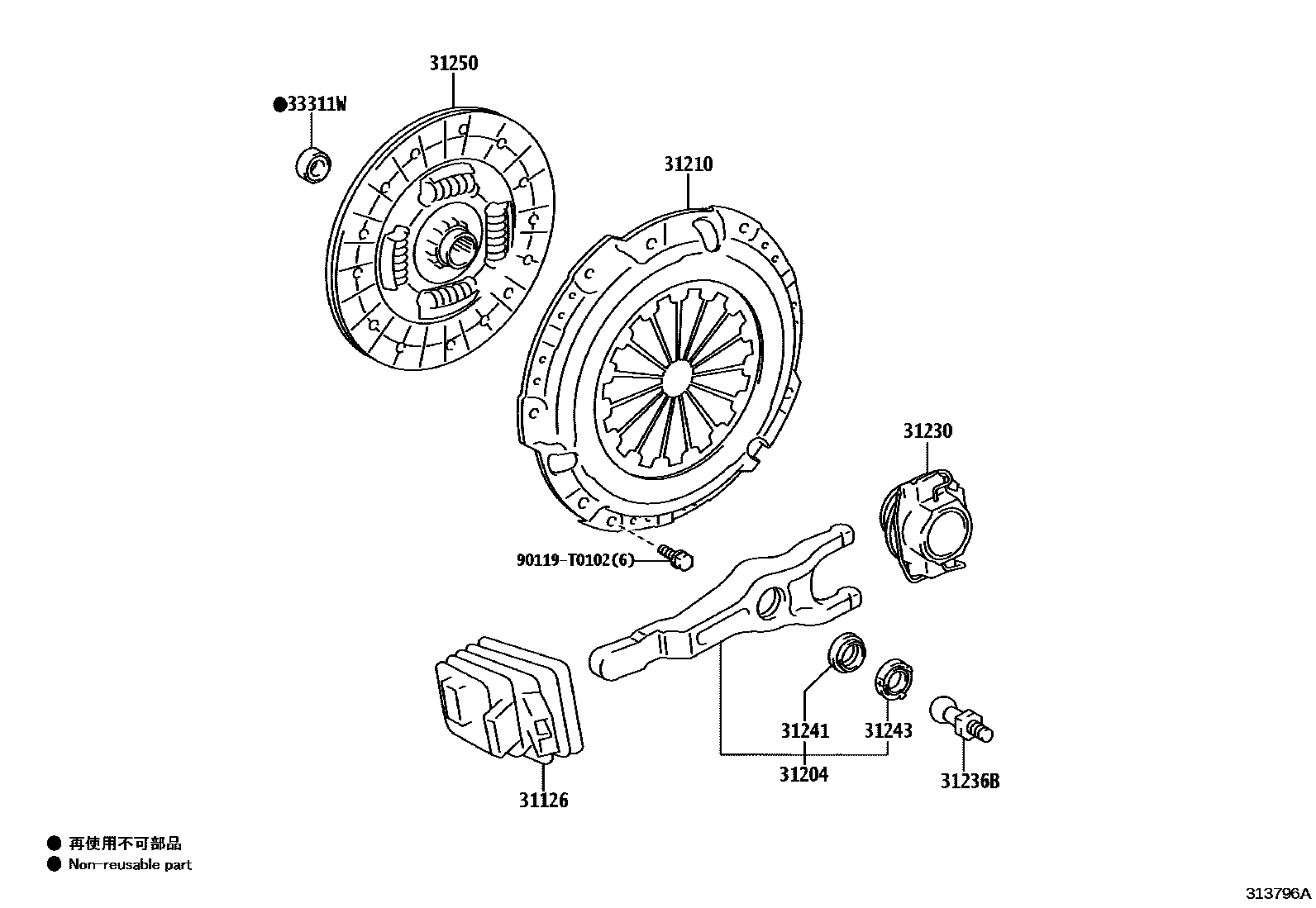

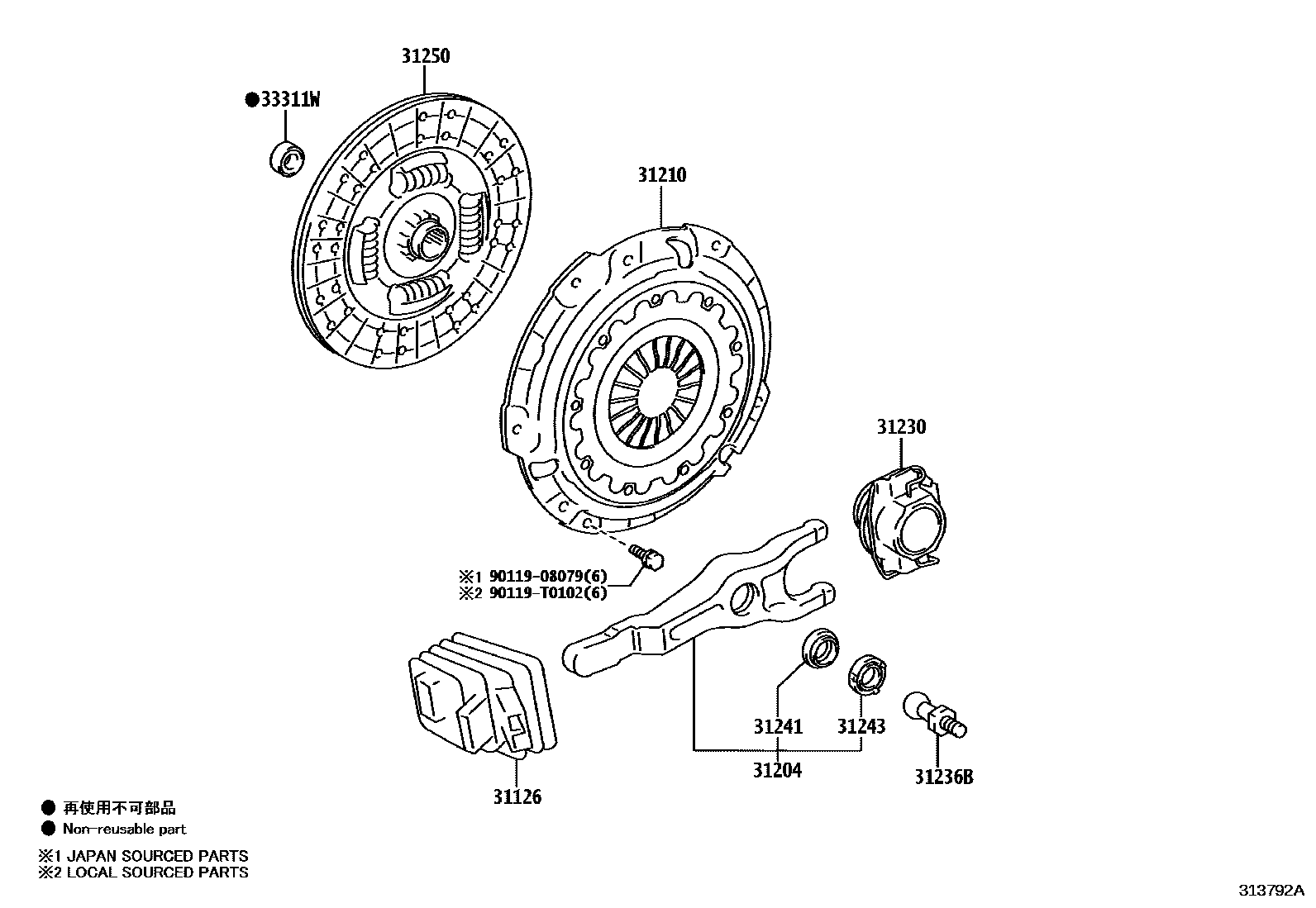

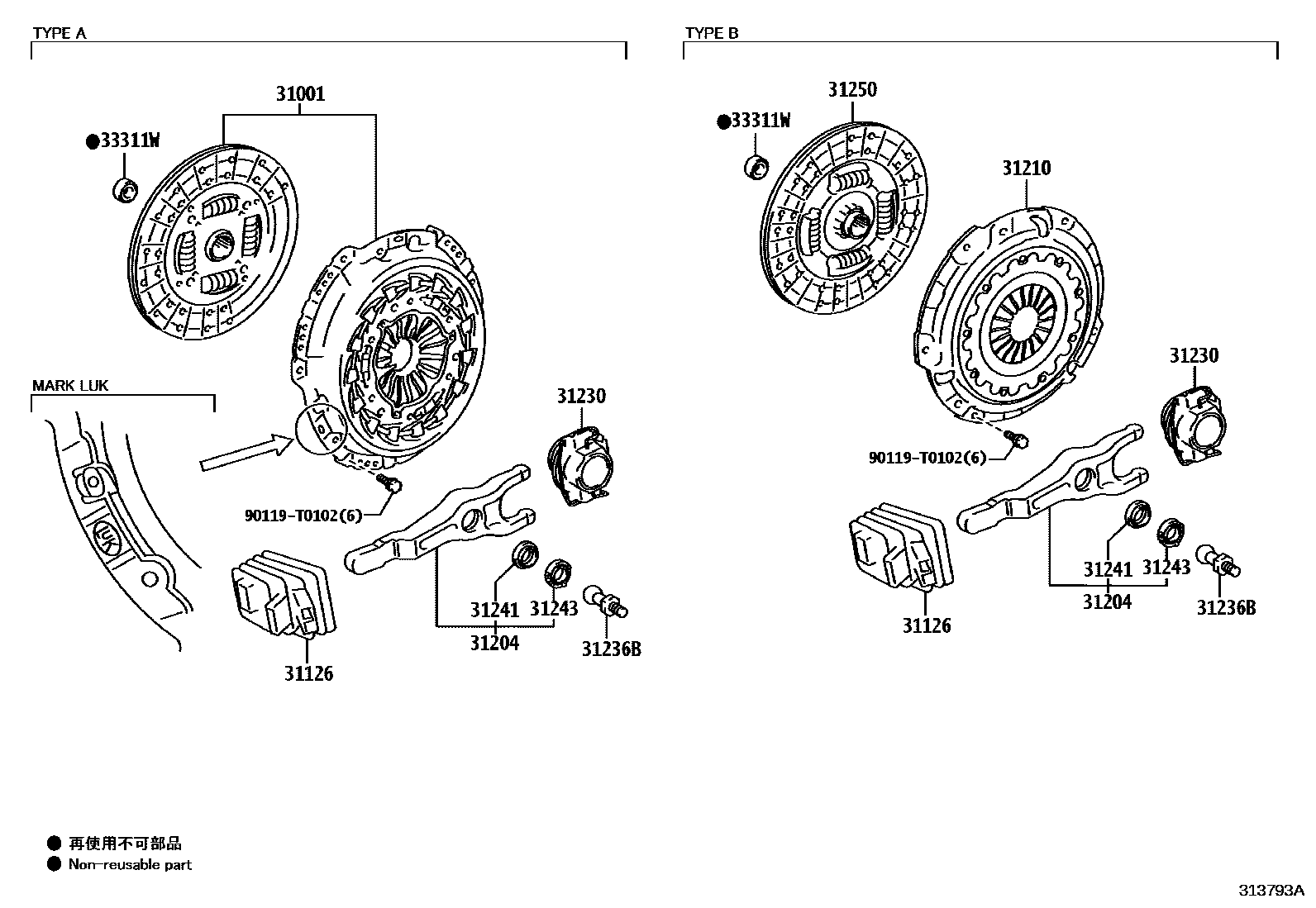

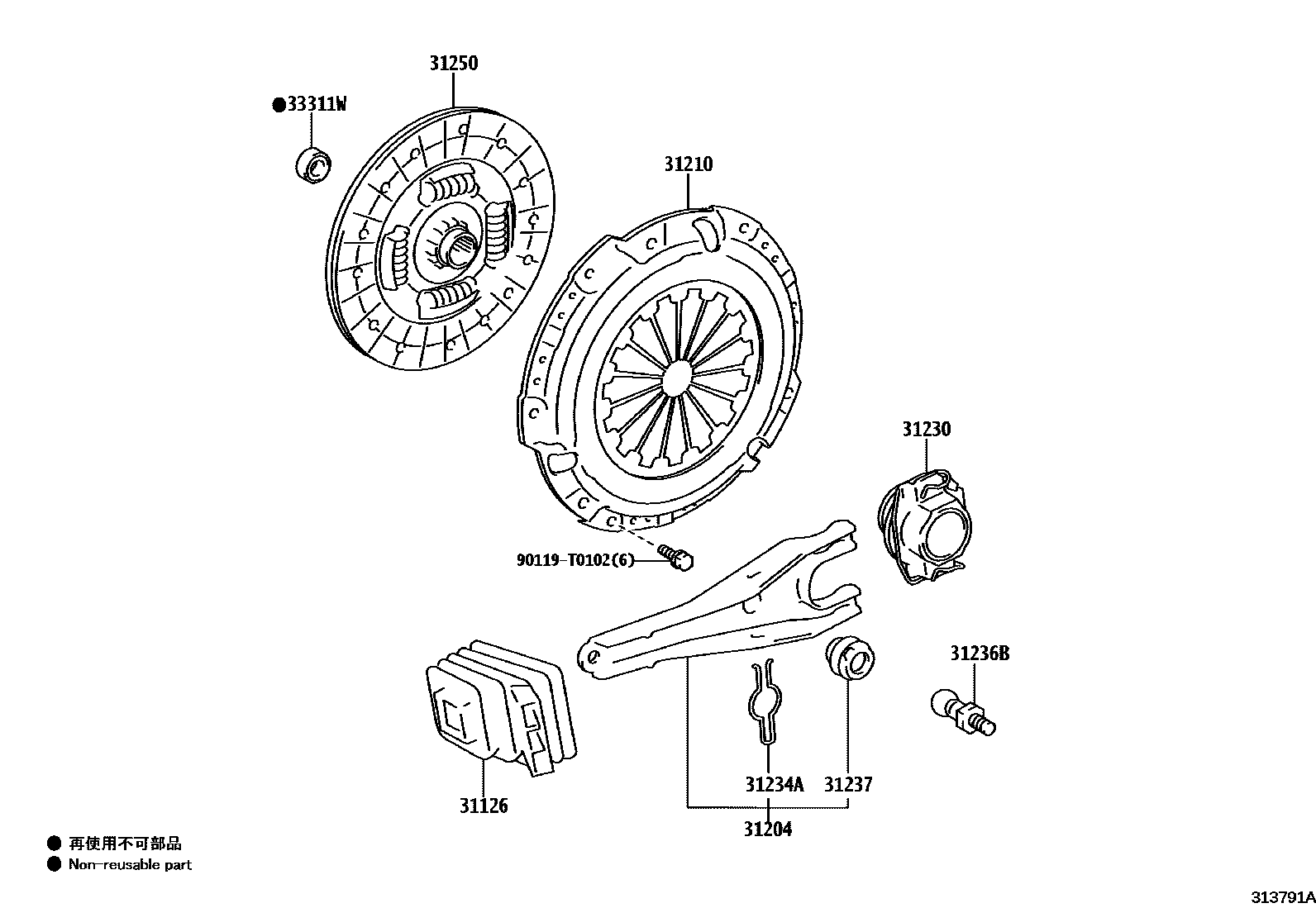

Toyota HILUX EPC diagram 3101, 离合器和分离叉, with 6 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31001 | Clutch cover and clutch disc assembly | 31001-0K010 · 31001-0K020 |
| 31126 | Clutch release fork dust boot | 31126-0K080 · 31126-0K090 · 31126-0K100 · 31126-0K110 |
| 31204 | Clutch release fork assembly | 31204-0K110 · 31204-0K120 · 31204-0K190 |
| 31210 | Clutch cover assembly | 31210-0K260 · 31210-0K281 · 31210-0K300 · 31210-0K310 · 31210-0K420 · 31210-0K430 |
| 31230 | Clutch release bearing assembly | 31230-0K040 · 31230-0K050 · 31230-71052 · 31230-71061 · 31230-71080 |
| 31234A | Release fork bracket spring | 31234-71020 |
| 31236B | Split fork bracket | 31236-0K010 · 31236-0K020 · 31236-0K030 · 31236-0K060 |
| 31237 | Clutch release fork bracket dust cover | 31237-0K020 |
| 31241 | JOINT D'ETANCHEITE, POUSSIERE FOURCHETTE DEBRAYAGE | 31241-71010 |
| 31243 | COLLIER, FOURCHETTE DEBRAYAGE | 31243-0K010 |
| 31250 | Clutch disc assembly | 31250-0K261 · 31250-0K262 · 31250-0K281 · 31250-0K301 · 31250-0K311 · 31250-0K430 · 31250-0K440 |
| 33311W | Bearings (for input shaft) | 90363-12024 · 90363-T0006 · 90363-T0019 |
