Toyota HILUX 暖风和空调系统 - 水管 — Figure 8716

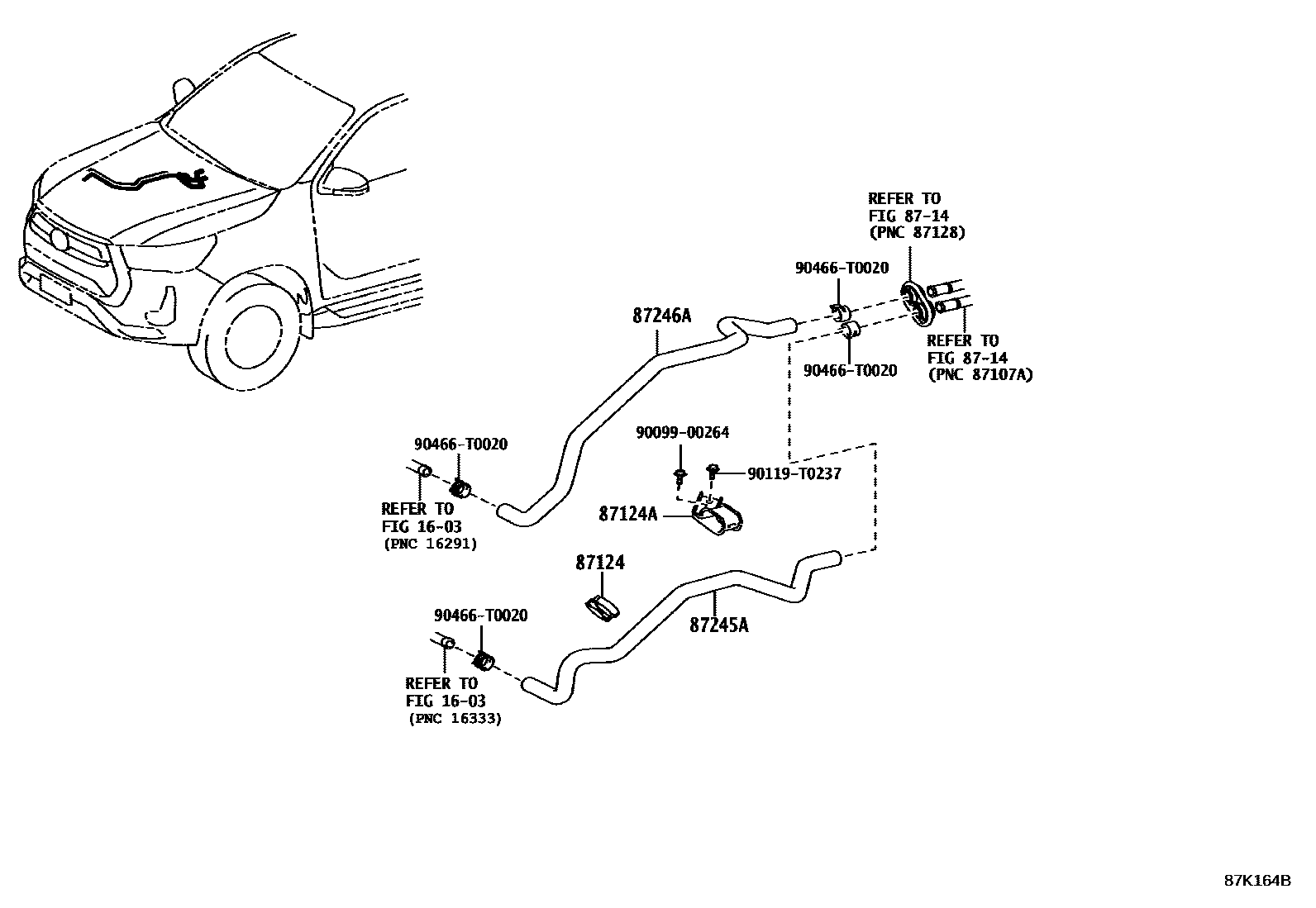

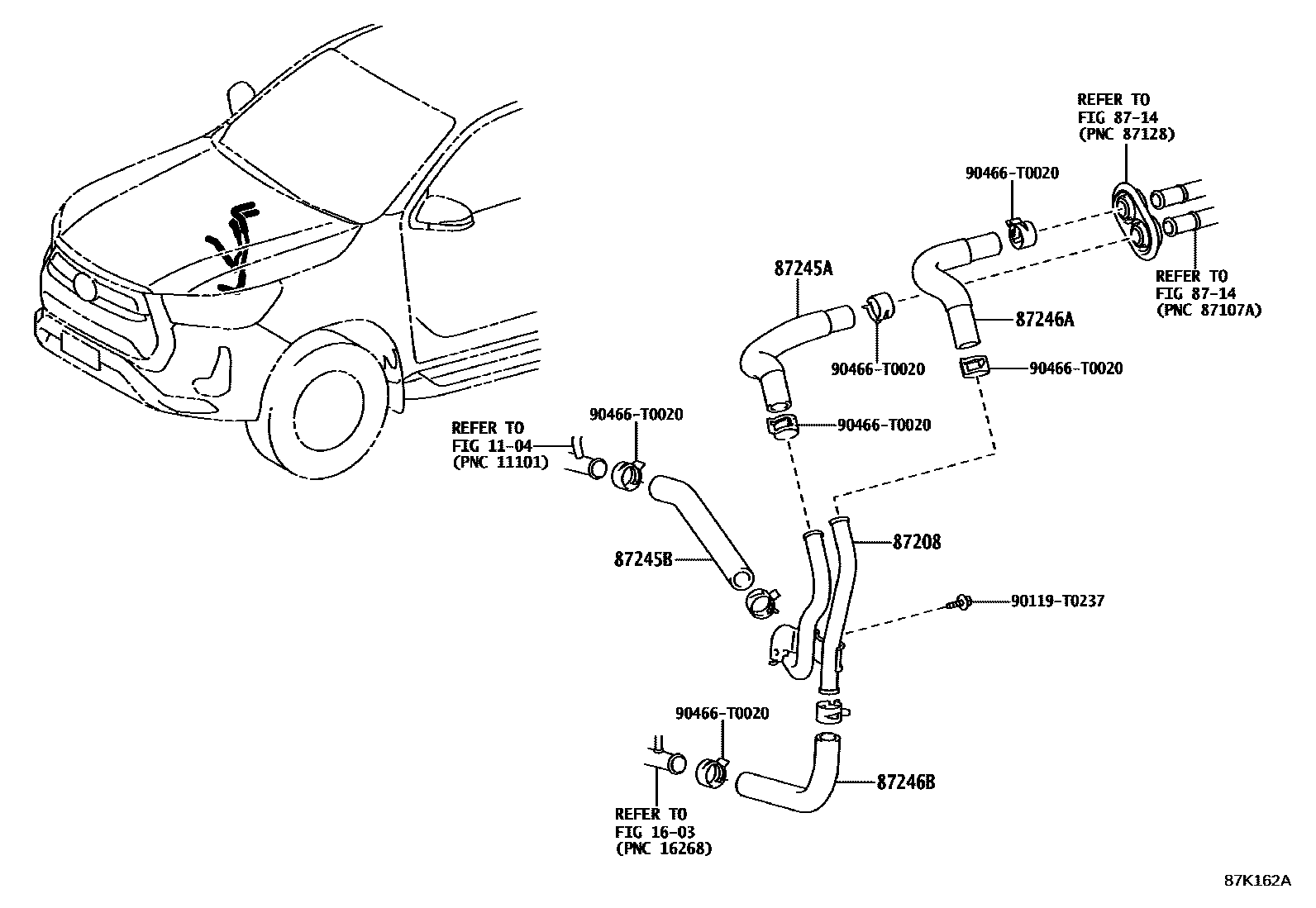

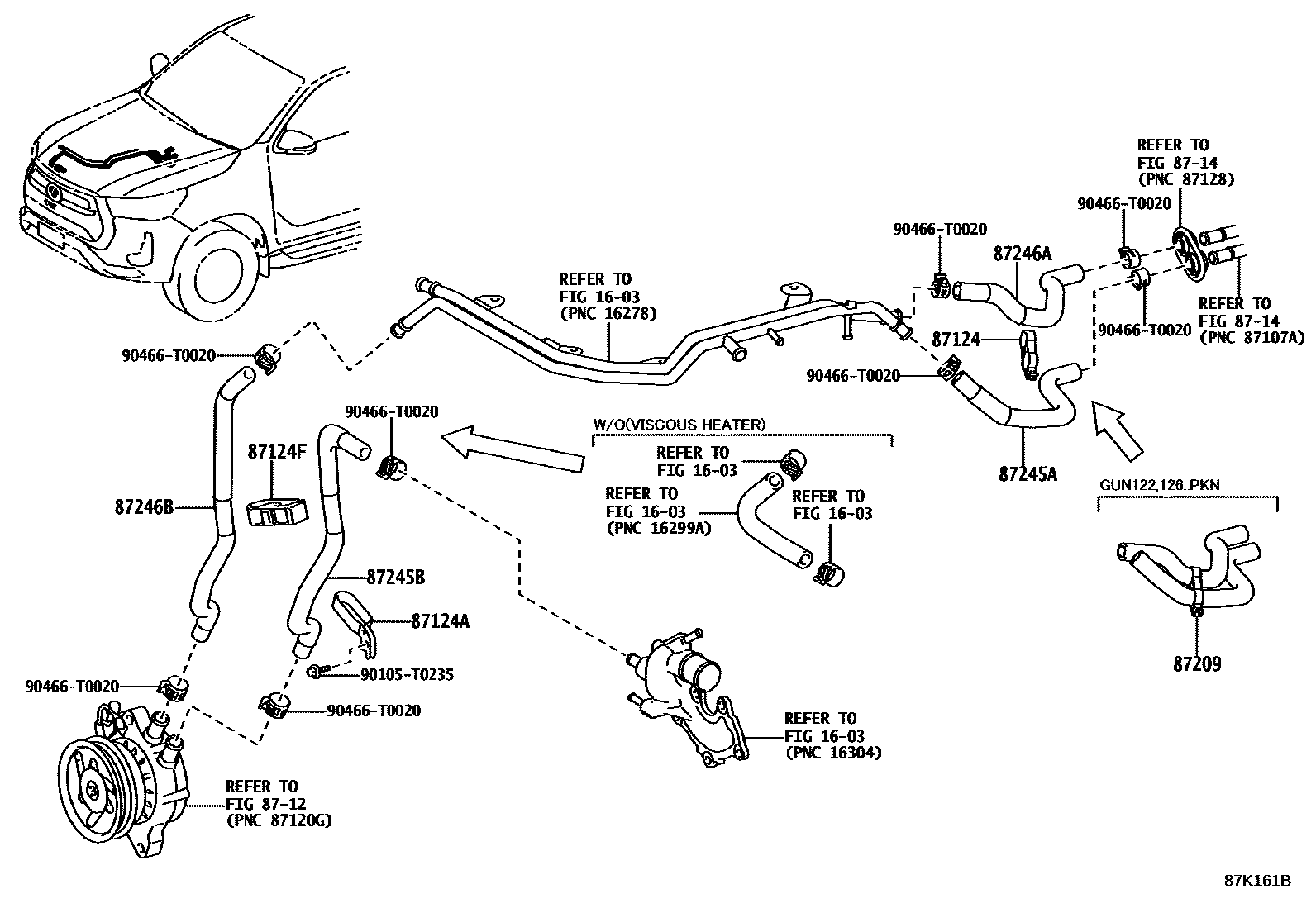

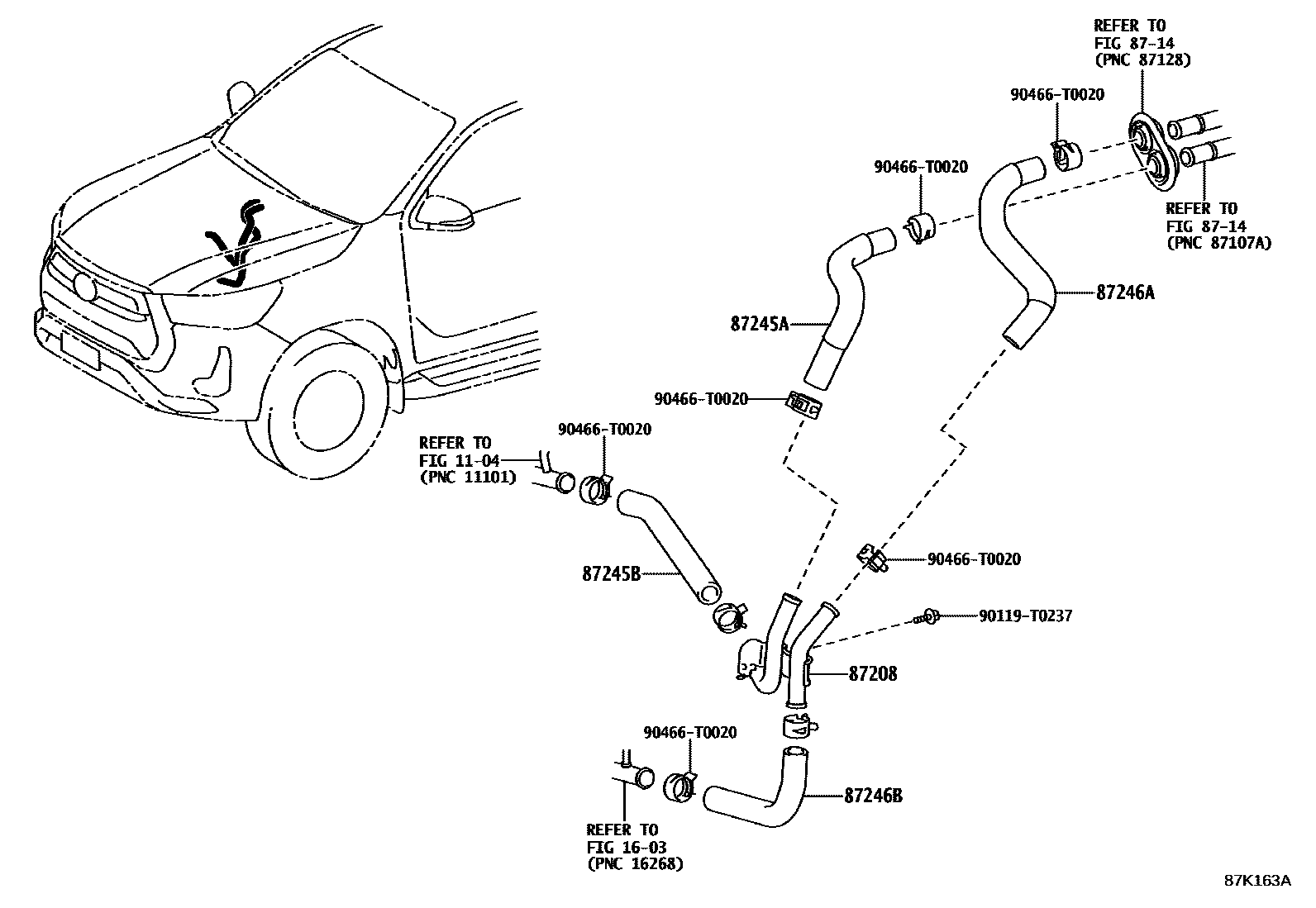

Toyota HILUX EPC diagram 8716, 暖风和空调系统 - 水管, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87124 | heater clip | 87124-0K150 · 87124-42030 · 88718-6B070 |
| 87124A | heater clip | 87124-0K060 · 87124-0K200 |
| 87124F | No. 1 heater hose clamp | 87124-60110 |
| 87208 | Heater water pipe sub-assembly | 87208-0K240 · 87208-0K270 · 87208-0K280 · 87208-0K300 |
| 87209 | Water hose sub-assembly | 87209-0K632 |
| 87245A | Heater water inlet hose A | 87245-0KB20 · 87245-0KB40 · 87245-0KC20 · 87245-0KD30 · 87245-0KE02 · 87245-0KK30 · 87245-71010 |
| 87245B | Heater water inlet hose B | 87245-0KE80 · 87245-0KF30 · 87245-0KF70 · 87245-0KG10 |
| 87246A | Heater outlet hose A | 87245-0K850 · 87245-0KB30 · 87245-0KC30 · 87245-0KD20 · 87245-0KE11 · 87245-0KK40 · 87245-71020 |
| 87246B | Heater outlet hose B | 87245-0KE90 · 87245-0KF20 · 87245-0KF60 · 87245-0KG00 |
