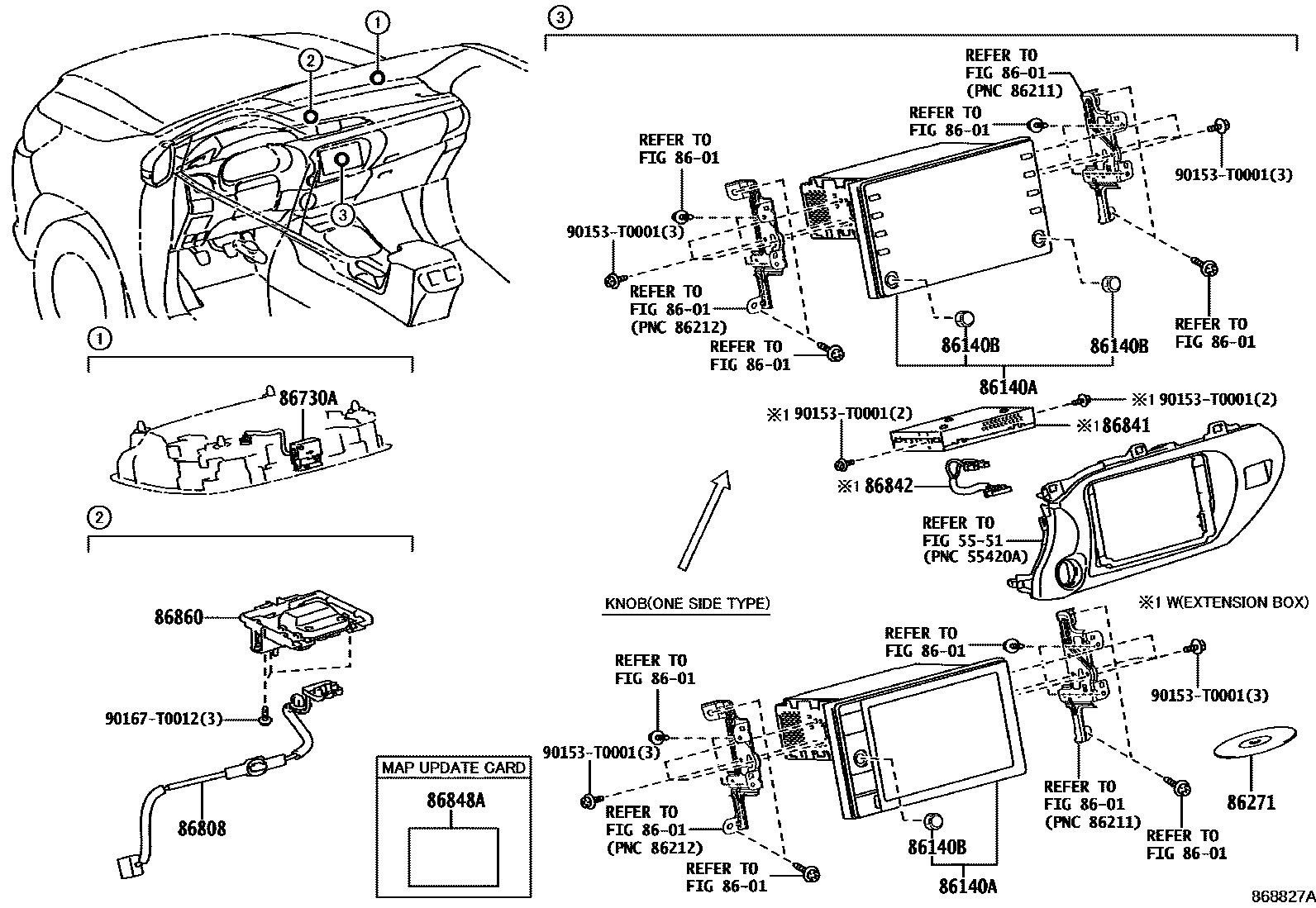

Toyota HILUX 导航和前监视器显示屏 — Figure 8603
Toyota HILUX EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86140-0KN50 · 86140-0KN70 · 86140-0KN80 · 86140-0KN81 · 86140-0KP00 · 86140-0KP20 · 86140-0KP30 · 86140-0KQ00 · 86140-0KR00 · 86140-0KR40 · 86140-0KU50 · 86140-0KU80 · 86140-0KV10 · 86140-0KY30 · 86140-0KY31 · 86140-0KY60 · 86140-0KY80 · 86140-0KZ90 · 86140-F0280 |
| 86140B | Radio and display receiver switch button | 90010-22129 · 90011-25321 · 90011-25323 · 90011-25325 |
| 86271 | CD | 86807-11043 · 86807-11044 · 86807-11065 · 86807-11066 |
| 86730A | Telephone amplifier assembly | 86730-20060 · 86730-60050 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86808-0K051 · 86808-0K231 · 86808-0K280 |
| 86841 | Navigation ECU | 86840-0K192 · 86840-0K201 |
| 86842 | Navigation harness No. 1 | 86842-33150 |
| 86848A | CARTE, MISE A JOUR CARTE NUMERO SERIE | 86848-33040 · 86848-33080 |
| 86860 | Navigation antenna assembly | 86860-0K040 · 86880-0K080 |
