Toyota HILUX seat belt — Figure 7152

Toyota HILUX EPC diagram 7152, seat belt, with 5 images and 2 PNC and OE references.

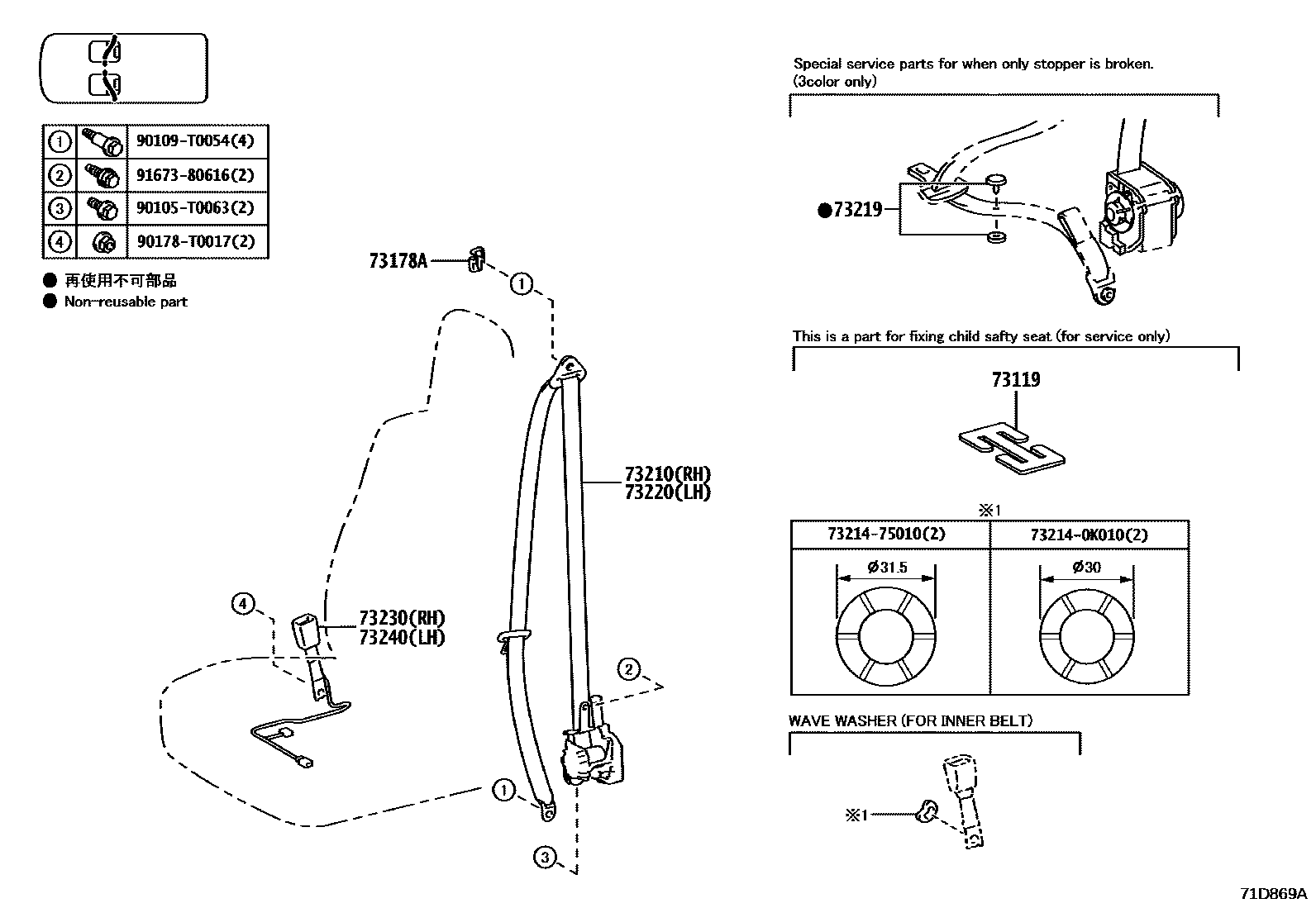

Toyota HILUX seat belt EPC diagram — 71D869A — seat belt — 71D869A (202108 – 999999)

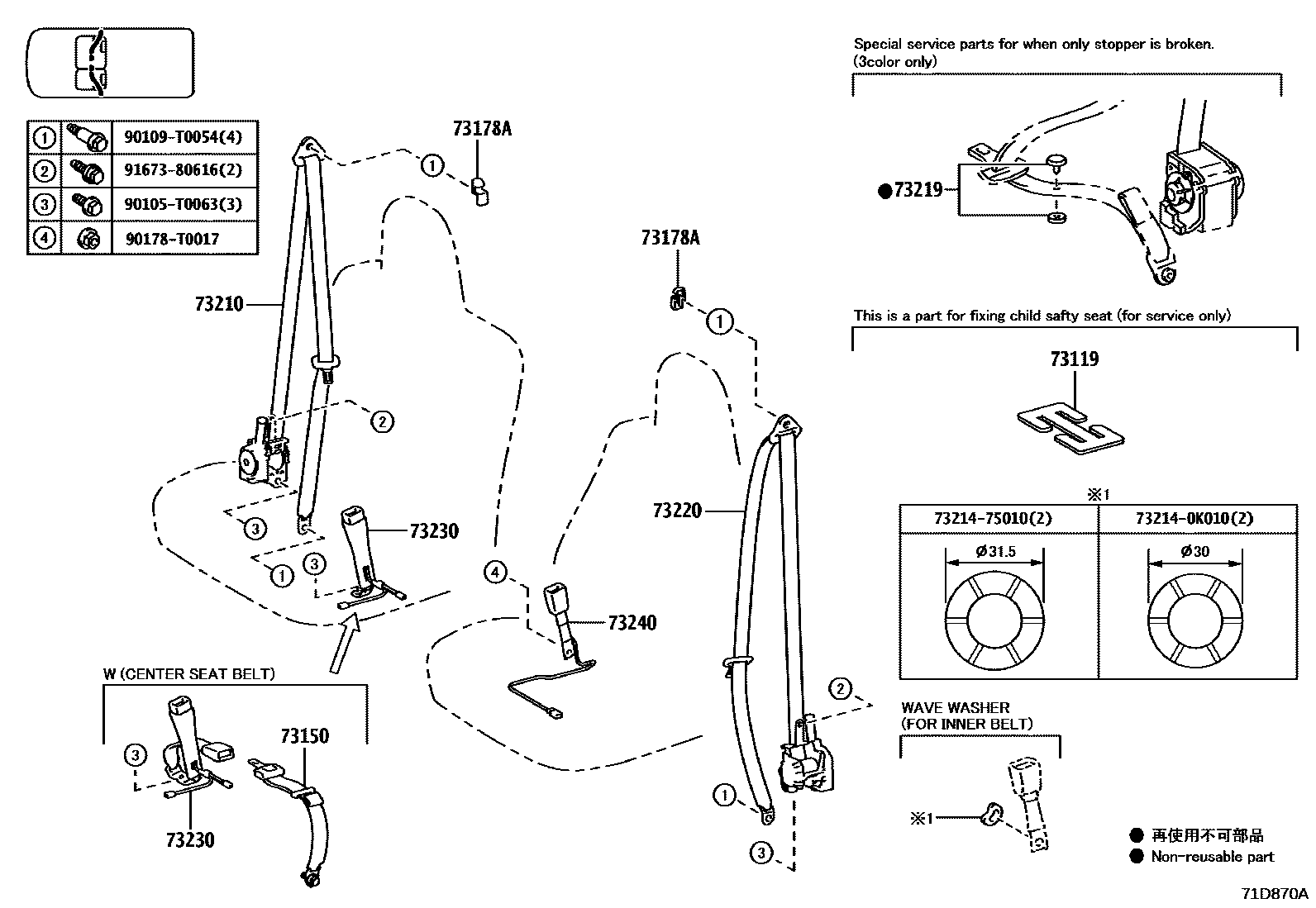

Toyota HILUX seat belt EPC diagram — 71D870A — seat belt — 71D870A (202108 – 999999)

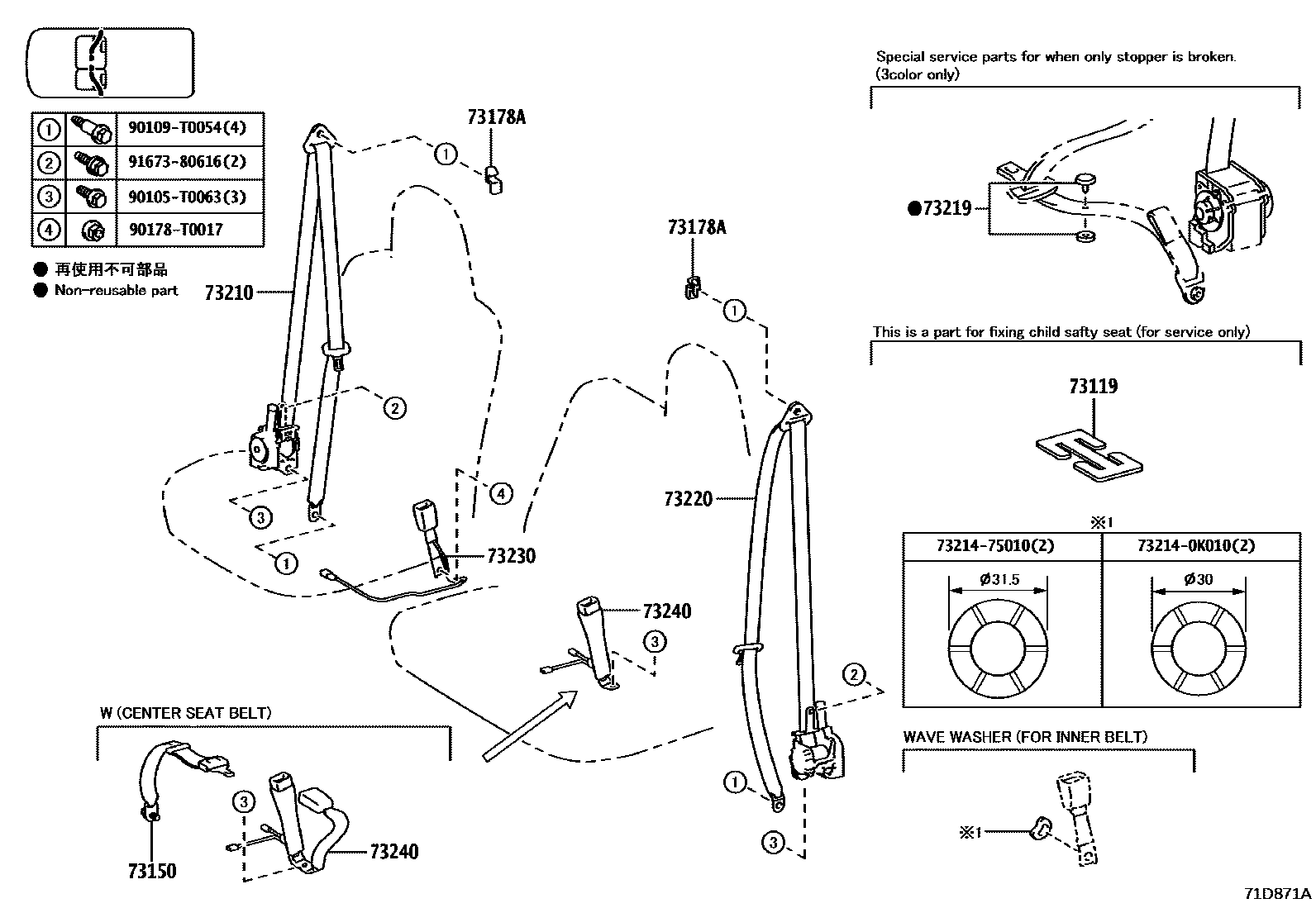

Toyota HILUX seat belt EPC diagram — 71D871A — seat belt — 71D871A (202108 – 999999)

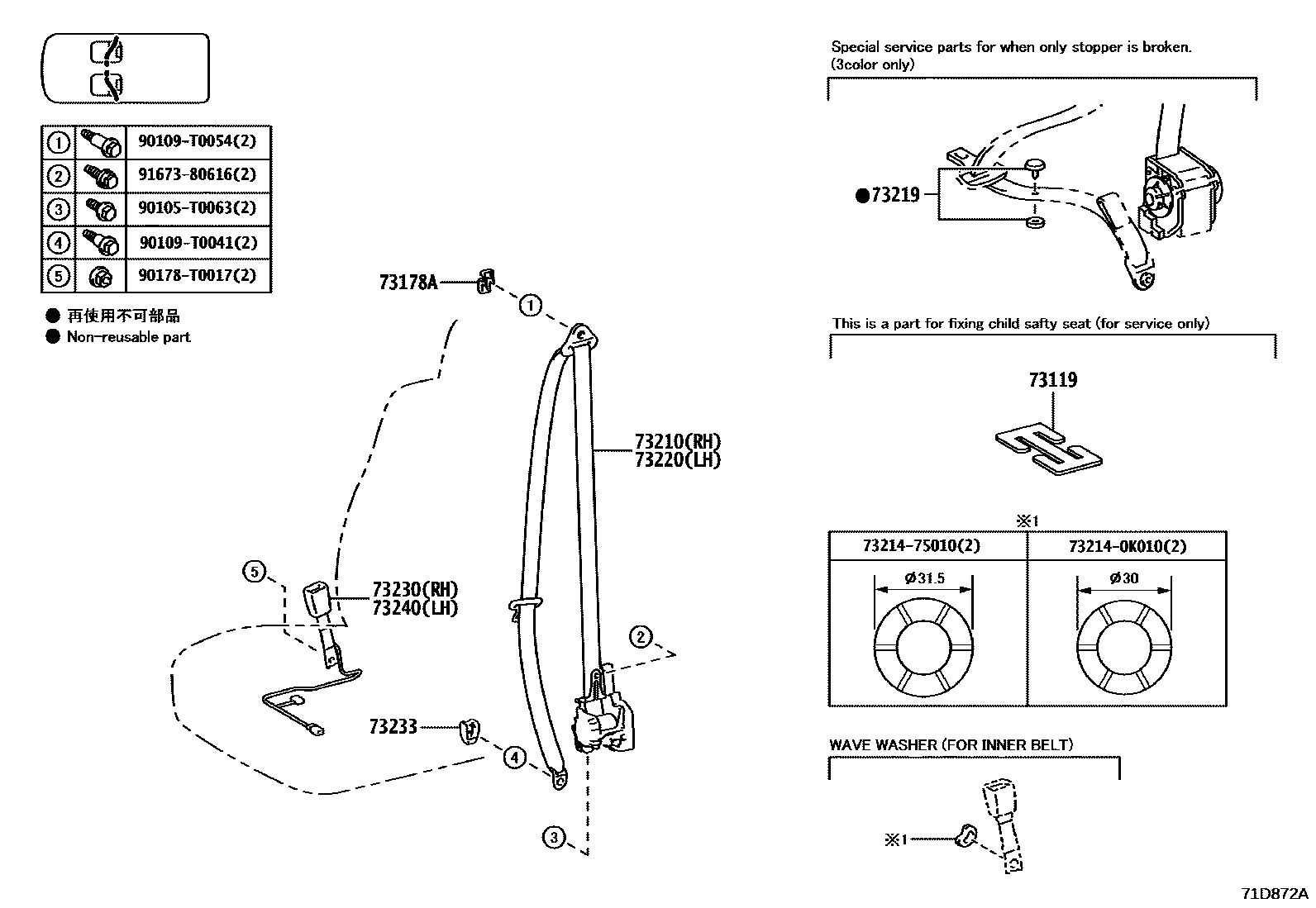

Toyota HILUX seat belt EPC diagram — 71D872A — seat belt — 71D872A (202108 – 999999)

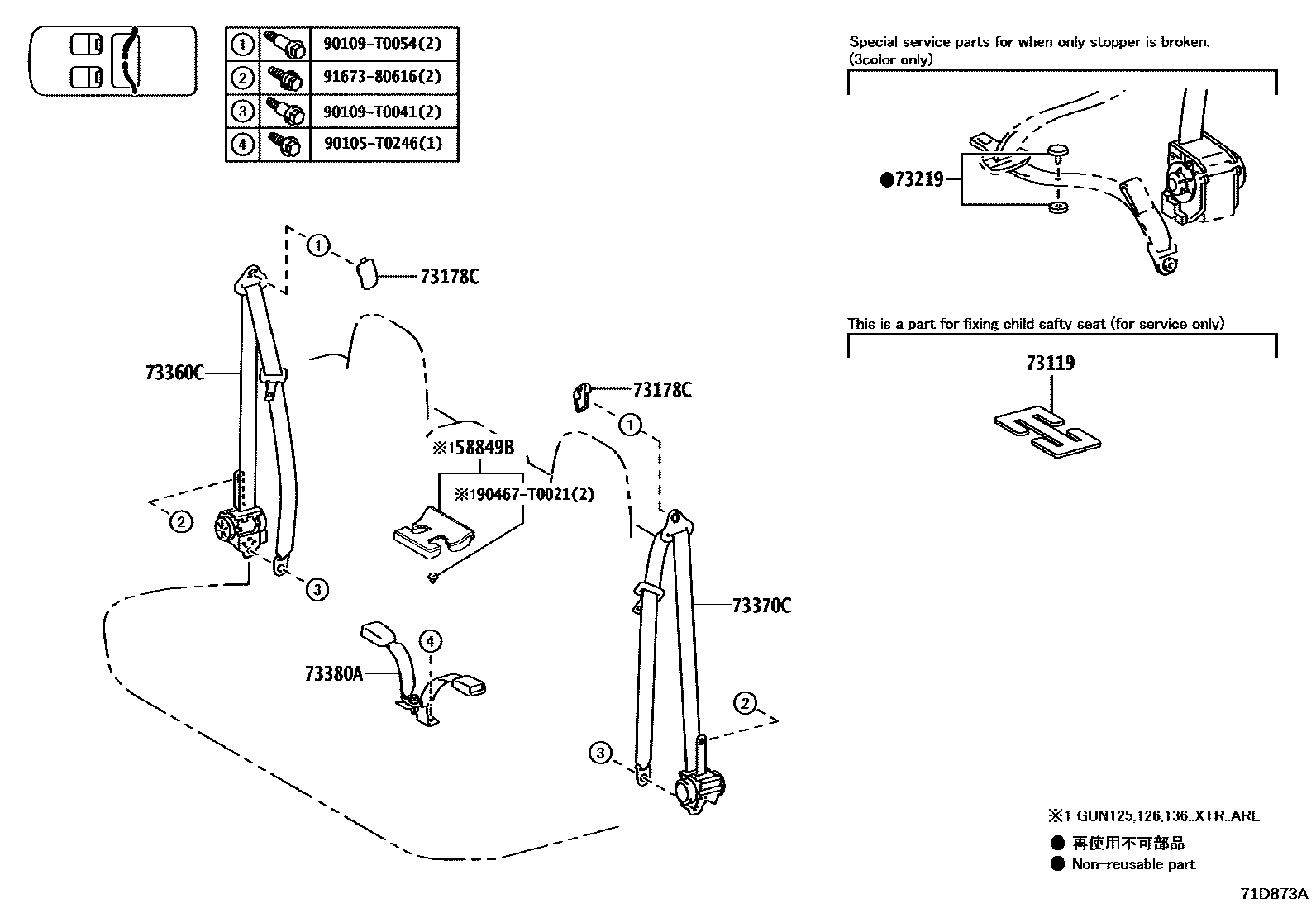

Toyota HILUX seat belt EPC diagram — 71D873A — seat belt — 71D873A (202108 – 999999)

PNC and OE references

PNC	Part name	OE numbers
73119	seat belt clip	73119-22010
73219	Tongue plate stop	73219-33010 · 73219-33020 · 73219-33030
