Toyota HILUX 后车身防护架和背门 — Figure 6553

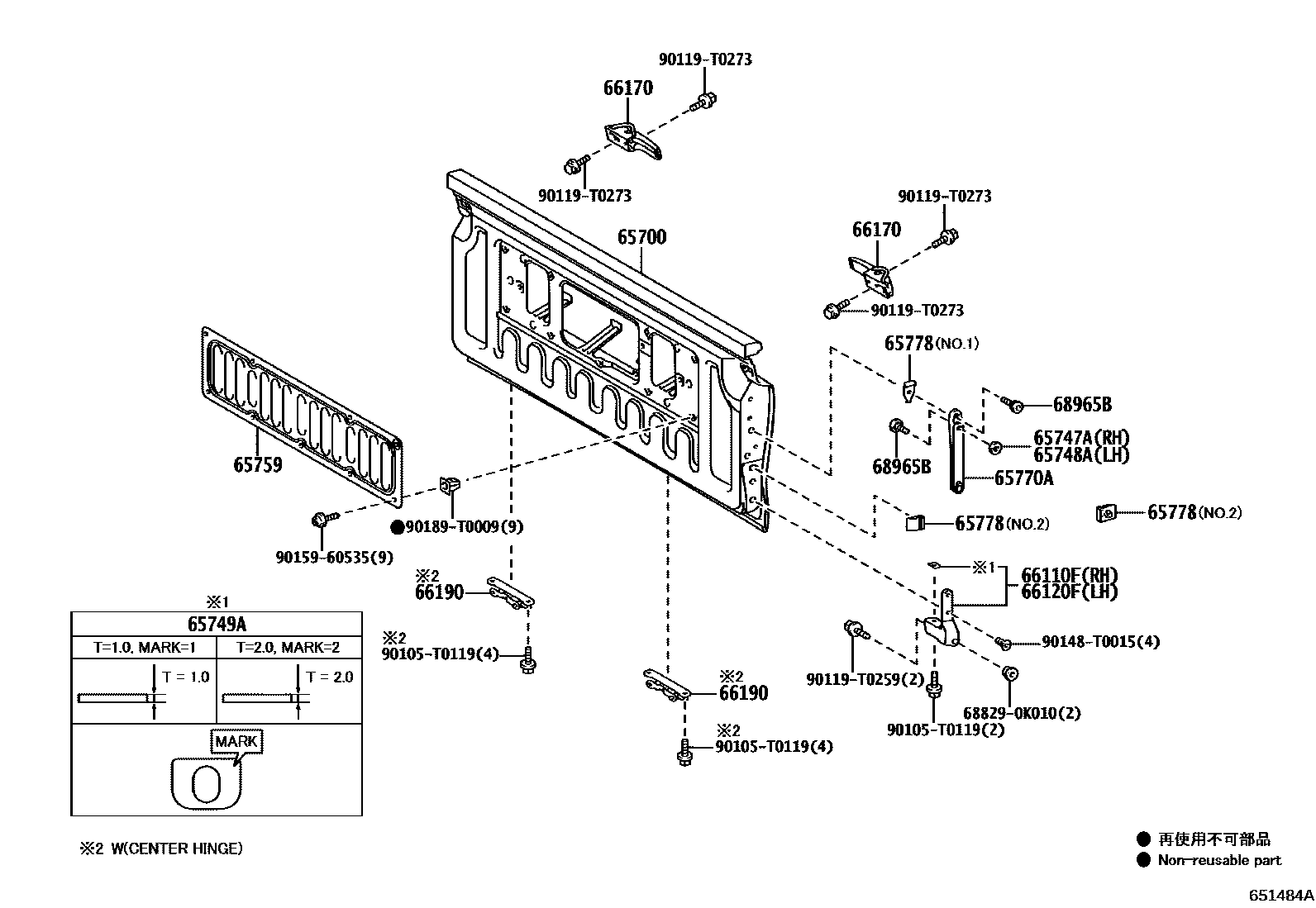

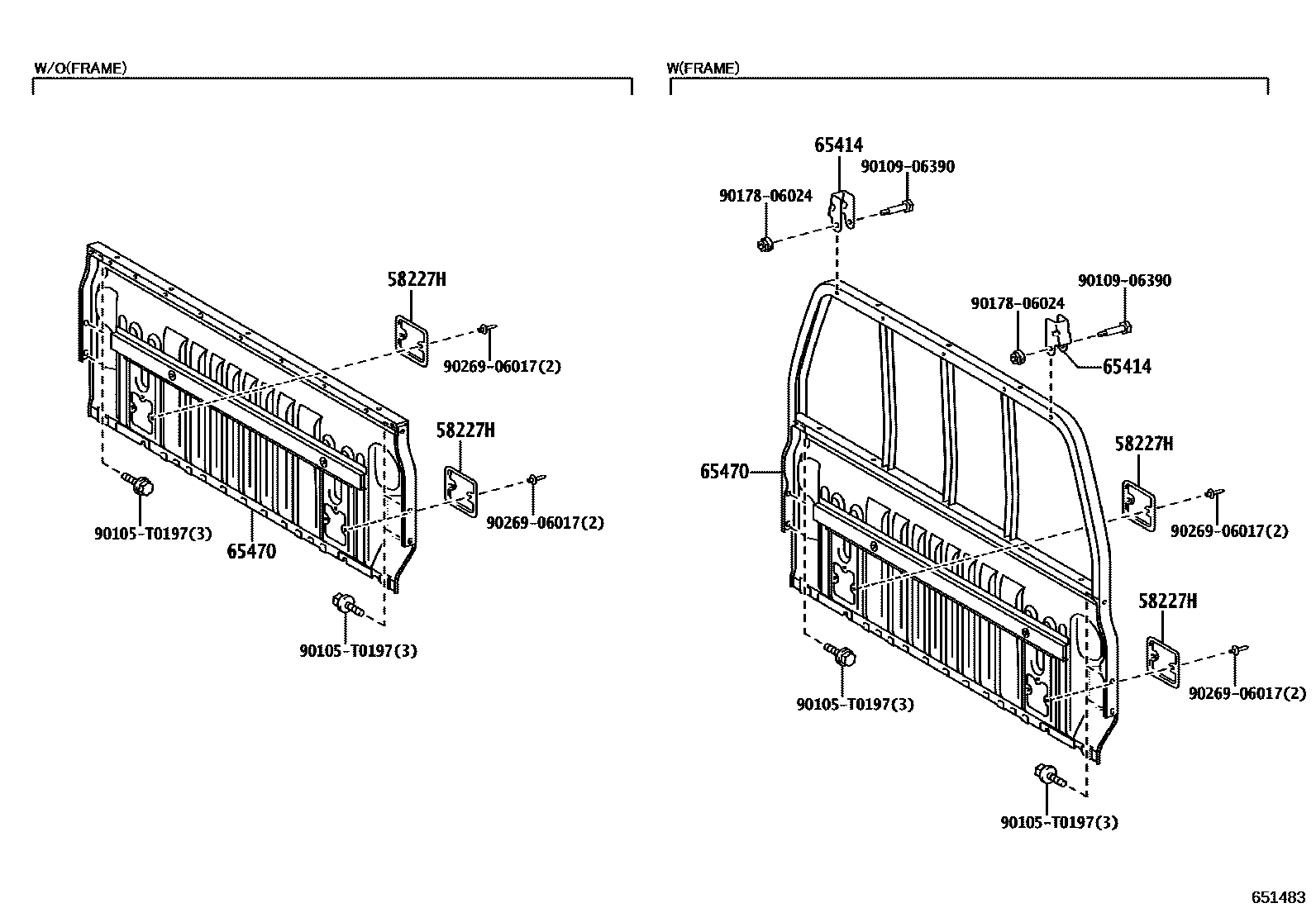

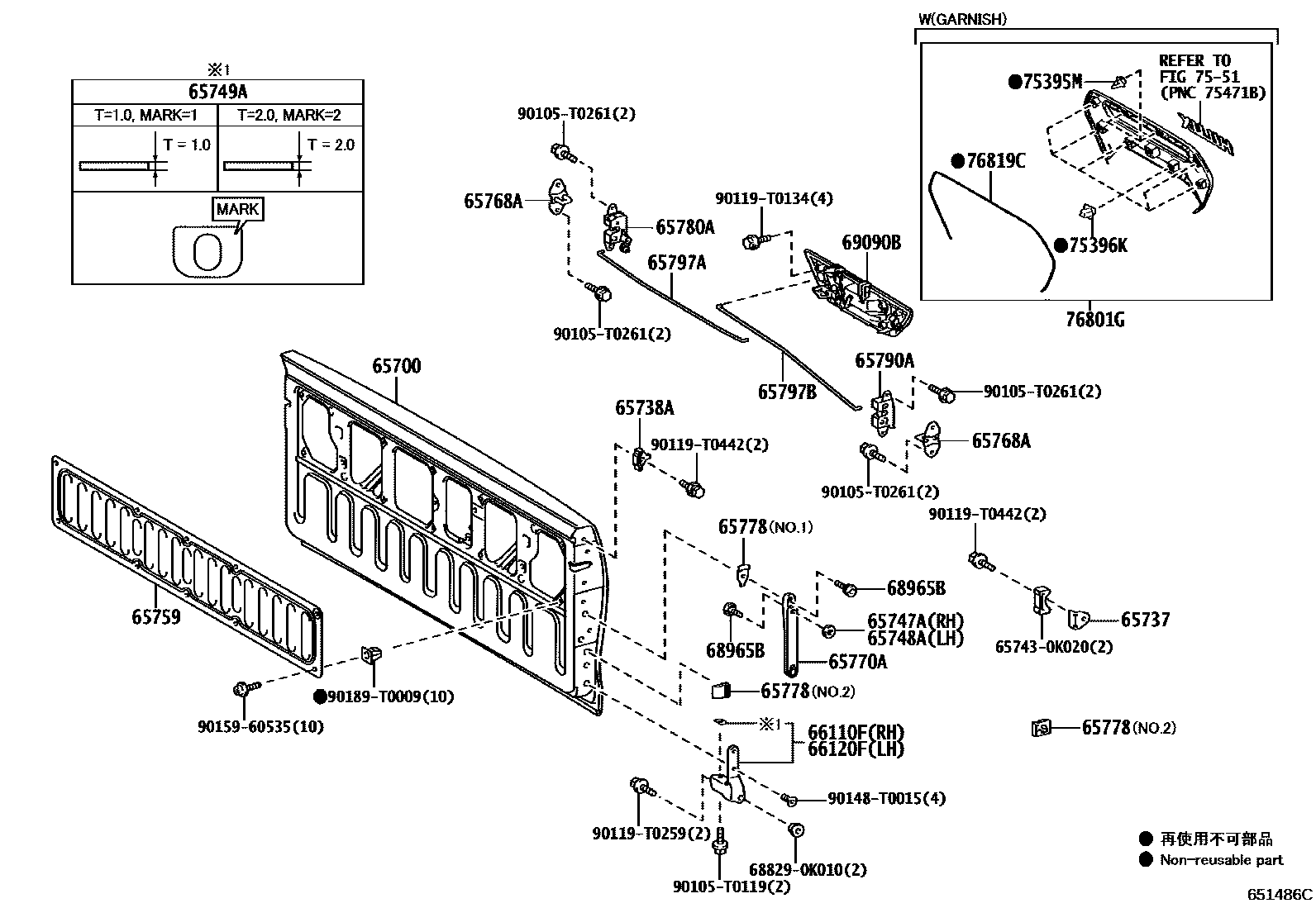

Toyota HILUX EPC diagram 6553, 后车身防护架和背门, with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58227H | Top cover No. 1 | 58227-0K031 |
| 65414 | guardrail frame stop | 65414-KK010 |
| 65470 | Top plate assembly | 65470-KK010 · 65470-KK020 · 65470-KK030 · 65470-KK050 |
| 65700 | Rear body back door assembly | 65700-KK010 · 65700-KK020 · 65700-KK100 · 65700-KK110 · 65700-KK120 · 65700-KK130 · 65700-KK140 · 65700-KK150 · 65700-YP010 |
| 65737 | Back door stopper | 65737-0K020 |
| 65738A | Back door lock No. 1 hinge stop | 65738-KK010 |
| 65747A | Back door right seal plate | 65747-0K020 |
| 65748A | Rear door left seal plate | 65747-0K020 |
| 65749A | REMBOURRAGE, CHARNIERE DE HAYON | 65749-0K020 · 65749-0K030 · 65749-0K060 · 65749-0K080 |
| 65759 | Rear door access hole cover | 65759-KK010 · 65759-KK020 |
| 65768A | Back door latch | 65768-0K010 |
| 65770A | Back door support rod assembly | 65770-0K030 |
| 65778 | Back door support rod stop | 65778-0K020 · 65778-0K030 |
| 65780A | Back door right lock assembly | 65780-0K010 |
| 65790A | Back door left lock assembly | 65790-0K010 |
| 65797A | Rear door lock control linkage | 65797-0K070 |
| 65797B | Rear door lock control linkage | 65797-0K080 |
| 66110F | Back door right hinge assembly | 66110-0K020 · 66110-0K070 · 66110-0K090 |
| 66120F | Back door left hinge assembly | 66120-0K020 · 66120-0K070 · 66120-0K090 |
| 66170 | Rear body back door lock bolt assembly | 66170-KK011 |
| 66190 | Rear door center hinge assembly | 66190-0K030 |
| 68965B | Back door support rod shaft | 68965-0K020 |
| 69090B | Rear door handle assembly | 69090-0K070 · 69090-0K080 · 69090-0K090 · 69090-0K100 · 69090-0K110 · 69090-0K120 · 69090-0K350 |
| 75395M | CLIP, MOULURE EXTERIEURE, NO.1 | 75395-0K010 |
| 75396K | ATTACHE, MOULURE EXTERIEURE, NO.2 | 75396-35020 |
| 76801G | SOUS-ENS. GARNITURE, HAYON, EXT | 76801-YP030 · 76801-YP060 |
| 76819C | JOINT, GARNITURE EXT HAYON | 76819-YP010 · 76819-YP020 |
