Toyota HILUX Exhaust Pipe — Figure 1702

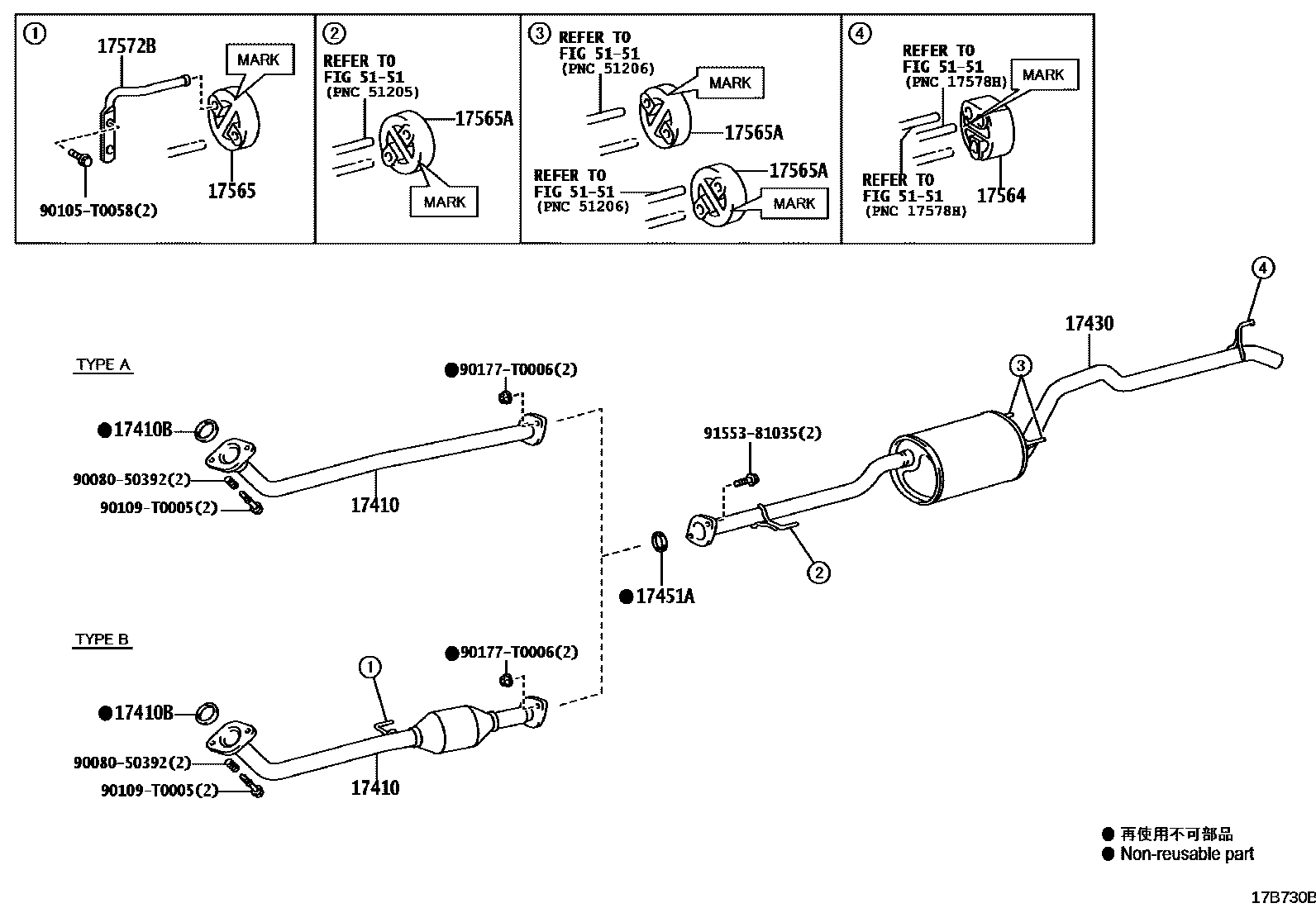

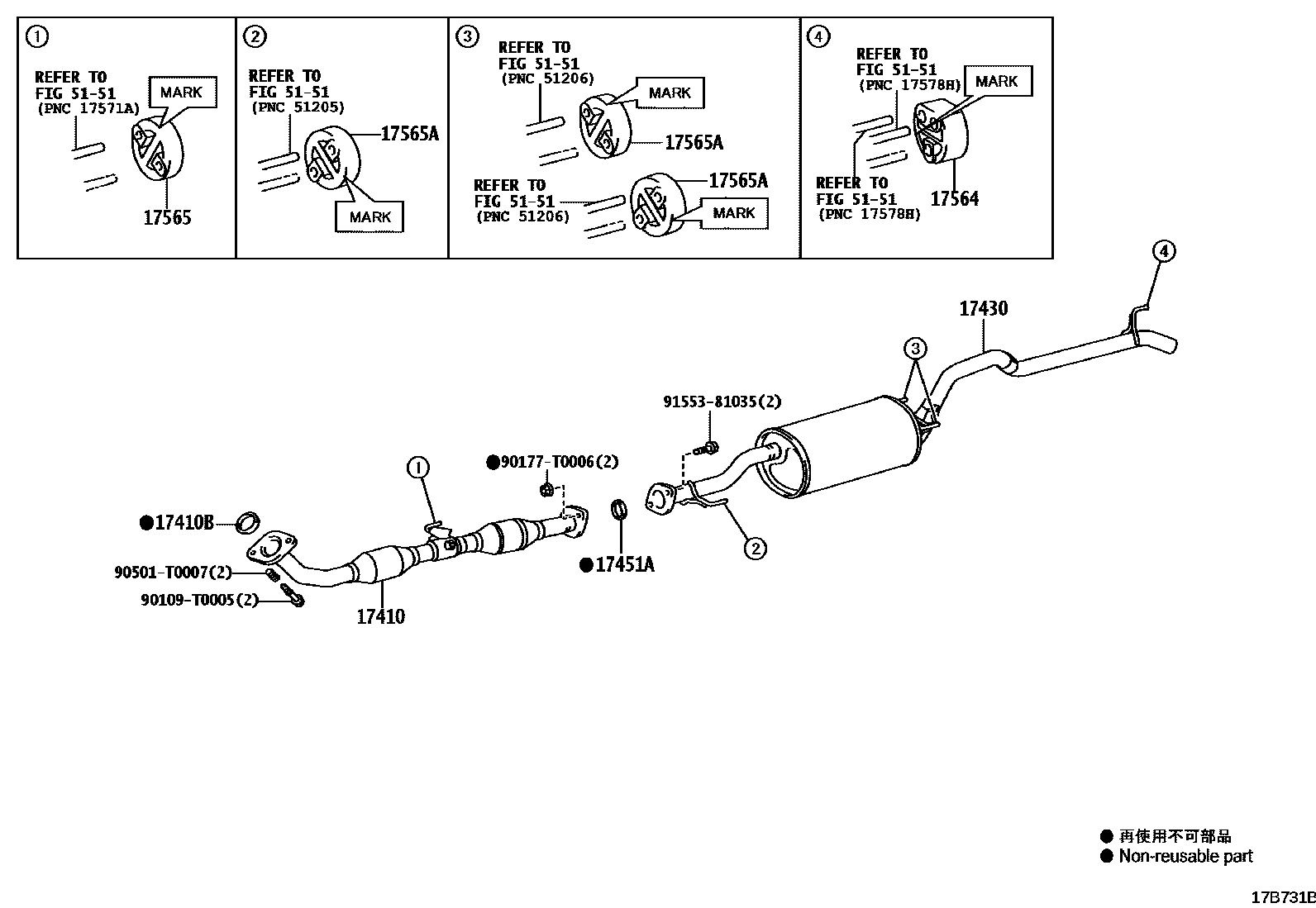

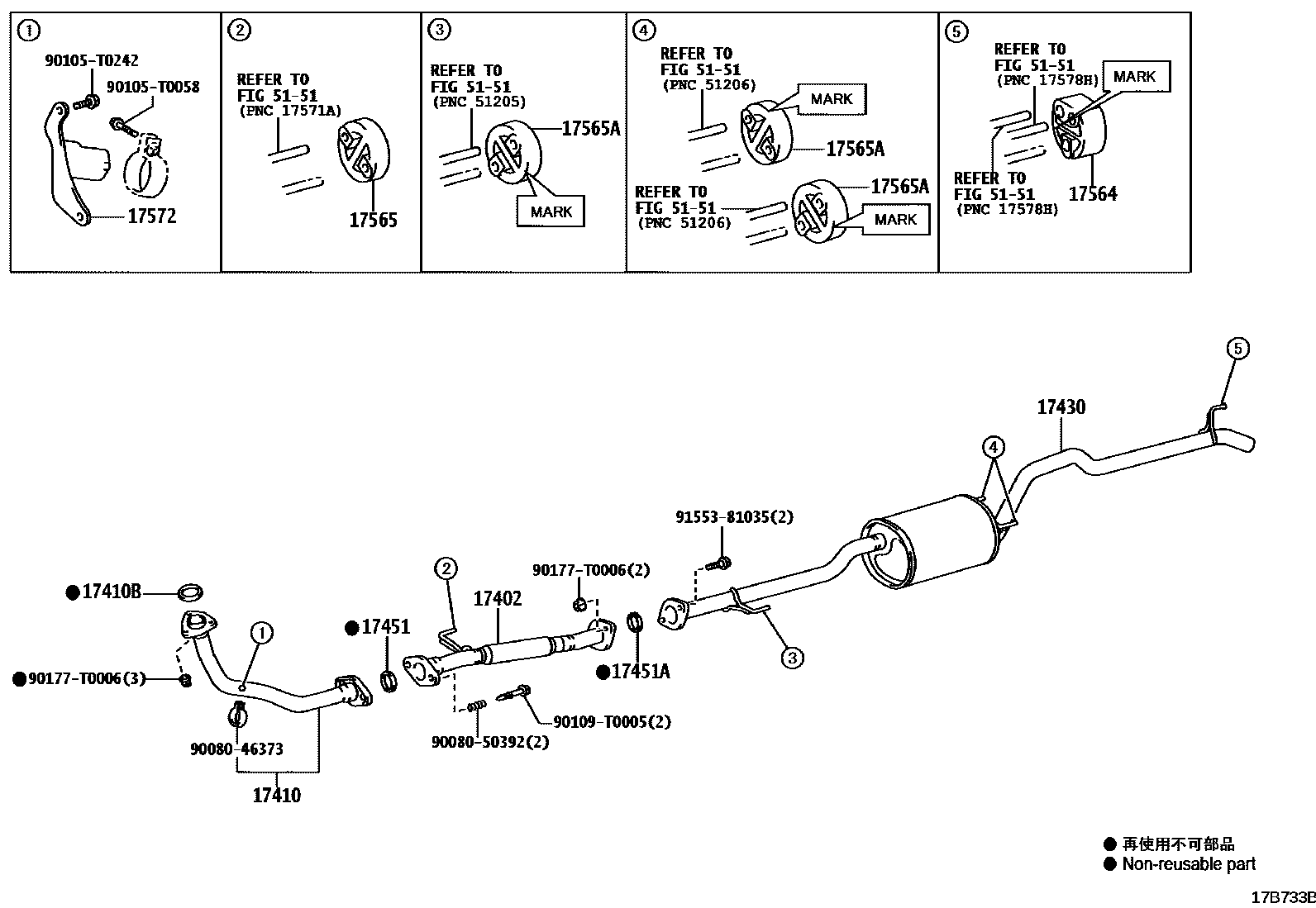

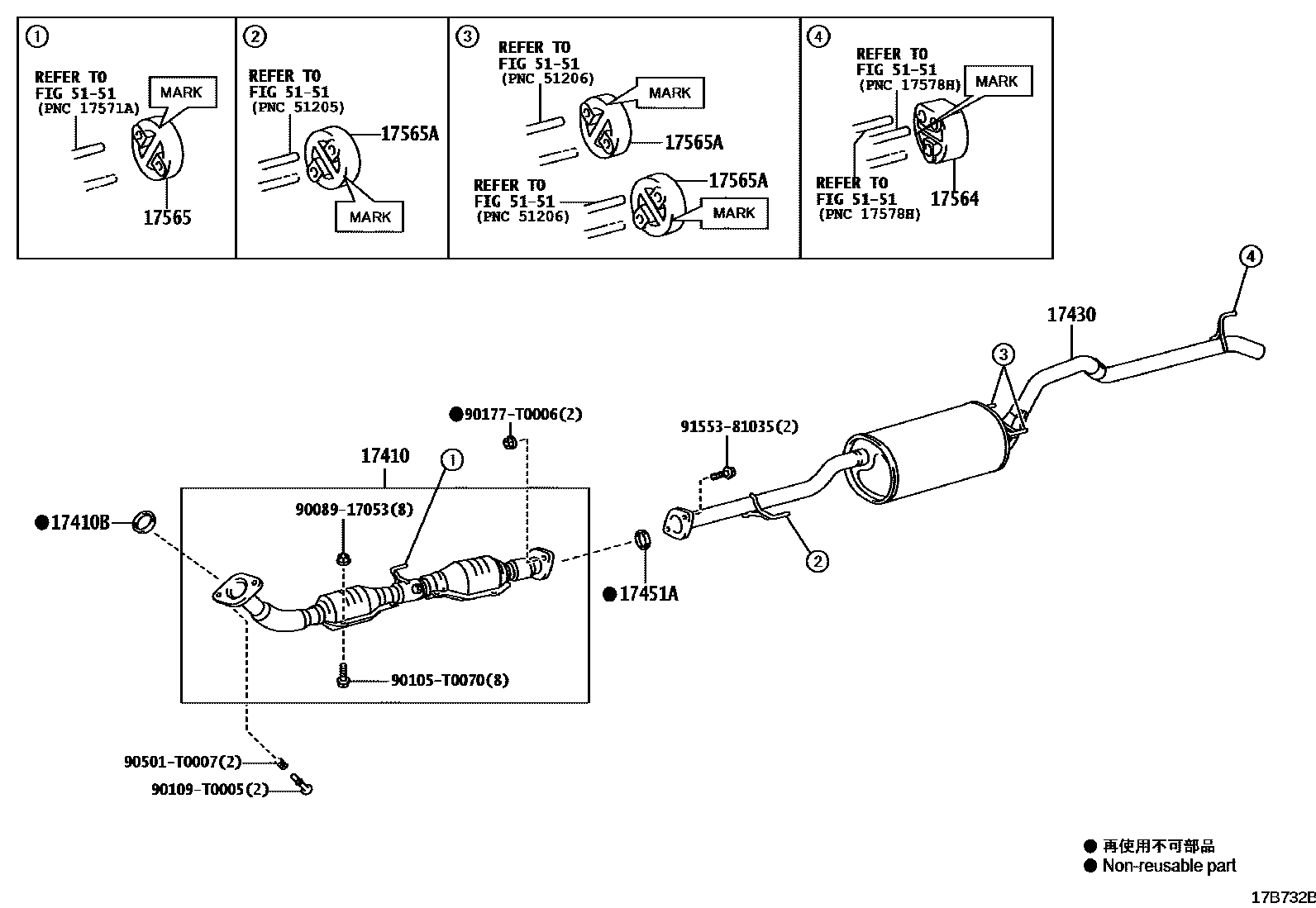

Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17402 | No. 2 front exhaust pipe sub-assembly | 17402-05020 |
| 17410 | Front exhaust pipe assembly | 17401-05110 · 17401-0C550 · 17401-0C590 · 17401-0C620 · 17401-0C650 · 17401-0C660 · 17401-0L180 · 17401-0L182 · 17401-0L190 · 17401-0L220 · 17401-0L260 · 17410-0C180 |
| 17410B | Exhaust pipe gasket | 17451-0L050 · 90917-T6001 |
| 17430 | Exhaust tailpipe assembly | 17430-05010 · 17430-0C130 · 17430-0C140 · 17430-0E070 · 17430-0L060 · 17430-0L070 · 17430-0L072 · 17430-0L120 |
| 17451 | Exhaust pipe gasket | 17451-0C010 |
| 17451A | No. 2 exhaust pipe gasket | 90917-T6002 |
| 17564 | No. 4 exhaust pipe lifting lug | 17565-0L100 · 17565-0L110 · 17565-0L120 · 17565-0L130 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0L070 · 17565-0L080 · 17565-0L090 · 17565-0P240 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0L070 · 17565-0L080 · 17565-0L090 · 17565-0P240 |
| 17572 | No. 1 exhaust pipe bracket | 17571-05050 |
| 17572B | No. 2 exhaust pipe bracket | 17572-0L030 |
