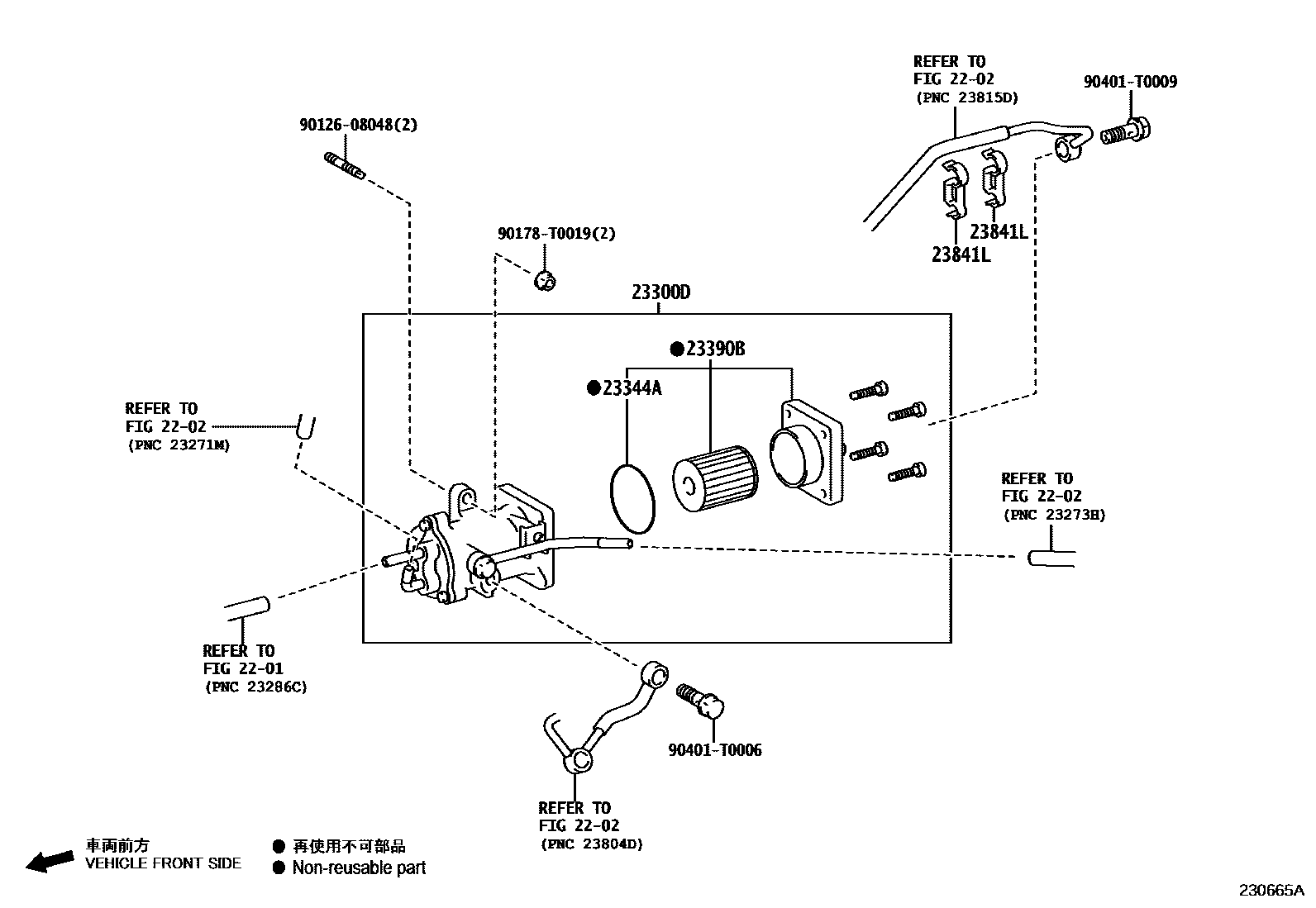

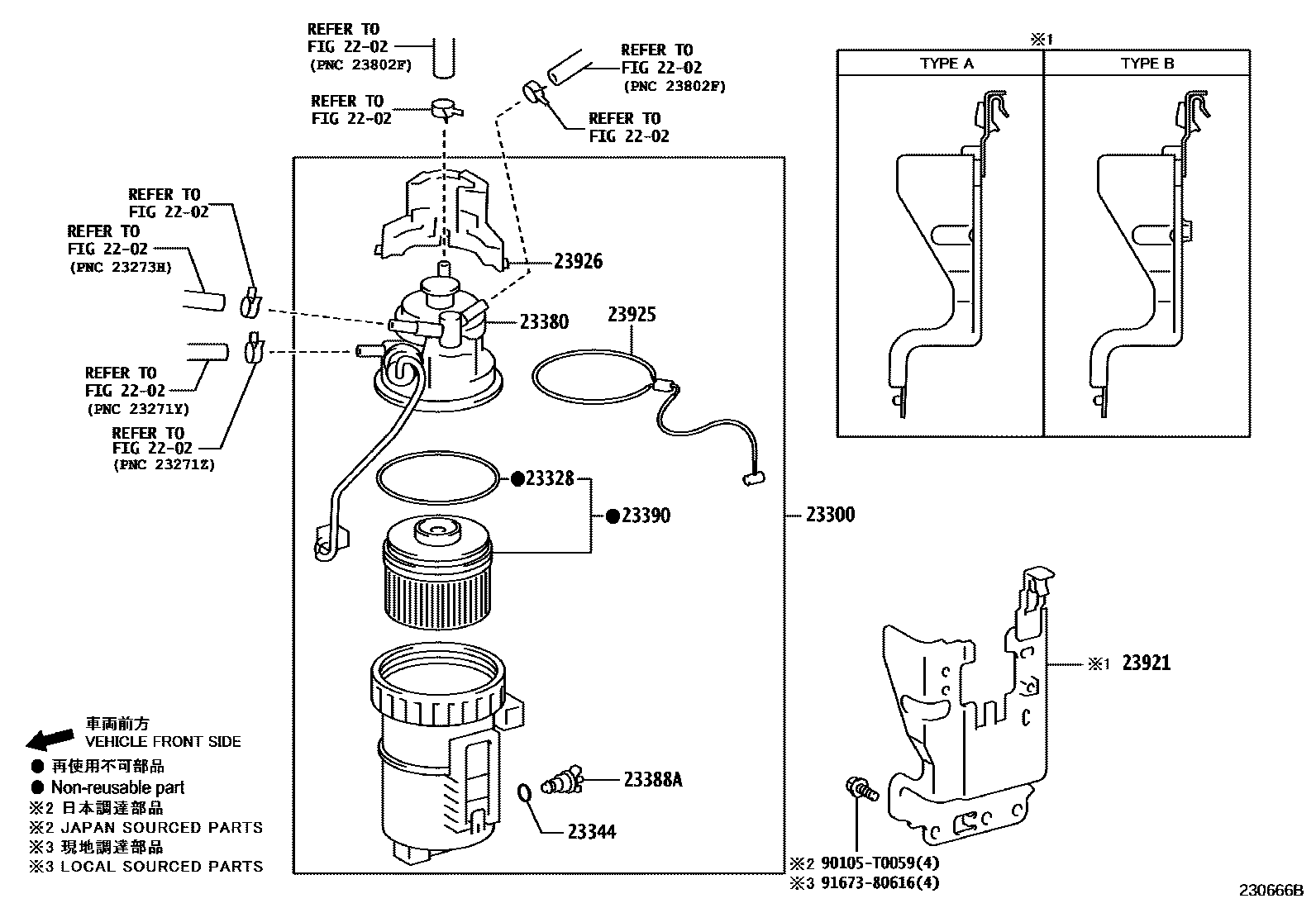

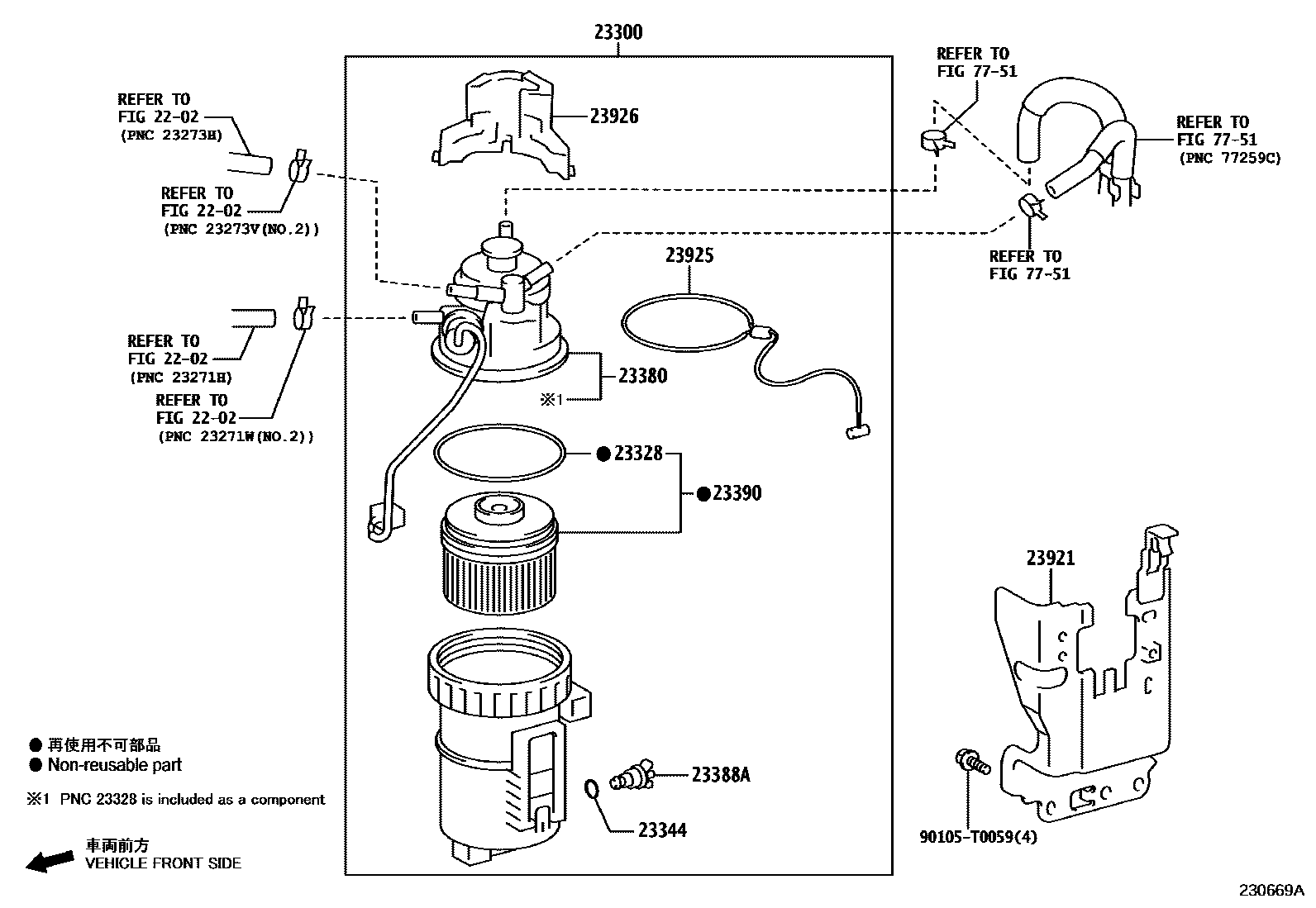

Toyota HILUX fuel filter — Figure 2302
Toyota HILUX EPC diagram 2302, fuel filter, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23300 | fuel filter assembly | 23300-0L101 · 23300-0L111 · 23300-0L112 |
| 23300D | Fuel filter assembly (for diesel engine) | 23300-0E011 |
| 23328 | Gasket (for fuel filter) | 23344-0L070 |
| 23344 | Clamp nut gasket (for fuel filter) | 23344-0L041 |
| 23344A | JOINT D'ETANCHEITE, ELEMENT FILTRE CARBURANT | 23344-0E010 |
| 23380 | Fuel filter cover assembly | 23380-0L091 · 23380-0L111 |
| 23388A | Fuel filter drain plug | 23388-0L041 |
| 23390 | Fuel filter element assembly | 23390-0L070 · 23390-0L100 |
| 23390B | ENSEMBLE ELEMENT, FILTRE A CARBURANT, NO.2 | 23390-0E011 |
| 23841L | COLLIER, TUYAU CARBURANT | 23841-0E010 |
| 23921 | Fuel filter support | 23921-0L130 · 23921-0L210 |
| 23925 | fuel filter support stay | 23925-0L020 |
| 23926 | No. 2 fuel filter support bracket | 23926-0L020 |
