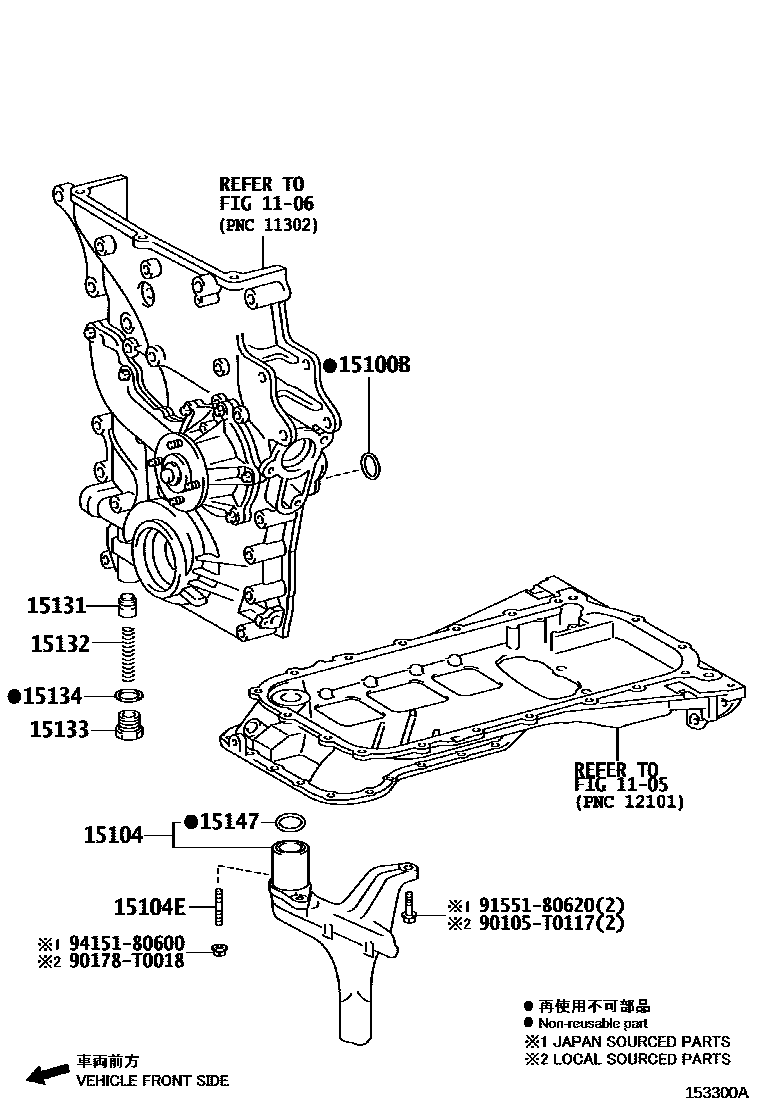

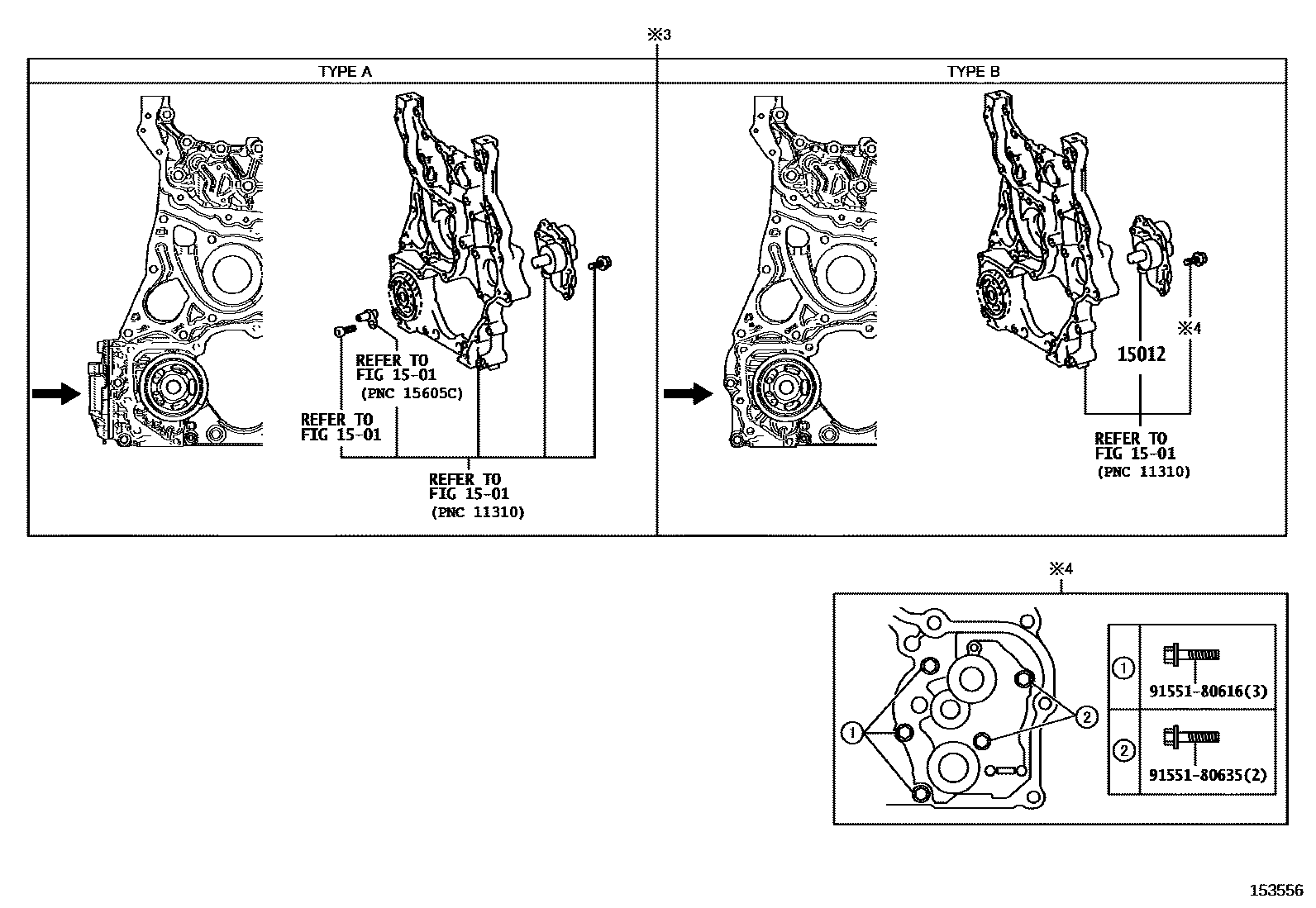

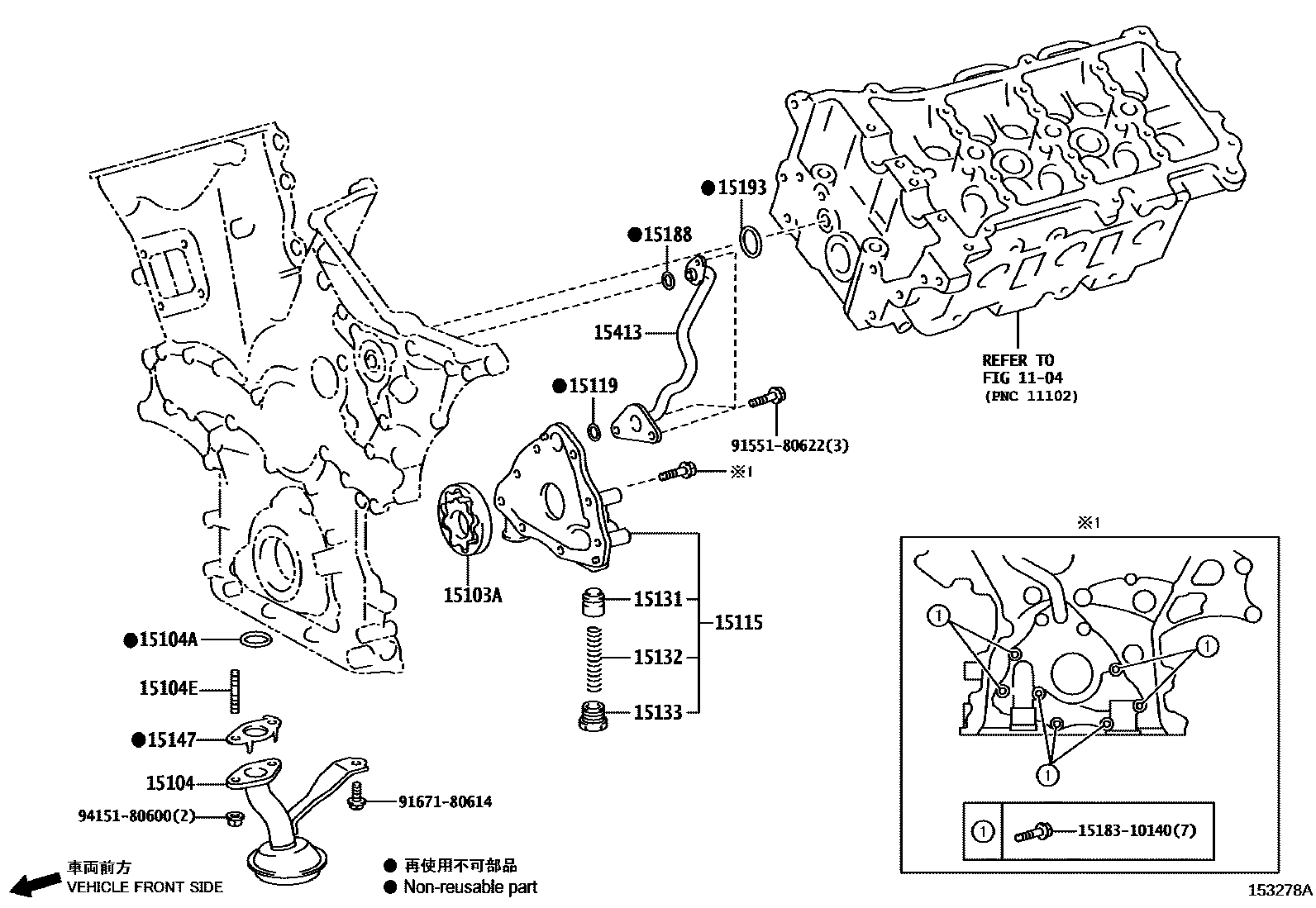

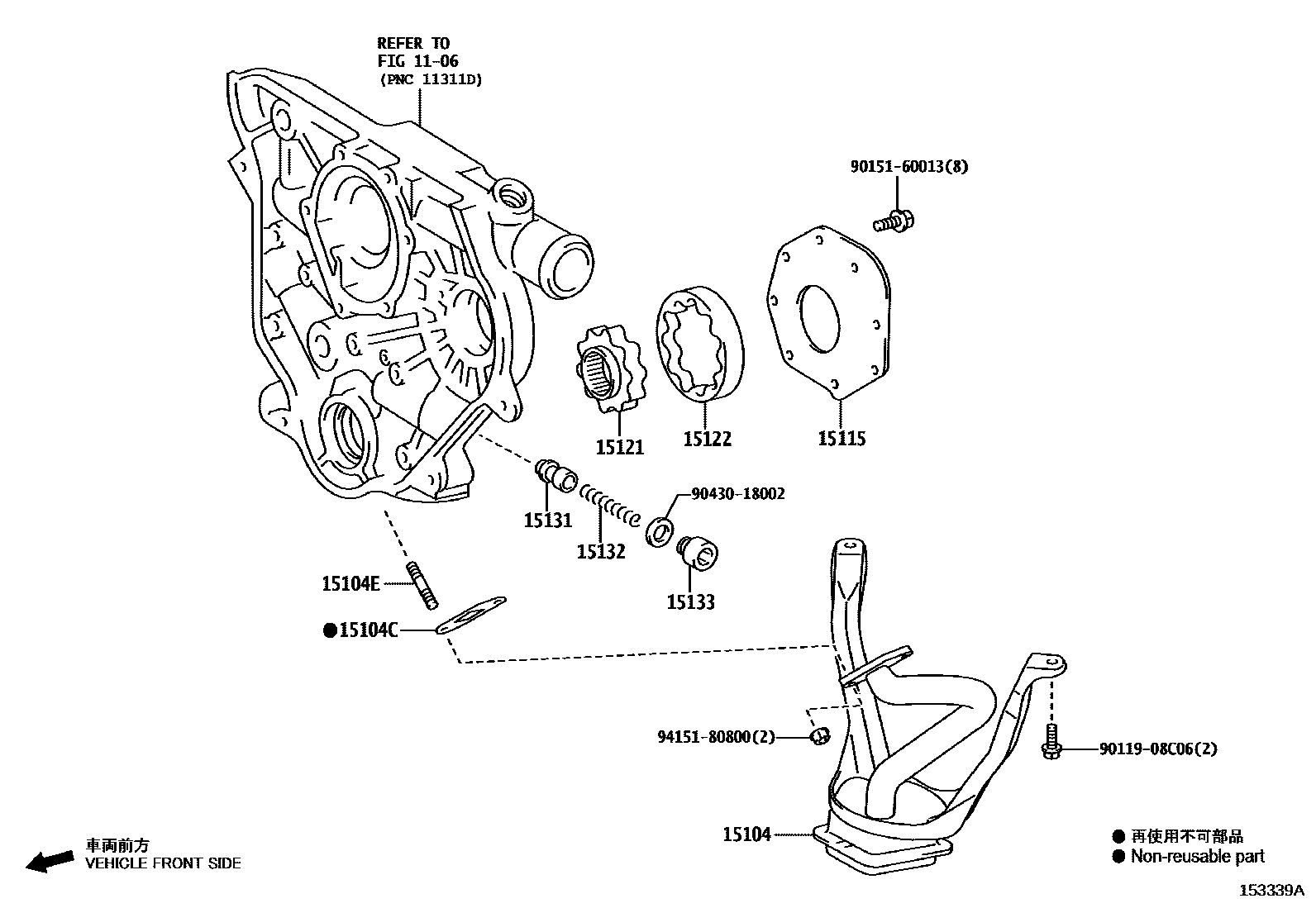

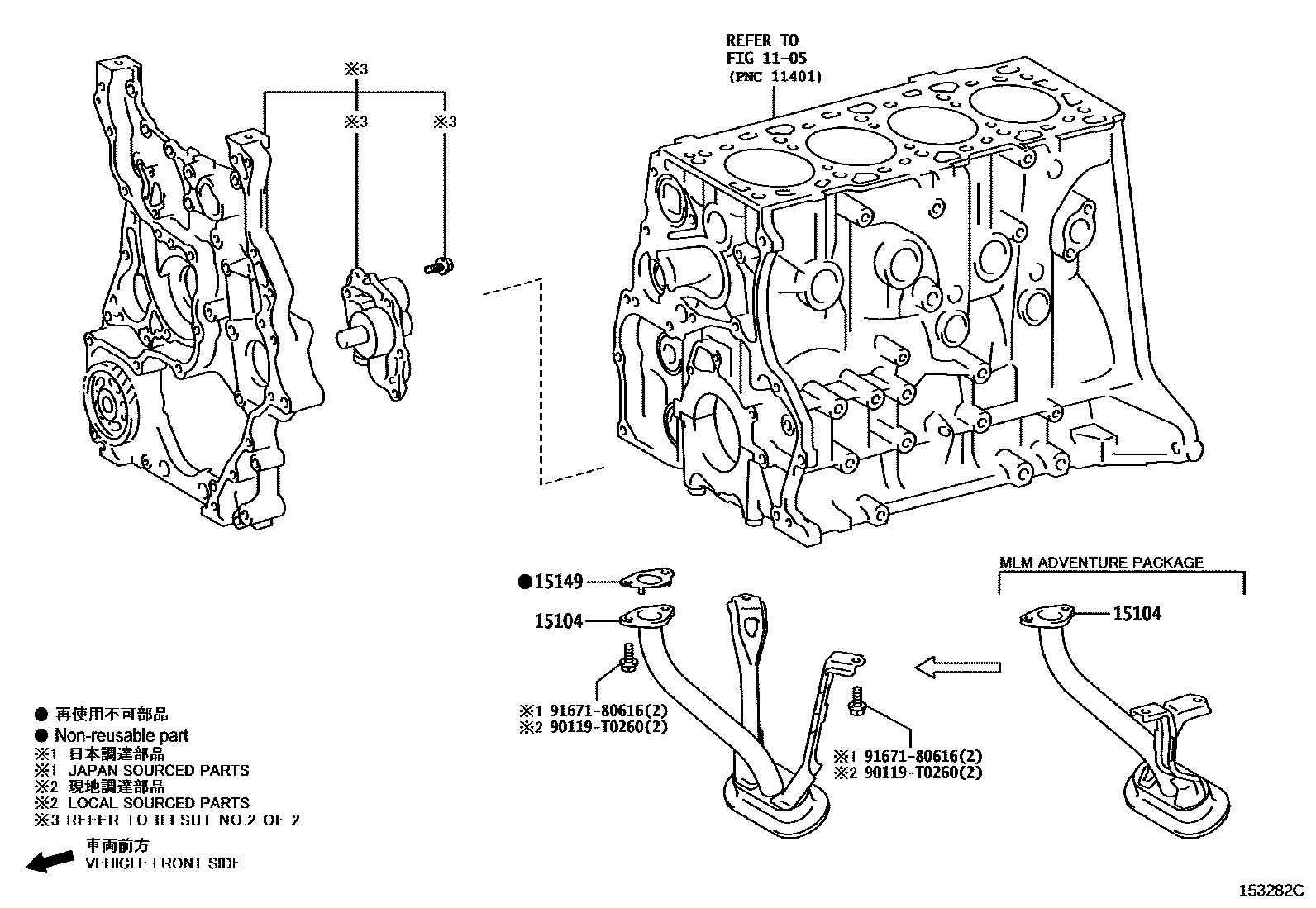

Toyota HILUX Engine Oil Pump — Figure 1501
Toyota HILUX EPC diagram 1501, Engine Oil Pump, with 5 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15012 | Oil pump cover sub-assembly | 15012-0E010 · 15012-11030 |
| 15100B | O-ring (for oil pump) | 90301-T0020 · 90301-T0083 |
| 15103A | SOUS-ENS. ROTOR, POMPE HUILE | 15103-31050 |
| 15104 | Oil filter sub-assembly | 15104-0C050 · 15104-0E040 · 15104-0E060 · 15104-11230 · 15104-31110 · 15104-54260 |
| 15104A | O-ring (for oil filter) | 96722-24030 |
| 15104C | Gasket (for oil filter) | 15149-54030 |
| 15104E | Stud bolts (for oil filter) | 90126-06029 · 90126-T0012 · 92122-80816 |
| 15115 | oil pump cover | 15115-31050 · 15115-54022 |
| 15119 | Oil pump cover gasket | 15119-31050 |
| 15121 | Oil pump driving gear | 15121-54020 |
| 15122 | Oil pump driven gear | 15122-54020 |
| 15131 | Oil pump pressure reducing valve | 15131-46040 · 15131-54010 |
| 15132 | Oil pump pressure reducing valve spring | 15132-0C010 · 15132-46020 · 15132-54010 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-0C010 · 15133-28020 · 15133-54010 |
| 15134 | Oil pump pressure reducing valve gasket | 15134-67020 |
| 15147 | Oil filter gasket | 15147-0C020 · 15147-46010 |
| 15149 | Oil filter flange gasket | 15149-0E010 · 15149-0E020 · 15149-11120 |
| 15188 | oil pump gasket | 15188-31050 |
| 15193 | oil pump gasket | 15193-31010 |
| 15413 | Oil pump outlet pipe | 15413-31020 |
