Toyota HILUX Engine Overhaul Gasket Kit — Figure 1103
Toyota HILUX EPC diagram 1103, Engine Overhaul Gasket Kit, with 14 images and 2 PNC and OE references.

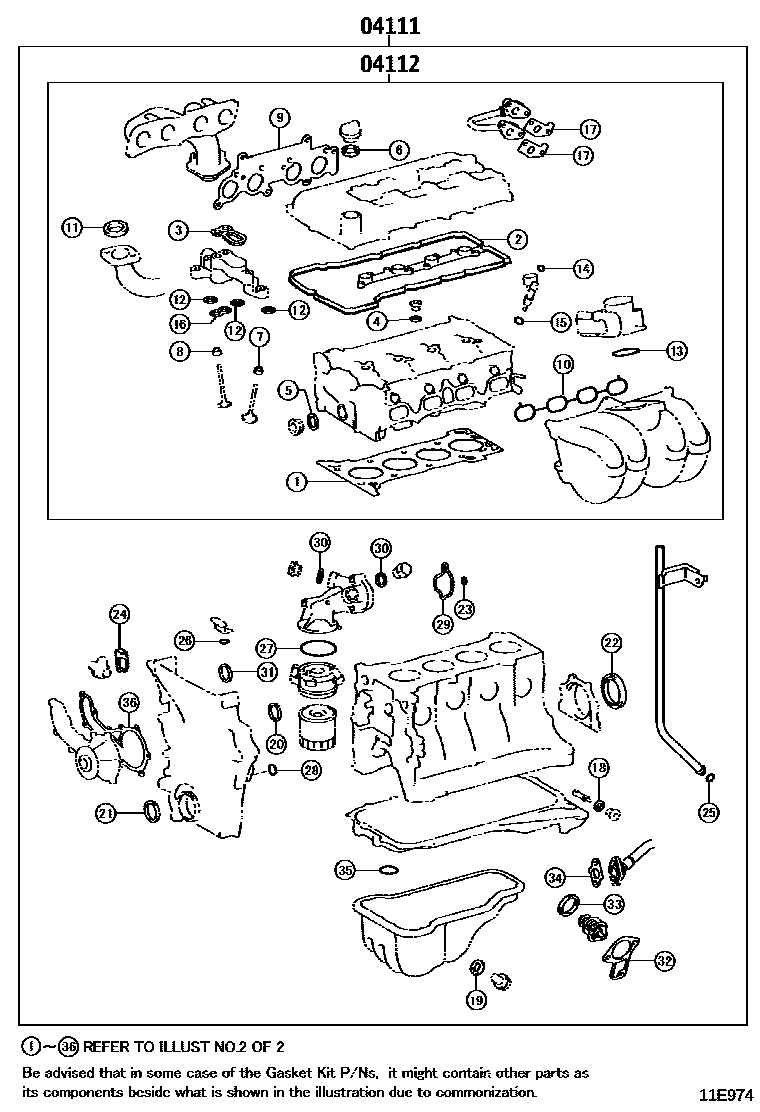

Engine Overhaul Gasket Kit — 11E974 (202006 – 999999)

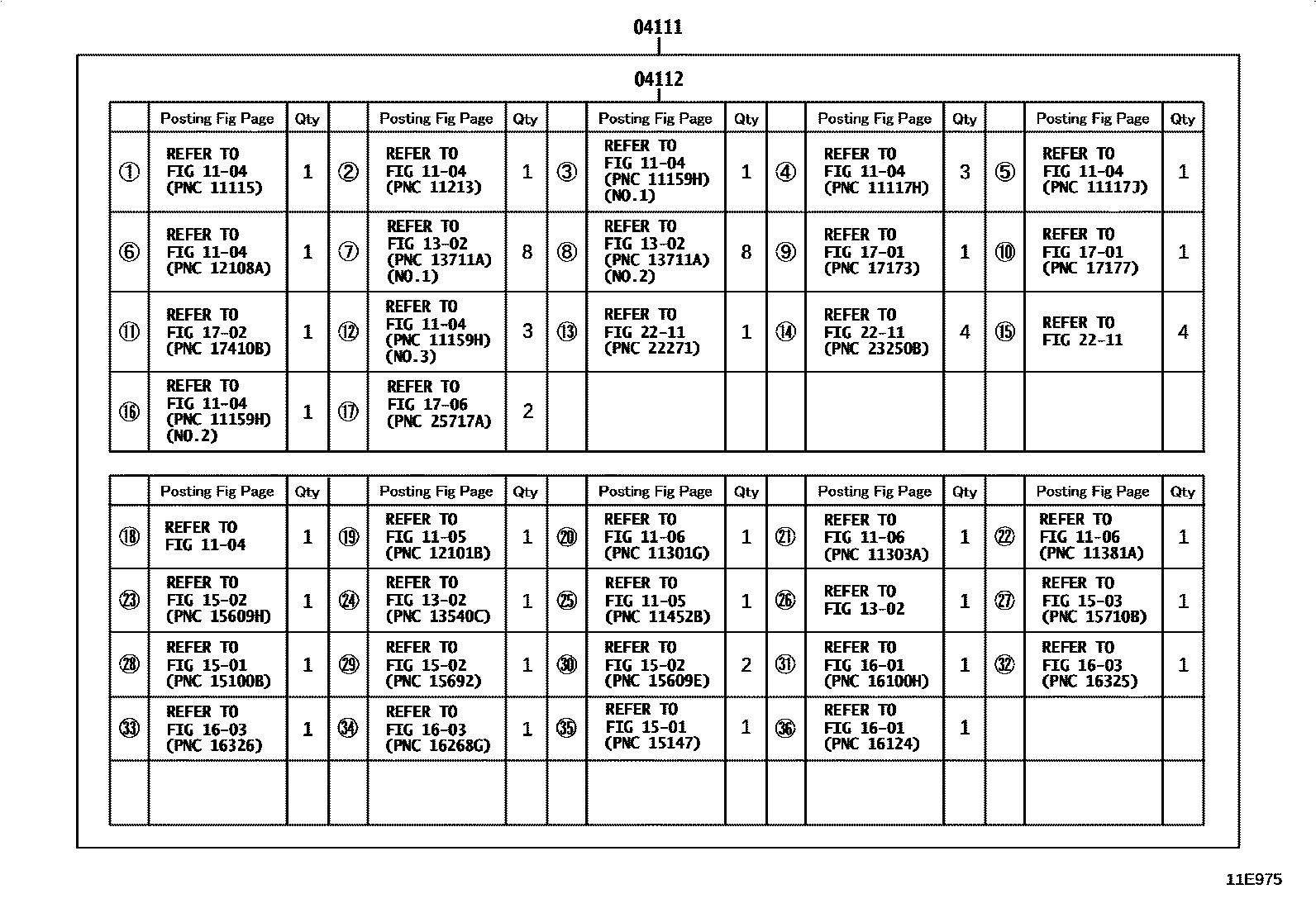

Engine Overhaul Gasket Kit — 11E975 (202006 – 999999)

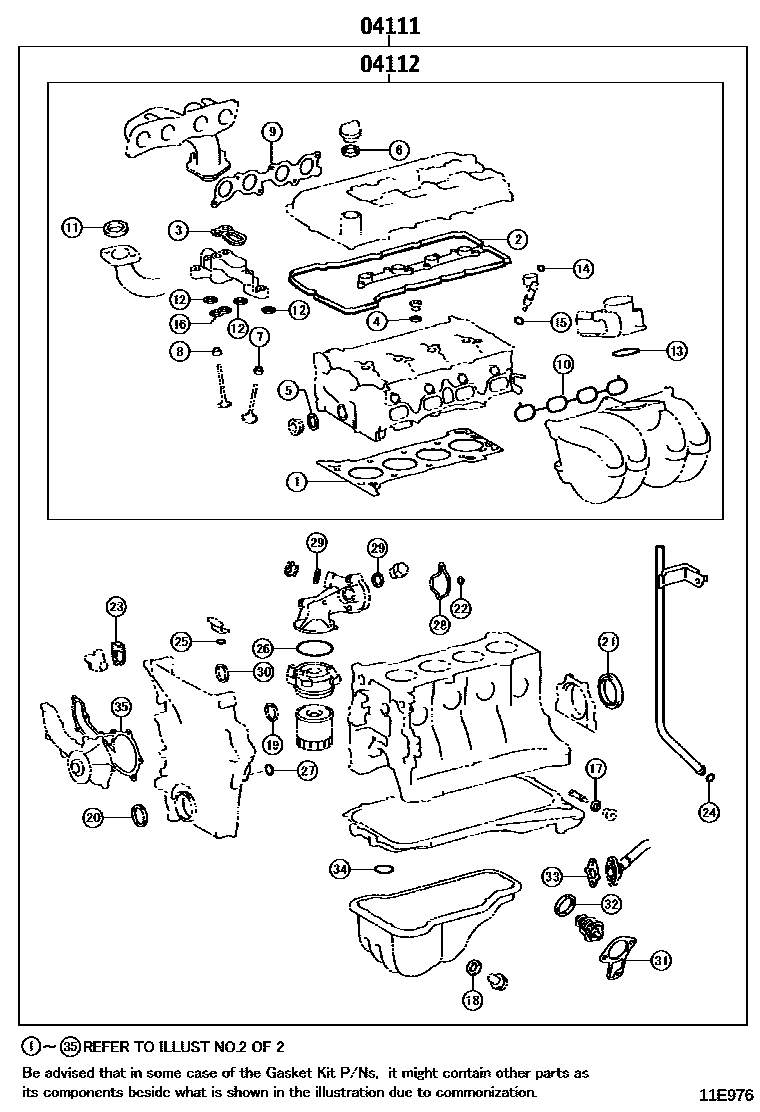

Engine Overhaul Gasket Kit — 11E976 (202006 – 999999)

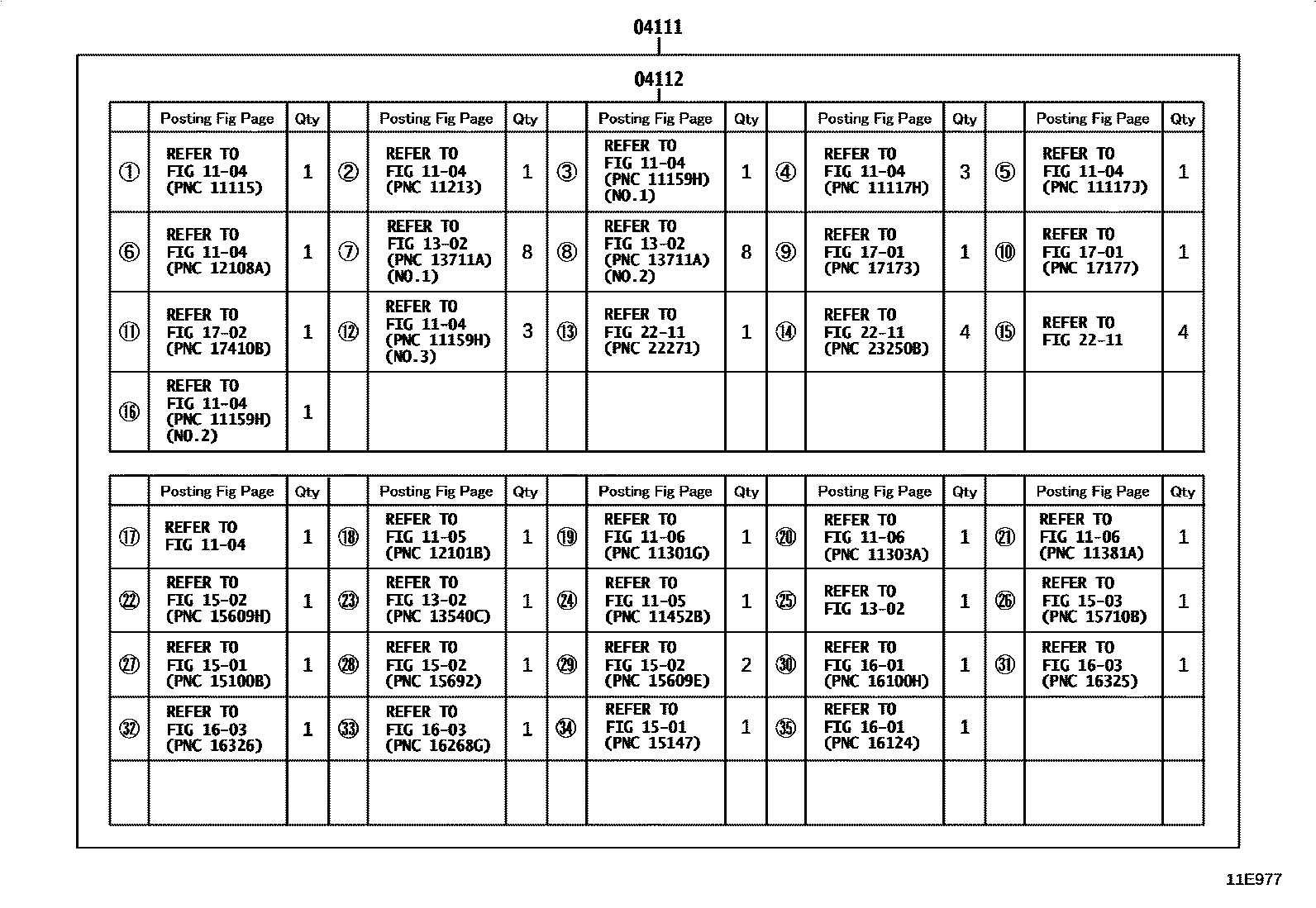

Engine Overhaul Gasket Kit — 11E977 (202006 – 999999)

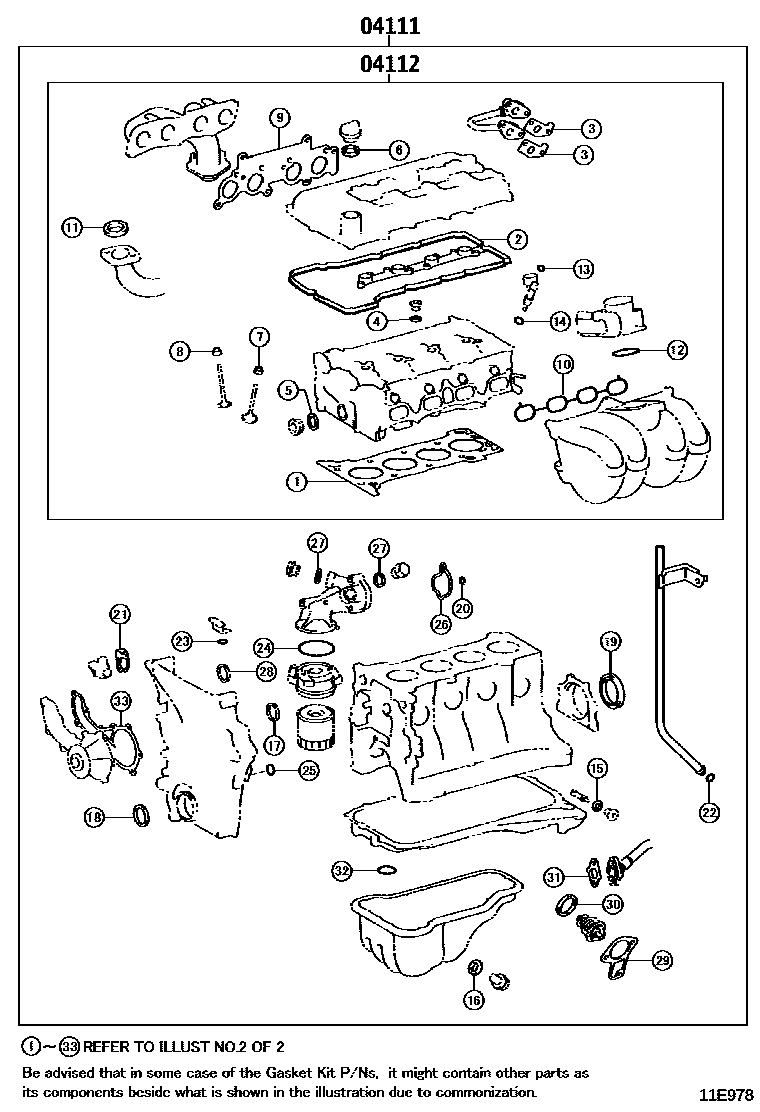

Engine Overhaul Gasket Kit — 11E978 (202007 – 999999)

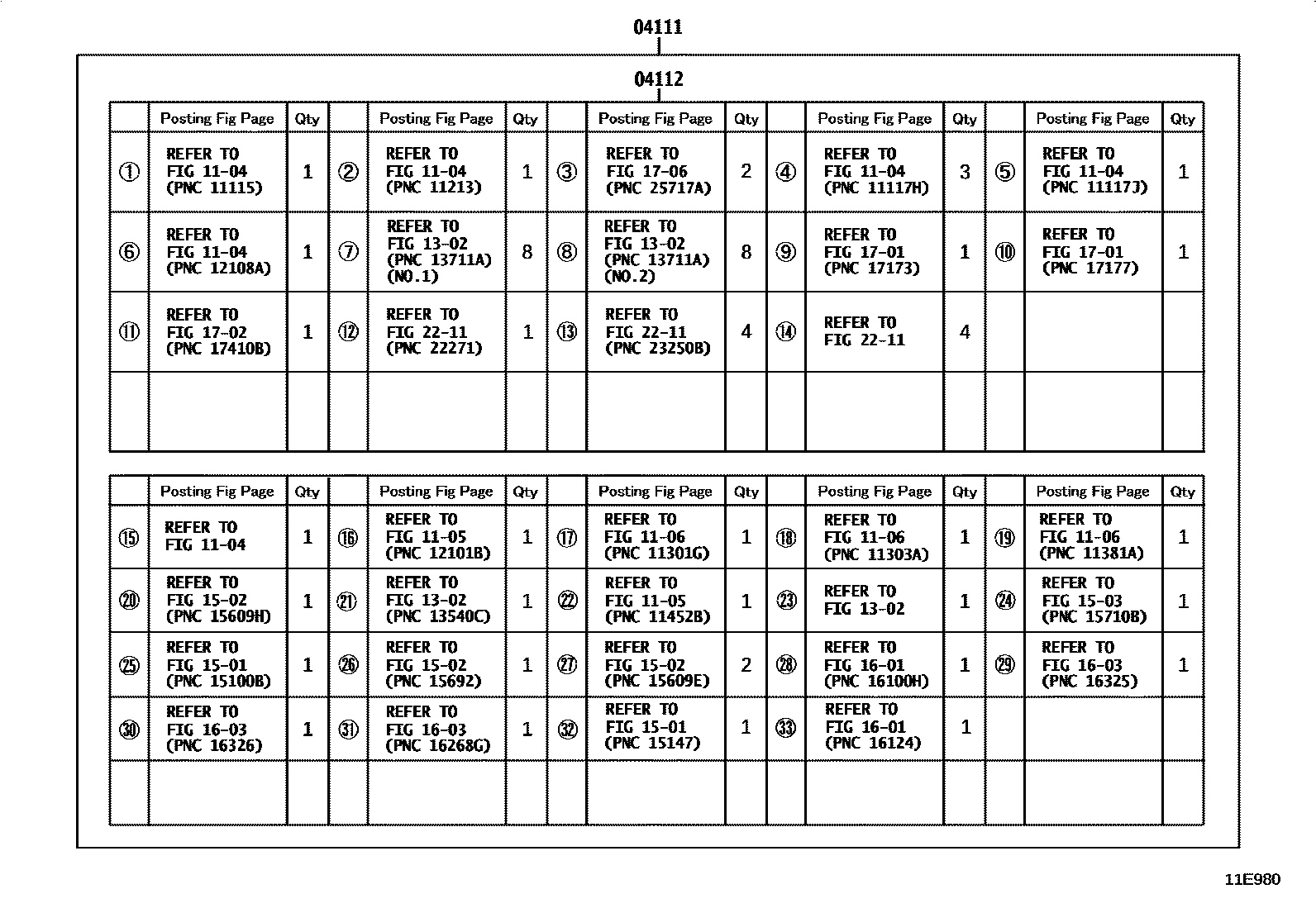

Engine Overhaul Gasket Kit — 11E980 (202007 – 999999)

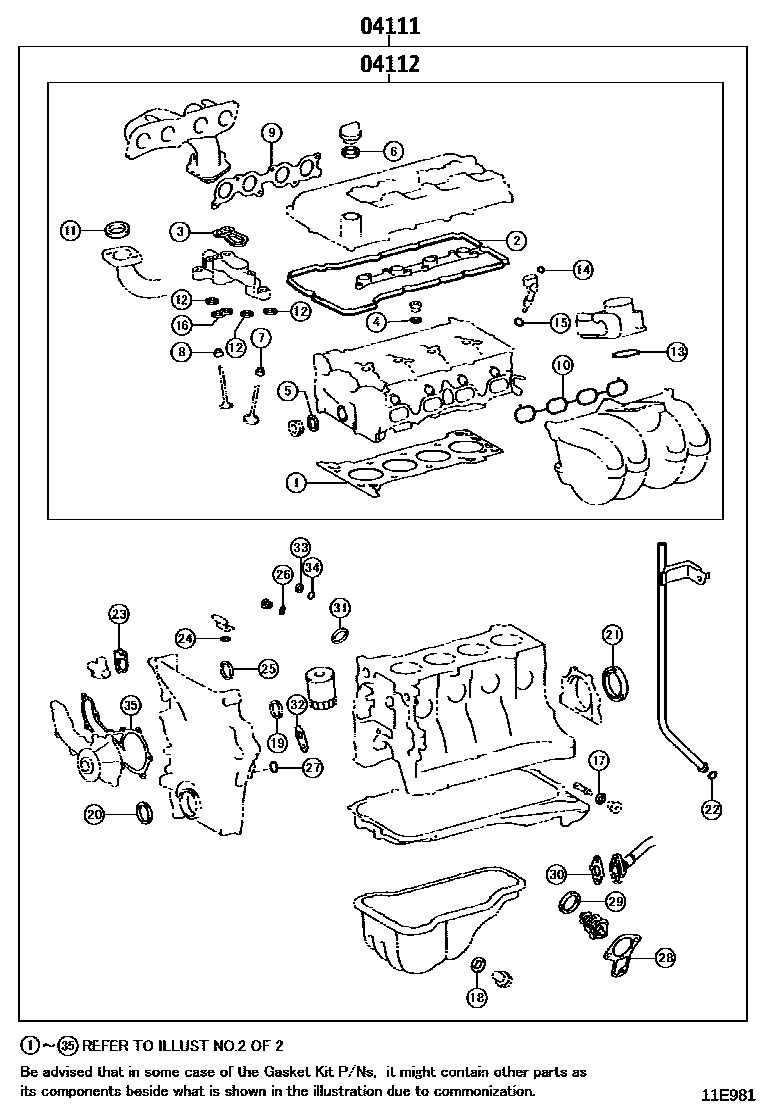

Engine Overhaul Gasket Kit — 11E981 (202006 – 999999)

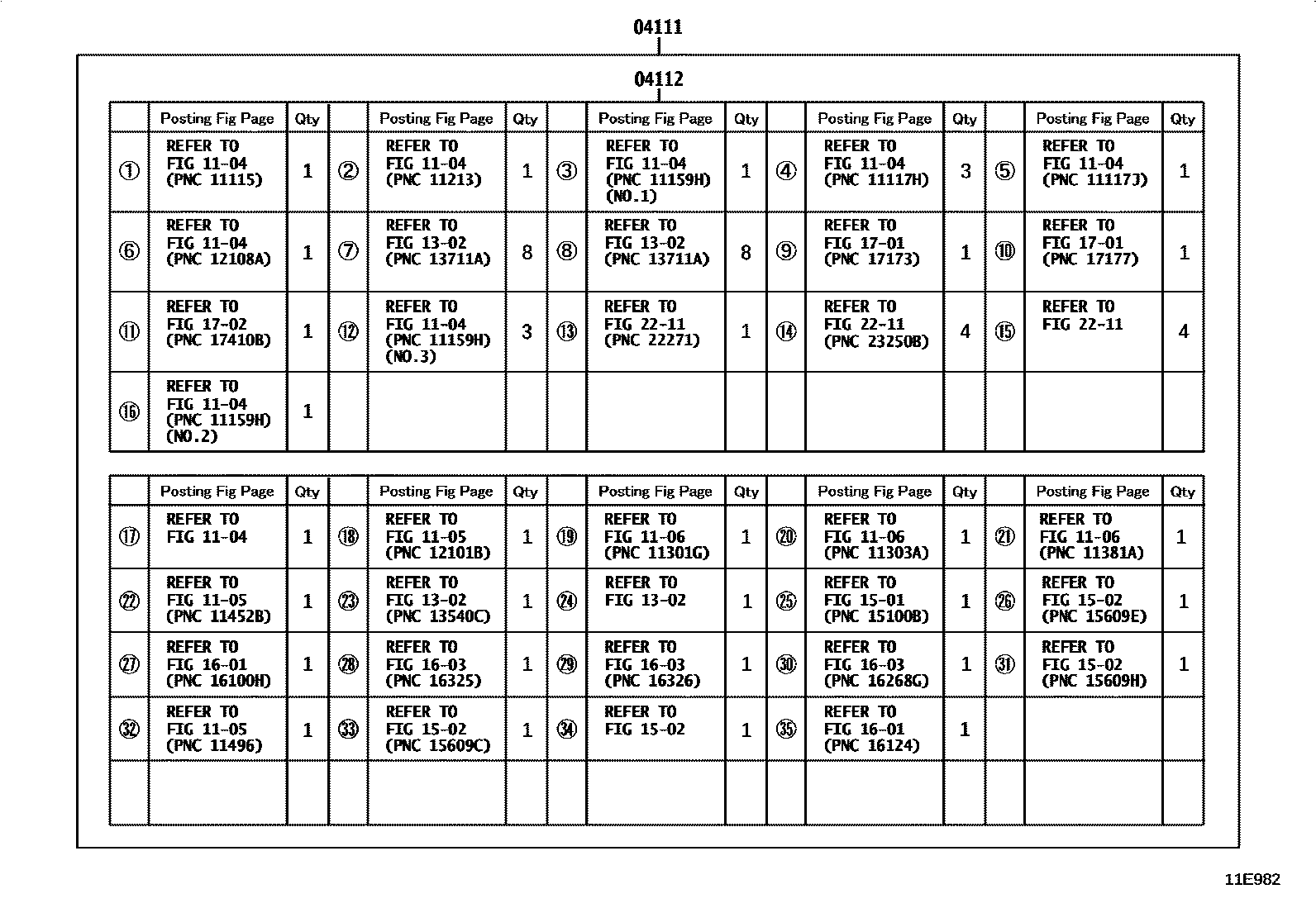

Engine Overhaul Gasket Kit — 11E982 (202006 – 999999)

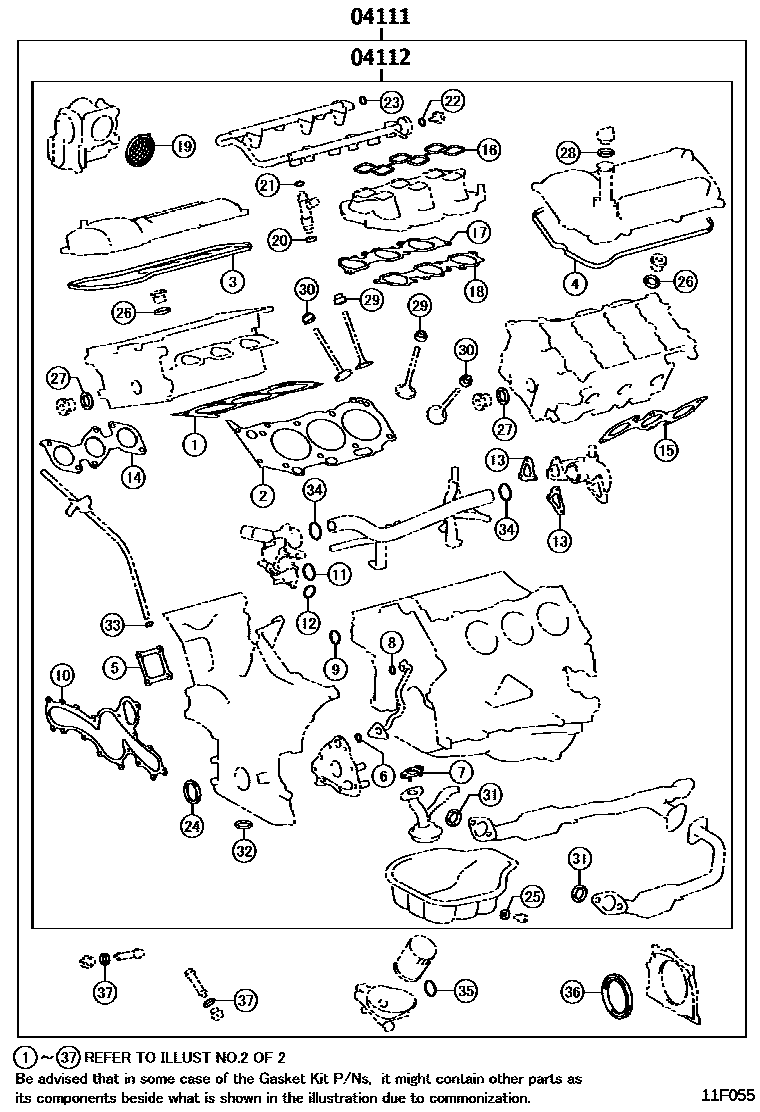

Engine Overhaul Gasket Kit — 11F055 (202006 – 999999)

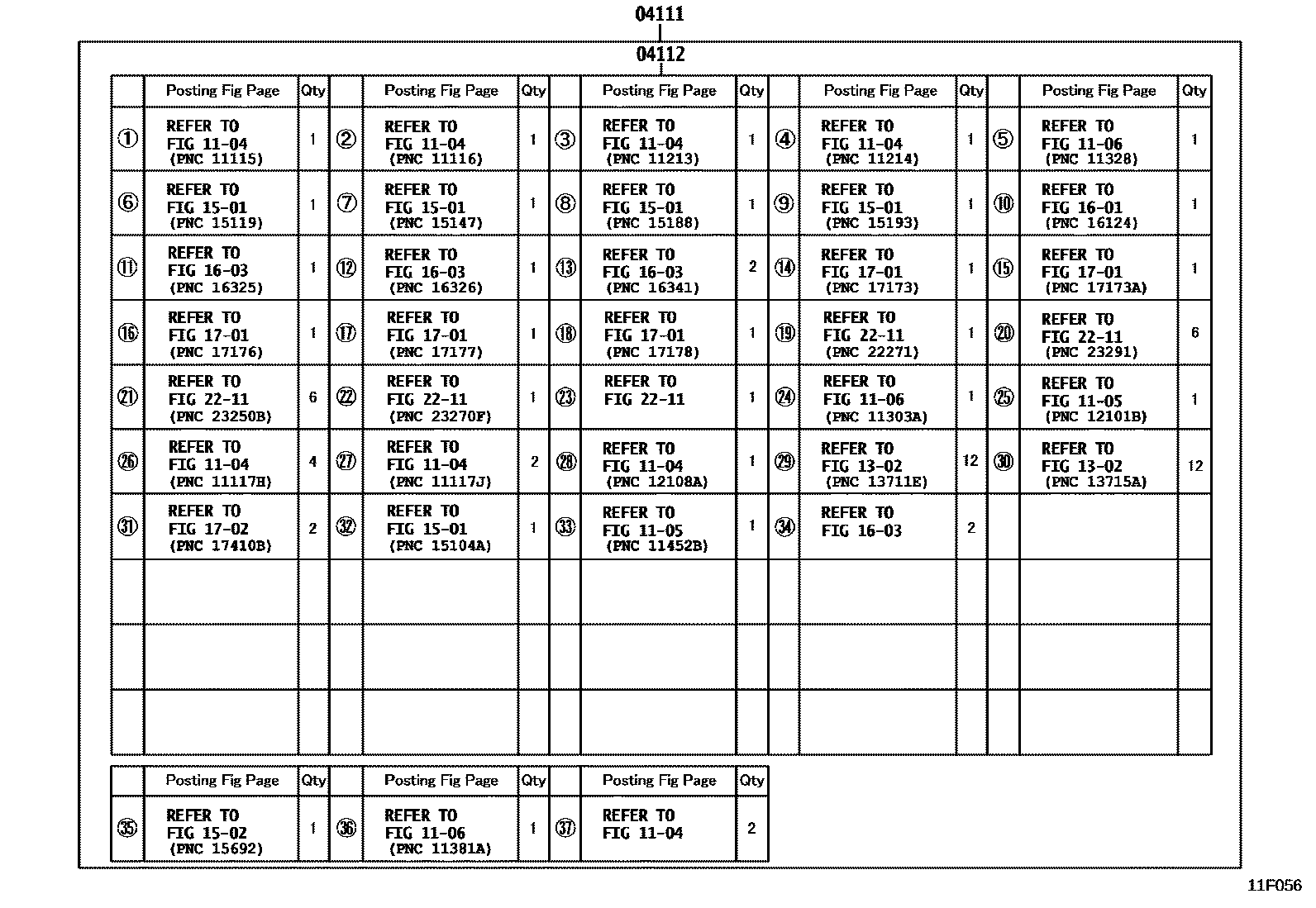

Engine Overhaul Gasket Kit — 11F056 (202006 – 999999)

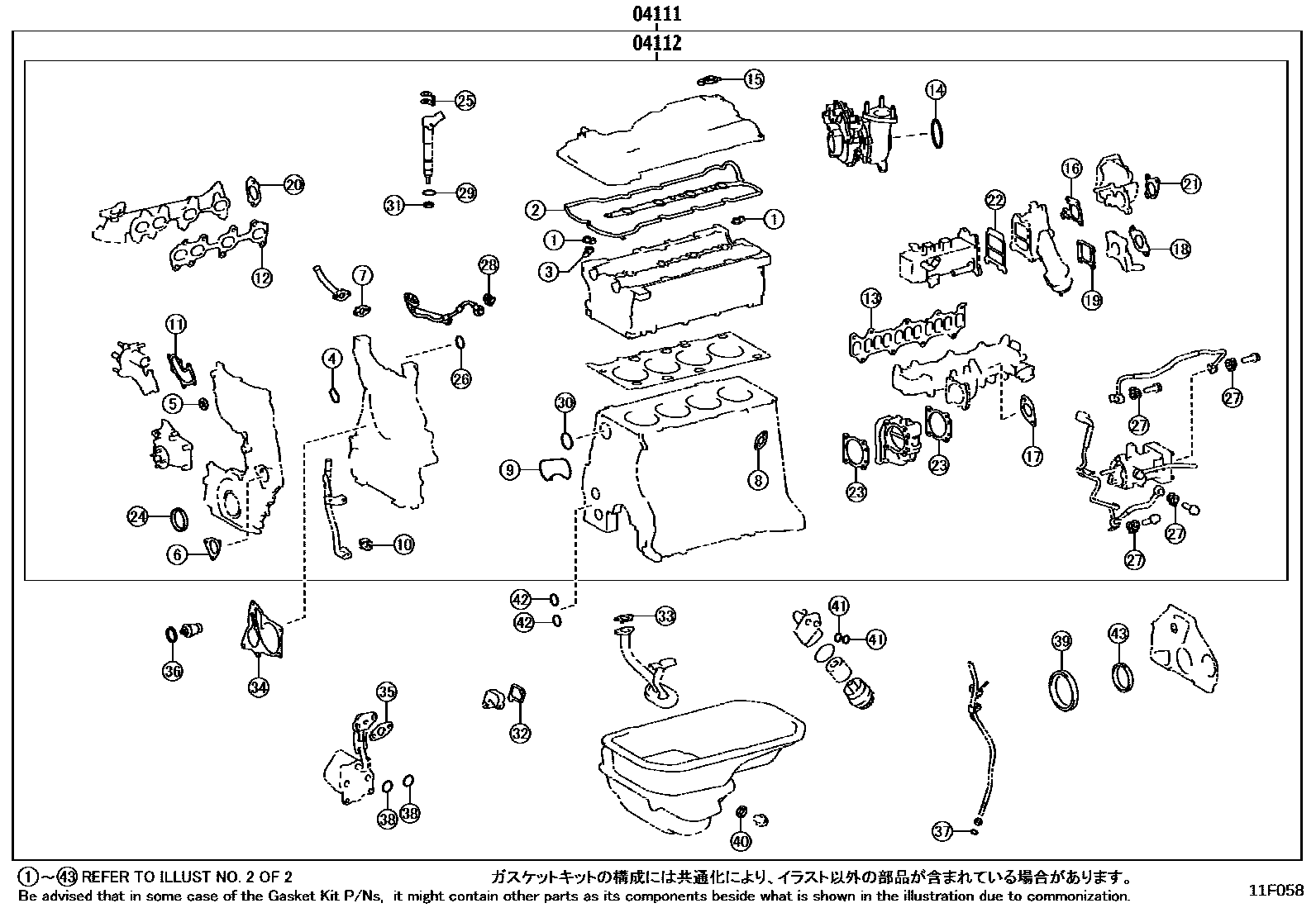

Engine Overhaul Gasket Kit — 11F058 (202006 – 999999)

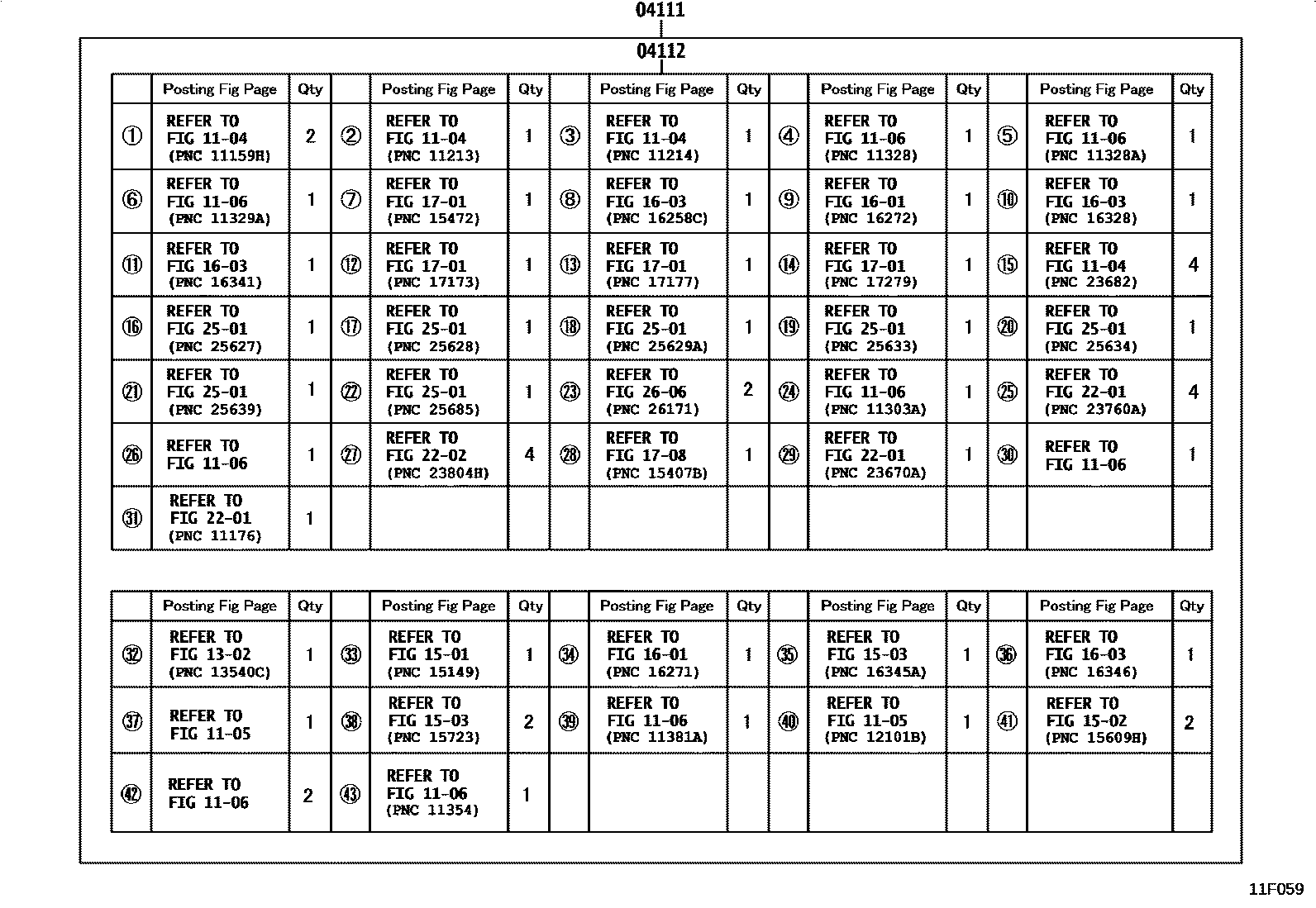

Engine Overhaul Gasket Kit — 11F059 (202006 – 999999)

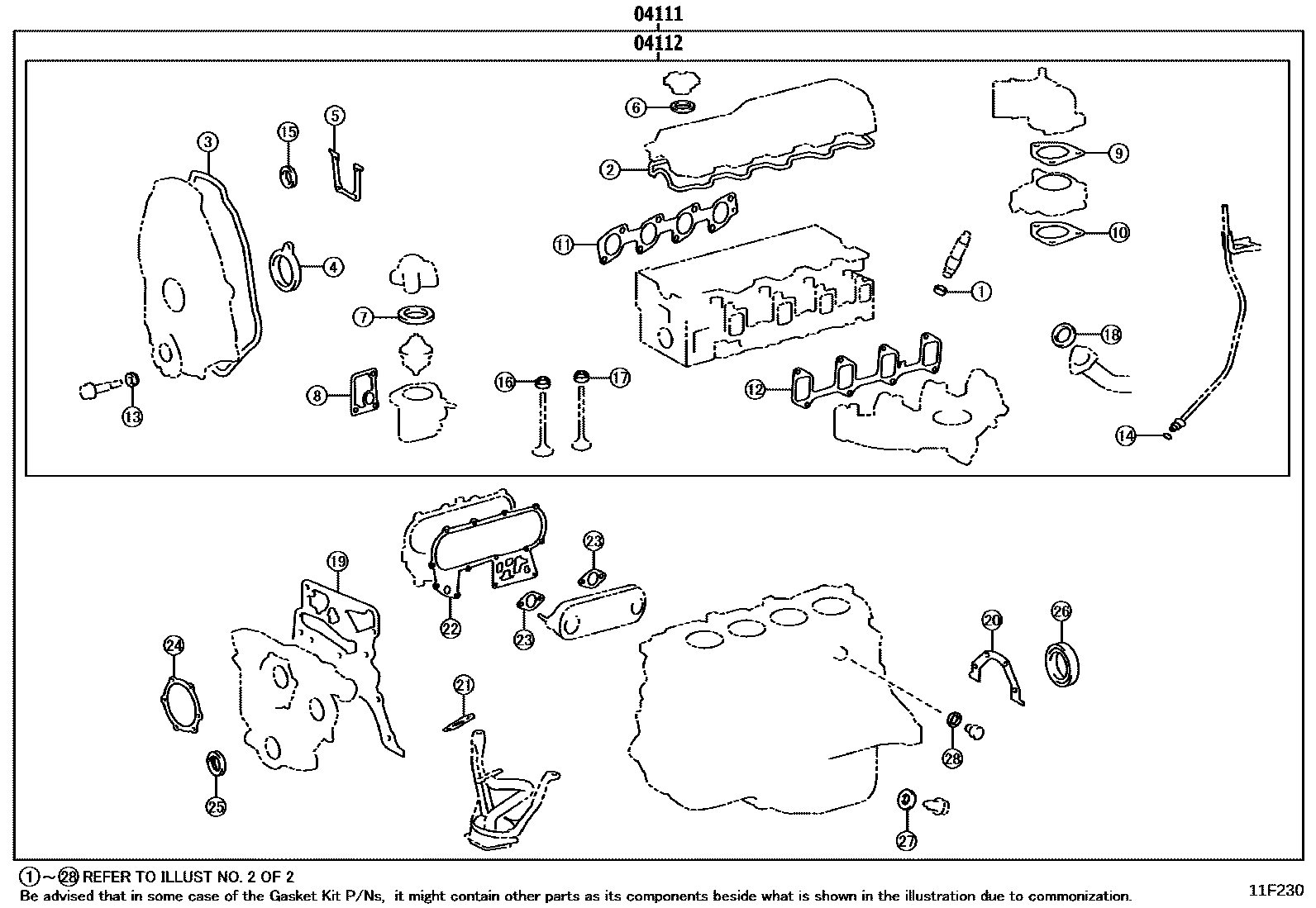

Engine Overhaul Gasket Kit — 11F230 (202009 – 999999)

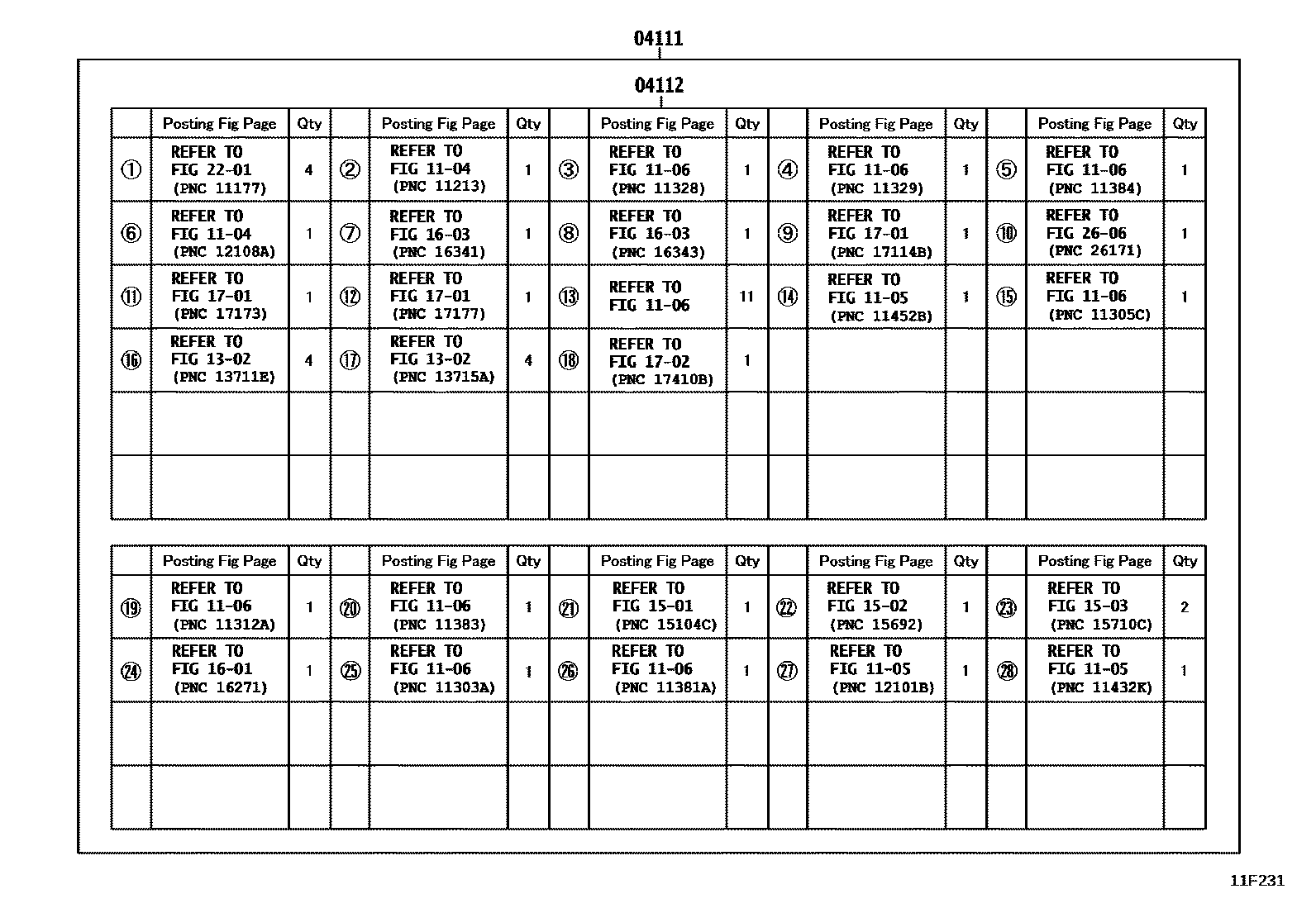

Engine Overhaul Gasket Kit — 11F231 (202009 – 999999)PNC and OE references
| PNC | Part name | OE numbers |
|---|
| 04111 | Engine overhaul gasket assembly | 04111-0C152 · 04111-0C290 · 04111-0C291 · 04111-0C300 · 04111-0C310 · 04111-0E110 · 04111-0E111 · 04111-0E160 · 04111-0E170 · 04111-0E190 · 04111-0E191 · 04111-0E220 · 04111-0E240 · 04111-0E260 · 04111-31344 · 04111-54600 |
| 04112 | Engine valve grinding pad assembly | 04112-0C120 · 04112-0C130 · 04112-0C140 · 04112-0C150 · 04112-0C151 · 04112-0E110 · 04112-0E111 · 04112-0E160 · 04112-0E170 · 04112-0E190 · 04112-0E191 · 04112-0E220 · 04112-0E240 · 04112-0E260 · 04112-31125 · 04112-54510 |
