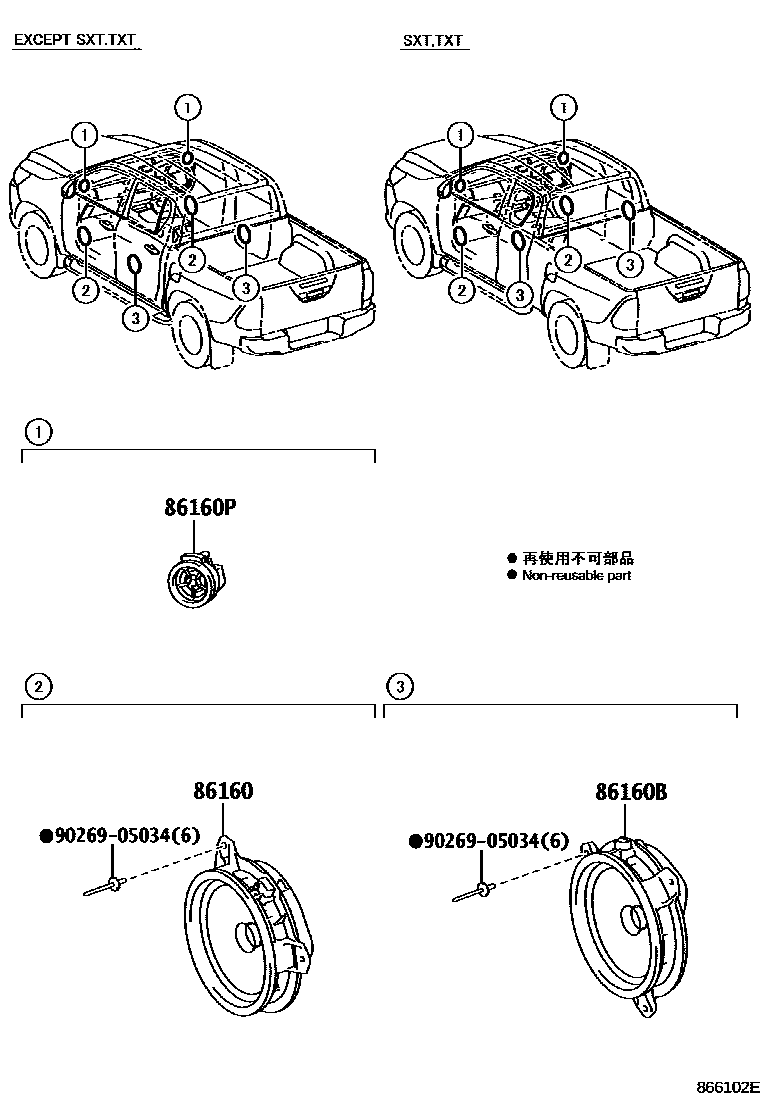

Toyota HILUX 扬声器 — Figure 8602
Toyota HILUX EPC diagram 8602, 扬声器, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-0K420 · 86160-0K430 · 86160-0K450 |
| 86160B | Rear speaker assembly | 86160-0K420 · 86160-0K430 · 86160-0K450 |
| 86160P | No. 2 front speaker assembly | 86150-0K260 · 86150-0K340 |
