Toyota HILUX 轮胎压力警告系统 — Figure 8435

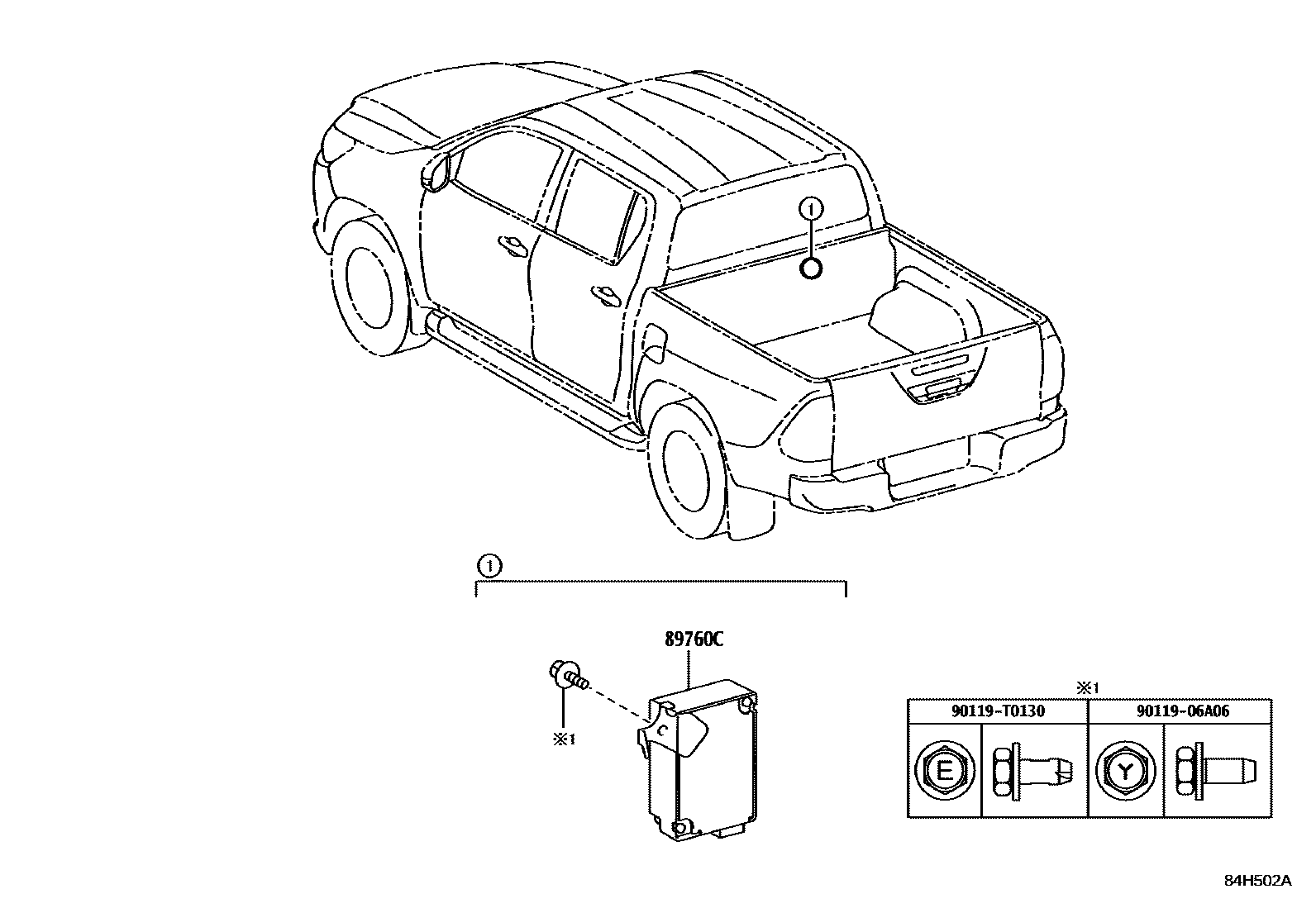

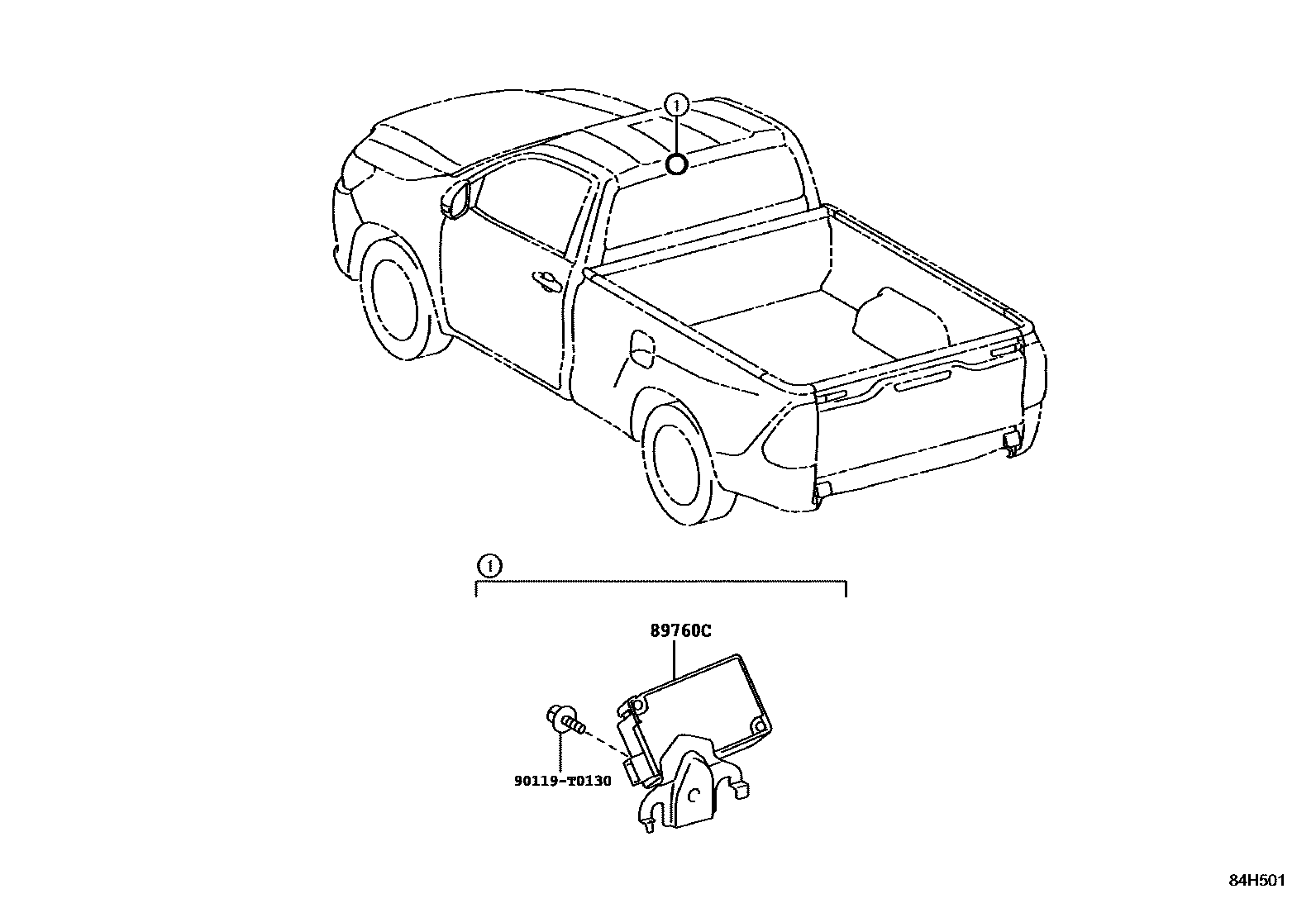

Toyota HILUX EPC diagram 8435, 轮胎压力警告系统, with 2 images and 1 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89760C | Tire pressure monitoring receiver assembly | 89760-71020 · 89760-71021 · 89760-71040 · 89760-71041 · 89760-71080 |
