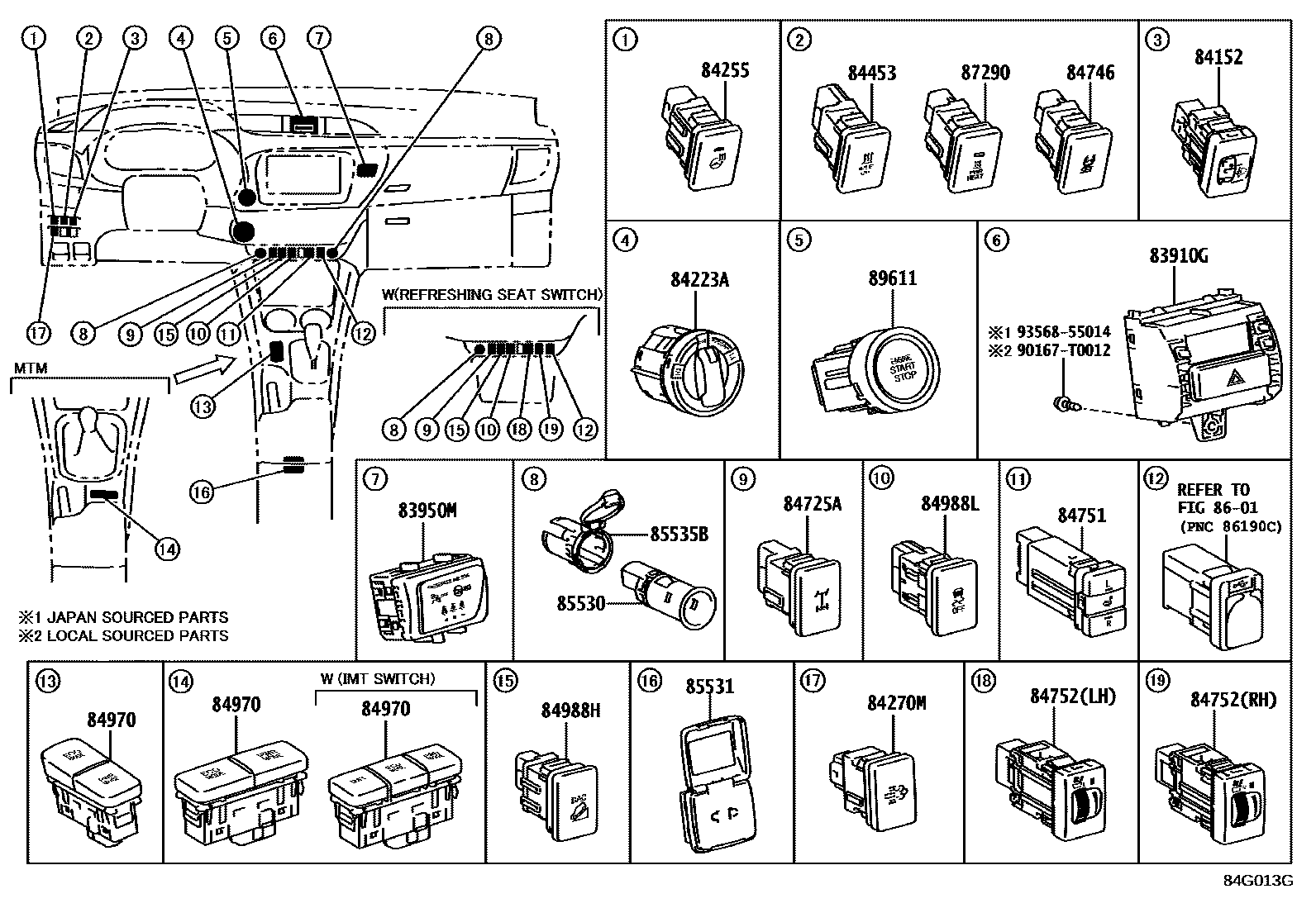

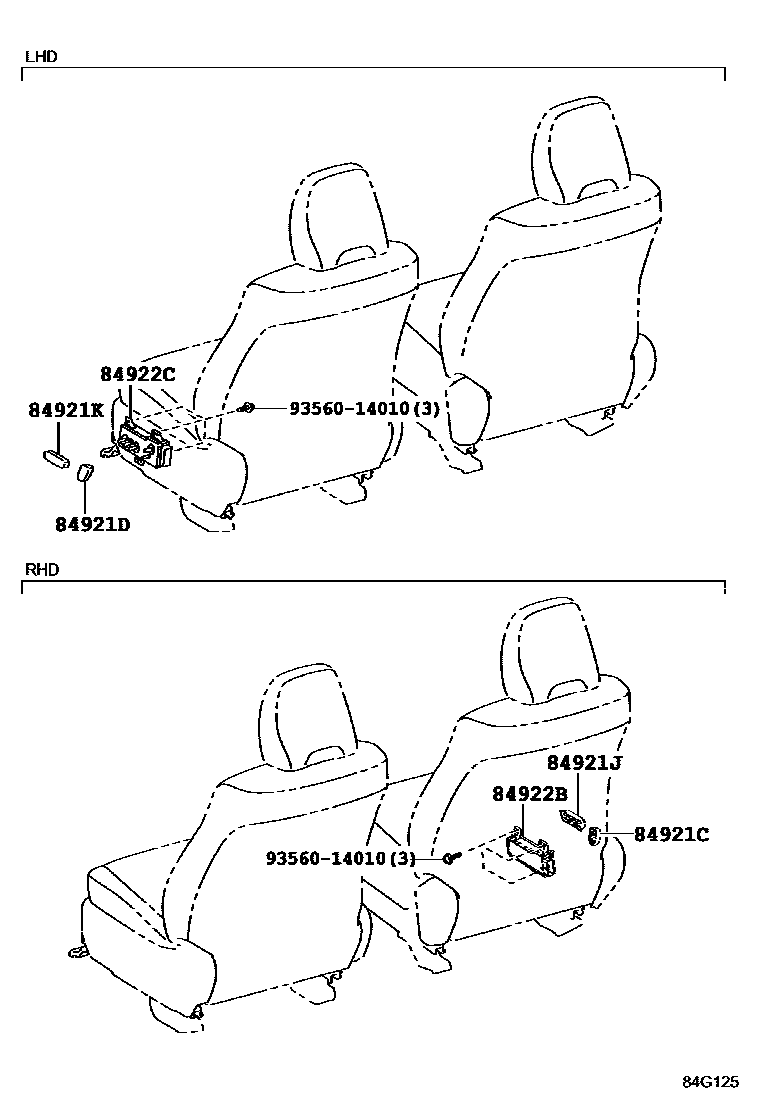

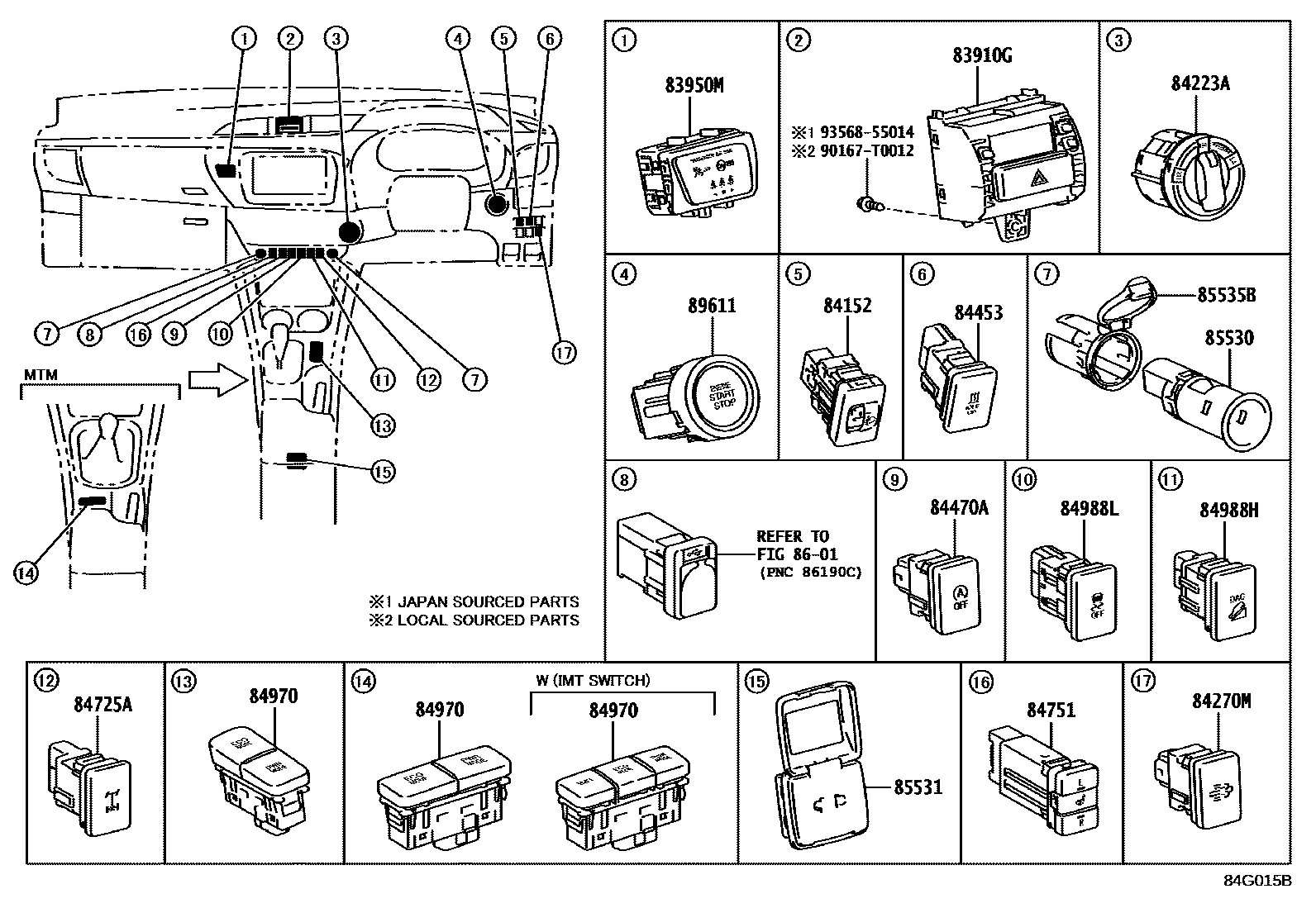

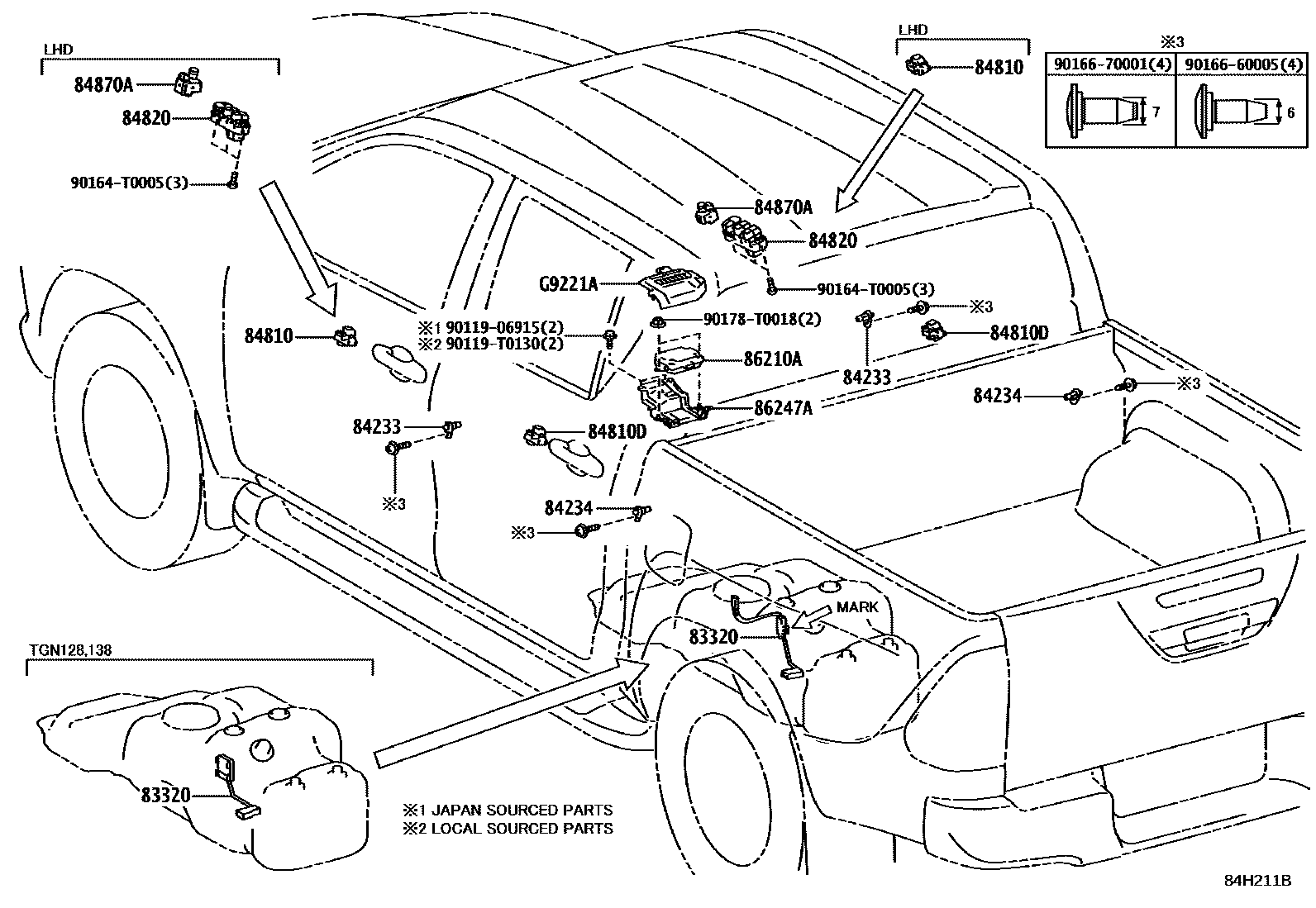

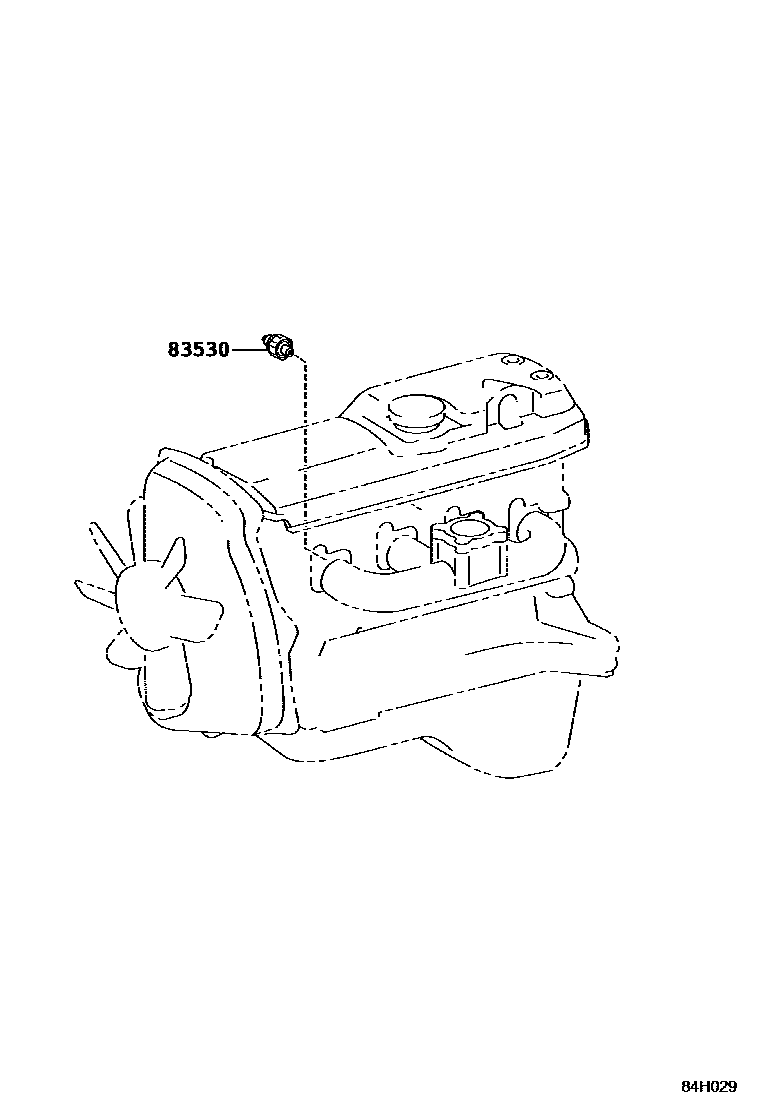

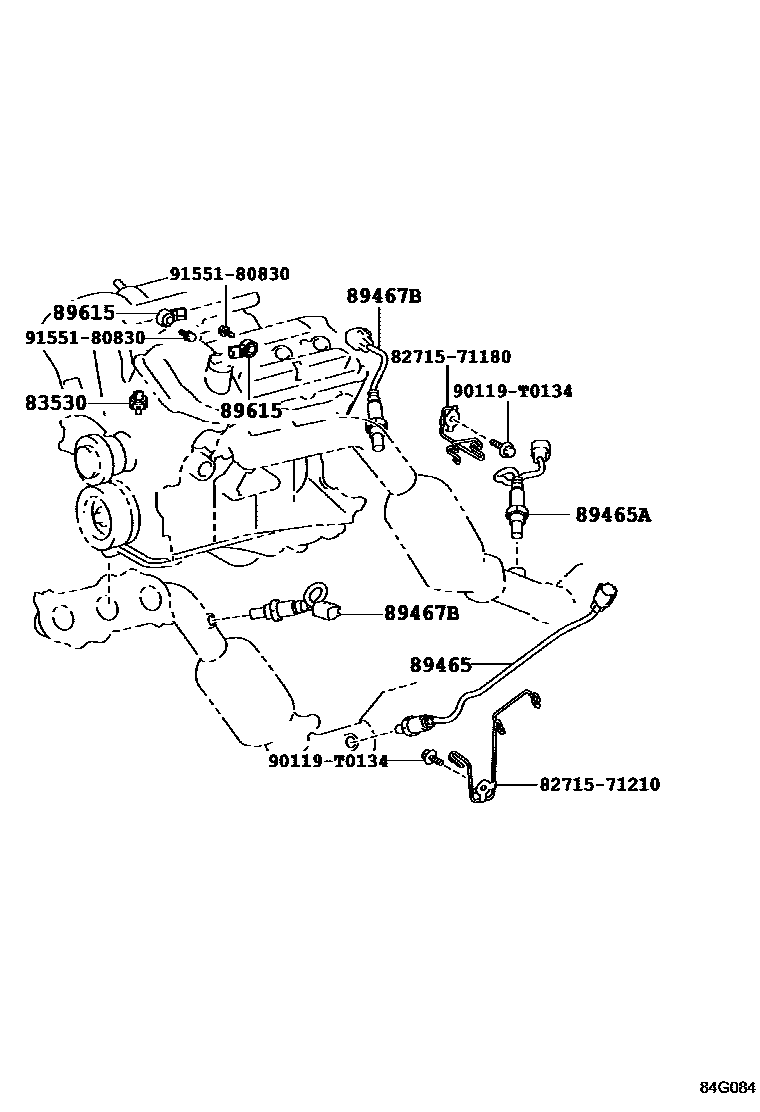

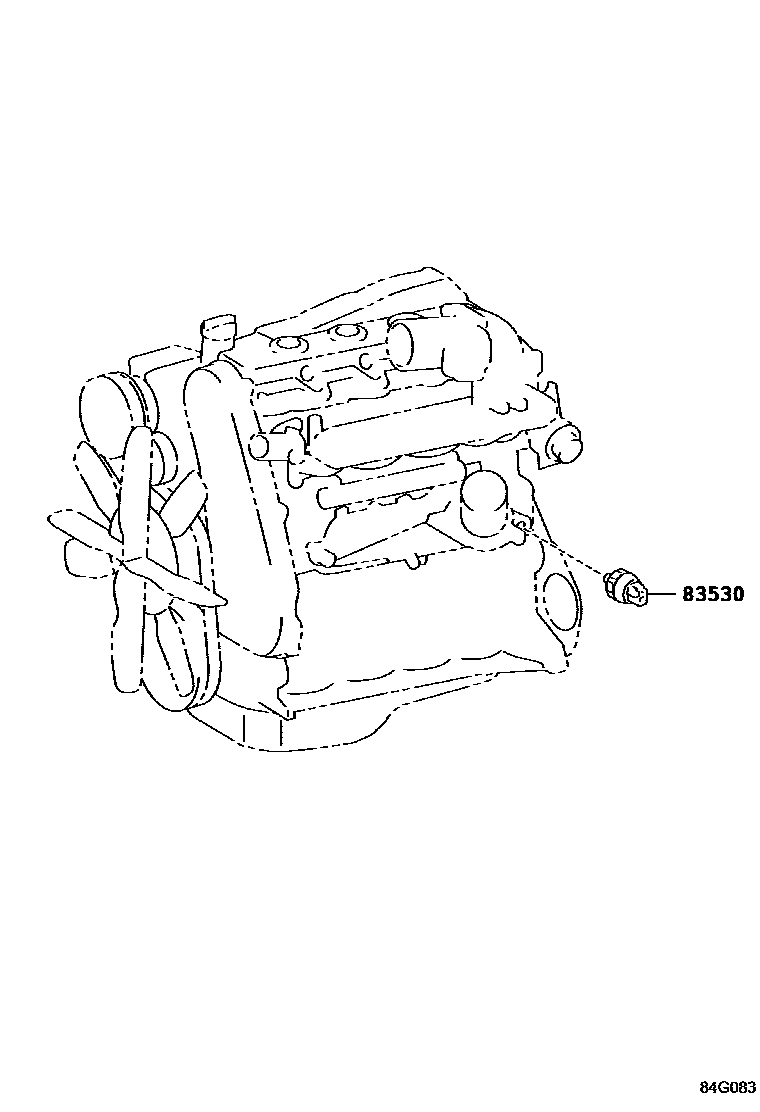

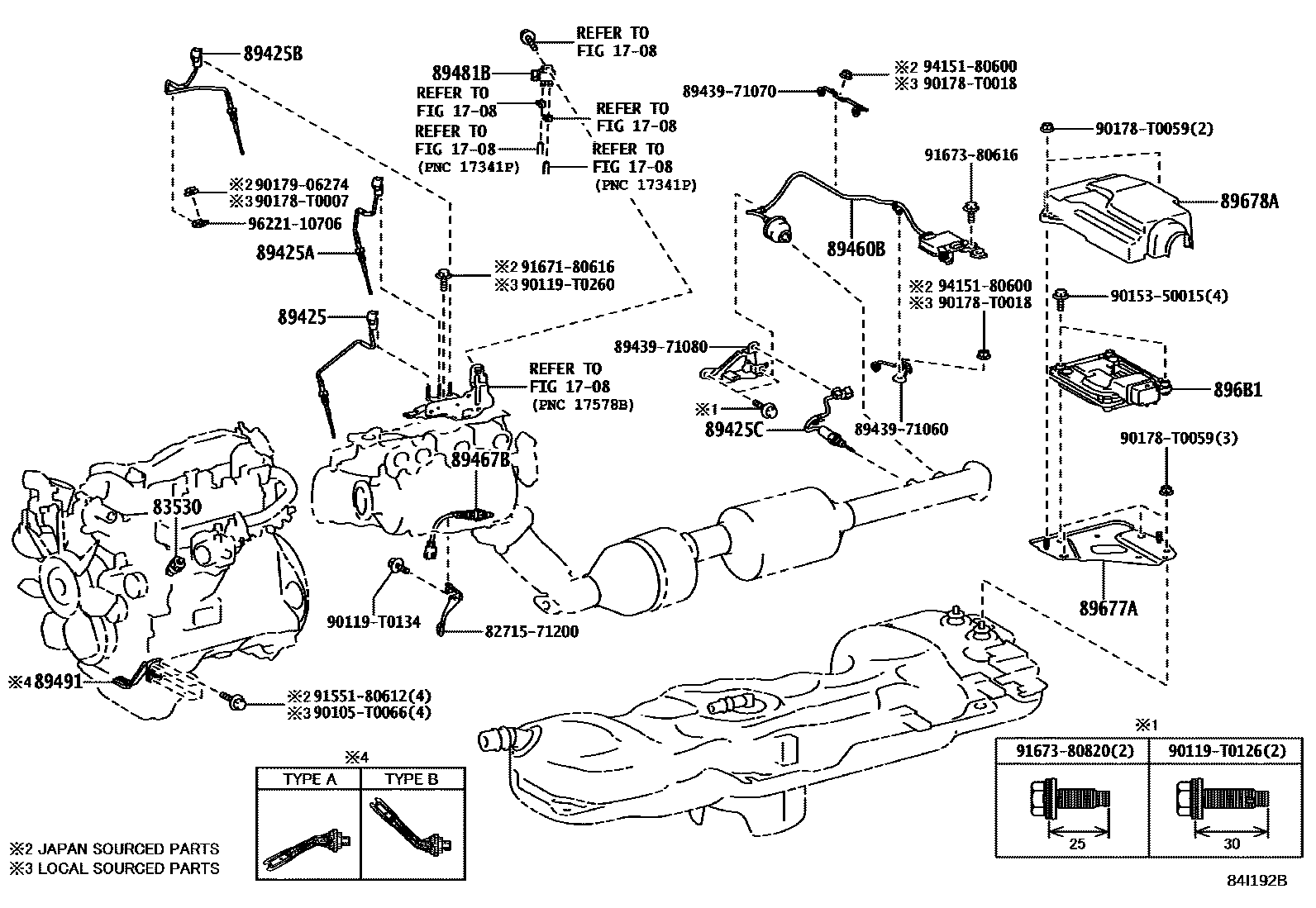

Toyota HILUX 开关和继电器和ECU — Figure 8401

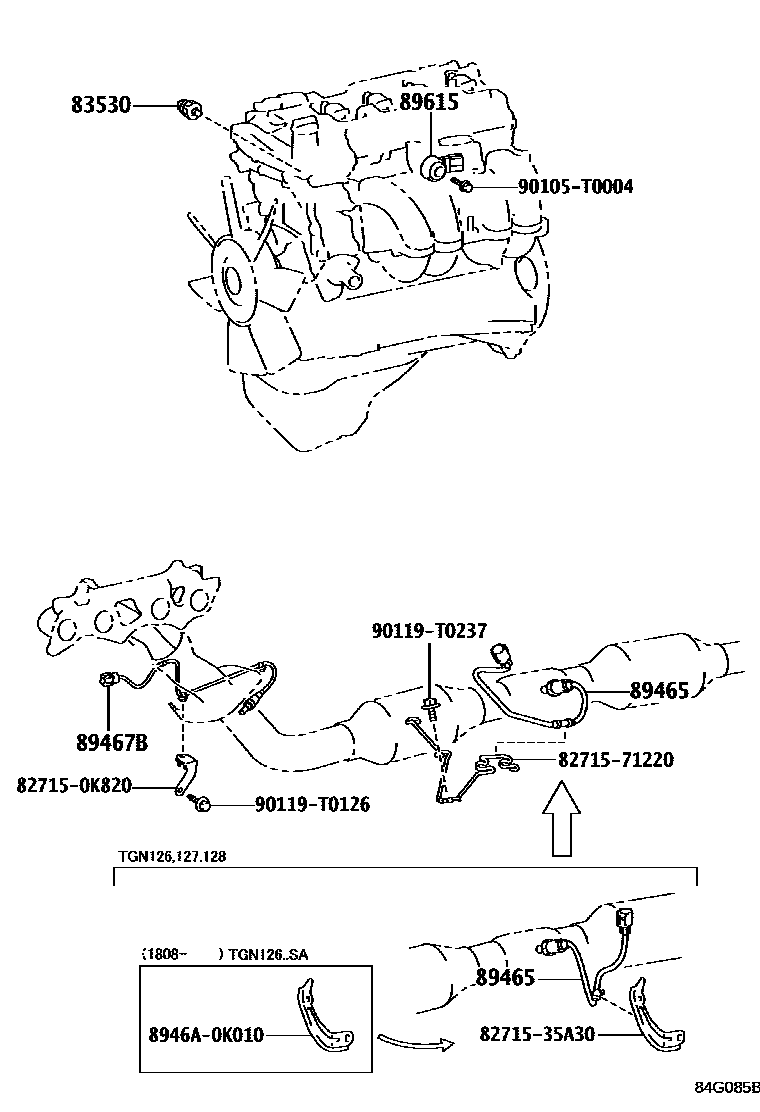

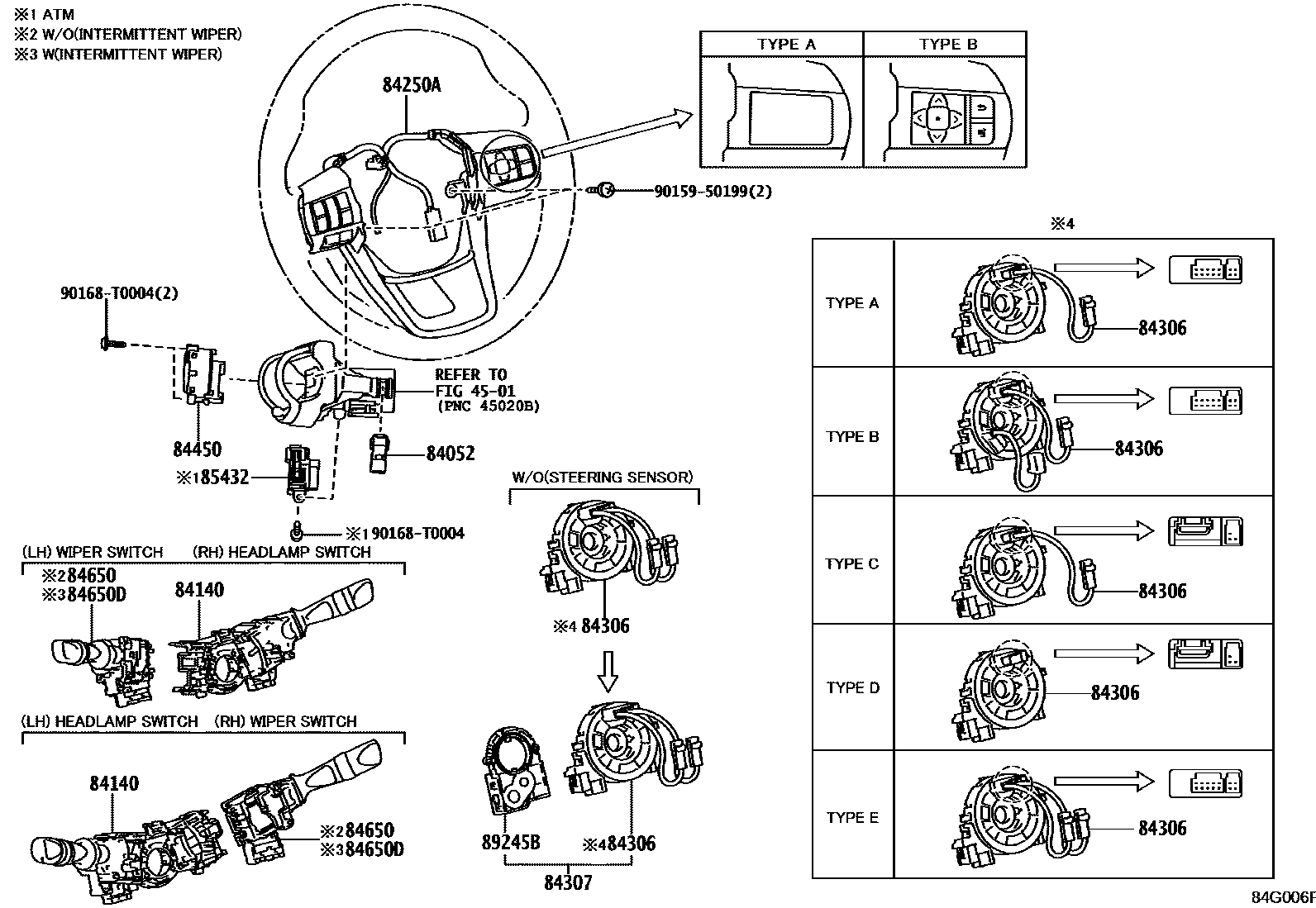

Toyota HILUX EPC diagram 8401, 开关和继电器和ECU, with 20 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-0L011 · 28300-21020 · 28300-30050 |
| 28300F | ENSEMBLE RELAI, DEMARREUR, NO.2 | 28300-0L011 · 28300-21020 |
| 28371 | No. 1 ignition relay | 90987-02027 · 90987-T2001 |
| 28371C | No. 2 ignition relay | 90987-02027 · 90987-T2001 |

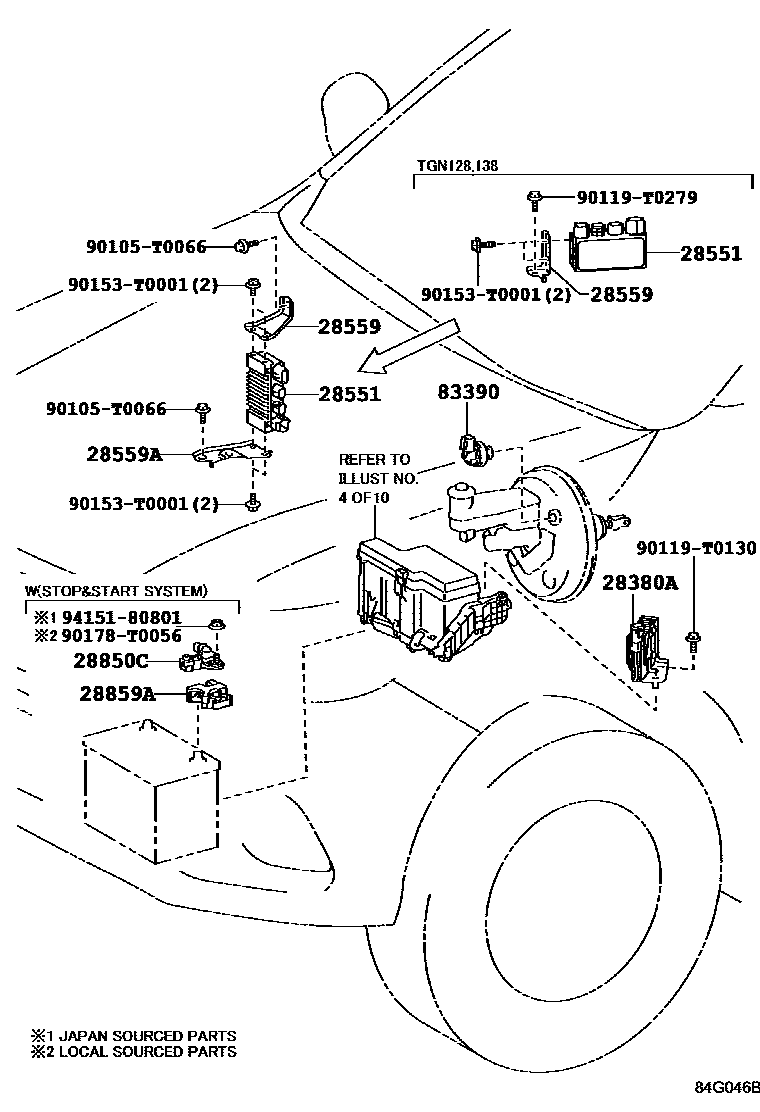

| 28380A | fuel pump resistor | 23080-31210 |

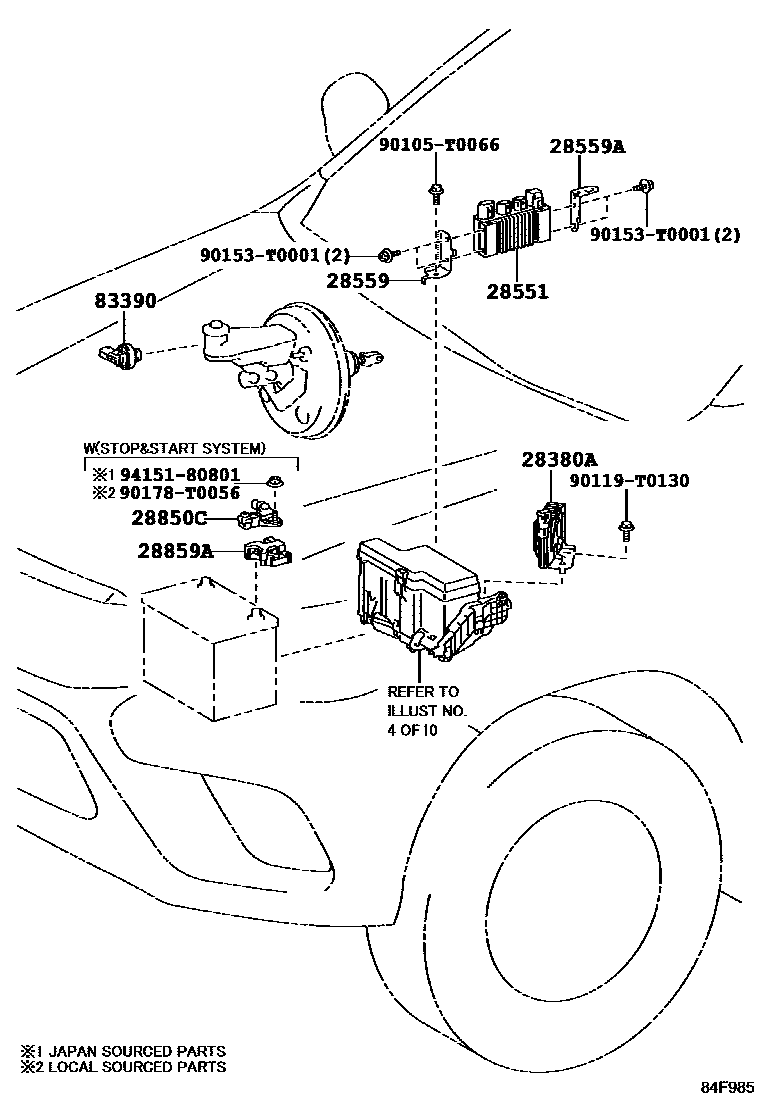

| 28551 | glow plug controller | 28551-0E010 · 28551-30010 |
| 28559 | Glow plug controller bracket No. 1 | 28559-0L010 · 28559-0L030 · 28559-0L050 · 28559-0L090 · 28559-0L110 · 28559-0L140 |
| 28559A | Glow plug controller bracket No. 2 | 28559-0L020 · 28559-0L040 · 28559-0L060 · 28559-0L100 · 28559-0L150 |
| 28610 | Glow plug relay assembly | 28610-27010 · 90987-02025 · 90987-T2002 |
| 28850C | ENS. CAPTEUR, ETAT BATTERIE | 28850-0Y010 |
| 28859A | SUPPORT, CAPTEUR D'INTENSITE DE BATTERIE | 28859-0L010 |

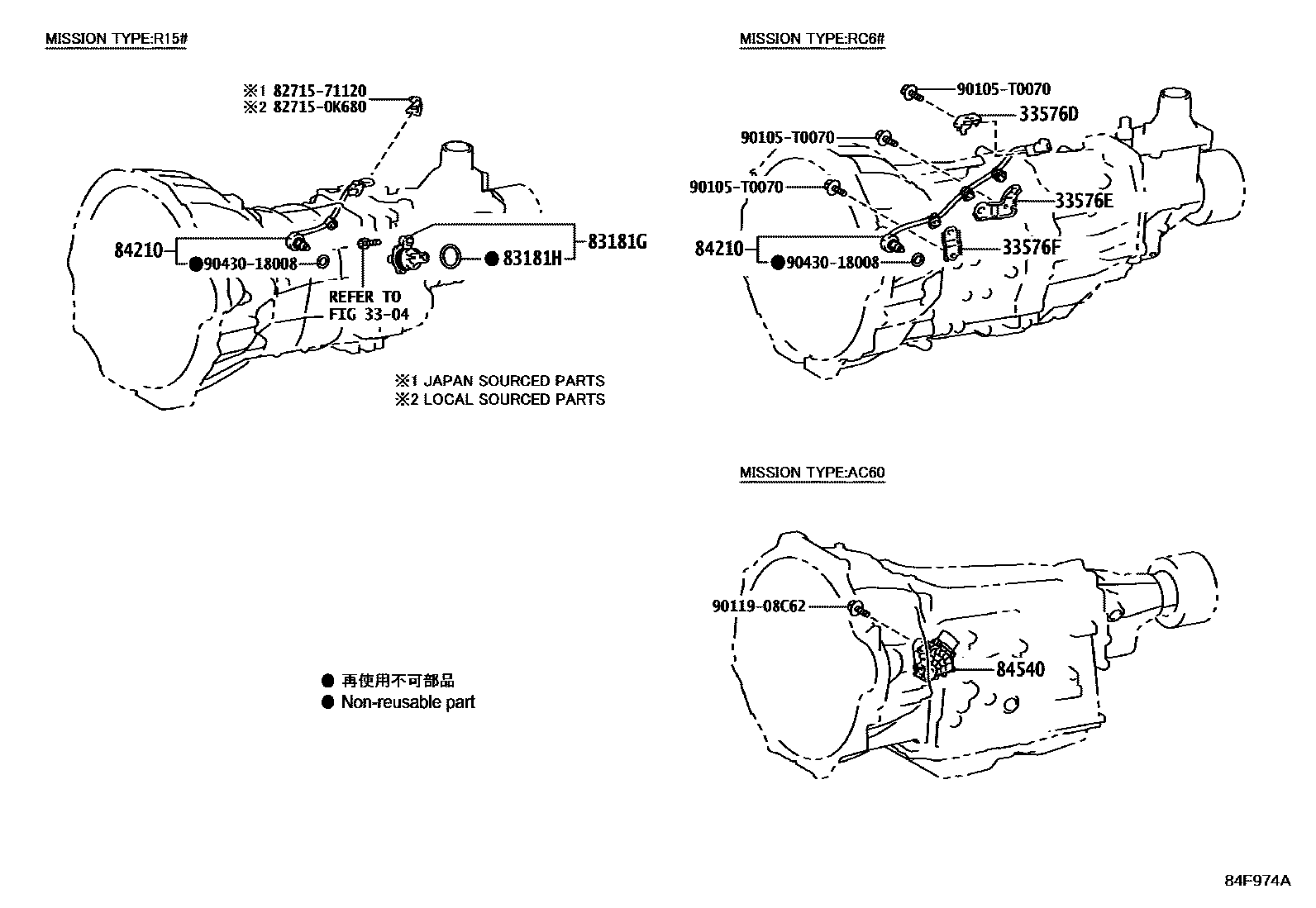

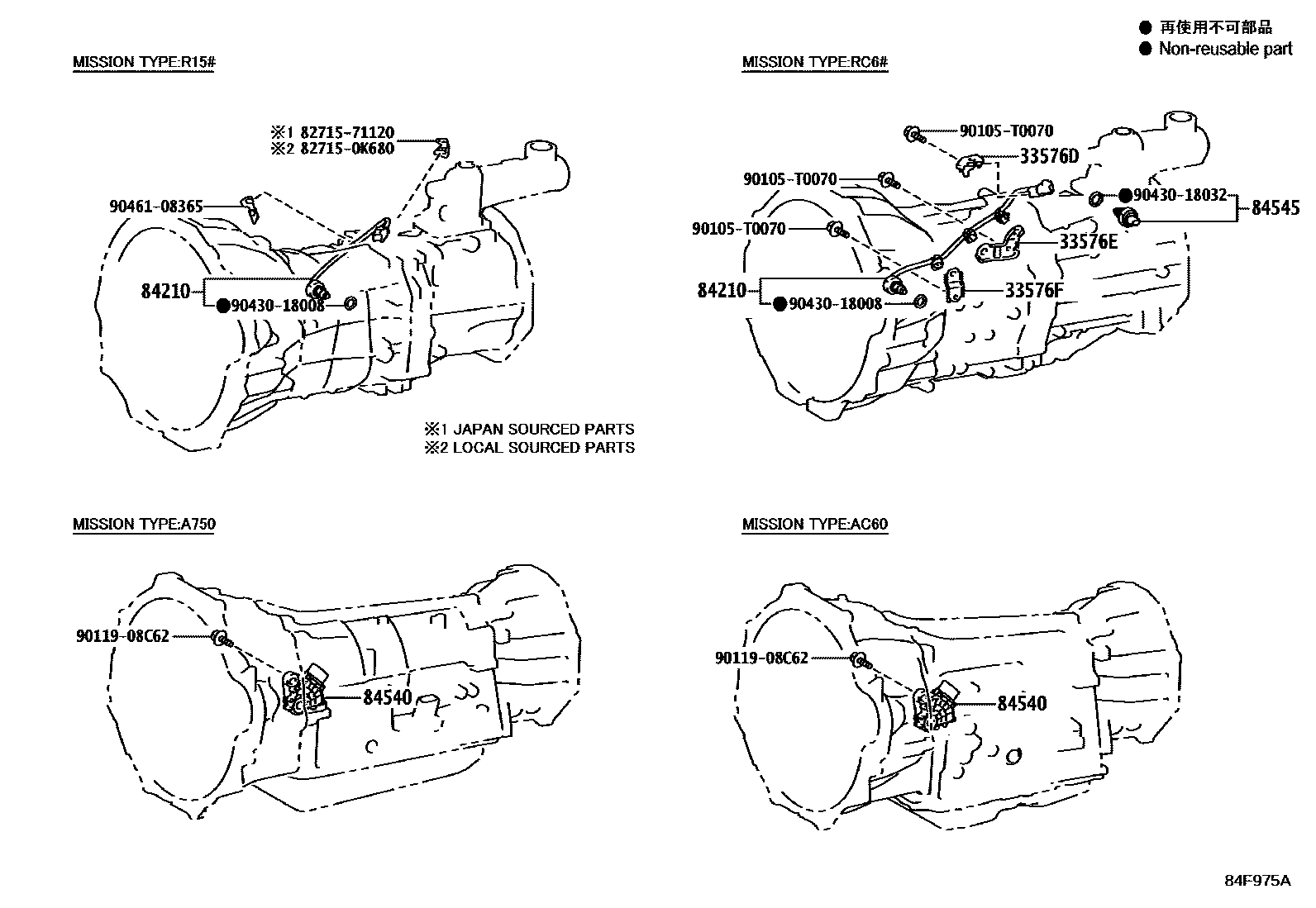

| 33576D | SUPPORT, COMMUT LAMPE SECOURS, NO.1 | 33576-0K010 · 33576-0K040 |
| 33576E | SUPPORT, COMMUT LAMPE SECOURS, NO.2 | 33576-0K020 · 33576-0K050 |
| 33576F | SUPPORT, COMMUT LAMPE SECOURS, NO.3 | 33576-0K030 · 33576-0K060 |
| 69065A | Air bag cut-off switch lock cylinder sub-assembly | 69065-0K010 |
| 82210M | fuse | 90982-08286 |

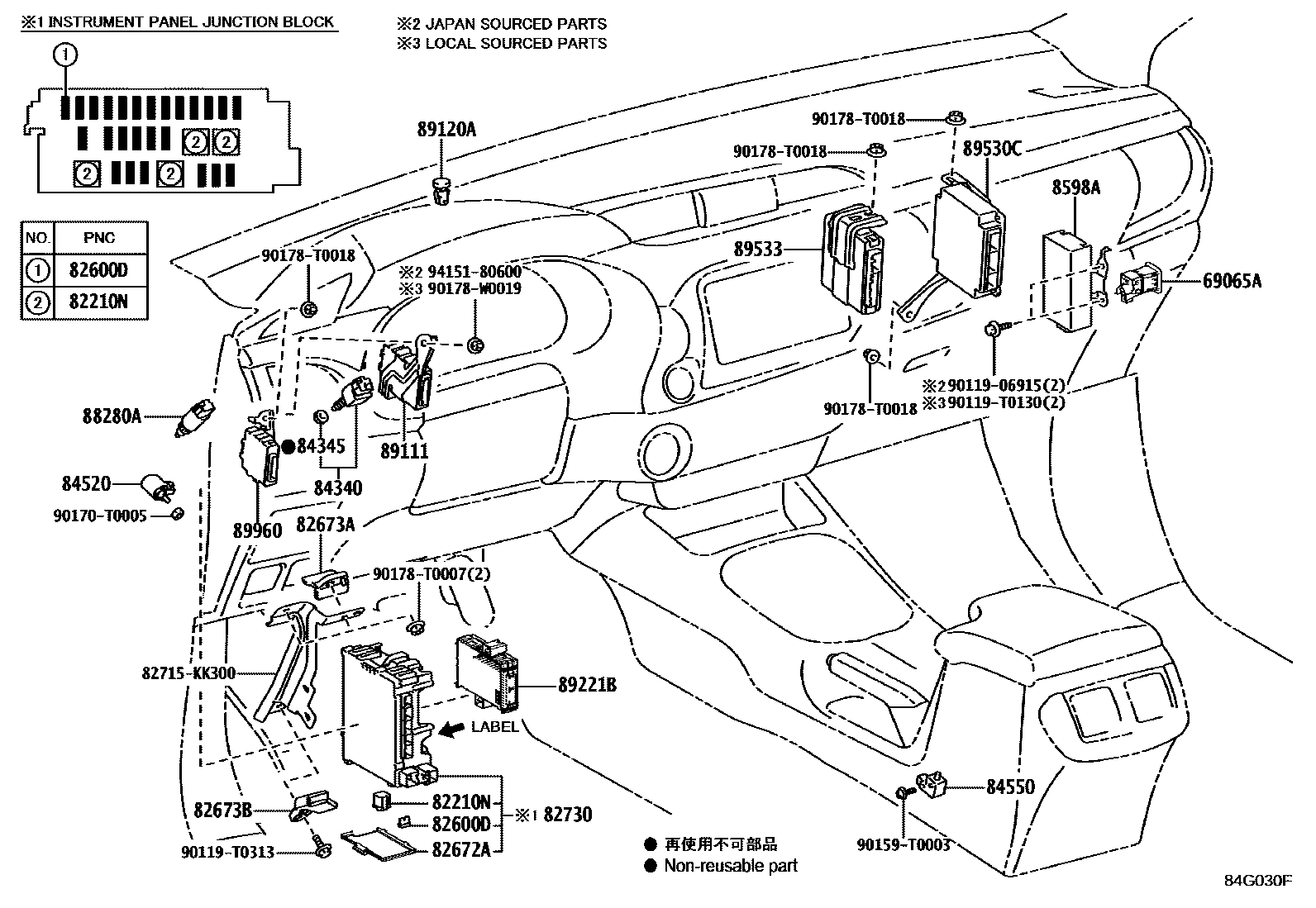

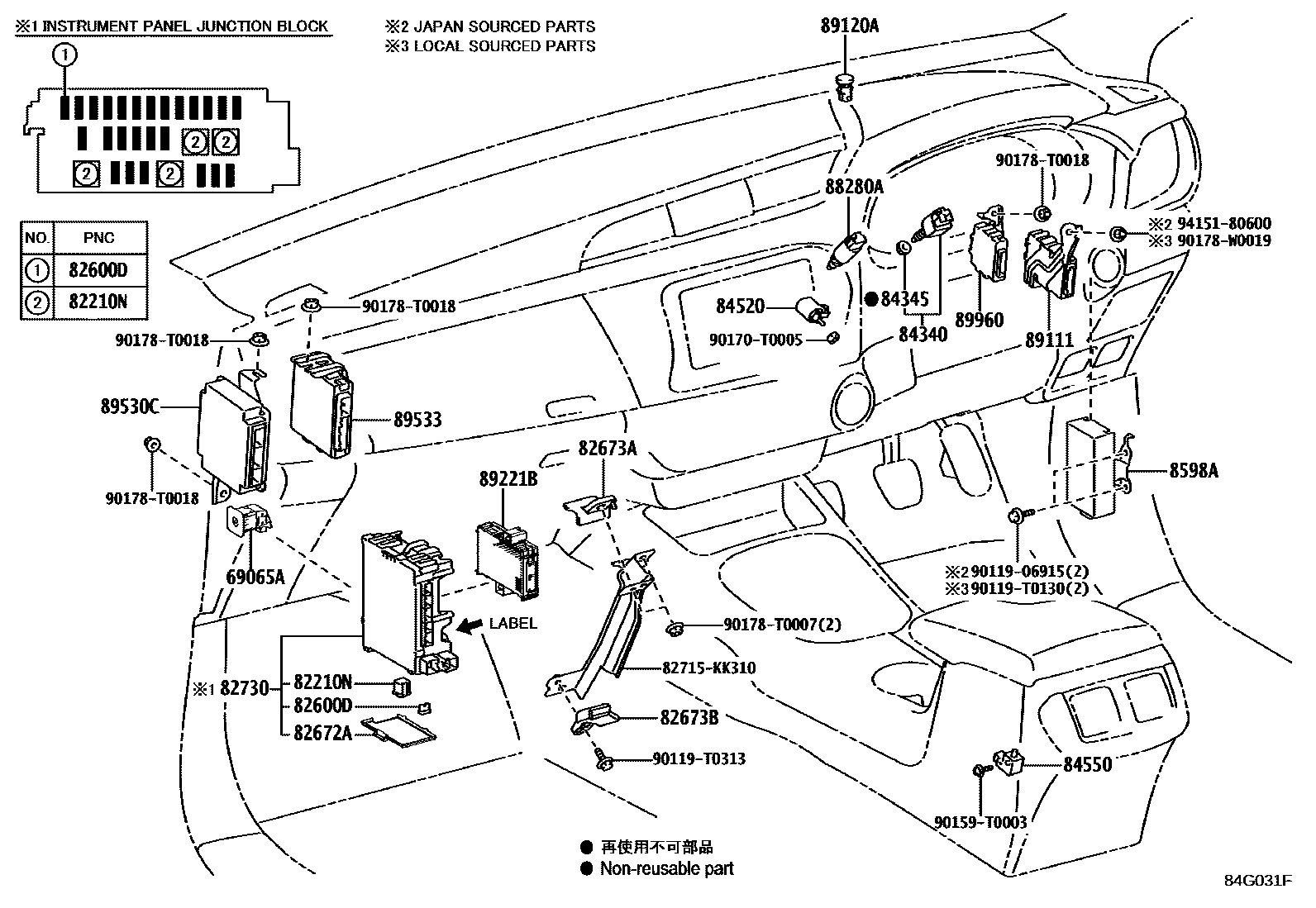

| 82210N | Instrument panel fuse | 90982-08294 · 90982-08295 |

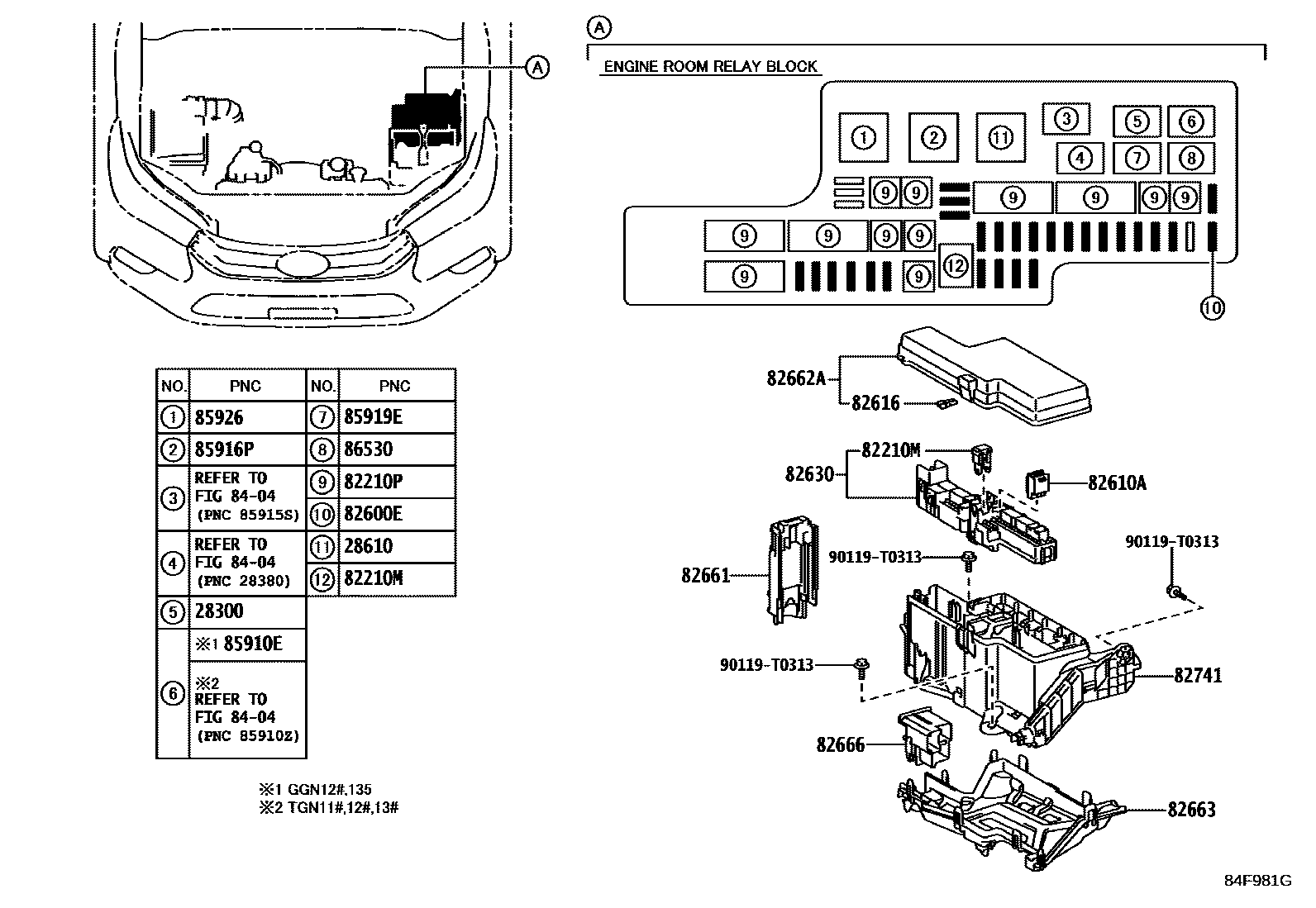

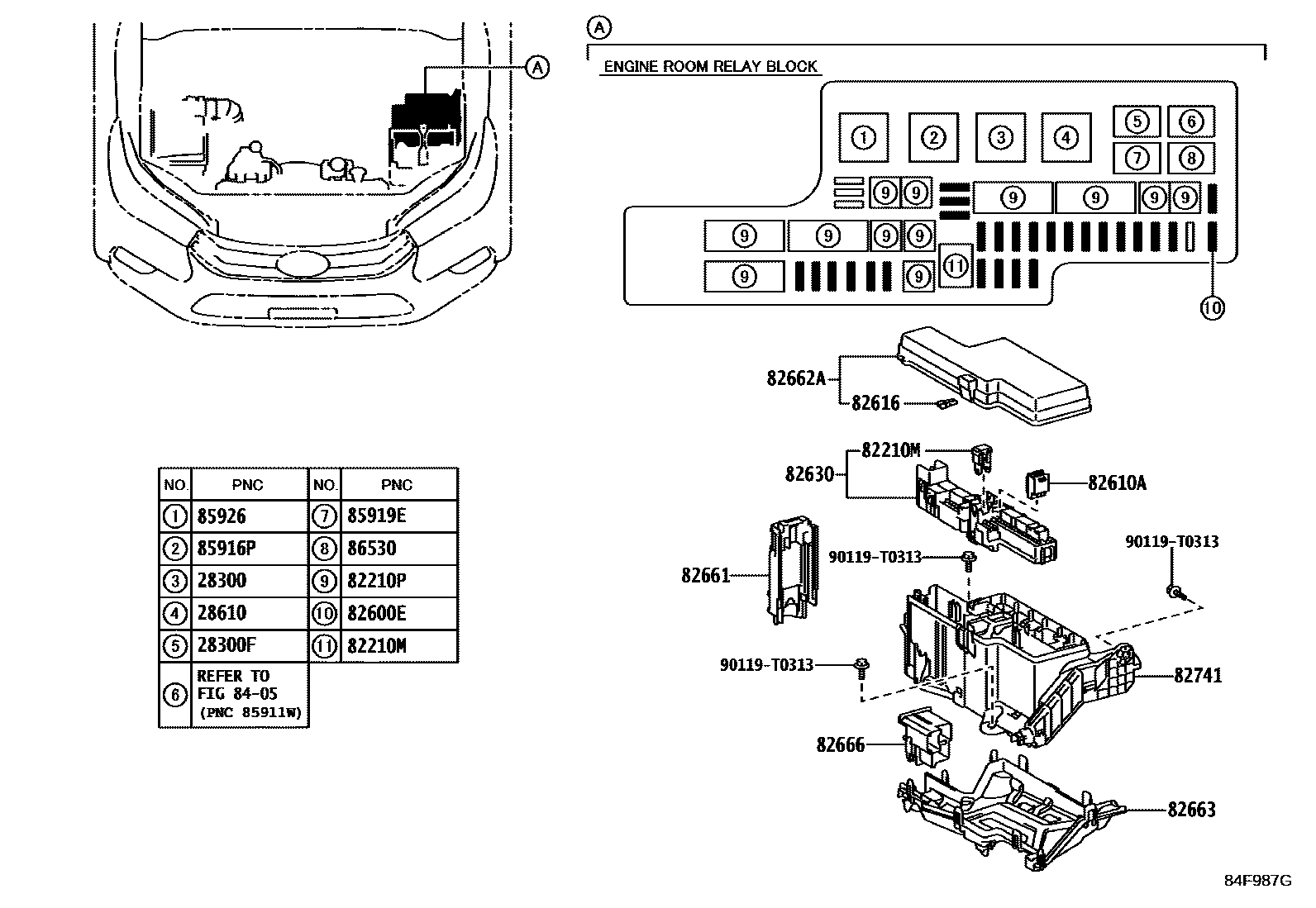

| 82210P | Engine room fuse | 90982-08294 · 90982-08295 · 90982-08296 · 90982-08299 · 90982-08300 · 90982-08301 · 90982-08302 · 90982-08303 · 90982-08304 · 90982-08305 · 90982-08307 · 90982-08308 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600F | Spare fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |

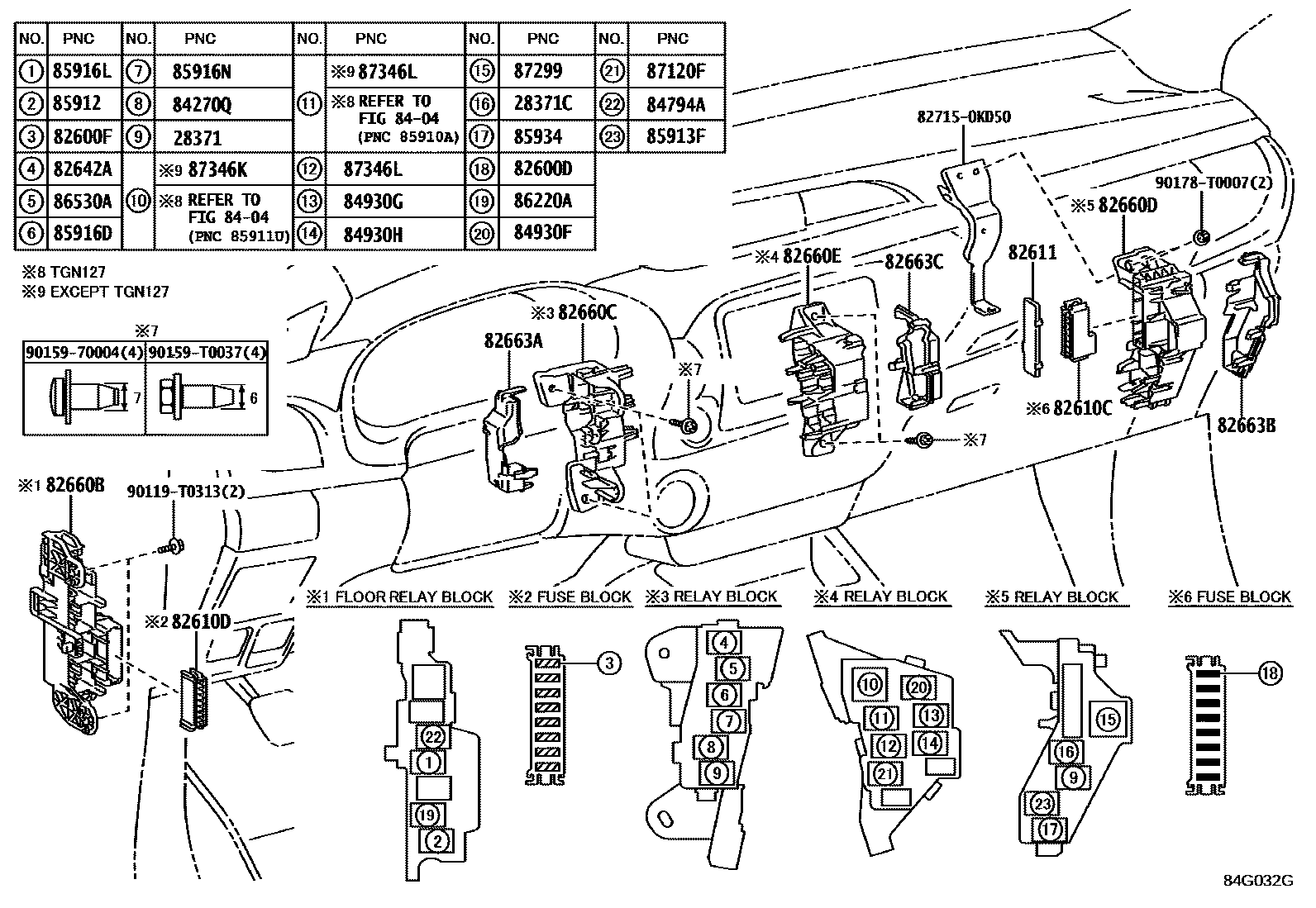

| 82610A | Fuse box assembly | 82610-0K030 |
| 82610C | Fuse box assembly | 82610-0K010 |
| 82610D | Fuse box assembly | 82610-0K010 |
| 82611 | fuse box cover | 82611-0K010 · 82611-0K020 · 82611-0K030 · 82611-0K040 · 82611-0K050 · 82611-0K060 |
| 82616 | fuse puller | 82616-58010 |
| 82630 | Fuse holder assembly | 82630-0K020 |
| 82642A | driving light relay | 90987-02027 · 90987-T2001 |

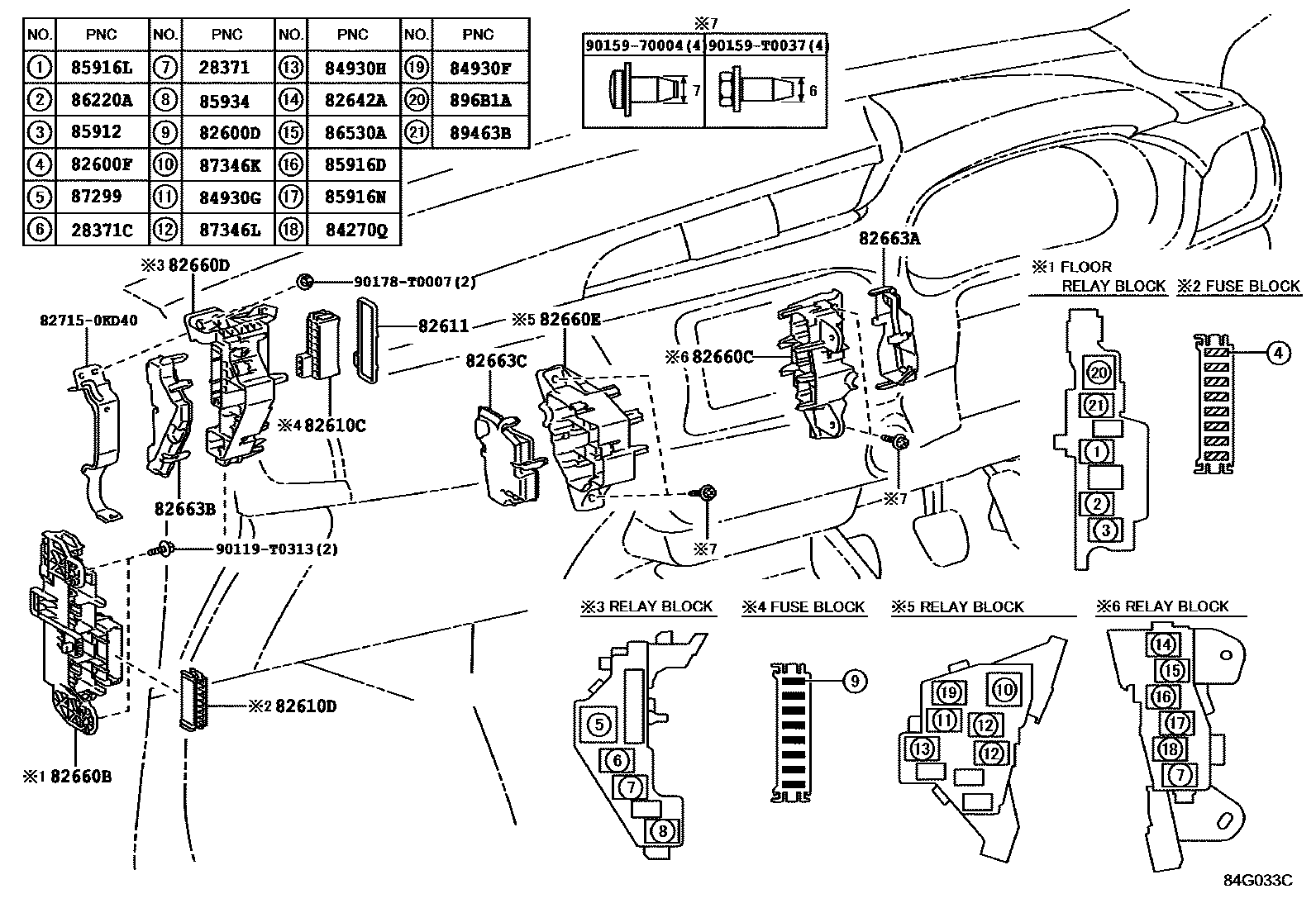

| 82660B | Relay assembly | 82660-0K110 · 82660-0K160 · 82660-0K161 · 82660-0K170 |
| 82660C | Relay assembly | 82660-0K050 · 82660-0K060 |
| 82660D | Relay assembly | 82660-0K070 · 82660-0K080 |
| 82660E | Relay assembly | 82660-0K090 · 82660-0K100 |
| 82661 | No. 1 relay box cover | 82661-0K050 · 82661-0K080 · 82661-0K090 |
| 82662A | No. 1 relay box upper cover | 82662-0K180 · 82662-0K190 · 82662-0K370 · 82662-0K400 · 82662-0K430 · 82662-0K480 · 82662-0K490 · 82662-0K570 · 82662-0K580 · 82662-0K600 · 82662-0K610 · 82662-0K620 · 82662-0K630 · 82662-0K640 · 82662-0K770 · 82662-0K780 · 82662-0K790 · 82662-0K800 · 82662-0K810 · 82662-0K830 · 82662-0K840 |
| 82663 | Relay box lower cover | 82663-0K020 |
| 82663A | No. 2 relay box lower cover | 82663-0K050 |
