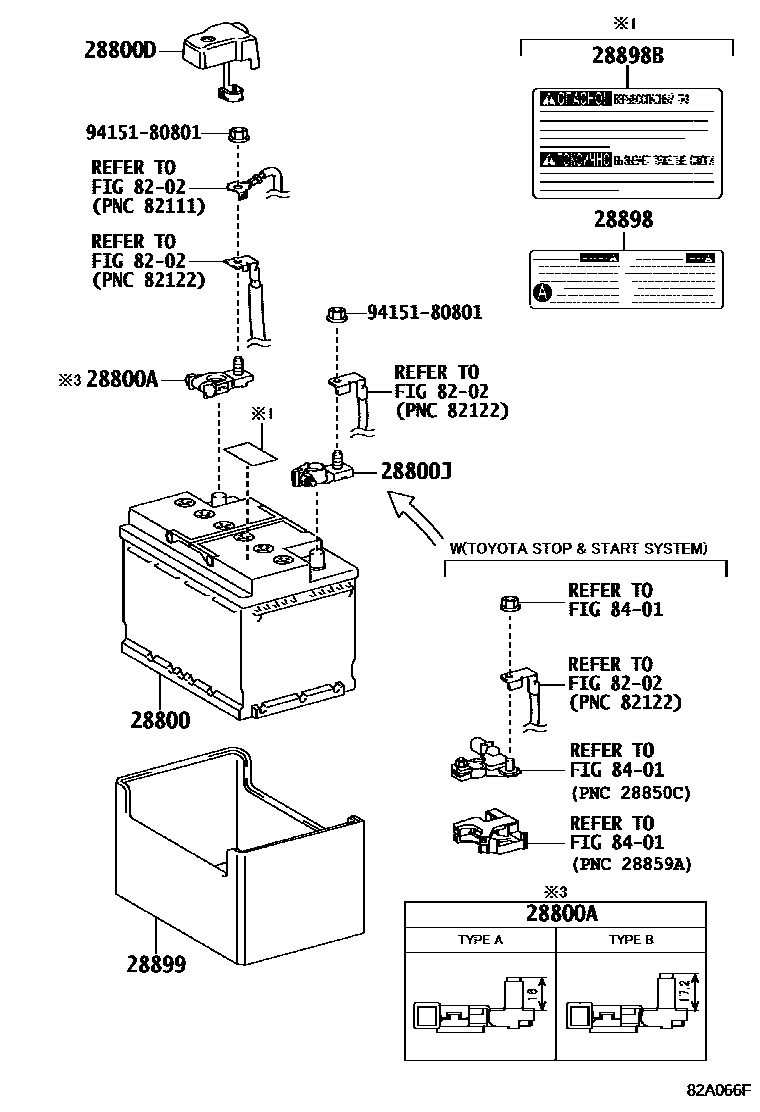

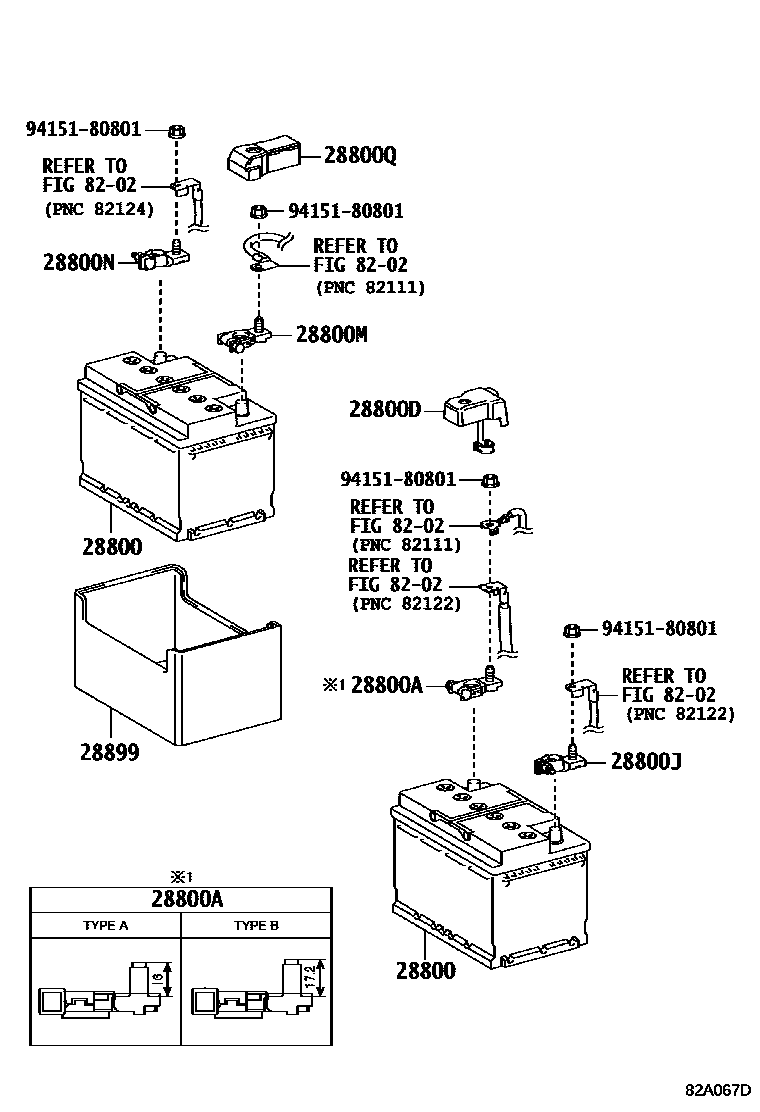

Toyota HILUX 蓄电池和蓄电池电缆 — Figure 8201
Toyota HILUX EPC diagram 8201, 蓄电池和蓄电池电缆, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-0C210 · 28800-0C240 · 28800-0C250 · 28800-0C251 · 28800-0C260 · 28800-0C270 · 28800-0C271 · 28800-0C272 · 28800-0C280 · 28800-0C360 · 28800-0L320 · 28800-0L380 · 28800-0L460 · 28800-0L470 · 28800-0L480 · 28800-0L490 · 28800-0L500 · 28800-0L501 · 28800-0L502 · 28800-0L510 · 28800-0L520 · 28800-0L570 · 28800-0L600 · 28800-0L670 · 28800-0L671 · 28800-0L672 · 28800-0L720 · 28800-0L730 |
| 28800A | battery positive terminal | 90982-05054 · 90982-05061 |
| 28800D | Connector cover (for battery terminals) | 82821-0K160 · 82821-0K220 |
| 28800J | battery negative terminal | 90982-06059 |
| 28800M | battery positive terminal | 90982-05056 |
| 28800N | battery negative terminal | 90982-06070 |
| 28800Q | Connector cover (for battery) | 82821-0K040 |
| 28898 | battery plates | 28897-36030 |
| 28898B | battery plates | 28897-31040 |
| 28899 | Battery insulation cover | 28899-27020 |
