Toyota HILUX 车内灯 — Figure 8121

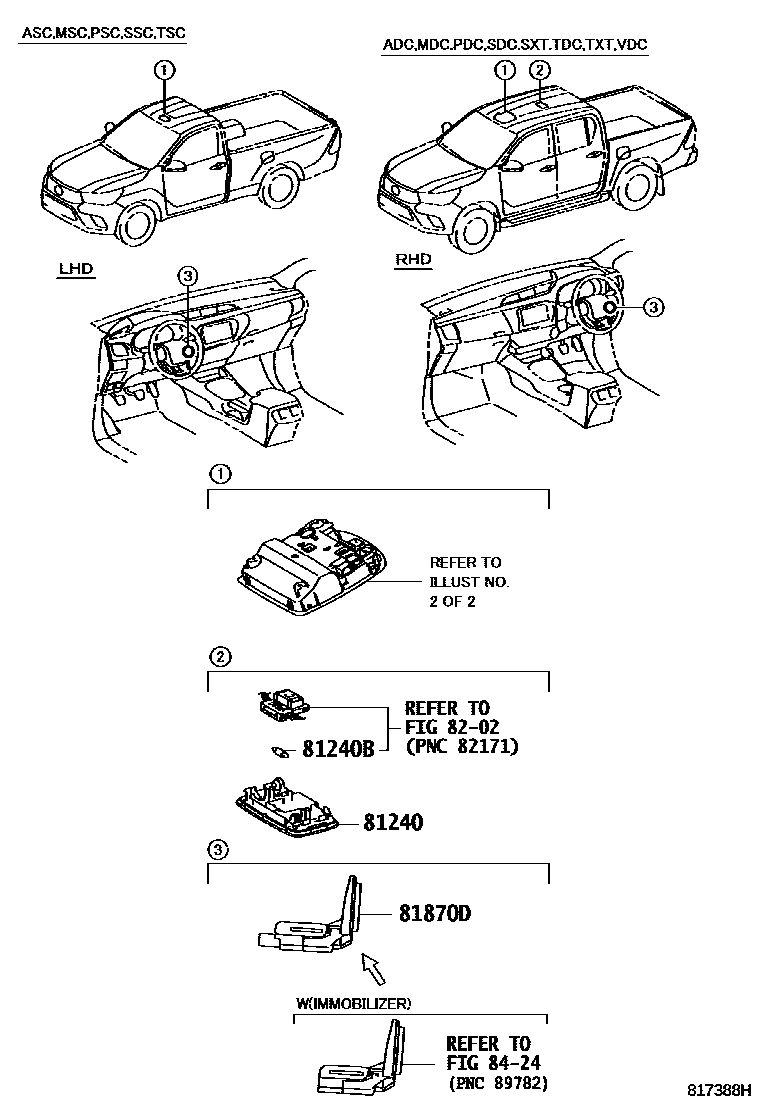

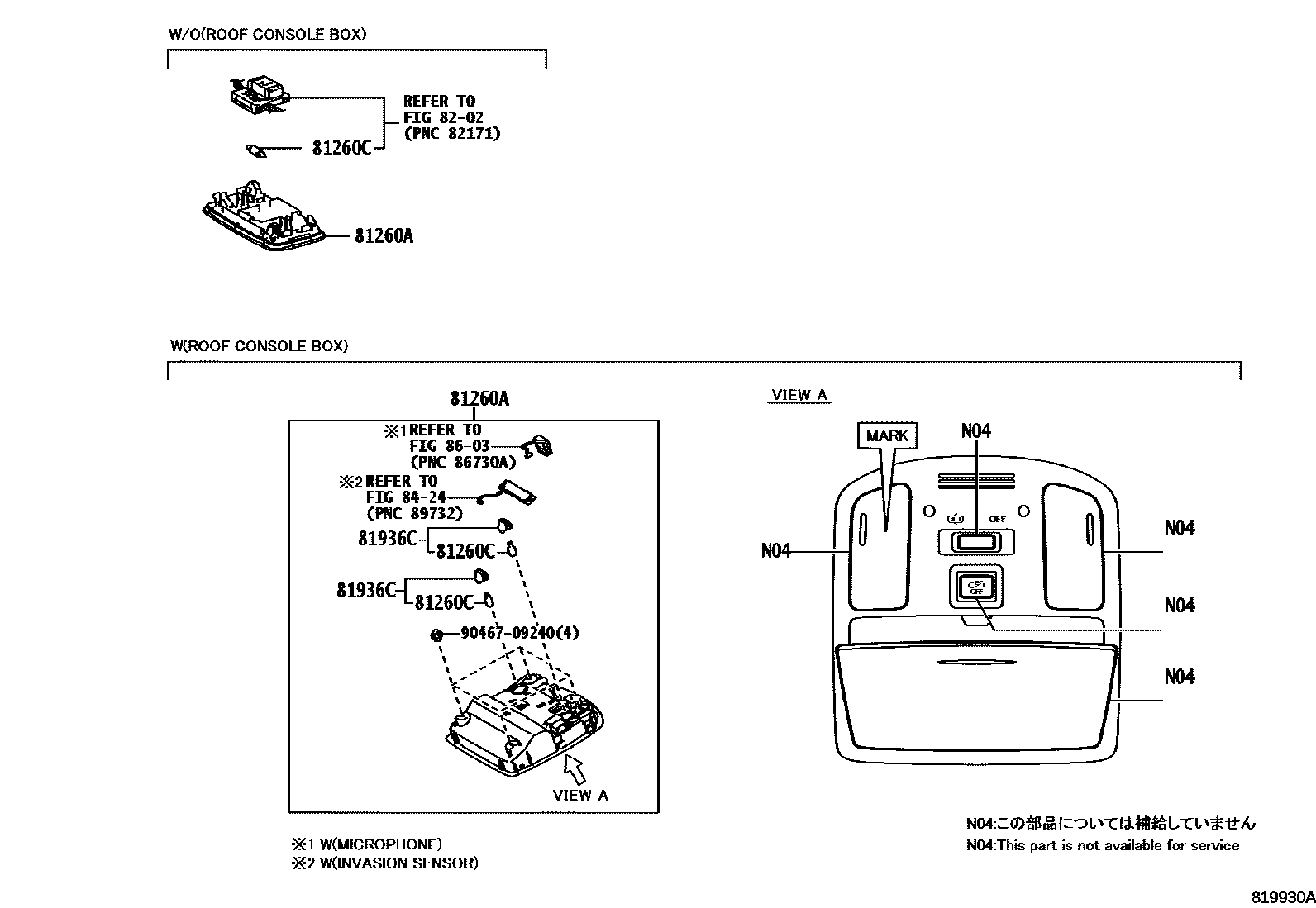

Toyota HILUX EPC diagram 8121, 车内灯, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81260C | Light bulb (for reading lamp) | 90981-11062 · 90981-14011 · 99132-12050 |
| 81870D | Lock core lighting assembly | 81870-0K070 |
| 81936C | Bulb assembly | 81936-12150 · 81936-28010 |
