Toyota HILUX accelerator pedal connecting rod — Figure 7851

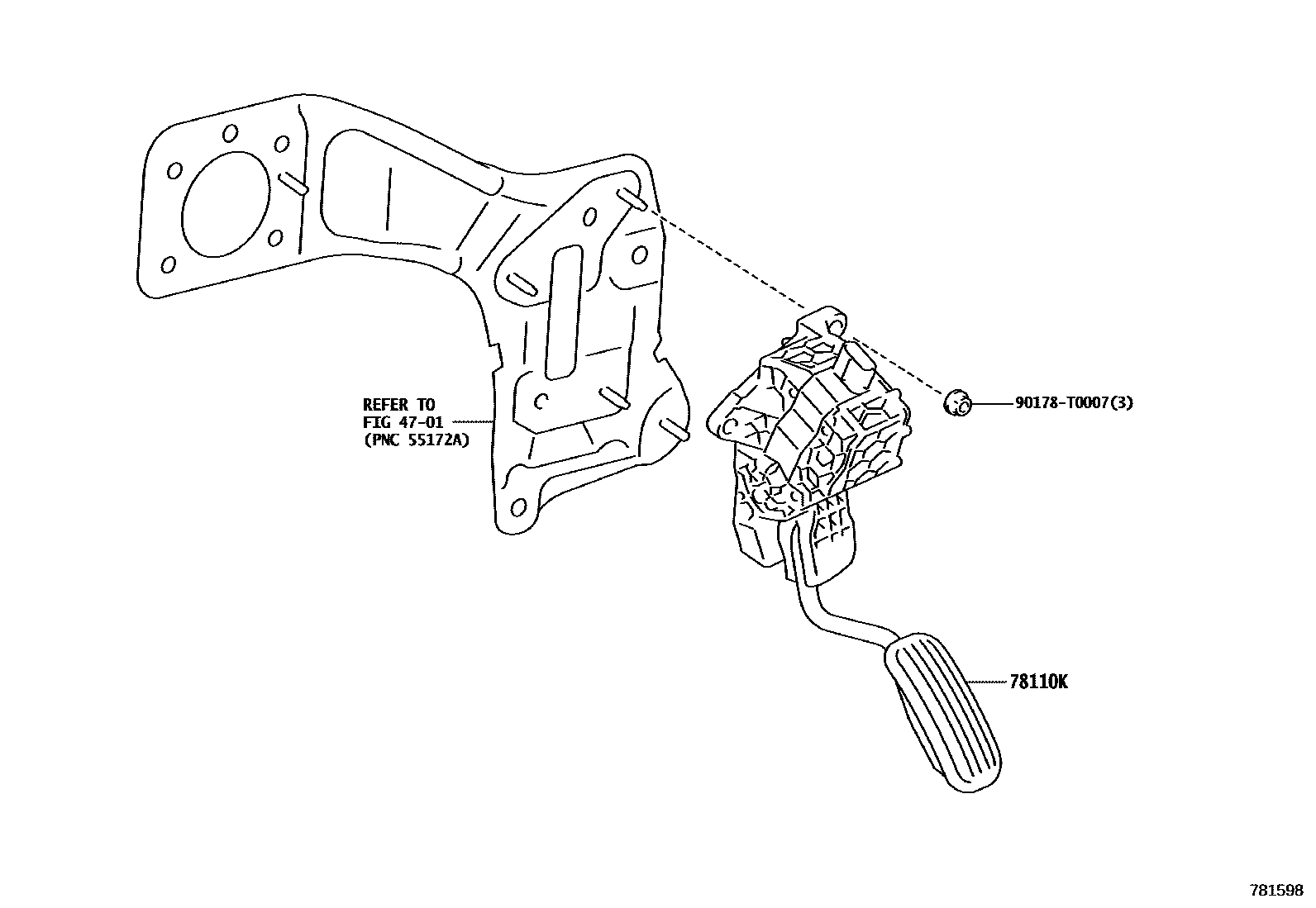

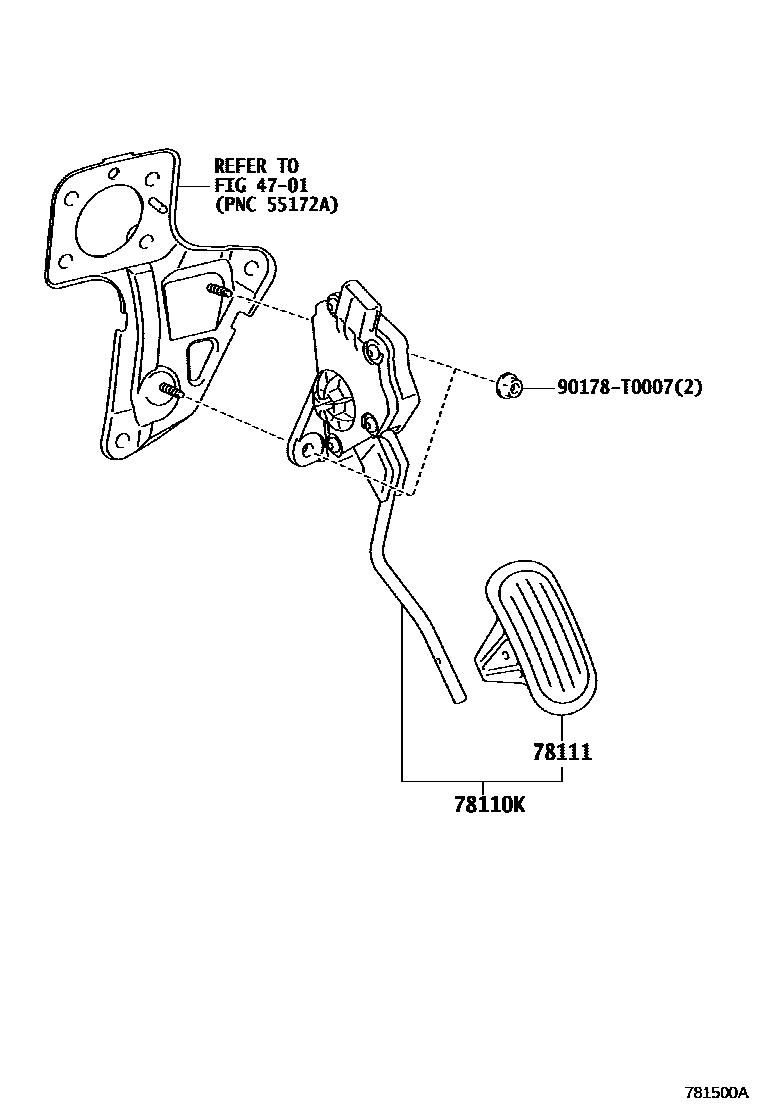

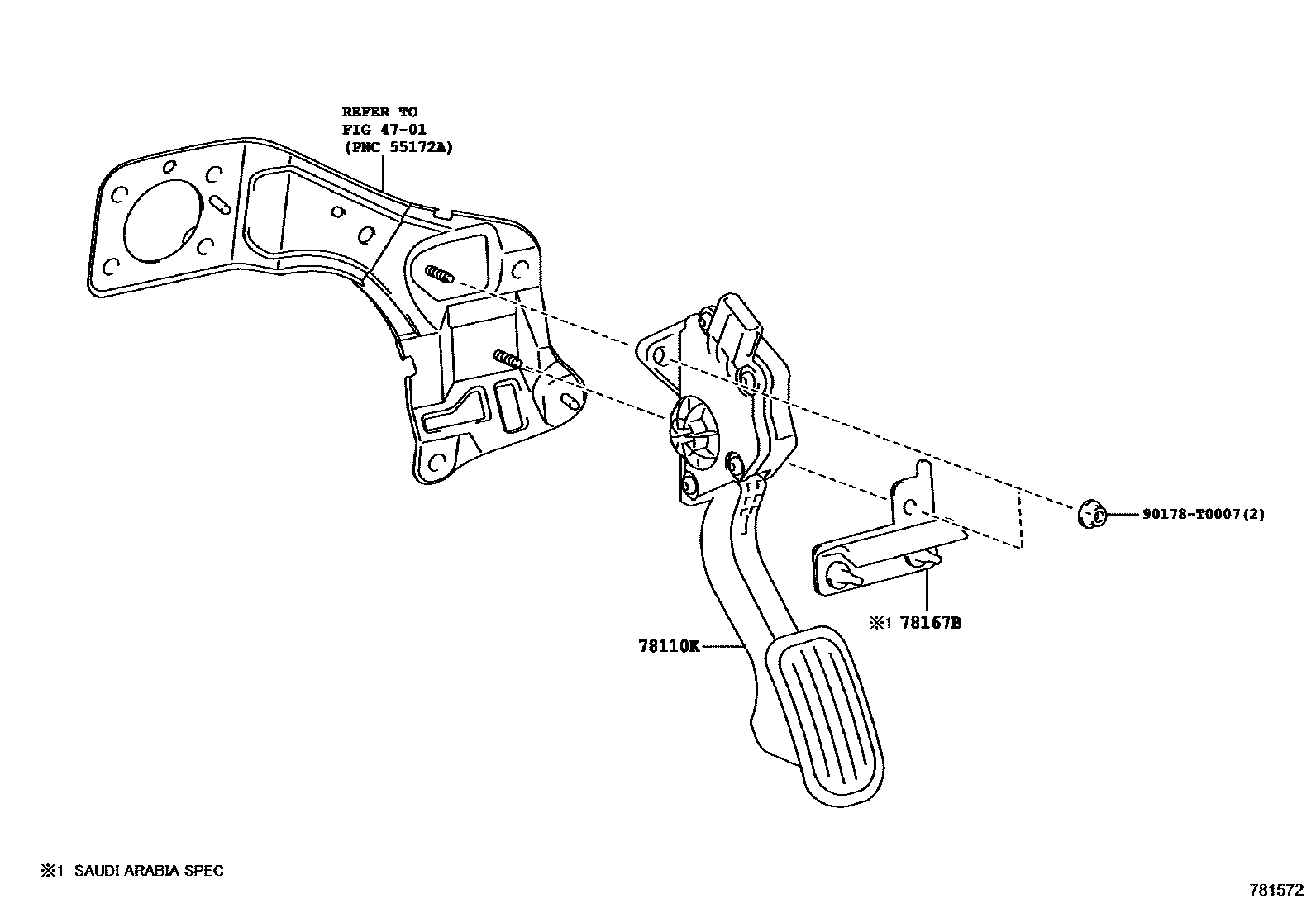

Toyota HILUX EPC diagram 7851, accelerator pedal connecting rod, with 3 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110K | Accelerator pedal sensor assembly | 78110-0K010 · 78110-0K020 · 78110-0K030 · 78110-0K040 · 78110-0K050 |
| 78111 | accelerator pedal | 78111-0K010 |
| 78167B | accelerator pedal control seal | 78167-71010 |
