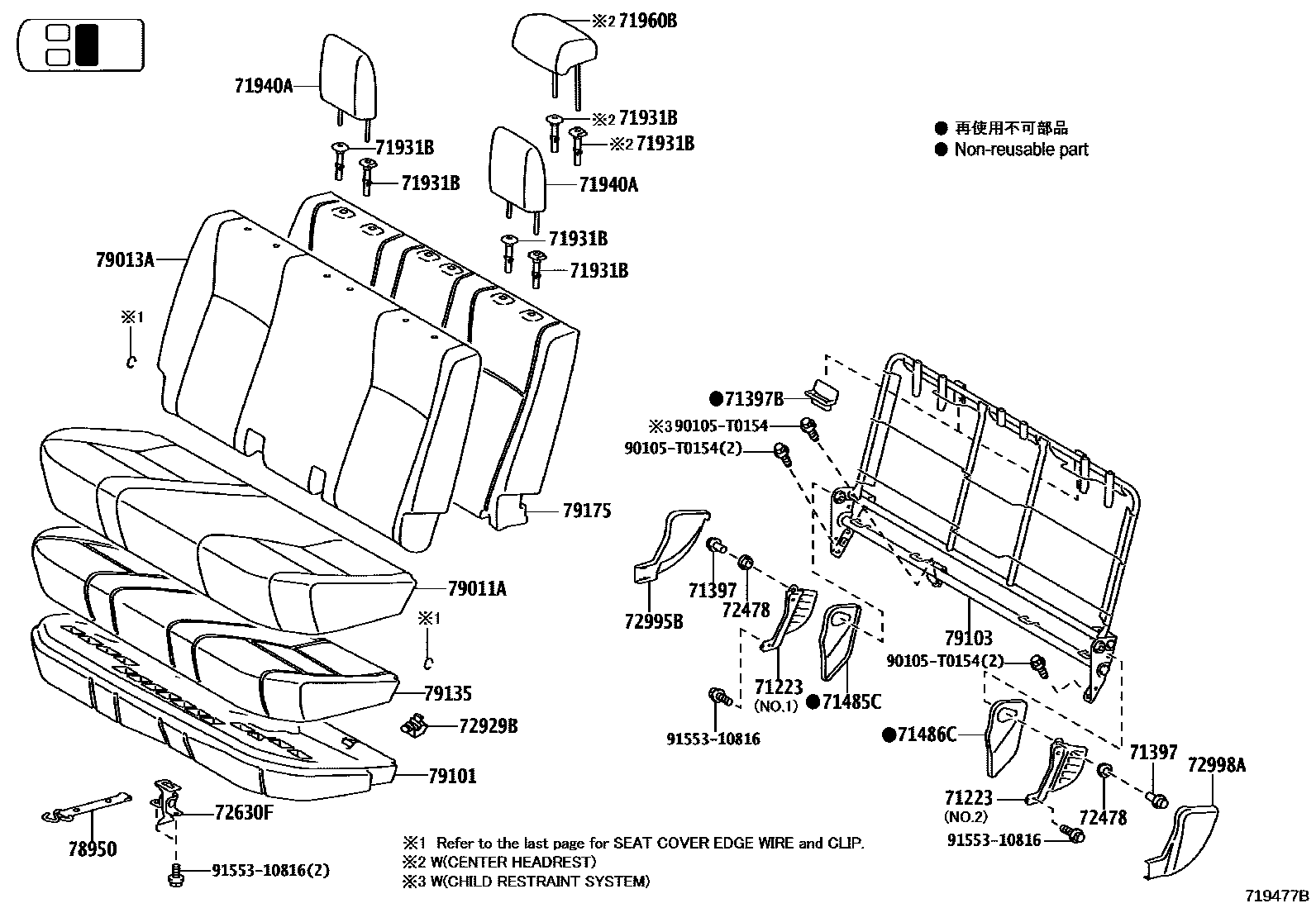

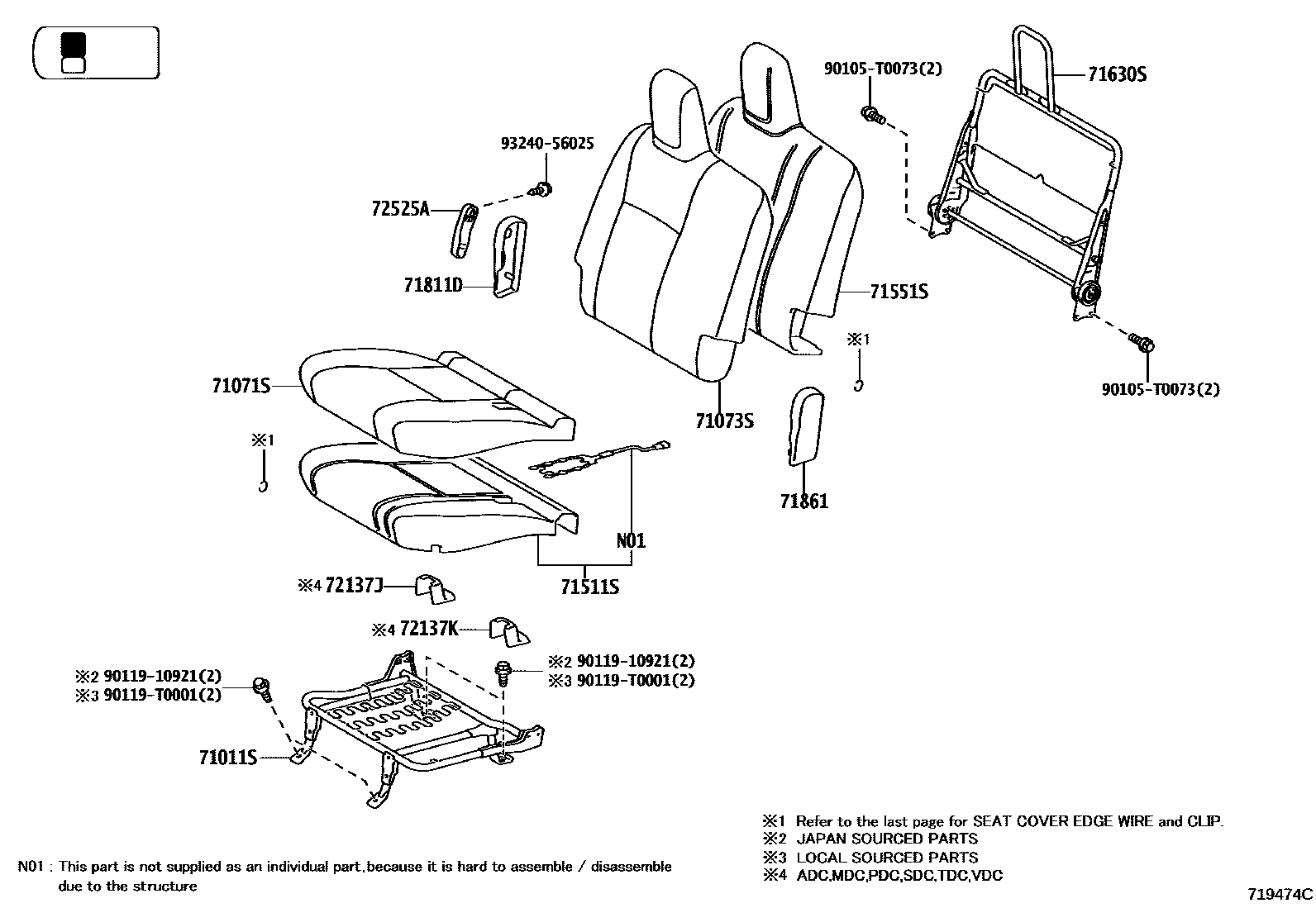

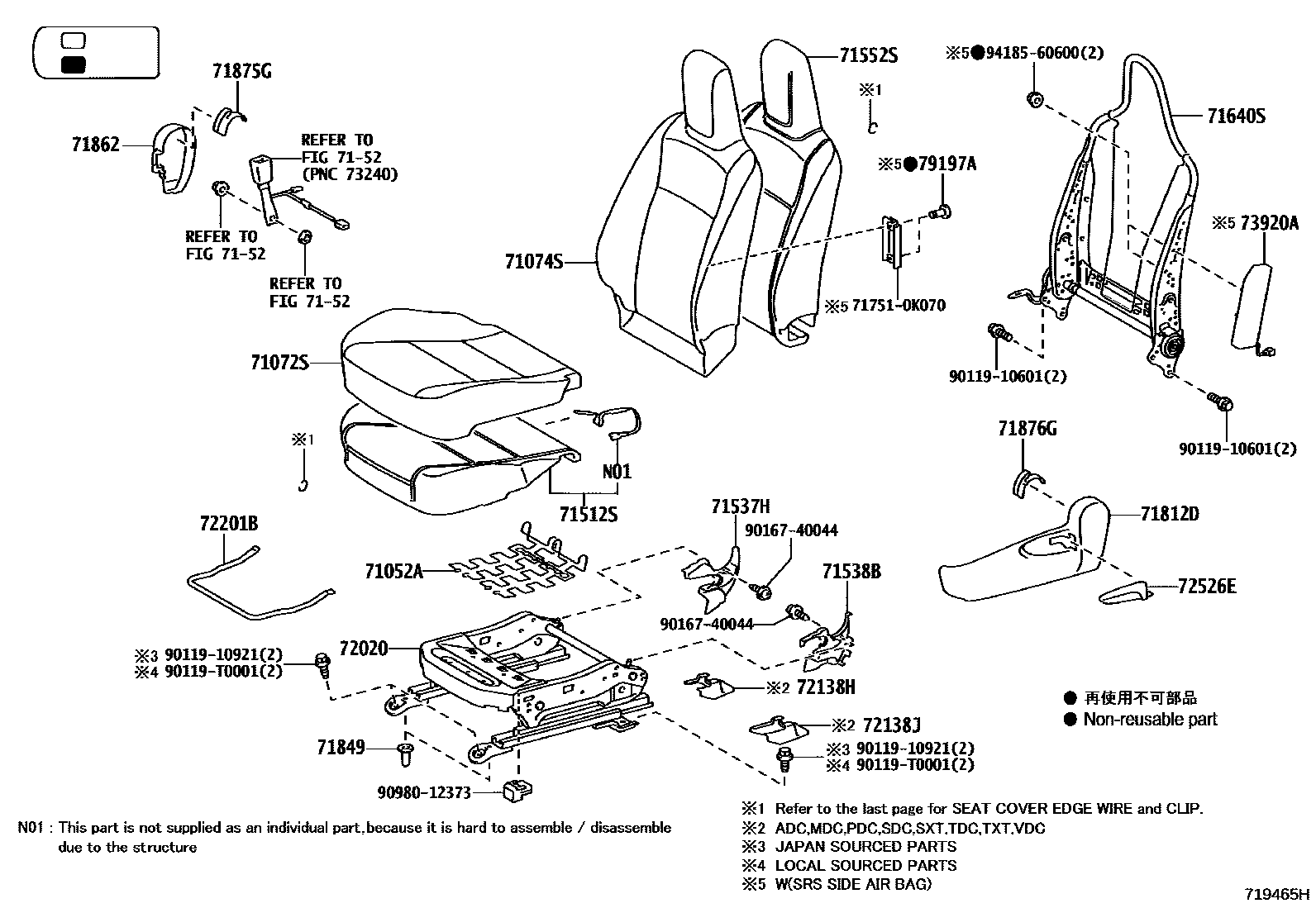

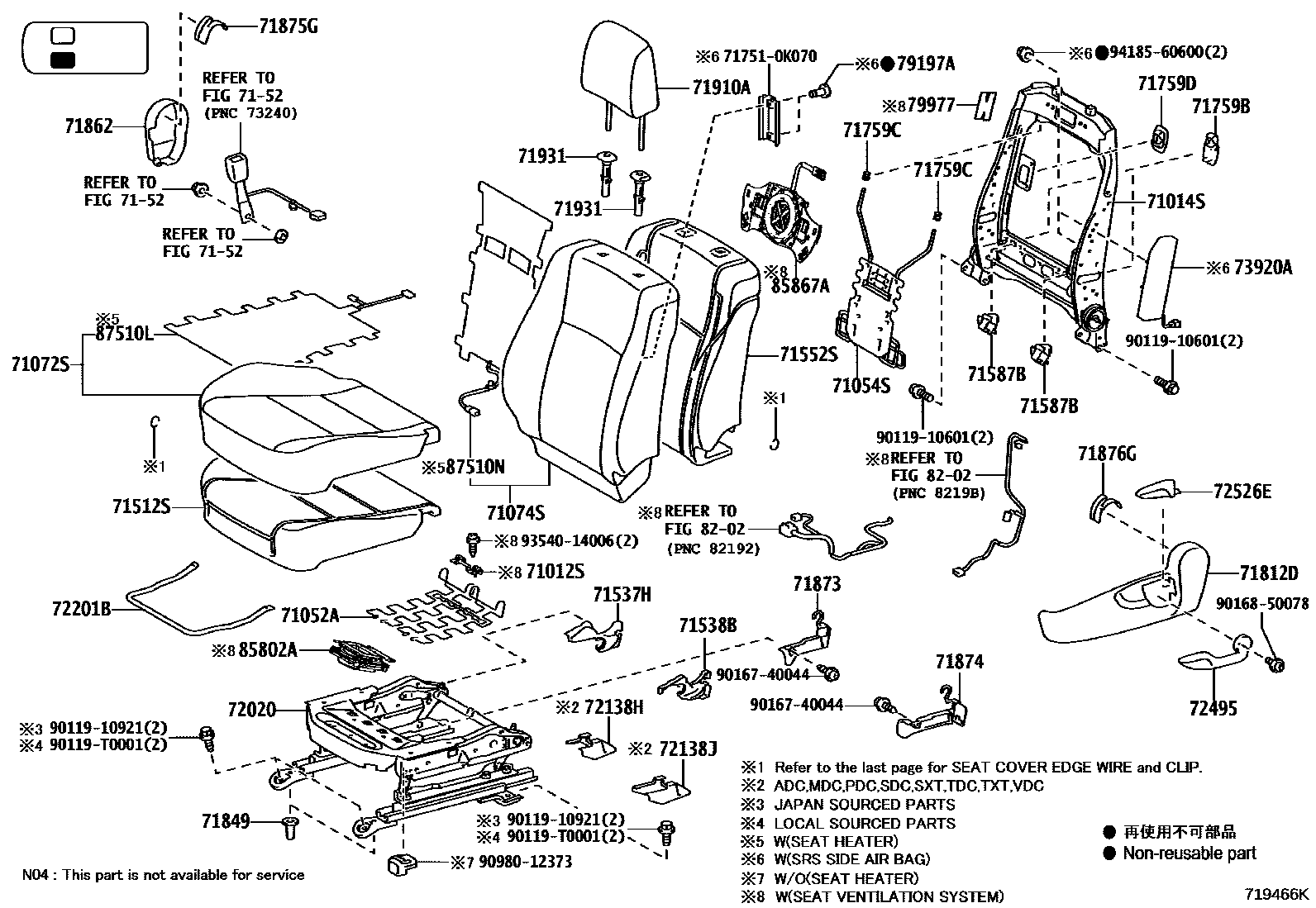

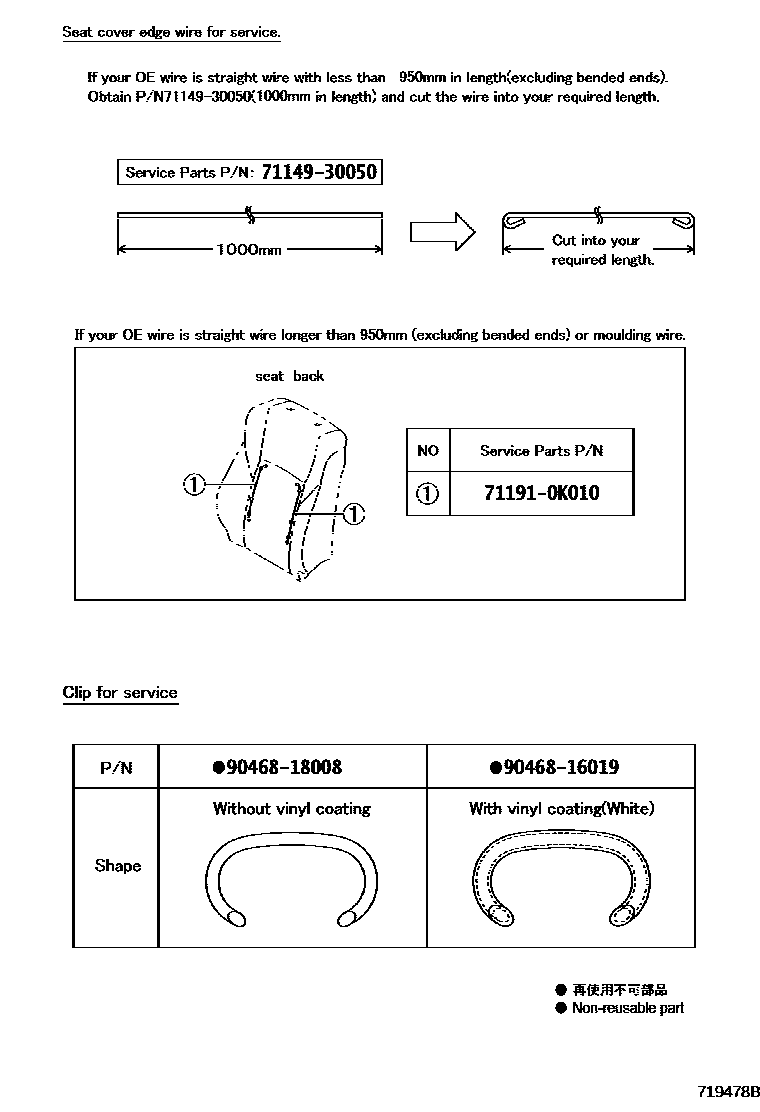

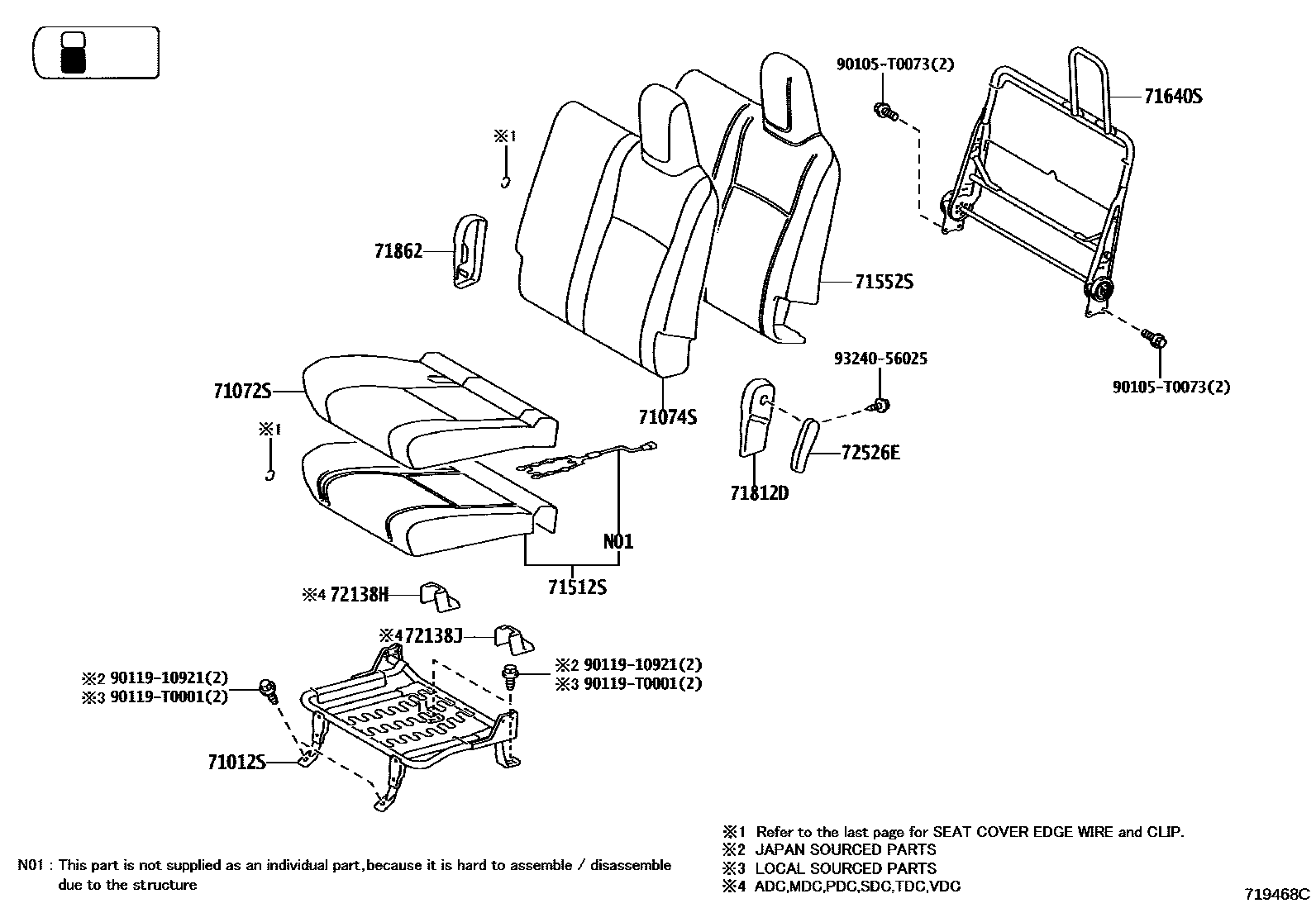

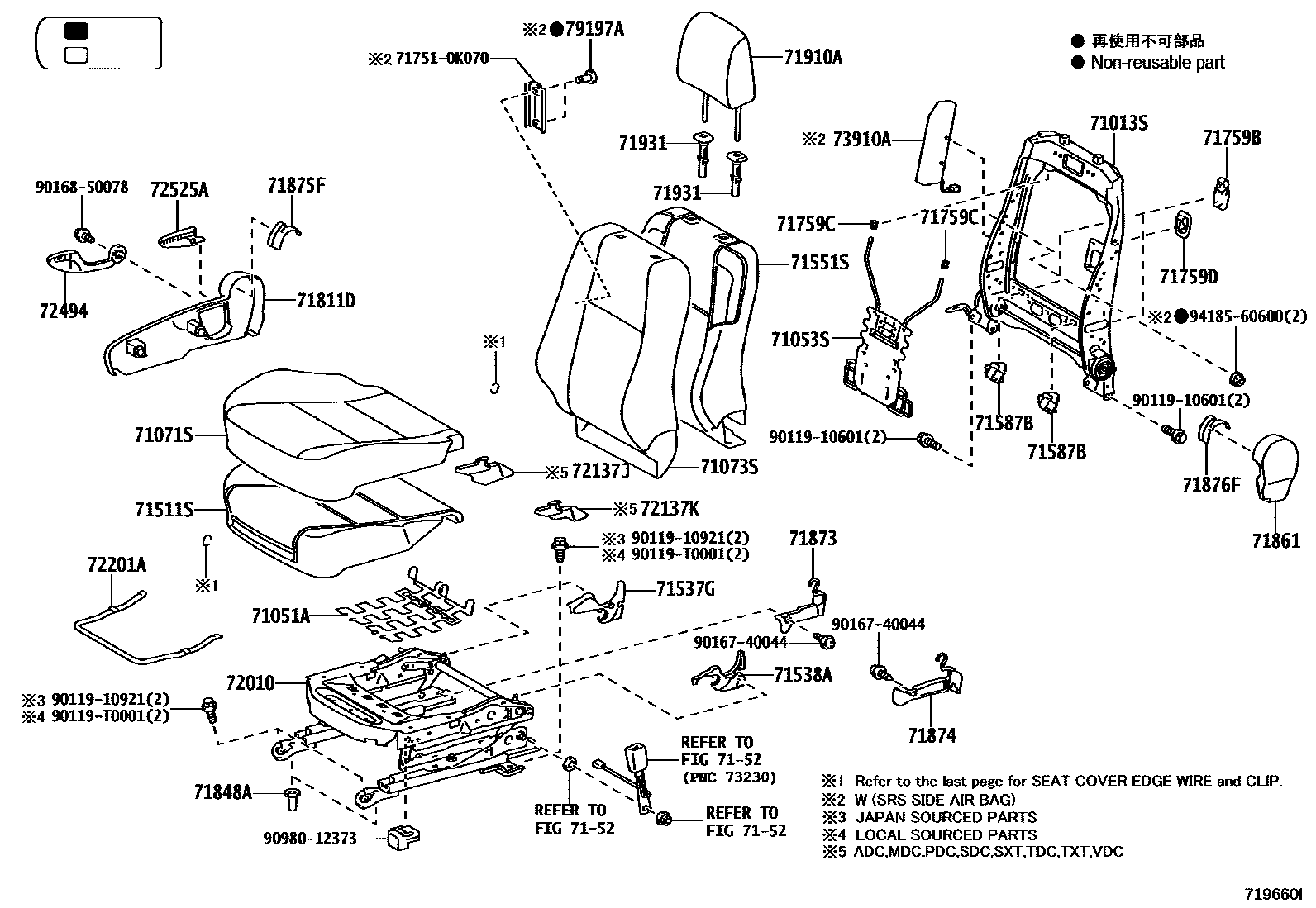

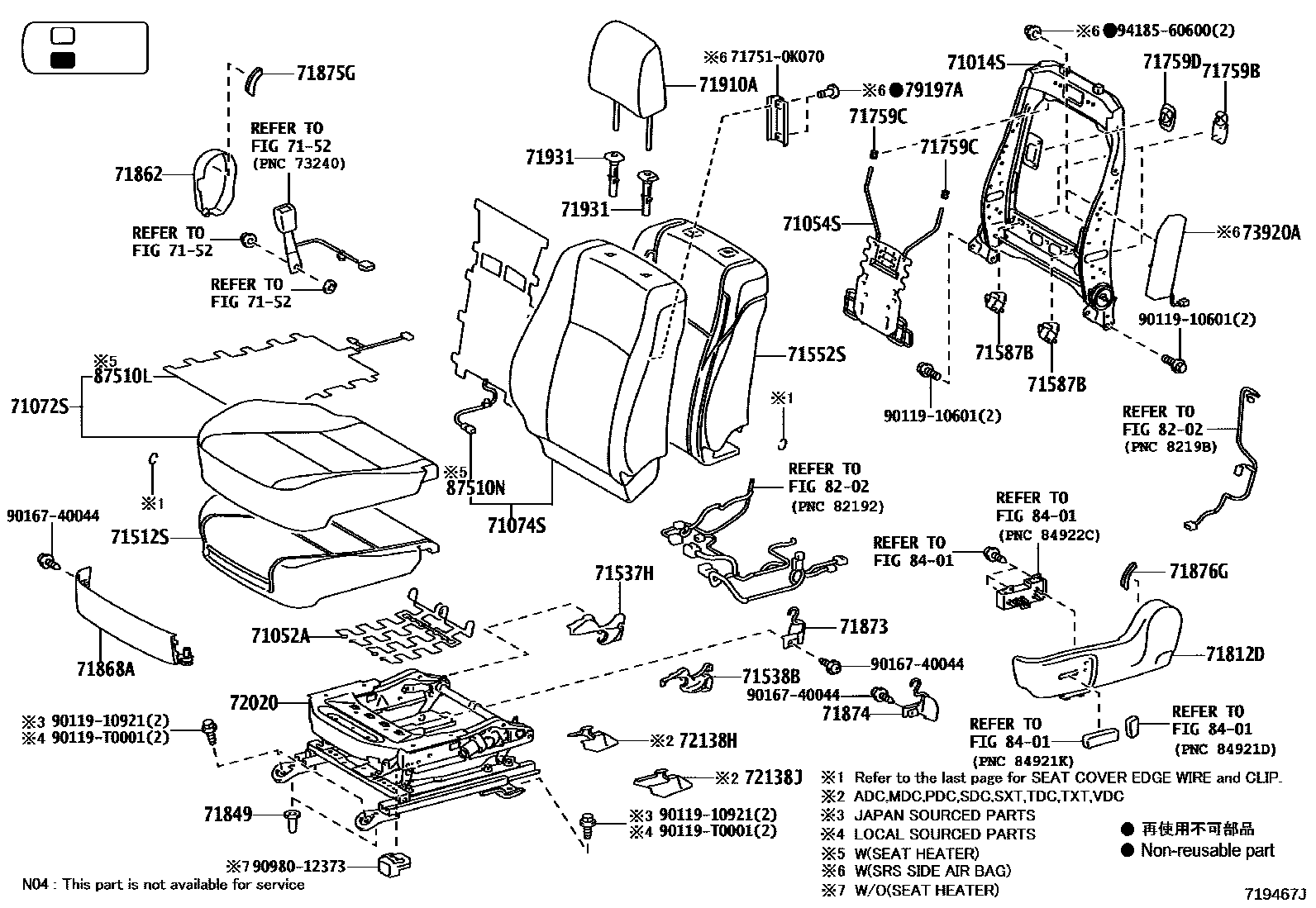

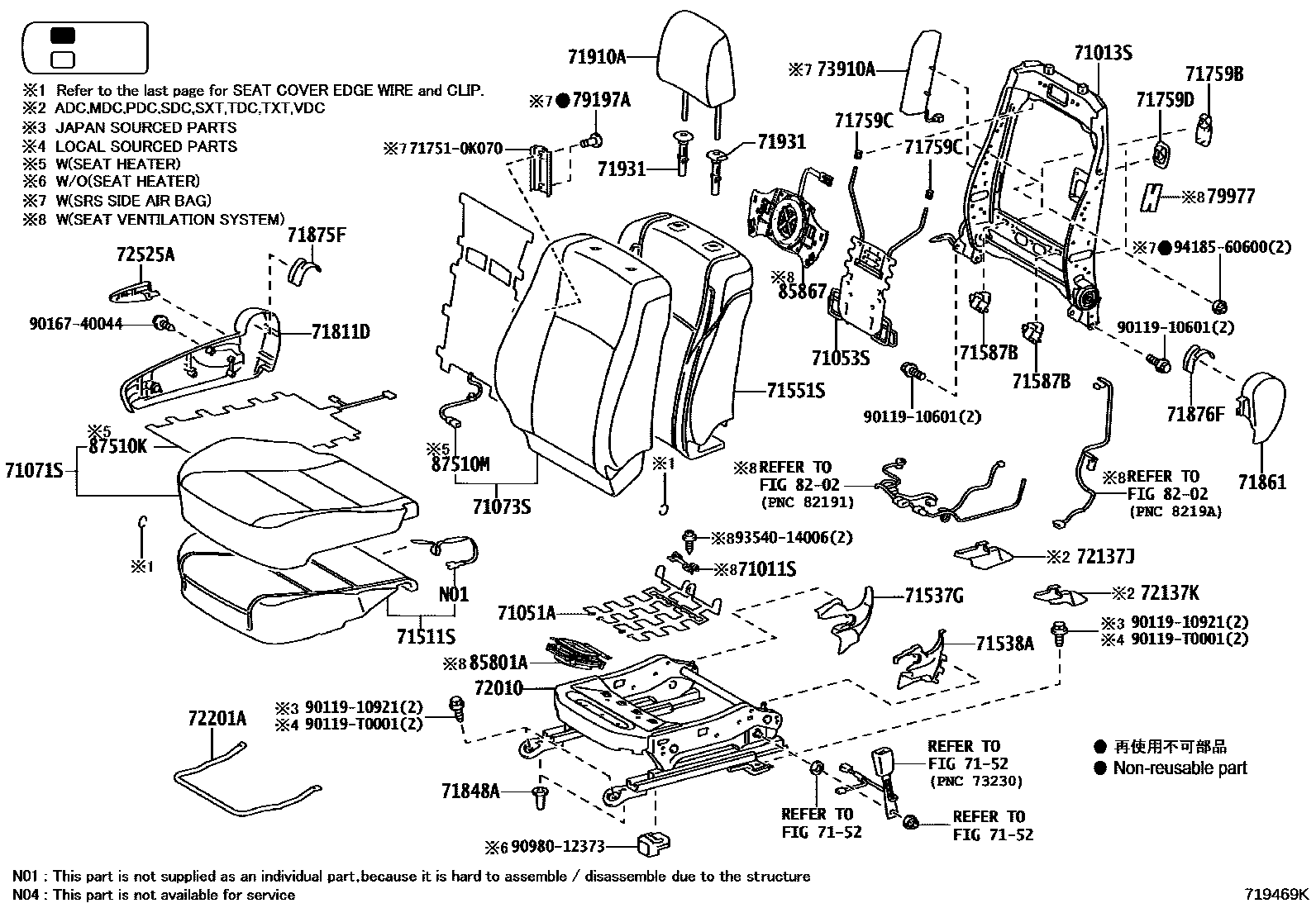

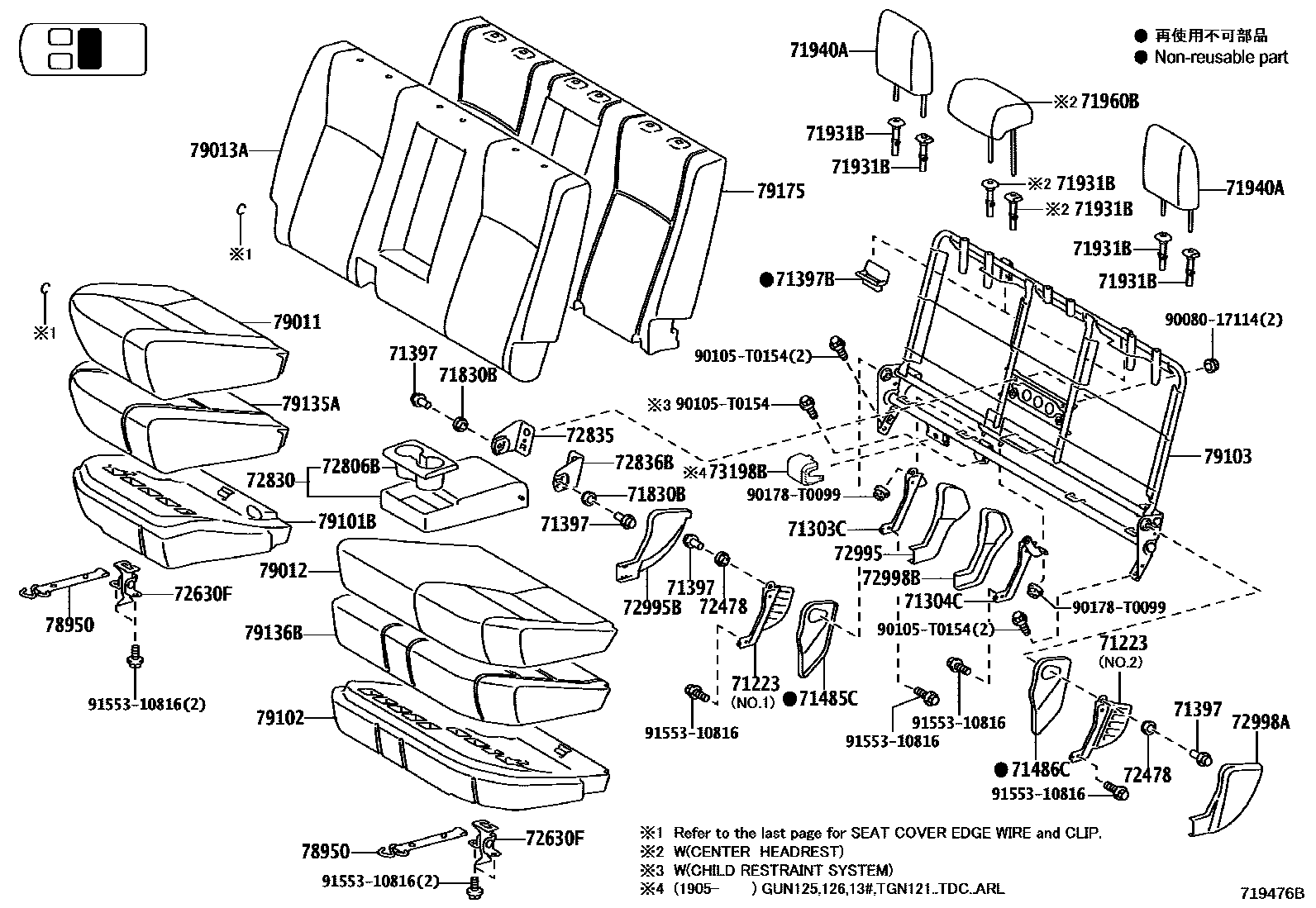

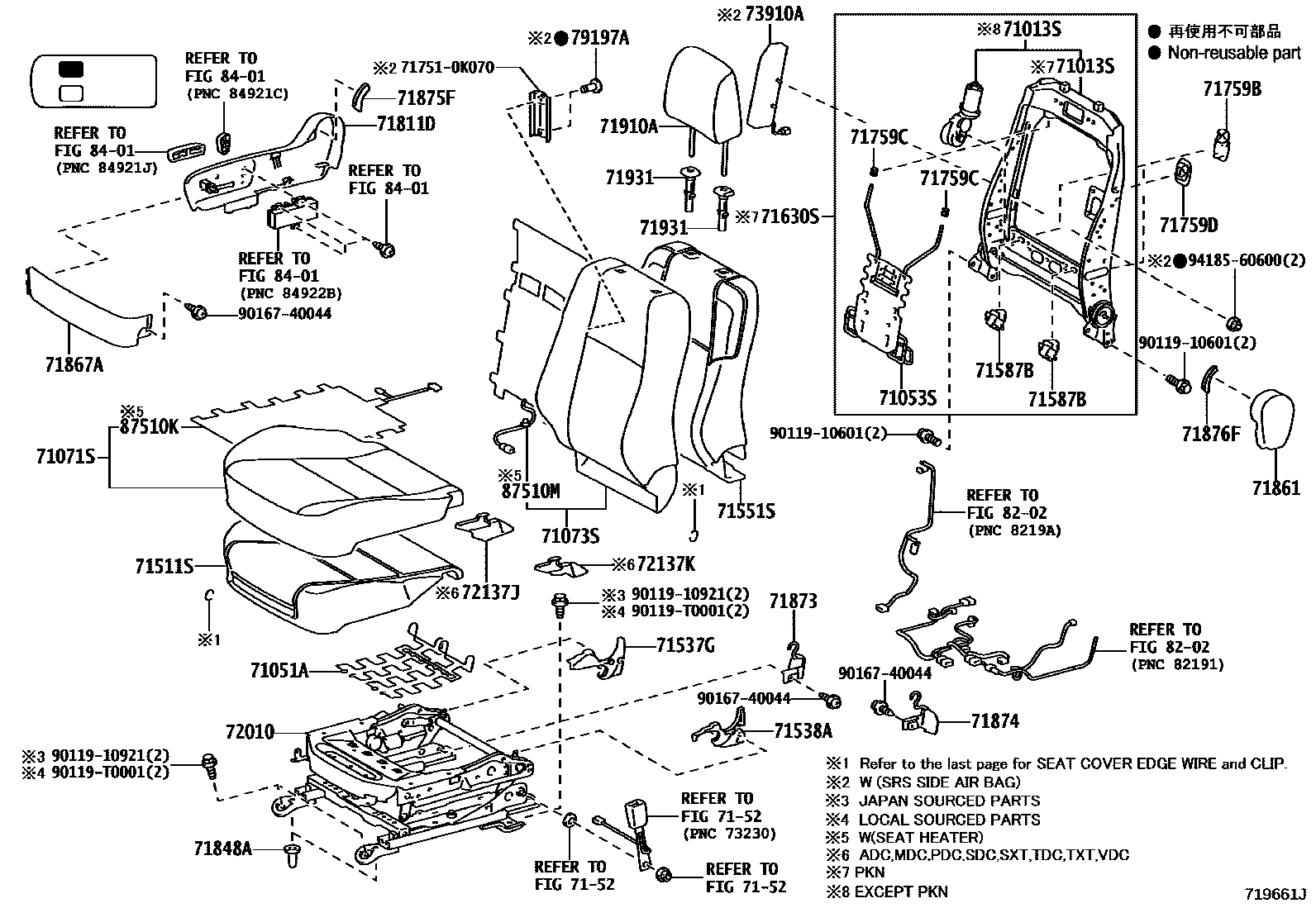

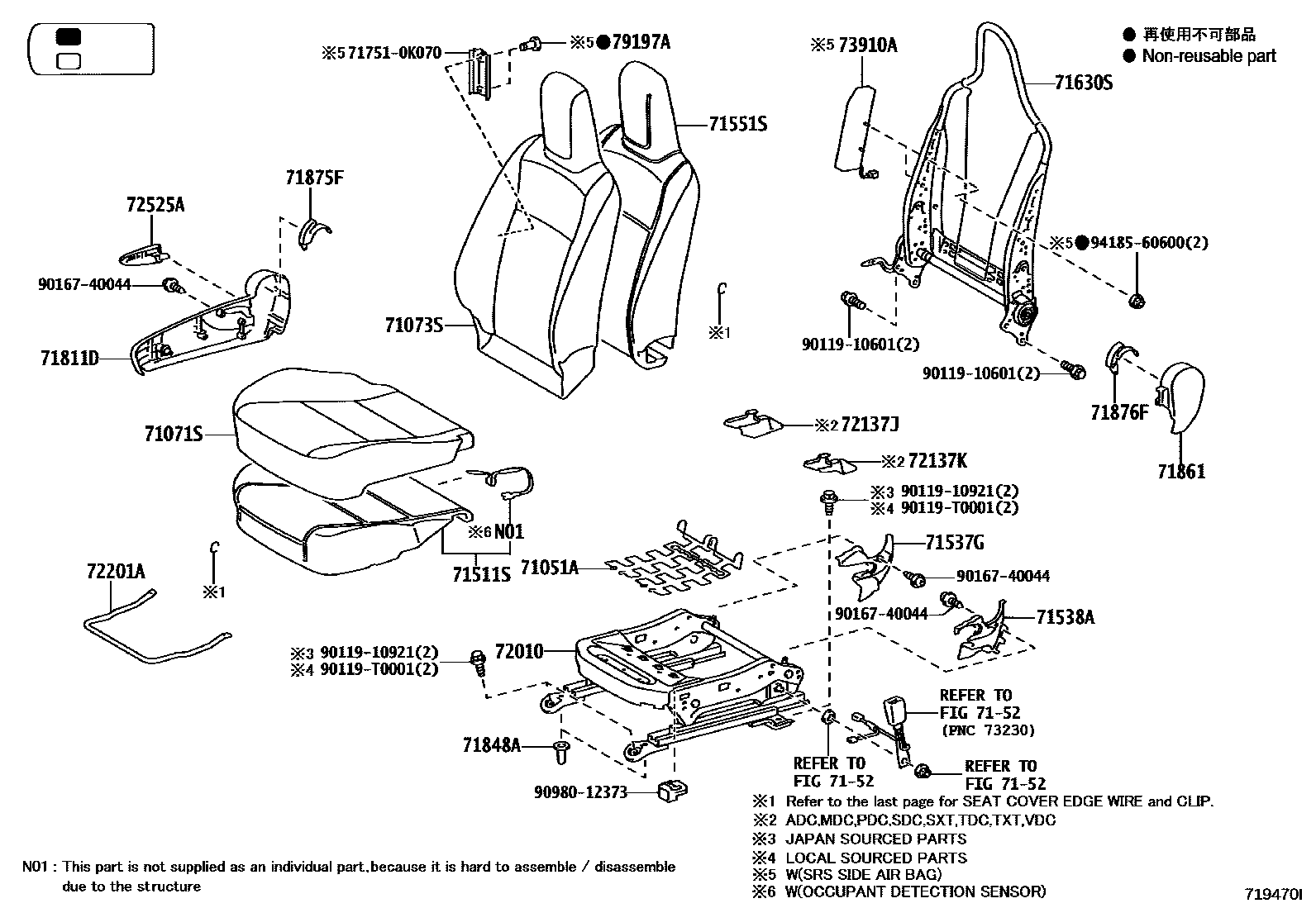

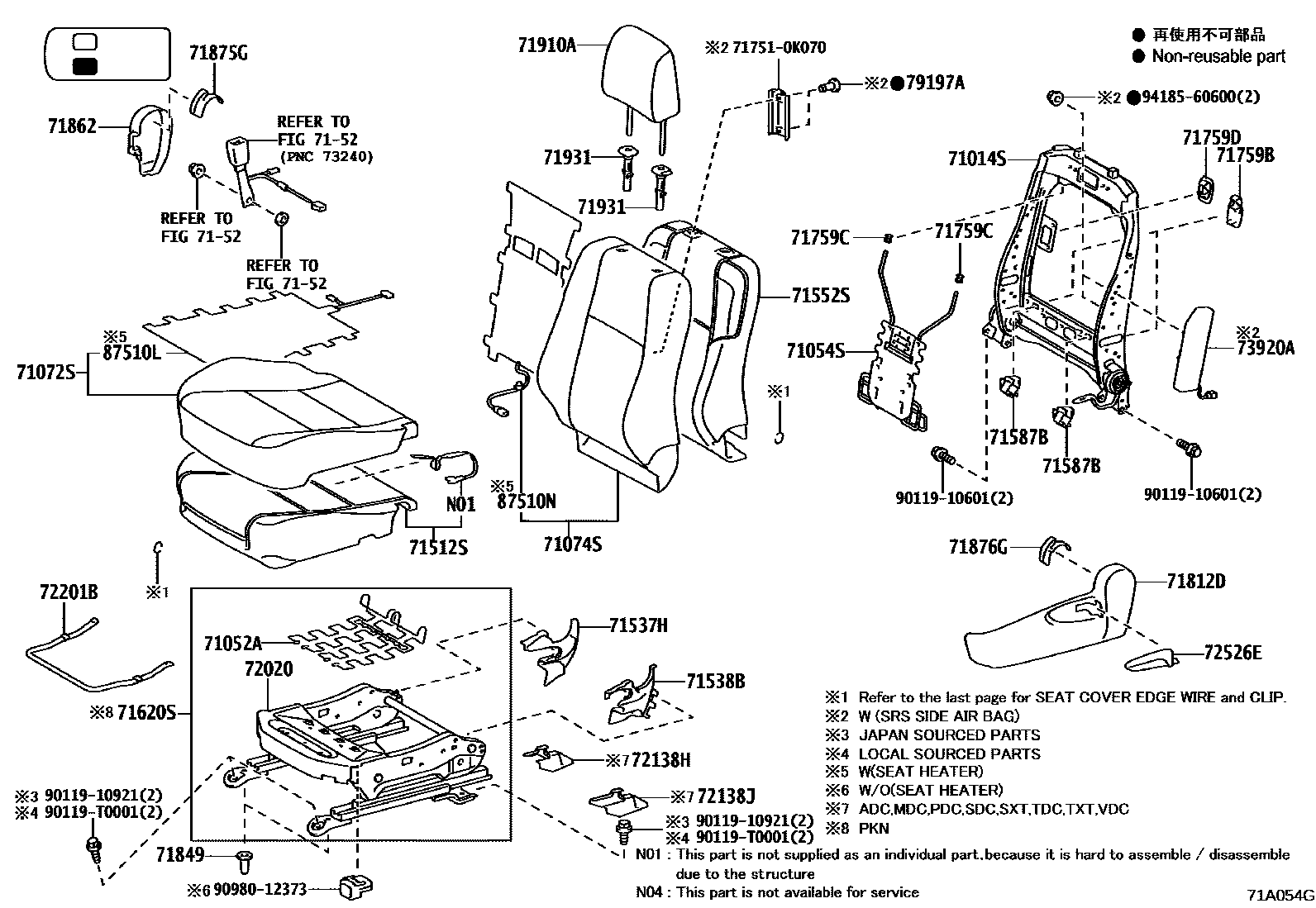

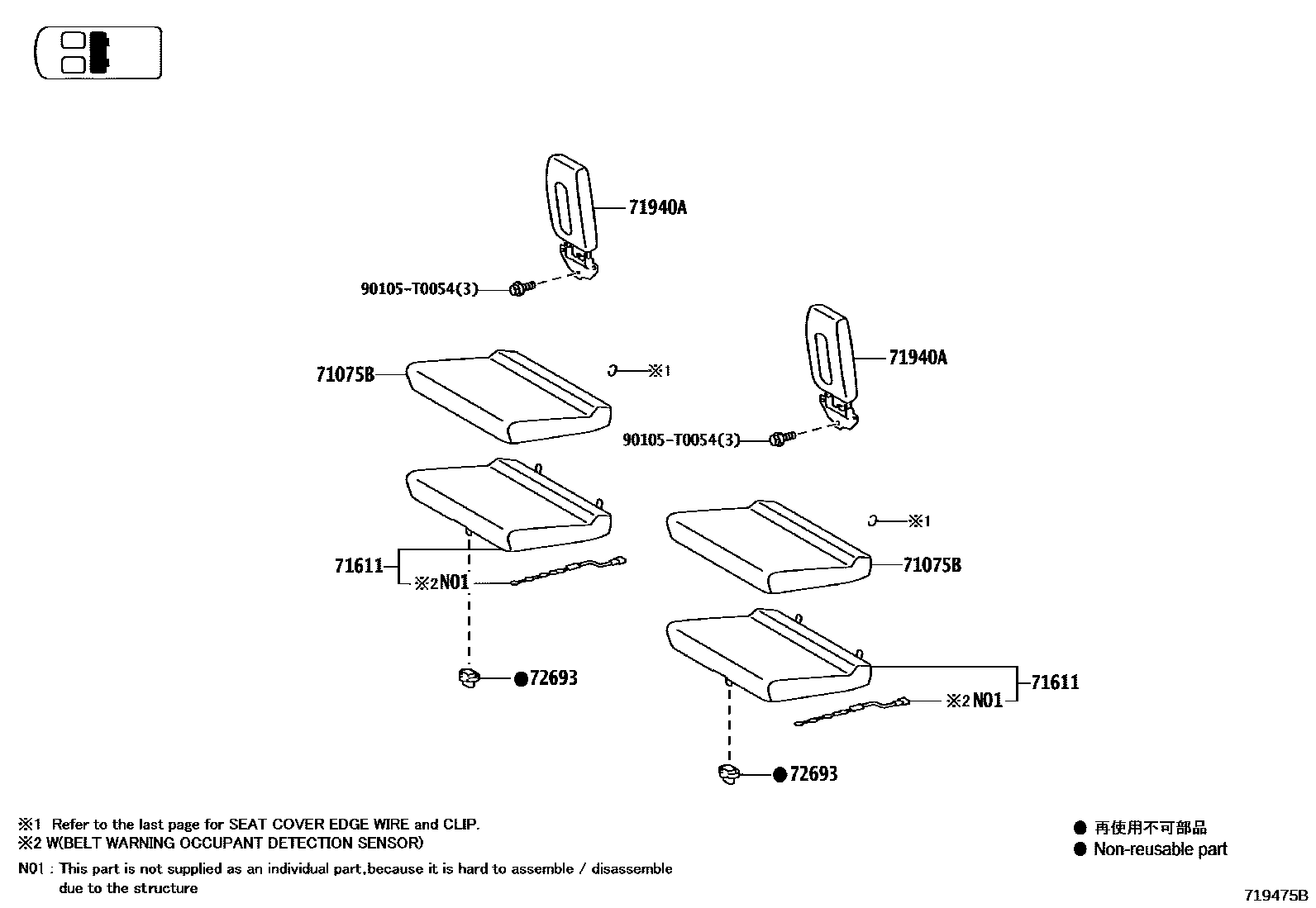

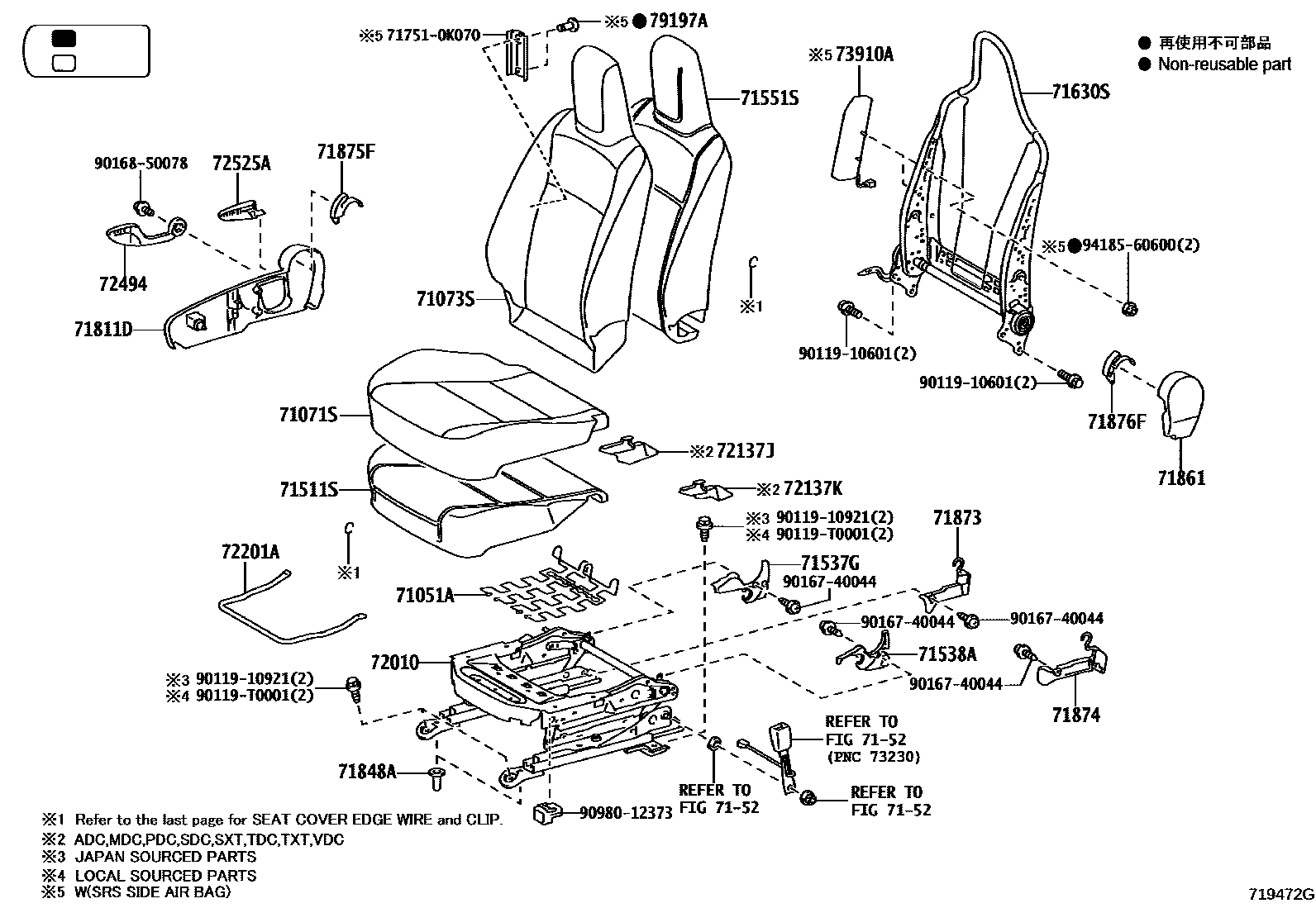

Toyota HILUX 座椅和座椅滑轨 — Figure 7151
Toyota HILUX EPC diagram 7151, 座椅和座椅滑轨, with 15 images and 86 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-0K090 · 71011-0K100 · 71011-0K120 · 71113-0K040 |
| 71012S | Front left seat cushion frame sub-assembly | 71012-0K110 · 71012-0K120 · 71012-0K130 · 71012-0K140 · 71113-0K040 |
| 71013S | Front right seat back frame sub-assembly | 71013-0K400 · 71013-0K420 · 71013-0K440 · 71013-0K510 · 71013-0K520 · 71013-0K540 · 71013-0K560 · 71013-0K580 · 71013-0K690 · 71013-0K700 · 71013-0K710 · 71013-0K820 · 71013-0K830 |
| 71014S | Front left seat back frame sub-assembly | 71014-0K340 · 71014-0K360 · 71014-0K450 · 71014-0K460 · 71014-0K480 · 71014-0K500 · 71014-0K520 · 71014-0K540 · 71014-0K650 · 71014-0K690 · 71014-0K700 · 71014-0K790 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-02350 · 71051-06070 · 71051-0D060 · 71051-0K090 · 71051-0K140 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-02350 · 71051-06070 · 71051-0D060 · 71051-0K090 · 71051-0K150 |
| 71053S | Front right seat back spring sub-assembly | 71053-0K030 · 71053-0K040 · 71053-0K050 · 71053-0K090 |
| 71054S | Front left seat back spring sub-assembly | 71053-0K030 · 71053-0K040 · 71053-0K050 · 71053-0K090 |
| 71071S | Front right seat cushion cover (for split seats) | 71071-0KK40 · 71071-0KK60 · 71071-0KM90 · 71071-0KN50 · 71071-0KT40 · 71071-YP070 · 79011-0KJ81 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-0KG50 · 71072-0KG70 · 71072-0KK90 · 71072-0KL20 · 71072-0KL70 · 71072-0KN60 · 71072-0KQ40 · 71072-0KX61 · 71072-YP090 |
| 71073S | Front right seat back cover (for split seats) | 71027-0K030 · 71027-0K040 · 71027-0K070 · 71073-0KM30 · 71073-0KM50 · 71073-0KM80 · 71073-0KN00 · 71073-0KN10 · 71073-0KN80 · 71073-0KP20 · 71073-0KP90 · 71073-0KQ00 · 71073-0KQ10 · 71073-0KQ30 · 71073-0KQ60 · 71073-0KR20 · 71073-0KR30 · 71073-0KU80 · 71073-0KZ00 |
| 71074S | Front left seat back cover (for split seats) | 71074-0K710 · 71074-0K760 · 71074-0K800 · 71074-0K810 · 71074-0K820 · 71074-0K890 · 71074-0KA30 · 71074-0KB00 · 71074-0KB10 · 71074-0KB30 · 71074-0KB60 · 71074-0KC20 · 71074-0KC30 · 71074-0KF60 · 71074-0KL80 · 71074-0KM90 · 71074-0KN20 · 71074-0KN30 |
| 71075B | Rear seat cushion cover (for bench seat) | 71075-0K140 · 71075-0K160 |
| 71223 | Rear seat cushion side bracket | 71223-0K050 · 71223-0K060 · 71223-0K070 · 71223-0K090 · 71224-0K060 · 71224-0K070 · 71224-0K080 · 71224-0K100 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71304-0K090 · 71304-0K100 · 71304-0K110 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-0K090 · 71303-0K100 · 71303-0K110 |
| 71397 | Rear seat block | 71397-0K090 |
| 71397B | Rear right seat backrest fixer | 71398-KK010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-0K030 · 71501-0K031 · 71501-0K040 · 71501-0K060 · 71501-0K080 · 71501-0K090 · 71501-0K100 · 71501-0K230 · 71501-0K240 · 71501-0K241 · 71501-0K250 · 71501-0K360 · 71501-0K361 · 71511-0K130 · 71511-0K131 · 71511-0K140 · 71511-0K141 · 71511-0K230 · 71511-0K240 · 71511-0K241 · 71511-0K510 · 71511-0K520 · 71511-0K521 · 71511-0K530 · 71511-0K531 · 71511-0K540 · 71511-0K550 · 71511-0K590 · 71511-0K610 · 71511-0K611 · 71511-0K660 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-0K030 · 71502-0K031 · 71502-0K050 · 71502-0K080 · 71502-0K100 · 71502-0K170 · 71502-0K180 · 71502-0K190 · 71502-0K200 · 71502-0K230 · 71502-0K250 · 71502-0K251 · 71502-0K270 · 71512-0K080 · 71512-0K081 · 71512-0K090 · 71512-0K091 · 71512-0K170 · 71512-0K180 · 71512-0K181 · 71512-0K240 · 71512-0K250 · 71512-0K251 · 71512-0K570 · 71512-0K590 · 71512-0K591 · 71512-0K630 · 71512-0K631 · 71512-0K780 · 71512-0K781 |
| 71537G | Front right seat cushion edge protective cover (for right seat) | 71537-02170 · 71537-02200 · 71537-06130 |
| 71537H | Front right-hand seat cushion edge guard (for left-hand seat) | 71537-02200 · 71537-02300 · 71537-06130 · 71537-0K170 |
| 71538A | Front seat cushion left edge guard (for right seat) | 71538-02110 · 71538-02120 · 71538-06140 |
| 71538B | Front seat cushion left edge guard (for left seat) | 71538-02110 · 71538-02230 · 71538-06140 · 71538-0K130 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0K190 · 71551-0K200 · 71551-0K210 · 71551-0K220 · 71551-0K230 · 71551-0K260 · 71551-0K270 · 71551-0K400 · 71551-0K410 · 71551-0K420 · 71551-0K430 · 71551-0K440 · 71551-0K470 · 71551-0K580 · 71551-0K590 · 71551-0K600 · 71551-0K630 · 71551-0K640 · 71551-0K730 · 71551-0K800 · 71551-0KA50 · 71551-0KA60 · 71551-0KA90 · 71551-0KB00 · 71551-0KB10 · 71551-0KB20 · 71551-0KC10 · 71551-0KC20 · 71551-0KC40 · 71551-0KC60 · 71551-0KC70 · 71551-0KC80 · 71551-0KC90 · 71551-0KD60 · 71551-0KD70 · 71551-0KD80 · 71551-0KD90 |
| 71552S | Front left seat back cushion (for split seats) | 71552-0K120 · 71552-0K130 · 71552-0K140 · 71552-0K150 · 71552-0K160 · 71552-0K190 · 71552-0K200 · 71552-0K320 · 71552-0K330 · 71552-0K340 · 71552-0K350 · 71552-0K360 · 71552-0K390 · 71552-0K490 · 71552-0K500 · 71552-0K530 · 71552-0K560 · 71552-0K800 · 71552-0K810 · 71552-0K820 · 71552-0KA20 · 71552-0KA30 · 71552-0KA70 · 71552-0KB30 · 71552-0KB60 · 71552-0KB70 · 71552-0KB90 · 71552-0KC00 · 71552-0KC10 · 71552-0KC20 · 71552-0KC40 · 71552-0KD00 · 71552-0KD40 · 71552-0KD80 · 71552-0KD90 · 71552-0KE00 · 71552-0KE10 |
| 71587B | Front seat back edge protective cover | 71587-0K030 · 71587-0K040 · 71587-0K050 |
| 71611 | Rear seat cushion cushion | 71503-0K020 · 71503-0K030 · 71503-0K140 · 71504-0K100 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-0K400 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-0K210 · 71630-0K230 · 71630-0K310 · 71630-0K330 · 71630-0K400 · 71630-0K410 · 71630-0K610 · 71630-0K620 · 71630-0K680 · 71630-0K700 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-0K200 · 71640-0K220 · 71640-0K340 · 71640-0K360 · 71640-0K430 · 71640-0K620 · 71640-0K660 · 71640-0K670 · 71640-0K730 |
| 71759B | Front seat back hook | 71759-0K140 |
| 71759C | Front seat back hook No. 1 | 71759-0K060 · 71759-0K080 |
| 71759D | Front seat back hook 2 | 71759-0K070 |
| 71811D | Front right seat cushion guard | 71811-06330 · 71811-0K120 · 71811-0K160 · 71811-0K240 · 71811-0K300 · 71811-0K330 |
| 71812D | Front left seat cushion guard | 71812-06390 · 71812-0K110 · 71812-0K250 · 71812-0K300 · 71812-0K330 · 71812-0K470 · 71812-0K480 · 71812-0K490 |
| 71830B | Bushing (for rear seat armrest) | 90386-12029 |
| 71848A | Right seat adjuster cover | 71848-02040 · 71848-47010 |
| 71849 | left seat adjuster cover | 71848-02040 · 71848-47010 |
| 71861 | Front right seat cushion inner guard | 71861-06260 · 71861-0K140 · 71861-0K210 · 71861-0K250 |
| 71862 | Front left seat cushion inner guard | 71862-06270 · 71862-0K140 · 71862-0K250 · 71862-0K270 · 71862-0K320 · 71862-0K330 |
| 71868A | Front left seat No. 1 seat cushion inner protection panel | 71868-0K060 |
| 71873 | Front right seat cushion lower guard panel | 71873-02150 · 71873-06510 · 71873-06520 · 71873-06530 · 71873-06540 · 71873-0K110 · 71873-0K140 |
| 71874 | Front left seat cushion lower guard | 71874-02140 · 71874-06480 · 71874-06490 · 71874-06550 · 71874-06560 · 71874-0K110 · 71874-0K140 |
| 71875F | Right backrest recliner inner cover (for right seat) | 71875-06450 · 71875-0K120 · 71875-0K160 |
| 71875G | Right backrest recliner inner cover (for left seat) | 71875-06450 · 71875-0K120 · 71875-0K130 · 71875-0K160 |
| 71876F | Left backrest recliner inner cover (for right seat) | 71876-06470 · 71876-0K120 · 71876-0K160 |
| 71876G | Left backrest recliner inner cover (for left seat) | 71876-06470 · 71876-0K120 · 71876-0K130 · 71876-0K160 |
| 71910A | Front seat headrest assembly | 71910-0KB70 · 71910-0KC60 · 71910-0KC80 · 71910-0KD00 |
| 71931 | Front seat headrest bracket | 71930-0K050 · 71930-47050 · 71931-0K040 · 71931-47030 |
| 71931B | Rear seat No. 1 headrest bracket assembly | 71930-0K040 · 71931-0K050 |
| 72010 | Front right seat adjuster assembly | 72010-0K080 · 72010-0K090 · 72010-0K100 · 72010-0K160 · 72010-0K170 · 72010-0K180 · 72010-0K200 · 72010-0K250 · 72010-0K260 · 72010-0K270 · 72010-0K310 · 72010-0K320 |
| 72020 | Front left seat adjuster assembly | 72020-0K060 · 72020-0K070 · 72020-0K080 · 72020-0K140 · 72020-0K150 · 72020-0K160 · 72020-0K180 · 72020-0K190 · 72020-0K200 · 72020-0K270 · 72020-0K320 · 72020-0K400 |
| 72201A | Right seat slide rail handle sub-assembly | 72211-02160 · 72211-0D160 · 72211-0D170 · 72211-0K120 |
| 72201B | Left seat slide rail handle sub-assembly | 72211-02160 · 72211-0D160 · 72211-0D170 · 72211-0K120 |
| 72478 | height adjuster bushing | 72478-0K010 |
| 72495 | Left height adjuster handle | 72494-02170 · 72495-02060 |
| 72525A | Right seat back recliner release handle | 72525-0D270 |
| 72526E | Left seat back recliner release handle | 72525-0K010 · 72526-06130 · 72526-0D260 |
| 72630F | Rear No. 2 seat lock assembly | 72650-0K270 · 72650-0K271 · 72650-0K280 · 72650-0K281 · 72650-0K290 · 72650-0K291 |
| 72693 | Rear seat cushion hook | 72693-0K120 |
| 72835 | Rear right seat armrest | 72835-0K030 · 72835-0K050 · 72835-0K070 |
| 72836B | Rear left seat armrest | 72836-0K030 · 72836-0K050 · 72836-0K070 |
| 72929B | Rear seat cushion strap fasteners | 72929-0K010 |
| 73198B | Rear seat bracket cover | 73198-KK010 |
| 73910A | Front right seat airbag assembly | 73910-0K050 · 73910-0K070 · 73910-0K080 |
| 73920A | Front left seat airbag assembly | 73920-0K050 · 73920-0K070 · 73920-0K080 |
| 78950 | No. 1 folding seat limit belt assembly | 78950-0K201 · 78950-0K211 |
| 79101 | No. 1 seat cushion frame sub-assembly | 79101-0K240 · 79101-0K280 · 79101-0K320 · 79101-0K410 · 79101-0K520 · 79101-0K570 · 79101-0K600 |
| 79101B | Right No. 1 seat cushion frame sub-assembly | 79101-0K260 · 79101-0K300 · 79101-0K340 · 79101-0K420 · 79101-0K530 · 79101-0K600 |
| 79102 | Left No. 1 seat cushion frame sub-assembly | 79102-0K250 · 79102-0K270 · 79102-0K290 · 79102-0K370 · 79102-0K500 · 79102-0K550 |
| 79103 | No. 1 seat back frame sub-assembly | 79010-0K010 · 79010-0K020 · 79010-0K030 · 79010-0K040 · 79010-0K050 · 79010-0K060 · 79010-0K070 · 79010-0K080 · 79010-0K100 · 79010-0K120 · 79010-0K130 · 79010-0K140 · 79010-0K150 · 79010-0K160 · 79010-0K170 · 79010-0K200 · 79010-0K230 |
| 79135 | Seat No. 1 cushion cushion | 71503-0K090 · 79135-0K250 · 79135-0K260 · 79135-0K270 · 79135-0K360 · 79135-0K400 |
| 79135A | Right seat No. 1 seat cushion cushion | 71503-0K060 · 71611-0K010 · 71611-0K020 · 71611-0K030 · 71611-0K040 · 71611-0K060 |
| 79136B | Seat cushion, seat No. 1, left | 71504-0K030 · 71612-0K020 · 71612-0K030 · 71612-0K040 · 71612-0K050 · 71612-0K070 |
| 79175 | Seat 1 back cushion | 79175-0K260 · 79175-0K270 · 79175-0K280 · 79175-0K290 · 79175-0K300 · 79175-0K310 · 79175-0K320 · 79175-0K330 · 79175-0K350 · 79175-0K370 · 79175-0K440 · 79175-0K460 · 79175-0K470 · 79175-0K510 · 79175-0K530 |
| 79197A | RIVET | 79197-0K010 |
| 79977 | Seat back felt pad | 79977-0K290 |
| 85801A | Right seat cushion temperature control blower sub-assembly | 85801-0K020 |
| 85802A | Left seat cushion temperature control blower sub-assembly | 85802-0K020 |
| 85867 | Right seat back temperature control blower | 85867-0K020 |
| 85867A | Left-hand seat back temperature control blower | 85867-0K020 |
| 87510K | Front right seat cushion heater assembly | 87510-0K110 · 87510-0K120 |
| 87510L | Front left seat cushion heater assembly | 87510-0K110 · 87510-0K120 |
| 87510M | Front right seat back heater assembly | 87510-0K140 · 87510-0K150 |
| 87510N | Front left seat back heater assembly | 87510-0K140 · 87510-0K150 · 87510-0K190 |
