Toyota HILUX 制动配管和卡箍 — Figure 4708

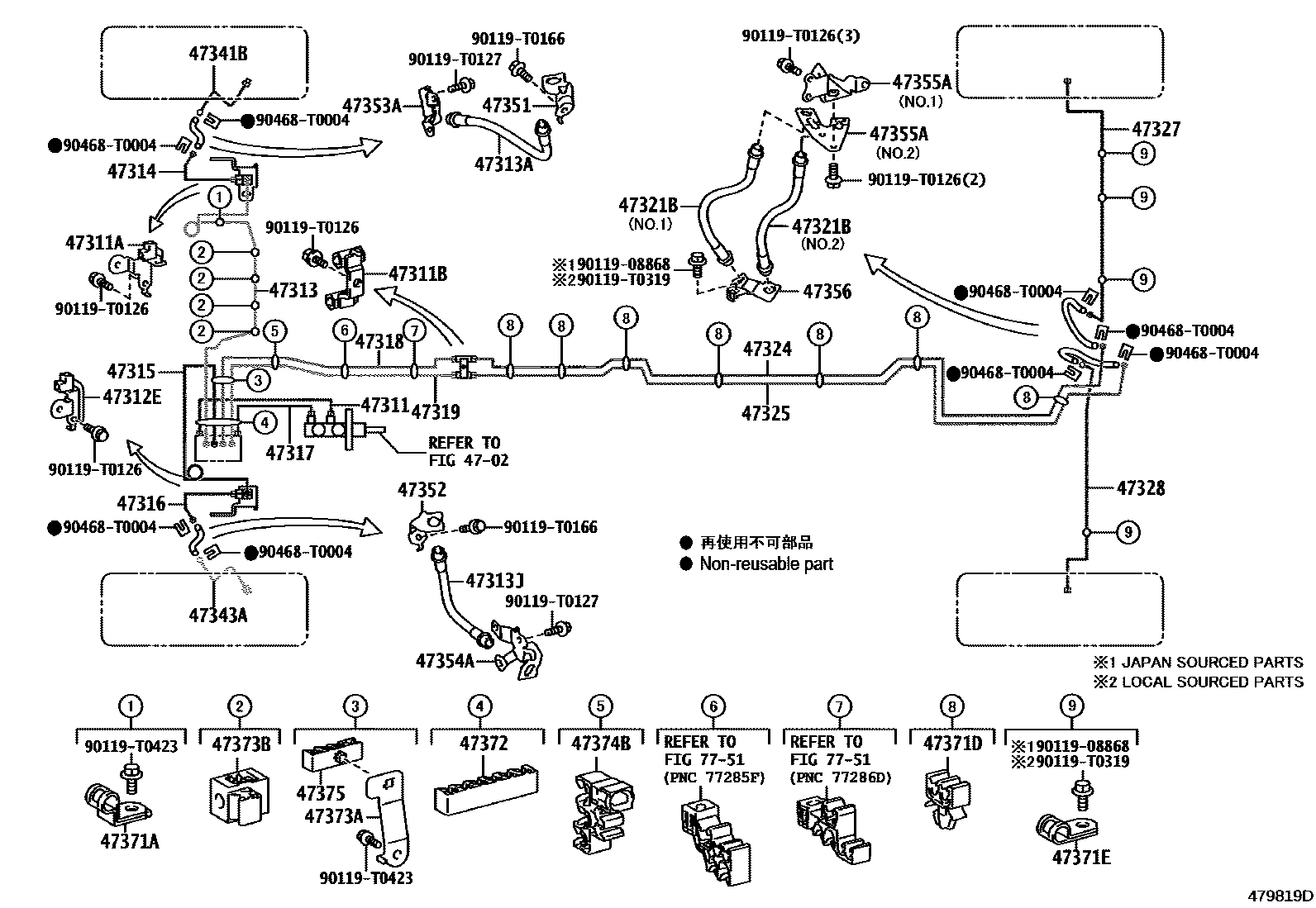

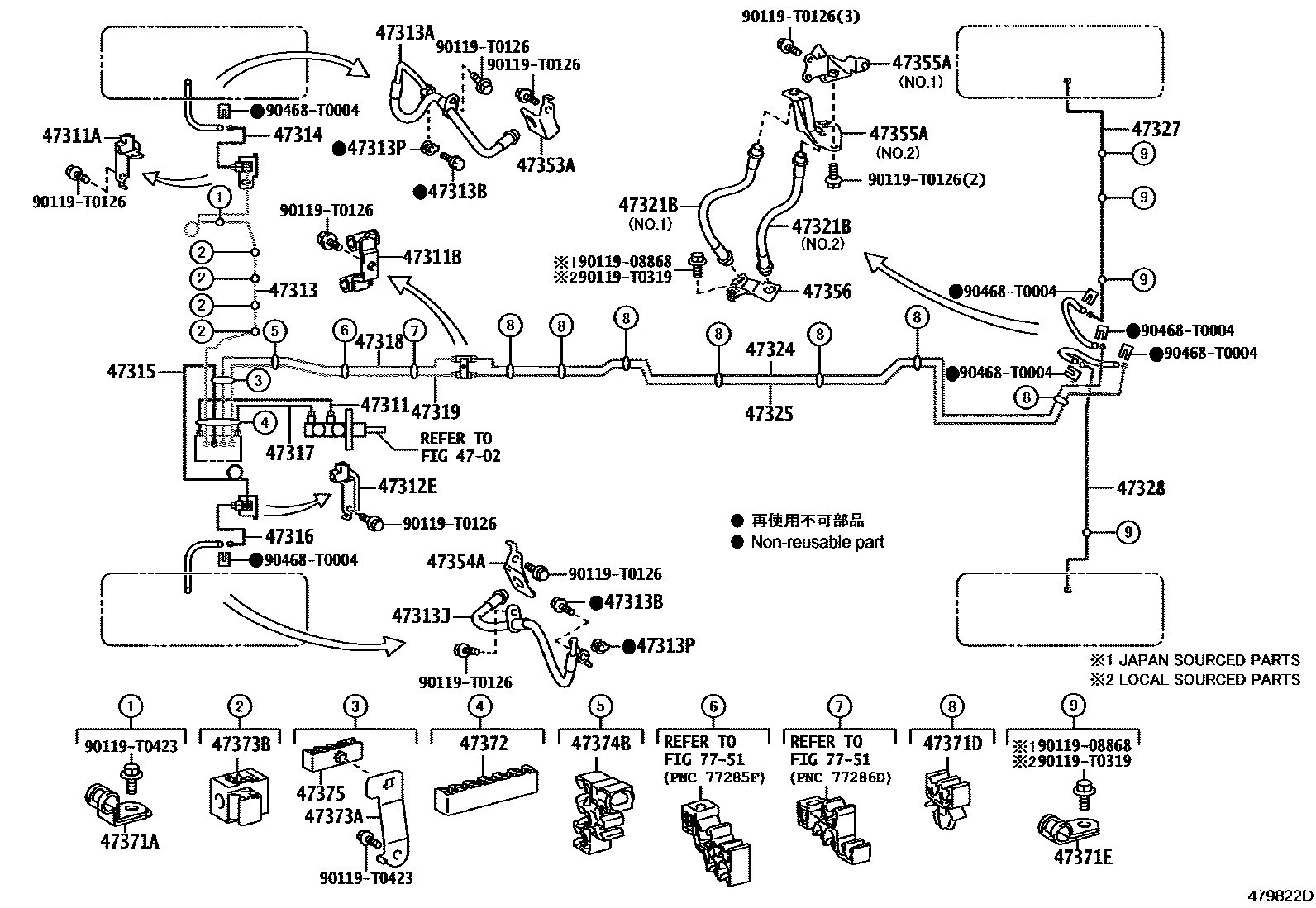

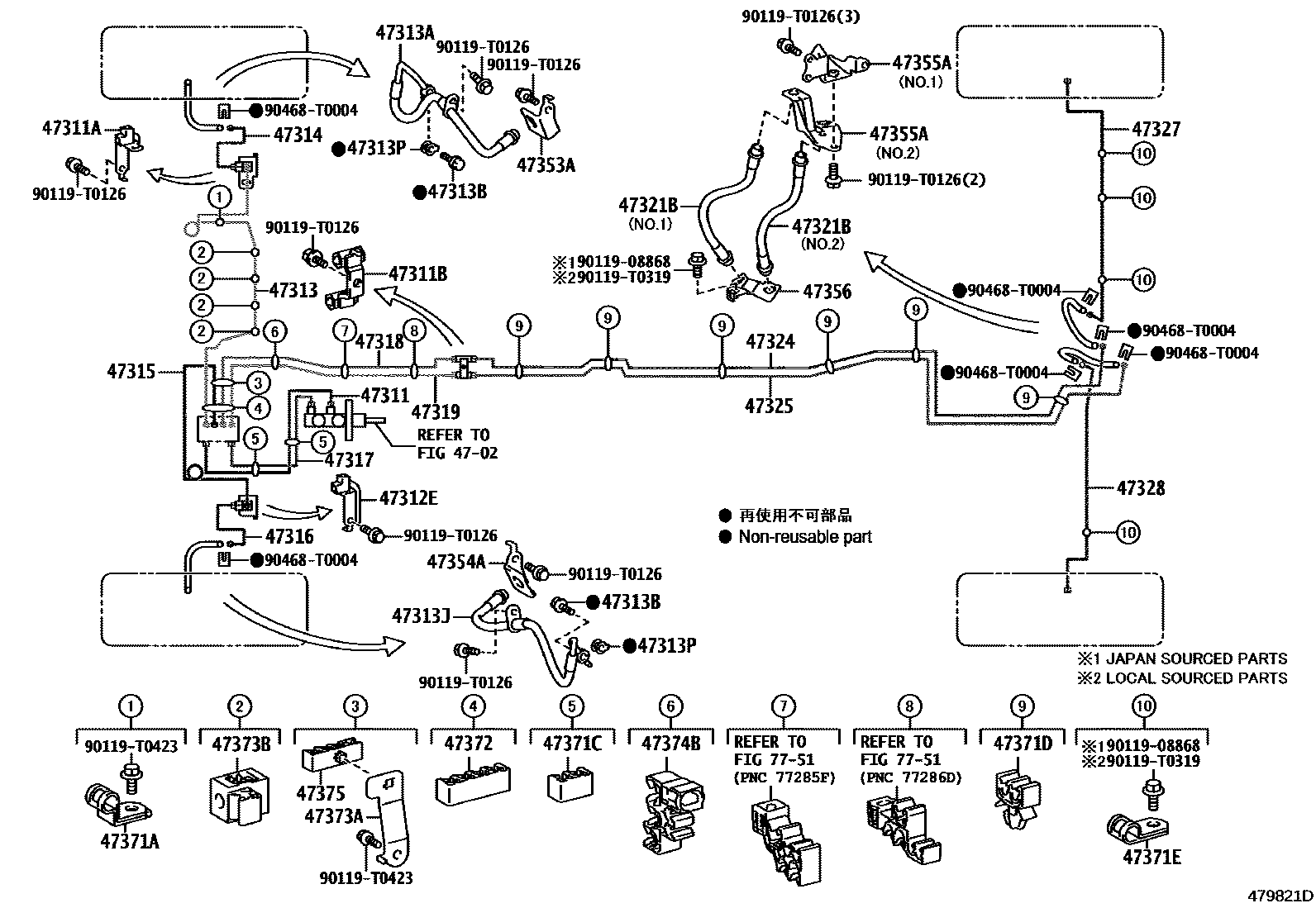

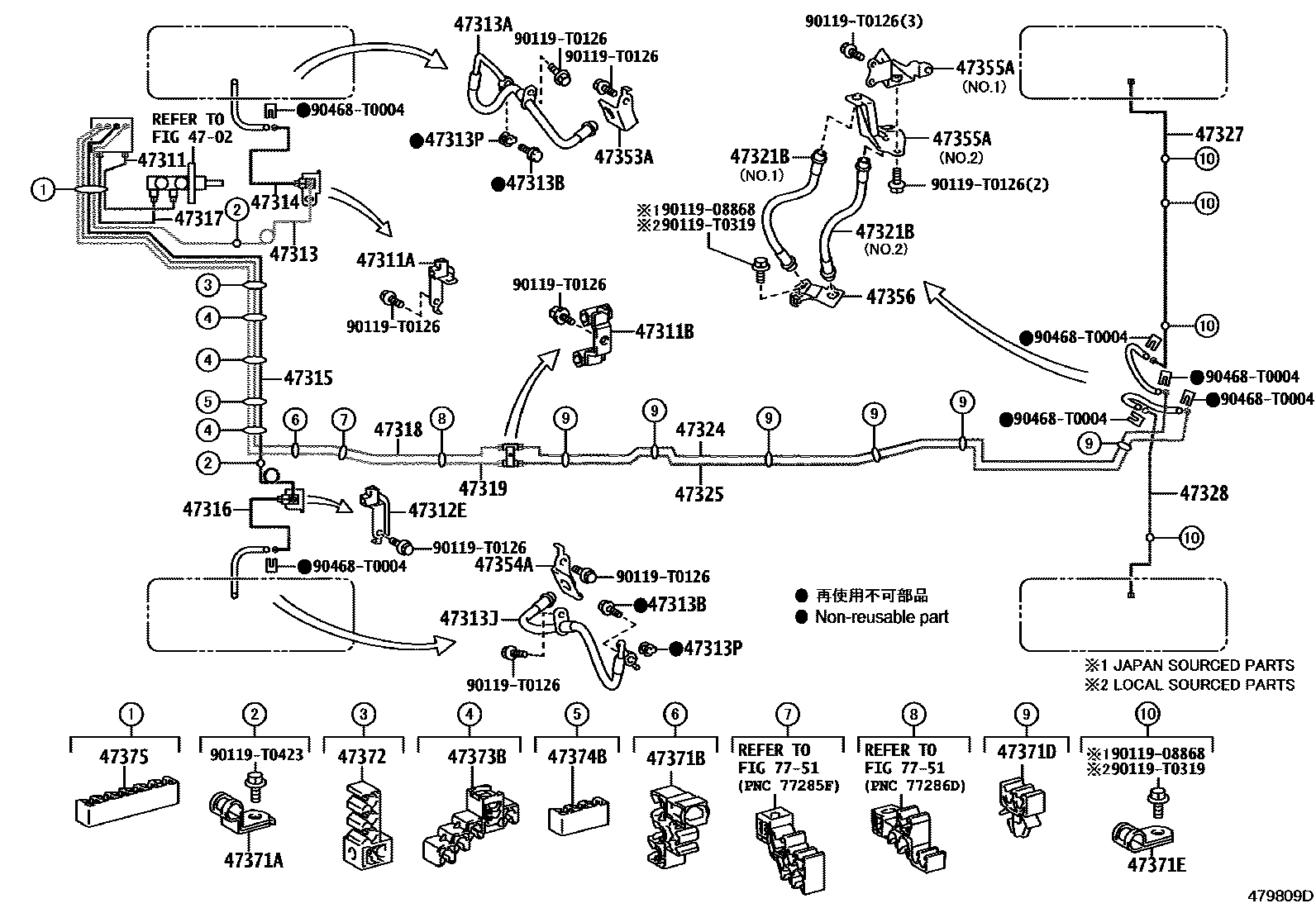

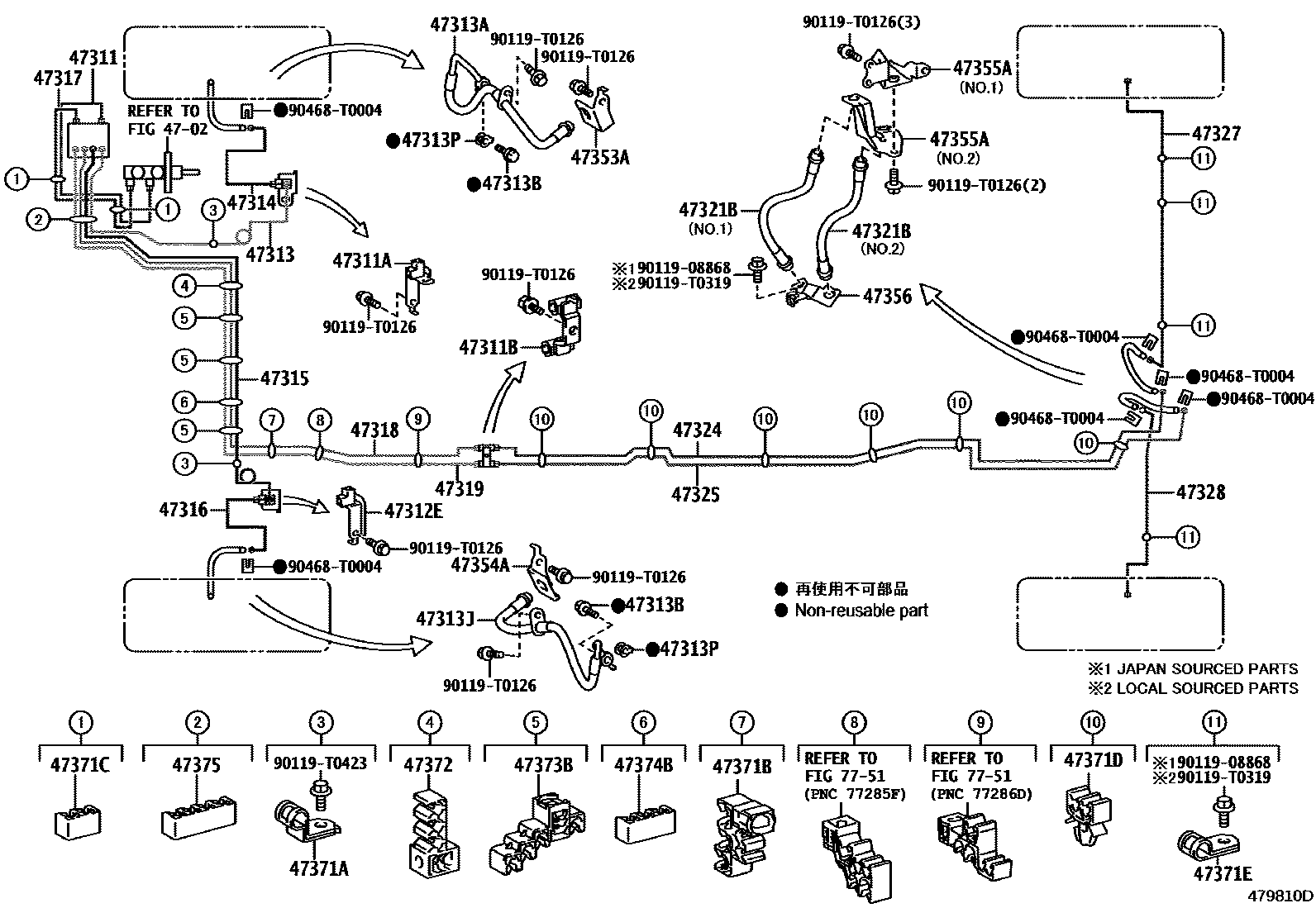

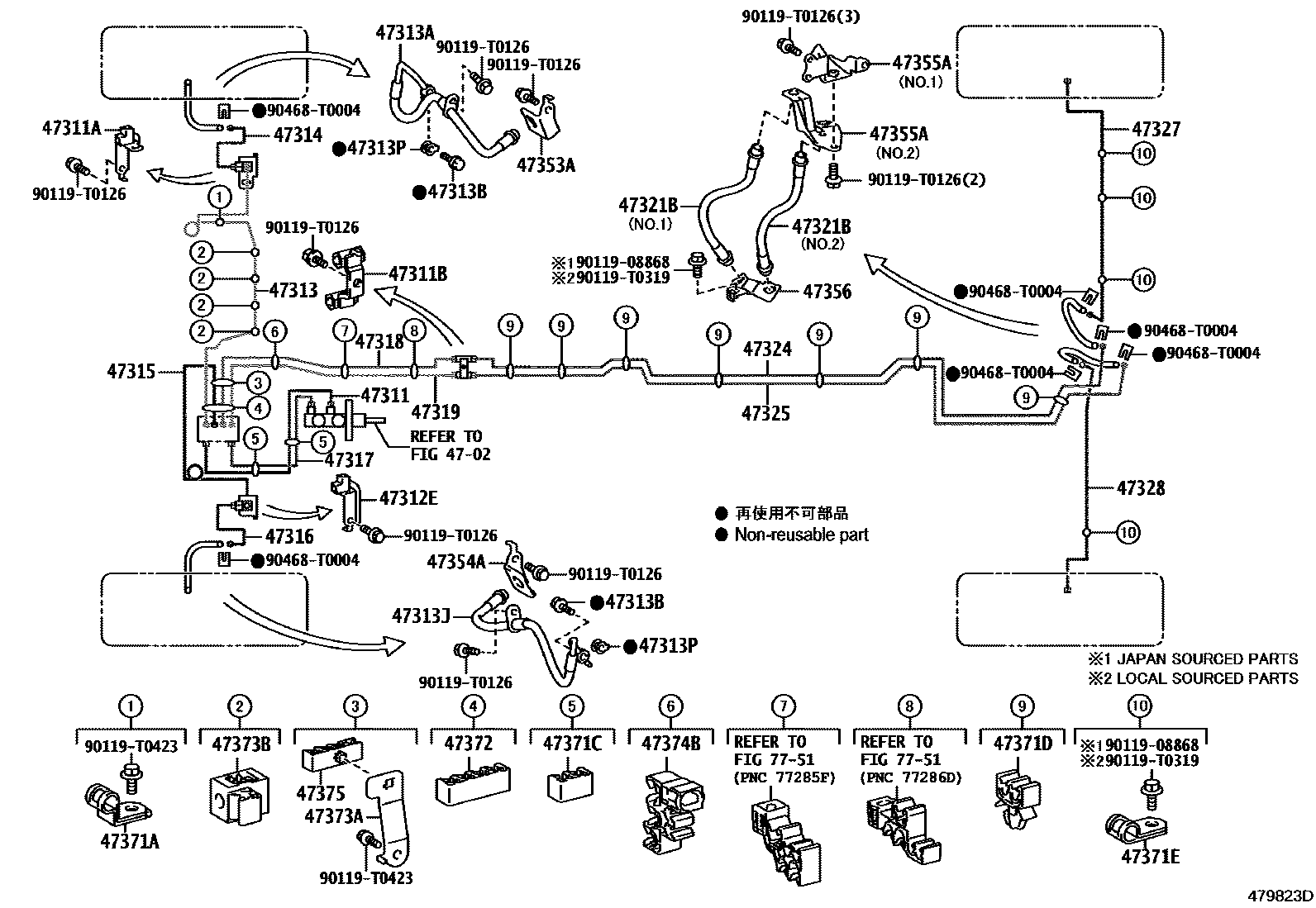

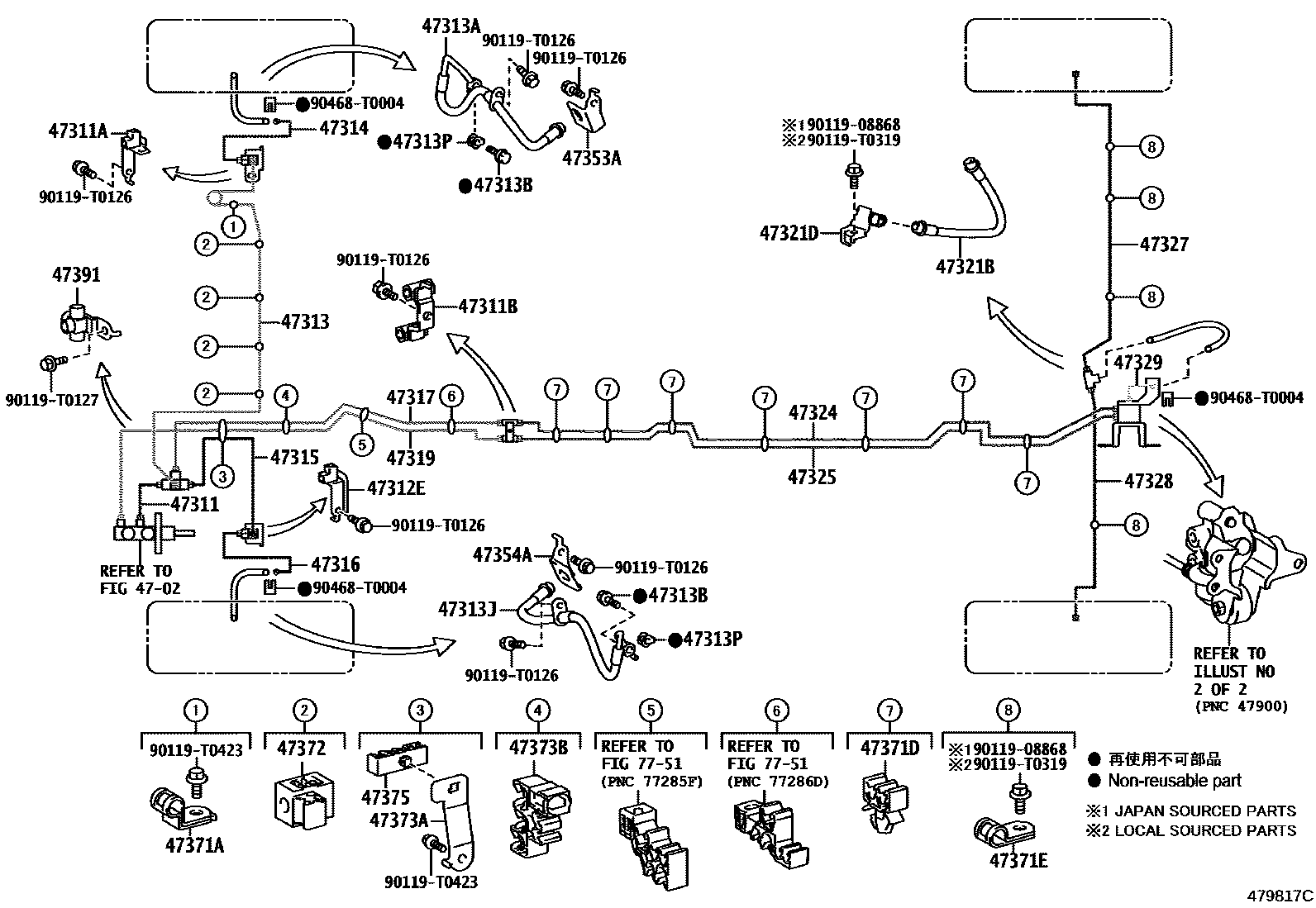

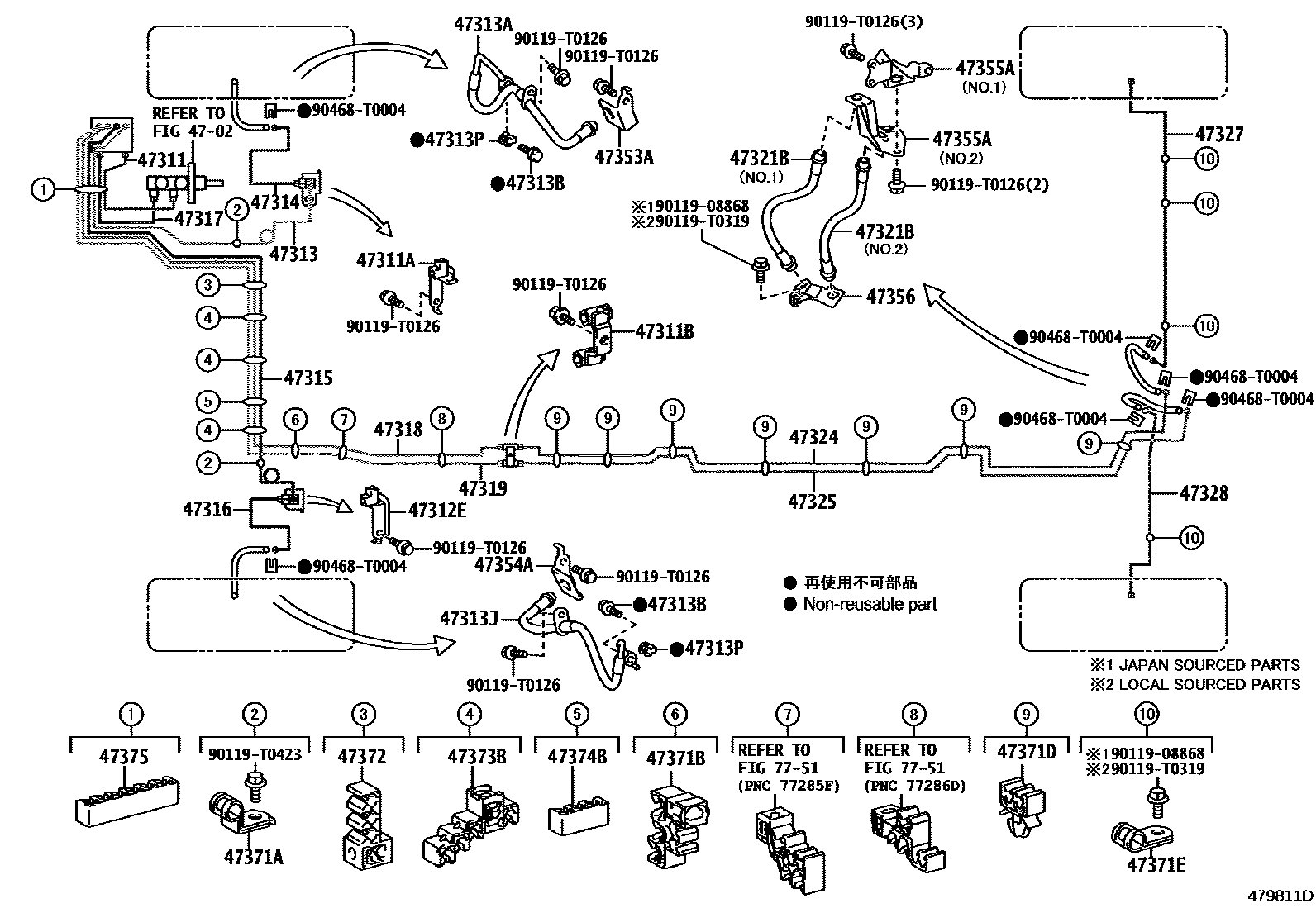

Toyota HILUX EPC diagram 4708, 制动配管和卡箍, with 18 images and 60 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04477 | Load sensing spring bushing and boot assembly | 04477-04010 |
| 31478D | Bleed plug cap (for LSPV) | 31478-0D040 |

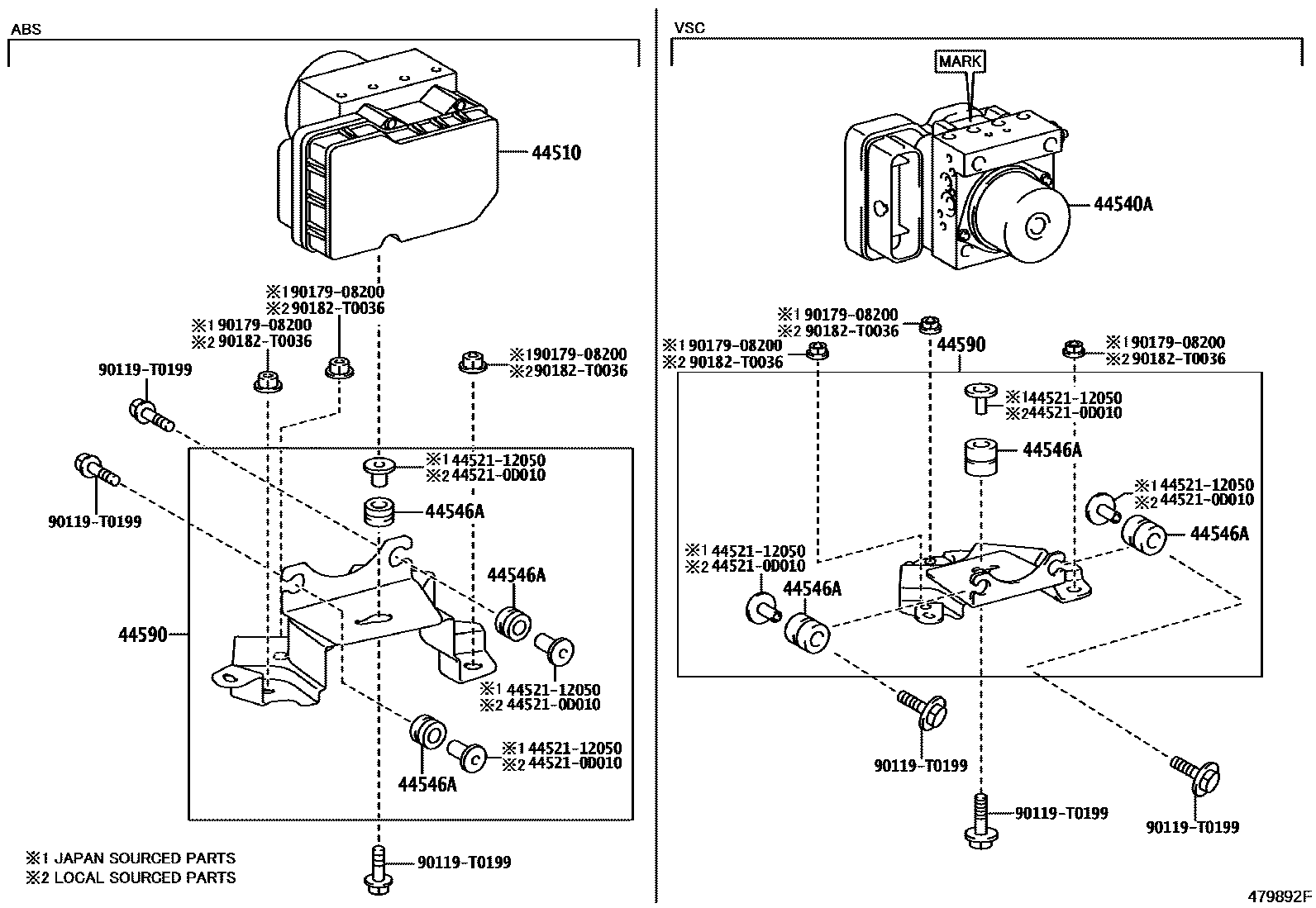

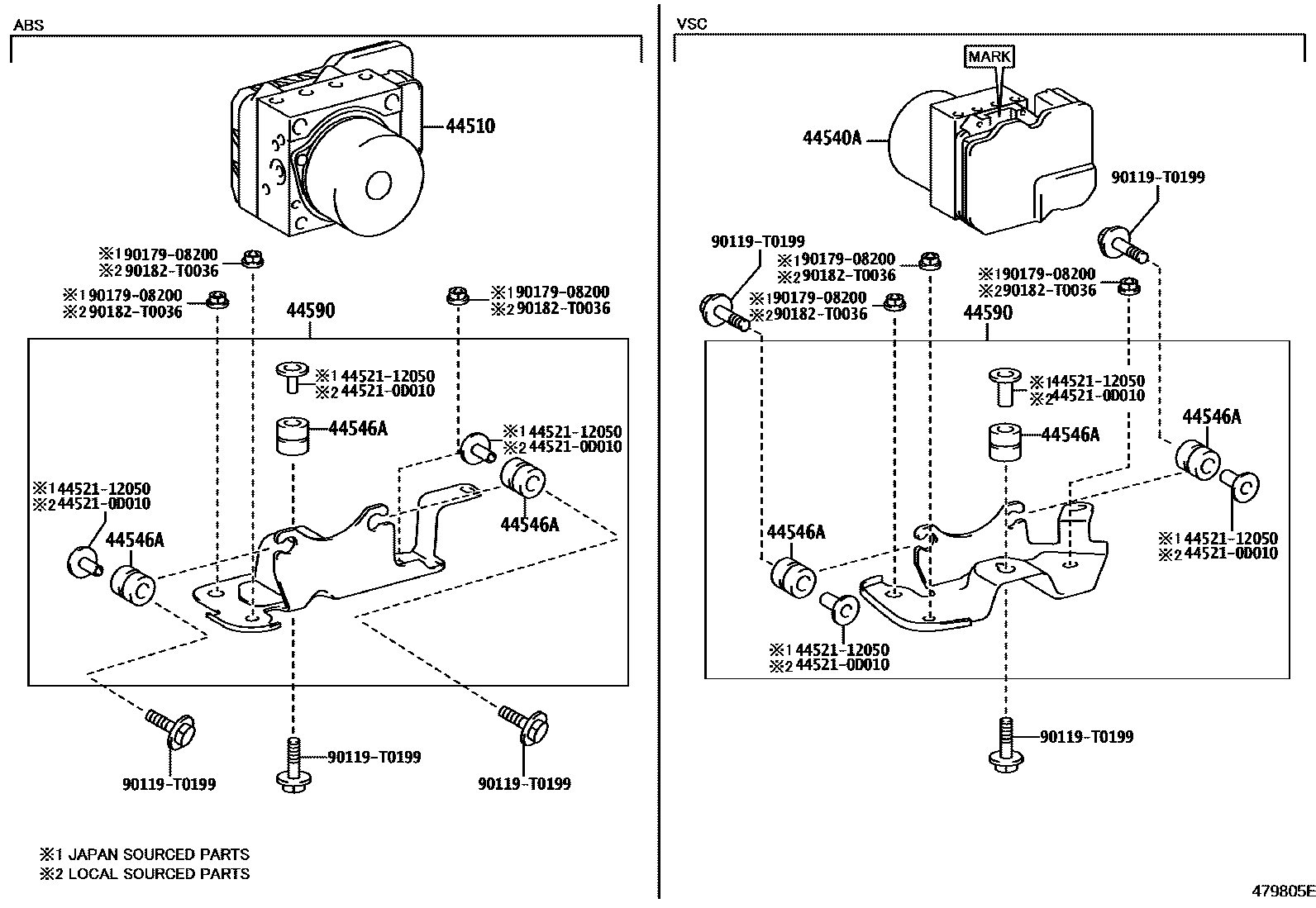

| 44510 | brake actuator assembly | 44050-0K010 · 44050-0K020 · 44050-0K030 · 44050-0K060 · 44050-0K070 · 44050-0K080 · 44050-0K090 · 44050-0K100 · 44050-0K110 · 44050-0K120 |
| 44540A | VSC actuator assembly | 44050-71300 · 44050-71310 · 44050-71311 · 44050-71312 · 44050-71330 · 44050-71340 · 44050-71341 · 44050-71350 · 44050-71351 · 44050-71370 · 44050-71380 · 44050-71390 · 44050-71410 · 44050-71411 · 44050-71420 · 44050-71421 · 44050-71430 · 44050-71431 · 44050-71440 · 44050-71450 · 44050-71470 · 44050-71471 · 44050-71480 · 44050-71481 · 44050-71490 · 44050-71510 · 44050-71511 · 44050-71E20 · 44050-71E30 · 44050-71E40 · 44050-71E50 · 44050-71E60 · 44050-71E70 · 44050-71E80 |
| 44546A | Brake actuator bolt cushion | 44546-0K010 · 44546-12120 |
| 44590 | Brake actuator bracket assembly | 44590-0K050 · 44590-0K070 · 44590-0K100 · 44590-0K110 · 44590-0K120 · 44590-0K150 · 44590-0K170 · 44590-0K200 · 44590-0K210 · 44590-0K220 |

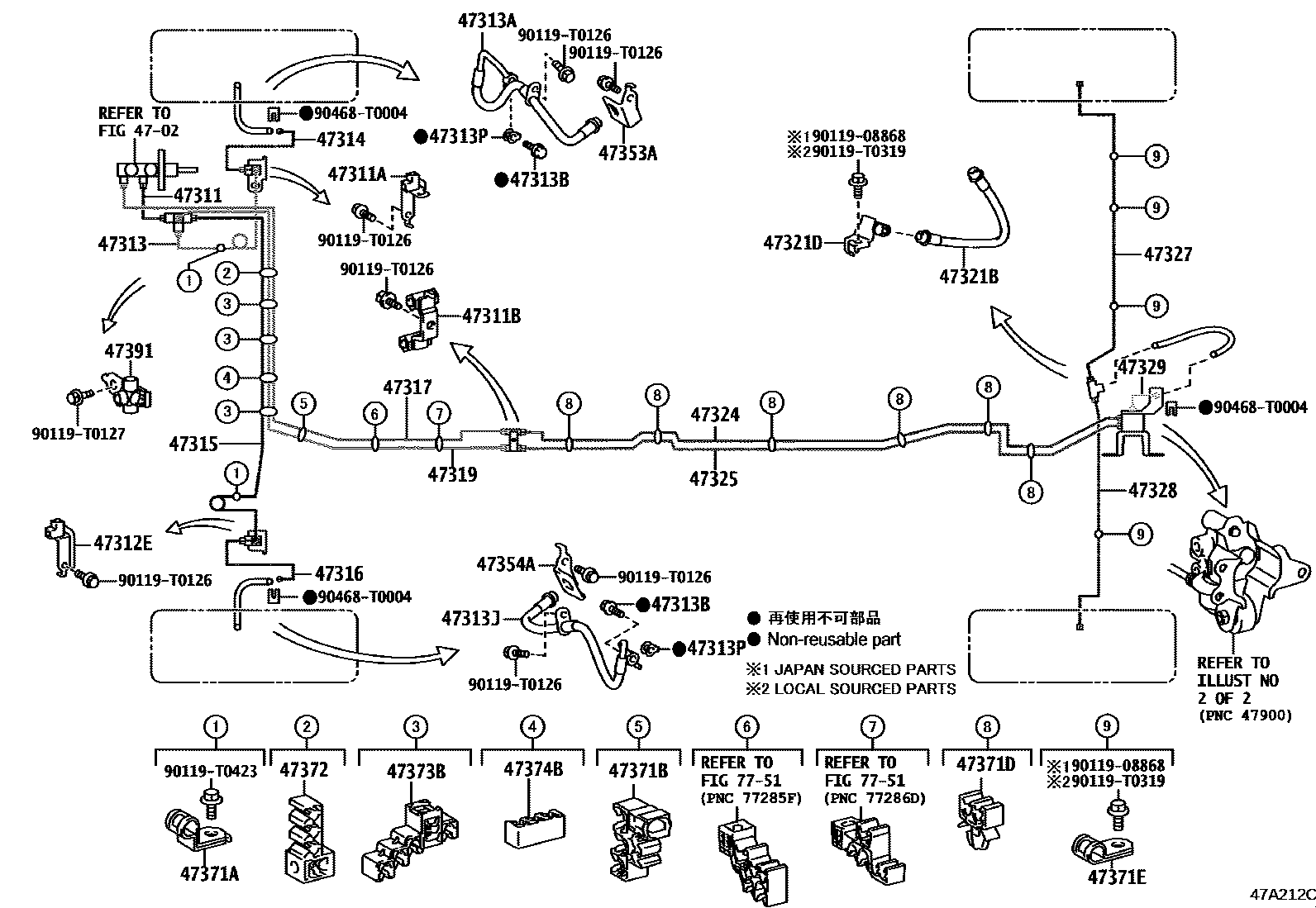

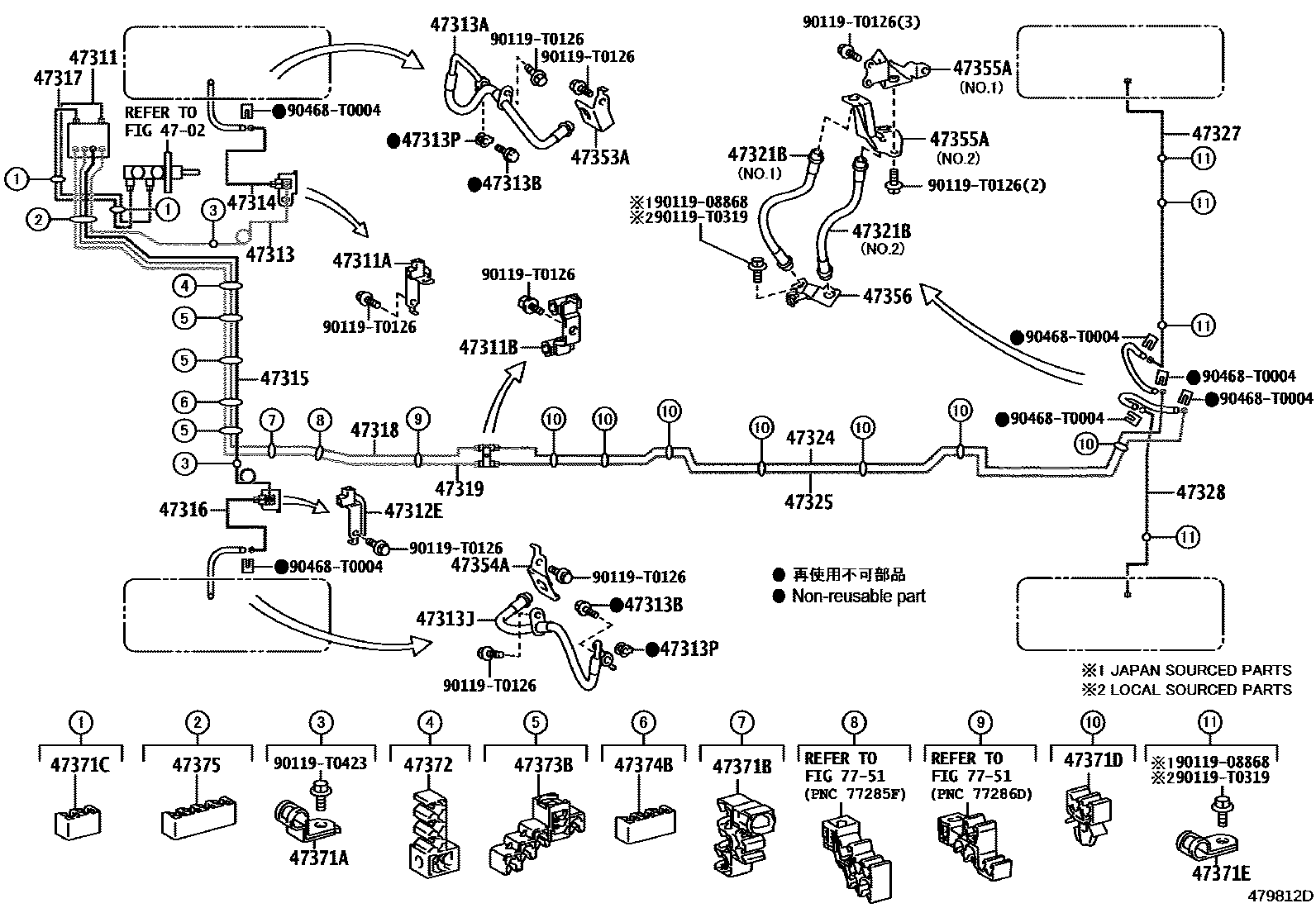

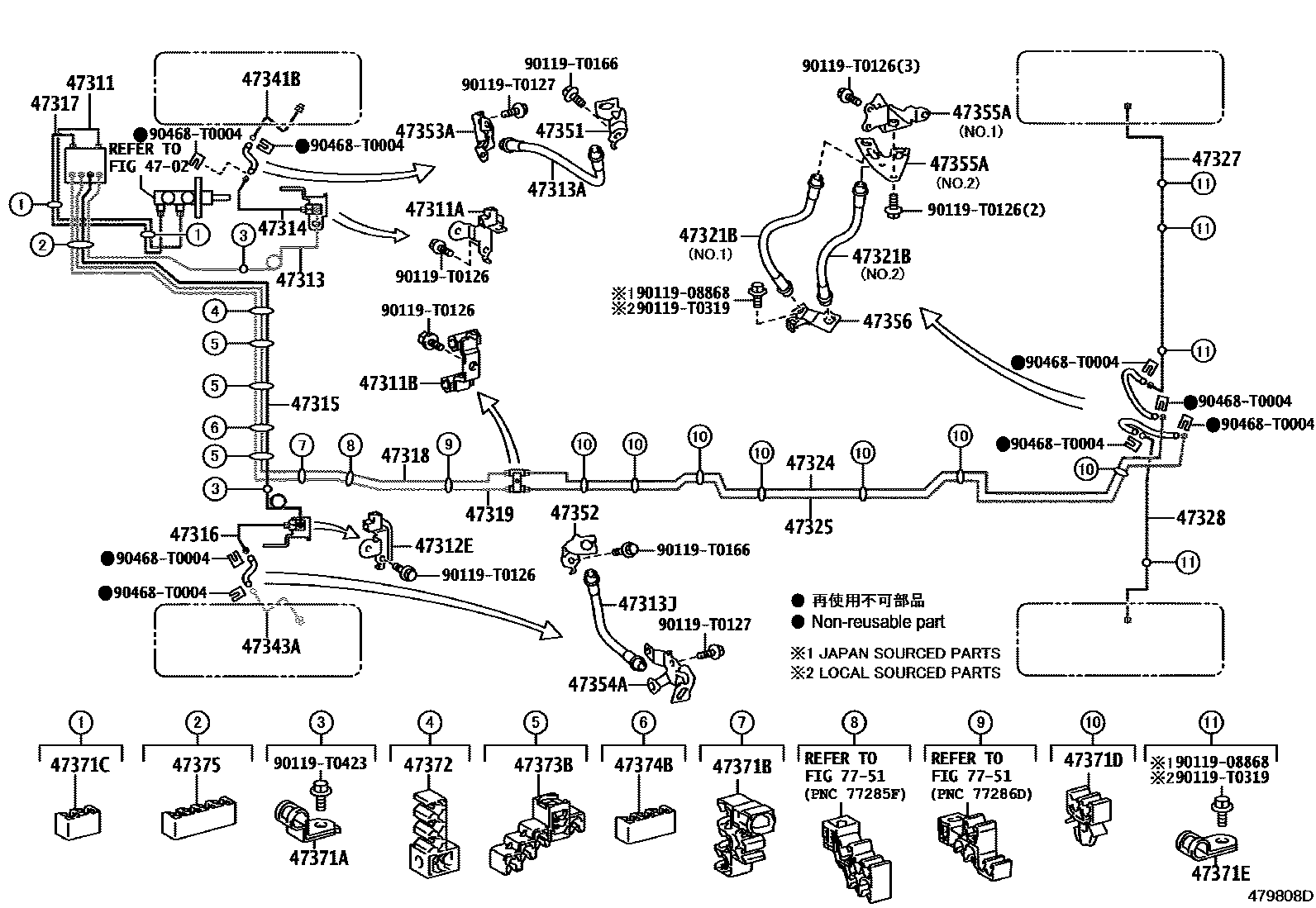

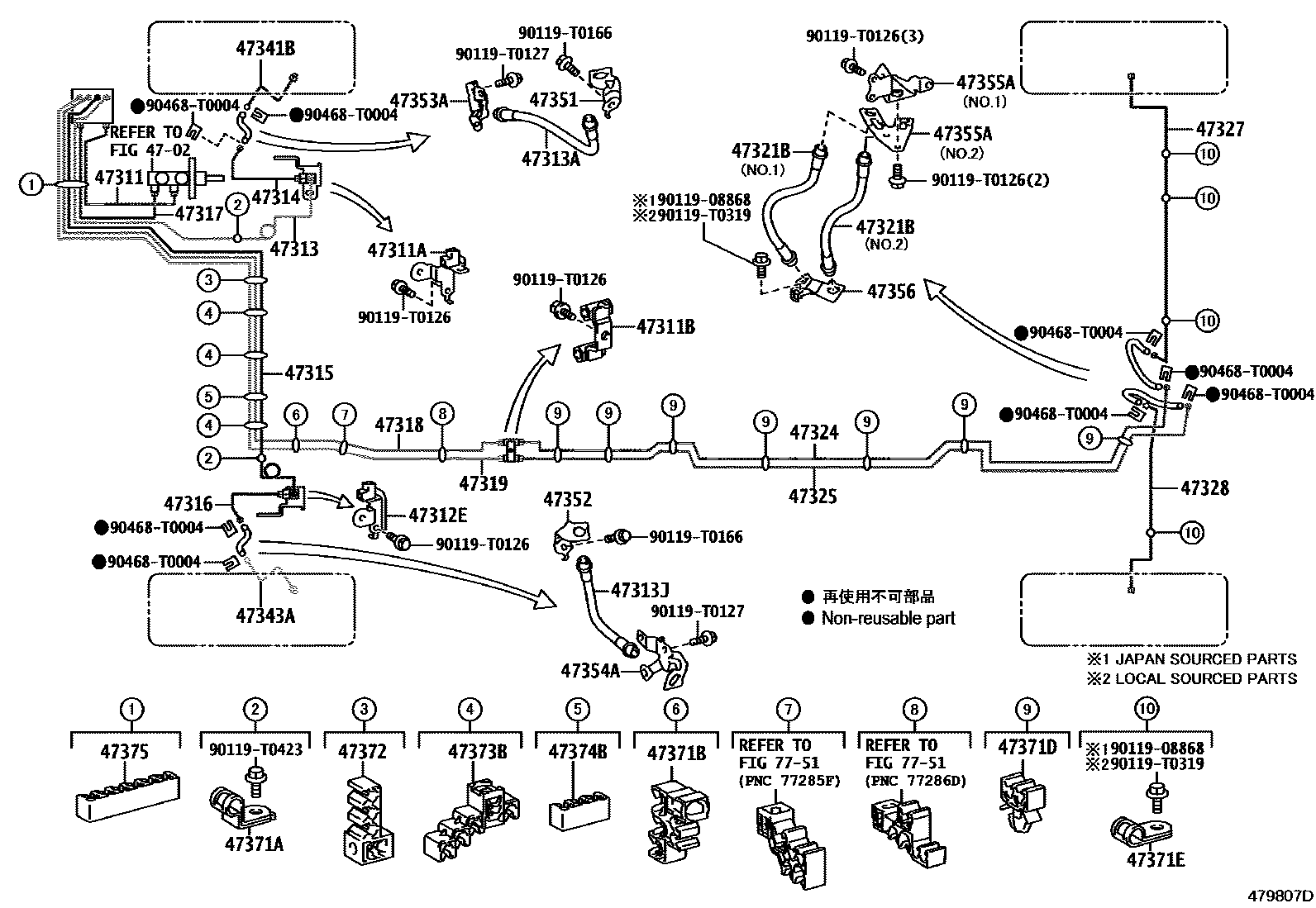

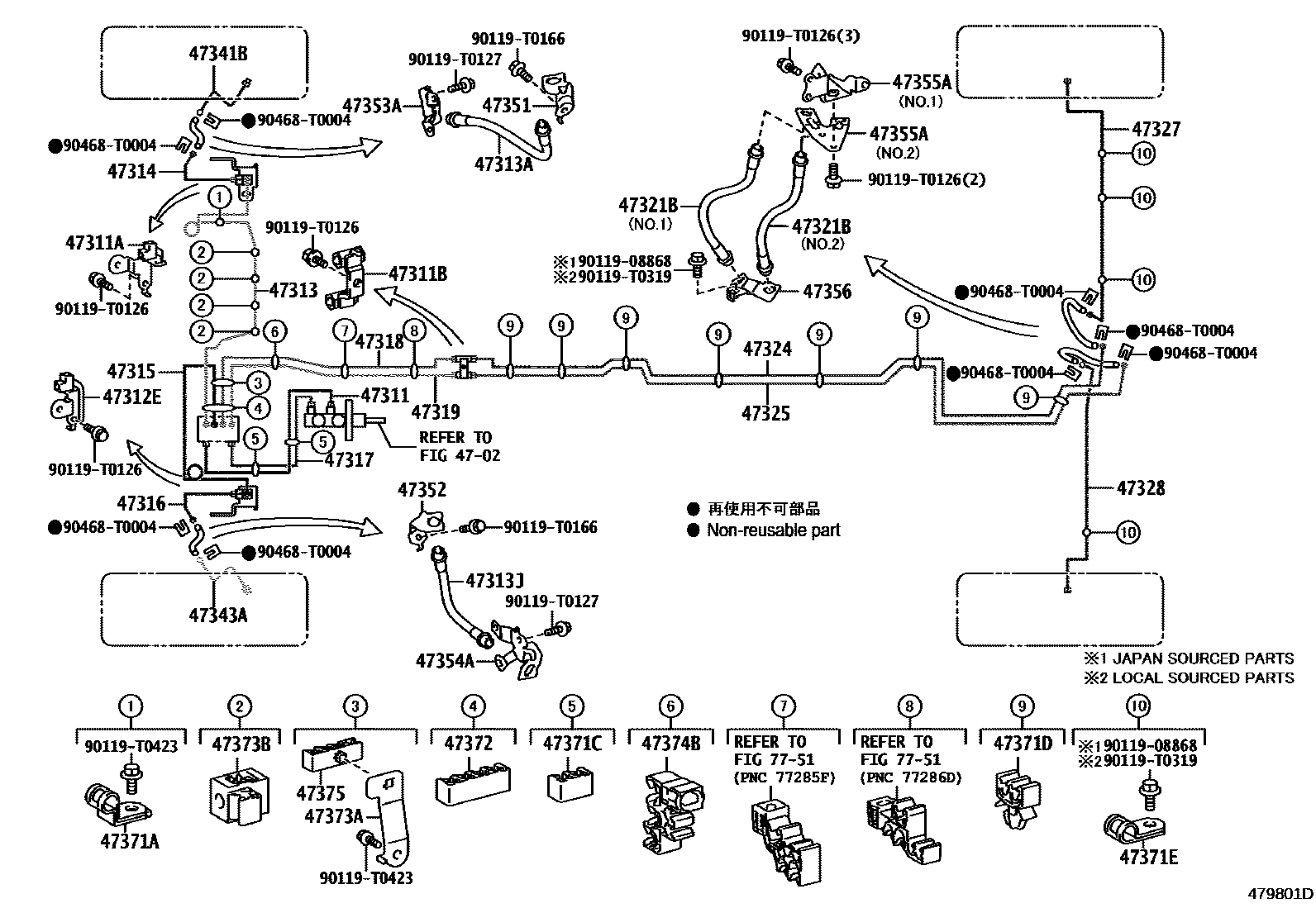

| 47311 | No. 1 front brake pipe | 47311-KK010 · 47311-KK020 · 47311-KK030 · 47311-KK040 · 47311-KK050 · 47311-KK060 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10299 · 90412-10307 · 90412-T0005 · 90412-T0009 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10301 · 90412-10302 · 90412-T0007 · 90412-T0008 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10300 · 90412-10308 · 90412-T0006 · 90412-T0010 |
| 47313 | No. 3 front brake pipe | 47313-KK010 · 47313-KK020 · 47313-KK030 · 47313-KK040 · 47313-KK050 · 47313-KK060 |
| 47313A | No. 1 front flexible hose | 90947-T2094 · 90947-T2098 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-T2095 · 90947-T2098 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-KK010 · 47314-KK020 |
| 47315 | No. 5 front brake pipe | 47315-KK010 · 47315-KK020 · 47315-KK030 · 47315-KK040 · 47315-KK050 · 47315-KK060 |
| 47316 | No. 6 front brake pipe | 47316-KK010 · 47316-KK020 |
| 47317 | No. 7 front brake pipe | 47317-KK010 · 47317-KK020 · 47321-KK010 · 47321-KK020 · 47321-KK030 · 47321-KK040 |
| 47318 | No. 8 front brake pipe | 47322-KK010 · 47322-KK020 · 47322-KK030 · 47322-KK040 · 47322-KK050 |
| 47319 | No. 9 front brake pipe | 47323-KK020 · 47323-KK030 · 47323-KK040 · 47323-KK050 · 47323-KK070 · 47323-KK080 · 47323-KK090 |
| 47321B | Flexible hose (for rear brake pipe) | 90947-T2107 · 90947-T2108 · 90947-T2109 · 90947-T2111 · 90947-T2112 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90413-10332 |
| 47324 | No. 4 rear brake pipe | 47318-KK010 · 47318-KK020 · 47324-KK010 · 47324-KK020 · 47324-KK050 · 47324-KK060 |
| 47325 | No. 5 rear brake pipe | 47325-KK010 · 47325-KK020 · 47325-KK030 · 47325-KK040 · 47325-KK080 · 47325-KK090 |
| 47327 | No. 7 rear brake pipe | 47327-KK010 · 47327-KK030 · 47327-KK040 · 47327-KK060 · 47327-KK080 · 47327-KK090 · 47327-KK120 · 47327-KK130 |
| 47328 | No. 8 rear brake pipe | 47328-KK010 · 47328-KK030 · 47328-KK080 · 47328-KK090 |
| 47329 | No. 9 rear brake pipe | 47329-KK020 |
| 47341B | No. 1 right front wheel cylinder brake pipe | 47341-0K050 · 47341-0K060 · 47341-0K070 · 47341-0K080 · 47341-0K090 · 47341-0K120 · 47341-0K130 |
| 47343A | No. 1 left front wheel cylinder brake pipe | 47343-0K050 · 47343-0K060 · 47343-0K070 · 47343-0K080 · 47343-0K090 · 47343-0K120 · 47343-0K130 |
| 47351 | Right front flex hose bracket | 47351-KK010 |
| 47352 | Left front flex hose bracket | 47352-KK010 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-0K040 |
| 47353A | No. 2 right front flexible hose bracket | 47353-0K011 · 47353-KK010 |
| 47354A | No. 2 Left Front Flexible Hose Bracket | 47354-0K010 · 47354-KK010 |
| 47355A | No. 5 Flexible Hose Bracket | 47355-KK010 · 47355-KK020 · 47355-KK060 |
| 47356 | No. 6 Flexible Hose Bracket | 47356-KK010 · 47356-KK040 |
| 47371A | No. 1 brake pipe clamp | 90461-T0007 |
| 47371B | No. 6 brake pipe clamp | 90949-T1032 |
| 47371C | No. 7 brake pipe clamp | 90949-T1033 |
| 47371D | No. 8 brake pipe clamp | 90949-T1006 |
| 47371E | No. 9 brake pipe clamp | 90461-T0001 |
| 47372 | No. 2 brake pipe clamp | 90949-T1003 · 90949-T1028 · 90949-T1029 · 90949-T1030 |
| 47373A | Pipe clamp bracket | 90949-T2003 |
| 47373B | No. 3 brake pipe clamp | 90949-T1016 · 90949-T1030 · 90949-T1032 |
| 47374B | No. 4 brake pipe clamp | 90949-T1027 · 90949-T1032 |
| 47375 | No. 5 brake pipe clamp | 90949-T1028 · 90949-T1029 · 90949-T1031 |
| 47391 | Brake pipe joint | 90414-10057 |

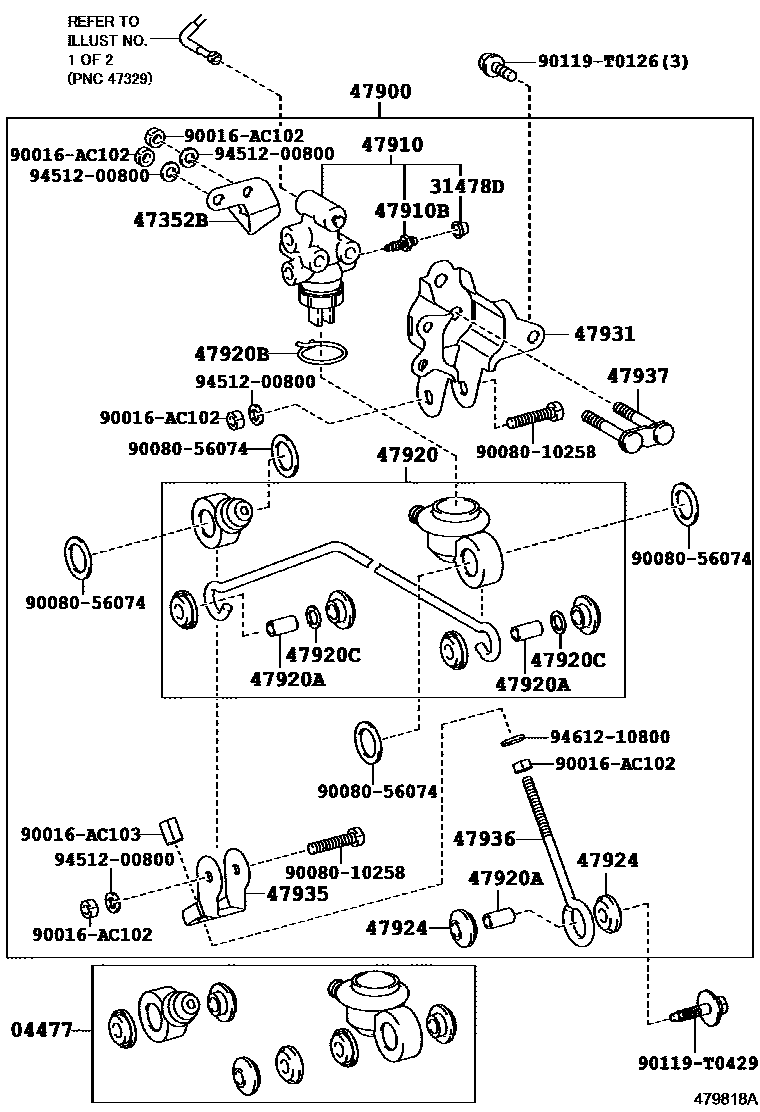

| 47900 | Load sensing valve assembly with spring | 47900-0K080 |
| 47910 | Load sensing proportional valve assembly | 47910-0K010 |
| 47910B | Bleed plug | 47547-27030 |
| 47920 | Load sensing spring assembly | 47920-0K010 |
| 47920A | Collar (for load sensing spring) | 90016-AX201 |
| 47920B | Clamp (for load sensing valve dust cover) | 90080-46308 |
| 47920C | Washer (for load sensing spring) | 90016-AH101 |
| 47924 | Load sensing valve bushing | 47924-04010 |
| 47931 | Load sensing valve bracket | 47931-0K080 |
| 47935 | No. 1 load-sensing spring lifting ear | 47935-04010 |
| 47936 | No. 2 load-sensing spring lifting lugs | 47936-04010 |
| 47937 | Load sensing valve fixing plate | 47937-04010 |
