Toyota HILUX 制动总泵 — Figure 4702

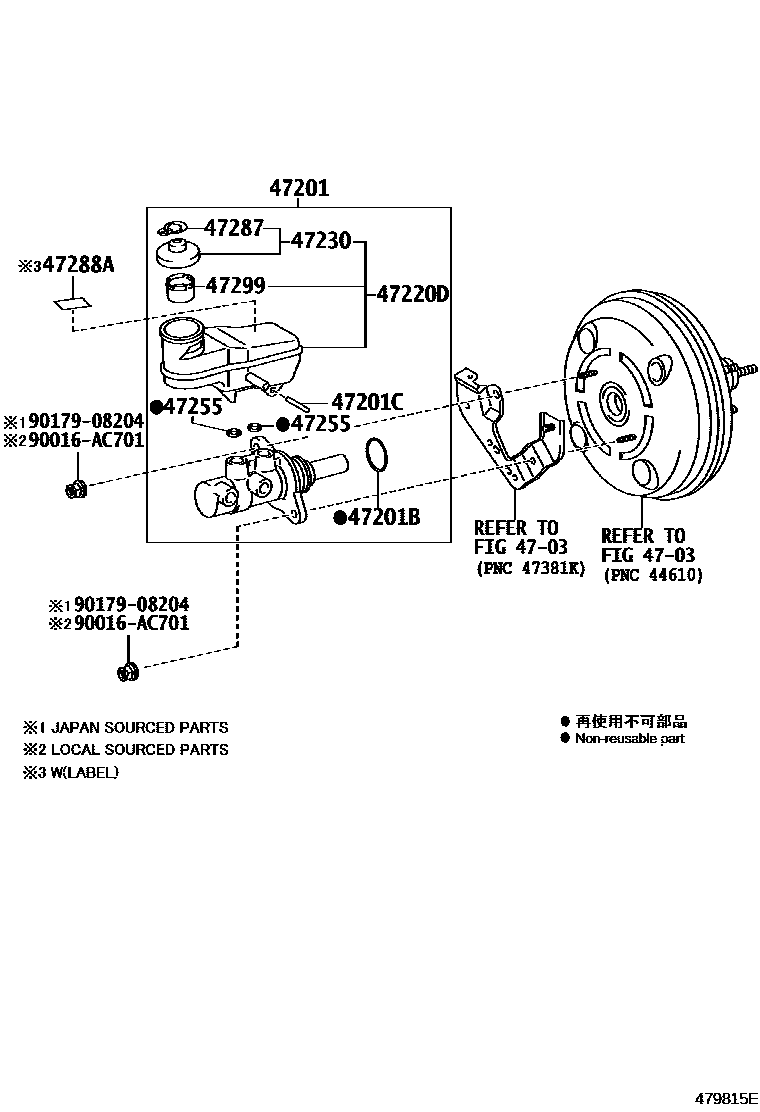

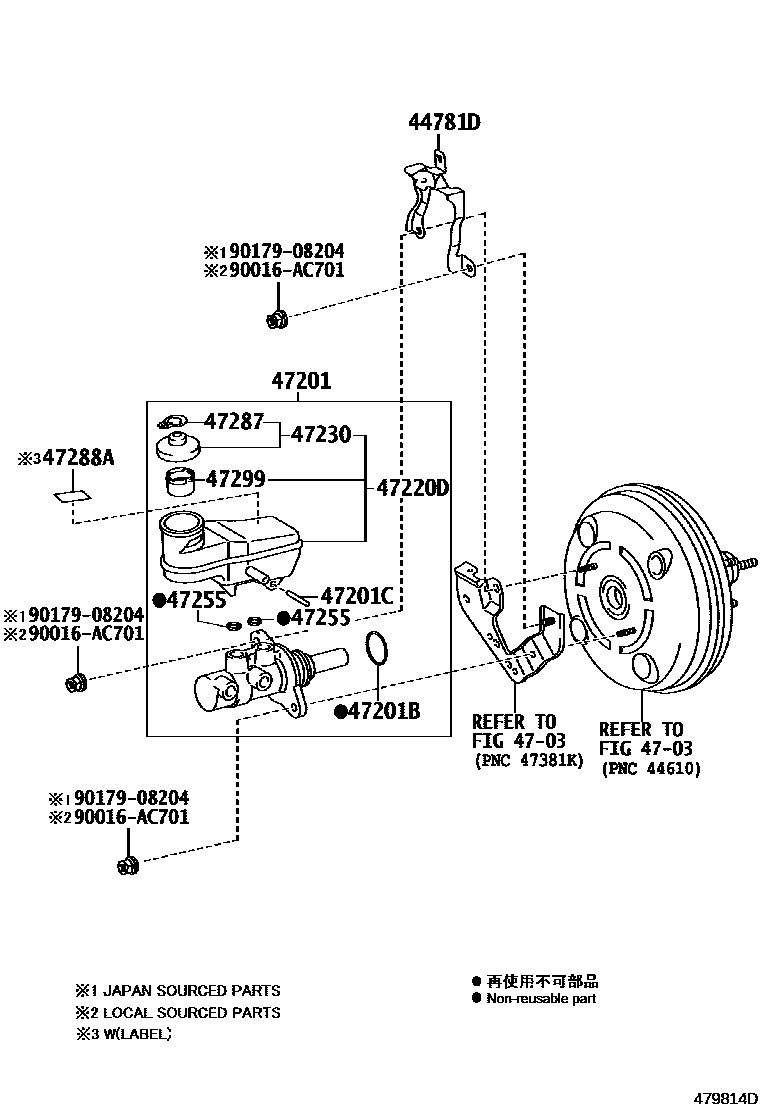

Toyota HILUX EPC diagram 4702, 制动总泵, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44781D | Reservoir hose bracket | 44781-KK050 |
| 47201 | Brake master cylinder sub-assembly | 47201-0K380 · 47201-0K390 · 47201-0K400 · 47201-0K410 · 47201-0K440 · 47201-0K441 · 47201-0K450 · 47201-0K451 · 47201-0K460 · 47201-0K461 · 47201-0K470 · 47201-0K471 · 47201-0K580 · 47201-0K590 · 47201-0K600 · 47201-0K610 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 · 90016-AH903 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-0K100 · 47220-0K110 · 47220-0K120 · 47220-0K130 · 47220-0K200 · 47220-0K201 · 47220-0K210 · 47220-0K211 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-0D221 · 47230-20140 |
| 47255 | Master pump reservoir seal | 90016-AT001 · 90029-48001 |
| 47287 | brake fluid information label | 47287-02360 |
| 47288A | Brake Fluid Caution Label | 47288-30010 · 47288-71010 |
| 47299 | Brake master cylinder reservoir filter | 47299-0D100 · 47299-0K200 |
