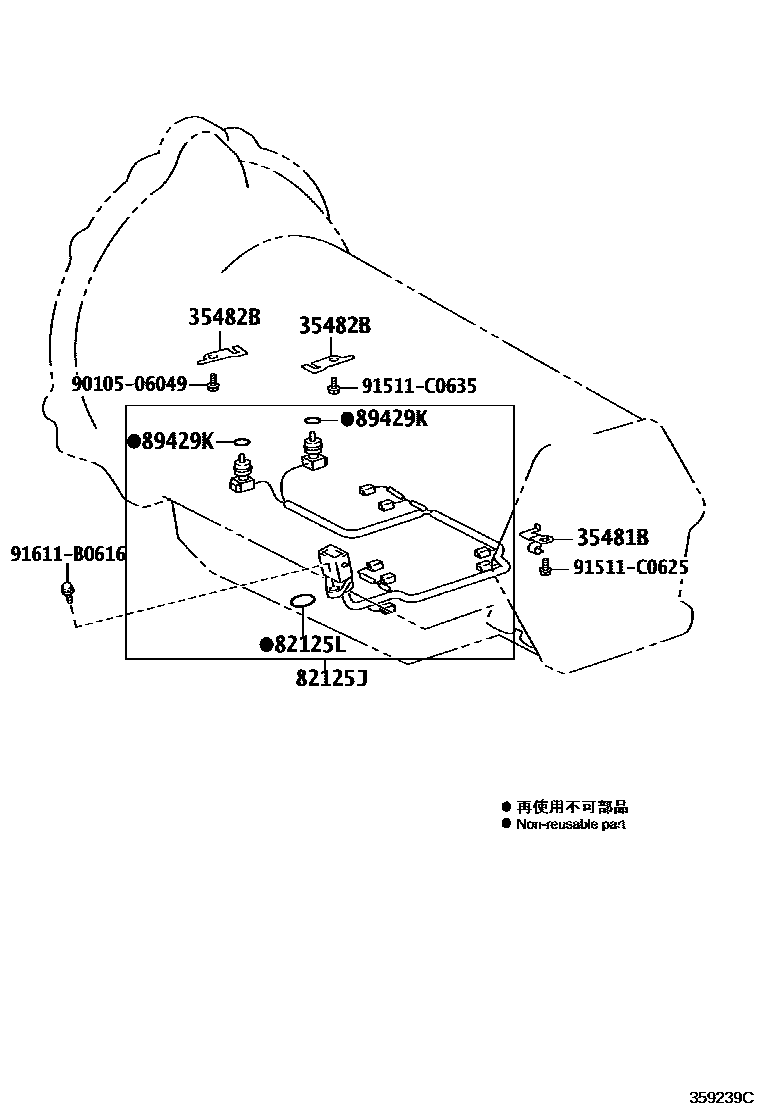

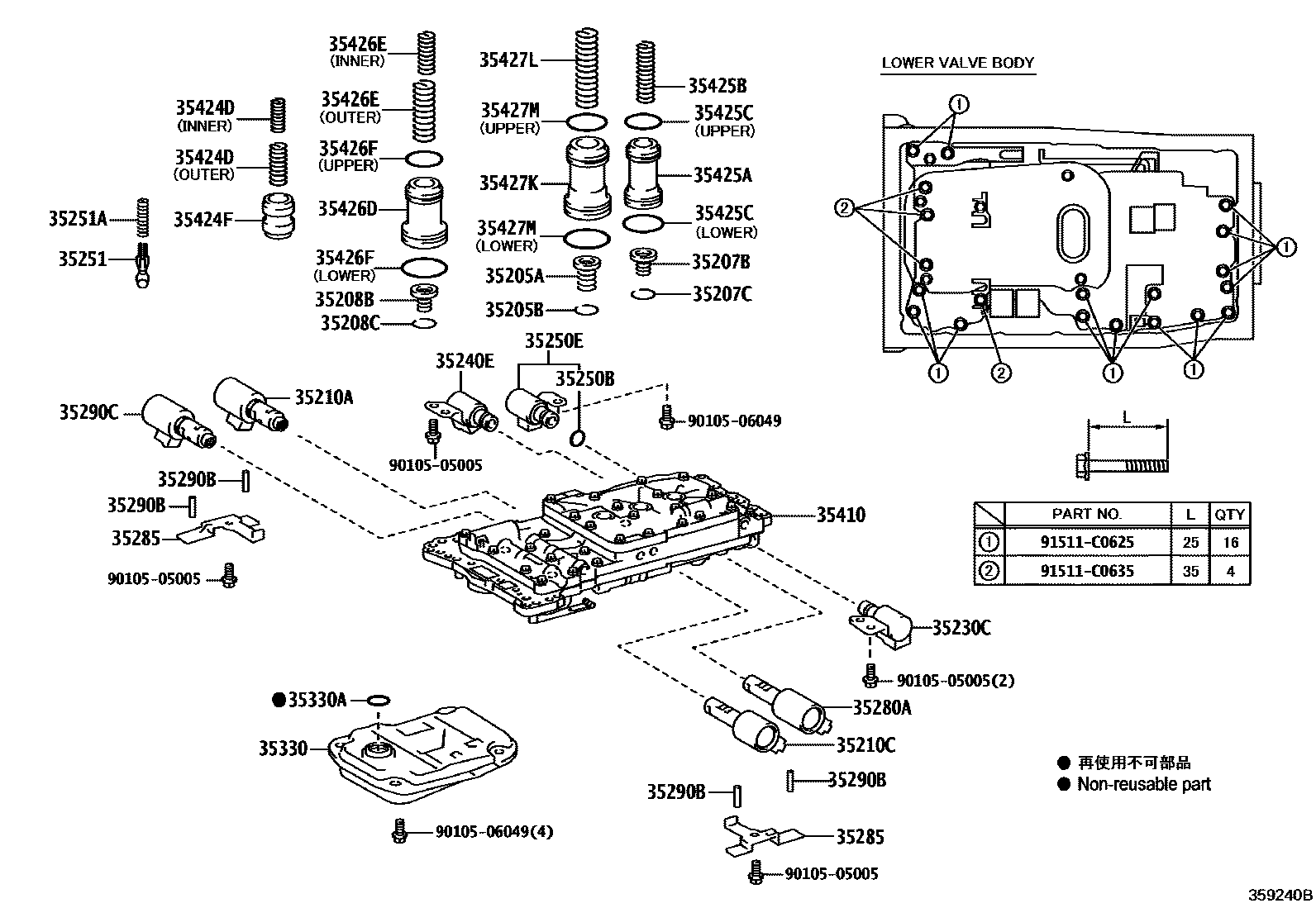

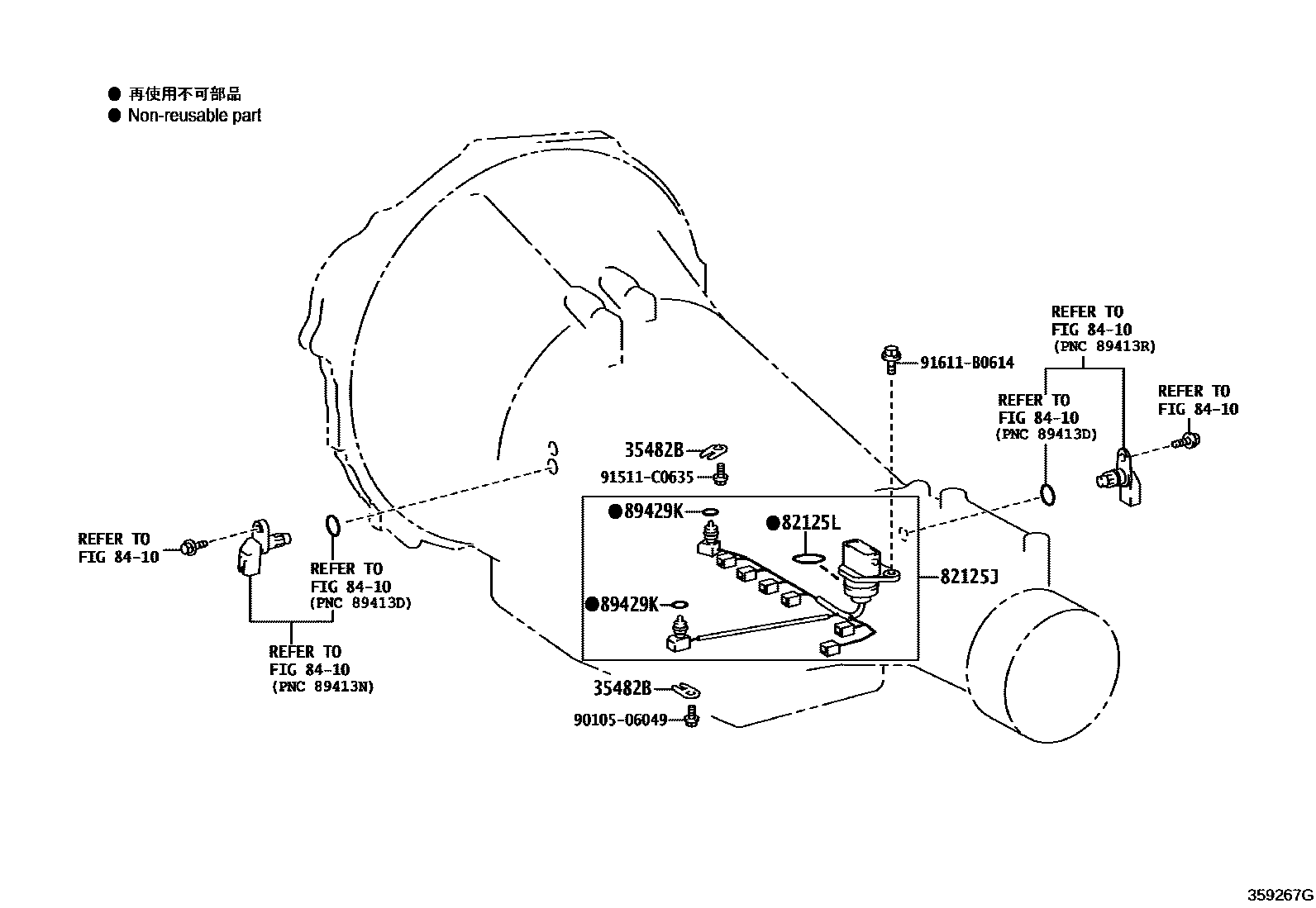

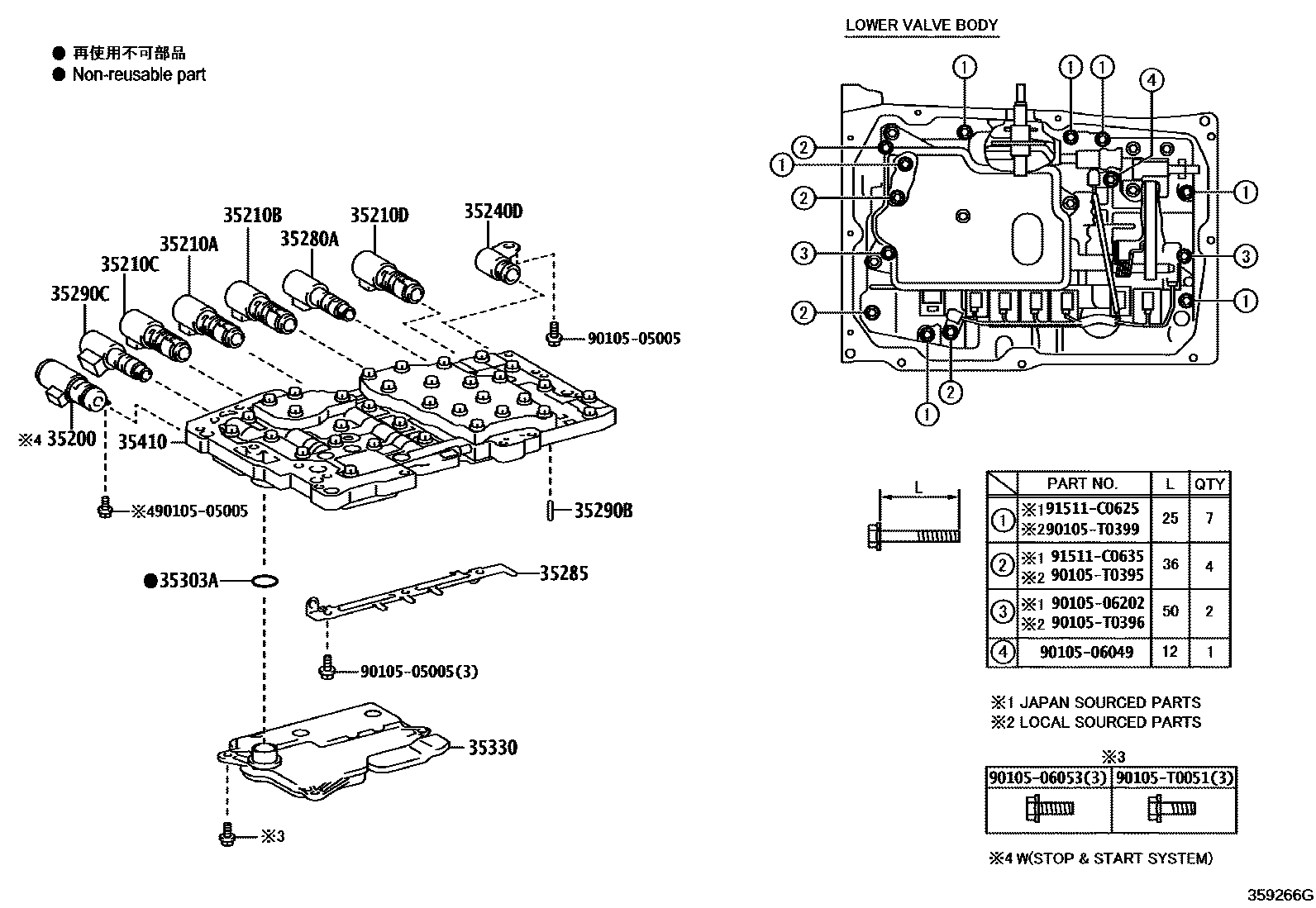

Toyota HILUX 阀体和滤油网(ATM) — Figure 3512
Toyota HILUX EPC diagram 3512, 阀体和滤油网(ATM), with 4 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35200 | ENS. POMPE, HUILE, AVEC SOLENOIDE | 35200-71010 |
| 35205A | B-3 accumulator spring sub-assembly | 35205-60010 |
| 35205B | Hole snap ring (for B-3 accumulator spring) | 90521-22004 |
| 35207B | C-2 Accumulator spring sub-assembly | 35207-22010 |
| 35207C | Hole snap ring (for C-2 accumulator spring) | 90521-22004 |
| 35208B | C-3 Accumulator Spring Sub-Assembly | 35208-60010 |
| 35208C | Hole snap ring (for C-3 accumulator spring) | 90521-22004 |
| 35210A | SOUPAPE, SOLENOIDE(SL1) | 35210-50010 · 35210-71010 |
| 35210B | SOUPAPE, SOLENOIDE(SL3) | 35210-71010 |
| 35210C | SOUPAPE, SOLENOIDE(SL2) | 35210-50010 · 35210-71010 |
| 35210D | SOUPAPE, SOLENOIDE(SL4) | 35210-71010 |
| 35230C | SOUPAPE, SOLENOIDE(SR) | 35230-60010 |
| 35240D | SOUPAPE, SOLENOIDE(SL) | 35240-71010 |
| 35240E | SOUPAPE, SOLENOIDE(S1) | 35240-60020 |
| 35250B | No. 3 O-ring (for transmission solenoid valve) | 90301-06004 |
| 35250E | SOUPAPE, SOLENOIDE(S2) | 35250-60010 |
| 35251 | Ball check valve body | 35251-30020 |
| 35251A | Compression spring (for ball check valve body) | 90501-03005 |
| 35280A | SOUPAPE, SOLENOIDE(SLU) | 35280-30050 · 35280-71010 |
| 35285 | Solenoid valve lock plate | 35285-0K010 · 35285-34010 · 35285-71010 |
| 35290B | Direct sales (for pipeline pressure control solenoid valve) | 90250-03045 |
| 35290C | SOUPAPE, SOLENOIDE(SLT) | 35290-34010 · 35290-71020 |
| 35303A | O-ring (for oil filter) | 90301-27010 · 90301-T0071 |
| 35330 | Valve body oil filter assembly | 35330-60050 · 35330-71010 |
| 35330A | O-ring (for oil filter) | 90301-31014 |
| 35410 | Transmission valve body assembly | 35410-0K010 · 35410-0K020 · 35410-0K030 · 35410-0K040 · 35410-60620 · 35410-71101 · 35410-71102 · 35410-71111 · 35410-71112 |
| 35424D | Compression spring (for C-1 accumulator piston) | 90501-20173 · 90501-21040 |
| 35424F | C-1 Accumulator Valve | 35424-60030 |
| 35425A | C-2 Accumulator Piston | 35425-50020 |
| 35425B | Compression spring (for C-2 accumulator piston) | 90501-22062 |
| 35425C | O-ring (for C-2 accumulator piston) | 90301-20008 · 90301-28008 |
| 35426D | C-3 Accumulator Piston | 35426-50020 |
| 35426E | Compression spring (for C-3 accumulator piston) | 90501-24038 · 90501-25028 |
| 35426F | O-ring (for C-3 accumulator piston) | 90301-26011 · 90301-34011 |
| 35427K | B-3 Accumulator Piston | 35427-50020 |
| 35427L | Compression spring (for B-3 accumulator piston) | 90501-27036 |
| 35427M | O-ring (for B-3 accumulator piston) | 90301-23010 · 90301-34011 |
| 35481B | Valve body wiring harness clip | 35481-60010 |
| 35482B | temperature sensor clip | 35482-0K010 · 35482-60040 · 35482-73010 |
| 82125J | Transmission wiring harness | 82125-0K010 · 82125-0K020 · 82125-60650 · 82125-71020 · 82125-71021 · 82125-71030 · 82125-71031 |
| 82125L | O-ring (for transmission wiring harness) | 90301-21009 · 90301-36014 |
| 89429K | JOINT, TORIQUE(POUR CAPTEUR TEMPERATURE HUILE) | 90301-06004 |
