Toyota HILUX Air Cleaner — Figure 1703

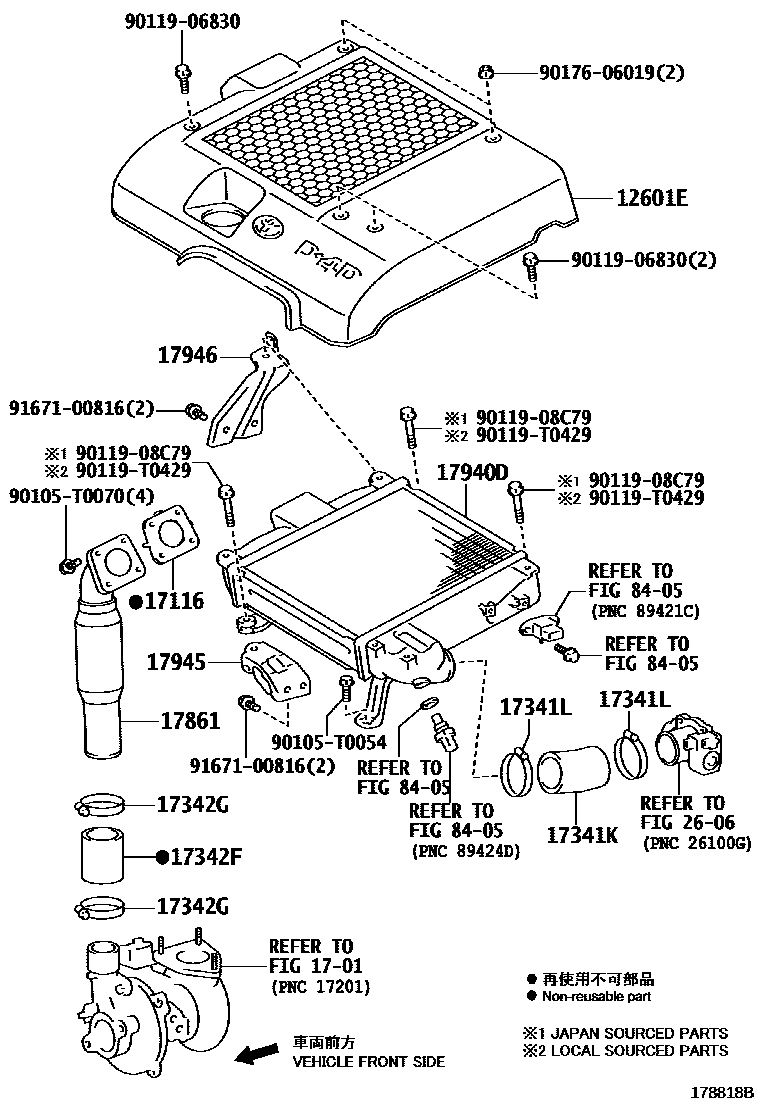

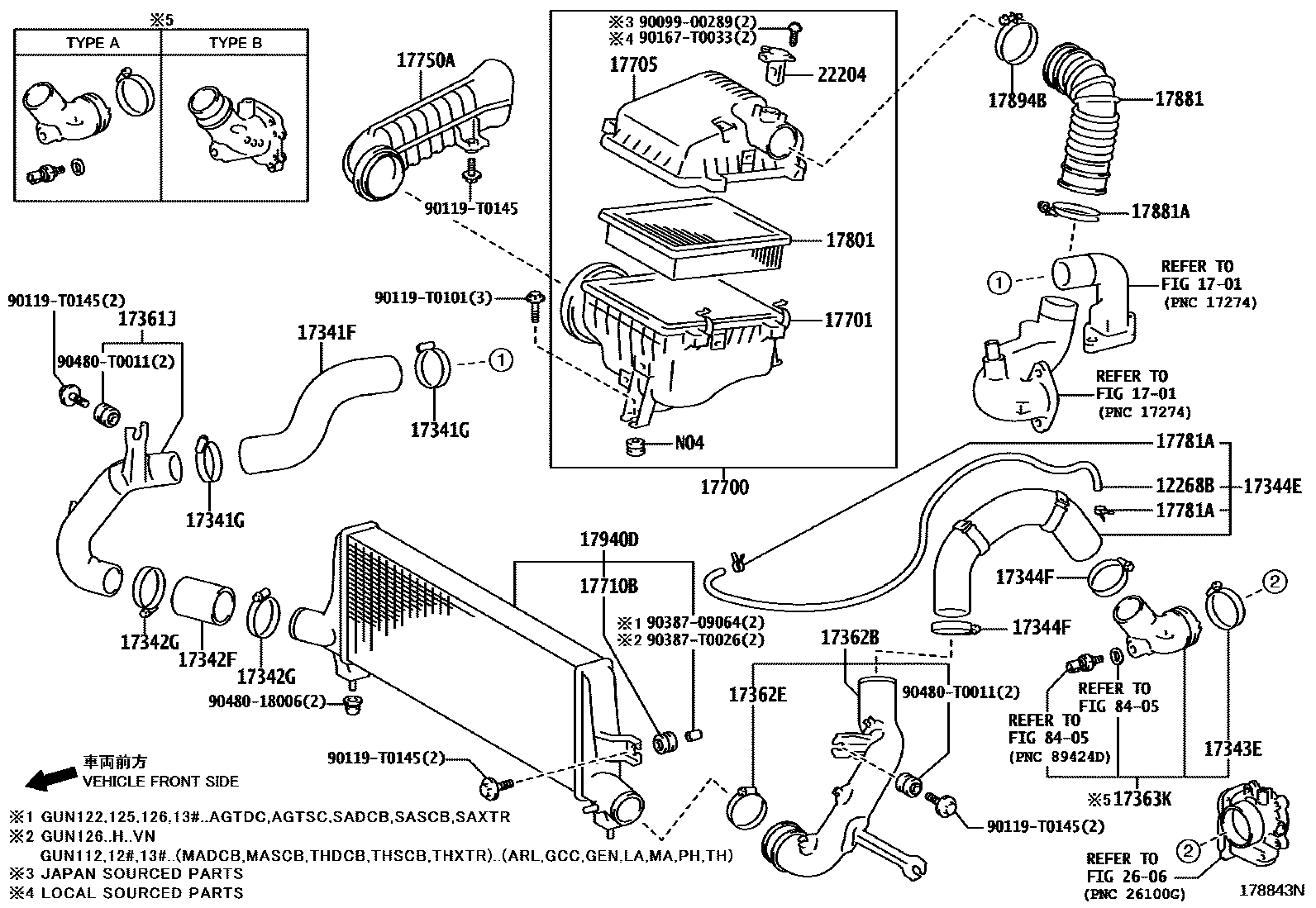

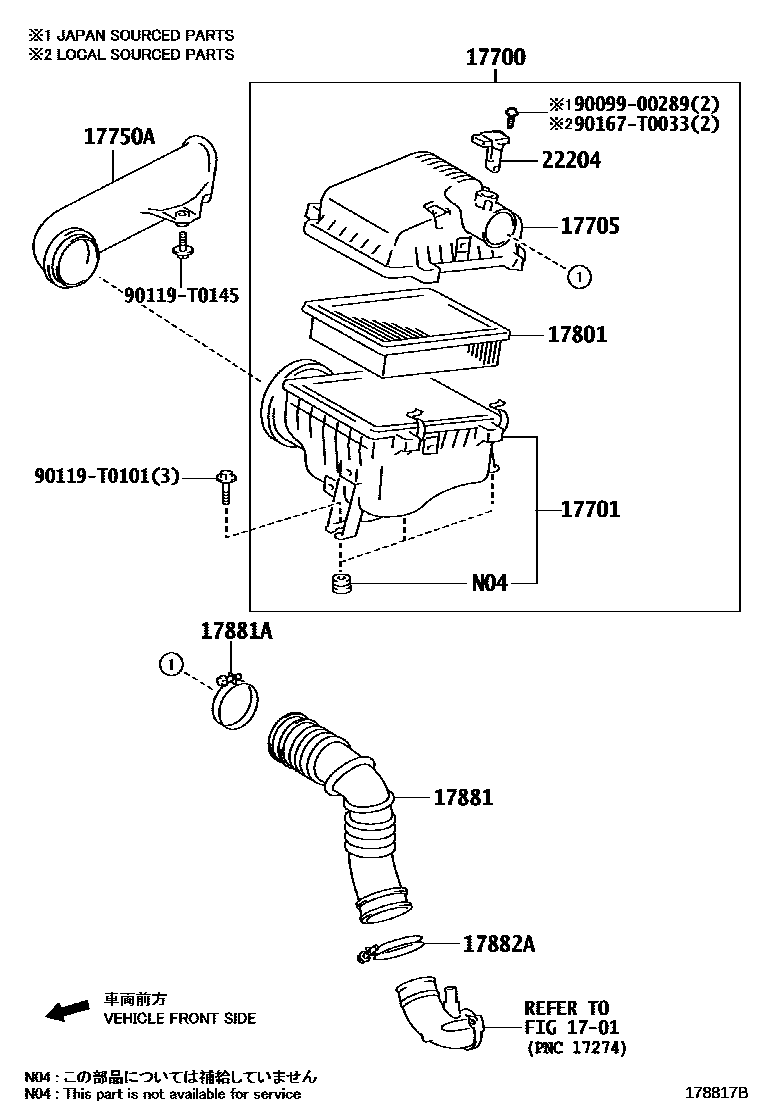

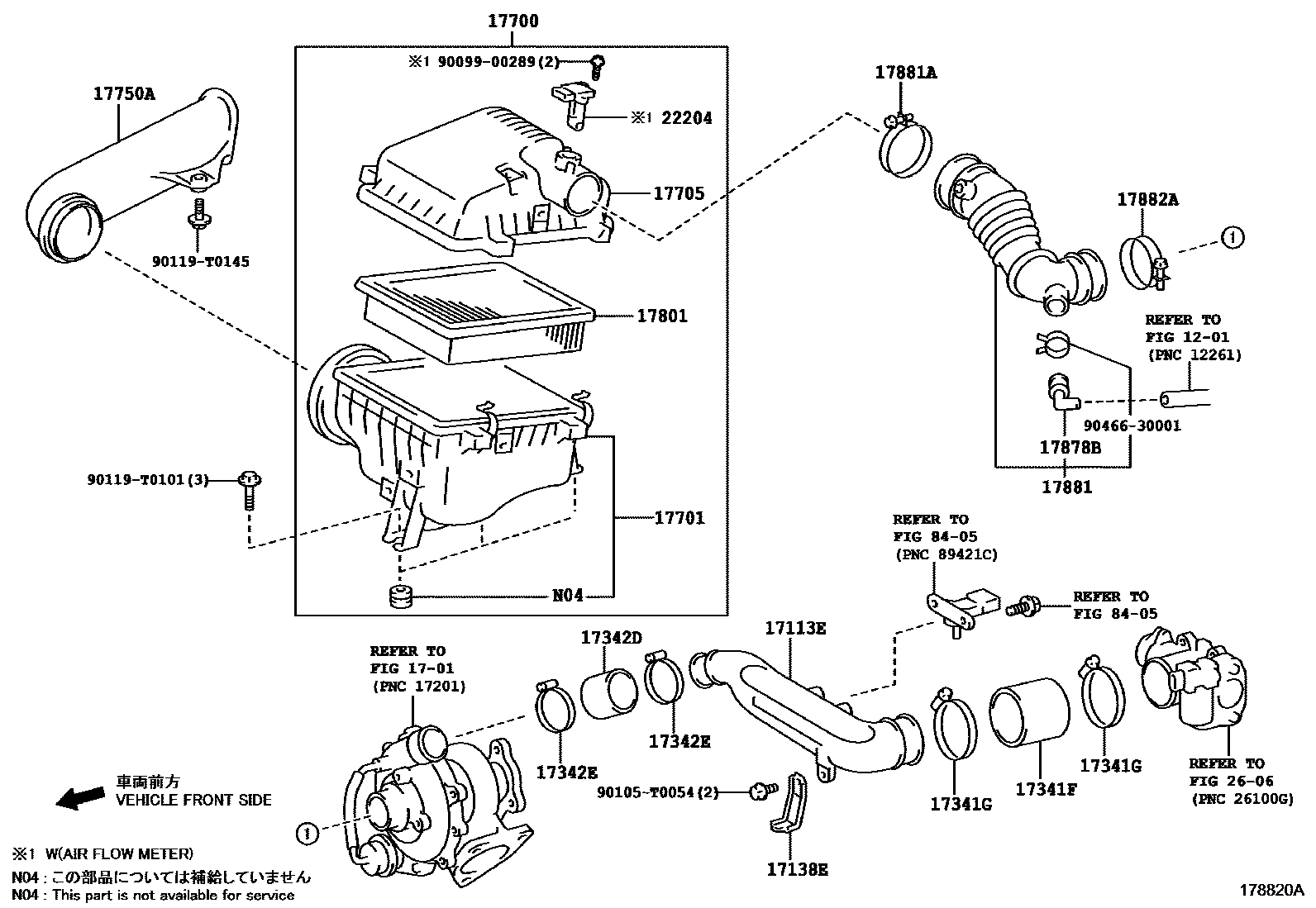

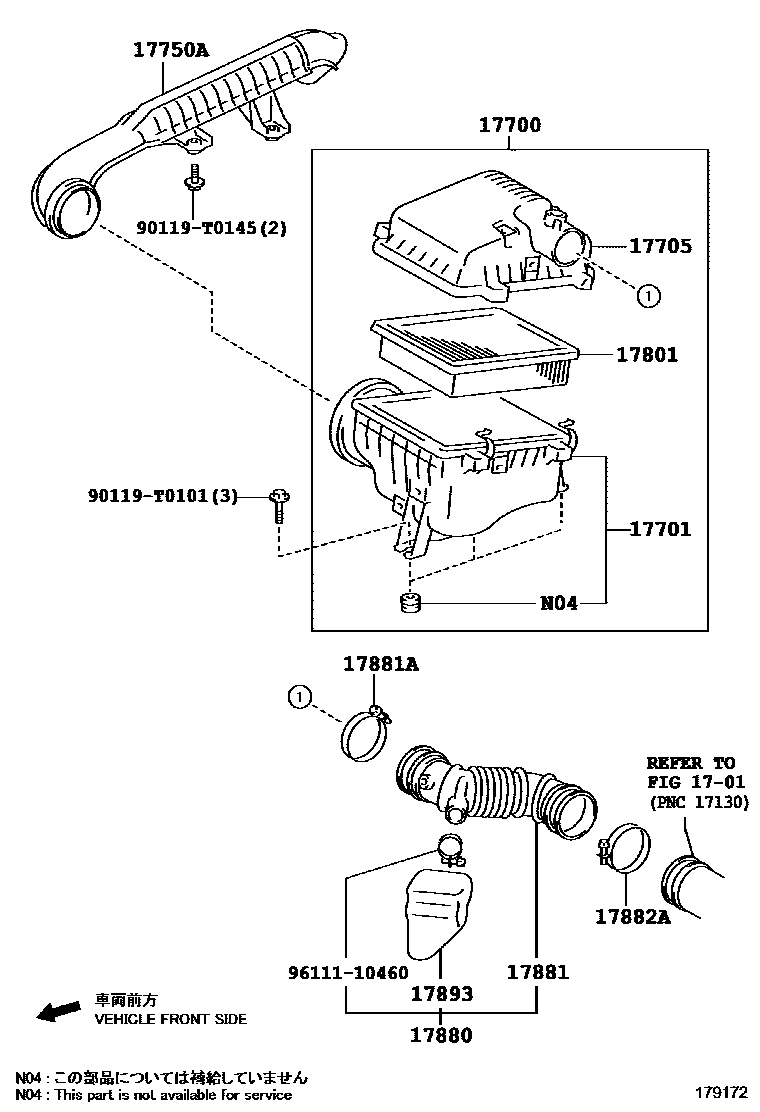

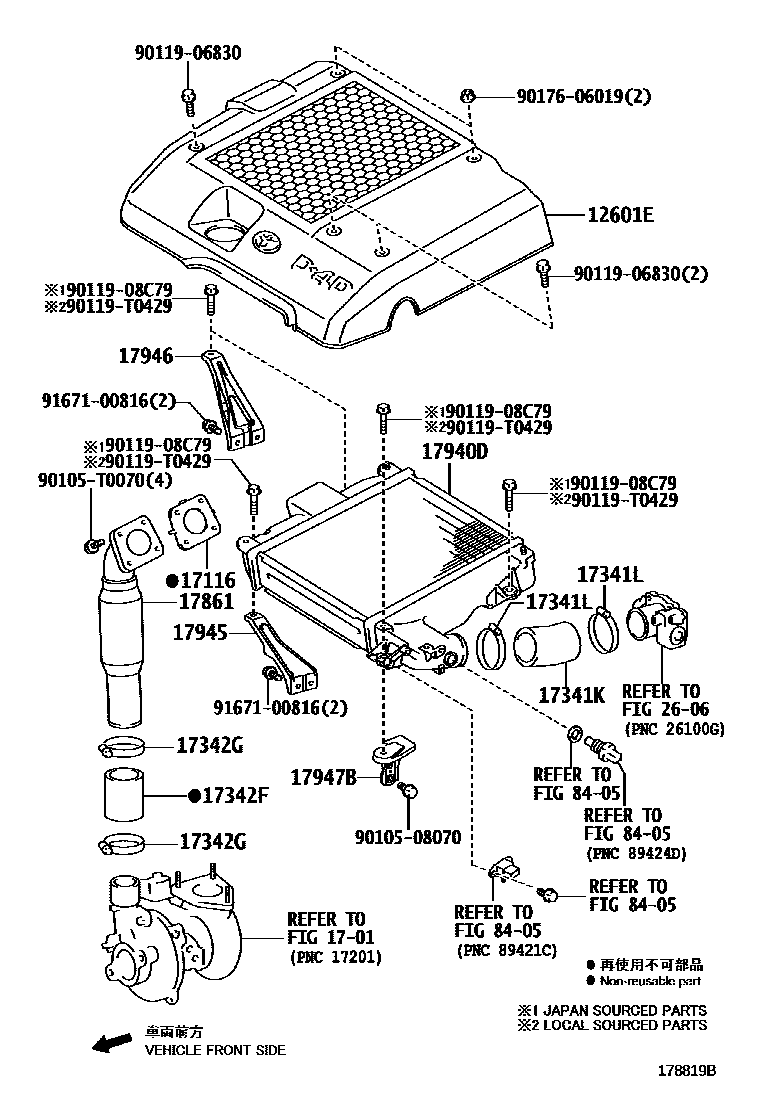

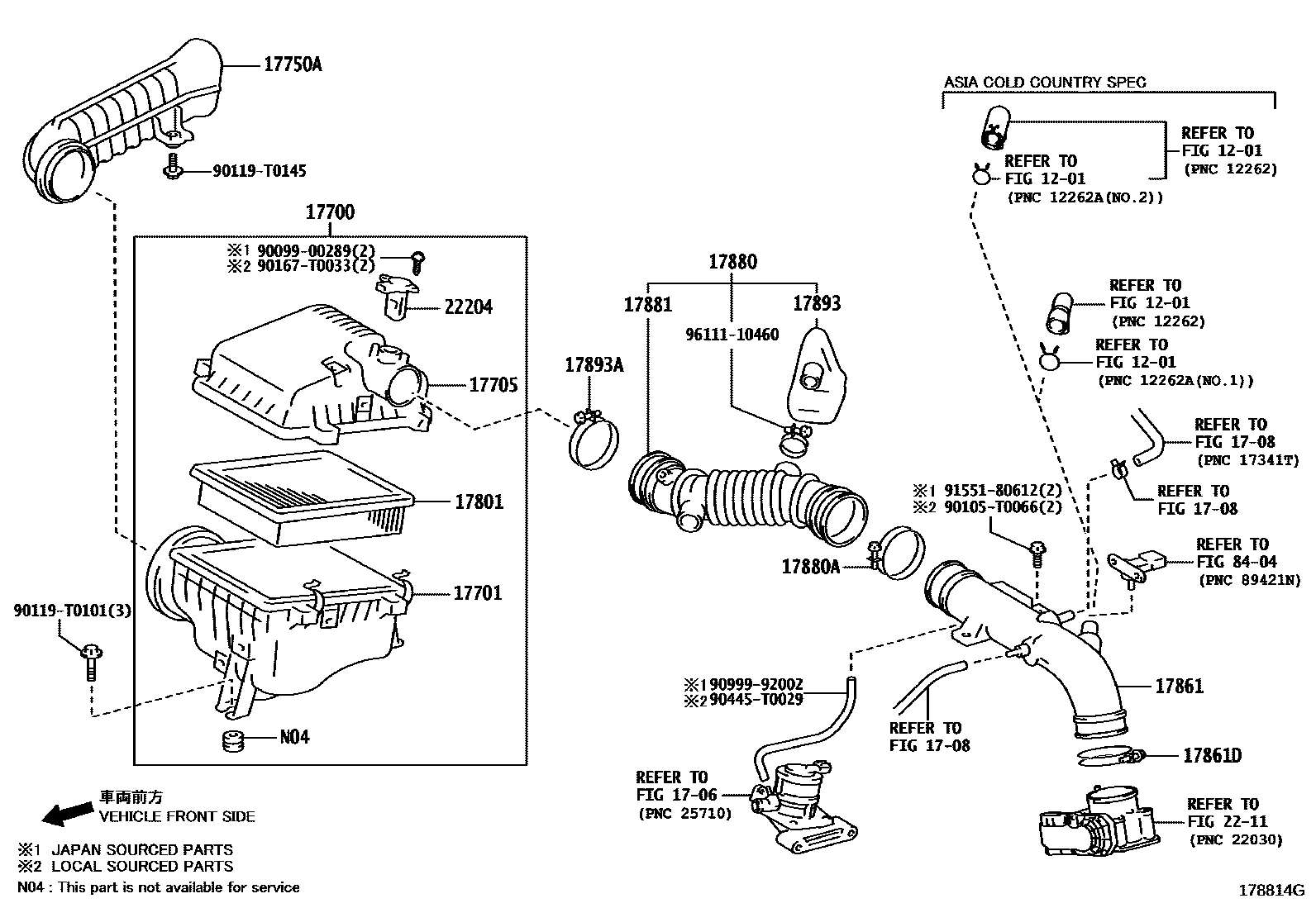

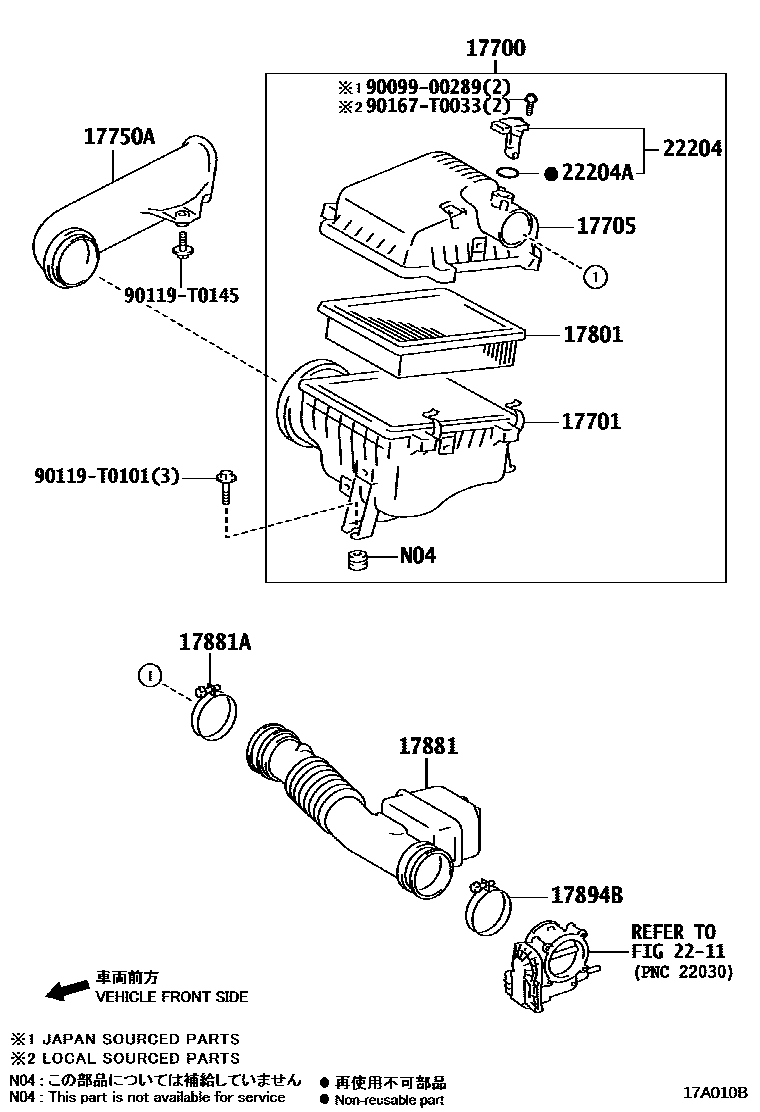

Toyota HILUX EPC diagram 1703, Air Cleaner, with 8 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12268B | Oil return hose | 12268-0L020 |
| 12601E | No. 1 engine hood sub-assembly | 12601-0L040 · 12601-0L051 · 12601-0L060 |
| 17113E | No. 1 intake pipe | 17113-0L020 |
| 17116 | Intake flange gasket | 17116-0L010 |
| 17138E | Intake pipe stay | 17138-0L010 |
| 17341F | Air hose No. 1 | 17341-0L020 · 17341-30060 |
| 17341G | Clip or clip (for No. 1 air hose) | 90460-65012 · 90460-80006 |
| 17341K | Air hose No. 1 (for intercooler) | 17341-30060 |
| 17341L | hose clamp | 90460-80006 |
| 17342D | Air hose No. 2 | 17342-30050 |
| 17342E | Clip or clip (for No. 2 air hose) | 90460-57005 |
| 17342F | Air hose No. 2 (for intercooler) | 17342-0L020 · 17342-30010 |
| 17342G | No. 2 hose clamp (for intercooler) | 90460-65012 |
| 17343E | Hose clamp (for size 3 air hose) | 90460-80006 |
| 17344E | No. 4 air hose | 17344-0L020 |
| 17344F | Hose clamp (for size 4 air hose) | 90460-65012 |
| 17361J | Air tube No. 1 | 17361-0L021 |
| 17362B | No. 2 air pipe | 17362-0L020 |
| 17362E | Clamp No. 2 (for No. 2 air tube) | 90460-67008 |
| 17363K | No. 3 air pipe (for intercooler) | 17363-0L020 · 17861-0E010 |
| 17700 | air filter assembly | 17700-0C180 · 17700-0C190 · 17700-0C200 · 17700-0C210 · 17700-0C240 · 17700-0C250 · 17700-0L270 · 17700-0L290 · 17700-0L300 · 17700-0L310 · 17700-0L330 · 17700-0L340 · 17700-0L350 · 17700-0L380 · 17700-0L390 |
| 17701 | Air filter housing sub-assembly | 17701-0C170 · 17701-0C180 · 17701-0C190 · 17701-0C200 · 17701-0C220 · 17701-0C230 |
| 17705 | Air filter cover sub-assembly | 17705-0C160 · 17705-0C170 · 17705-0C180 · 17705-0C190 · 17705-0C200 · 17705-0C210 · 17705-0L270 · 17705-0L280 · 17705-0L290 · 17705-0L320 · 17705-0L330 · 17705-0L340 · 17705-0L360 · 17705-0L370 · 17705-0L380 |
| 17710B | gasket | 90480-11016 · 90480-F0002 · 90480-T0011 |
| 17750A | Air filter air inlet assembly | 17750-05030 · 17750-05031 · 17750-0L050 · 17750-0L060 · 17750-0L070 · 17750-0L090 |
| 17781A | hose clamp | 90466-07002 |
| 17801 | Air filter element sub-assembly | 17801-0L040 |
| 17861 | Intake connecting pipe | 17860-0L020 · 17861-0C060 · 17861-0C070 · 17861-0C090 · 17861-0C110 · 17861-0C120 · 17861-0C130 · 17861-0C150 |
| 17861D | Clamp (for air intake connecting pipe) | 90460-T0005 · 90460-T0010 · 96111-10750 · 96111-10800 |
| 17878B | ventilation duct | 17878-0L011 |
| 17880 | Air cleaner hose assembly | 17880-05020 · 17880-0C090 |
| 17880A | hose clamp | 90460-T0005 |
| 17881 | No. 1 air cleaner hose | 17880-0L110 · 17880-0L130 · 17881-05060 · 17881-0C110 · 17881-0E010 · 17881-0E020 · 17881-0L120 · 17881-0L200 · 17881-0P160 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-T0005 · 90460-T0020 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-T0004 · 90460-T0005 |
| 17893 | Intake resonator | 17893-0C070 |
| 17893A | hose clamp | 90460-T0020 |
| 17894B | Hose clamp (for intake resonator No. 2) | 90460-T0020 |
| 17940D | Intercooler assembly | 17940-0L010 · 17940-0L020 · 17940-0L060 · 17940-0L110 · 17940-0L130 · 17940-0L140 |
| 17945 | intercooler bracket | 17945-0L010 · 17945-0L020 |
| 17946 | No. 2 intercooler bracket | 17946-0L020 · 17946-30030 |
| 17947B | Intercooler bracket No. 3 | 17947-0L010 |
| 22204 | Intake air flow meter assembly | 22204-0C020 · 22204-0L010 · 22204-30030 · 22204-75040 |
| 22204A | O-ring (for intake air flow meter) | 90099-14141 |
