Toyota HILUX 挡风玻璃清洗器 — Figure 8503

Toyota HILUX EPC diagram 8503, 挡风玻璃清洗器, with 4 images and 12 PNC and OE references.

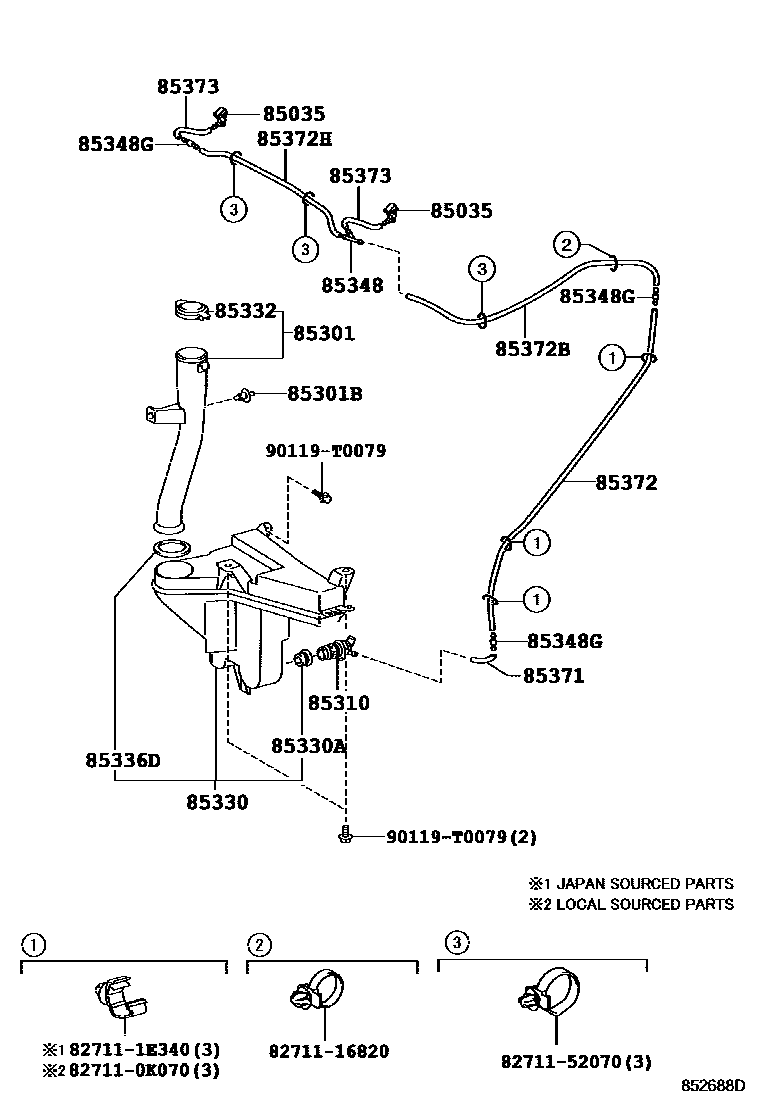

Toyota HILUX 挡风玻璃清洗器 EPC diagram — 852688D
挡风玻璃清洗器 — 852688D (201107 – 999999)

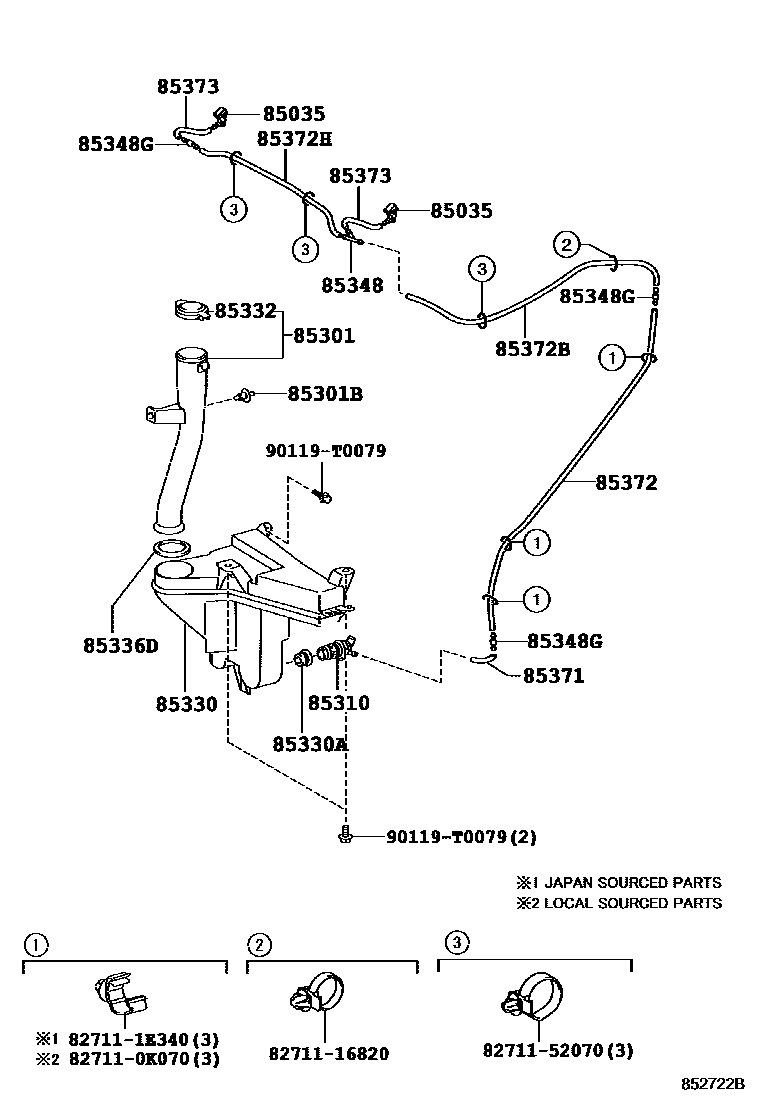

Toyota HILUX 挡风玻璃清洗器 EPC diagram — 852722B
挡风玻璃清洗器 — 852722B (201110 – 999999)

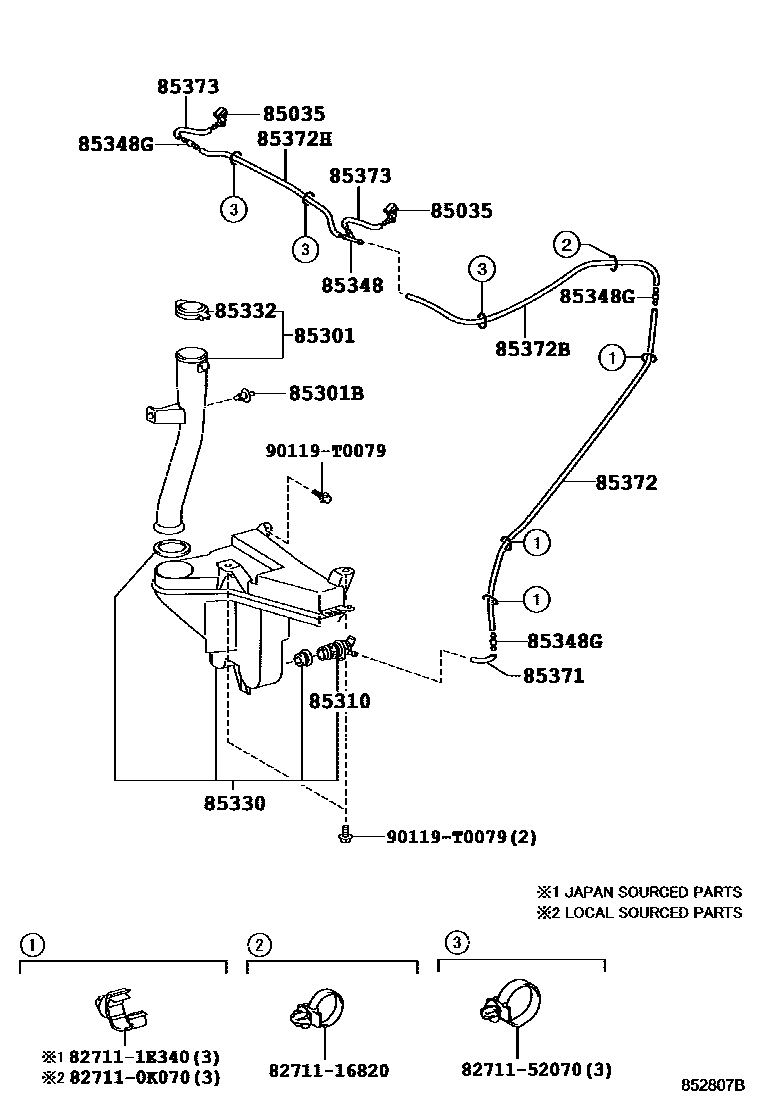

Toyota HILUX 挡风玻璃清洗器 EPC diagram — 852807B
挡风玻璃清洗器 — 852807B (201202 – 999999)

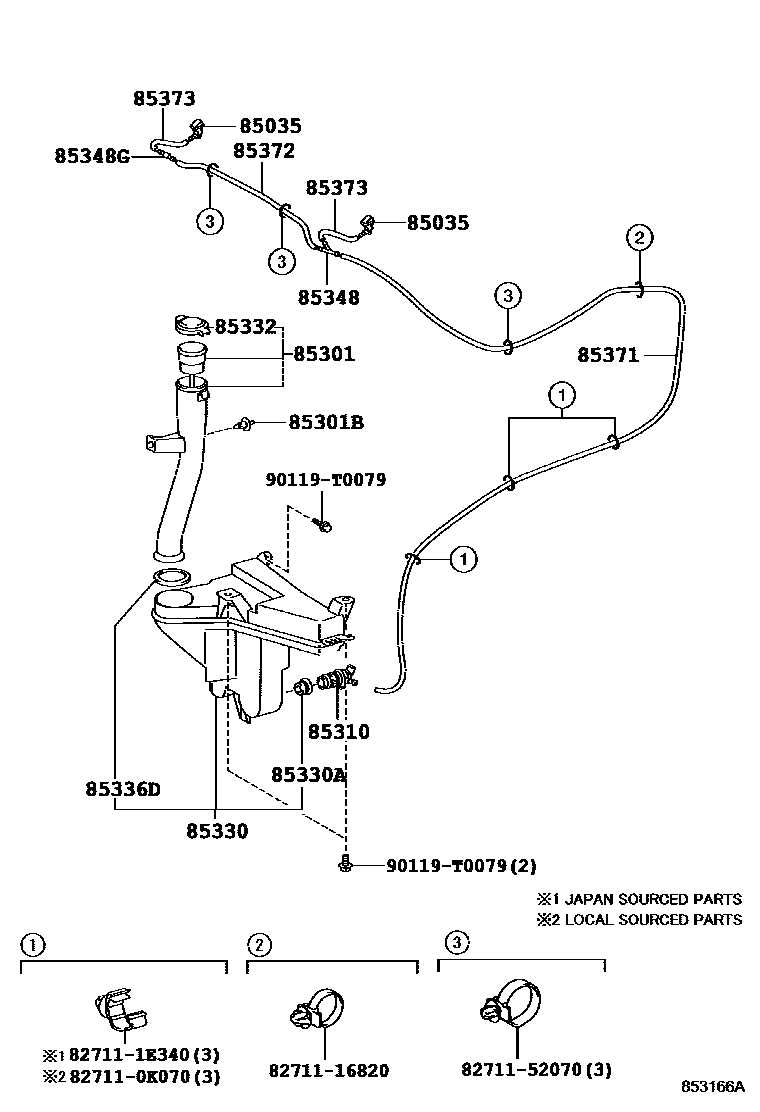

Toyota HILUX 挡风玻璃清洗器 EPC diagram — 853166A
挡风玻璃清洗器 — 853166A (201408 – 999999)

PNC and OE references

PNCPart nameOE numbers
85035Cleaner nozzle sub-assembly85381-0K010
85301Cleaner water inlet sub-assembly85301-0K010 · 85301-0K061 · 85301-0K071 · 85301-0K150
85310Windshield washer motor and pump assembly85330-0D100 · 85330-21010 · 85330-71010 · 85330-71020
85330Windshield washer fluid tank assembly85310-0K200 · 85315-0K010 · 85315-0K030 · 85315-0K140
85330AWindshield washer fluid tank bushing85336-0K020 · 85336-0K140 · 85336-60300
85332Windshield washer fluid tank cap85316-0K010 · 85386-0K060 · 85386-0K070
85336DWindshield washer fluid tank seal85336-0K010 · 85336-0K030 · 85336-42190
85348Windshield washer hose connector No. 185378-0K051
85348GWindshield washer hose connector No. 285375-02330
85371Windshield washer hose (from motor to connector)90068-33108 · 90068-33160
85372Windshield washer hose No. 1 (from connector to connector)90068-59091
85372BWindshield washer hose No. 2 (from connector to connector)90068-33159
