Toyota HILUX 电子燃油喷射系统 — Figure 8404

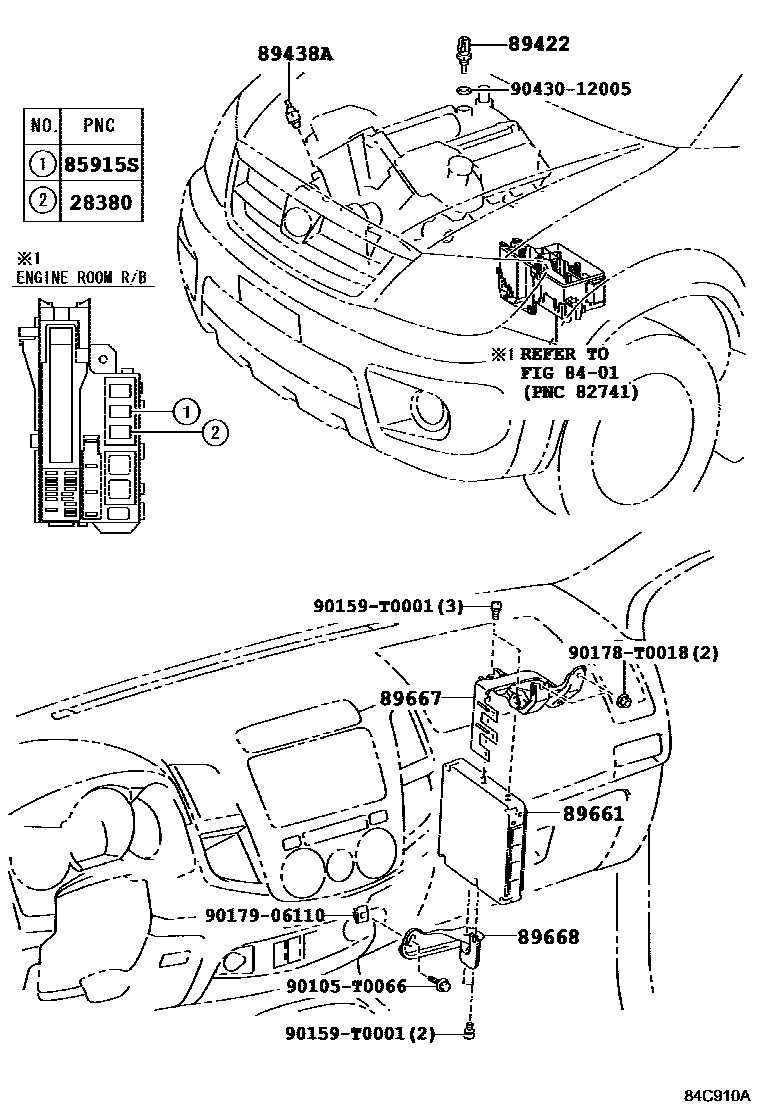

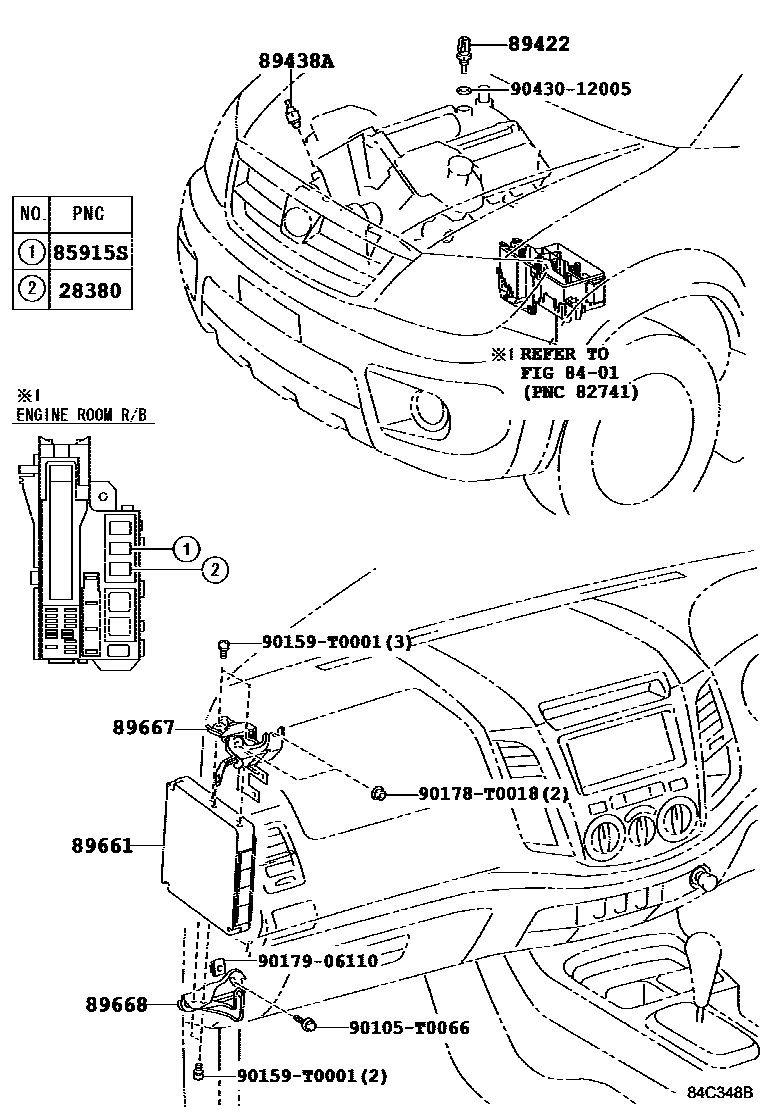

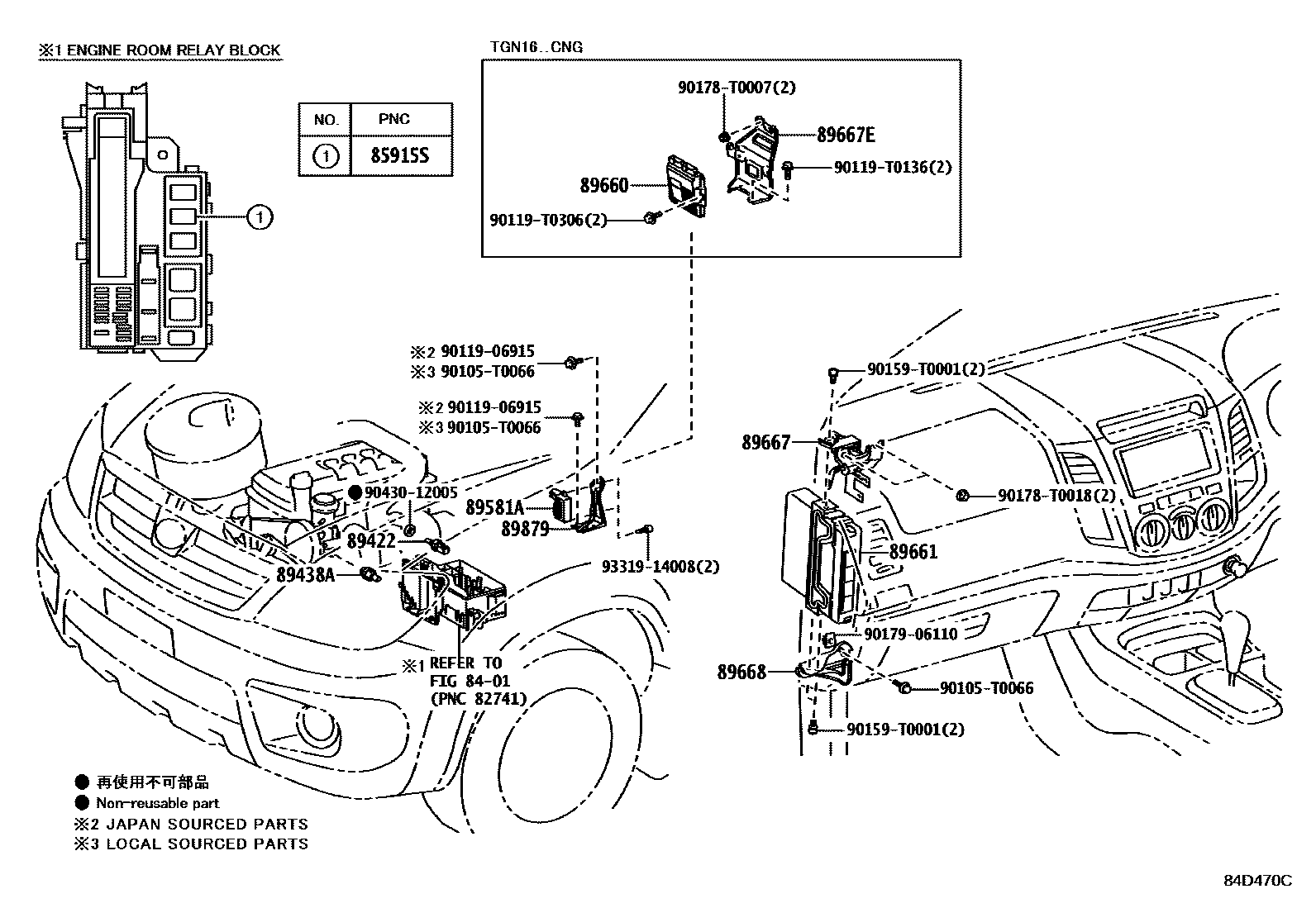

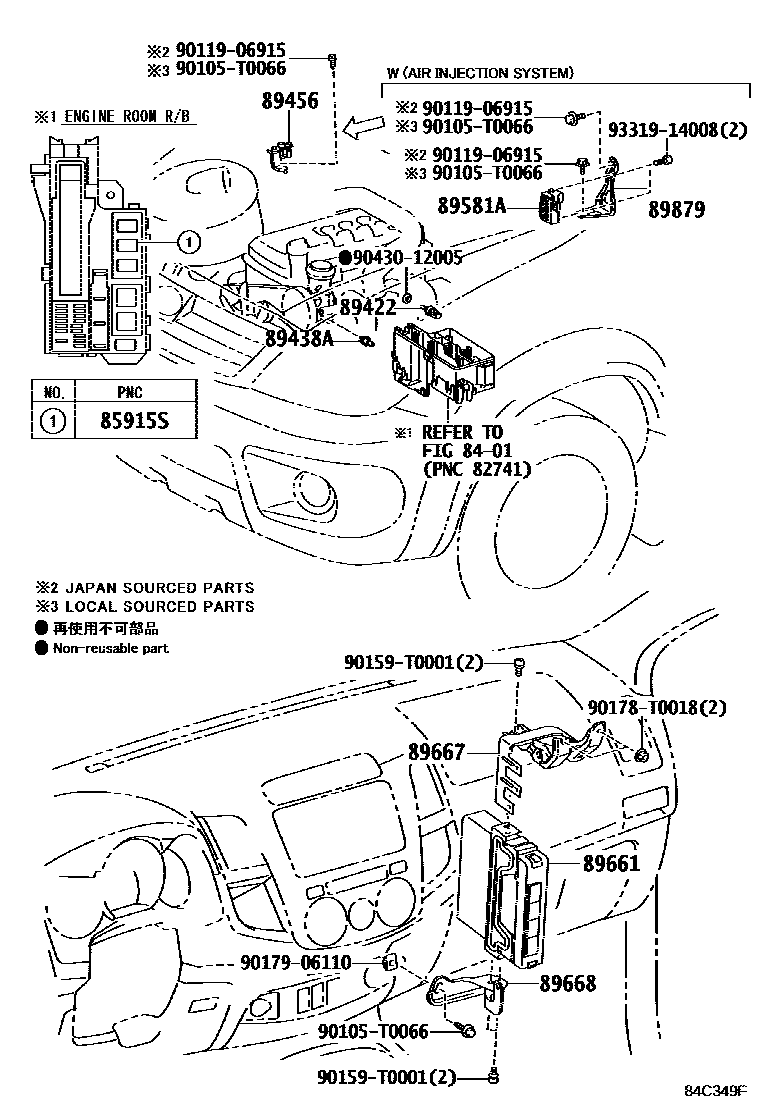

Toyota HILUX EPC diagram 8404, 电子燃油喷射系统, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28380 | Fuel pump relay assembly | 90080-87009 · 90987-04004 |
| 85915S | Heater relay (for air-fuel ratio sensor) | 90987-02027 · 90987-T2001 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 |
| 89438A | Power steering oil pressure switch | 89438-33010 · 89438-71010 |
| 89456 | variable resistor | 89450-71010 |
| 89581A | Air injection control driver | 89581-34041 |
| 89660 | Engine control ECU assembly | 89661-0KP70 |
| 89661 | Engine control ECU | 89661-0KV70 · 89661-0KY60 · 89661-0KY70 · 89661-71300 · 89661-71330 · 89661-71340 · 89661-71390 · 89661-F0180 · 89666-0K060 · 89666-0K070 · 89666-0K090 · 89666-0K130 · 89666-0K140 · 89666-0K170 · 89666-0K180 · 89666-0K190 · 89666-0K200 · 89666-0K210 · 89666-0K220 · 89666-0K230 · 89666-0K240 · 89666-0K250 · 89666-0K470 · 89666-0K510 · 89666-0KM70 |
| 89667 | Engine control ECU bracket | 89667-0K010 · 89667-0K020 · 89667-0K050 |
| 89667E | No. 1 engine control ECU bracket | 89667-0K080 |
| 89668 | No. 2 engine control ECU bracket | 89668-0K010 · 89668-0K020 · 89668-0K070 |
| 89879 | Injector driver bracket | 89879-71010 · 89879-71020 |
