Toyota HILUX 蓄电池和蓄电池电缆 — Figure 8201

Toyota HILUX EPC diagram 8201, 蓄电池和蓄电池电缆, with 2 images and 10 PNC and OE references.

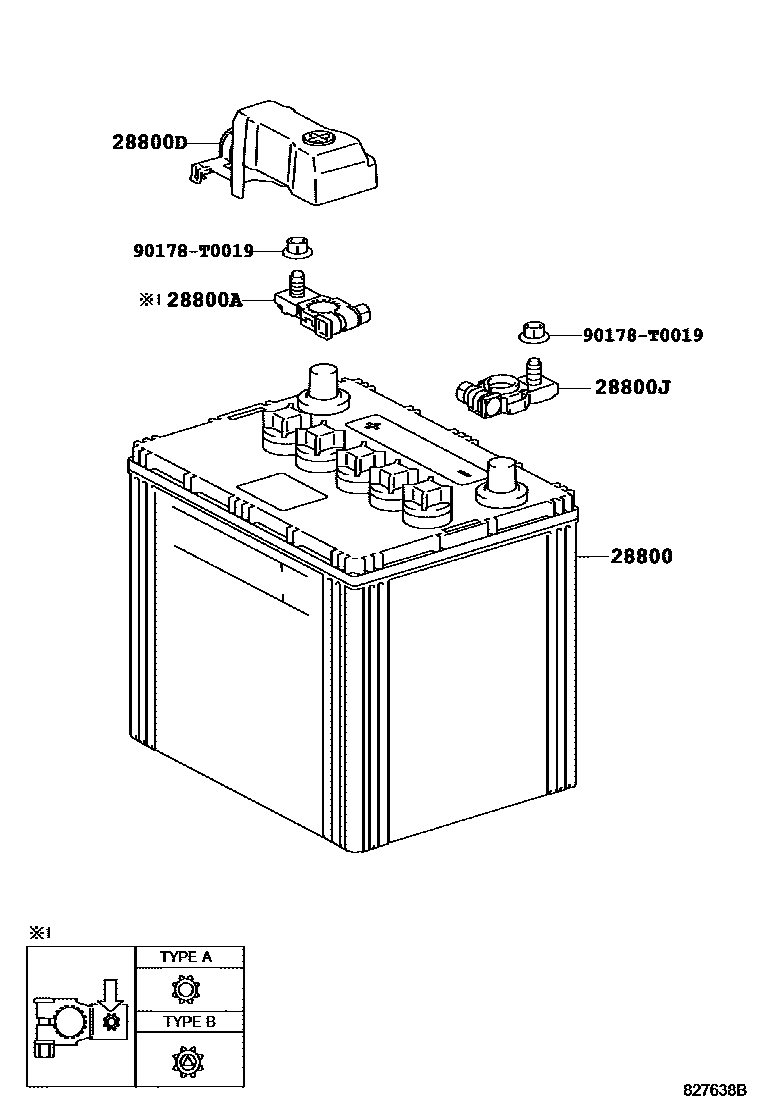

Toyota HILUX 蓄电池和蓄电池电缆 EPC diagram — 827638B
蓄电池和蓄电池电缆 — 827638B (201107 – 999999)

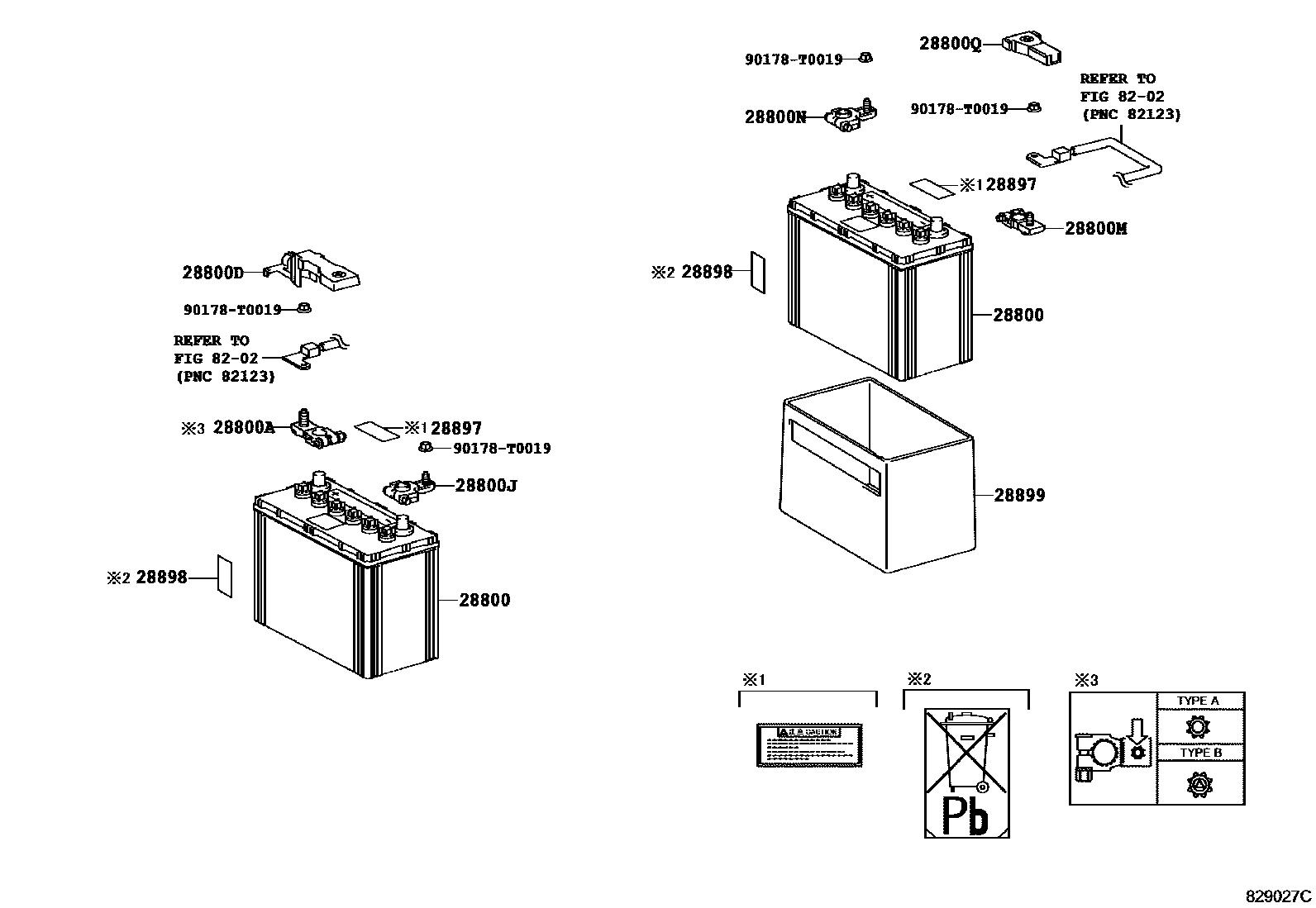

Toyota HILUX 蓄电池和蓄电池电缆 EPC diagram — 829027C
蓄电池和蓄电池电缆 — 829027C (201308 – 999999)

PNC and OE references

PNCPart nameOE numbers
28800battery28800-05080 · 28800-05081 · 28800-0C090 · 28800-0C091 · 28800-0C120 · 28800-0C190 · 28800-0C191 · 28800-0D110 · 28800-0D111 · 28800-0L010 · 28800-0L030 · 28800-0L070 · 28800-0L071 · 28800-0L100 · 28800-0L120 · 28800-0L150 · 28800-0L151 · 28800-0L230 · 28800-0L360 · 28800-0L370 · 28800-0L380
28800Abattery positive terminal90982-05054 · 90982-05056 · 90982-05066
28800DConnector cover (for battery terminals)82821-0K030 · 82821-0K040 · 82821-0K070
28800Jbattery negative terminal90982-06059
28800Mbattery positive terminal90982-05056
28800Nbattery negative terminal90982-06022
28800QConnector cover (for battery)82821-0K040
28897Battery warning nameplate28897-54030
28898battery plates28898-0L010
28899Battery insulation cover28899-17040
