Toyota HILUX Fog Lamp — Figure 8102

Toyota HILUX EPC diagram 8102, Fog Lamp, with 2 images and 7 PNC and OE references.

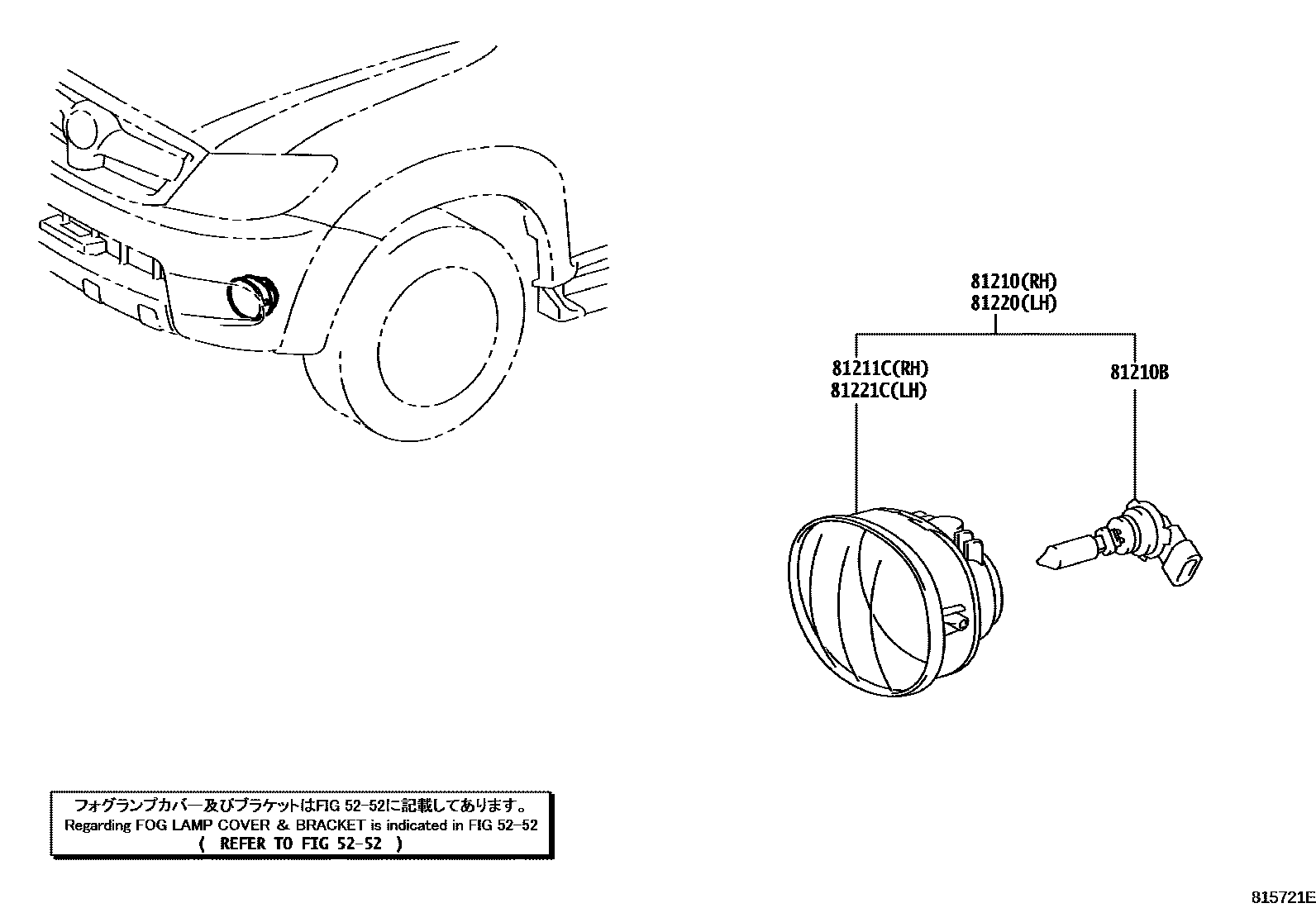

Toyota HILUX Fog Lamp EPC diagram — 815721E
Fog Lamp — 815721E (201107 – 201404)

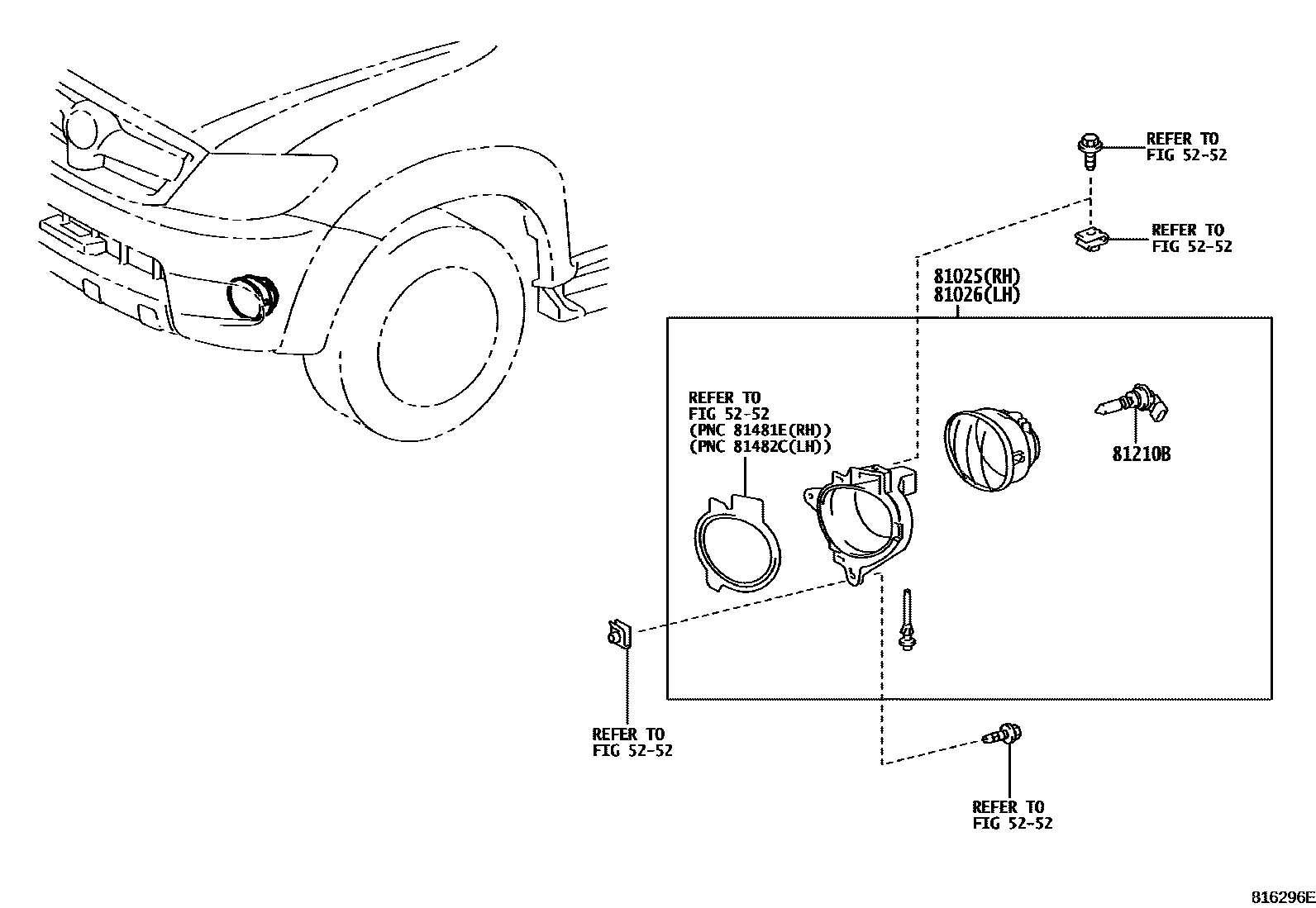

Toyota HILUX Fog Lamp EPC diagram — 816296E
Fog Lamp — 816296E (201212 – 999999)

PNC and OE references

PNCPart nameOE numbers
81025Right fog light assembly81025-0K040 · 81025-0K041
81026Left fog light assembly81026-0K040 · 81026-0K041
81210Fog light assembly81210-0K080
81210Bfog light bulb90981-13047 · 90981-13090
81211CRight fog light assembly81211-0D070
81220Left fog light assembly81220-0K080
81221CLeft fog light assembly81221-0D070
