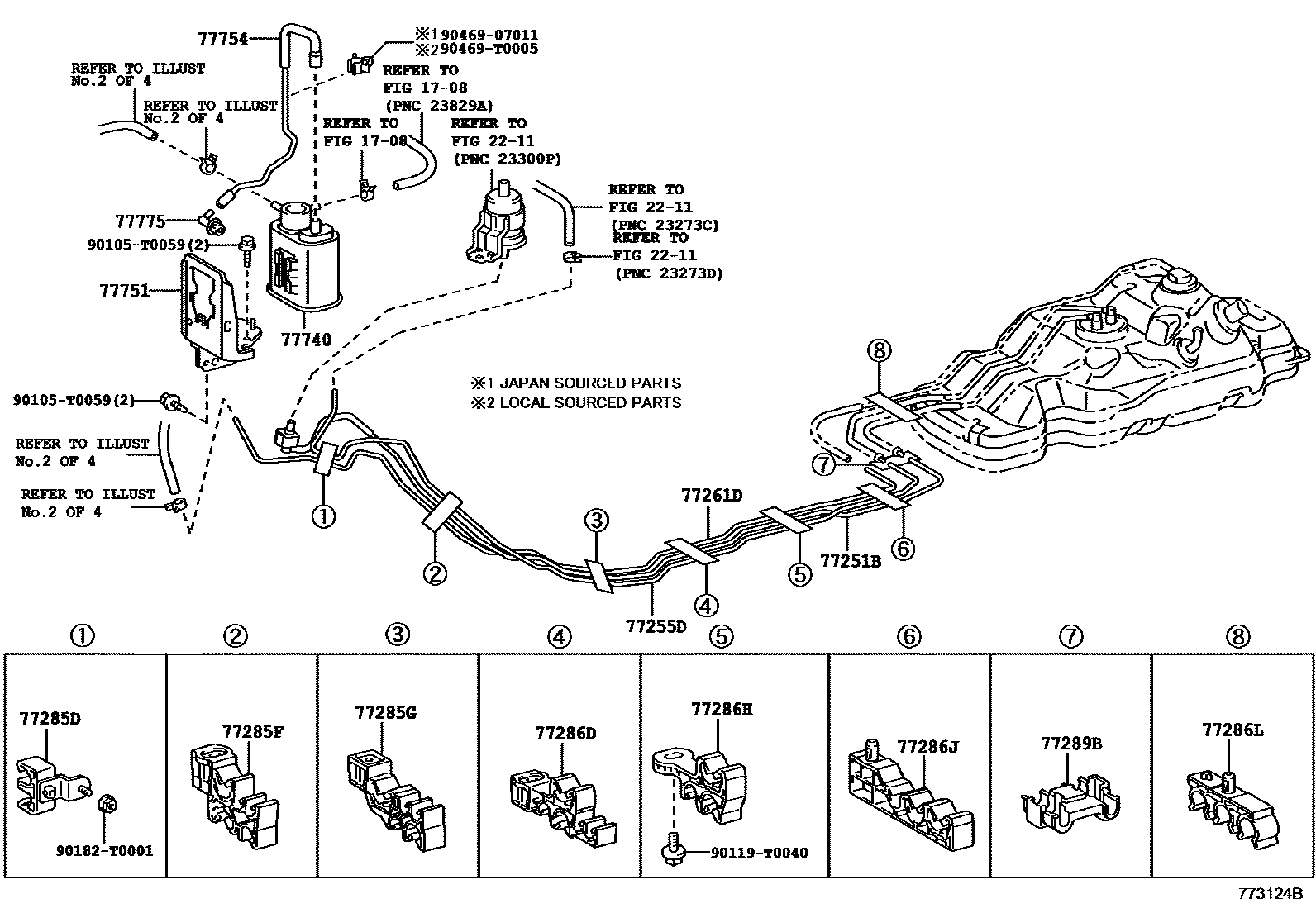

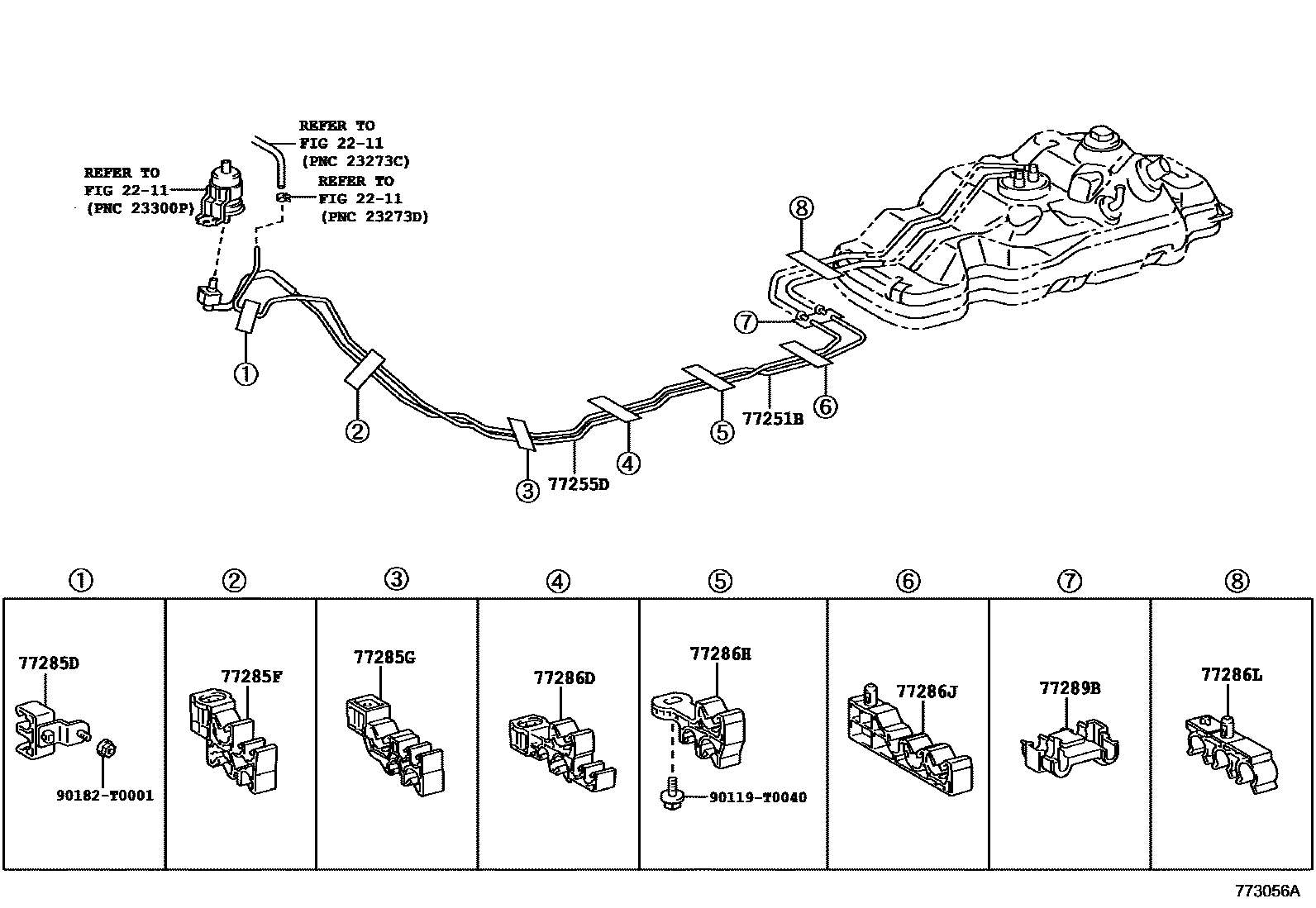

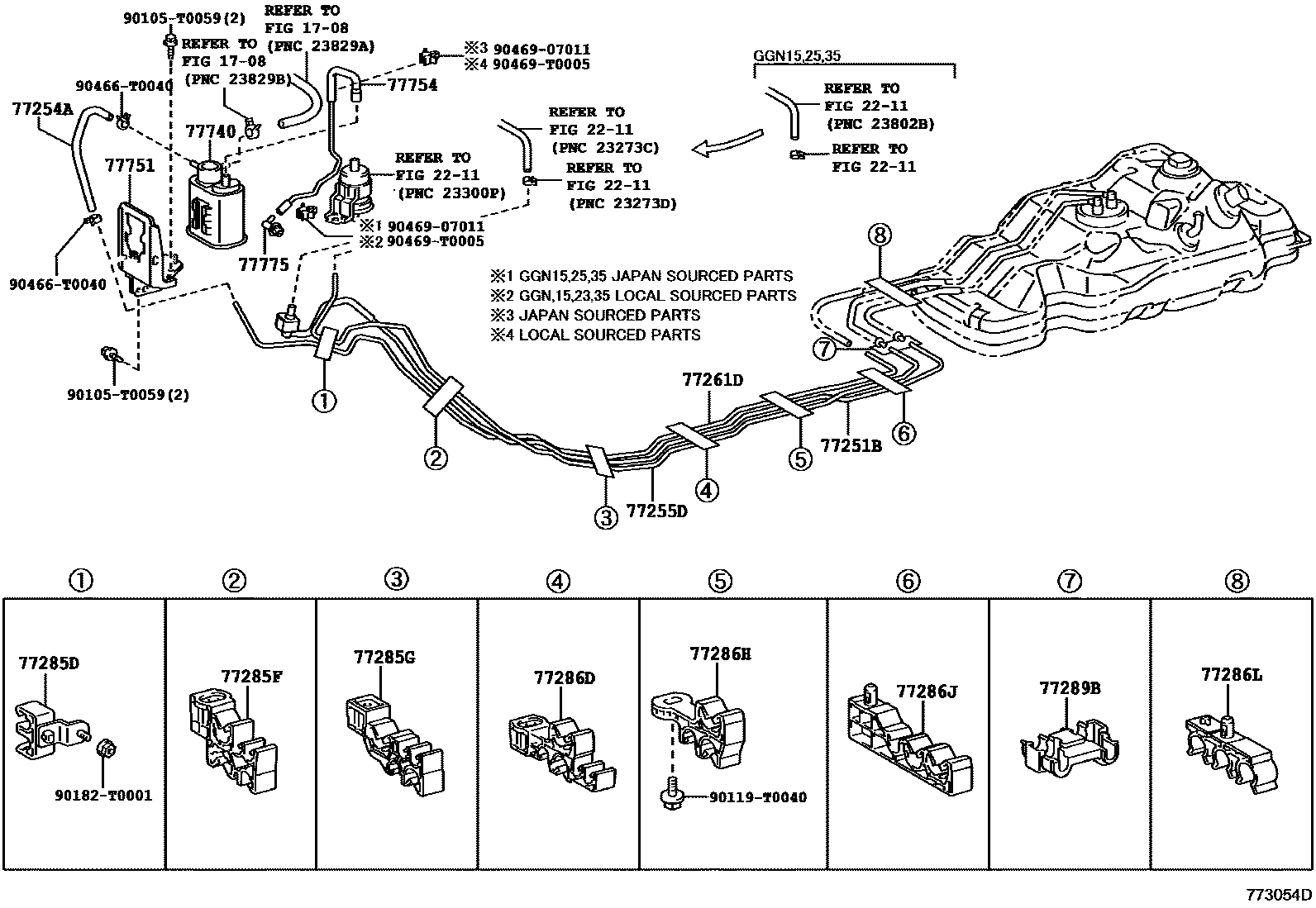

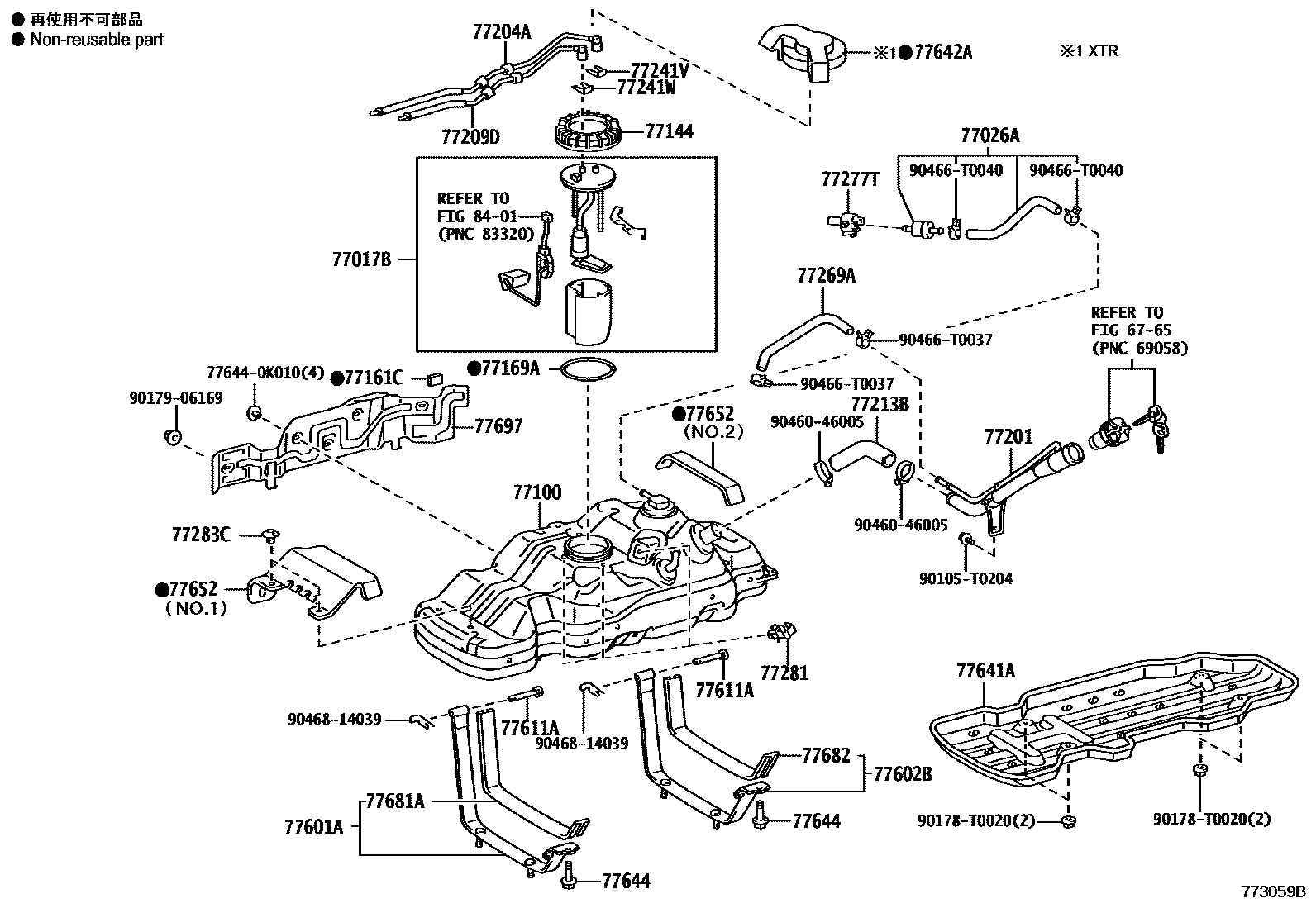

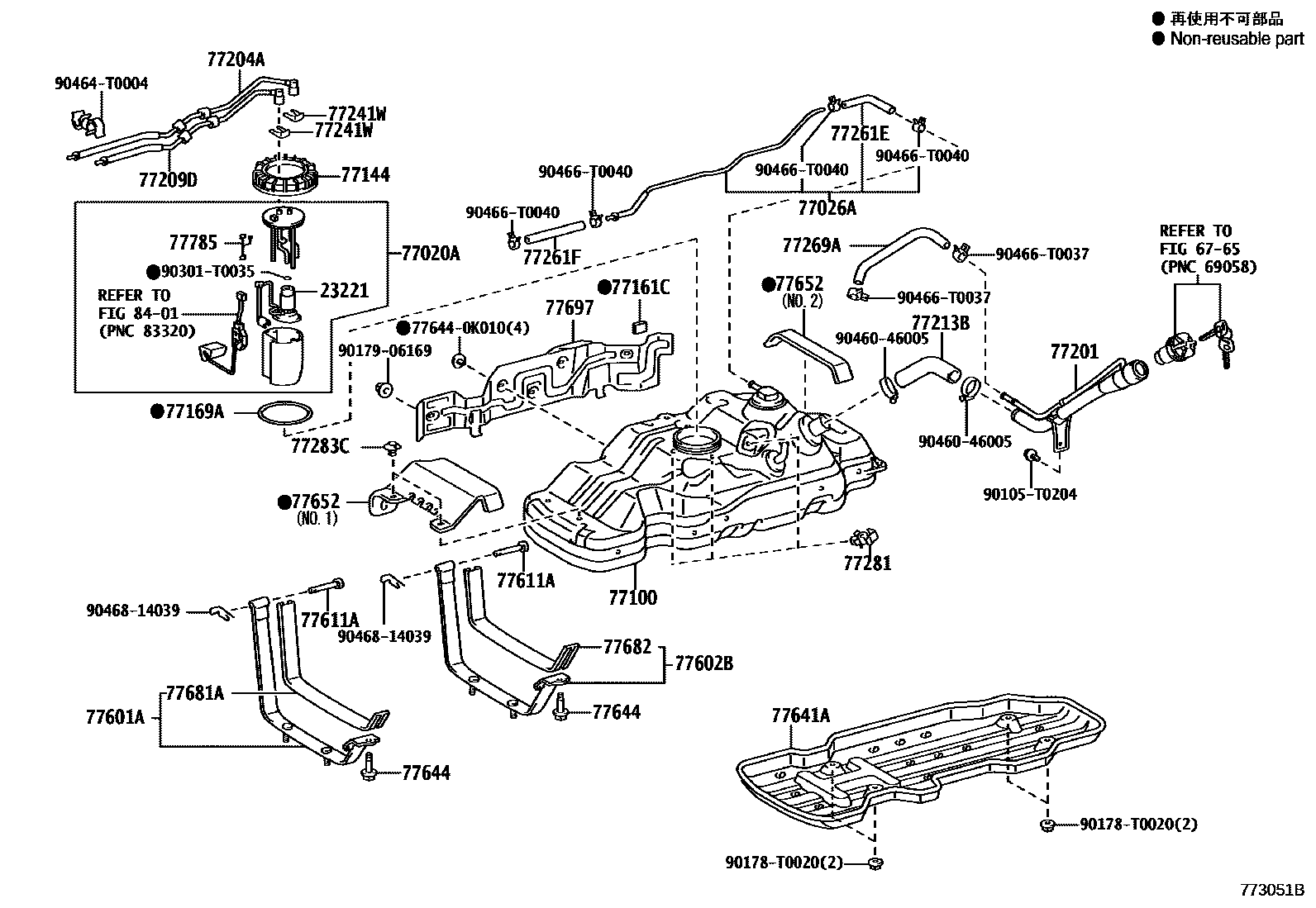

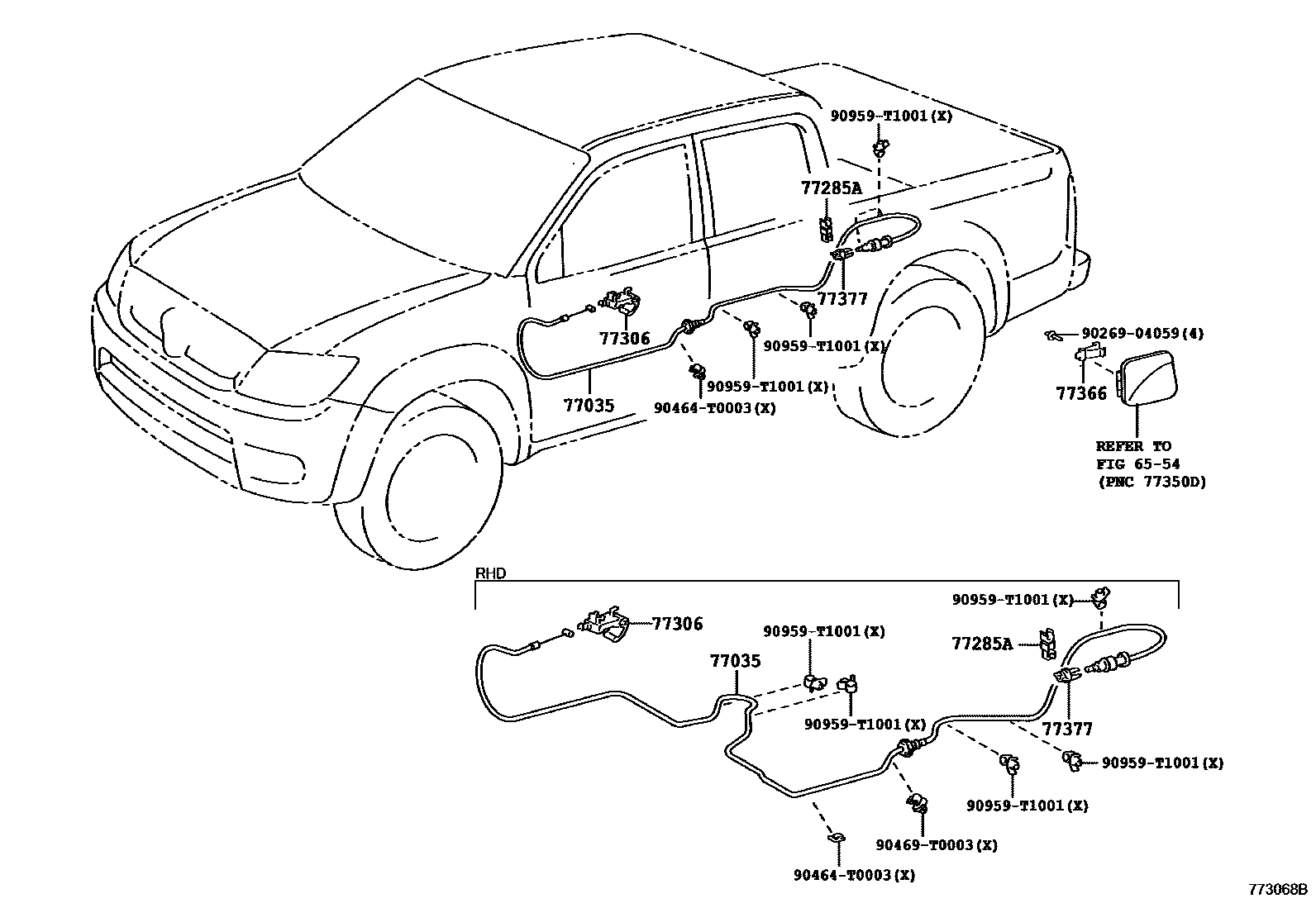

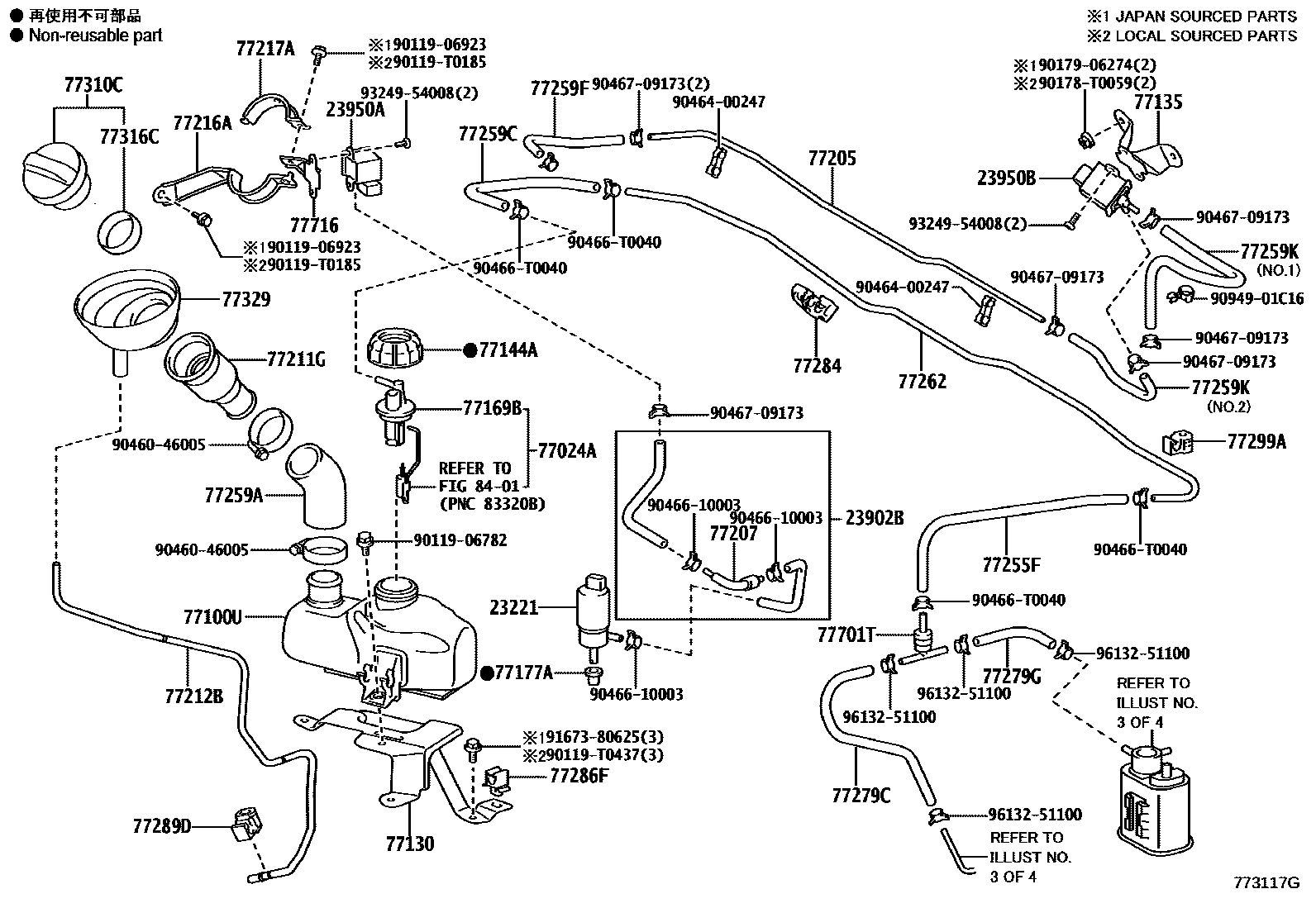

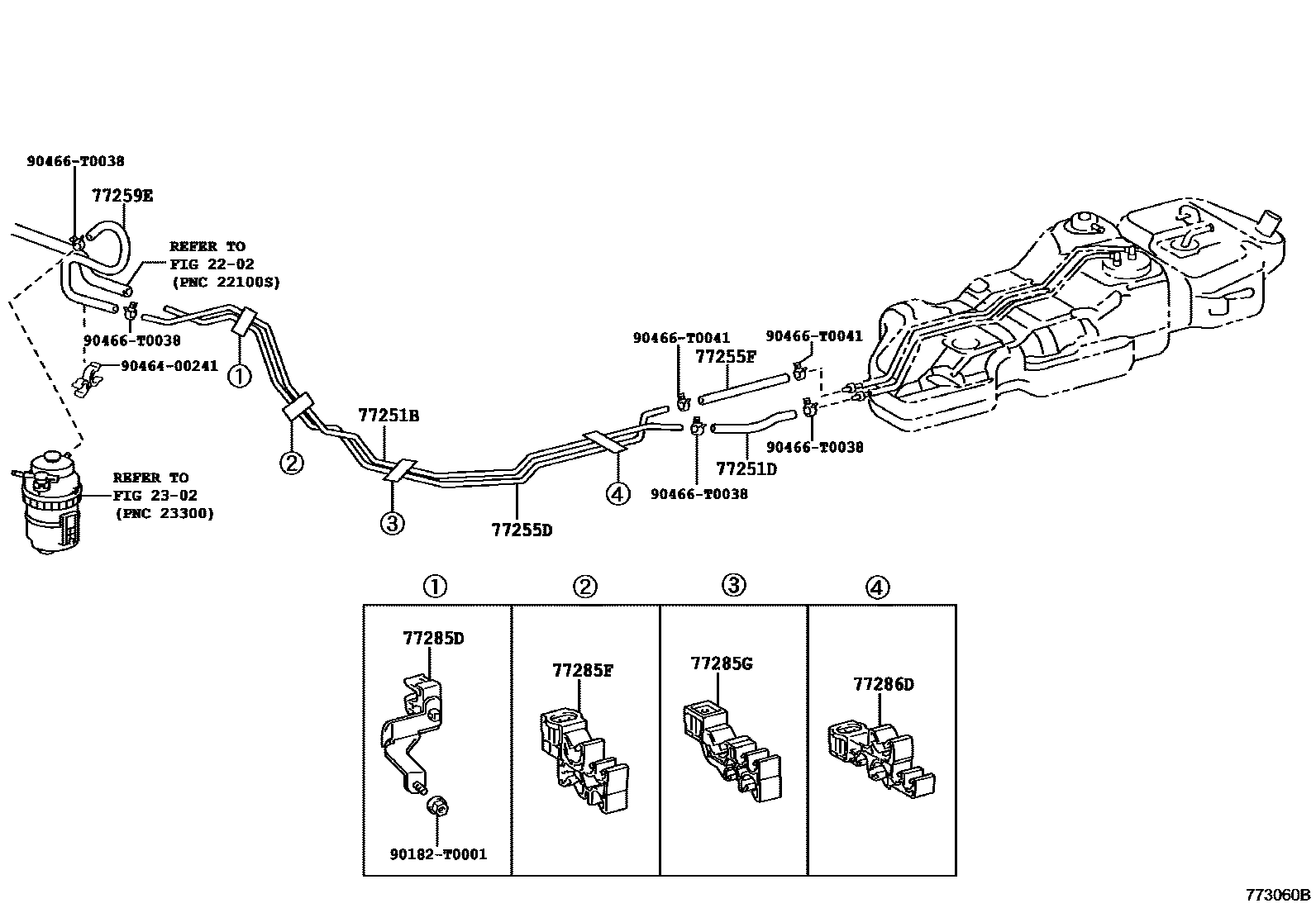

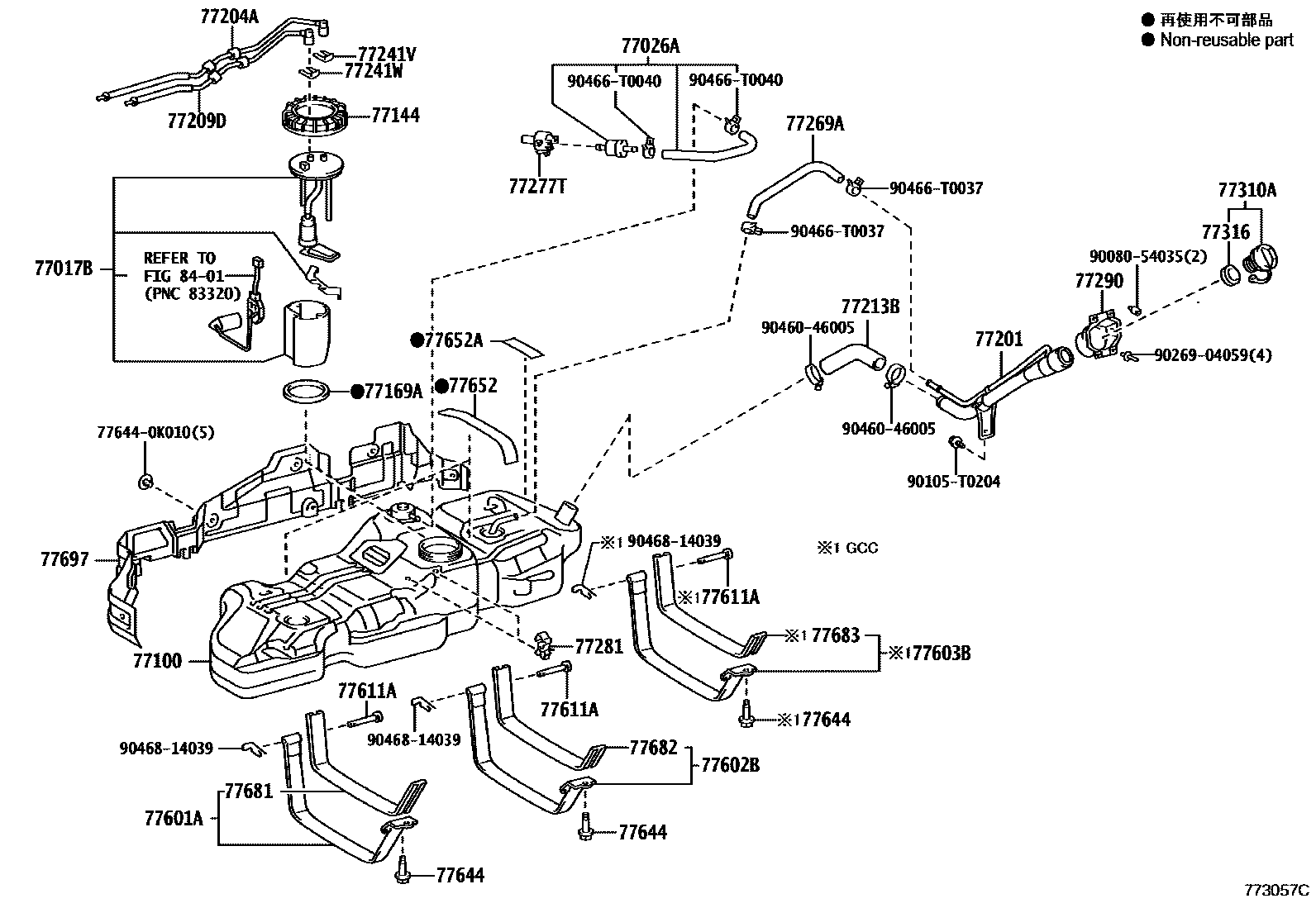

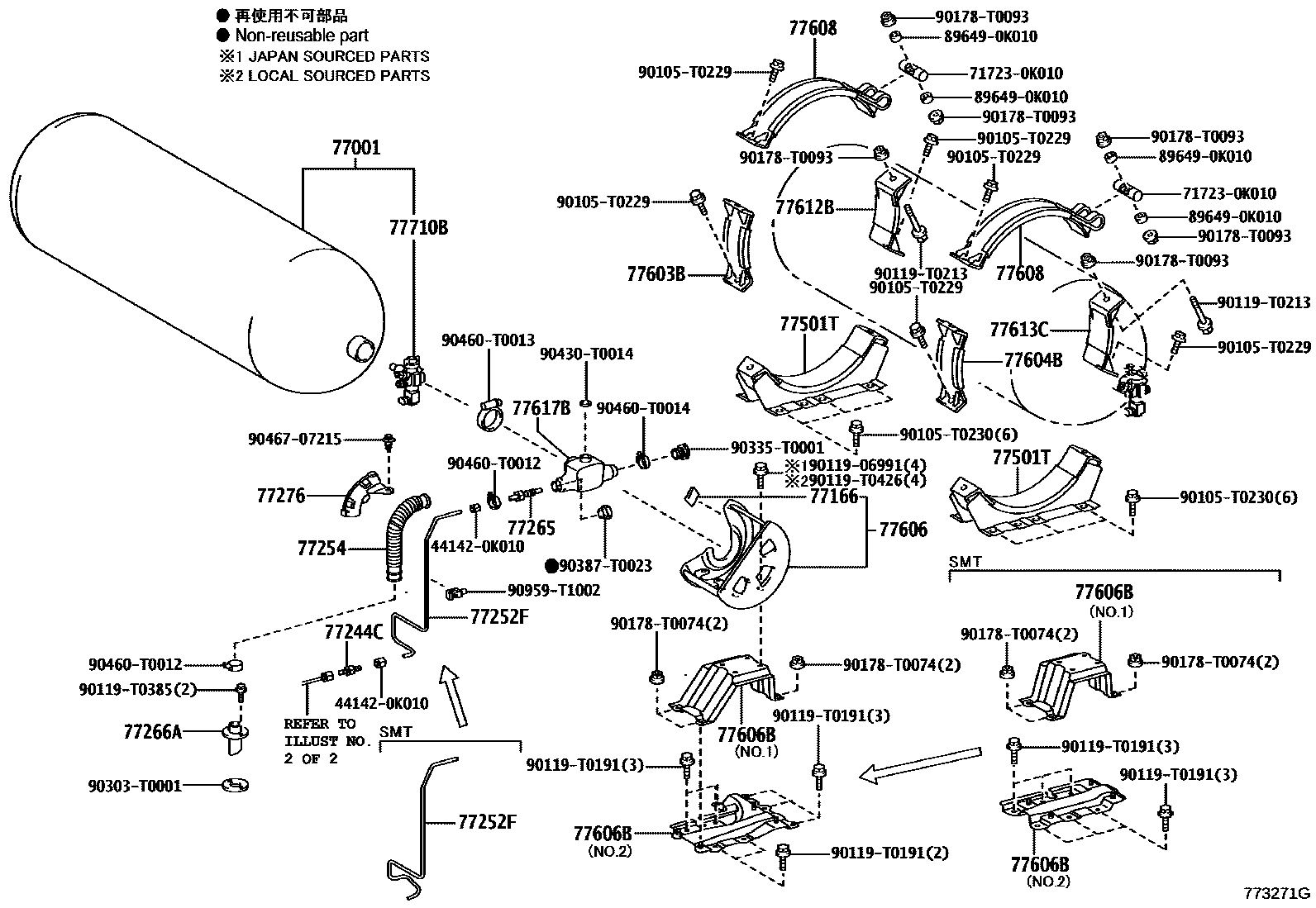

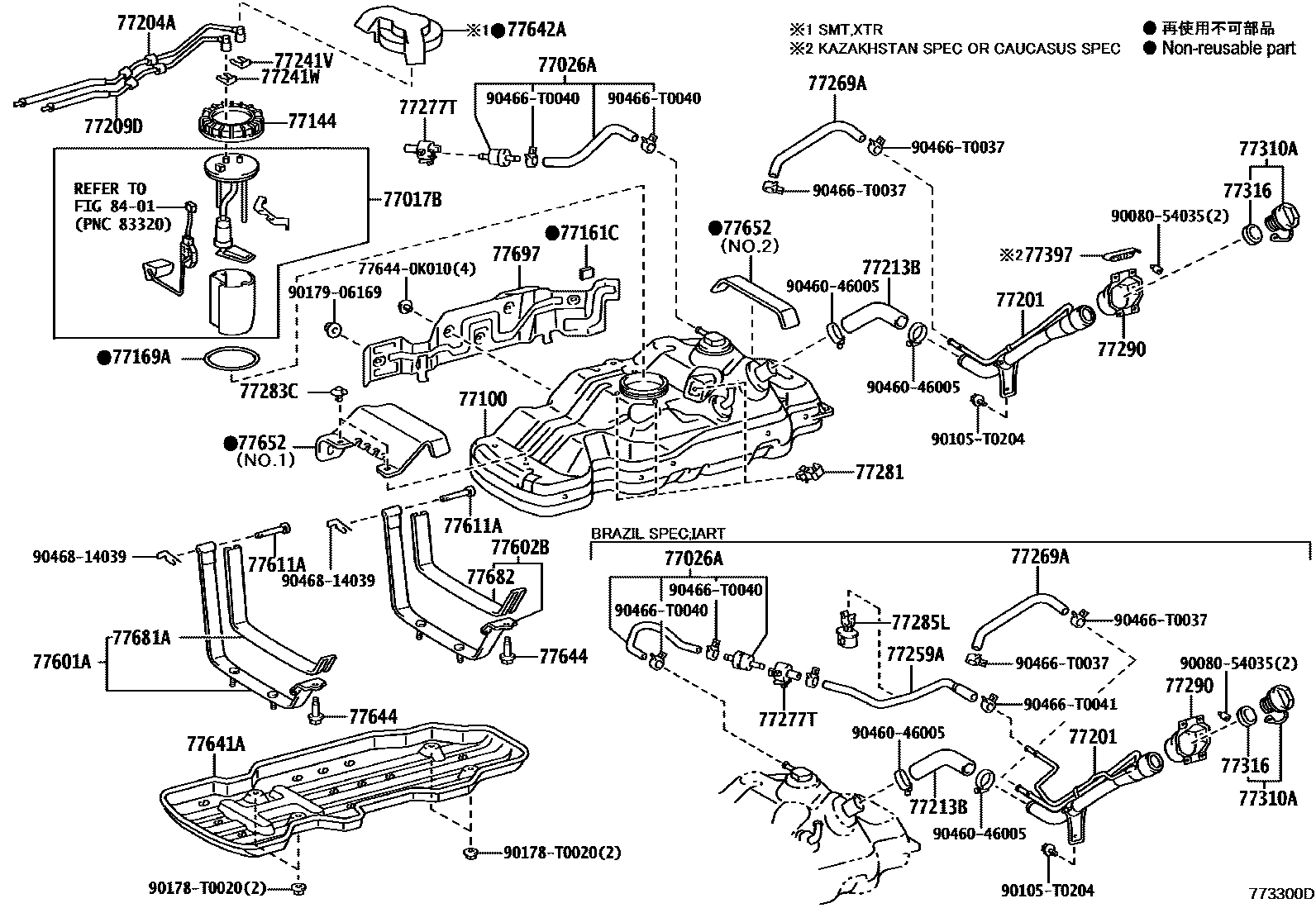

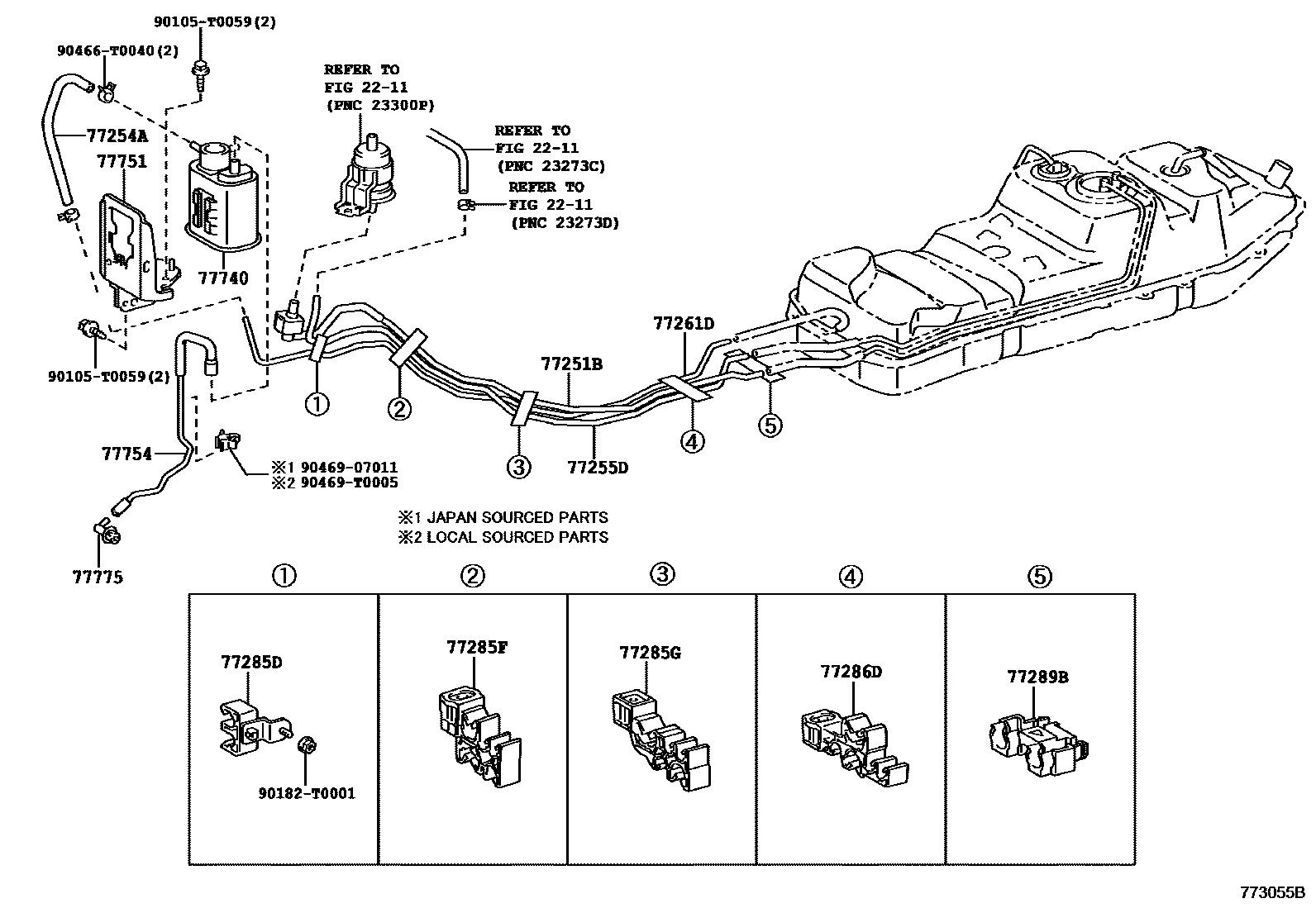

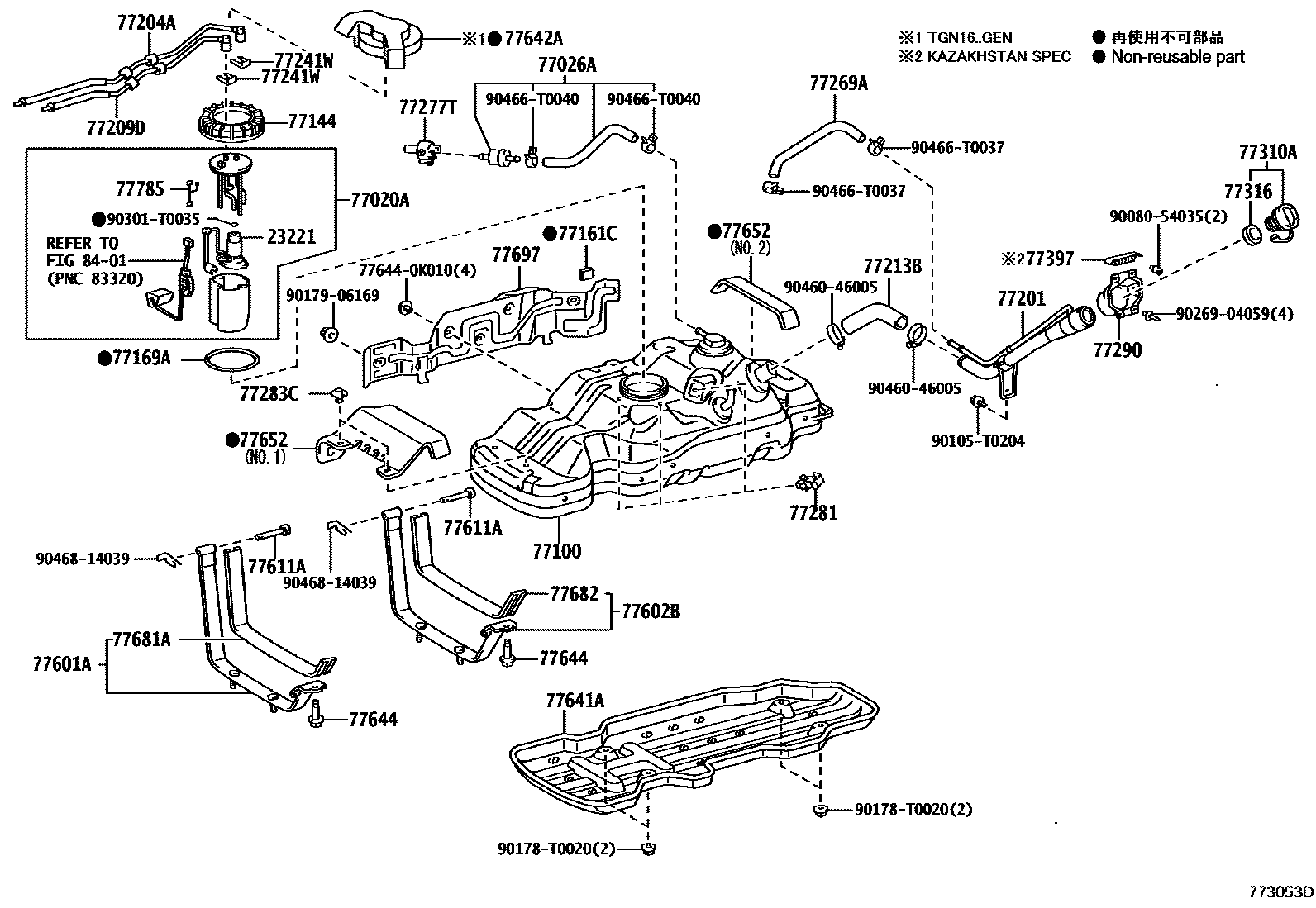

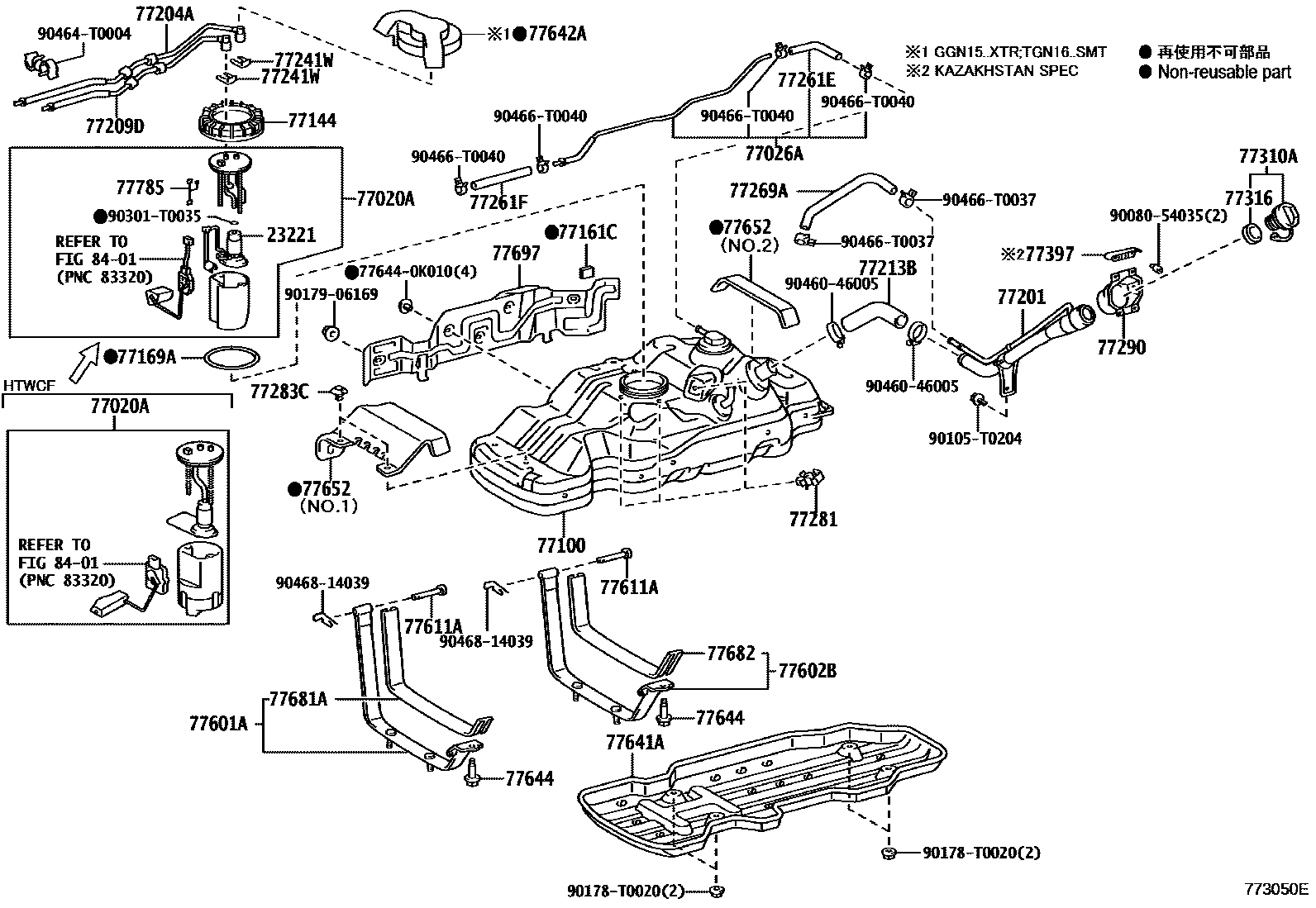

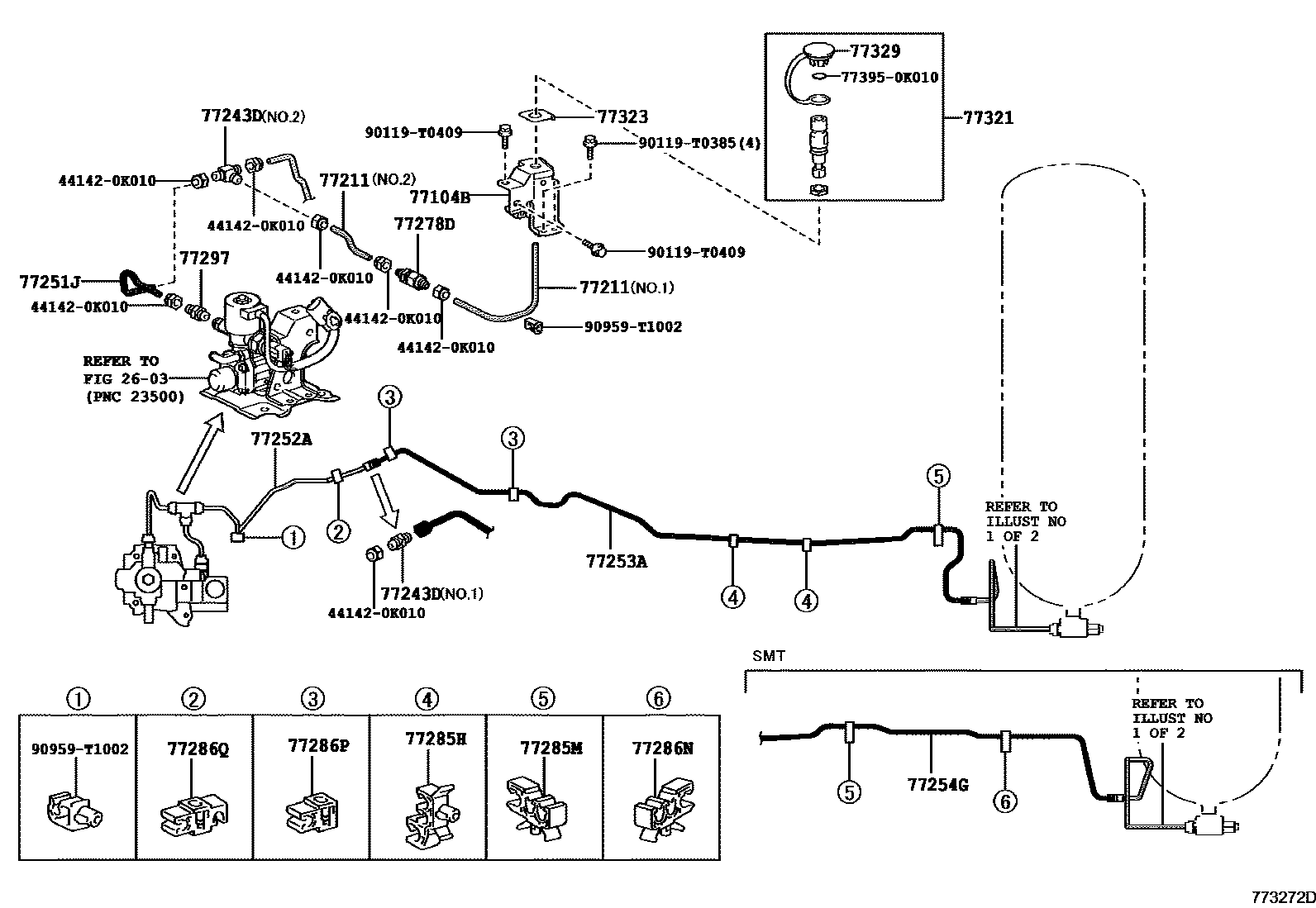

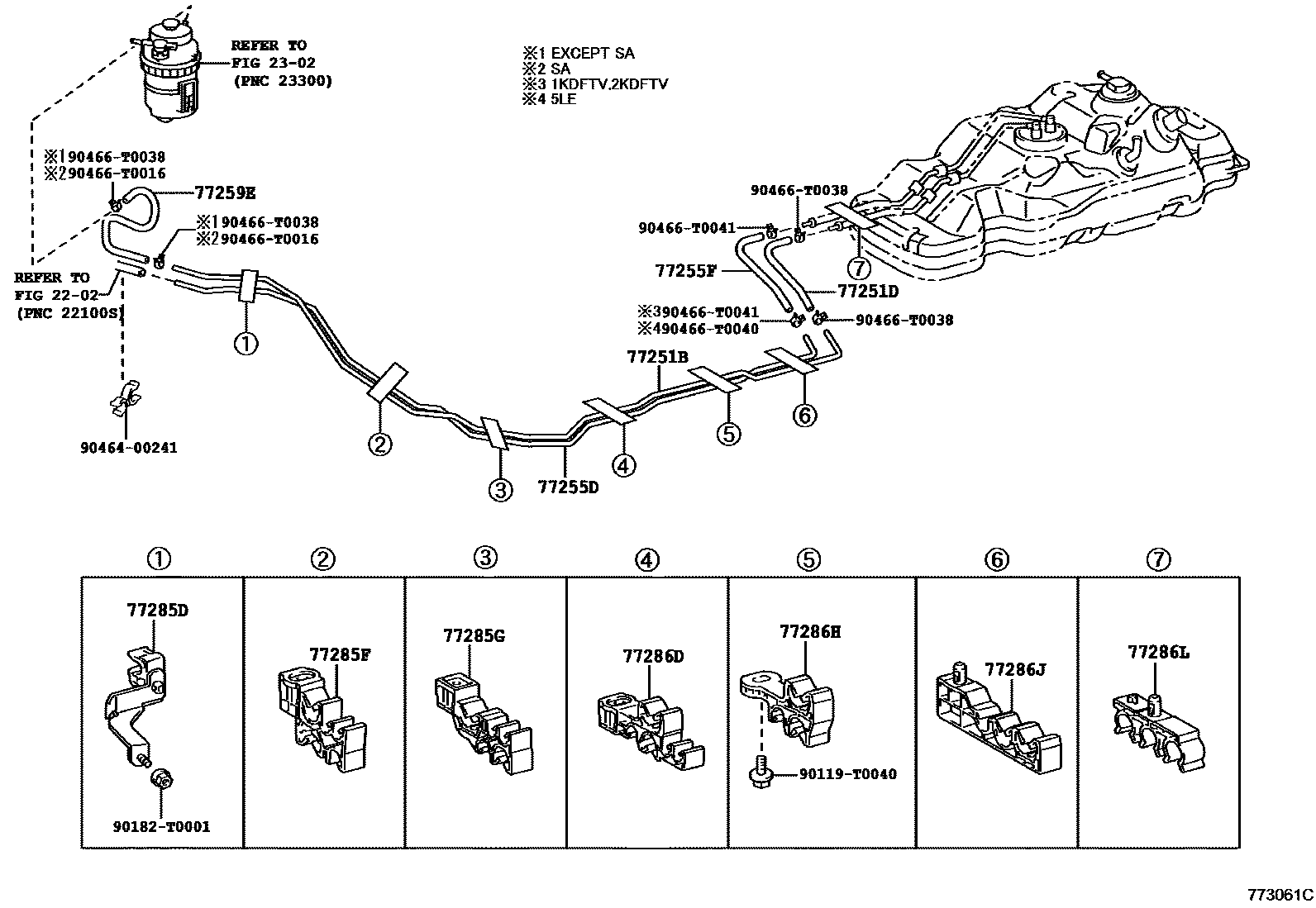

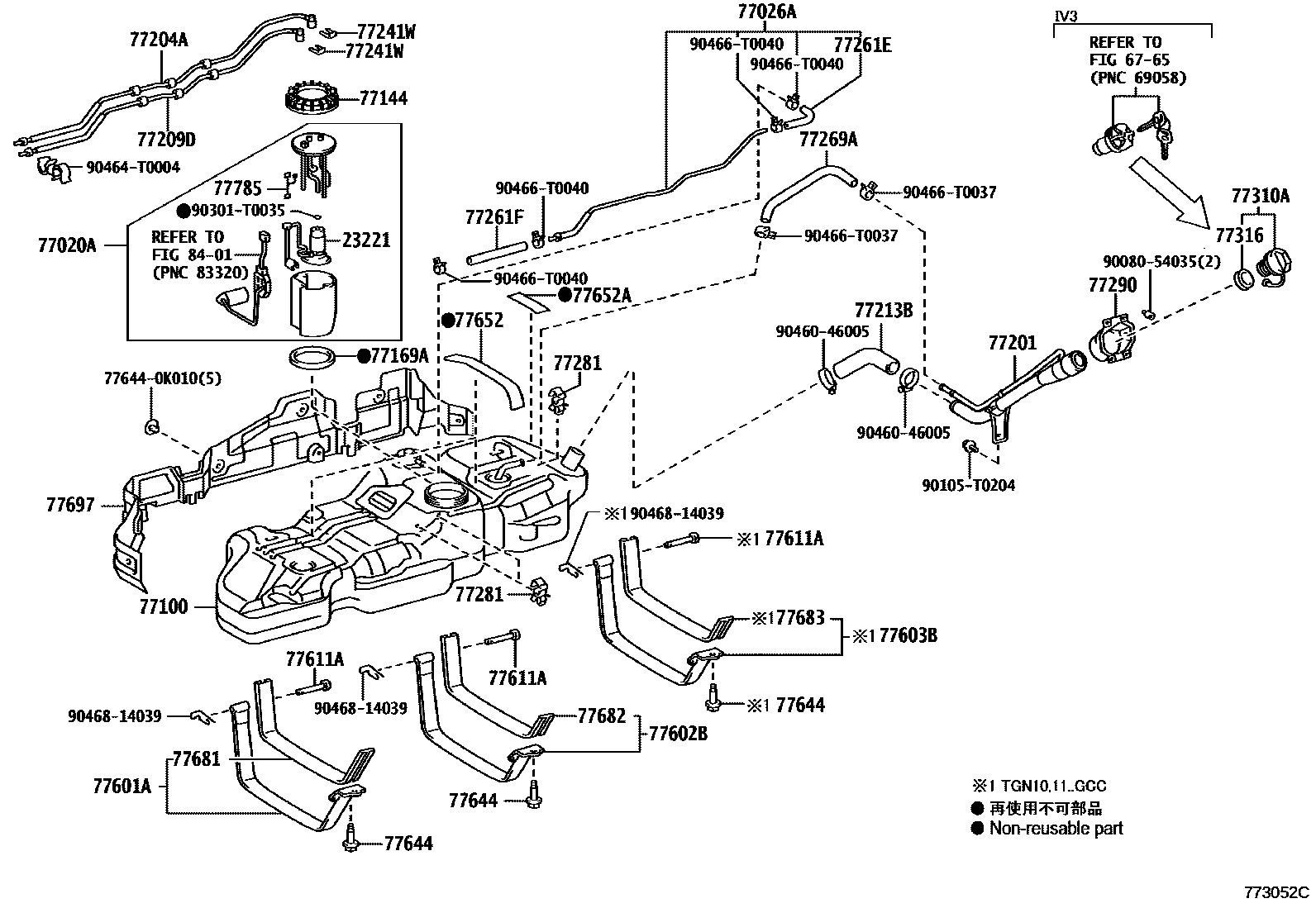

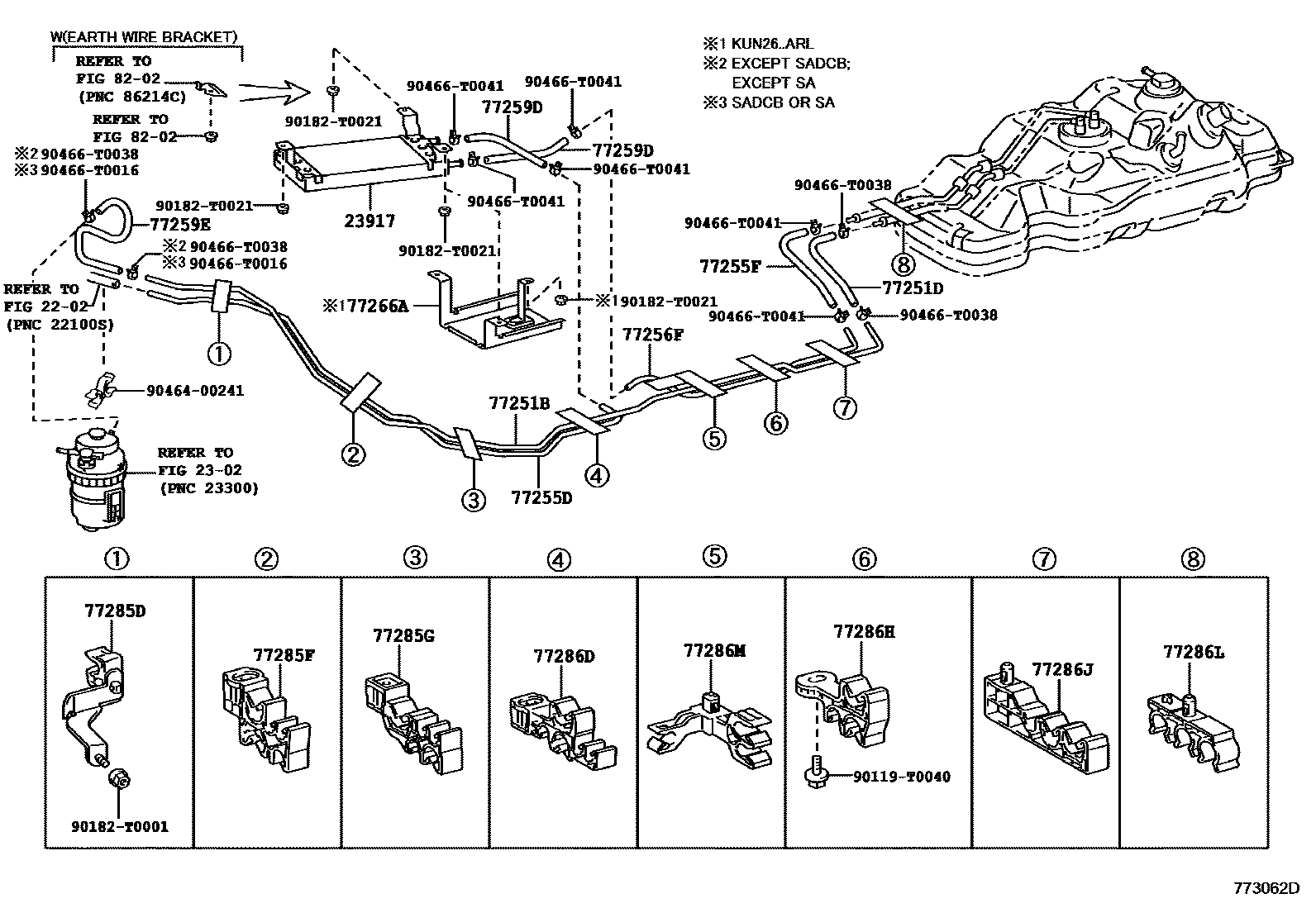

Toyota HILUX 燃油箱和燃油管 — Figure 7751
Toyota HILUX EPC diagram 7751, 燃油箱和燃油管, with 18 images and 130 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23221 | fuel pump | 23220-0C050 · 23220-0C051 · 23220-0C130 · 23220-0C140 · 23220-0P010 · 23220-0P160 · 23221-0D030 · 23221-0D221 |
| 23902B | No. 2 fuel pipe sub-assembly | 23902-0C010 |
| 23917 | fuel cooler | 23917-30011 |
| 23950A | Solenoid valve assembly | 23950-0C010 |
| 23950B | Solenoid valve assembly | 23950-0C010 |
| 77001 | Fuel tank assembly (LPG) | 77001-0K330 |
| 77017B | Fuel tank vent pipe sub-assembly | 77010-0K011 · 77010-0K021 · 77010-0K041 · 77010-0K080 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-0K010 · 77020-0K020 · 77020-0K060 · 77020-0K080 · 77020-0K090 · 77020-0K160 · 77020-0K180 · 77020-0K190 · 77020-0K220 |
| 77024A | Fuel absorber sub-assembly | 77024-12112 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-0K010 · 77026-0K020 · 77027-0K010 · 77027-0K020 · 77027-71010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0K010 · 77035-0K030 · 77035-0K040 · 77035-0K050 · 77035-0K110 · 77035-0K120 · 77035-0K130 · 77035-0K140 · 77035-0K170 · 77035-0K210 · 77035-0K220 · 77035-0K240 · 77035-0K290 · 77035-0K300 · 77035-0K310 · 77035-0K320 · 77035-0K330 |
| 77100 | fuel tank assembly | 77001-0K011 · 77001-0K021 · 77001-0K030 · 77001-0K040 · 77001-0K071 · 77001-0K081 · 77001-0K091 · 77001-0K101 · 77001-0K220 · 77001-0K240 |
| 77100U | Fuel tank sub-assembly | 77101-0K080 |
| 77104B | Fuel tank filler port bracket sub-assembly | 77104-0K010 |
| 77130 | Auxiliary fuel tank bracket assembly | 77130-0K010 |
| 77135 | One-way valve bracket | 77135-71010 |
| 77144 | Fuel pump instrument fixture | 77144-0K010 |
| 77144A | Fuel pump instrument fixture | 77144-02100 |
| 77161C | Fuel tank lower protective shell | 77671-0K010 |
| 77166 | Fuel tank protective shell cushion | 77672-0K010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0K010 |
| 77169B | No. 1 fuel suction pipe fixing pad | 77169-12040 |
| 77177A | Check valve gasket | 77177-12040 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-0K010 · 77201-0K020 · 77201-0K070 · 77201-0K080 · 77201-0K090 · 77201-0K110 · 77201-0K210 · 77201-0K220 |
| 77204A | fuel tank return pipe | 77204-0K010 · 77204-0K020 · 77204-0K030 · 77204-0K040 · 77204-0K190 · 77204-0K200 |
| 77205 | Main fuel pipe sub-assembly | 77205-71010 |
| 77207 | Fuel pipe sub-assembly | 23903-0C010 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-0K010 · 77209-0K020 · 77209-0K030 · 77209-0K040 · 77209-0K250 · 77209-0K260 |
| 77211 | fuel tank inlet pipe | 77211-0K110 · 77211-0K120 |
| 77211G | Fuel tank filler pipe | 77211-0K100 |
| 77212B | No. 2 fuel tank filler pipe | 77212-71020 |
| 77213B | Fuel tank to filler pipe hose | 77213-0K010 · 77213-0K020 · 77213-0K021 · 77213-0K050 · 77213-0K060 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-0K090 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-0K030 |
| 77241V | Pipe joint clip | 77241-35450 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77243D | No. 1 fuel pipe joint | 77243-0K010 · 77244-0K010 |
| 77244C | No. 2 fuel pipe joint | 77243-0K010 |
| 77251B | main fuel pipe | 77251-0K010 · 77251-0K030 · 77251-0K040 · 77251-0K060 · 77251-0K090 |
| 77251D | No. 2 fuel hose (for main fuel line) | 95338-10018 · 95338-10020 |
| 77251J | No. 1 main fuel pipe | 77251-0K120 |
| 77252A | No. 2 main fuel pipe | 77252-0K040 |
| 77252F | Rear main fuel pipe | 77252-0K020 · 77252-0K030 |
| 77253A | No. 3 main fuel pipe | 77253-0K010 |
| 77254 | No. 1 fuel evaporation exhaust pipe | 77262-0K020 |
| 77254G | No. 4 main fuel pipe | 77254-0K010 |
| 77255D | fuel return pipe | 77255-0K010 · 77255-0K020 · 77255-0K030 · 77255-0K040 · 77255-0K050 · 77255-0K090 |
| 77255F | No. 2 fuel hose (for fuel return pipe) | 77259-0K030 · 95337-06038 · 95338-08018 · 95338-08022 |
| 77256F | No. 2 fuel return pipe | 77256-0K010 |
| 77259A | Fuel hose (for breather pipe) | 77213-71020 · 77259-71080 |
| 77259C | fuel hose | 23282-75020 |
| 77259D | No. 1 fuel hose | 77259-71060 |
| 77259E | fuel hose | 77259-0K060 |
| 77259F | fuel hose | 23274-0C010 |
| 77259K | fuel hose | 23284-0C010 · 23286-0C010 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-0K010 · 77261-0K020 |
| 77262 | No. 2 fuel evaporation exhaust pipe | 77262-0K010 |
| 77265 | Main fuel line connector | 77265-0K010 |
| 77266A | No. 1 fuel line protection device | 77266-0K010 · 77266-0K021 |
| 77269A | fuel tank breather hose | 77269-0K010 · 77269-0K020 |
| 77276 | Fuel hose protector | 77276-0K010 |
| 77277T | One-way valve bracket | 77277-0K010 |
| 77278D | Check valve with bracket | 77278-0K020 · 77278-0K021 |
| 77279C | fuel hose | 77259-71090 |
| 77279G | No. 2 fuel hose | 77249-71010 |
| 77281 | No. 1 main fuel pipe bracket | 77281-0K070 |
| 77283C | Fuel tank protective shell bracket | 77283-0K010 |
| 77284 | Fuel pipe clamp | 77285-28010 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-0K190 |
| 77285D | No. 1 fuel pipe clamp | 77285-0K020 · 77285-0K030 |
| 77285F | No. 1 fuel pipe clamp | 77285-0K040 |
| 77285G | No. 1 fuel pipe clamp | 77285-0K050 |
| 77285H | No. 1 fuel pipe clamp | 90959-T1006 |
| 77285L | No. 1 fuel pipe clamp | 77285-71010 |
| 77285M | No. 1 fuel pipe clamp | 90959-T1007 |
| 77286D | No. 2 fuel pipe clamp | 77286-0K090 |
| 77286F | No. 2 fuel pipe clamp | 77286-42060 |
| 77286H | No. 3 fuel pipe clamp | 77286-0K100 |
| 77286J | No. 4 fuel pipe clamp | 77286-0K130 |
| 77286L | No. 5 fuel pipe clamp | 77286-0K060 |
| 77286M | No. 6 fuel pipe clamp | 77286-0K080 |
| 77286N | No. 7 fuel pipe clamp | 90959-T1003 |
| 77286P | No. 8 fuel pipe clamp | 90959-T1004 |
| 77286Q | No. 9 fuel pipe clamp | 90959-T1005 |
| 77289B | No. 3 fuel pipe clamp | 77289-0K010 |
| 77289D | No. 5 fuel pipe clamp | 77299-48020 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-0K010 · 77290-0K020 · 77290-0K030 |
| 77297 | fuel line connector | 77297-0K010 |
| 77299A | No. 5 fuel pipe clamp | 77299-48020 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-0K010 · 77306-0K030 |
| 77310A | Fuel tank cap assembly | 77300-52030 |
| 77310C | Fuel tank cap assembly | 77310-12170 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77316C | fuel tank cap gasket | 77316-75020 |
| 77321 | Fuel inlet connector | 77321-0K010 |
| 77323 | Fuel tank inlet connector No. 2 gasket | 77323-0K010 |
| 77329 | fuel tank cover | 77329-02020 · 77329-0K010 |
| 77366 | Fuel filler cap hinge spring | 77360-0K030 |
| 77377 | Fuel filler cap lock retainer | 77377-0K010 |
| 77397 | Fuel inlet pipe sealing plate | 77397-0K010 |
| 77501T | Fuel tank bracket sub-assembly | 77501-0K030 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-0K010 · 77601-0K020 · 77601-0K040 · 77601-0K080 · 77601-0K090 · 77601-0K100 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-0K010 · 77602-0K020 · 77602-0K040 · 77602-0K070 · 77602-0K080 · 77602-0K090 |
| 77603B | No. 2 fuel tank right side band sub-assembly | 77603-0K030 · 77603-0K060 |
| 77604B | No. 2 fuel tank left side band sub-assembly | 77603-0K060 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-0K020 |
| 77606B | Fuel tank protective shell side fixing bracket | 77621-0K010 · 77621-0K020 · 77622-0K010 · 77622-0K020 |
| 77608 | No. 2 fuel tank strap sub-assembly | 77601-0K150 |
| 77611A | Pin (for fuel tank strap) | 77653-0K041 |
| 77612B | No. 2 fuel tank strap | 7760A-0K010 |
| 77613C | No. 3 fuel tank strap | 7760A-0K010 |
| 77617B | Fuel tank valve rear cover | 77617-0K050 |
| 77641A | No. 1 fuel tank protective shell | 77641-0K050 · 77641-0K090 · 77641-0K150 |
| 77642A | No. 2 fuel tank protective shell | 77641-0K100 |
| 77644 | fuel tank bolt | 77644-35030 |
| 77652 | No. 1 fuel tank liner | 77652-0K010 · 77652-0K020 · 77652-0K030 |
| 77652A | No. 2 fuel tank liner | 77652-0K040 |
| 77681 | Fuel tank right side strap seat | 77681-0K050 |
| 77681A | Fuel tank strap seat | 77681-0K040 · 77681-0K070 |
| 77682 | Fuel tank left side strap seat | 77682-0K010 · 77682-0K020 · 77682-0K040 |
| 77683 | No. 3 fuel tank strap seat | 77683-0K010 |
| 77697 | No. 1 fuel tank insulation pad | 77697-0K010 · 77697-0K020 |
| 77701T | Check valve (for main fuel tank) | 90917-10094 |
| 77710B | Fuel tank solenoid valve main valve assembly | 77710-0K010 |
| 77716 | Fuel solenoid valve main bracket | 77716-71010 |
| 77740 | Carbon canister assembly | 77704-0K010 |
| 77751 | Carbon canister base bracket | 77751-0K010 · 77751-0K040 |
| 77754 | No. 1 carbon canister outlet hose | 77754-0K010 |
| 77775 | Carbon canister outlet duct | 77775-0K010 |
| 77785 | fuel pump wiring harness | 77785-0K010 · 77785-0K011 |
