Toyota HILUX seat belt — Figure 7152

Toyota HILUX EPC diagram 7152, seat belt, with 8 images and 4 PNC and OE references.

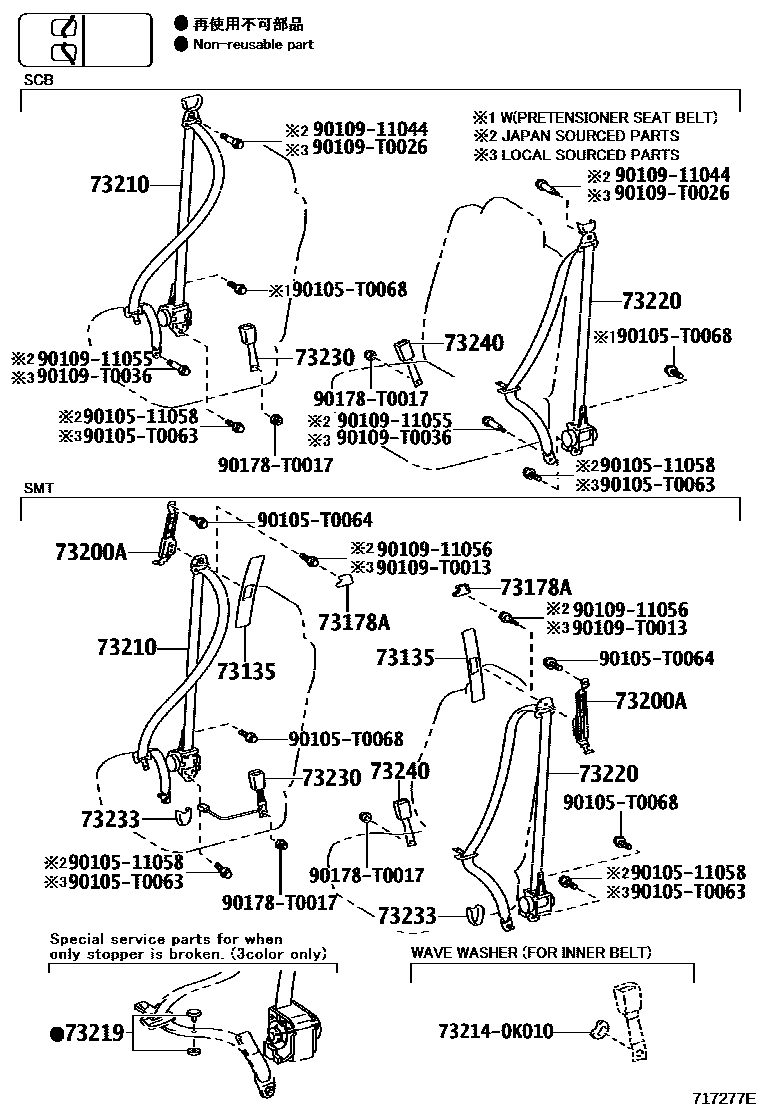

Toyota HILUX seat belt EPC diagram — 717277E
seat belt — 717277E (201107 – 999999)

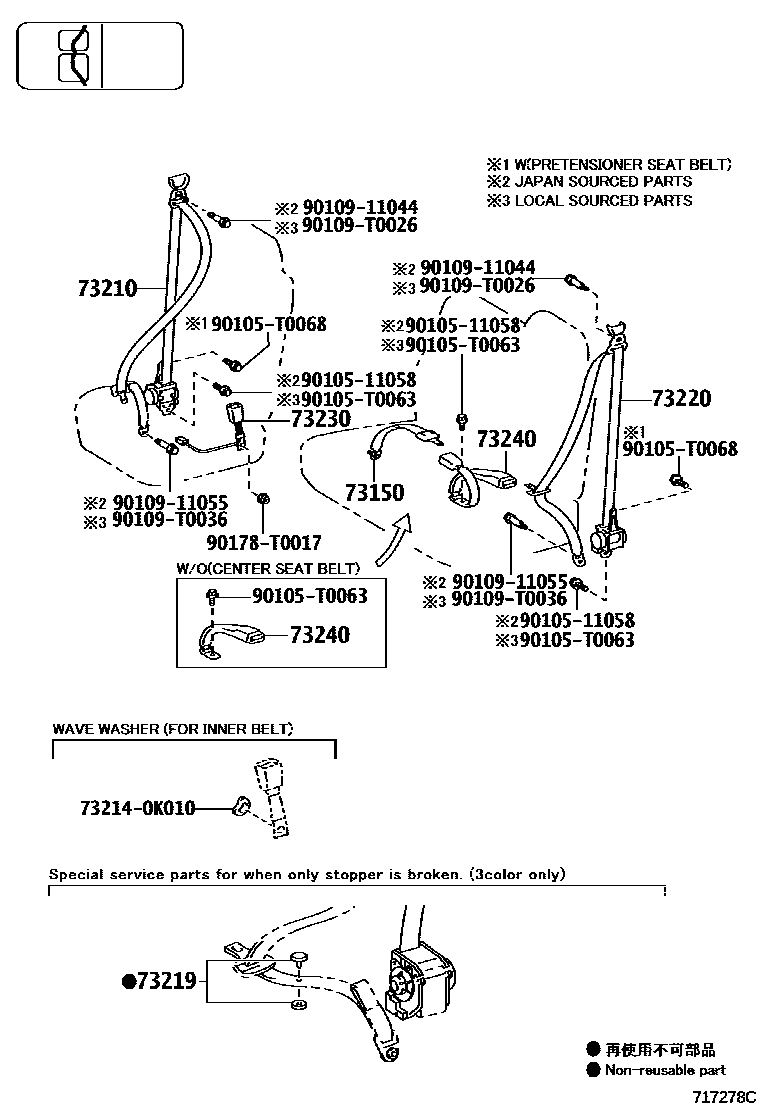

Toyota HILUX seat belt EPC diagram — 717278C
seat belt — 717278C (201107 – 999999)

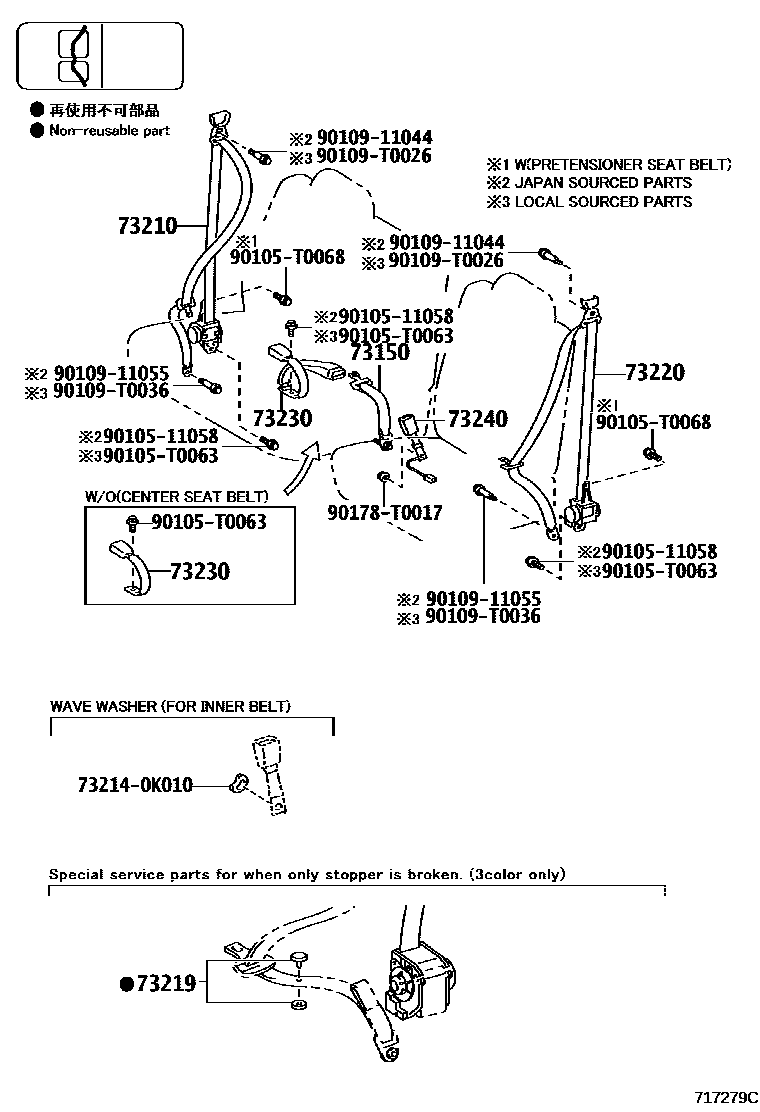

Toyota HILUX seat belt EPC diagram — 717279C
seat belt — 717279C (201107 – 999999)

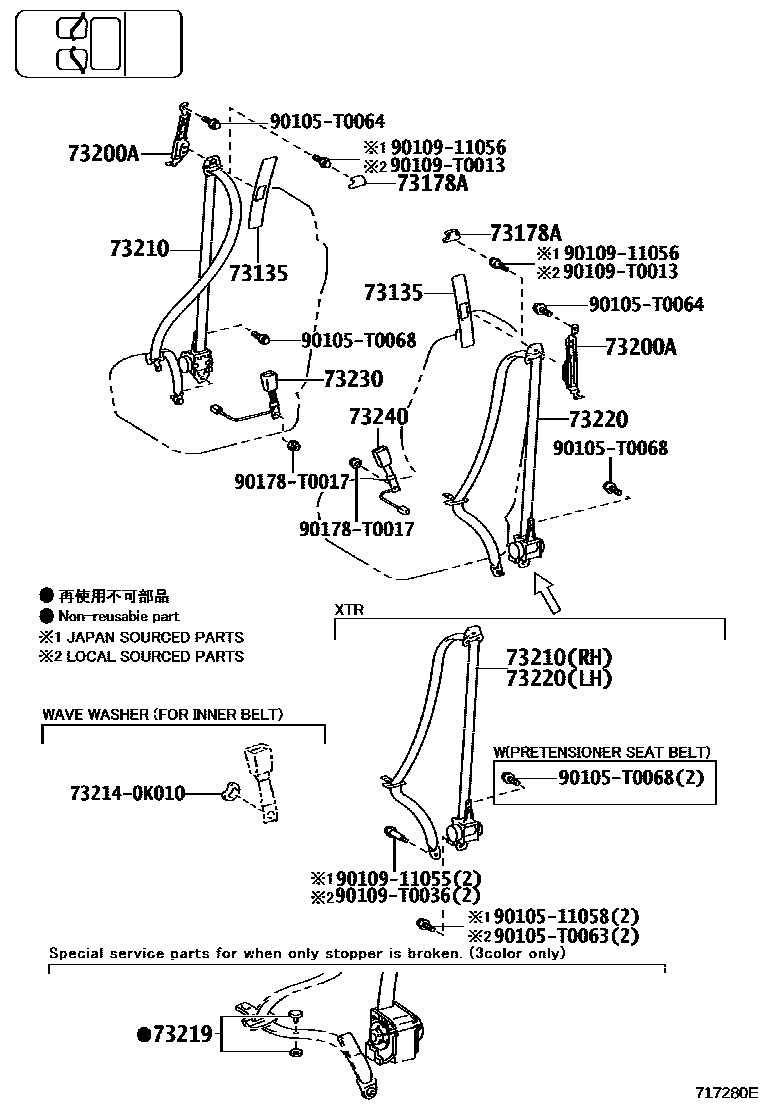

Toyota HILUX seat belt EPC diagram — 717280E
seat belt — 717280E (201107 – 999999)

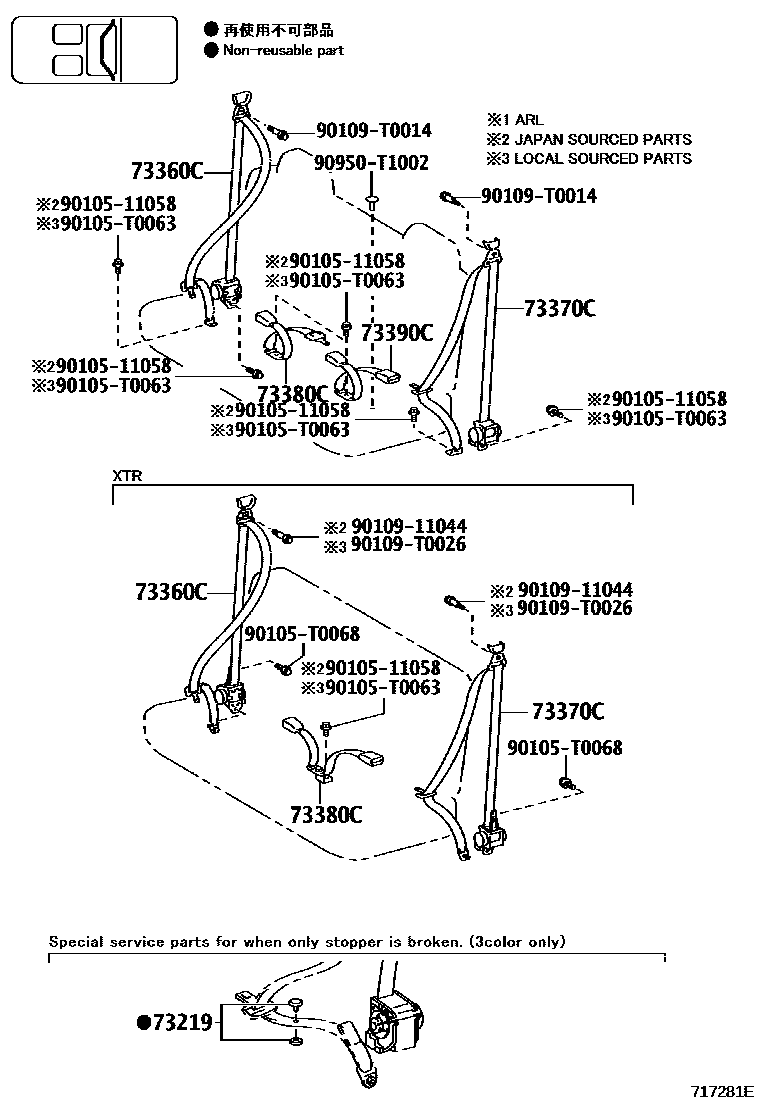

Toyota HILUX seat belt EPC diagram — 717281E
seat belt — 717281E (201107 – 999999)

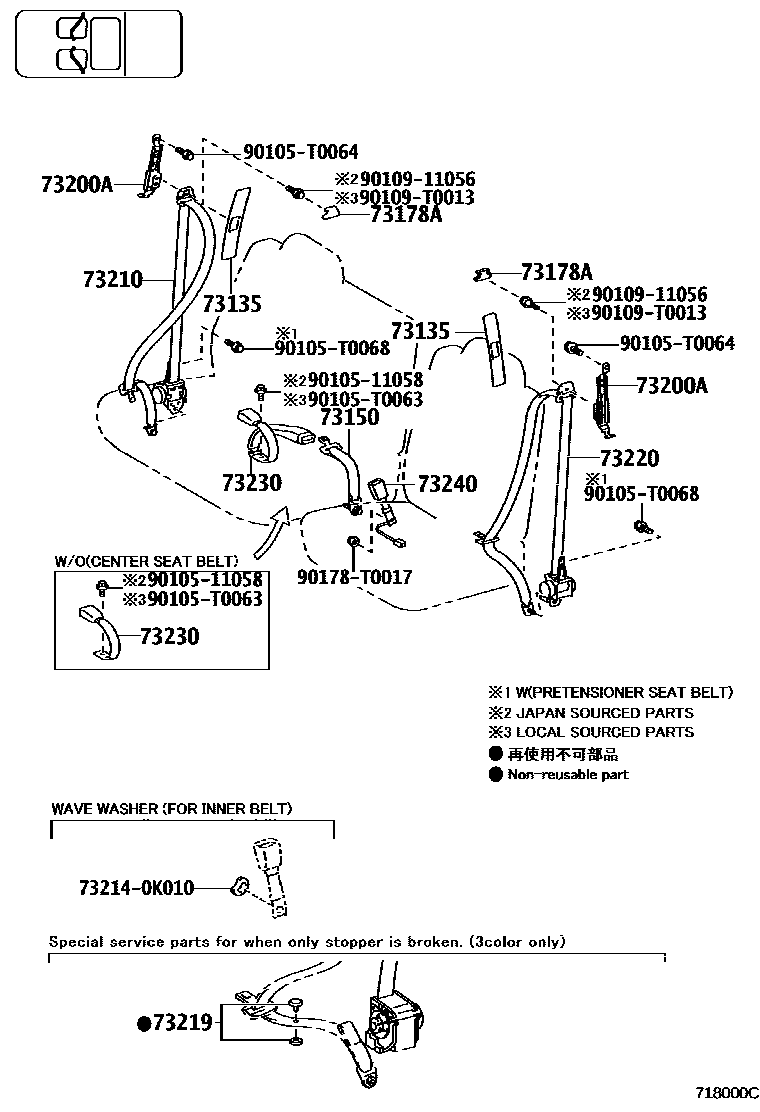

Toyota HILUX seat belt EPC diagram — 718000C
seat belt — 718000C (201107 – 999999)

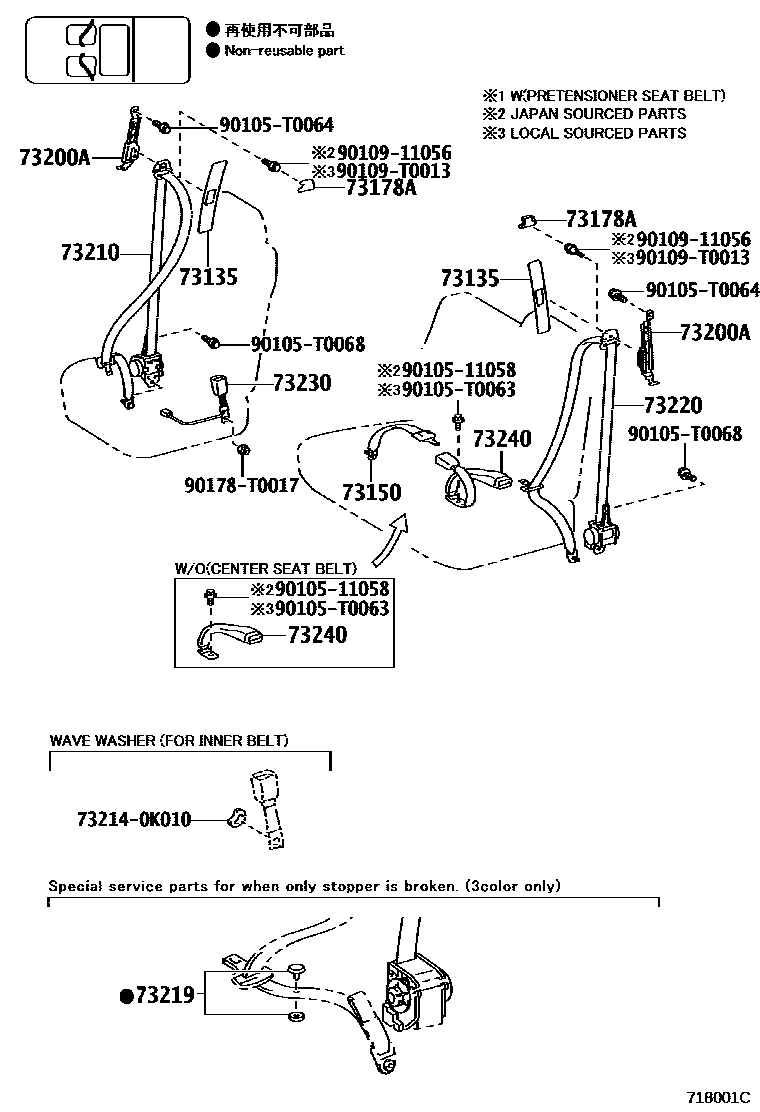

Toyota HILUX seat belt EPC diagram — 718001C
seat belt — 718001C (201107 – 999999)

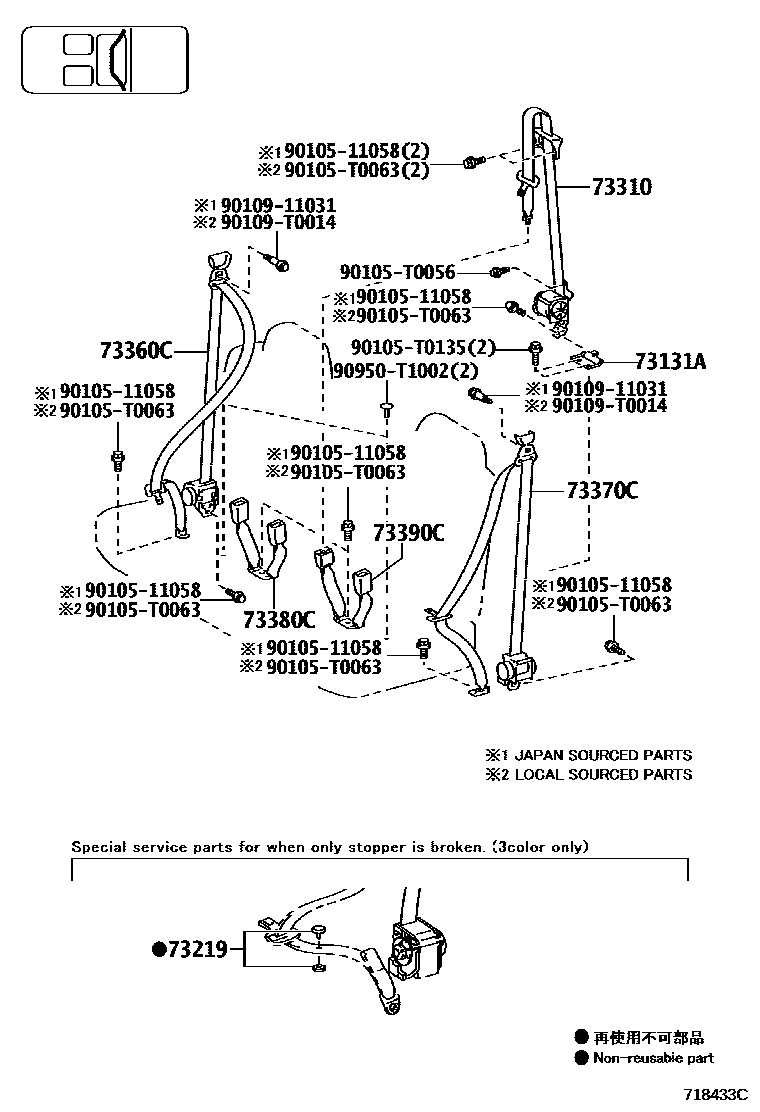

Toyota HILUX seat belt EPC diagram — 718433C
seat belt — 718433C (201308 – 999999)

PNC and OE references

PNCPart nameOE numbers
73131Aseat belt bracket73131-0K040
73219Tongue plate stop73219-33010 · 73219-33020 · 73219-33030
73230Front right seat inner seat belt assembly73230-0K010
73240Front left seat inner seat belt assembly73230-0K010 · 73240-0K011
