Toyota HILUX 侧梁 — Figure 6151

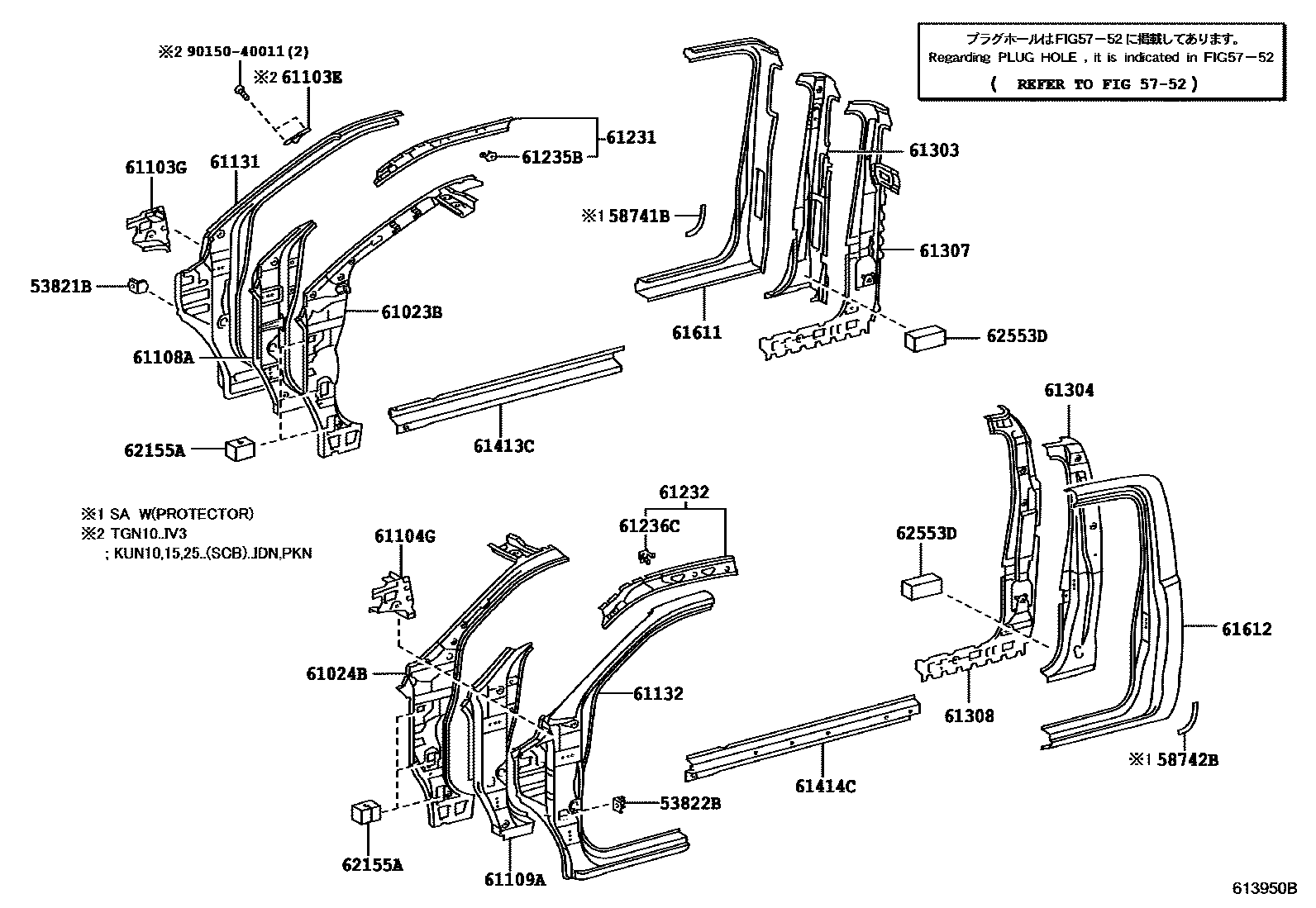

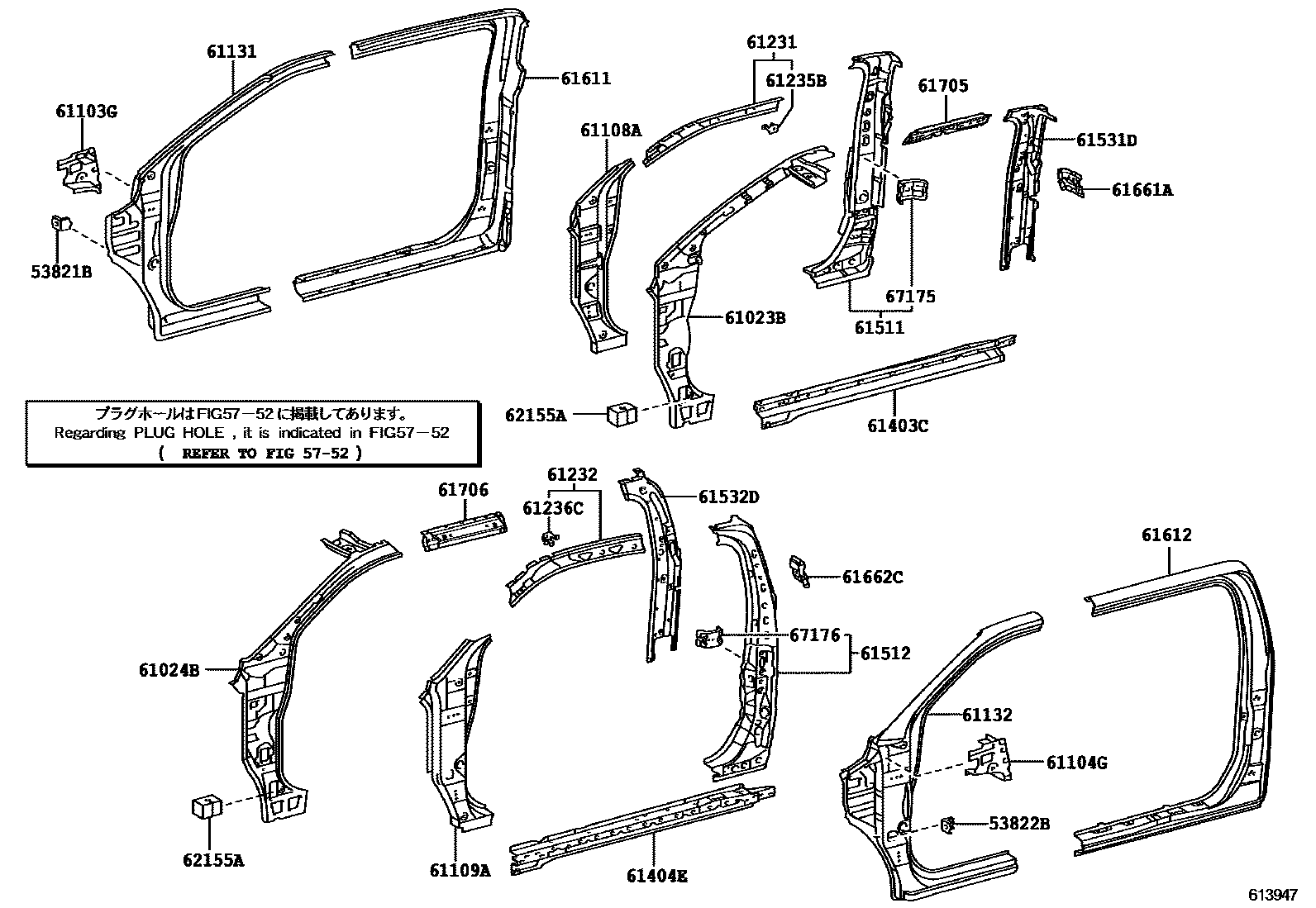

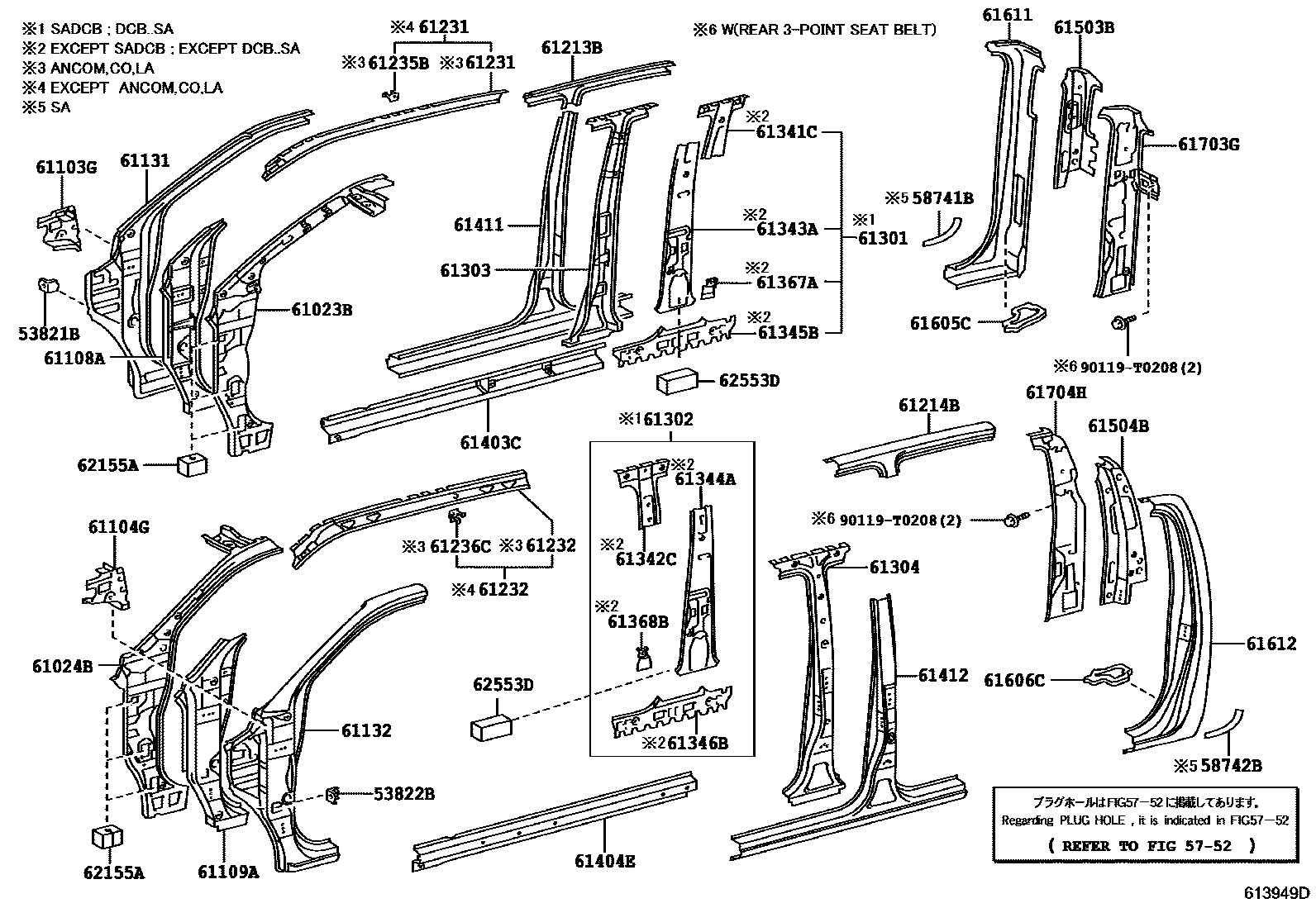

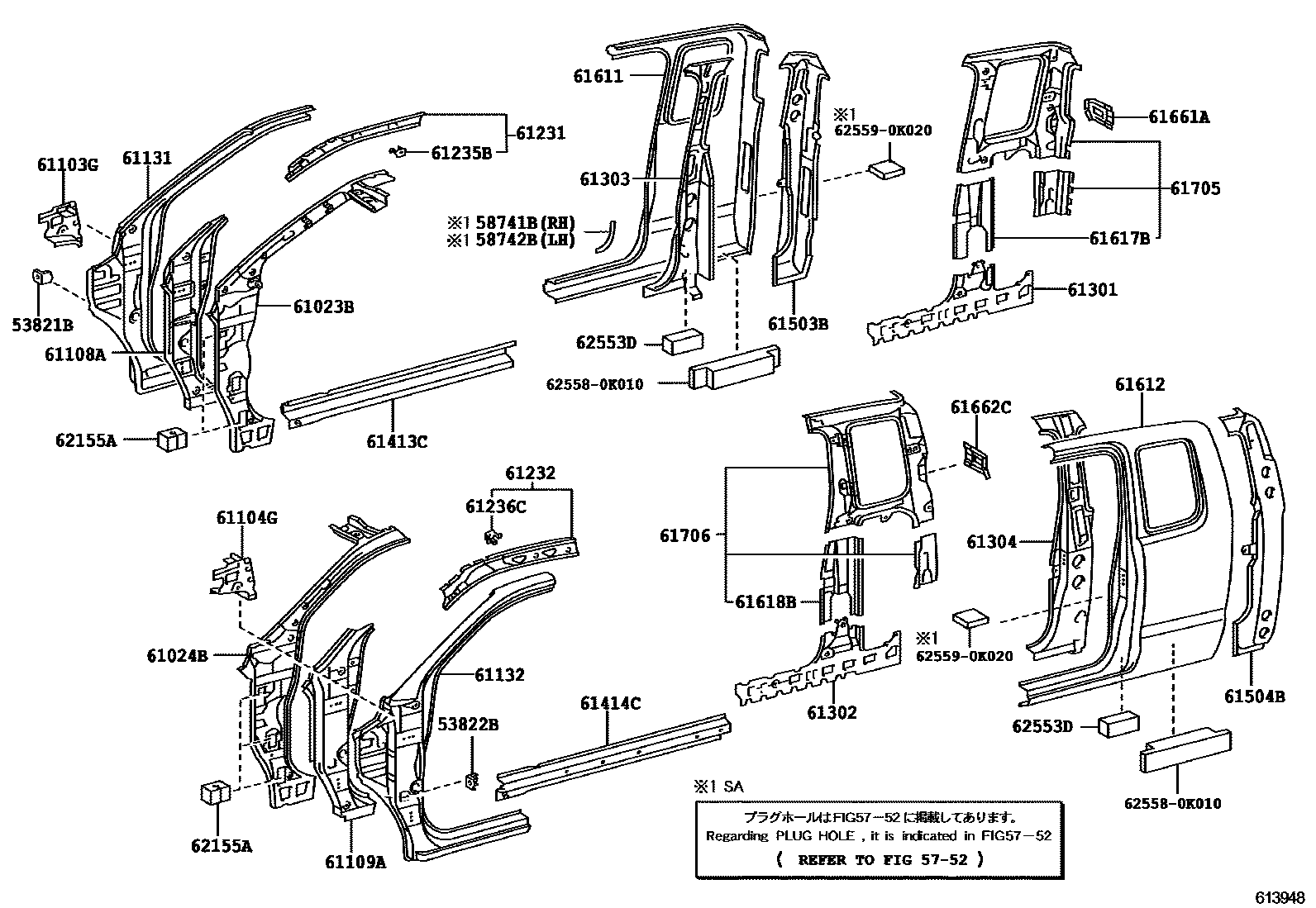

Toyota HILUX EPC diagram 6151, 侧梁, with 4 images and 61 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-16010 |
| 53822B | Left front fender rear support | 53821-16010 |
| 58741B | Right side enclosure protection panel | 58741-0K050 · 58741-0K060 |
| 58742B | Left side enclosure protection panel | 58742-0K040 · 58742-0K050 |
| 61023B | Right body inner front pillar sub-assembly | 61023-0K022 · 61023-0K081 · 61023-0K091 |
| 61024B | Left body inner front pillar sub-assembly | 61024-0K022 · 61024-0K092 · 61024-0K102 |
| 61103E | Right front pillar trim | 86392-0K010 |
| 61103G | Right body front pillar lower corner panel sub-assembly | 61103-0K010 |
| 61104G | Left side body front pillar lower corner panel sub-assembly | 61104-0K010 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-0K010 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-0K010 |
| 61131 | Right body outer front upper pillar | 61131-0K020 · 61131-0K030 · 61131-0K040 · 61131-0K130 |
| 61132 | Left body outer front upper pillar | 61132-0K010 · 61132-0K030 · 61132-0K040 · 61132-0K100 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-0K010 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-0K010 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61210-0K021 · 61210-0K050 · 61231-0K011 · 61231-0K903 |
| 61232 | Roof left inner longitudinal beam | 61220-0K021 · 61220-0K060 · 61232-0K012 · 61232-0K904 |
| 61235B | Auxiliary handle bracket | 61235-0K010 |
| 61236C | Auxiliary handle bracket | 61235-0K010 |
| 61301 | Right body center pillar sub-assembly | 61301-0K071 · 61301-0K904 |
| 61302 | Left body center pillar sub-assembly | 61302-0K071 · 61302-0K904 |
| 61303 | Right body center pillar reinforcement sub-assembly | 61303-0K010 · 61303-0K020 · 61303-0K031 · 61303-0K060 |
| 61304 | Left body center pillar reinforcement sub-assembly | 61304-0K010 · 61304-0K020 · 61304-0K031 · 61304-0K060 |
| 61307 | Right body inner center pillar sub-assembly | 61307-0K021 · 61307-0K040 |
| 61308 | Left body inner center pillar sub-assembly | 61308-0K021 · 61308-0K040 |
| 61341C | Right inner middle pillar | 61341-0K040 |
| 61342C | Left side inner center pillar | 61342-0K040 |
| 61343A | Right body inner center pillar | 61343-0K012 · 61343-0K041 |
| 61344A | Left body inner center pillar | 61344-0K012 · 61344-0K041 |
| 61345B | Right body inner middle and lower pillar | 61345-0K010 |
| 61346B | Left side inner middle and lower pillar | 61346-0K010 |
| 61367A | Right seat belt anchor to center pillar lower reinforcement | 61367-0K010 |
| 61368B | Left seat belt anchor to center pillar lower reinforcement | 61368-0K010 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-0K010 · 61403-0K050 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-0K010 · 61404-0K020 |
| 61411 | Right door outer sill panel | 61411-0K010 |
| 61412 | Left door outer sill panel | 61412-0K010 |
| 61413C | Right side door sill panel No. 2 reinforcement | 61413-0K020 |
| 61414C | Left side door sill panel No. 2 reinforcement | 61414-0K030 |
| 61503B | Right side locking column reinforcement sub-assembly | 61503-0K010 · 61503-0K022 · 61503-0K070 |
| 61504B | Left side locking column reinforcement sub-assembly | 61504-0K010 · 61504-0K022 · 61504-0K070 |
| 61511 | Right side locking post | 61501-0K010 |
| 61512 | Left side locking post | 61502-0K010 |
| 61531D | Right inner rear pillar panel of cab | 61531-0K030 |
| 61532D | Cab left inner rear pillar panel | 61532-0K030 |
| 61605C | Right rear side panel inner panel sub-assembly | 61567-0K010 |
| 61606C | Left rear side panel inner panel sub-assembly | 61568-0K010 |
| 61611 | Right side hoarding | 61611-0K010 · 61611-0K020 · 61611-0K030 · 61611-0K070 |
| 61612 | left side panel | 61612-0K010 · 61612-0K020 · 61612-0K030 · 61612-0K070 |
| 61617B | Inner lower panel of right side enclosure | 61617-0K010 |
| 61618B | Inner lower panel of left side enclosure | 61618-0K010 |
| 61661A | Extension from right side panel to back panel | 61661-0K011 |
| 61662C | Extension from left side panel to back panel | 61662-0K011 |
| 61703G | Right side enclosure inner panel sub-assembly | 61531-0K060 · 61703-0K012 · 61703-0K111 |
| 61704H | Left side enclosure inner panel sub-assembly | 61532-0K060 · 61704-0K012 · 61704-0K151 |
| 61705 | Roof right inner panel sub-assembly | 61705-0K051 · 61705-0K071 |
| 61706 | Roof left inner panel sub-assembly | 61706-0K051 · 61706-0K070 |
| 62155A | Front and lower side muffler pads | 62155-0K010 |
| 62553D | No. 3 column pad | 62557-0K010 · 62557-0K050 · 62557-0K060 |
| 67175 | Right rear door upper hinge reinforcement | 67175-0K030 |
| 67176 | Left rear door upper hinge reinforcement | 67176-0K030 |
