Toyota HILUX 地板隔热垫 — Figure 5853

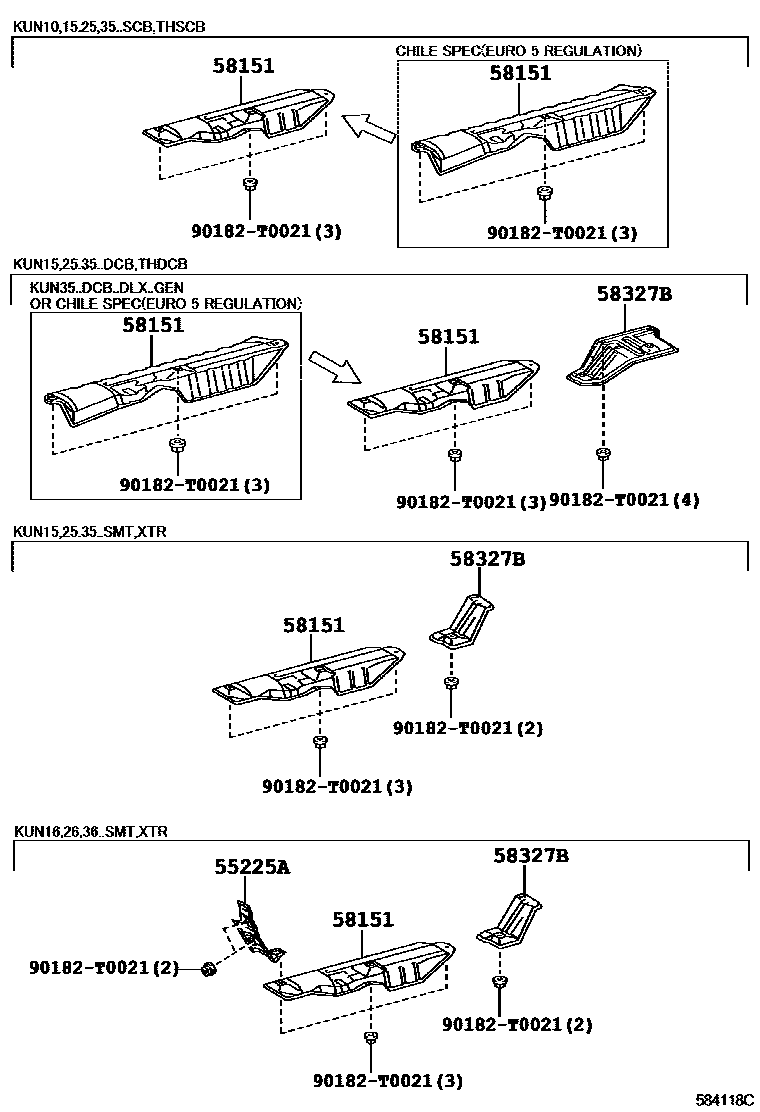

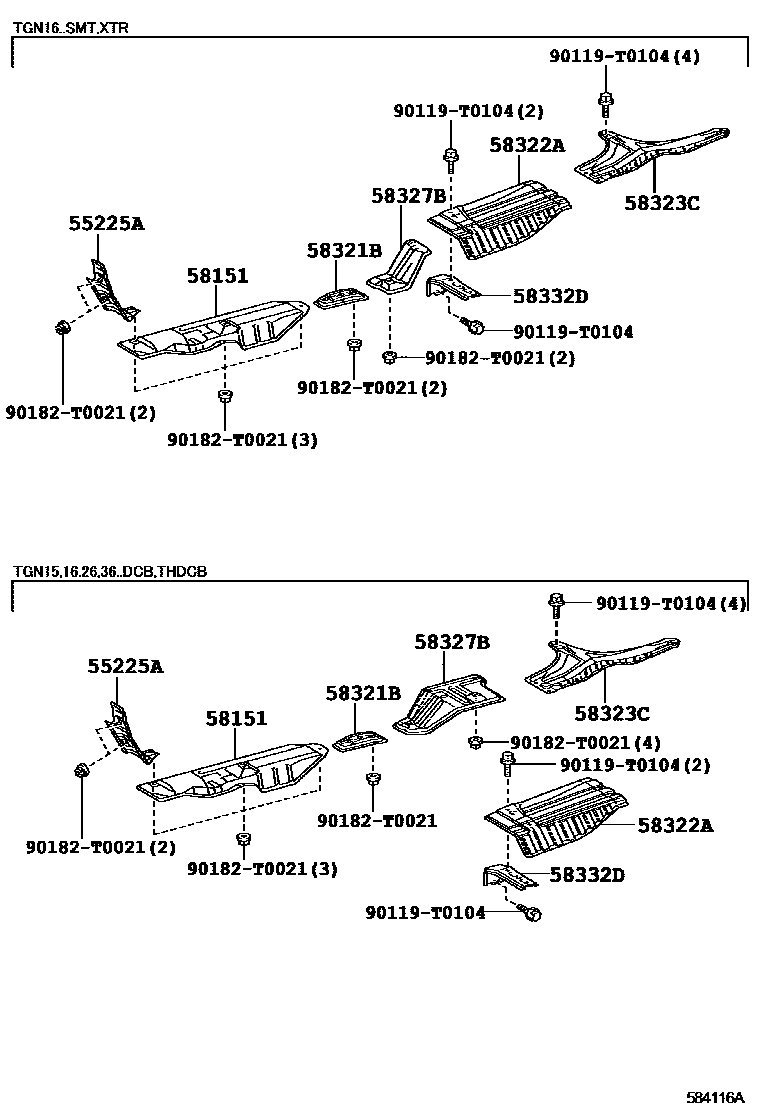

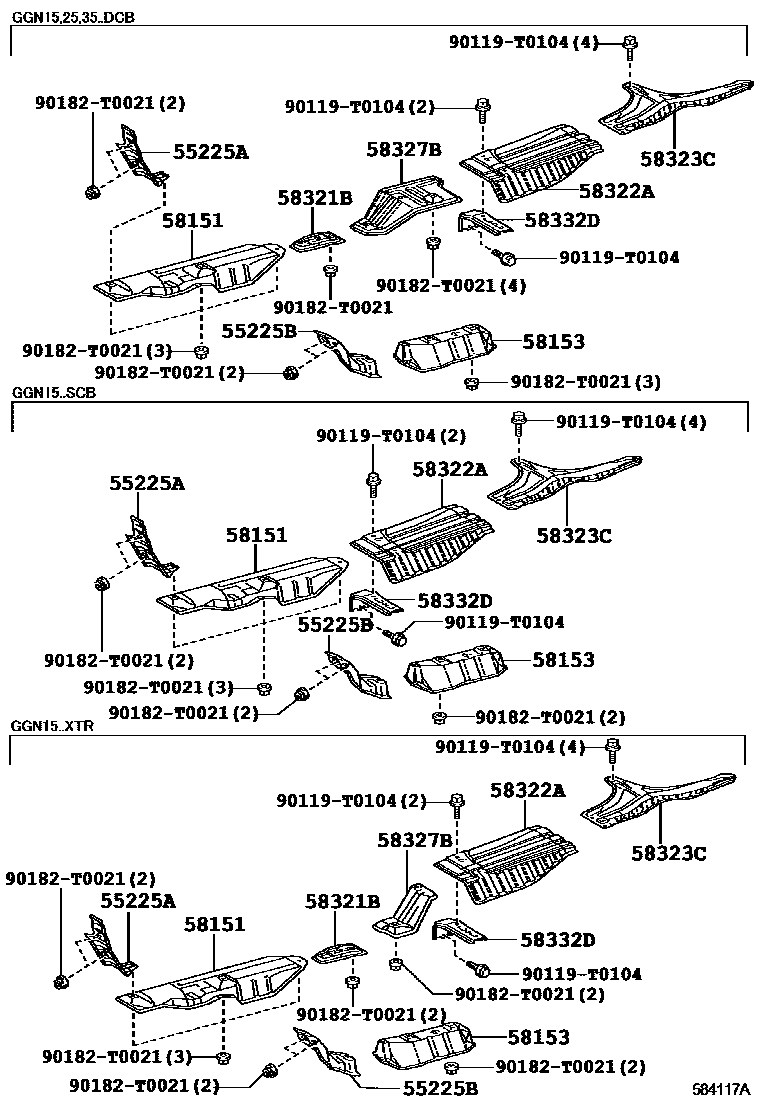

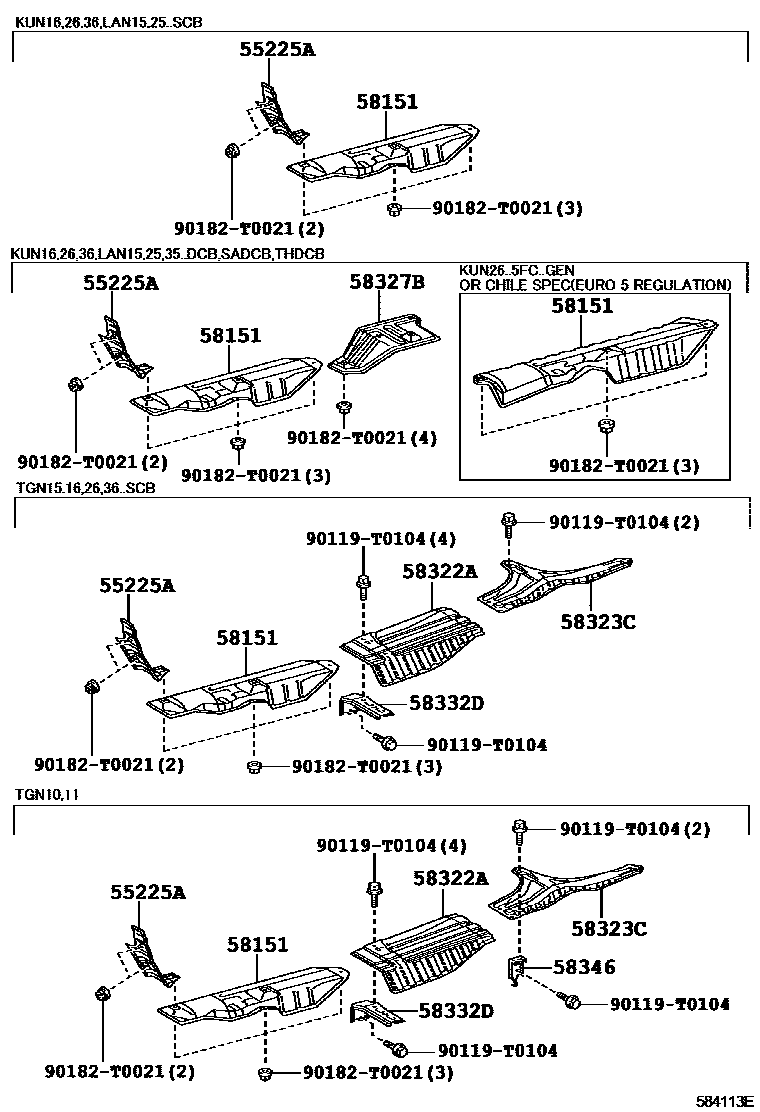

Toyota HILUX EPC diagram 5853, 地板隔热垫, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55225A | No. 1 insulation pad for front wall panel | 55225-0K010 · 55225-0K030 · 55225-0K040 |
| 55225B | Front wall insulation pad | 55225-0K020 · 55225-0K021 |
| 58151 | Front floor insulation mat No. 1 | 58151-0K010 · 58151-0K020 · 58151-0K030 · 58151-0K060 |
| 58153 | Front floor insulation mat No. 2 | 58153-0K010 · 58153-0K011 |
| 58321B | Rear Floor Insulating Mat No. 1 | 58321-0K010 · 58321-0K011 |
| 58322A | Rear floor insulation mat | 58322-0K011 · 58322-0K130 |
| 58323C | Rear floor insulation mat No. 3 | 58323-0K010 · 58323-0K060 |
| 58327B | Main muffler heat insulation pad | 58327-0K010 · 58327-0K011 · 58327-0K020 · 58327-0K021 |
| 58332D | Rear floor insulation mat No. 3 | 58332-0K010 |
| 58346 | Rear floor insulation pad bracket | 58348-0K010 |
